Advanced Sheet Metal Design Using NX Cad Challenge_2_Box Assembly

Aim: to create a box assembly in NX

Brief: Box Assembly is the culmination of multiple parts that make up the desired model. The first part is the base, which is a hollow structure and its main purpose is to serve as a surface for storing any objects according to the given use case. Another element is the lid, which is a cover that is fixed on the top of the box. This part covers the entire box to prevent unwanted particles from entering the storage area of ​​the box and nothing stored inside falls out of the box. The lid is connected or attached to the base structure at one end by means of open-loop flanges which help it to rotate about the pivot and thus provide a mechanism for easy opening and closing of the lid.

Tools used:

• Tab

•  Flange

•  Closed Corners

•  Hem Flange

•  Mirror Body

•  Unite

•  Dimple

•  Unbend

•  Rebend

•  Bead

•  Break Corner

• Normal Cutout

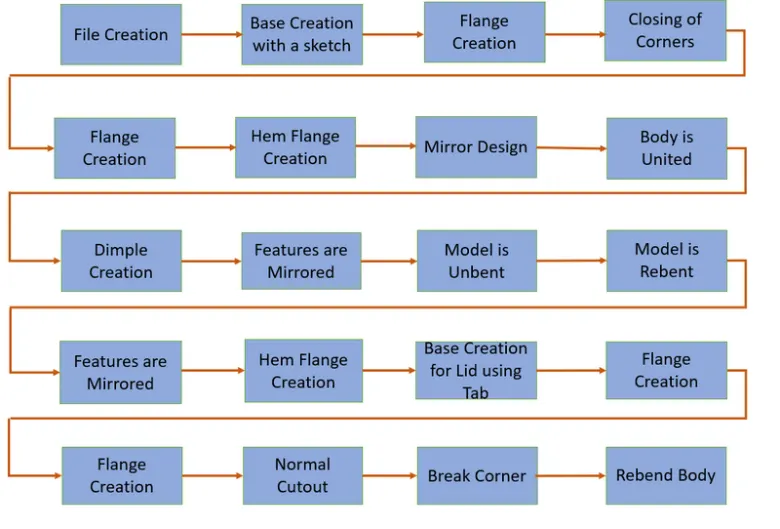

Design steps:

Images:

TOP View

Front :

Side
