Advanced Sheet Metal Design Using NX Cad Challenge_2_Box Assembly

1. Box Assembly

2. Objective:Design of battery box using NX Siemens Sheet metal

3. Introduction: NX™ software, the digital product development solution from Siemens, includes a set of state-of-the art tools for designing sheet metal components

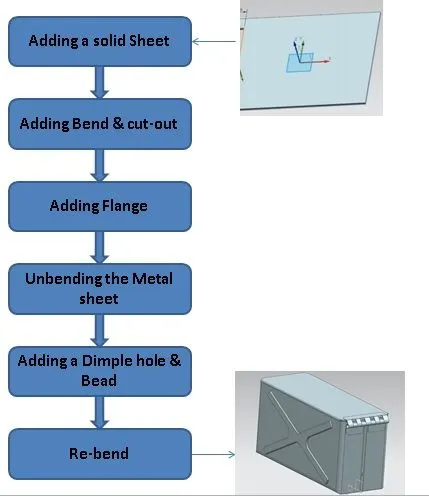

4. Design Methodology:

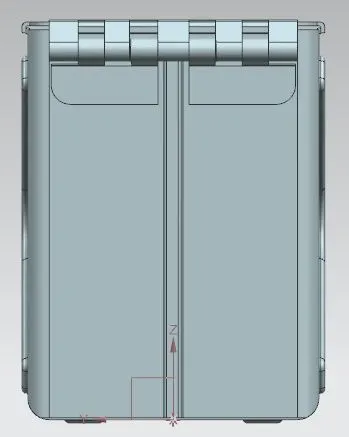

Front view

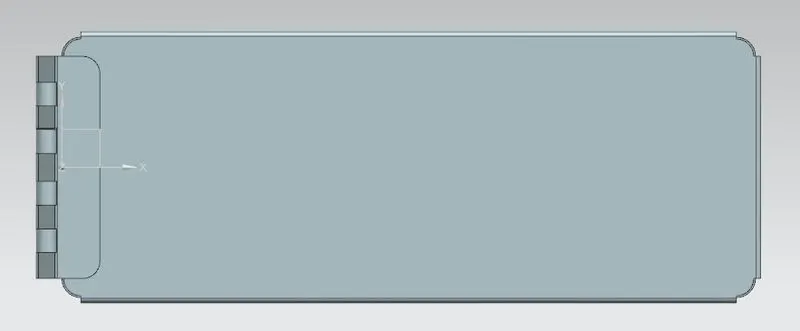

top view

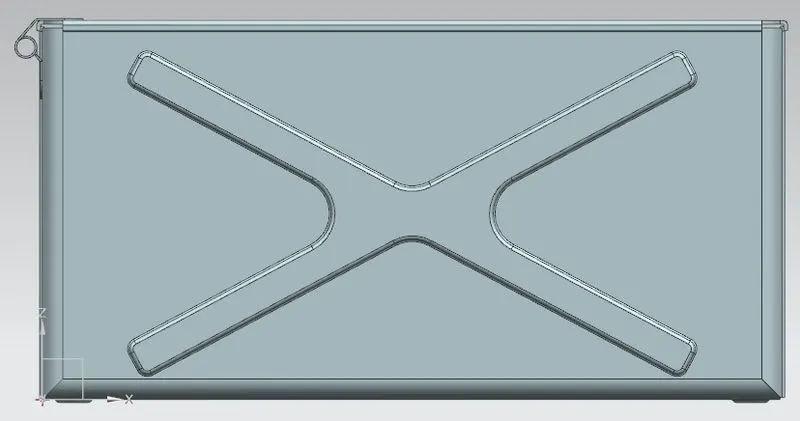

side view

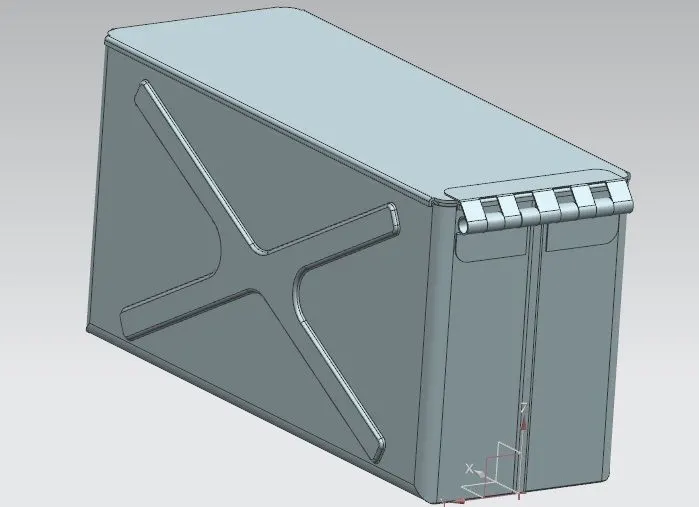

isometric view
