Advanced Sheet Metal Design Using NX Cad Challenge_1_Casing Design

Advanced Sheet Metal Design Using NX Cad Challenge 1 Casing Design

Title of the Project: Advanced Sheet Metal Design Using NX Cad Challenge 1 Casing Design

Objective: To design a Casing with the help of NX advance sheet metal.

Introduction:

Sheet metal design is a crucial aspect of many manufacturing industries, from automotive to aerospace to consumer goods. NX Sheet Metal offers a comprehensive set of tools within the NX design environment that allows designers to quickly and easily create complex sheet metal parts. The software is specifically designed to incorporate material and process information, making it ideal for use in sheet metal-specific modelling features such as bends, flanges, cutouts, beads, dimples, louvers, corner and edge treatments, patterns and other formable features.With NX Sheet Metal, users can quickly convert solid models to sheet metal components, and create sheet metal parts that enclose other components.

In addition to its powerful modelling features, NX Sheet Metal also includes productivity enhancements such as automatic bend reliefs, allowing designers to work more efficiently and effectively. Whether you're a seasoned sheet metal designer or just getting started, NX Sheet Metal is an essential tool for any design workflow.

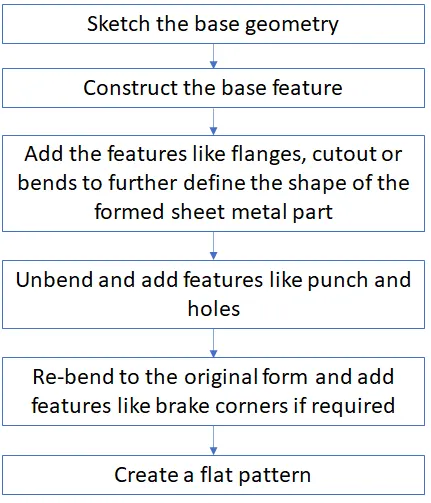

Design methodology / approach:

Description

The important tools which used during designing of Casing are as follow:

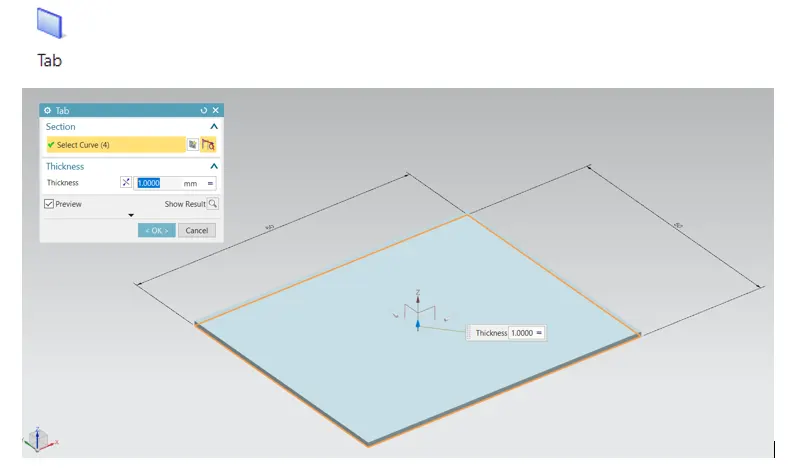

• TAB: Creates a base feature by extruding a sketch along a vector by a thickness value or adds a material to a plane face.

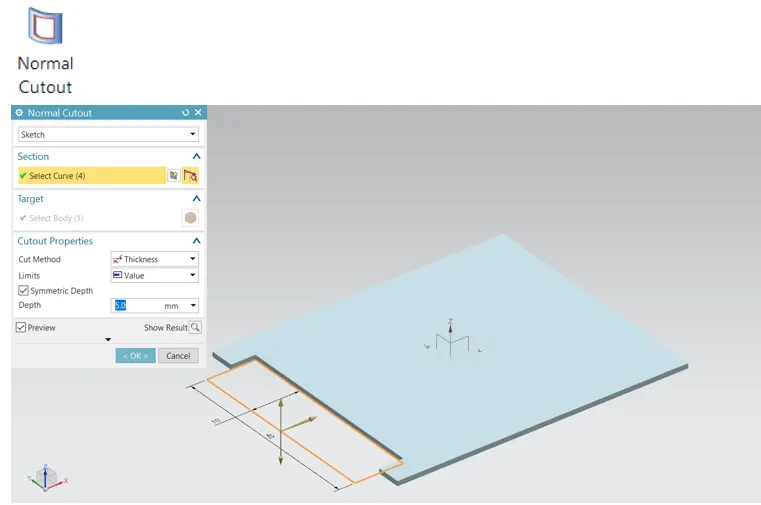

• Cutout: Cuts the model perpendicular to the sketch.

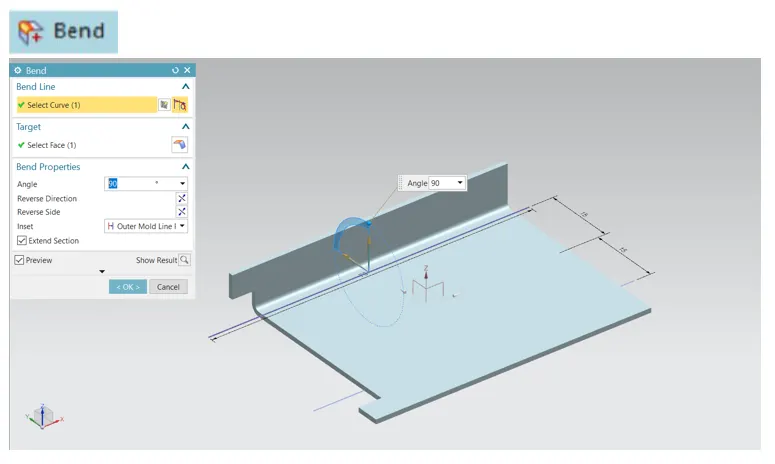

• Bend: Modifies the model by bending material on one side of a sketch line adding a bend between the two sides

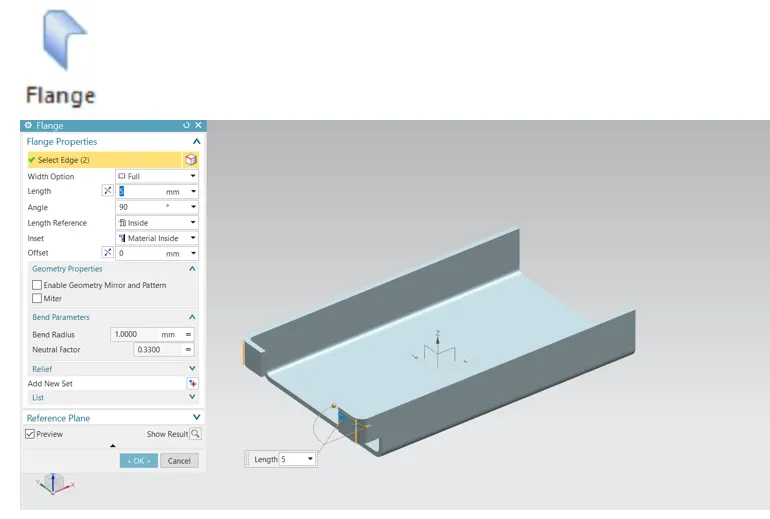

• Flange: Adds a flange to an angle to a planar face and adds a bend between the two

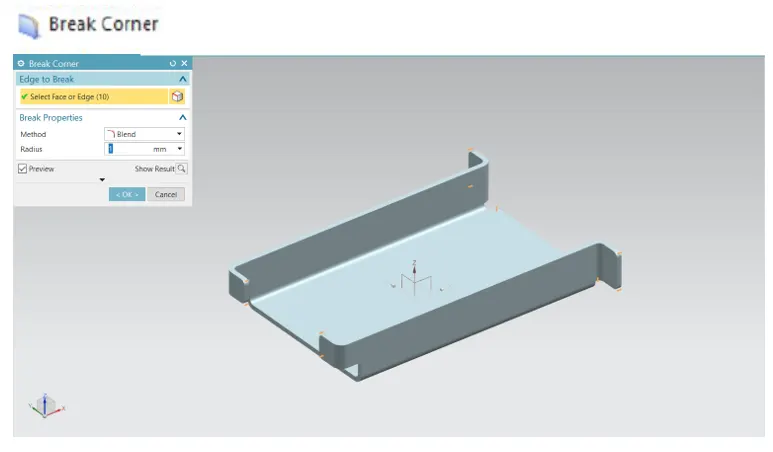

Break Corner: Rounds a sharp corner

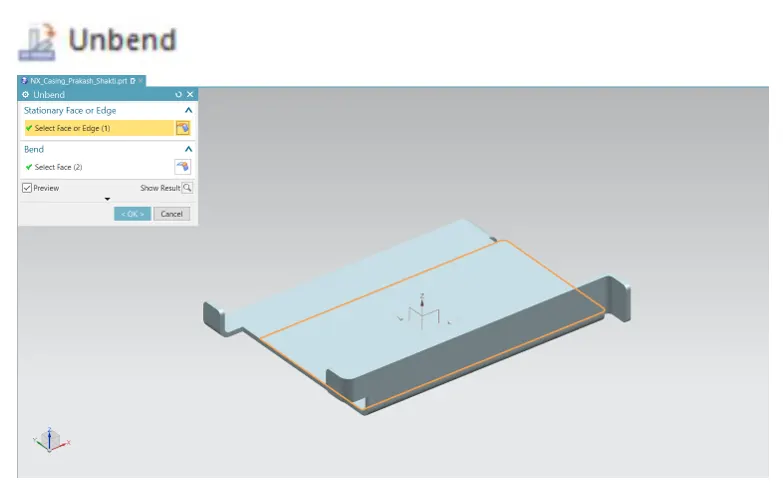

• Unbend: Flattens a bend

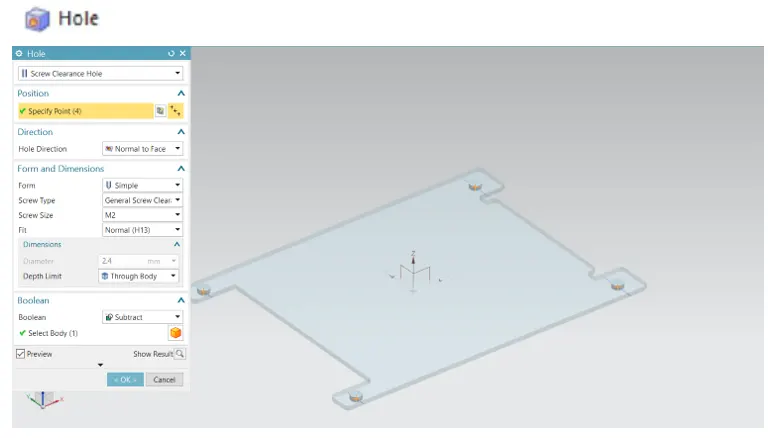

• Hole: Hole command use to create a hole on one or more solid bodies in a part or assembly with option for counterbored, countersunk, and threaded.

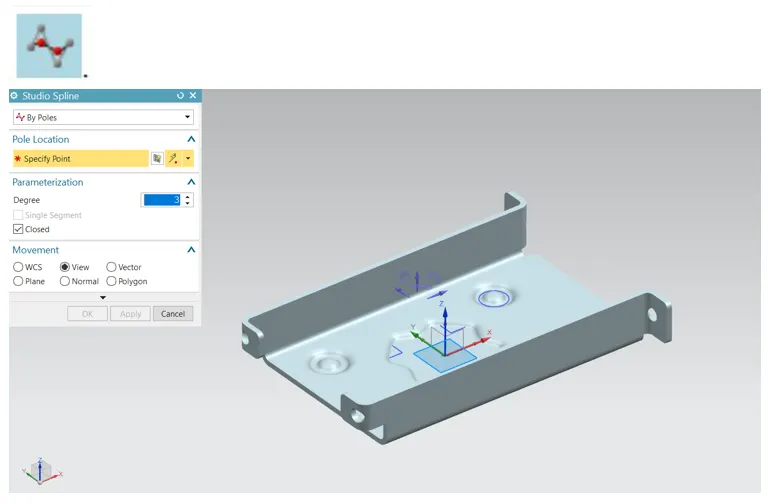

• Studio Spline: Creates spline through defined points. We can change positions of points or drag points while the command has been activated.

• Move Curve: We can move our sketch entities according to selected reference and reference points, which makes moving sketch objects is very effective.

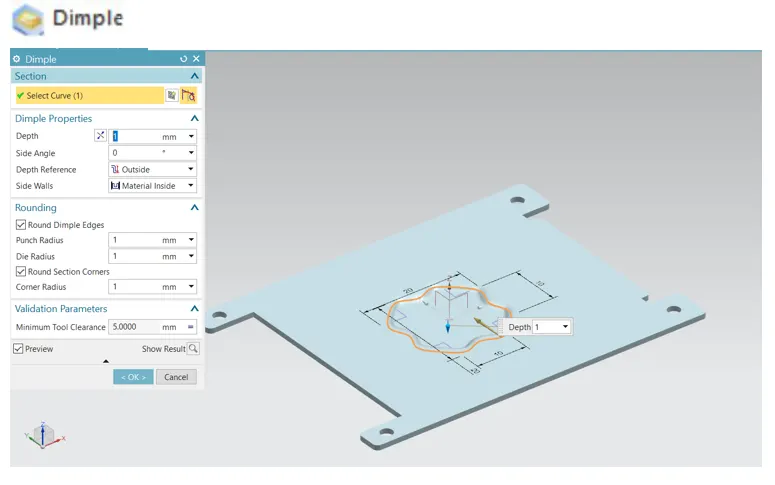

• Dimple: Lifts an area of the model inside a sketch that simulates stamping a tool.

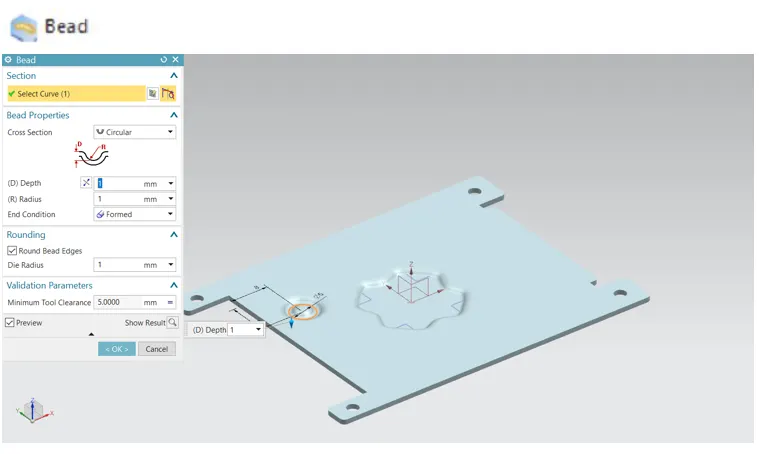

• Bead: Lifts a material along a counter of sketch that simulates stamping a tool.

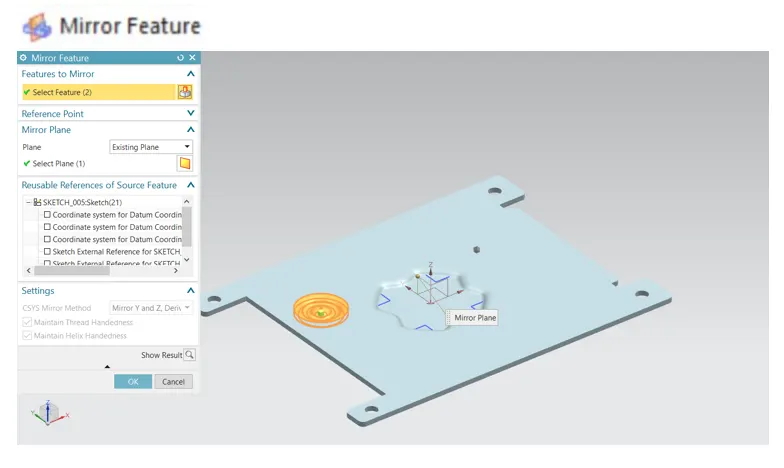

• Mirror Feature: Used to mirror w.r.t plane or reference.

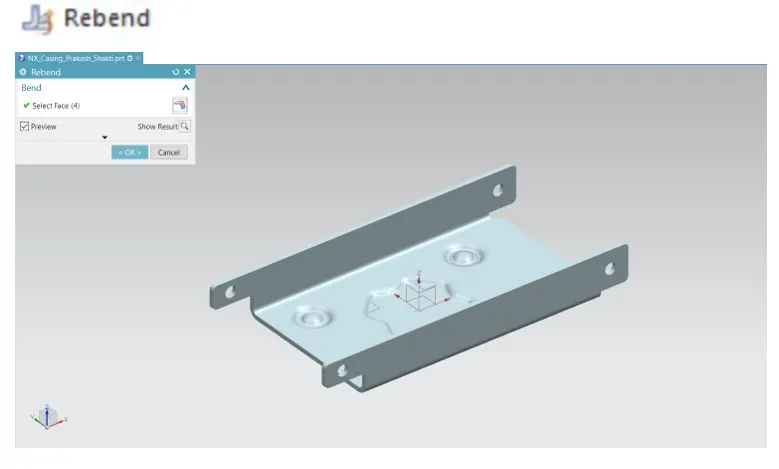

• Rebend: Restores a bend

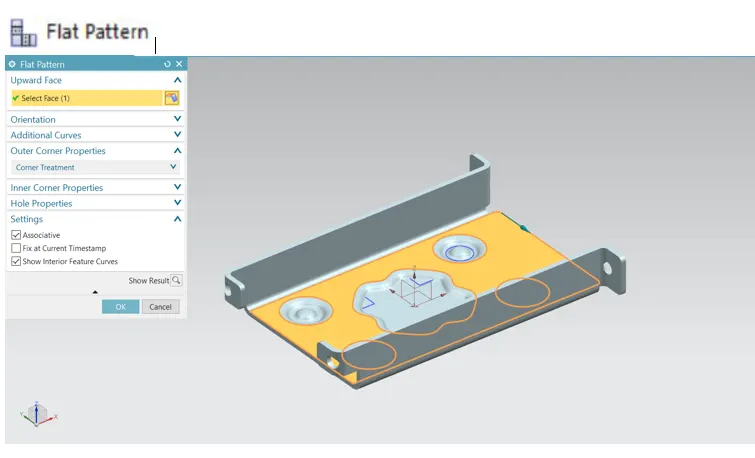

• Flat Pattern: Creates flat pattern feature from the formed sheet metal part.

• Base View: Used to create a model view on the sheet.

Screenshots of Model

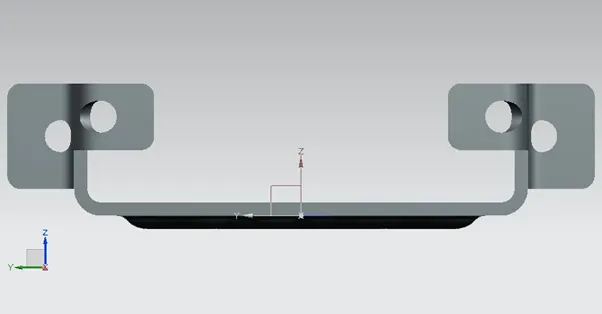

Front View

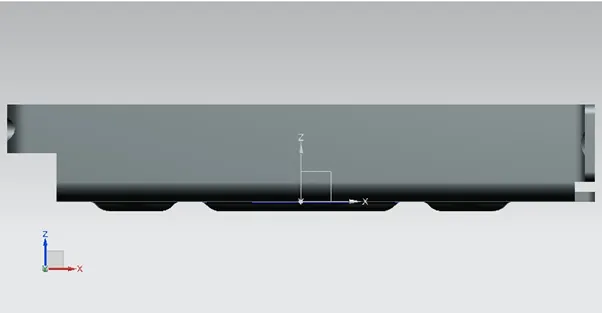

Side View

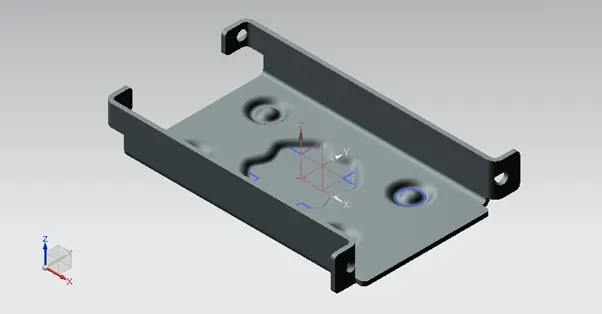

Isometric View

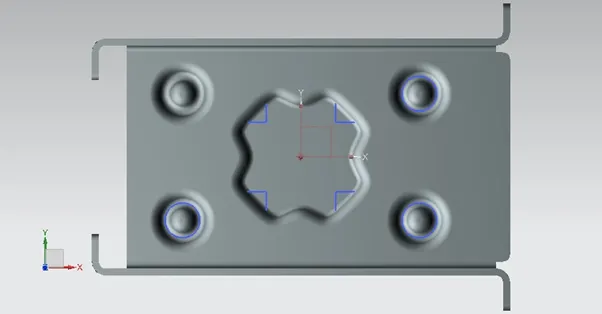

Top View

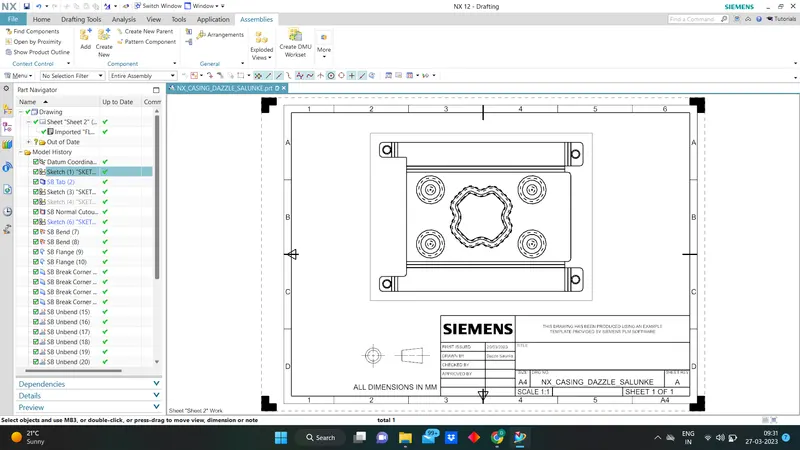

Attach Detailed Drawing Sheet Image:

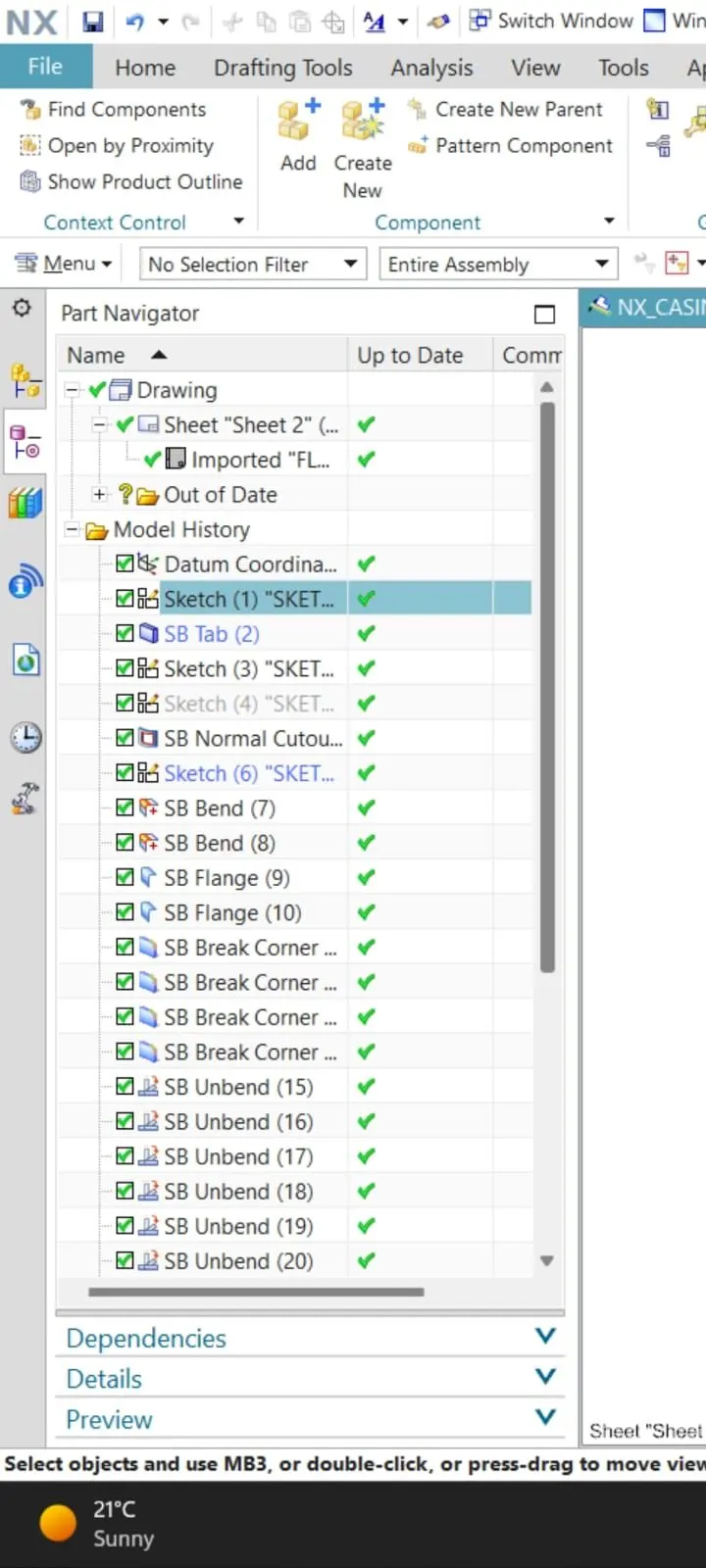

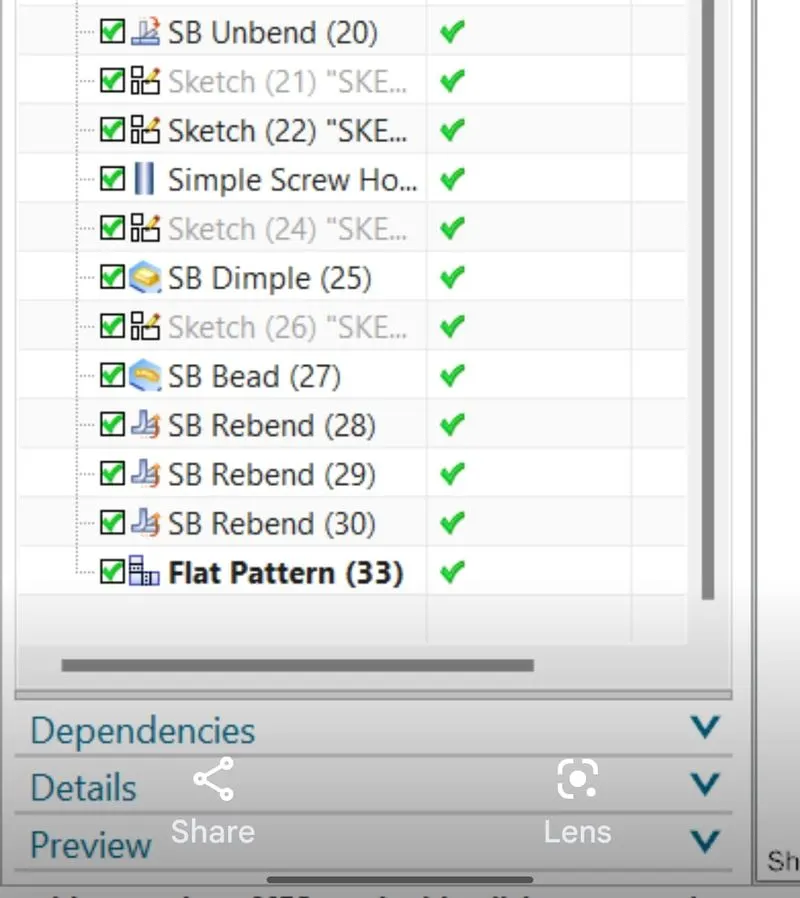

Part Navigator:

Conclusion:

Throughout the design process of the casing, I have gained valuable experience using the powerful sheet metal design tools and commands available in NX. The Flange, Dimple, Bending, and Unbending tools have allowed me to quickly and easily create complex sheet metal parts, while the Tab feature has enabled me to switch between different applications and tasks within the software.

I have also learned how to incorporate material and process information into my designs, making it easier to create sheet metal parts that are optimized for their specific manufacturing process. Additionally, the automatic bend relief feature has helped to streamline my workflow and improve productivity.

Overall, designing a casing using NX Sheet Metal has been a valuable learning experience, and I feel confident in my ability to use these tools to create complex sheet metal parts in the future. The powerful features and intuitive interface of NX make it an essential tool for any designer or engineer working in the sheet metal industry.
