Advanced Sheet Metal Design Using NX Cad Challenge_1_Casing Design

OBJECTIVES

How do we use the command in sheet metal and if any problem comes while doing the use of commands how can we solve them

INDRODUCTION

In the project we will learn the step by step procedure to design a sheet metal casing by NX cad metal

DESIGN METHODOLOGY

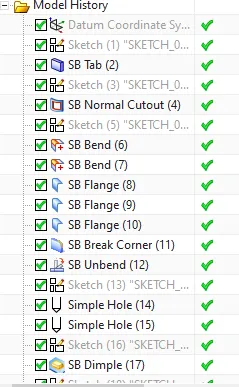

THis is the approach that show in the part navigation which command did we do first and then whichone

DESCRIPTION

to make the sheet metal casing design these comand are used

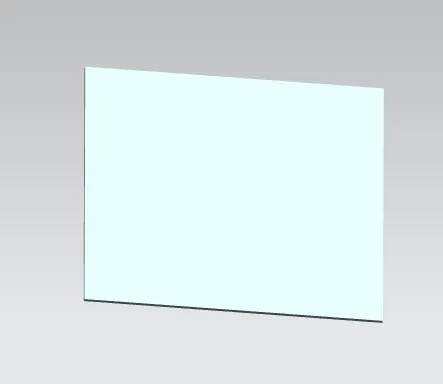

TAB: it is used to creat the base part

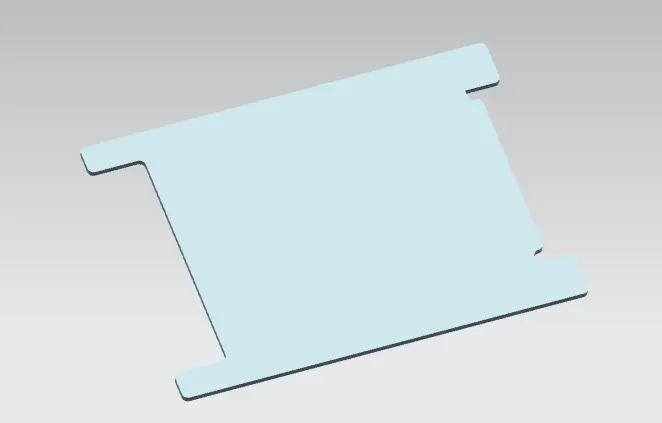

Normal cutout :this command is used to cut the sheet metal parts

Bending : this command is used to bend the sheet metals

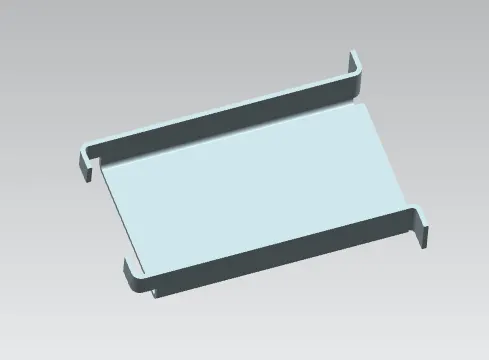

Flang :it is used to creat the flanges on any direction

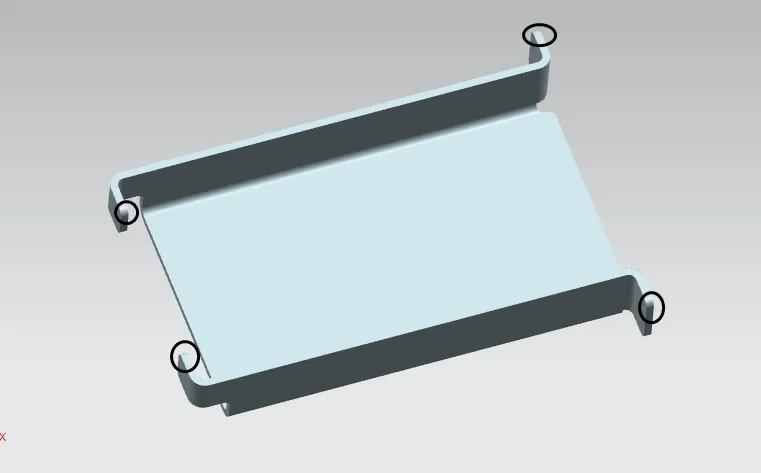

Break corners

in this method is used to blend the sharp corners

Un bending : this command is used to unblend all the parts

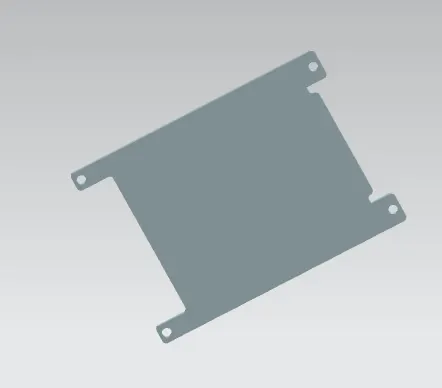

Holes : it is used for making holes

Dimple :this command is used to creat the emboss in the metal sheet

Bead : this command is similar to the dimple command

REBEND : This is used to fold the sheet metal parts again

Model report

DRAWING

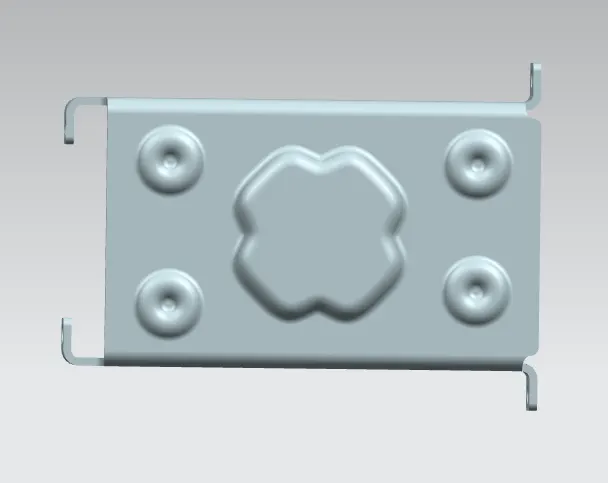

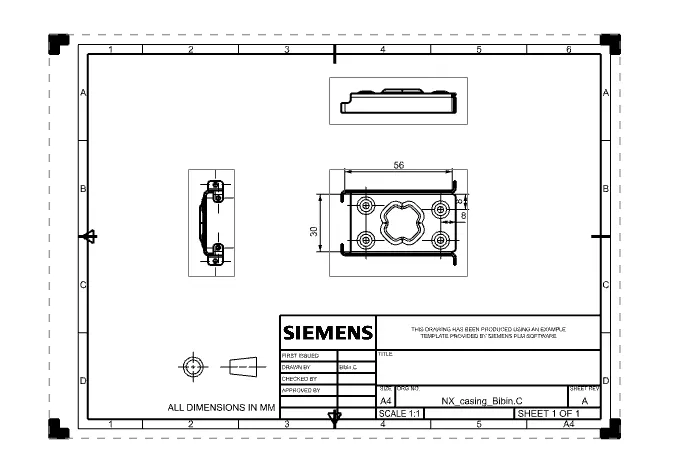

the final drawing out put
