Adams Assignments – Problem 4 – Steering geometry 2

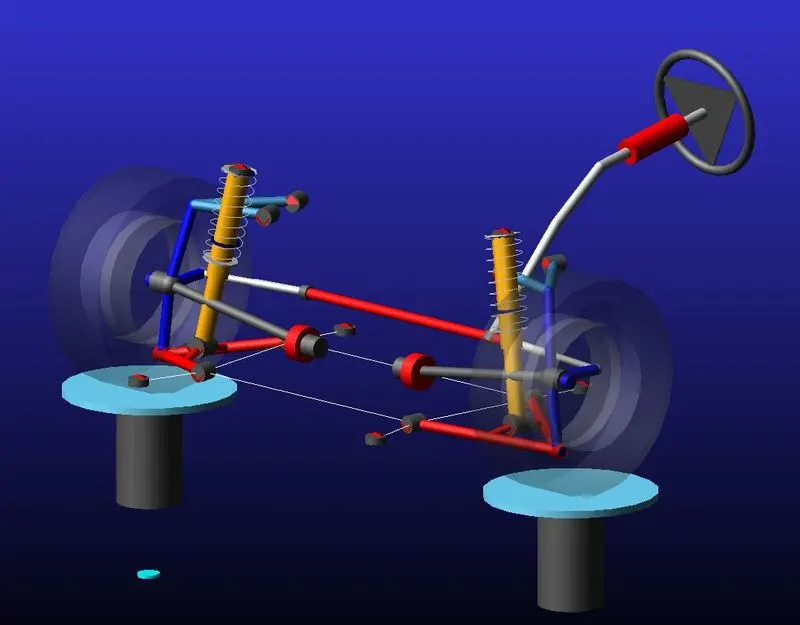

1) Open SLA Front suspension

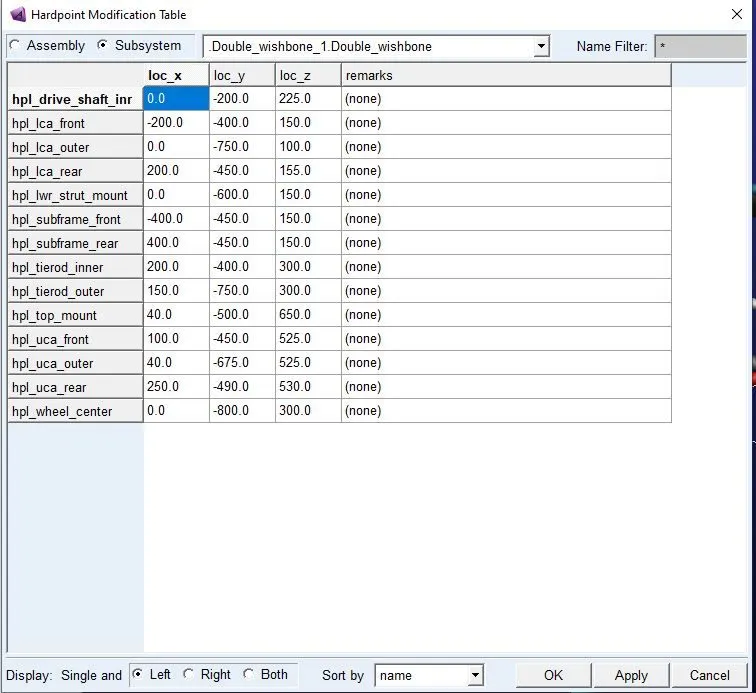

2) Default Hard points

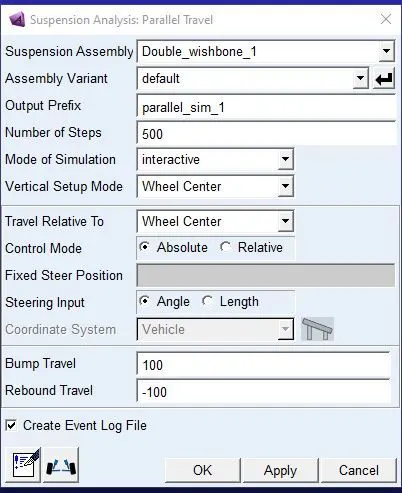

3) Run parallel wheel travel simulation

4) Postprocessor result for default hard point

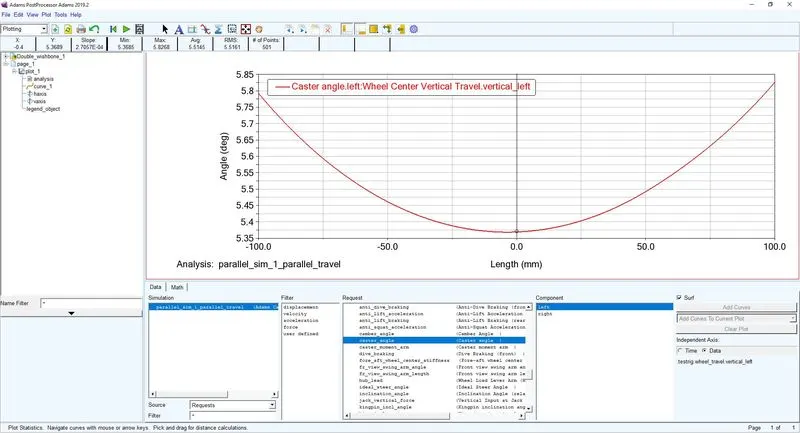

a) Caster angle :-

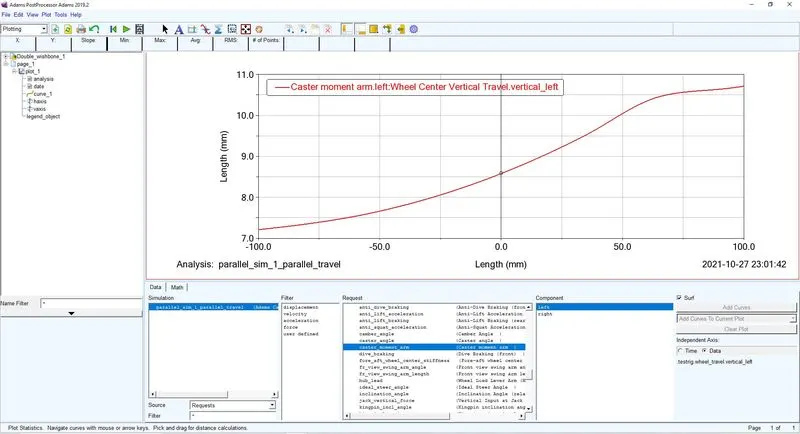

b) Caster moment arm :-

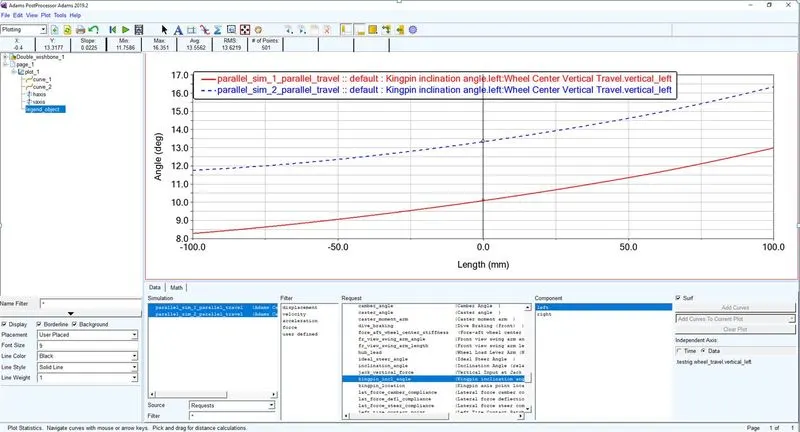

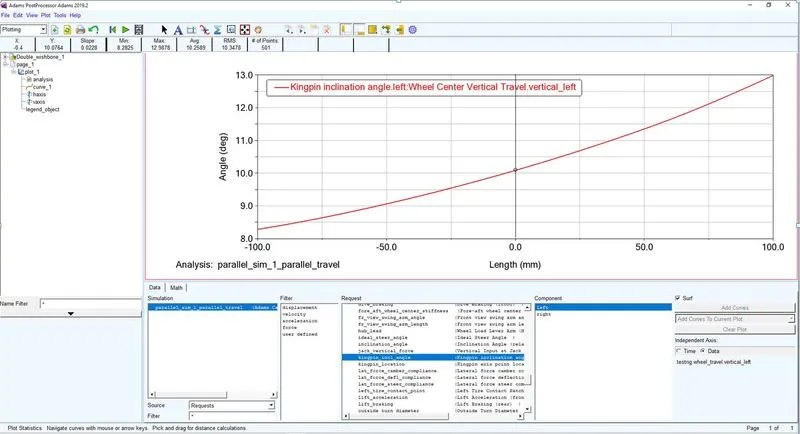

c) KPI angle :-

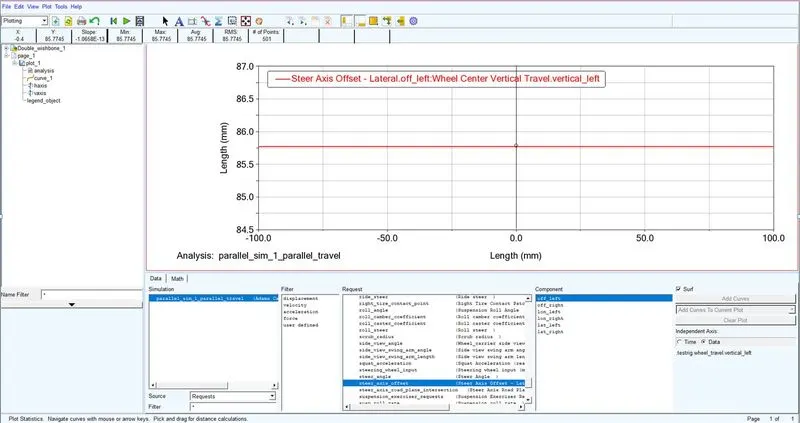

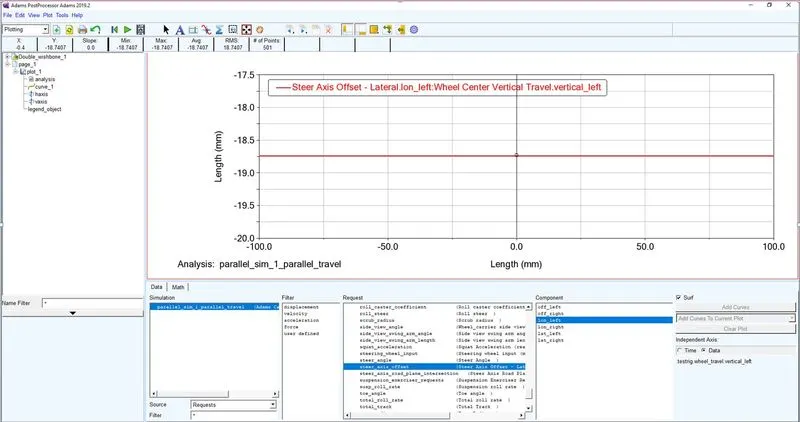

d) Steer axis offset (resultant) :-

e) Steer axis longitudinal offset :-

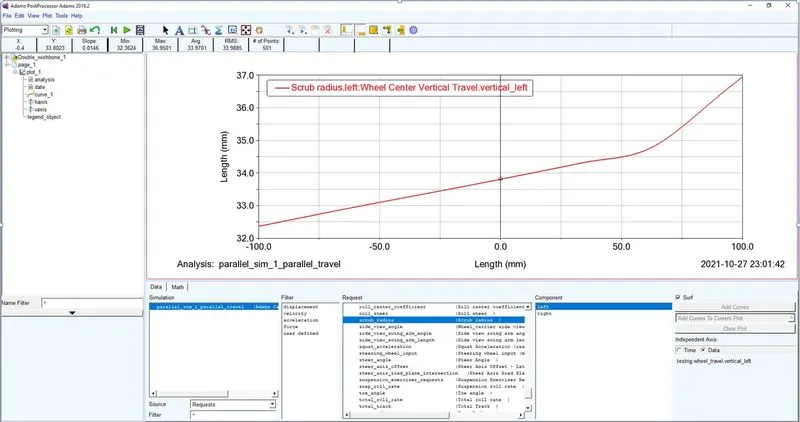

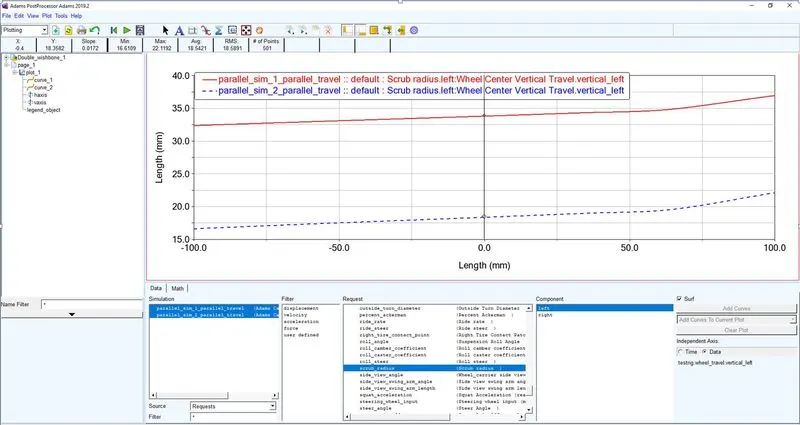

f) Scrub radius :-

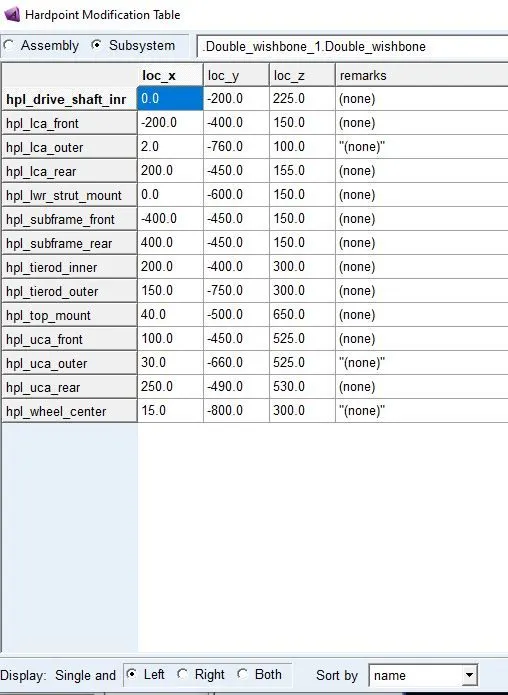

5) Now hard point modified to achive the targets, after modification run parallel wheel travel

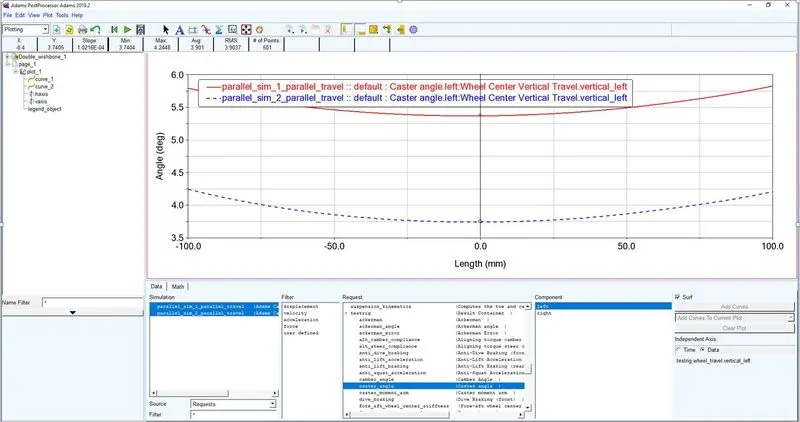

a) Caster angle : ~4.00 deg

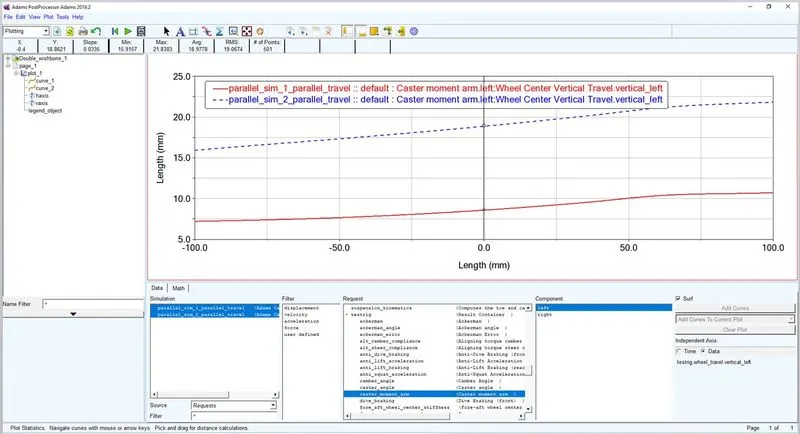

b) Caster moment arm : ~21.00 mm

c) KPI angle : ~13.00 deg

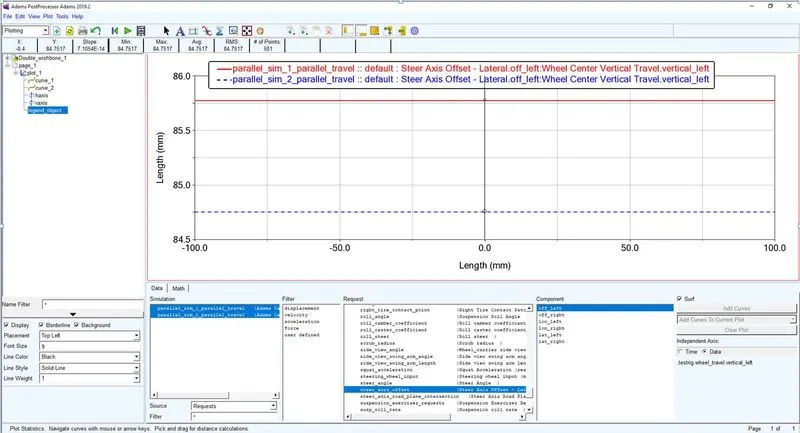

d) Steer axis offset (resultant) : ~85.00 mm

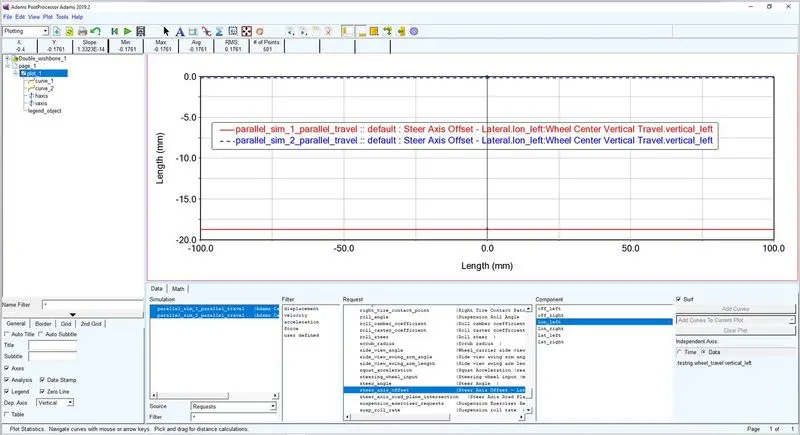

e) Steer axis longitudinal offset : ~0.00 mm

f) Scrub radius : ~20.00 mm

Q:-explain whether all of these parameters can be controlled independently.

Ans:- No its cannot controlled independently, because every point depend on each other, so change of one point conatraints can effect on other points result.
