3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT
Q.1 Depend on the project saved from Week 3, go from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level.
Answer-
Aim- To model a Ceiling from the architecture tab above the walls at the first-floor level.
Introduction-
- The creation of Ceilings within Revit is a very like method to that of Floors and Roofs- i.e. you can let Revit do most of the work and “guess” where you want the boundaries to be, Or you can enter “Sketch Mode” and literally sketch out the boundary of the ceiling yourself.
- The main thing to remember is to be in the Correct Ceiling Plan View before you initiate. Revit “will” let you place Ceilings in Floor Plan Views, but I would not suggest this as you cannot happily see what you have generated.
PROCEDURE-
STEP-1
- First we open the Revit

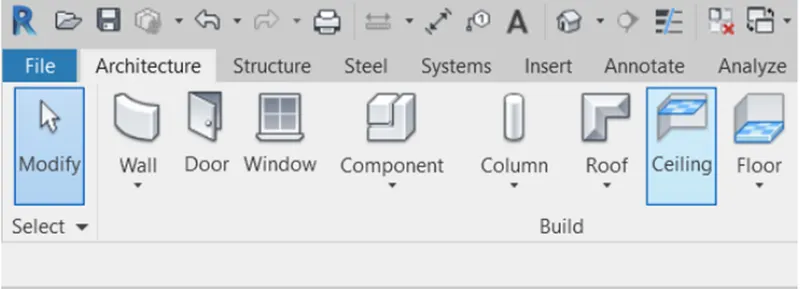

- Software, and choose the ceiling option from the architecture toolbar.
STEP-2
- After choosing the ceiling option, then choose the each room one by one.

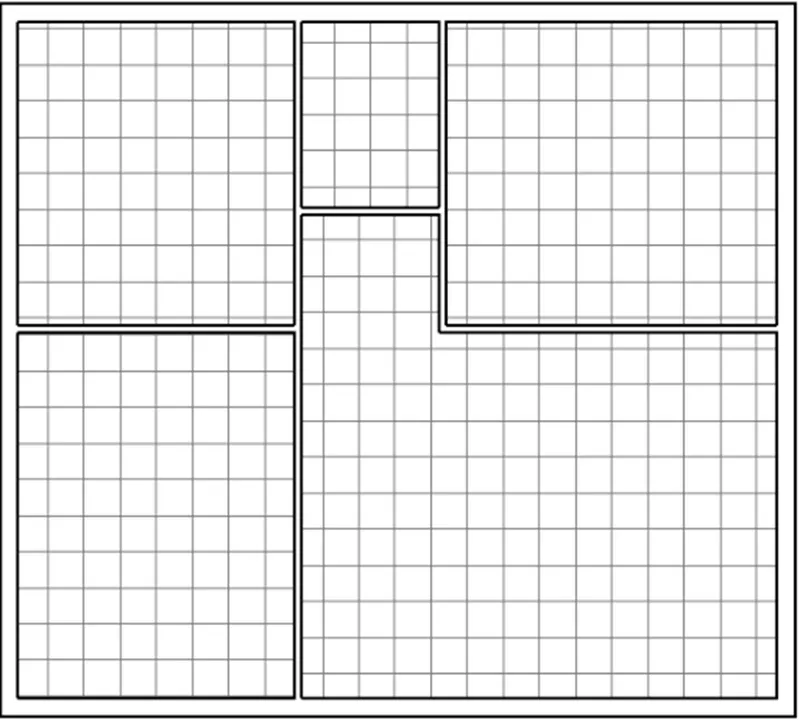

- Then the ceiling will be generated, as given in the below picture.
STEP-3
- Here we can the ceiling in the three dimensional view as given in the below picture.
RESULT-
- The ceiling has been modelled strongly from the architecture tab above the walls at the first-floor level.
Q.2 Model a roof above the ceiling by choosing the footprints of the ceiling. Utilizing the fixment toolbars resulting on-screen fix the roof slope to 10 degrees.
AIM- To model a roof above the ceiling by choosing the footprints of the ceiling.
INTRODUCTION-
- Roof, covering of the top of a building, serving to protect against rain, snow, sunlight wind, and extremes of temperature.
- Roofs have been established in a wide variation of forms flat, pitched, vaulted, domed, or in combinations as dominate by technical, economic, or aesthetic considerations. The earliest roofs established by man were probably that roofs that were made of straw, leaves, branches, or reeds; they were generally set at a slope, or pitch, so that rainfall could drain off them.
- Conical those roofs are a good example of this type and are still largely utilized in the rural areas of Africa and elsewhere.
- Thicker branches and timbers finally came to be utilized to span a roof, with clay or some other relatively impermeable substance pressed into the interstices between them.
- Gabled and flat roofs were possible with these materials. With the invention of brick and cut stone for building, the basic roof forms of the dome and vault arrived.
PROCEDURE-
STEP-1

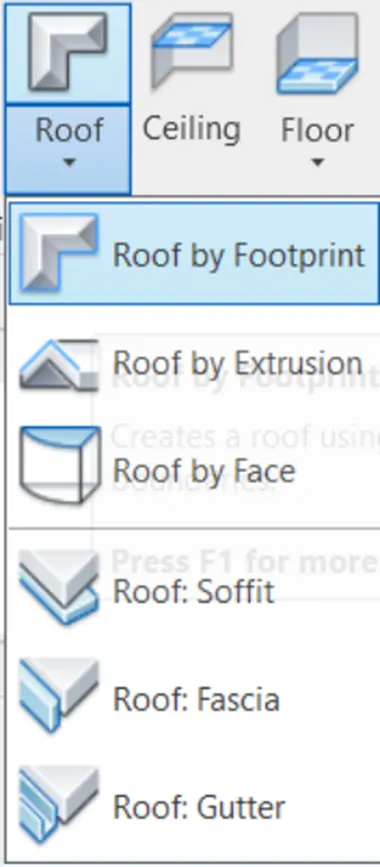

- Open the architecture toolbar, and choose the Roof by Footprint option as given in the below picture.
STEP-2
- Next we choose the roof and fix the roof to 10 degrees by choosing it, as given in the picture.
STEP-3

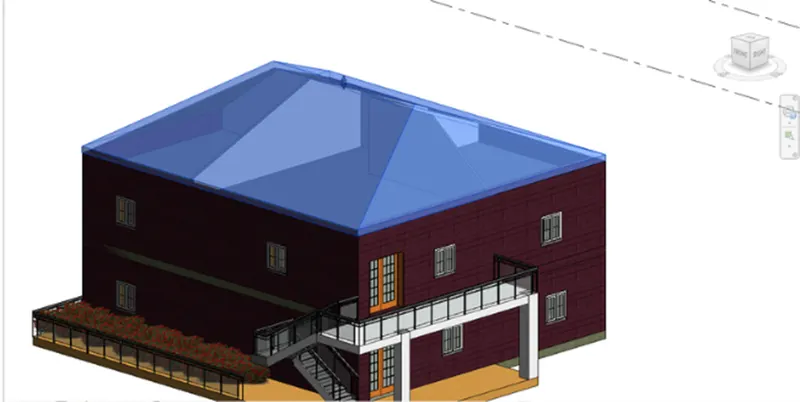

- The roof has been generated, as given below.
RESULT-
- The roof has been generated strongly to the model in the revit in detailed manner.
Q.3 utilizing the file saved from weeks 2 to 4 create plan views for ground floor level and first-floor level including all the walls, floors, and parts. Unconnected them to architecture and structural plans
- Architecture plan must have walls, floors, and all the parts placed within the building
- Structure plan must have details of only walls, floors, and columns
AIM- To create plan views for ground floor level and first-floor level including all the walls, floors, and parts. And to unconnected them to architecture and structural plans.
INTRODUCTION-
- The structural plan view is the default view when you initiate a new project utilizing a structural template.
- Most projects include at least one structural plan. New structural plan views are generated automatically as you add new levels to your project. You can create multiple structural plan view types.
- The floor plan view is the default view in a new architectural project.
- Most projects include at least one floor plan.
- Floor plan views are generated automatically as you add new levels to your project.
PROCEDURE-
STEP-1

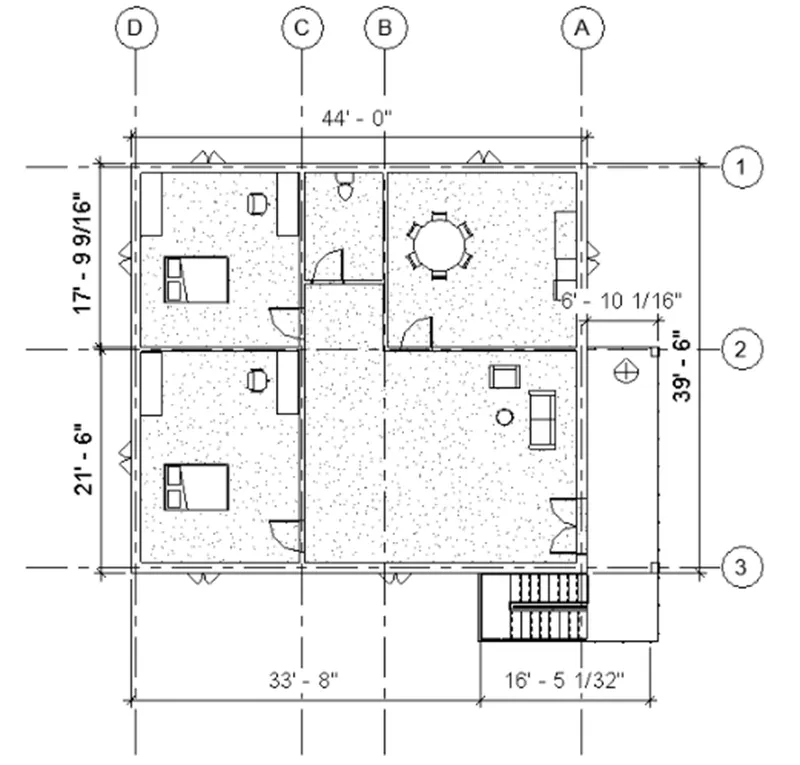

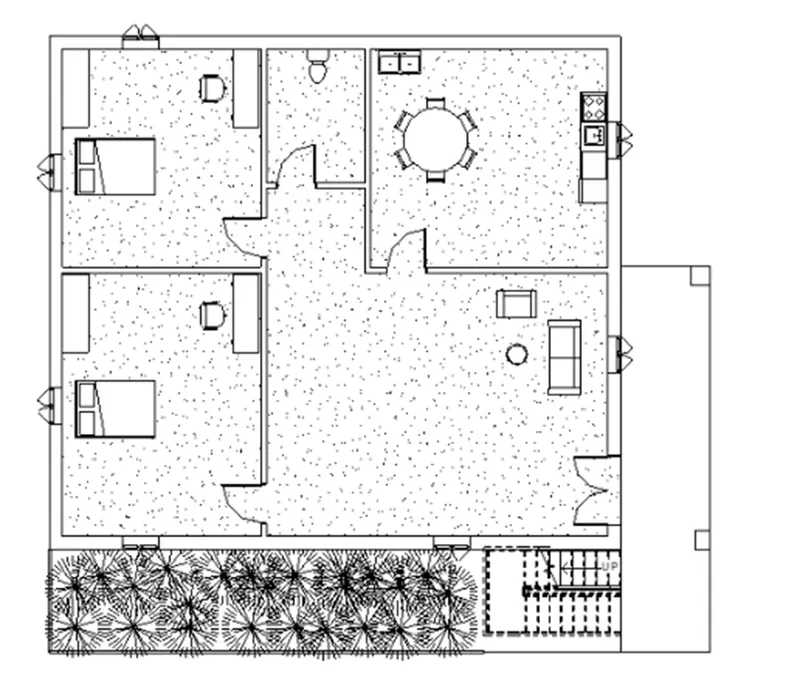

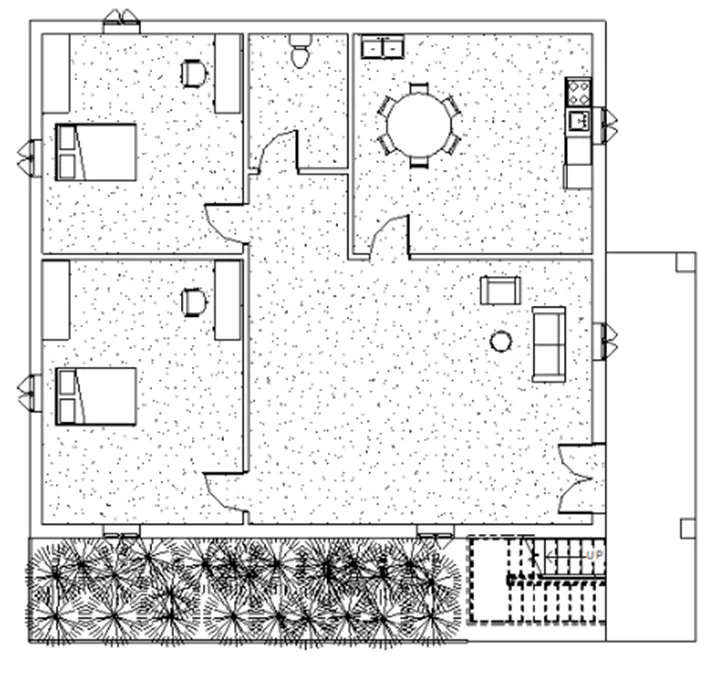

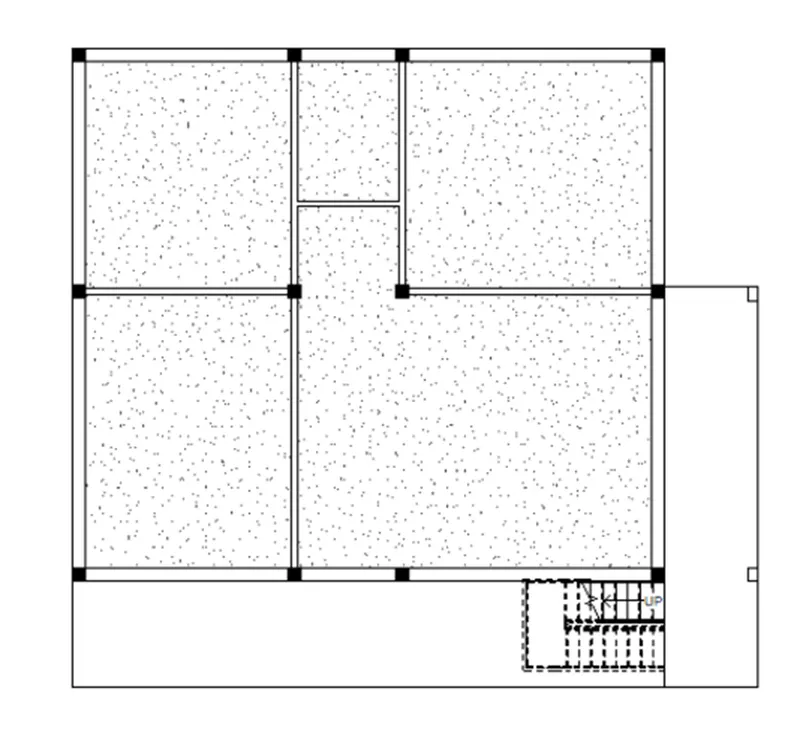

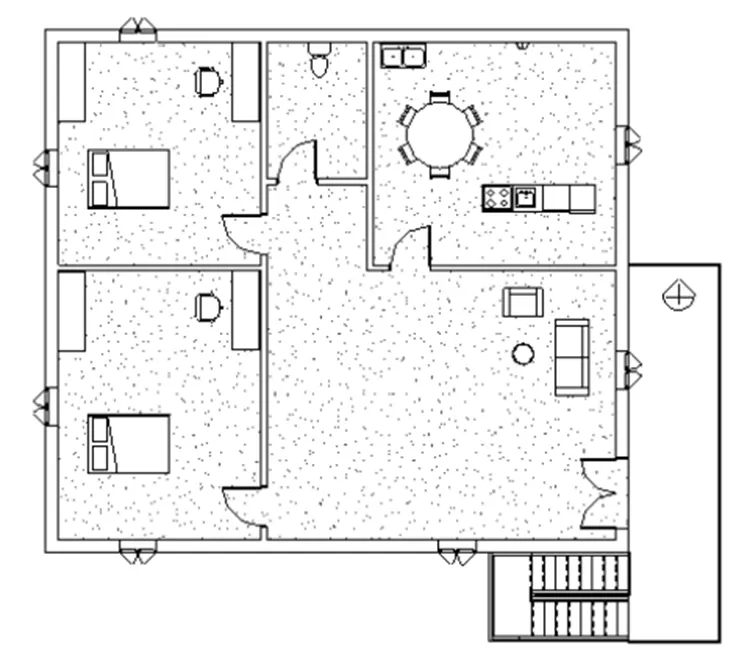

- First we draw the architectural plans of first floor and second floor as given below.
STEP-2

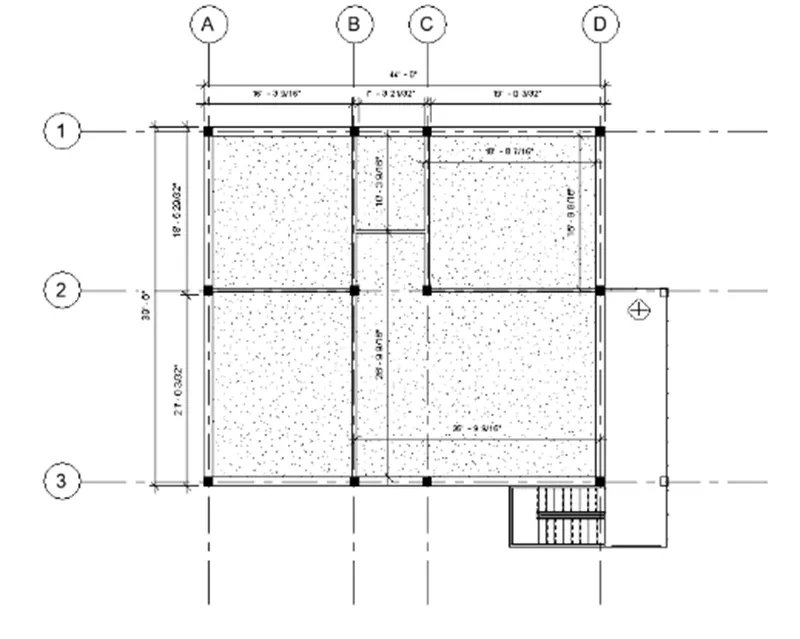

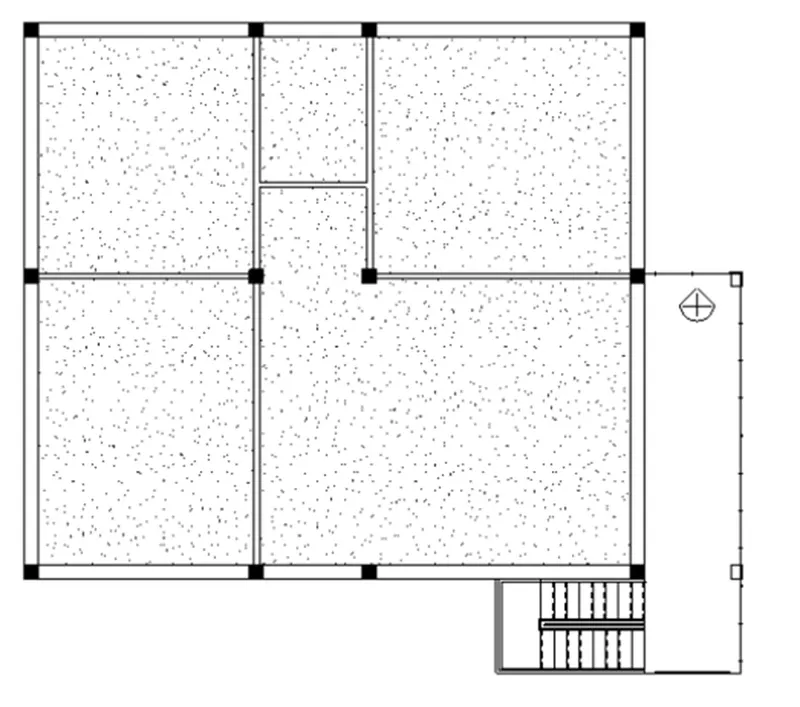

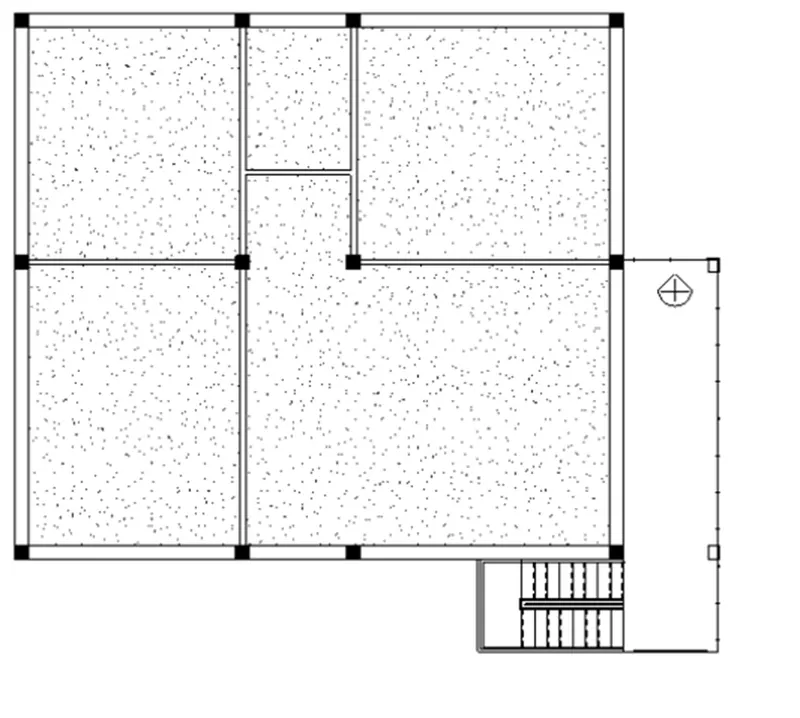

- Next we draw the structural plans of the first floor and second floor as given below.
RESULT-
- Generated plan views for ground floor level and first-floor level including all the walls, floors, and parts.
- And unconnected them to architecture and structural plans.
Q.4 Utilizing annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids generated in the project file
- The architecture plan dimensions include details on where the parts are placed within the buildings with relation to grids. Overall dimensions are enough for architecture plans
- The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing parts of the building with reference to a fixed point utilizing Structural plans
AIM- To add dimensions to all the walls and floors with reference to the longitudinal and transverse grids generated in the project file.
INTRODUCTION-
- The structural plan view is the default view when you initiate a new project utilizing a structural template.
- Most projects include at least one structural plan. New structural plan views are generated automatically as you add new levels to your project. You can create multiple structural plan view types.
- The floor plan view is the default view in a new architectural project. Most projects include at least one floor plan.
- Floor plan views are generated automatically as you add new levels to your project.
PROCEDURE-
STEP-1

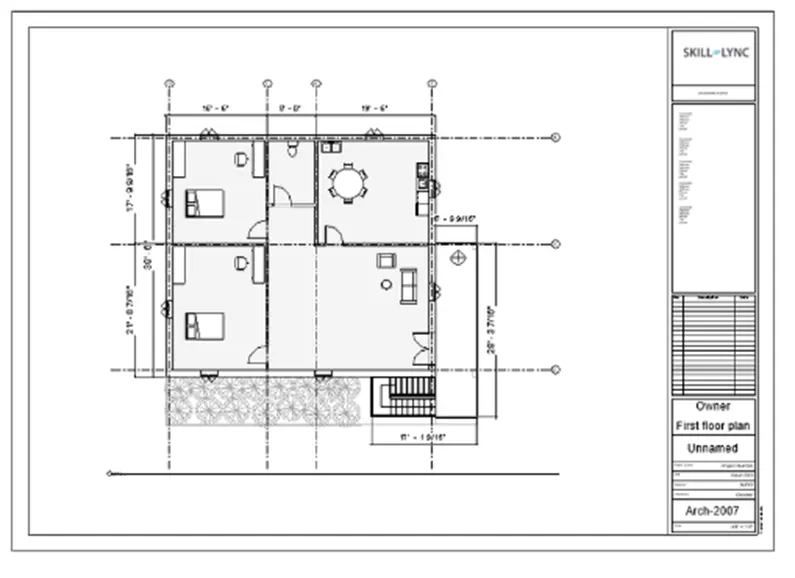

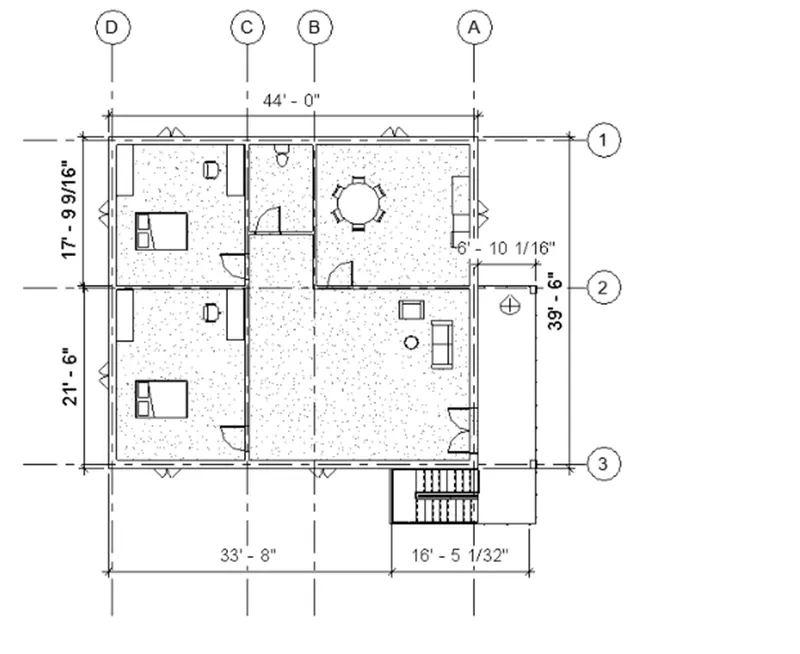

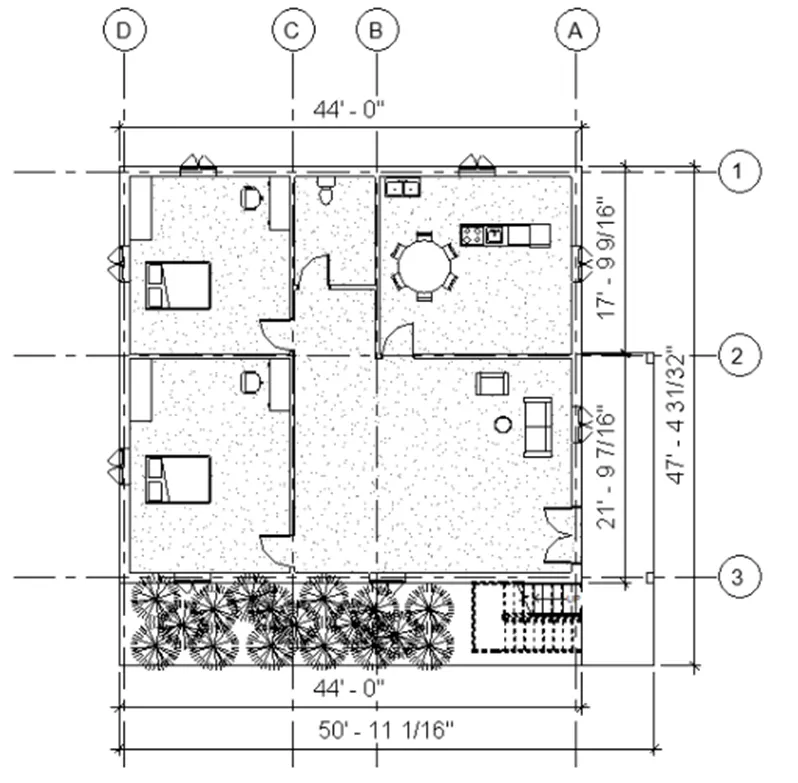

- Here we drawn the longitudinal and transverse grids to the architectural floor plans as given below.

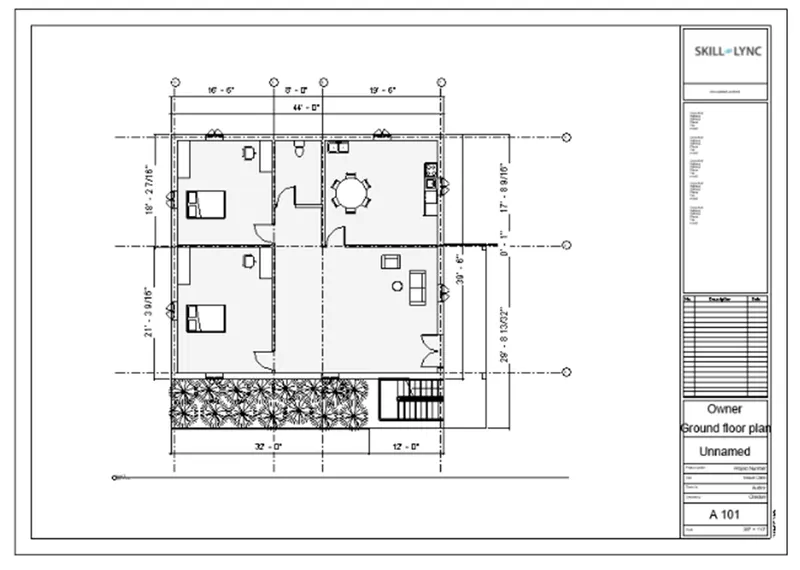

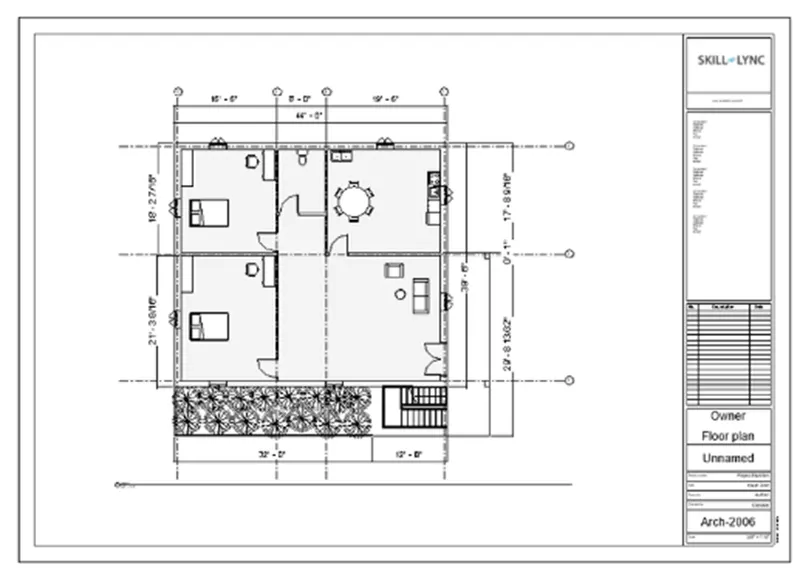

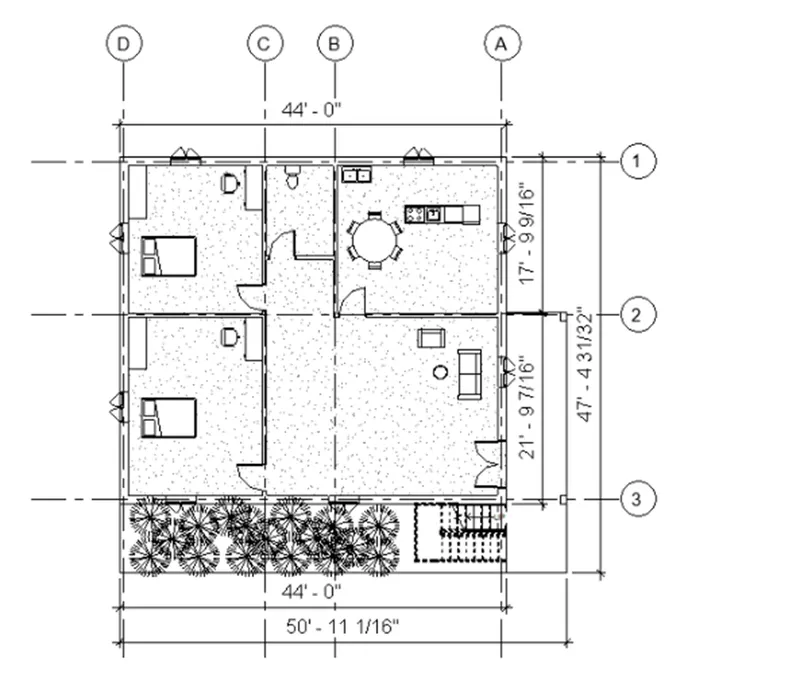

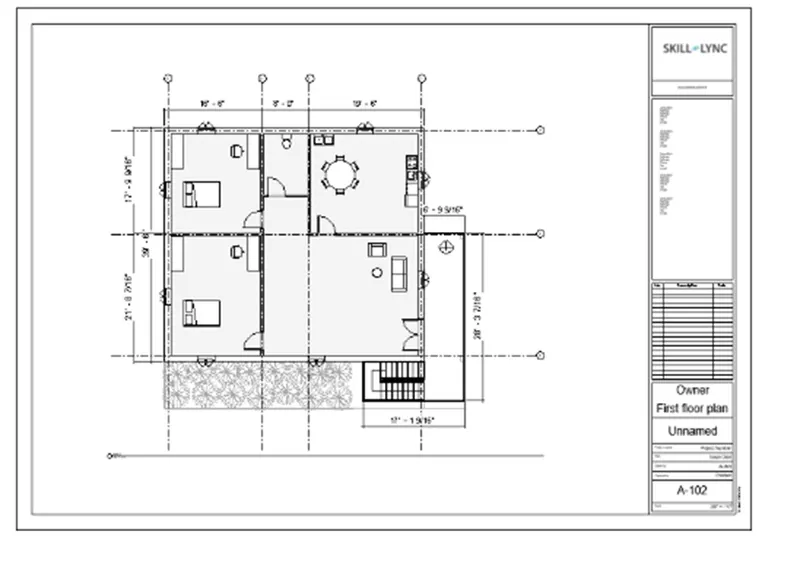

- And add the dimensions to the architectural plans as given below.
STEP-2

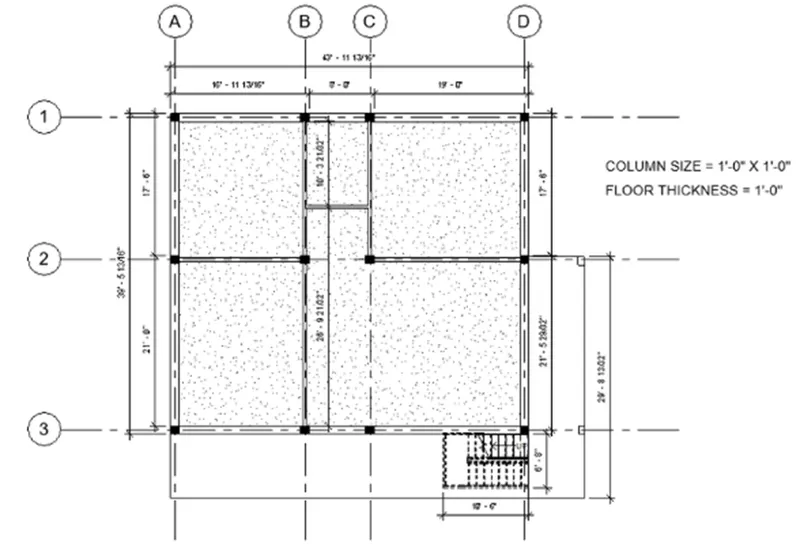

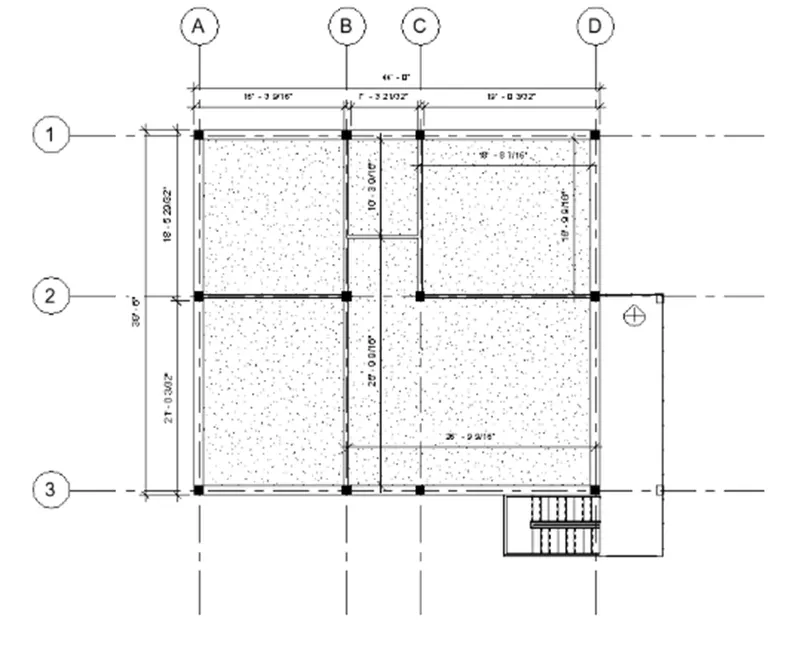

- Next we draw the longitudinal and transverse grids to the Structural floor plans as given below.

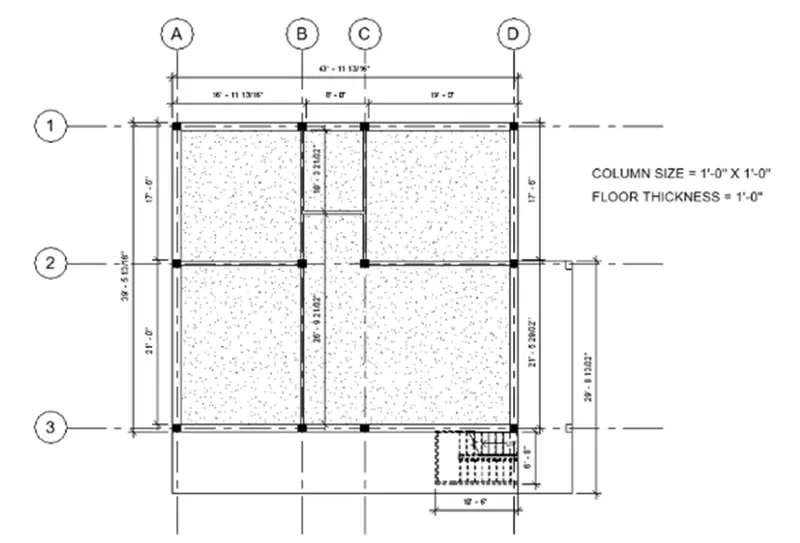

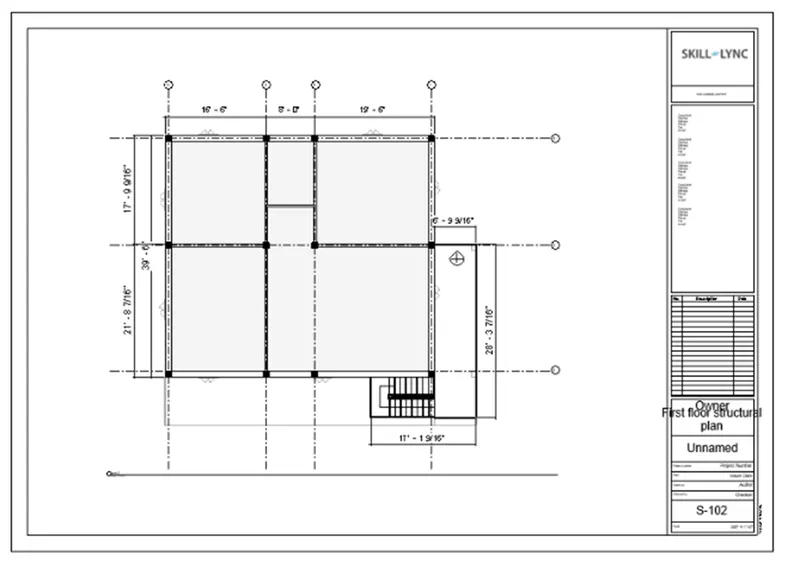

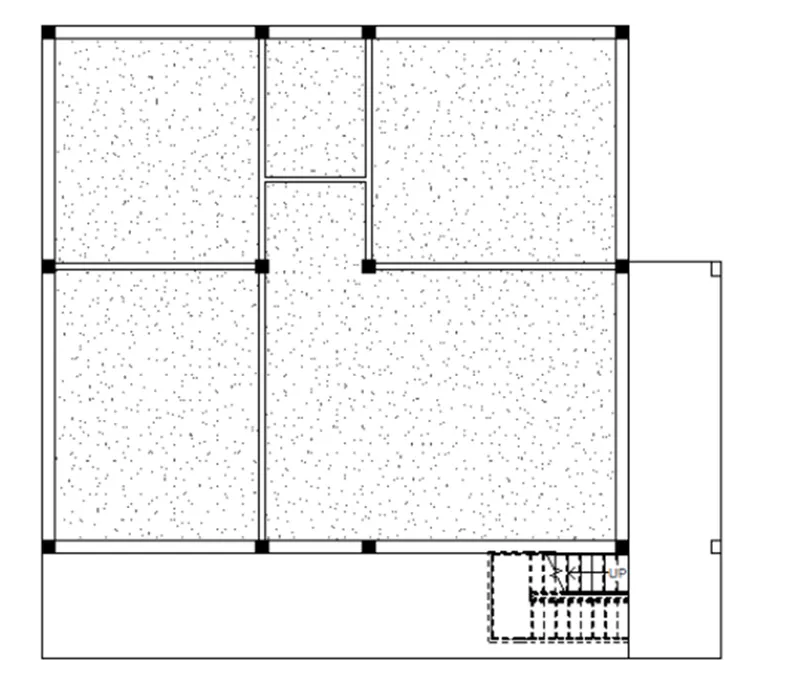

- And add the dimensions to the Structural plans as given below.
RESULT-
- The dimensions are added to the structural floor plans and the architectural floor plans.
- And the longitudinal and transverse grids are also generated in the project file.
Q.5 Create a sheet template from the view tab and fix the parameters on the sheet to add proper views.
AIM- To create a sheet template from the view tab and fix the parameters on the sheet to add proper views.
INTRODUCTION-
- Create views on a project template before you initiate building the model to streamline the project documentation method.
- When creating a project template, you can include sheets in the template. Initiate with a blank project file, and create the standard views and levels that each project should include.
- Leave the views empty, but assign standard names to them. To create a standard set of construction documents, create sheets utilizing the desired title blocks.
- Add views to the sheets, utilizing the desired viewport templates and view title types.
- Then save the empty project as a project template.
- When you create a project utilizing this project template, all of the views and sheets are already generated and listed in the Project Browser.
- As you initiate to draw the building model in the project views, the views on the sheets update automatically.
- This technique streamlines the project documentation method and maintains organizational standards.
PROCEDURE-
STEP-1

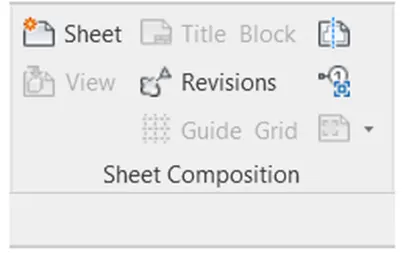

- First we click on the sheet option from the view toolbar, as given below.
- After clicking the sheet, the new tab will be visible on the screen.

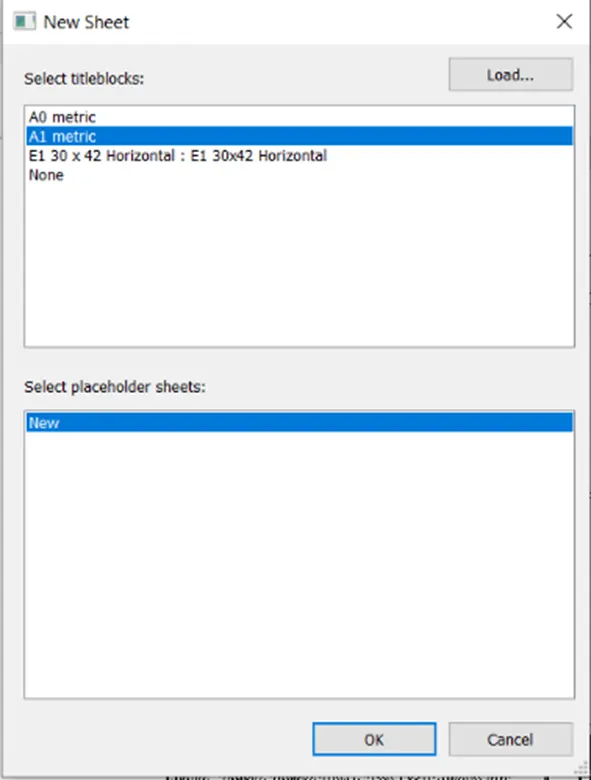

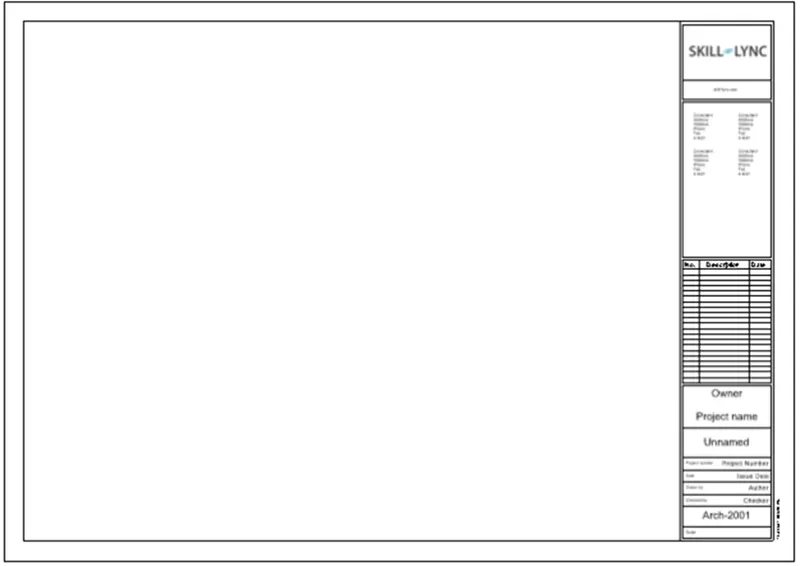

- In that new tab we choose the A1 metric, then the sheet template will be displayed.
STEP-2

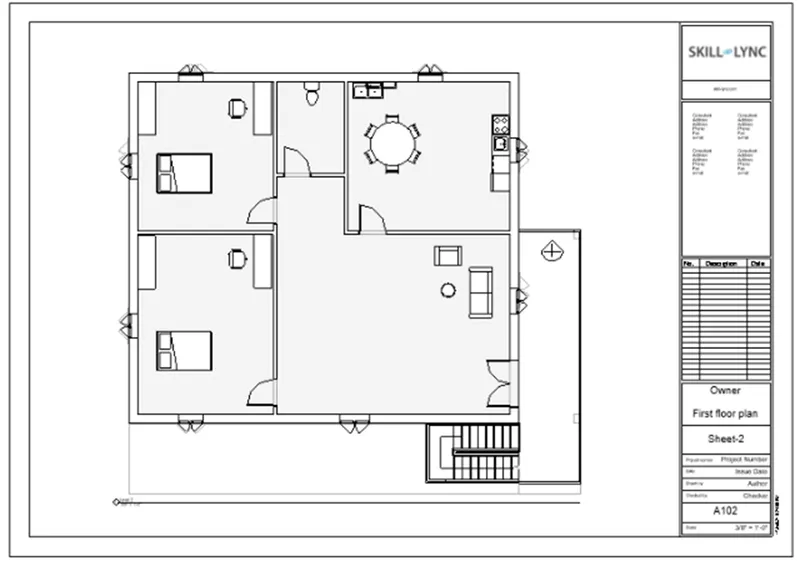

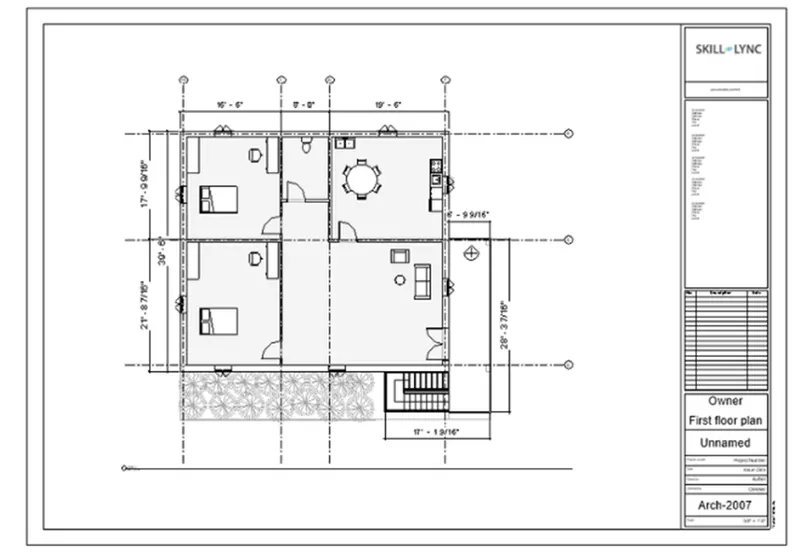

- In the sheet template we insert the first floor plan and second floor plan unconnectedly as given below.
- Next edit the Project name and the sheet number as given in the below pictures.
RESULT-
- Generated a sheet template from the view tab and fixed the parameters on the sheet for adding proper views.
Q.6 Utilizing the elevation tab create the elevation views, looking at your building from East, North, South, and West.
AIM- To create the elevation views, looking at your building from East, North, South, and west utilizing the elevation tab.
INTRODUCTION-
- An elevation is a view of a building seen from one side, a flat representation of one view.
- This is the most common view utilized to describe the external appearance of a building.
- Each elevation is labelled in relation to the compass direction it faces, e.g. looking toward the north you would be seeing the southern elevation of the building.
PROCEDURE-
STEP-1

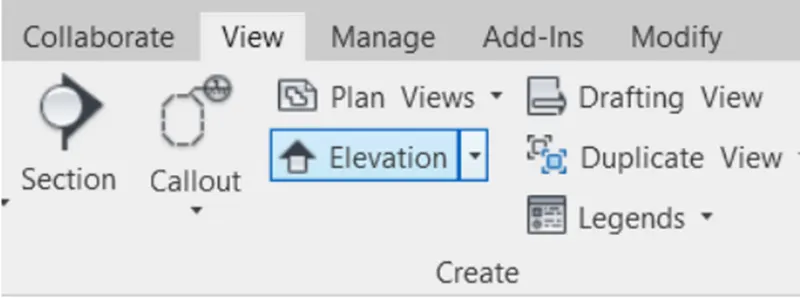

- First we click on the elevation option from the view toolbar, as given below.
STEP-2

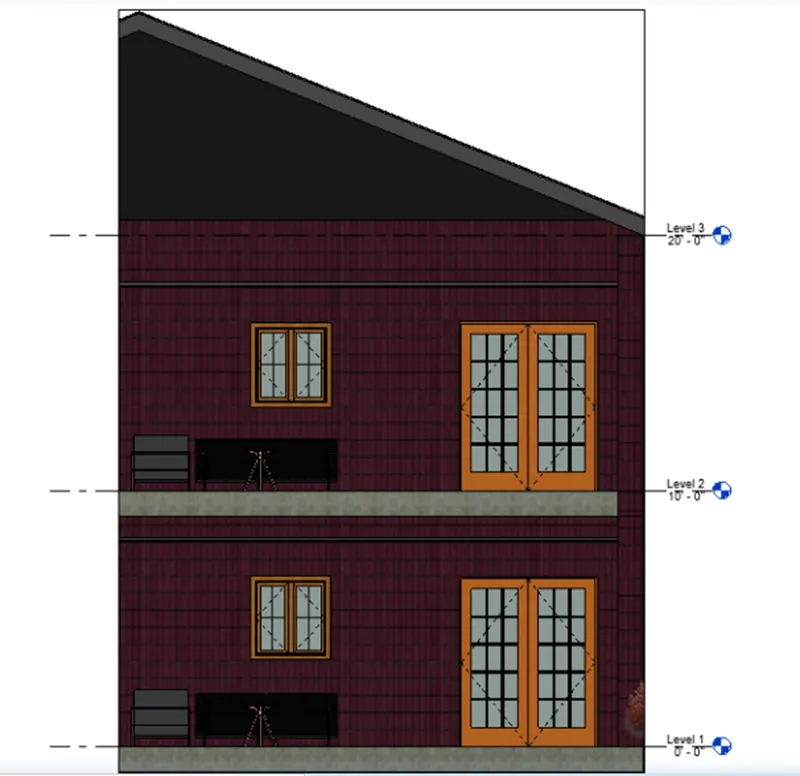

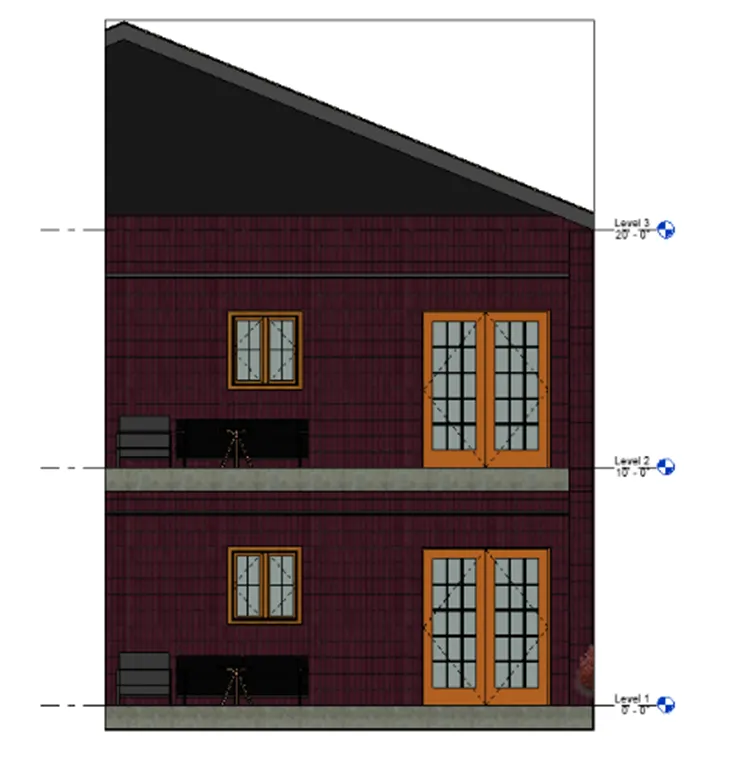

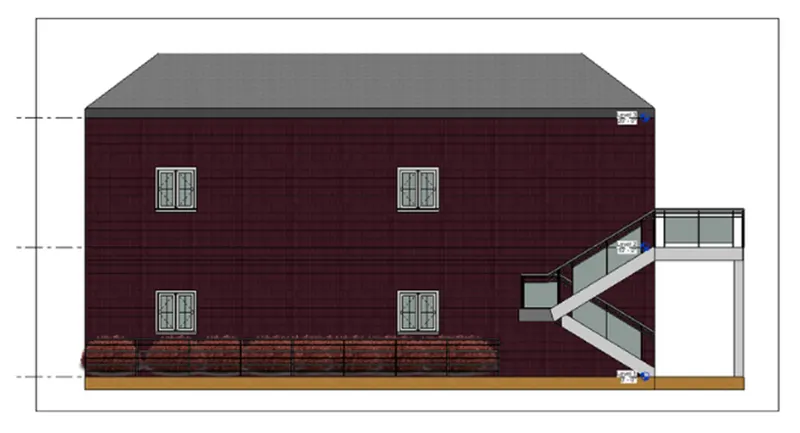

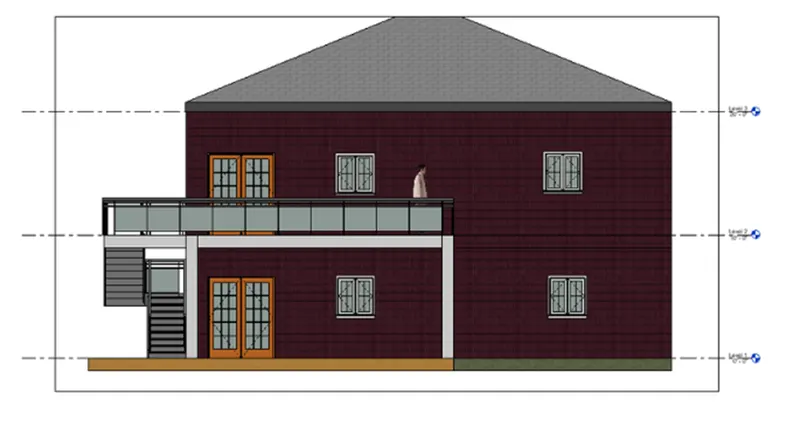

- Next the elevation from the east will be visible, as given below.
STEP-3

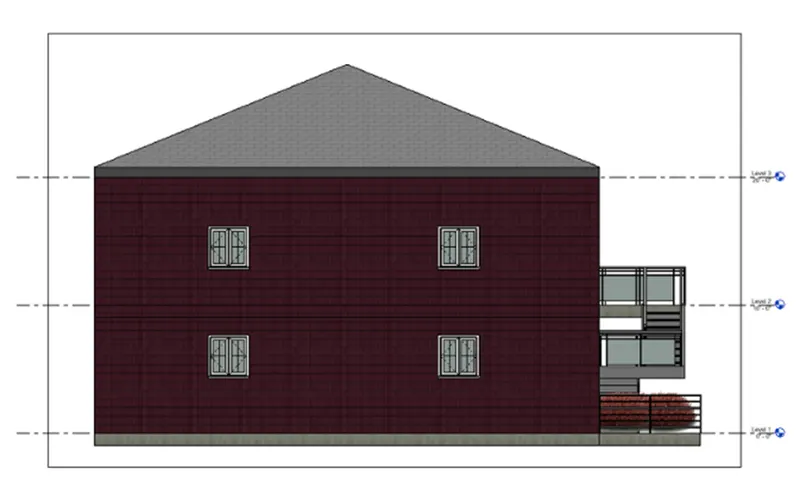

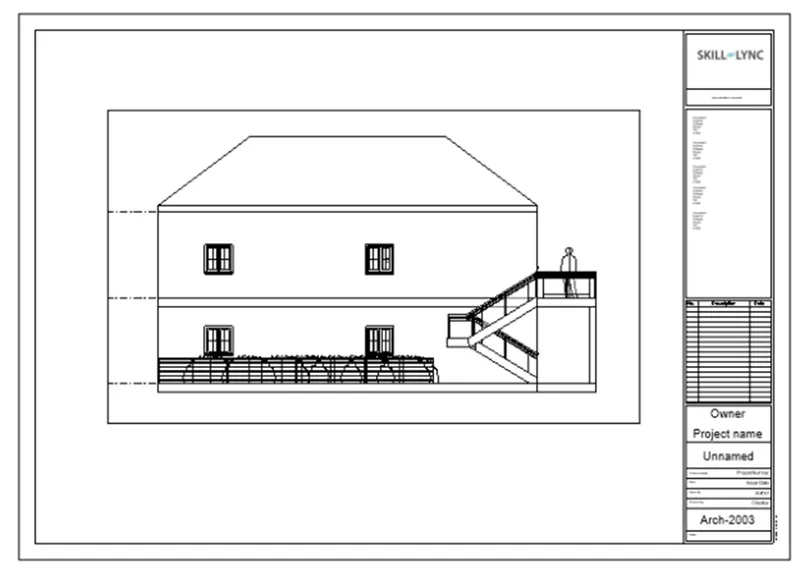

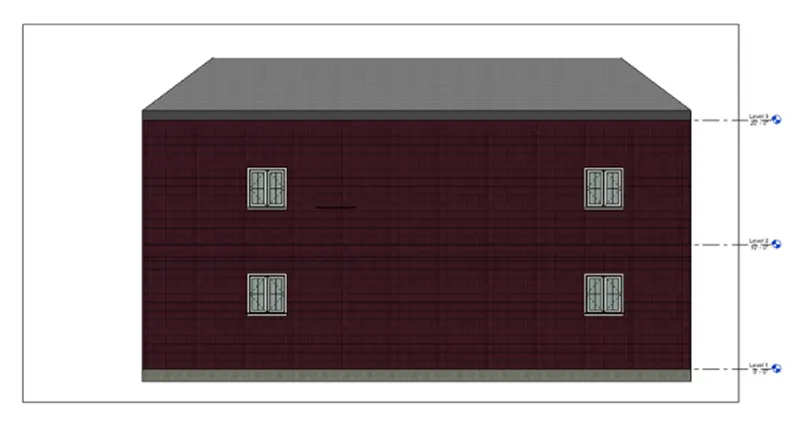

- Next the elevation from the south will be visible on the screen, as given below.
STEP-4
- Next the elevation from the North will be visible on the screen, as given below.
STEP-5

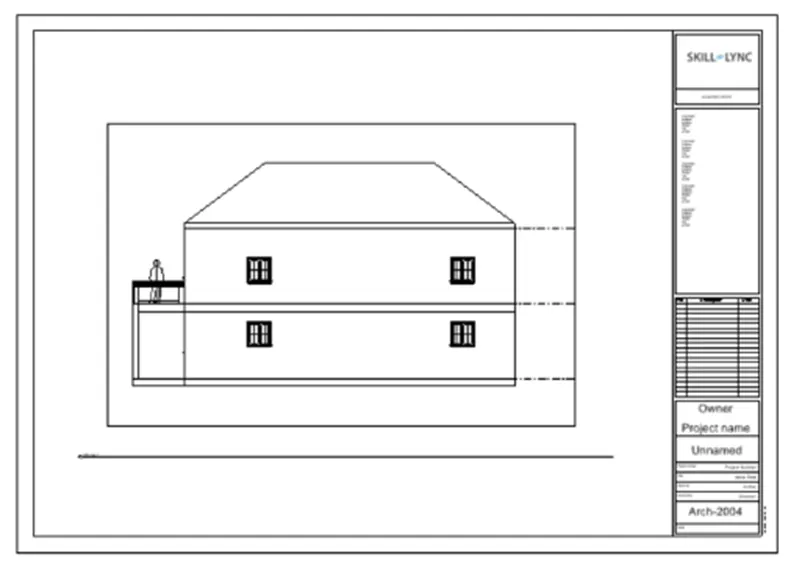

- Next the elevation from the West will be visible on the screen, as given below.
Q.7 Produce section cut through each room either cutting across longitudinally or in a transverse direction.
AIM- To produce section cut through each room either cutting across longitudinally or in a transverse direction.
INTRODUCTION-
- Sectional views reveal hidden details in a mechanical drawing.
- These views suppose that a cutting plane has removed portions of the object represented by the drawing, displaying the proper section of the interior.
- Sectional views are utilized in engineering and architectural drawings.
- They help civil engineers, architects, and airplane designers communicate their ideas to their peers.
PROCEDURE-
STEP-1

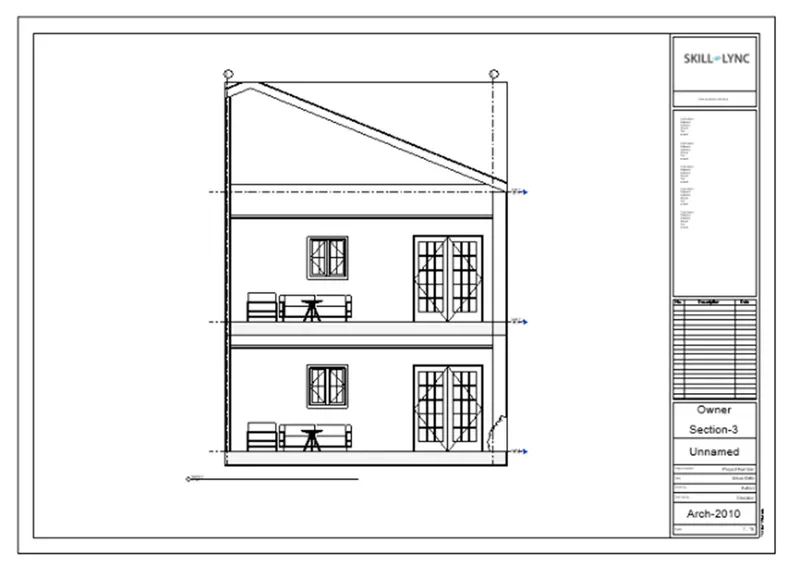

- First we click on the section option from the view toolbar, as given below.

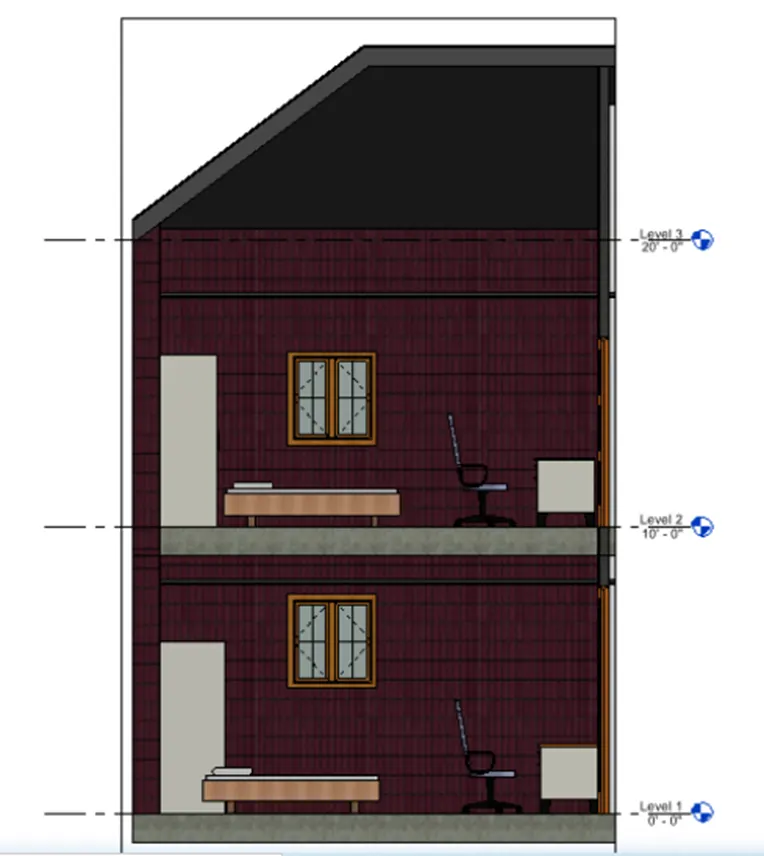

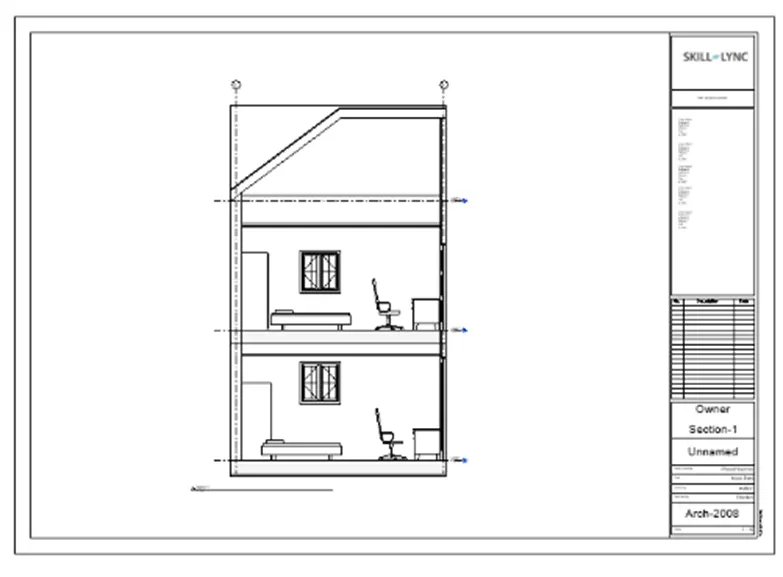

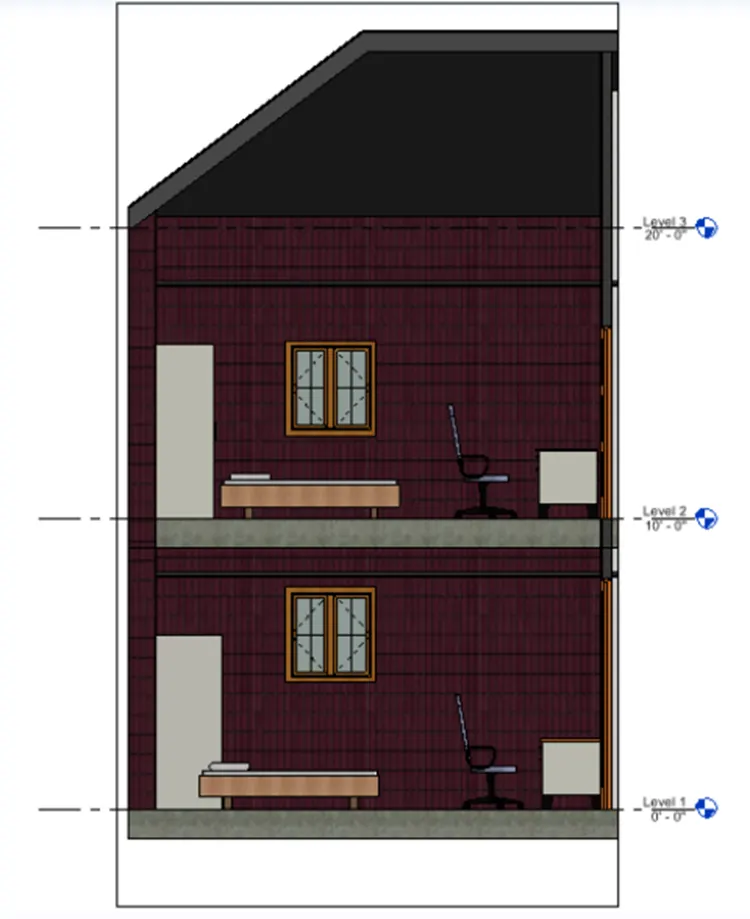

- Next we produce the section view of the bed room as given in the below picture.
STEP-2

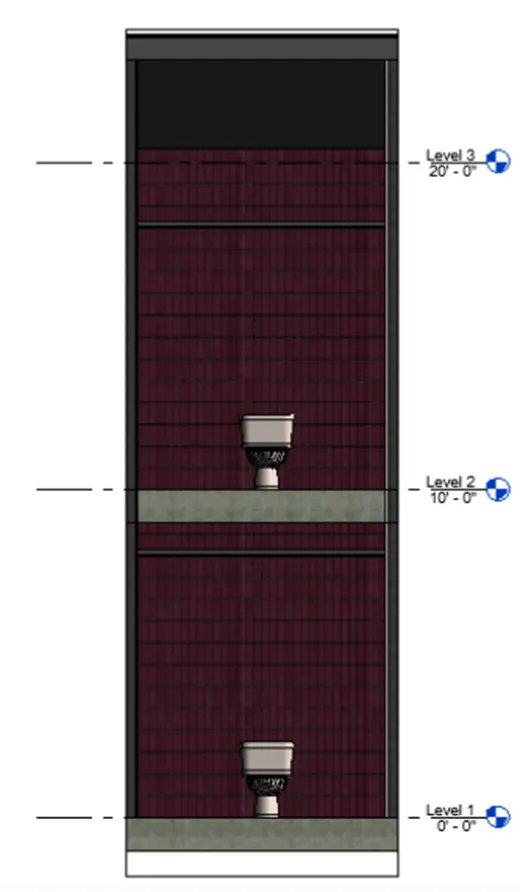

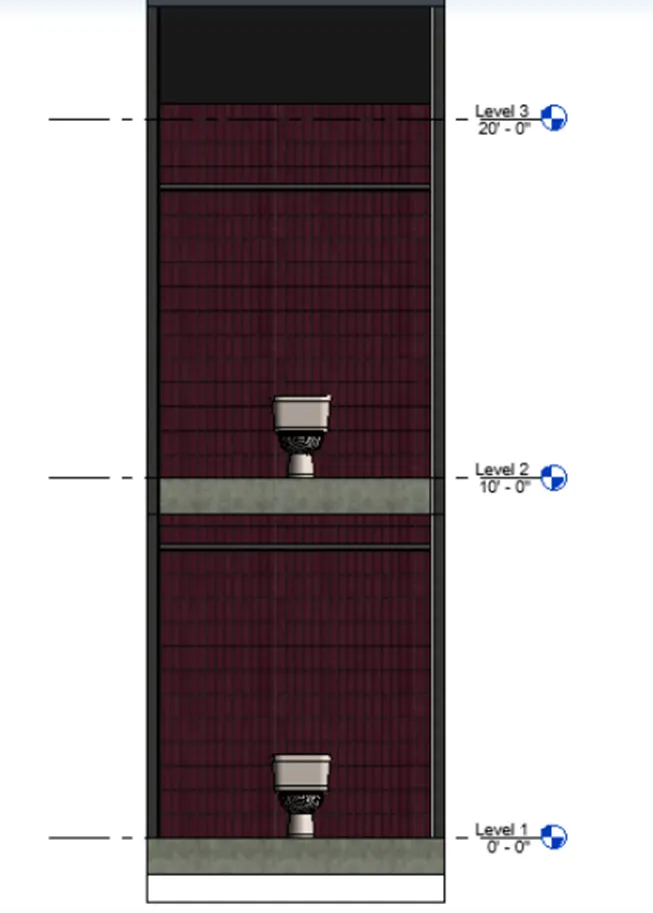

- Next we produce the section view of the Toilet room as given in the below picture.
STEP-3

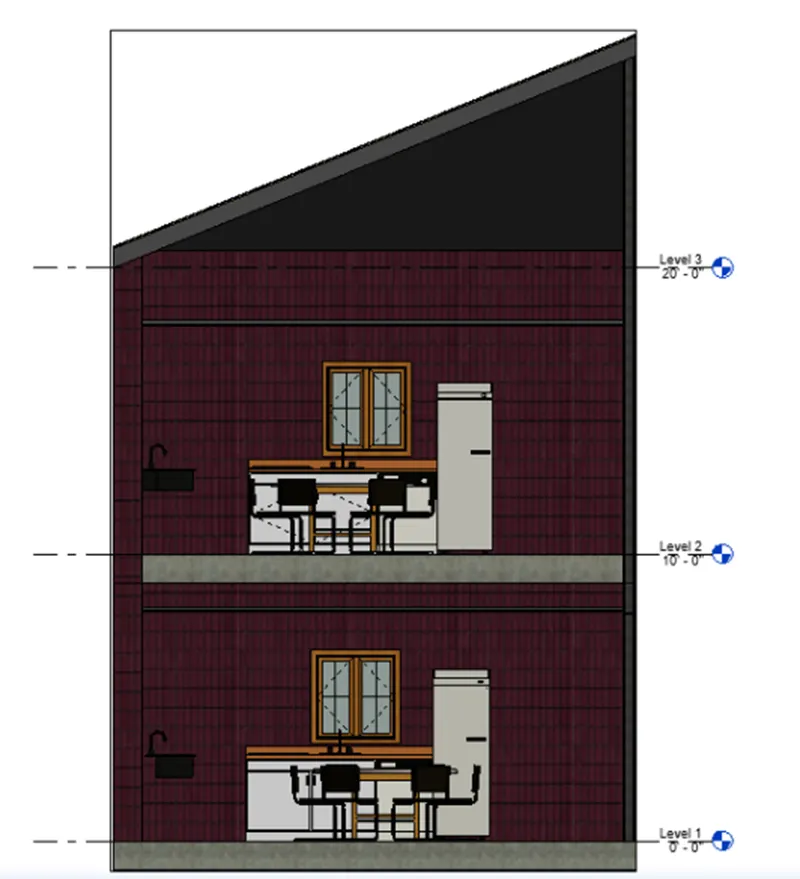

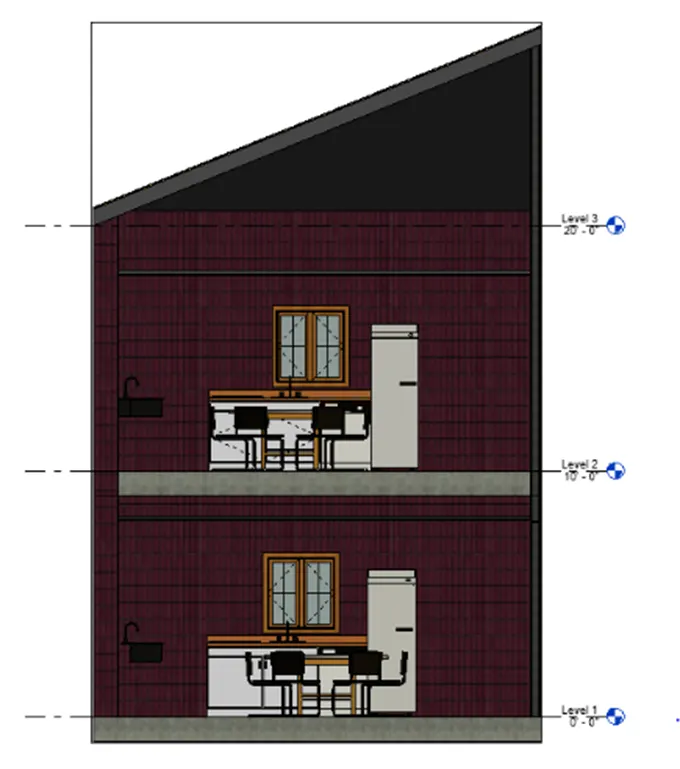

- Next we produce the section view of the kitchen room as given in the below picture.
STEP-4
- Next we produce the section view of the Living room as given in the below picture.
RESULT-
- Generated the section views of a model in the Revit in detailed manner.
Q.8 Differentiate the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category utilizing Qualities browser.
AIM- To differentiate the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category utilizing Qualities browser.
INTRODUCTION-
- The structural plan view is the default view when you initiate a new project utilizing a structural template.
- Most projects include at least one structural plan. New structural plan views are generated automatically as you add new levels to your project. You can create multiple structural plan view types.
- The floor plan view is the default view in a new architectural project. Most projects include at least one floor plan.
- Floor plan views are generated automatically as you add new levels to your project.
- Sectional views reveal hidden details in a mechanical drawing.
- These views suppose that a cutting plane has removed portions of the object represented by the drawing, displaying the proper section of the interior.
- Sectional views are utilized in engineering and architectural drawings.
- They help civil engineers, architects, and airplane designers communicate their ideas to their peers.
- An elevation is a view of a building seen from one side, a flat representation of one view.
- This is the most common view utilized to describe the external appearance of a building.
- Each elevation is labelled in relation to the compass direction it faces, e.g. looking toward the north you would be seeing the southern elevation of the building.
PROCEDURE-
STEP-1

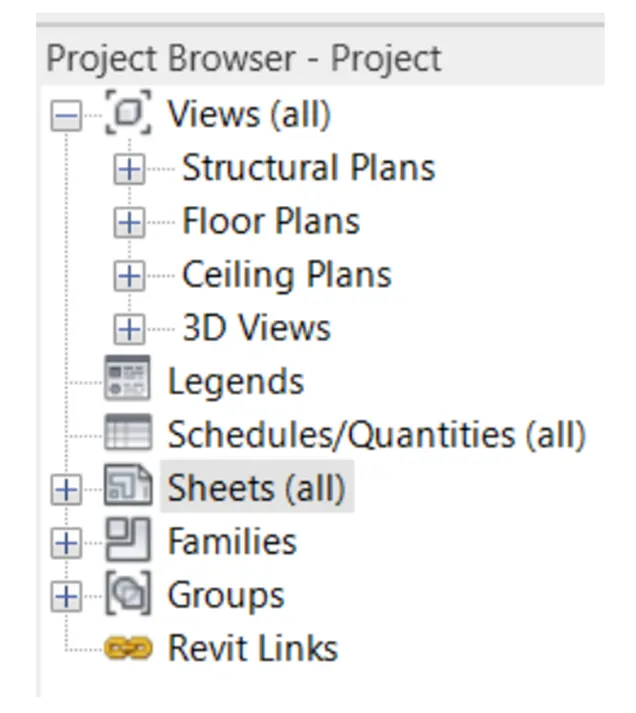

- First we open the project browser, the views, Plan Views, Section Views, and Elevation views are visible in that project browser as given below.
- Next we insert these plans one by one in the sheets unconnectedly.
STEP-2

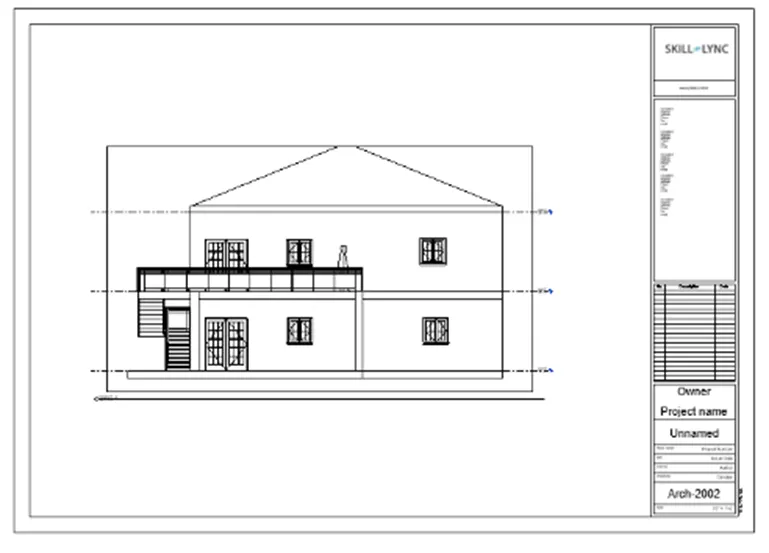

- First we insert the front elevation in the sheet template, as given in the below picture.
STEP-3

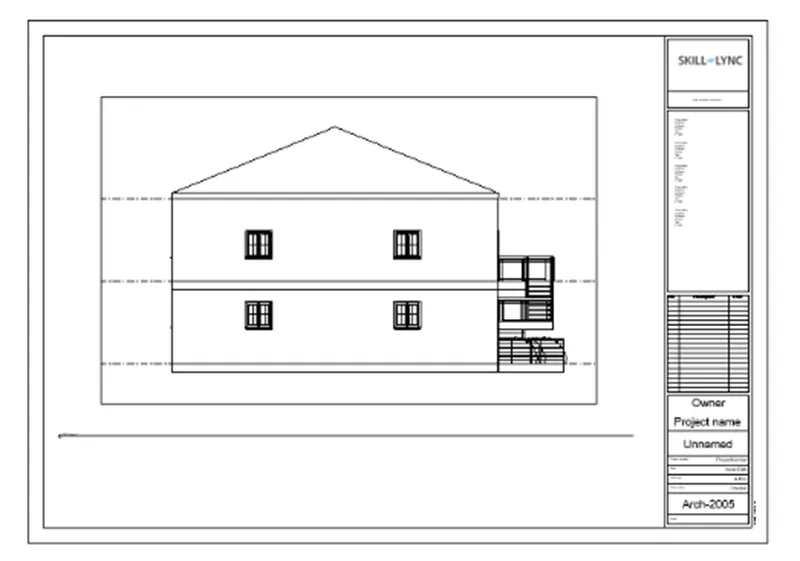

- Next we insert the left side elevation in the sheet template, as given in the below picture.
STEP-4

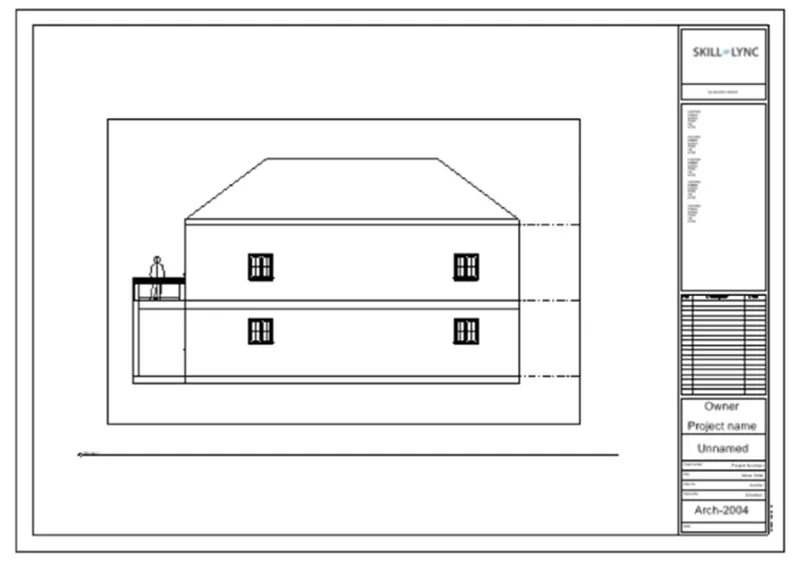

- Next we insert the right side elevation in the sheet template, as given in the below picture.
STEP-5
- Next we insert the back side elevation in the sheet template, as given in the below picture.
STEP-6

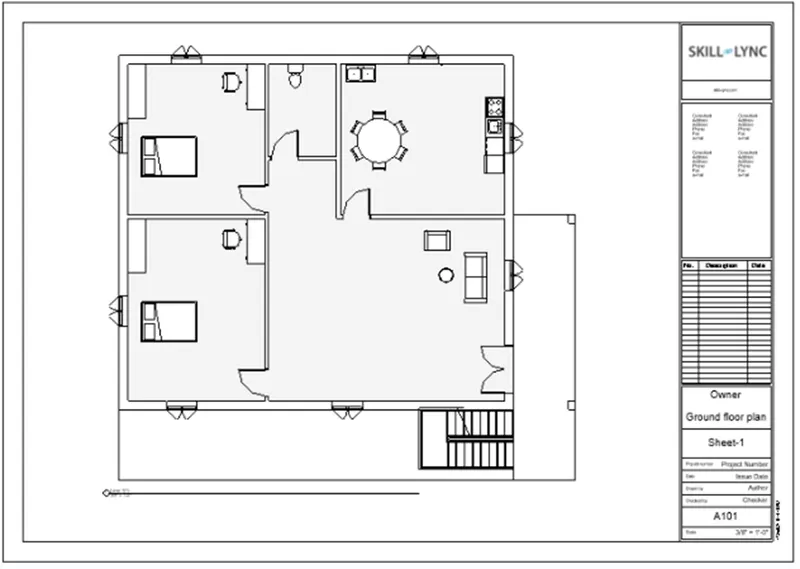

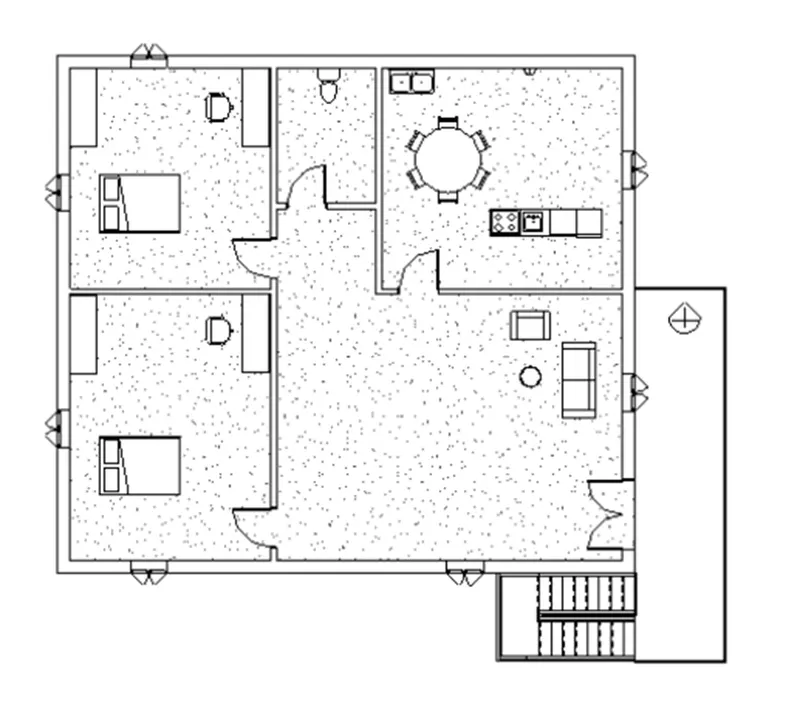

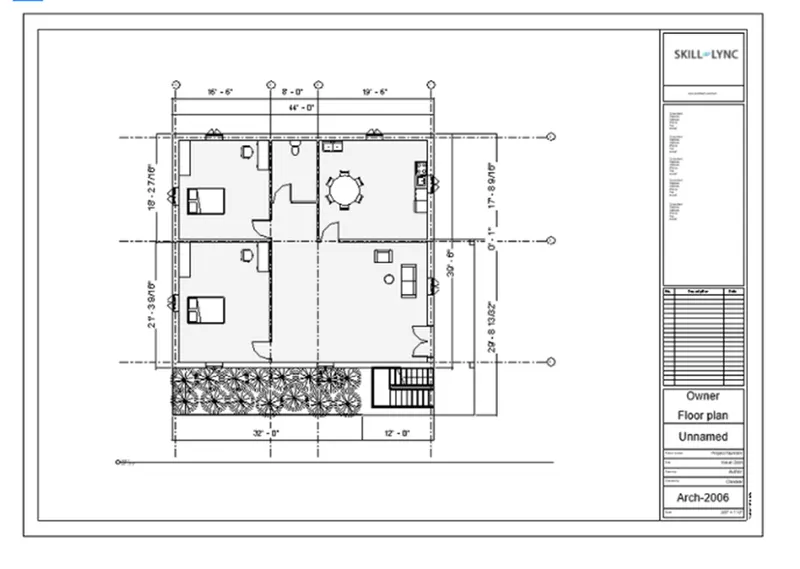

- Next we insert the ground floor plan in the sheet template, as given in the below picture.
STEP-7

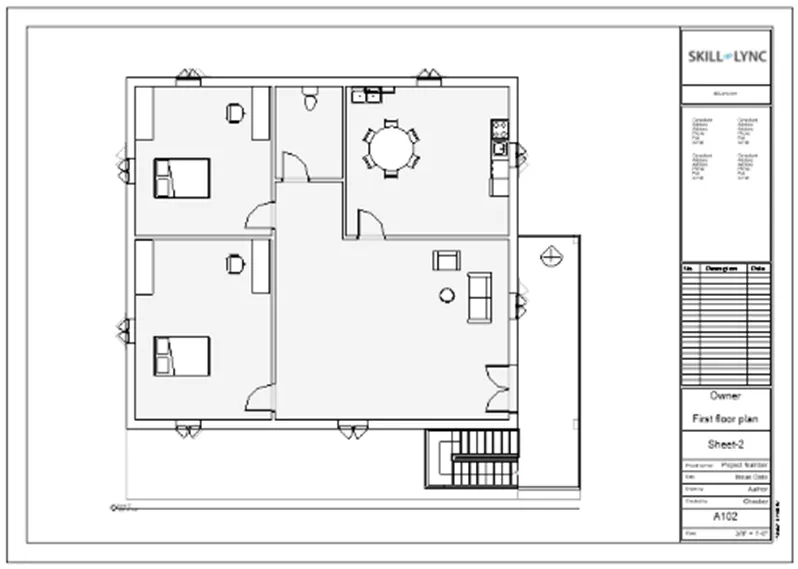

- Next we insert the first floor plan in the sheet template, as given in the below picture.
STEP-8

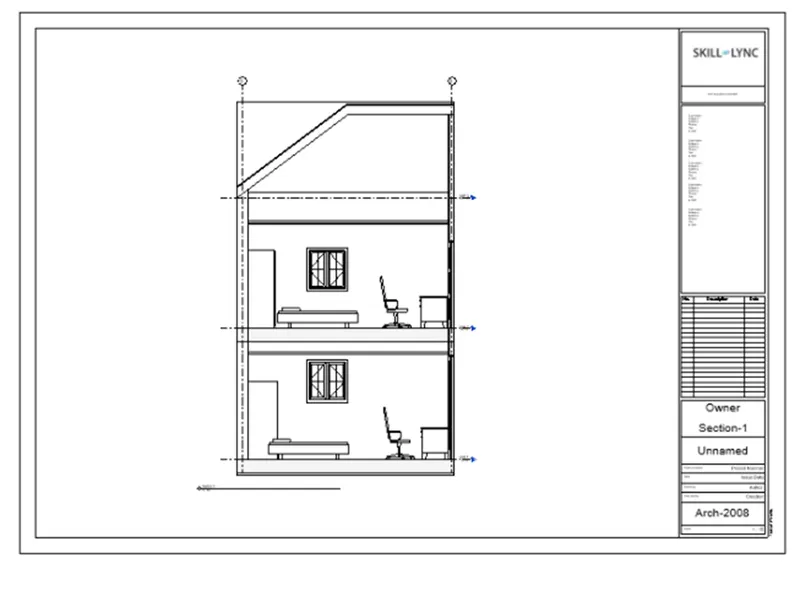

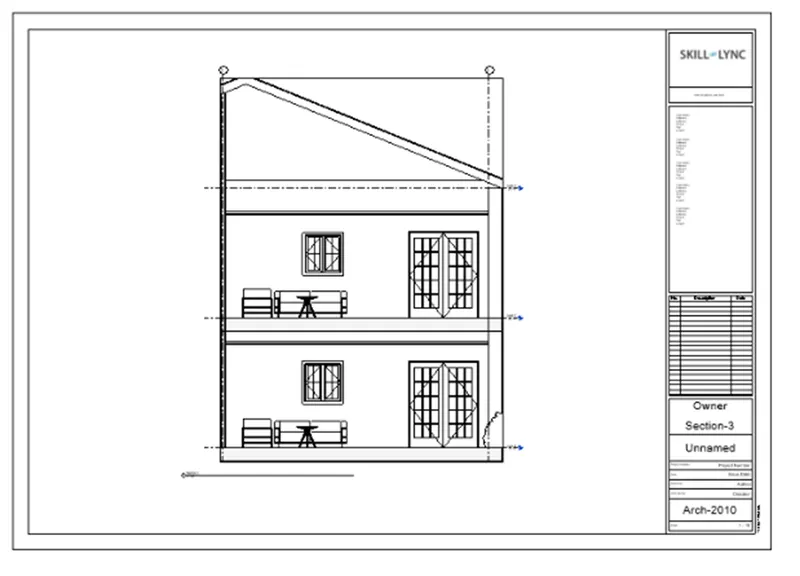

- Next we insert the section-1 in the sheet template, as given in the below picture.
STEP-9

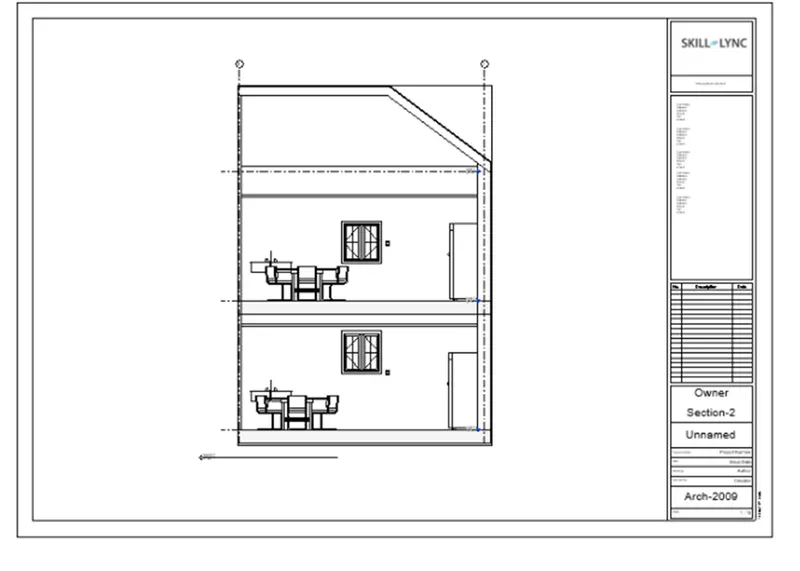

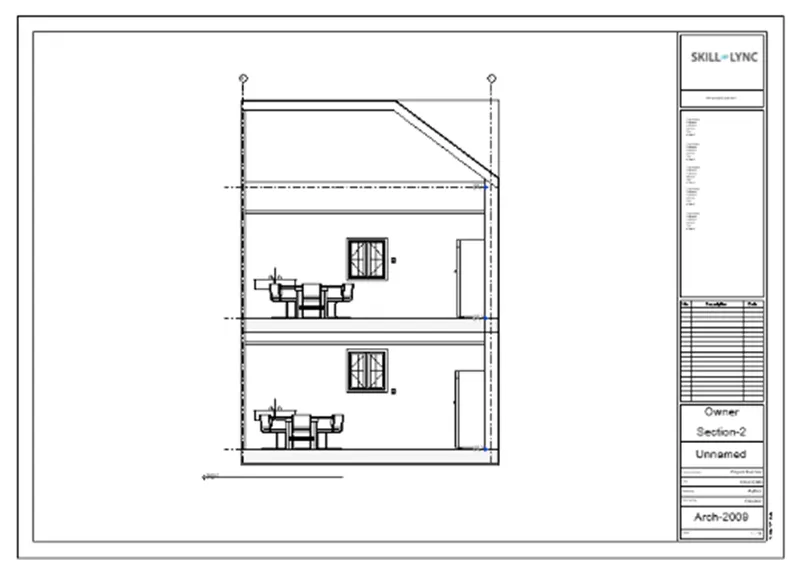

- Next we insert the section-2 in the sheet template, as given in the below picture.
STEP-10
- Next we insert the section-1 in the sheet template, as given in the below picture.
RESULT-
- Views, Plan Views, Section Views, and Elevation views are classified to Design category utilizing Qualities browser.
Q.9 Utilizing the sheet template produced create multiple sheets as follows

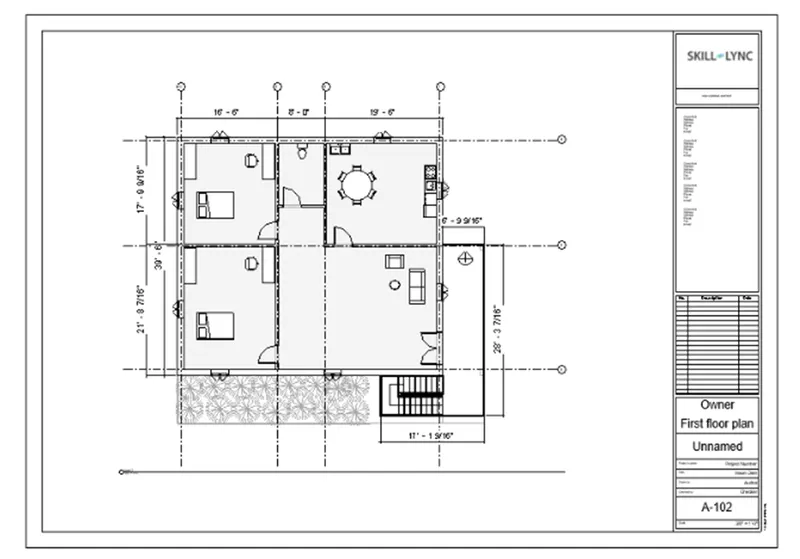

- A 101- Ground Floor Architecture Plan
- A 102- First Floor Architecture Plan
- A 103- Roof Plan
- S 101- Ground Floor Structural Plan
- S 102- First Floor Structural Plan
- S 103- Roof Framing Plan
- A-201- North-South Elevations
- A-202- East-West Elevations
Add additional sheets depend on the sections generated in your Revit file
AIM- To create the multiple sheets and produce the drawings in the sheets, from the given drawing list.
INTRODUCTION-
- Create views on a project template before you initiate building the model to streamline the project documentation method.
- When creating a project template, you can include sheets in the template. Initiate with a blank project file, and create the standard views and levels that each project should include.
- Leave the views empty, but assign standard names to them. To create a standard set of construction documents, create sheets utilizing the desired title blocks.
- Add views to the sheets, utilizing the desired viewport templates and view title types.
- Then save the empty project as a project template.
- When you create a project utilizing this project template, all of the views and sheets are already generated and listed in the Project Browser.
- As you initiate to draw the building model in the project views, the views on the sheets update automatically.
- This technique streamlines the project documentation method and maintains organizational standards.
PROCEDURE-
STEP-1

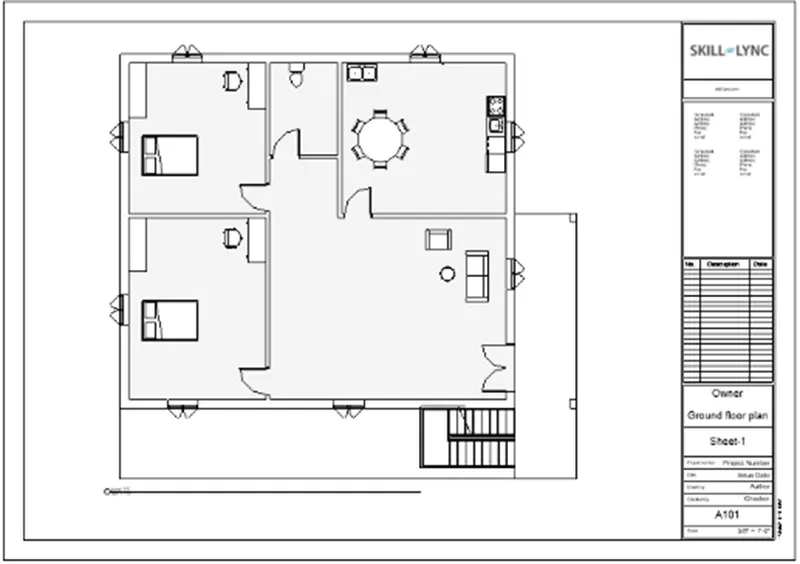

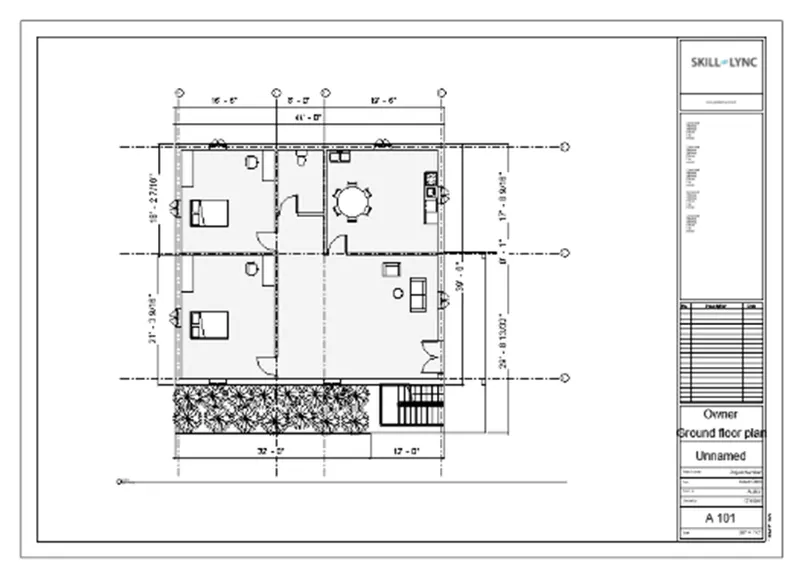

- First we produce the Ground floor architectural plan in the sheet template A-101, as given in the below picture.
STEP-2
- Next we produce the First floor architectural plan in the sheet template A-102, as given in the below picture.
STEP-3

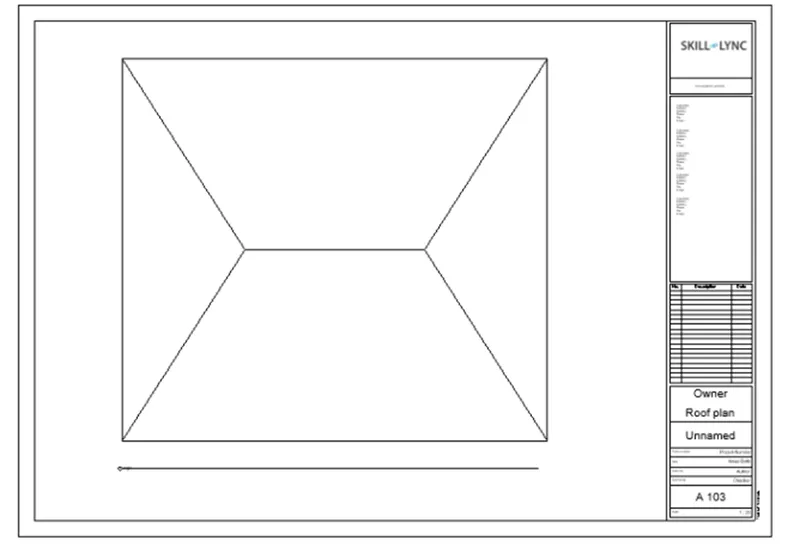

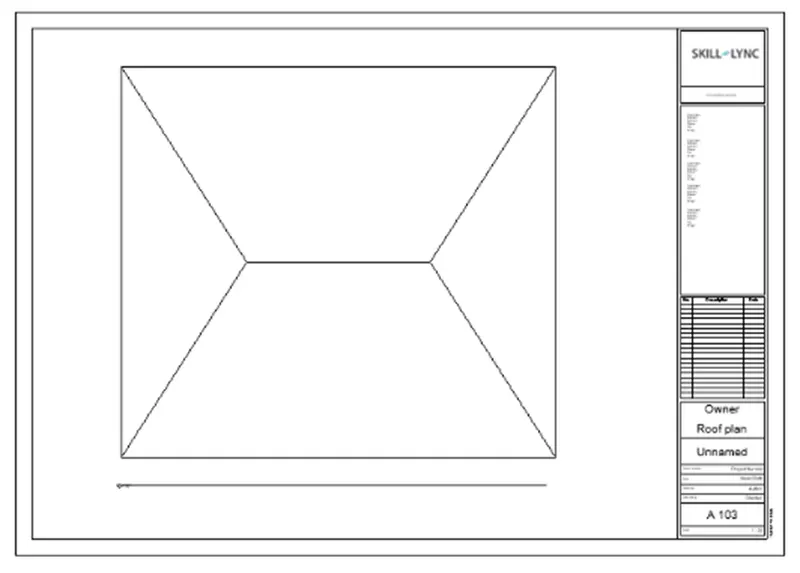

- Next we produce the Roof plan in the sheet template A-103, as given in the below picture.
STEP-4

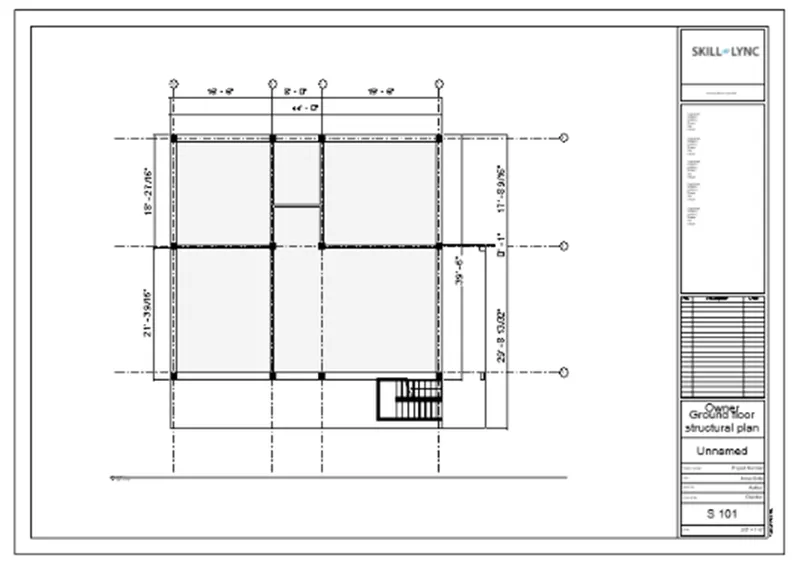

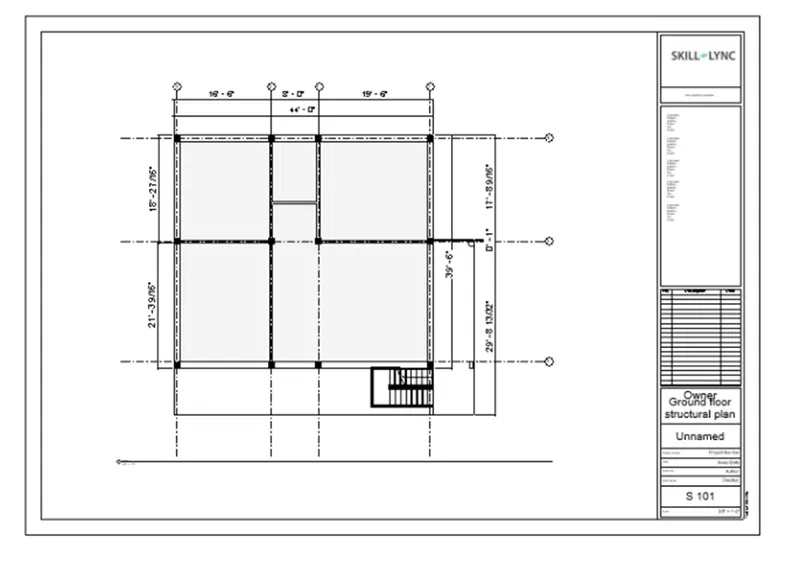

- Next we produce the Ground floor structural plan in the sheet template S-101, as given in the below picture.
STEP-5

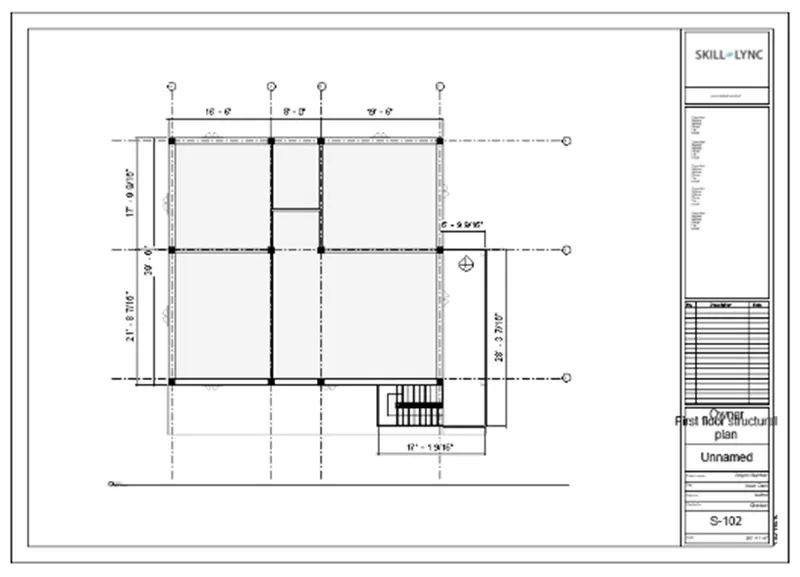

- Next we produce the First floor structural plan in the sheet template S-102, as given in the below picture.
STEP-6

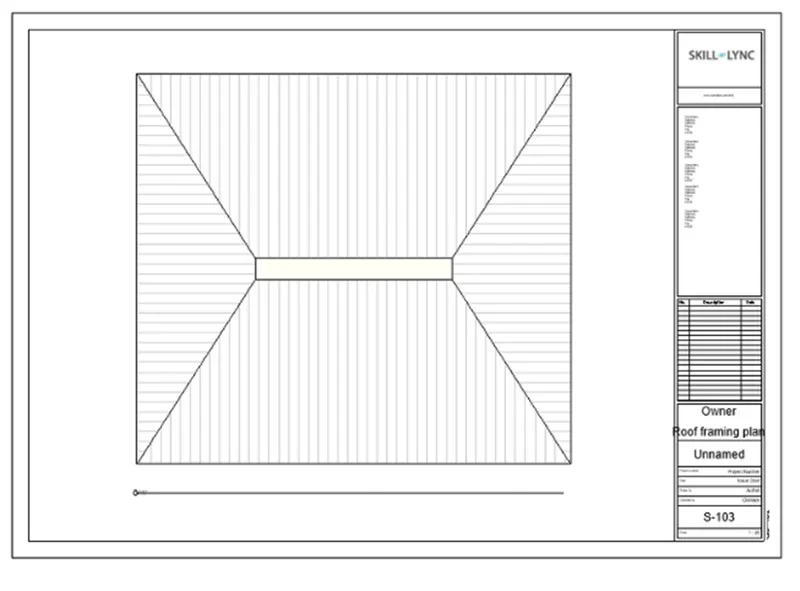

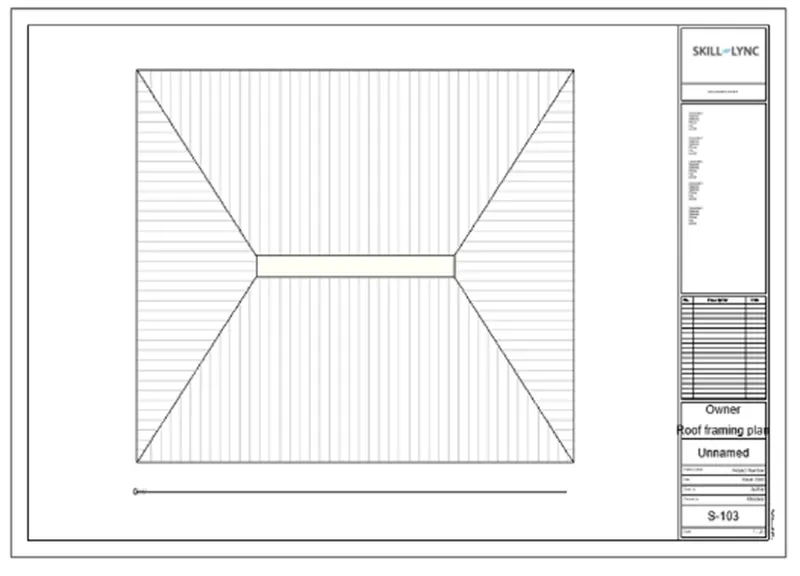

- Next we produce the Roof framing plan in the sheet template S-103, as given in the below picture.
STEP-7

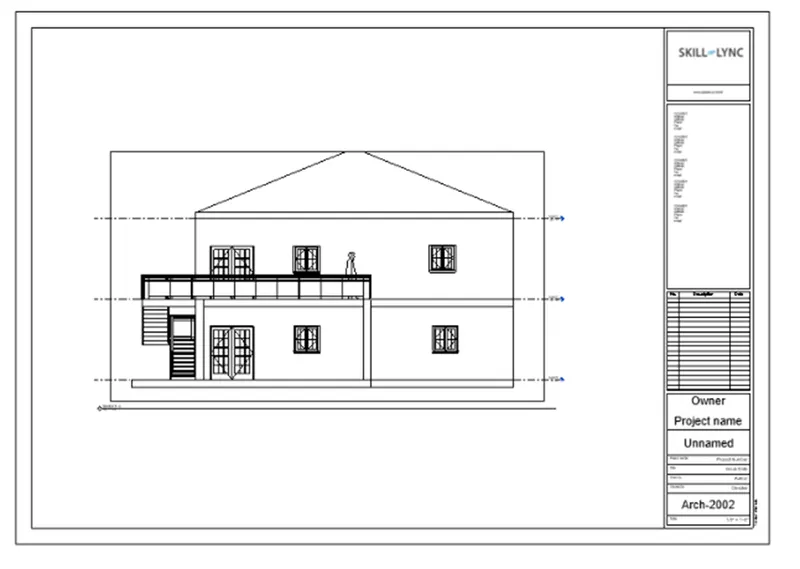

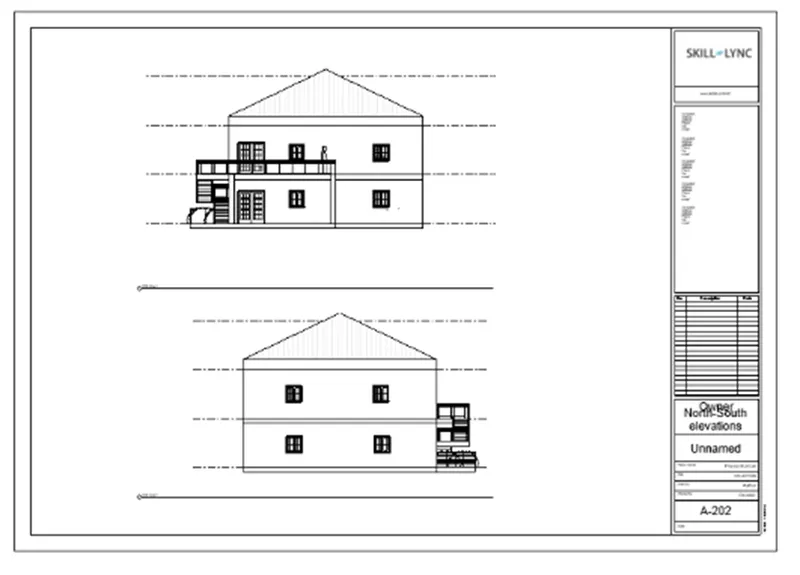

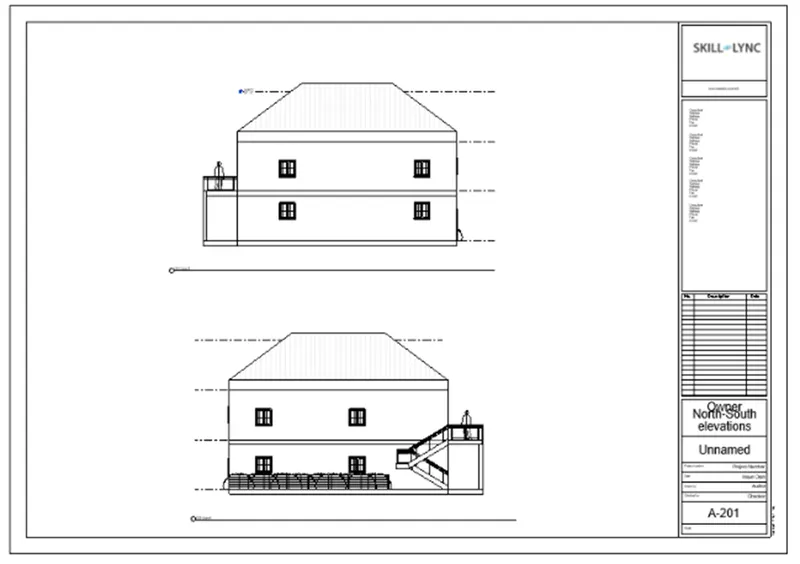

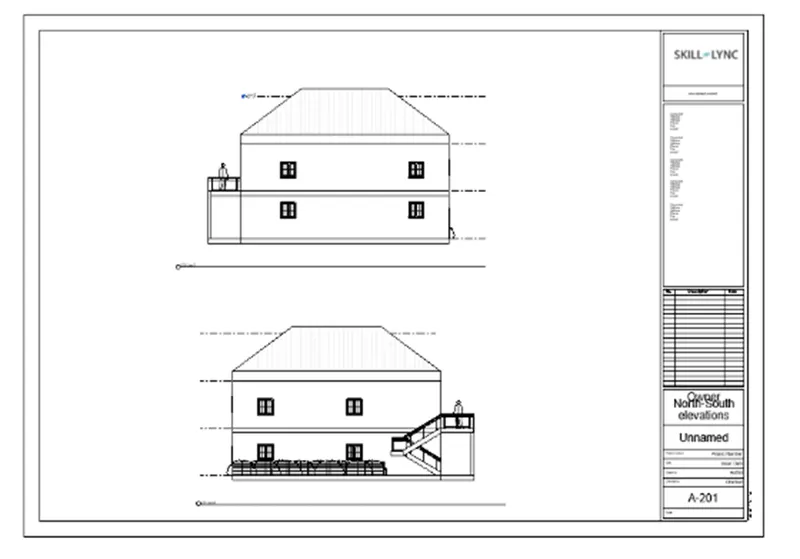

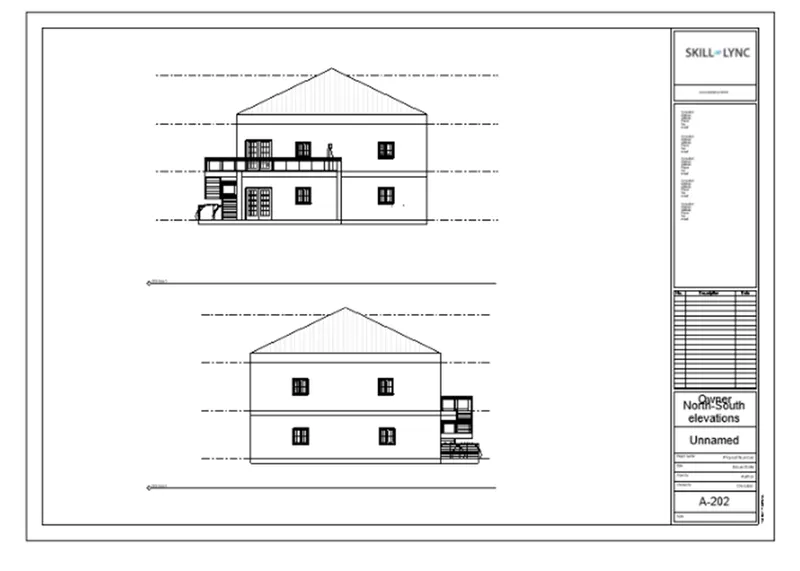

- Next we produce the North and south elevation views in the sheet template A-201, as given in the below picture.
STEP-8

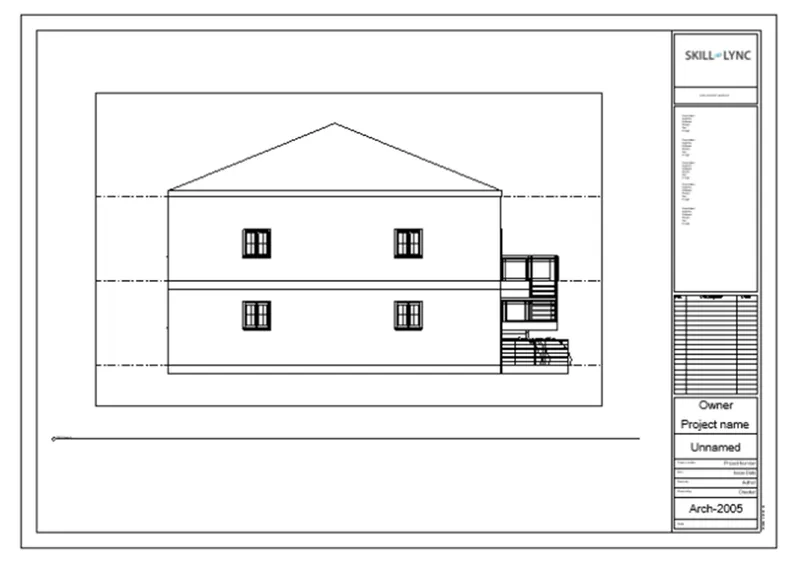

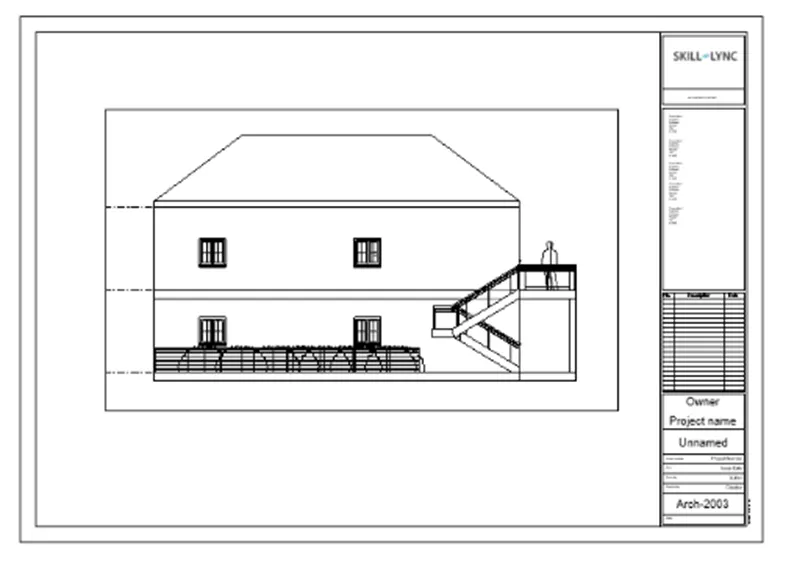

- Next we produce the East and West elevation views in the sheet template A-202, as given in the below picture.
RESULT-
- Generated the multiple sheets and produced the drawings in the sheets, from the given drawing list.
Q.10 Create a camera-specific view or a 3D view in each room (living, dining, bedroom). Depend on the views create a new set of sheets initiating A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.
AIM- To create a camera-specific view or a 3D view in living room, dining room and bedroom in the sheets unconnectedly.
INTRODUCTION-
- Camera Views are really useful in Revit.
- They permit us to view what we would actually see if we were standing at any given location in our design.
- This can be invaluable for both understanding and communicating the nature of a space before we go to the costly lengths of actually constructing it for real.
PROCEDURE-
STEP-1
- First we take the sheet and name it as A-501.

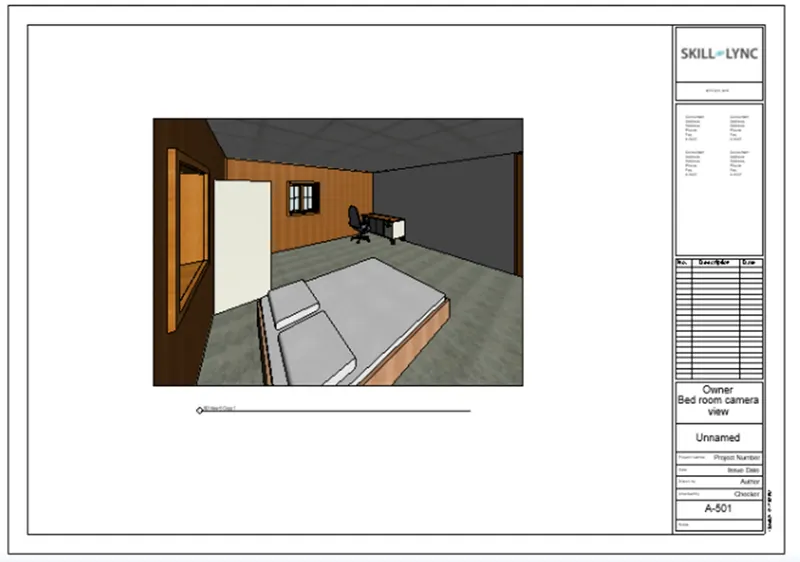

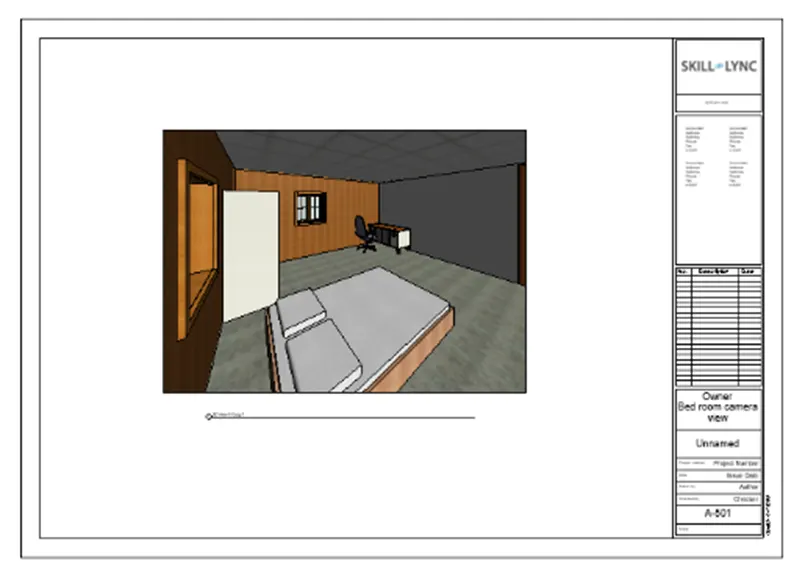

- Next go to the floor plan and place the camera in the bed room and the camera view of bed room will be given below.
STEP-2
- Next we take the sheet and name it as A-502.

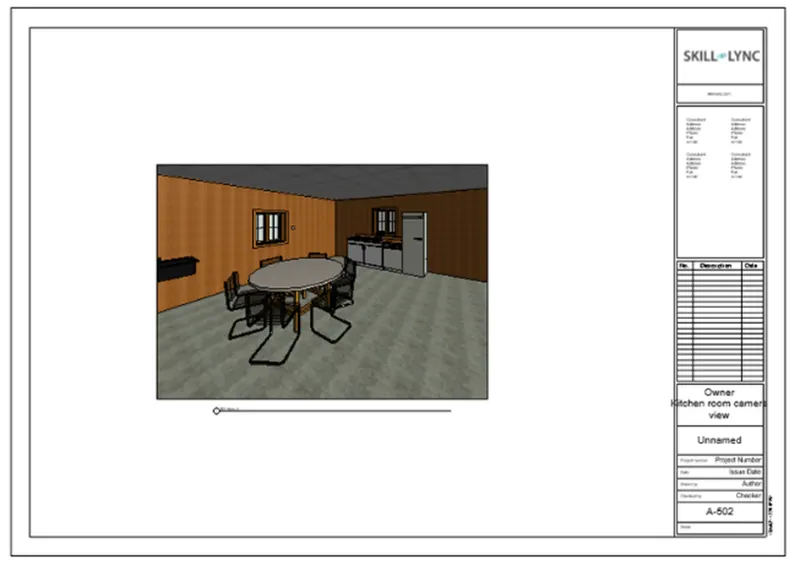

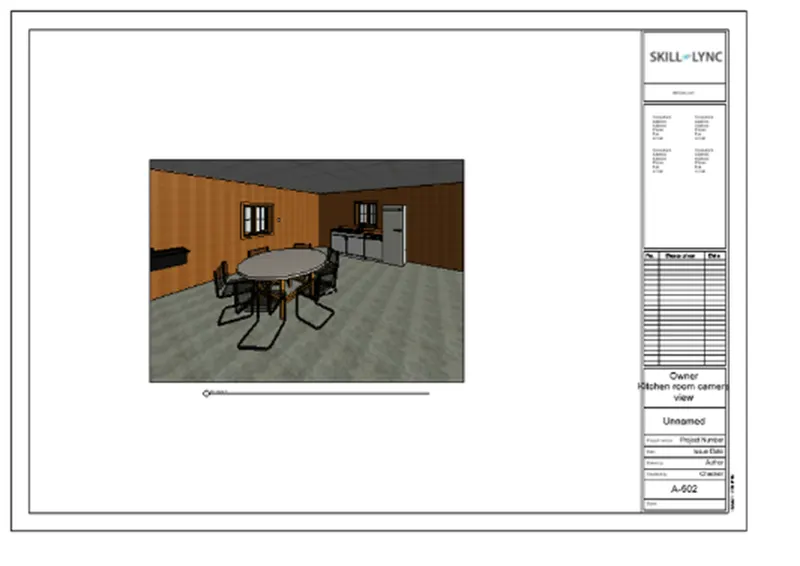

- Next go to the floor plan and place the camera in the Kitchen room and the camera view of kitchen room will be given below.
STEP-3
- Next we take the sheet and name it as A-503.

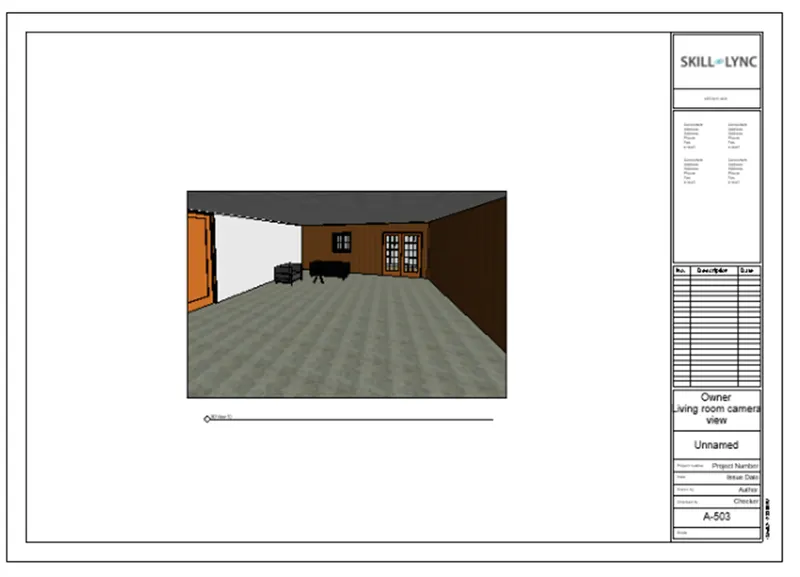

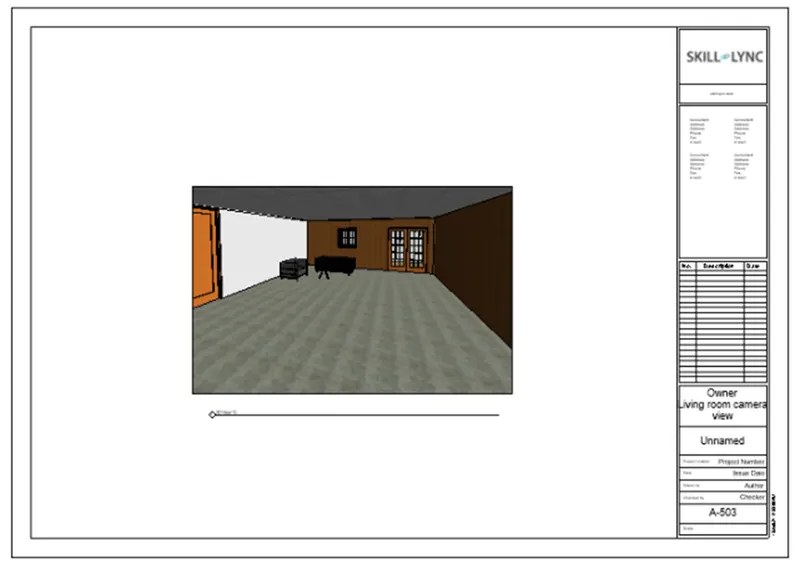

- Next go to the floor plan and place the camera in the Living room and the camera view of Living room will be given below.
RESULT-
- Generated a camera-specific view or a 3D view in living room, dining room and bedroom in the sheets unconnectedly.
