3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT
1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level
Aim:
The aim is to create a model ceiling at the first floor level in our model,
Result:
Hence the ceiling is created from the ceiling tab option at the FF level.

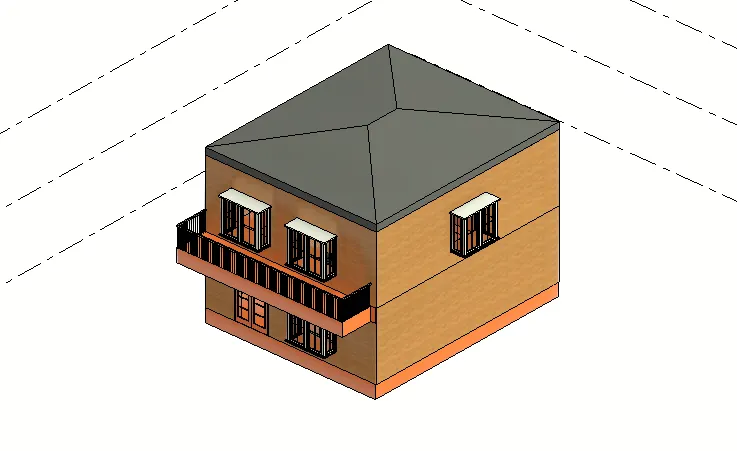

2) Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees
Aim:
The aim is to model a roof above the ceiling by selecting the footprints of the ceiling
Result:
Hence the roof is created and adjusted to 10 deg slope.

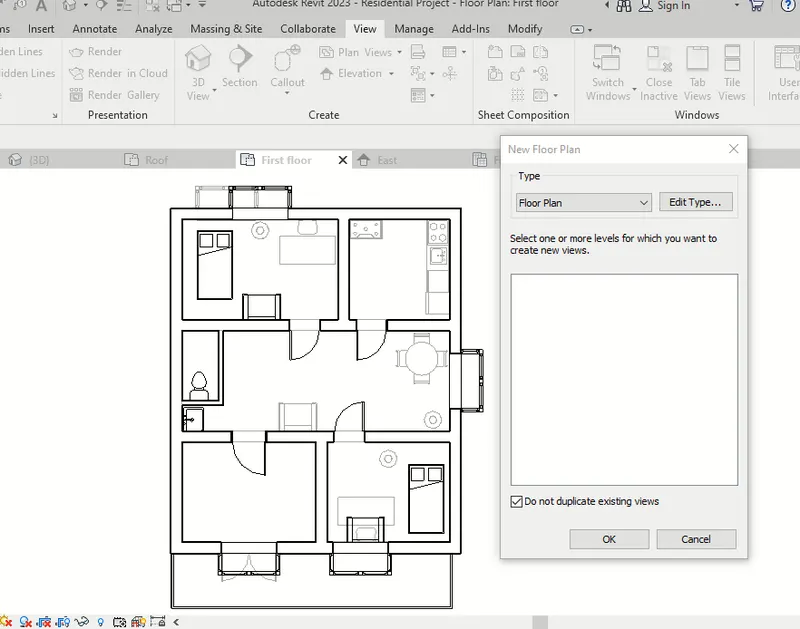

3) Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans
a. Architecture plan must have walls, floors, and all the components placed within the building
b. Structure plan must have details of only walls, floors, and columns..
Aim:
The aim is to create plan views for ground floor level and first-floor level including all the walls, floors, and components.

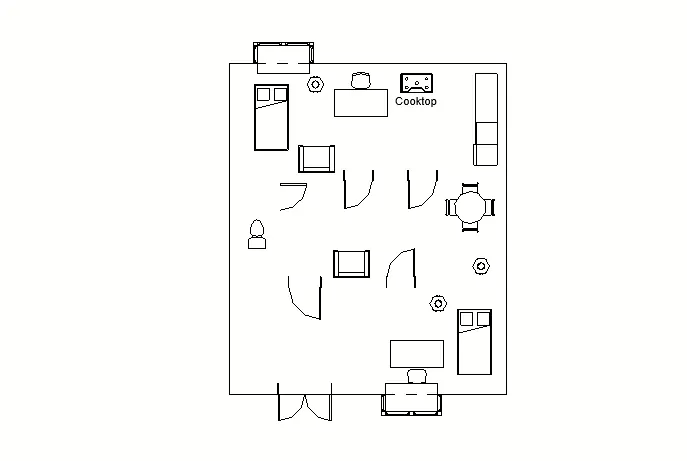

Architectural plan:
Structural plan:
Result:
Hence both the Architectural and structural plan views are shown above.

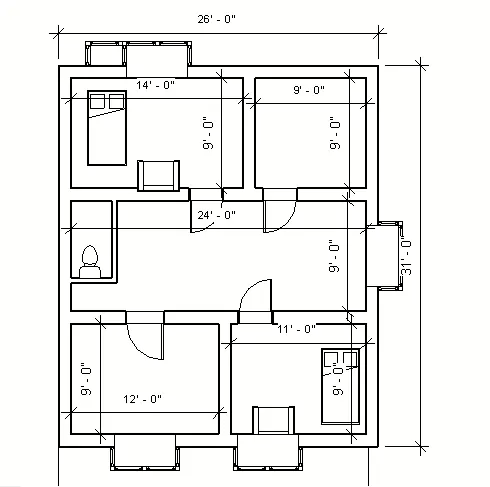

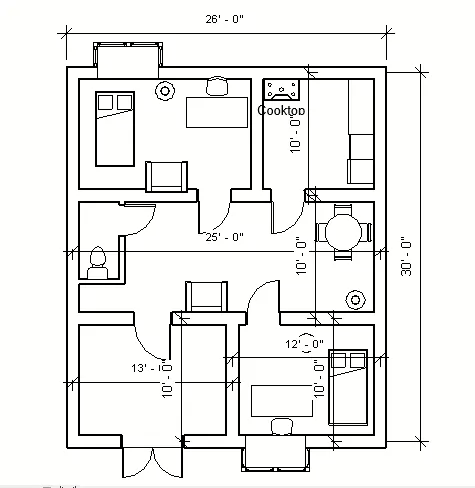

4) Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file
a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans
b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans
Aim:
The aim is to annotate both the Architectural and structural plan view.
Result:
Hence the annotations are provided.
5) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views
Aim:
The aim is to create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views.
Result:
Hence the sheet is created.

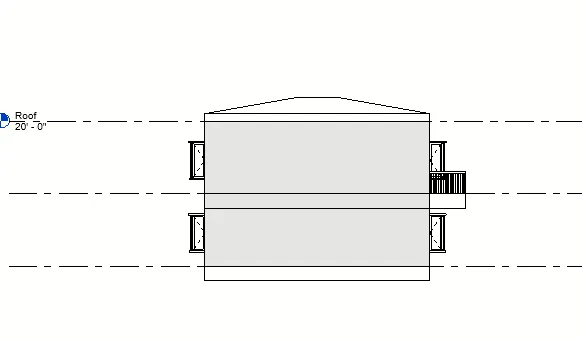

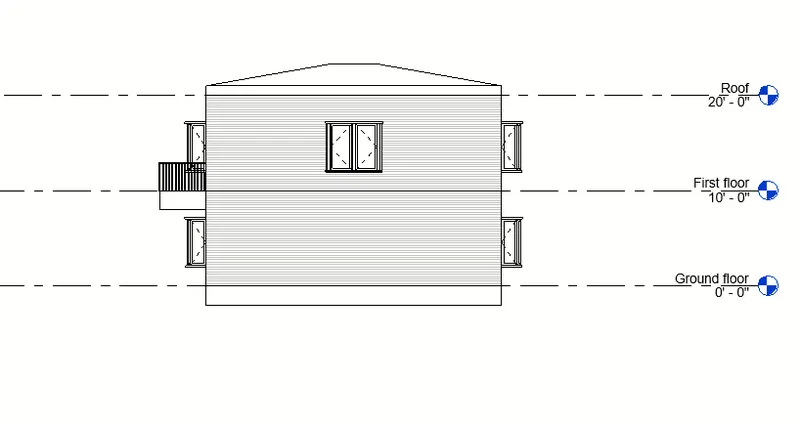

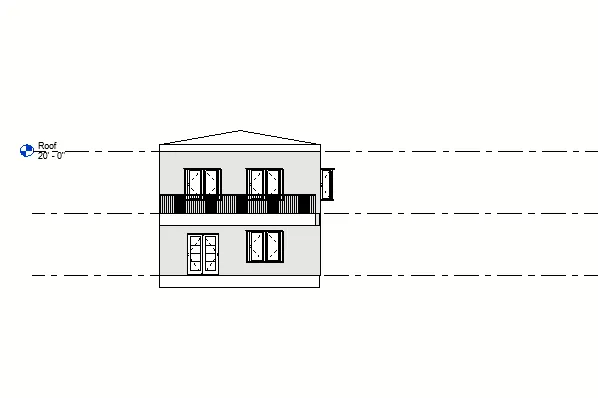

6) Using the elevation tab create the elevation views, looking at your building from East, North, South, and West
Aim:
The aim is to create the elevation views, looking at the building from East, North, South, and West.

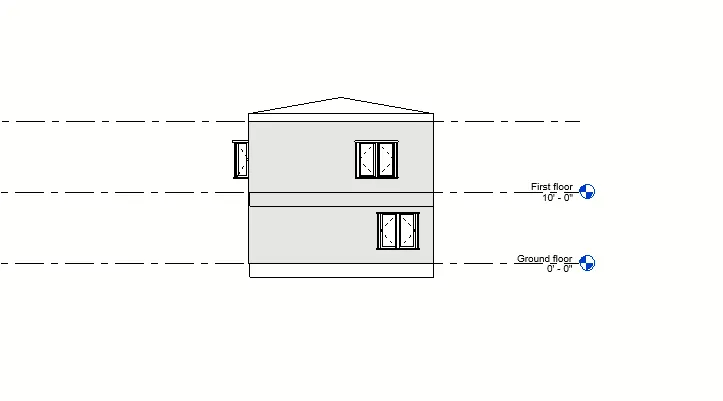

East:
North:
South:
West:
Result:
Hence the elevation views are created using the elevation tab.

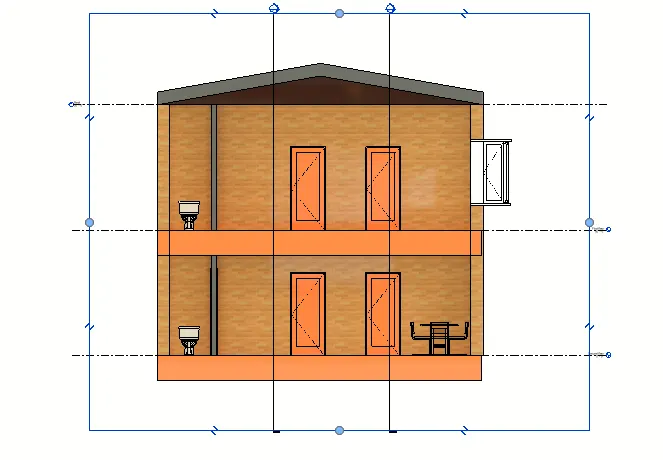

7) Produce section cut through each room either cutting across longitudinally or in a transverse direction
Aim:
The aim is to produce section cut through each room either cutting across longitudinally or in a transverse direction.

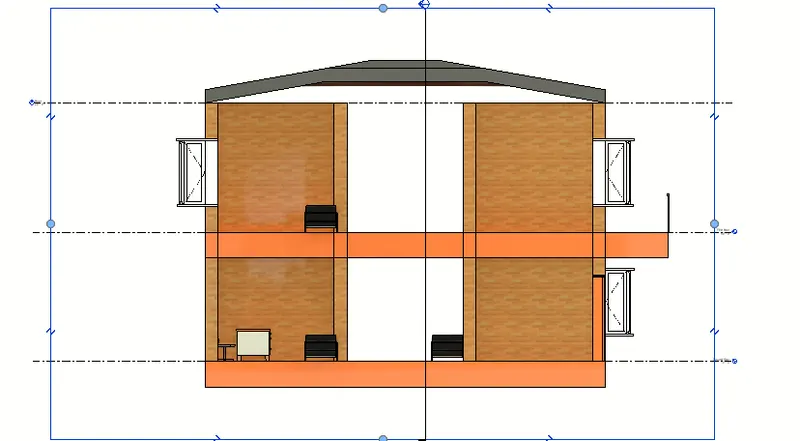

Section view of Bedroom:
Section view of Hall:
Result:
Hence the section view are created.

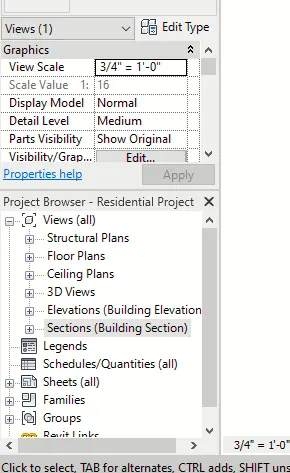

8) Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser
Aim:
The aim is to classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser.
Result:
The different classification are mentioned in above screenshot.
9) Using the sheet template produced create multiple sheets as follows
a. A 101- Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan
c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan
f. S 103- Roof Framing Plan
g. A-201- North-South Elevations
h. A-202- East-West Elevations
Add additional sheets based on the sections created in your Revit file
Aim:
The aim is to add additional sheets based on the sections created in your Revit file

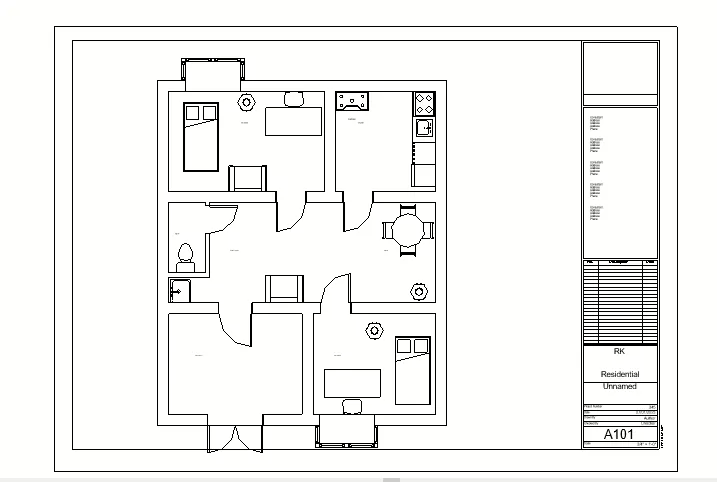

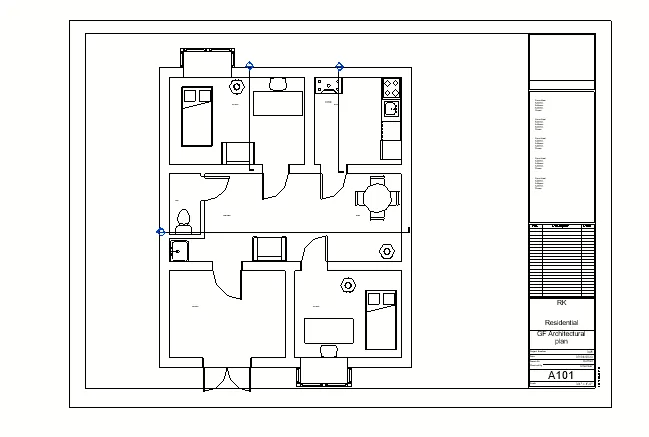

A101:

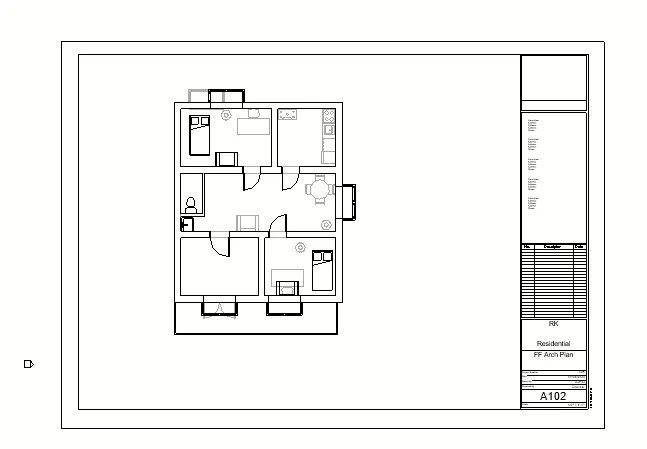

A102:

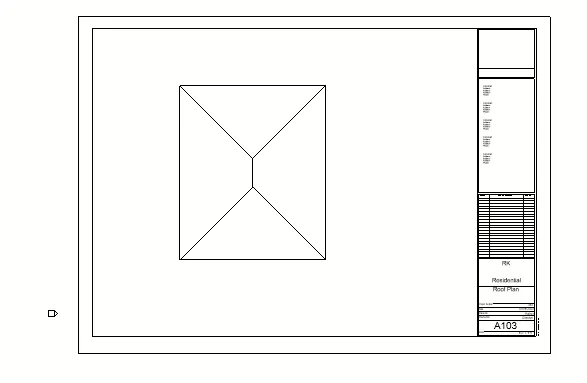

A103:

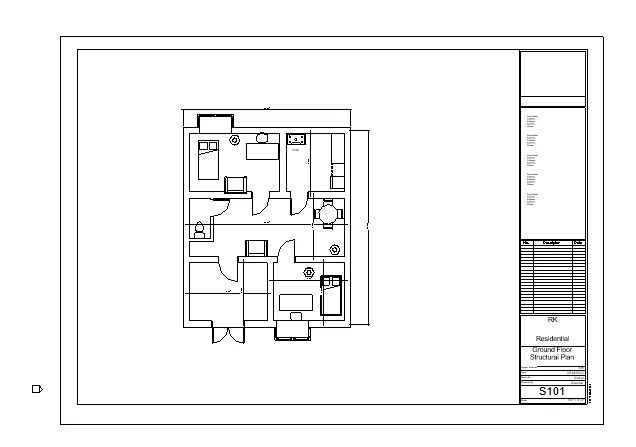

S101:

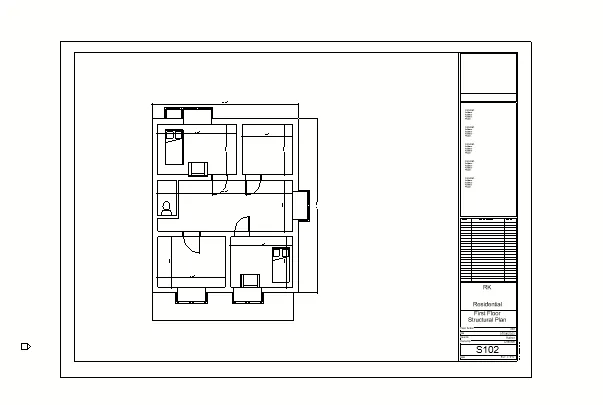

S102:

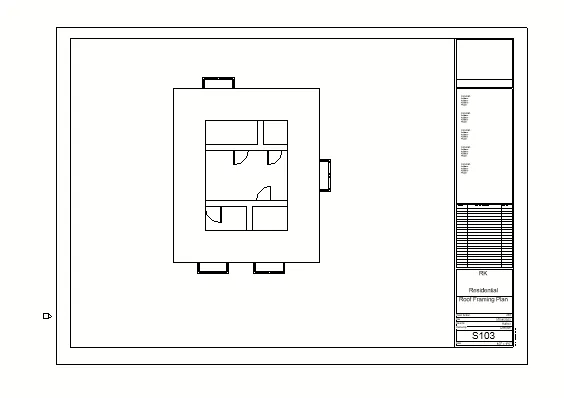

S103:

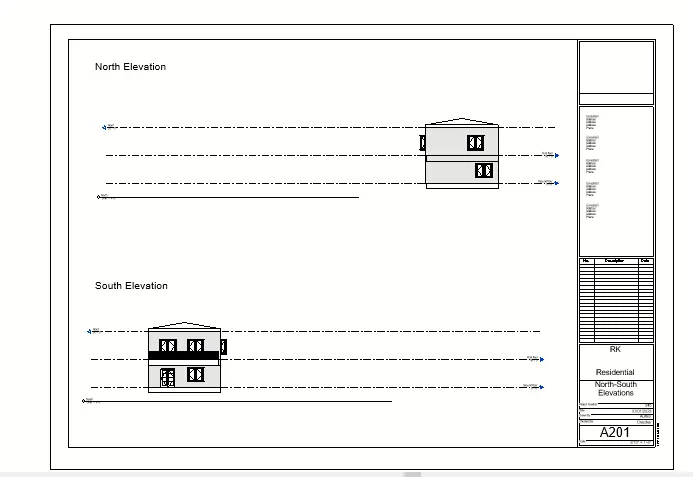

North-South Elevations:

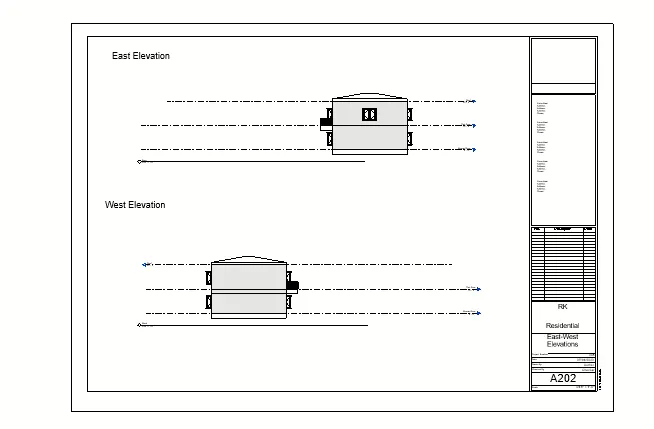

East-West Elevations:
Result:
Hence all the above listed sheets and views are created.

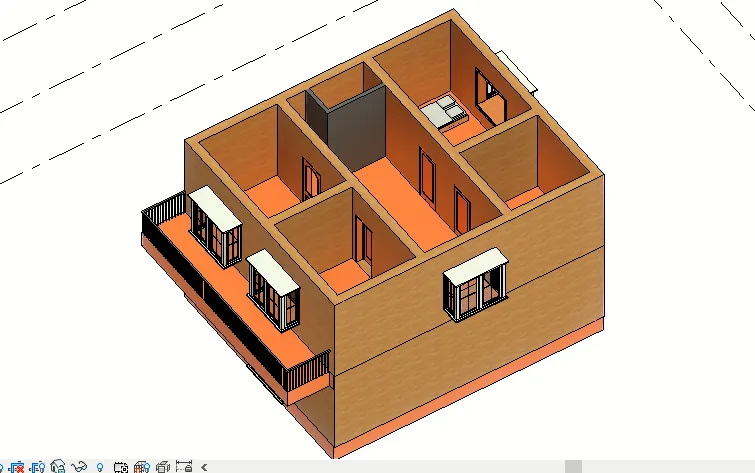

10) Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.
Aim:
The aim is to create a camera-specific view or a 3D view in each room

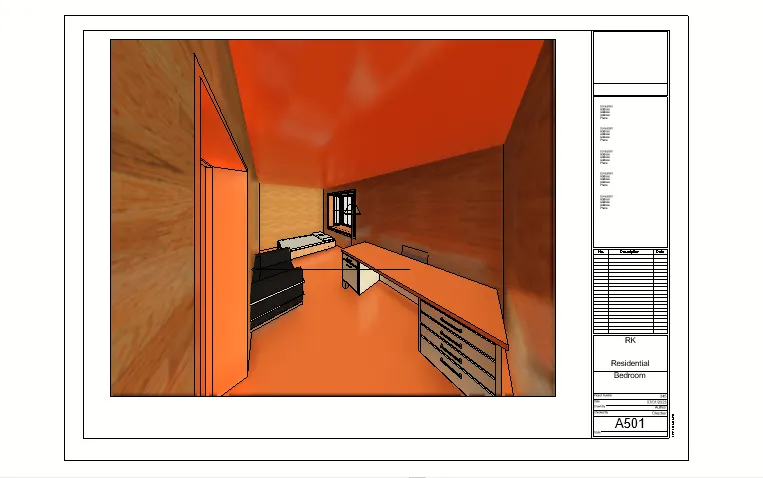

A501:

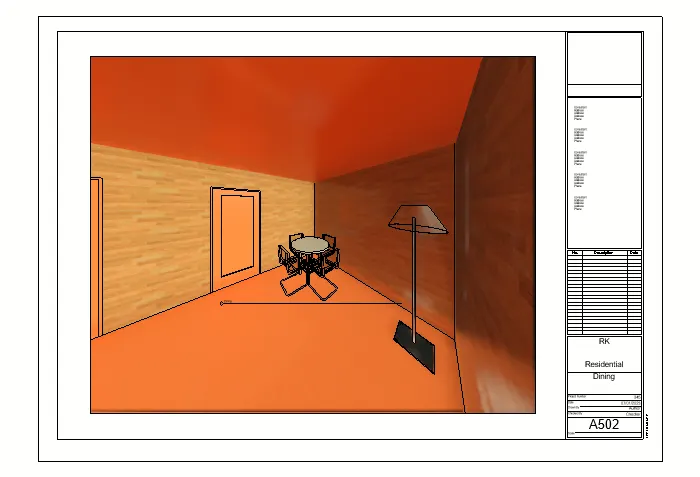

A502:

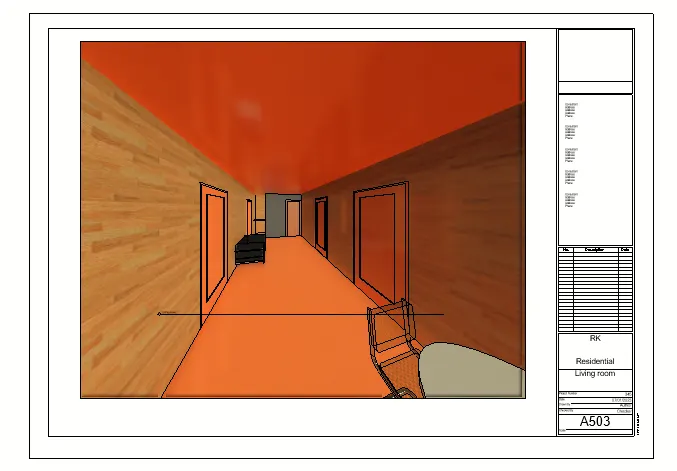

A503:
Result:
Hence the respected view and sheets as mentioned above are created.
