3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT
CREATE THE 3D CREATION OF CEILING, ROOF, ARCHITECTURAL PLAN, STRUCTURAL PLAN, SECTIONAL VIEW, ELEVATION VIEW AND CAMERA SPECIFIC VIEW FOR A HOUSE PLAN USING REVIT.
NOW START THE PROJECT:
1. ANS:
AIM:
To model a ceiling from the architecture tab above the walls at the first-floor level.
INTRODUCTION:
The creation of ceilings within revit is a very similar process to that of floors and roofs-ie you can let revit do most of the work and "guess" where you want the boundaries to be, or you can enter "sketch mode" and literally sketch out the boundary of the ceiling yourself.
The main thing to remember is to be in the correct ceiling plan view before you start. Revit "will" ;et you place ceilings in floor plan view, but i would not advice this as you cannot readily see what yoy have created.
PROCEDURE:
STEP - 1:
First we open the revit software, and select the ceiling option from the architecture toolbar.
STEP - 2:
After selecting the ceiling option, then select the each room one by one.
Then the ceiling will be created as shown in the below figure.
STEP - 3:

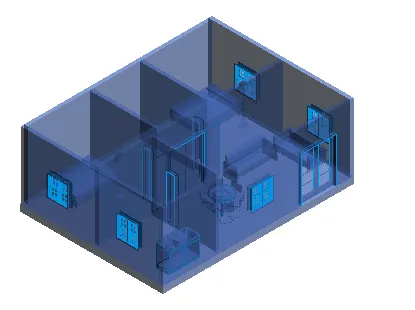

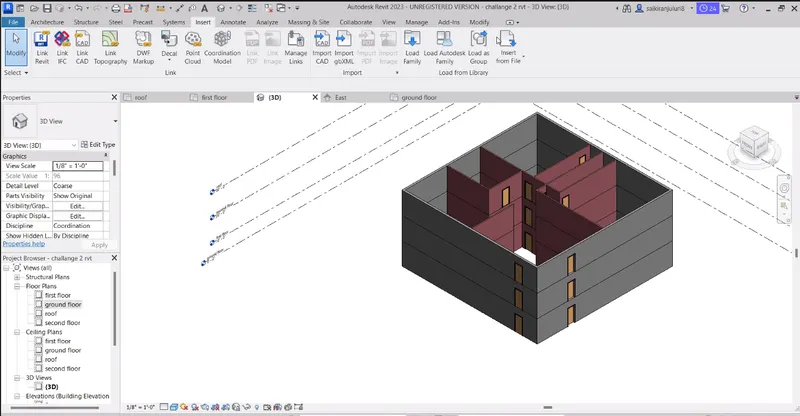

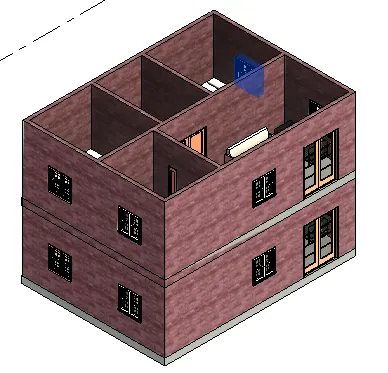

Here we can the ceiling in the three dimensional view as shown in the below figure.
RESULT:
The ceiling has been modelled successfully froim the architecture tab above the walls at the first-floor level.
2. ANS:
AIM:
Tol model a roof above the ceiling by selecting the footprints of the ceiling.
INTRODUCTION:
Roof covewring the top of a building, serving to protect against rain, snow, sunlight wind, and extremes of temperature.
Roofs have been constructed in a wide variety of forms flat, pitched, vaulted, domed, or in combinations as dictated by technical, economic, aesthetic considerations. The earliest roofs constructed by a man were probably thatched roofs that made of straw, levels, branches, or reeds; they were usually set at a slope, or pitch, so that rainfall could drain off them.
PROCEDURE:
STEP - 1:
Open the architecture toolbar, and select the roof by footprint option as shown in the below figure.
STEP - 2:
Next we select the roof and adjust the roof to 10 degrees by selecting it , as shown below.
STEP - 3:
The roof has been created, as shown below.
RESULT:
THE ROOF HAS BEEN CREATED SUCCESSFULLY TO THE MODEL IN THE REVIT IN THE DETAILED MANNER.
3. ANS:
AIM:

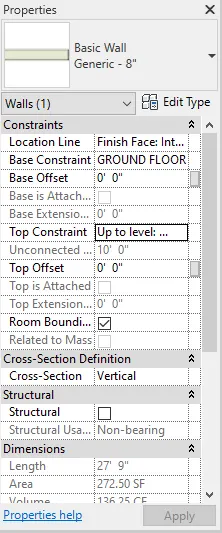

To create plan views for ground floor level and first-floor level including all the walls, floors and components.
INTRODUCTION:
The structural view is the default view when you start a new project using a structural template.
Most projects include atleast one structural plan. New structural plan views are created automatically as you add new levels to your project. You can create multiple structural plan view types.
The floor plan view is the default view in a architectural project.
PROCEDURE:
STEP - 1:

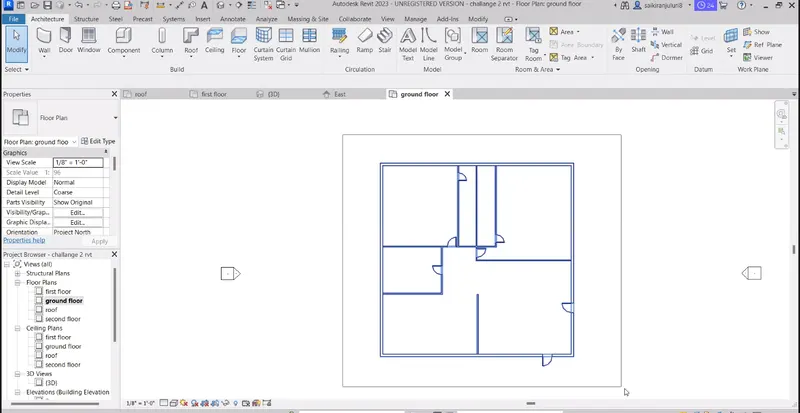

First we draw the architectural plans of first floor and second floor as shown below.
STEP - 2:
Next we draw the structural plans of the first floor and second floor as shown below.
RESULT:
Created plan views for ground floor level and first floor level inclucding all the walls, floors and components. And selected them to architecture and structural plans.
4. ANS:
AIM:
To add the dimensions to all the floors and walls with reference to the longitudinal and transverse grids created in the project file.
INTRODUCTION:
The structural plan view is the default view when you start a new project using structural template.
Most projects include atleast one structural view, New structural plan views are created automatically as you add new levels to your project. You can create multiple structural plan view types.
PROCEDURE:
STEP - 1:

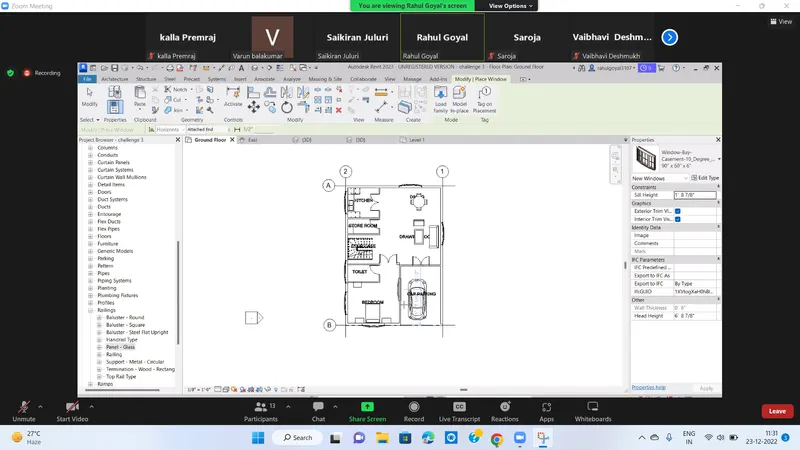

Here we can draw the longitudinal and transverse grids to the architectural plans as shown below.
An add the dimensions to the architectural plans as shown below.
STEP - 2:
Next we draw the longitudinal and transverse grids to the structural floor as shown below.
And add the dimensions to the structural plans as shown below.
RESULT:
The dimensions are added to the structural floor plans and the architectural floor plan. And the longitudinal and transverse grids are also created in the projrct file.
5. ANS:
ANS:
To create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views.
INTRODUCTION:
Create views on the project template before you stat building to the model to streamline the project documentation process.
When creating a project template, you can include sheets in the template. Start with a blank project file, and created the standard views and levels that each project should include.
Leave the views empty, but assign standard names to them. To create a standard set of construction documents, create sheets using the desired title blocks.
PROCEDURE:
STEP - 1:
First we click on the sheet option from the view toolbar, as shown below.
After clicking the sheet, the new tab will be visible on the screen.
In that new tab we select the A1 metric then the sheet template will be diaplayed.
STEP - 2:
In the sheet template we insert the first floor and second floor separately as shown below.
Next edit the project name and sheet number as shown in the figures below.
RESULT:
Created a sheet template from the view tab and adjust the parameters on the sheet for adding appropriate views.
6. ANS:
AIM:
To create the elevation views looking at your building from est,north, south and west using elevation tab.
INTRODUCTION:
An elevation is a view of a building seen from one side, a flat representation of one view.
This is the most common view used to describe the external appearence of a building.
Each elevation is labelled in relation to the compass direction it faces, eg; looking toward the north you would be seeing the southern elevation of the building.
PROCEDURE:
STEP - 1:

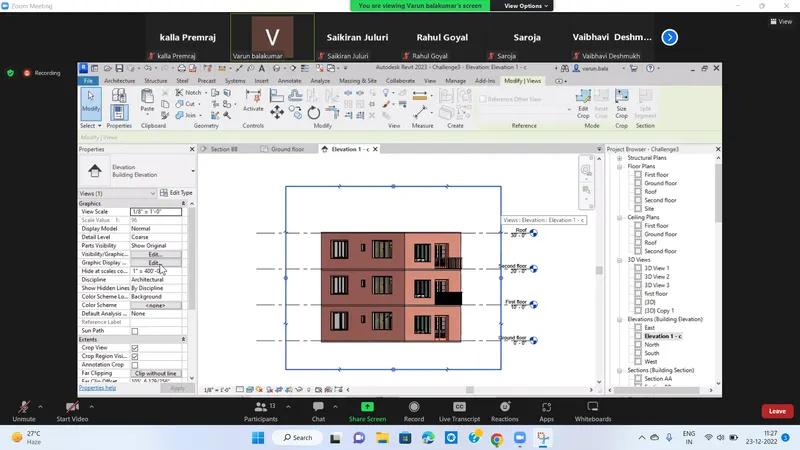

First we click on the elevation option from the view toolbar as shown below.
STEP - 2:
Next the elevation from the east will be visible as shown below.
STEP - 3:
Next the elevation from the south will be visible as shown below.
STEP - 4:

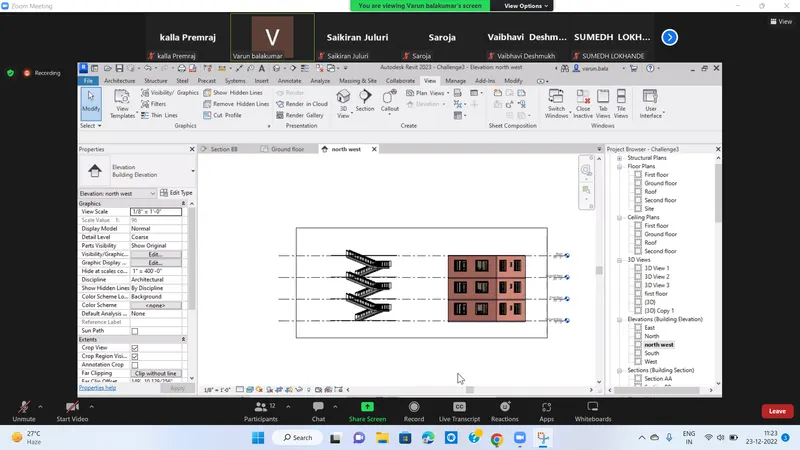

Next the elevation from the north will be visible on the screen, as shown below.
STEP - 5:
Next the elevation from the west will be visible on the screen as shown below.
RESULT:
To create the elevation tab is using the elevation views, looking at your building from east, north, south,and west using the revit software.
7. ANS:
AIM:
To produce section cut through each room either cutting across longitudinally or in a transverse direction.
INTRODUCTION:
Sectional views hidden details in a mechanical drawing.
These views assume that a cutting plane has removed portion of the object represented by the drawing, displaying the appropriate section of the interior.
Sectional views are used in engineering and architectural drawings.
PROCEDURE:
STEP - 1:

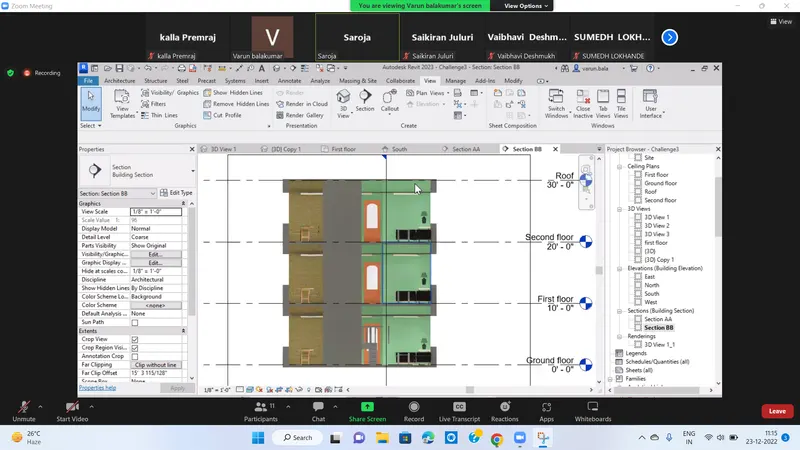

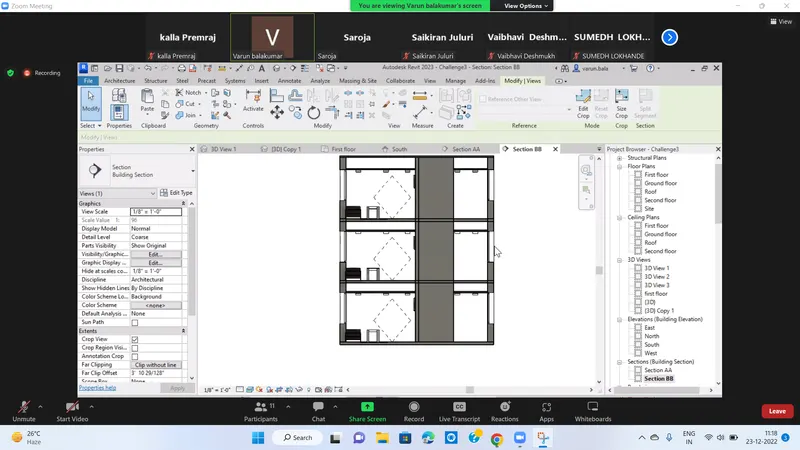

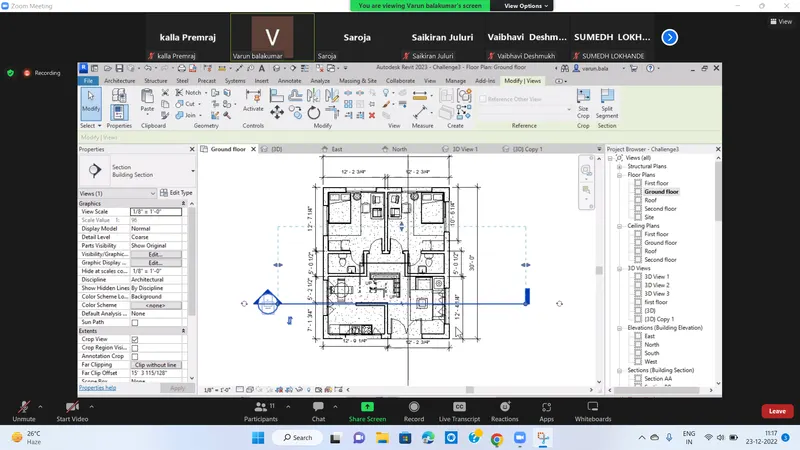

First we click on the section option from the view toolbar as shown below.
Next we produce the section view of the bedroom as shown below.
STEP - 2:
Next we produce the section view of the toilet room as shown in the below.
STEP - 3:
Next we produce the section view of the kitchen room as shown in the below figure.
STEP - 4:
Next we produce the section view of the living room as shown below figure.
RESULT:
Created the section views of a model in the revit in detailed manner.
8. ANS:
AIM:
To classify the views, plan views, section views, and elevation views to either design or documentation category using properties browser.
INTRODUCTION:
The structural plan view is the default view when you start a new project using a structural template.
Most projects at least one structural plan. New structural plan views are created automatically as you add new levels to your projects. You can create multiple structural plan view types.
The floor plan view are created automatically as you add new levels to your project.
Sectional views reveal hidden details in a mechanical drawing.
These views assume that a cutting plane has removed portions of the object represented by the drawing, displaying the appropriate section of the interior.
Sectional views are used in engineering and architectural drawings.
PROCEDURE:
STEP - 1:
First we open the project browser, the views, section views, and elevation views are visible in that project browser as shown below.
Next we insert these plans one by one in the sheets separately.
STEP - 2:
First we insert the front elevation in the sheet template, as shown in the below figure.
STEP - 3:
Next we insert the side elevation in the sheet template as shown in the below figure.
STEP - 4:
Next we insert the right side elevation in the sheet template as shown in the below figure.
STEP - 5:
Next we insert the back side elevation in the sheet template, as shown in the below figure.
STEP - 6:
Next we insert the ground floor plan on the sheet template as shown in the below figure.
STEP - 7:
Next we insert the first floor plan in the sheet template as shown in the below figure.
STEP - 8:
Next we insert the section - 1 in the sheet template as shown in the below figure.
STEP - 9:
Next we insert the section - 2 in the sheet template as shown in the below figure.
STEP - 10:
Next we insert the section - 1 in the sheet teomplate as shown in the below figure.
RESULT:
Views, plan views, section views, and elevation views are classified to design category using properties browser.
9. ANS:
AIM:
To Create the multiple sheets and produce the drawings in the sheets from the given drawing list.
INTRODUCTION:
Create views on the project template before you start building the model to streamline the project documentation process.
When creating a project template you include sheets in the templates Start with the a blank project file, and create the standard views and levels that each project should be include.
Leave the views empty, but assign standards names of them. To create a standard set of construction documents, create sheets using the desired title blocks.
Add views to the sheets using the desired viewports templates and view title types.
Then save the empty project as a project template.
PROCEDURE:
STEP - 1:
First we produce the ground floor architectural plan in the sheet template in A- 101, as shown in below figure.
STEP - 2:
Next we produce the first floor architectural plan in the sheet template A-102, as shown in the below figure.
STEP - 3:
Next we produce the roof plan in the sheet template A-103, as shown in the below figure.
STEP - 4:
Next we produce the ground floor structural plan in the sheet template S-101, as shown in the below figure.
STEP - 5:
Next produce the first floor plan in the sheet template S-102, as shown in the below figure.
STEP - 6:
Next we produce the roof framing plan in the sheet template S-103, as shown in the below figure.
RESULT:
Created the multiple sheets and produced the drawings in the sheets, from the given drawing list.
10. ANS:
AIM:
To create a camera specific-view or a 3D view in a living room, dining room and bedroom in the sheets separatly.
INTRODUCTION:
Camera views are really useful in revit.
They allow us to view what we would actually see if we were standing at any given location in our design.
PROCEDURE:
STEP - 1:
First we take the sheet and name it as A-501.
Next go to the floor plan and place the camera in the bed room, and the camera view of bedroom will be shown below.
STEP - 2:
Next we take the sheet and name ita as A - 502,
Next go to the floor plan and place the camera in the Kitchen room, and the camera view of Kitchen room will be shown below.
STEP - 3:
Mext we take the sheet and name it as A-503.
Next go to the floor plan and place thr camera in the living room and the camera view of living room will be shown below,
RESULT:
Created a camera specific - view or a 3D view in living room, dining room and bedroom in the sheets separatly.
