3D Creation of Ceiling, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT
Aim:
To create the ceiling above the walls at the first-floor level.
Procedure:
- Initially open the week 3 assignment from the Revit software.
- Then, first let us create a verandah on the ground floor as well as on the first-floor level, so that a roof can be created for the entire structure.
- For this initially go to plan view.
- Then using the floor option create the floor for the verandah portion as given below:
- Now, copy this floor to level 2 i.e., the first-floor level.
- Now we have to create a column for the veranda at the ground floor
- Next, we have to create railings for the fir floor verandah.
- For this go to the railings option in the architecture tab and create the railings.

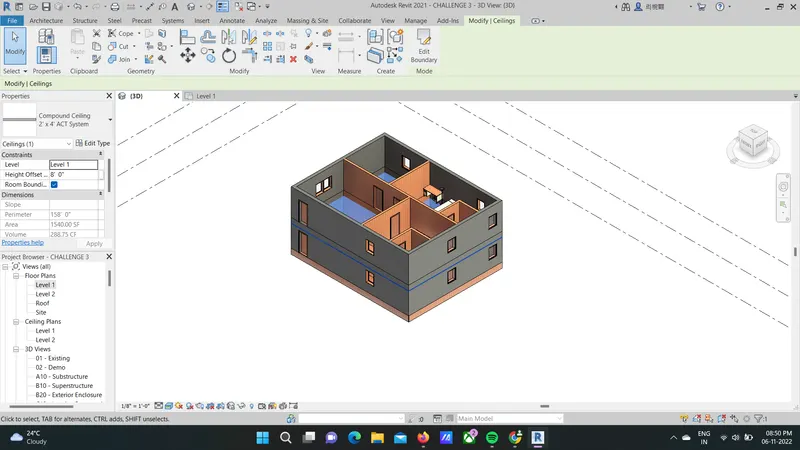

- Now we can place the ceiling, for this go to architecture tab and choose ceiling.
- Ceiling is to be provided in the level 2 for the ground floor.
- Hence, the ceiling is created.
------------------------------------------------------------------------------------------------------------------------------------------
Aim:

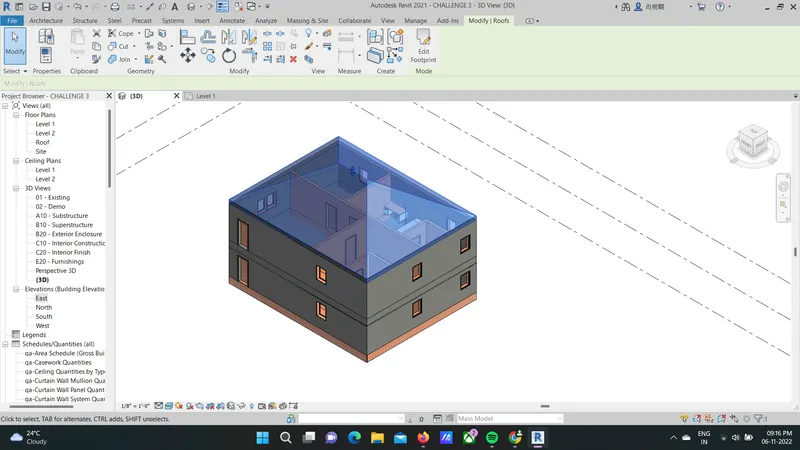

to model a roof above the ceiling by selecting the footprints of the ceiling and to adjust the roof slope to 10 degrees using adjustment toolbar.
Procedure:
- In order to create the roof, initially go to architecture tab of the ribbon.
- Then choose the roof option. From the roof dropdown choose roof by footprint.
- Then using the pick wall option in the modify tab create the roof boundary.
- Now, we have to adjust the roof slope to 10 degrees.
- Hence, a 10-degree slope is created.
----------------------------------------------------------------------------------------------------------------------------------------
Aim:
To create plan views for ground floor level and first-floor level including all the walls, floors, and components and then separate them to
- a) Architecture plan
- b) Structural plans.
Procedure:
- Initially go to the view tab of the ribbon then select plan views.
- In the plan views, select floor plan.
- Click level 1 and go to edit type.
- Choose view template applied to new views.
- In that select architectural plan.
- Then the floor plan is obtained as follows:
- Ground floor plan:
- First floor plan:
------------------------------------------------------------------------------------------------------------------------------------------
Aim:
To add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file.
- The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids.
- The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids.
Procedure:
- a)

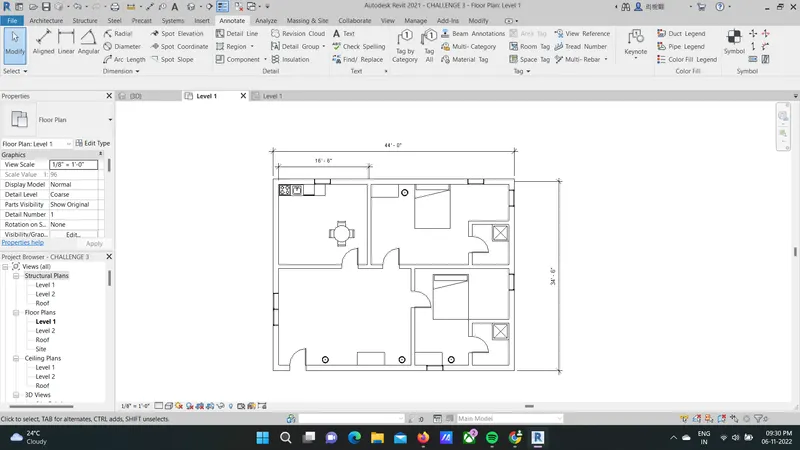

- Initially select the floor plan for the ground floor.
- Go to annotate tab and choose linear dimensions and provide linear dimensions in the plan.
- Now go to architecture tab and choose tag rooms option.
- Then tag the individual rooms as given below:
- Ground floor:
- The First floor:
- b)
- Now we have to create the structural plan dimensions according to grid lines.
- For this, go to structural plan.
- Then go to architectural tab, select grids and draw grids along the walls.
-------------------------------------------------------------------------------------------------------------------------
Aim:

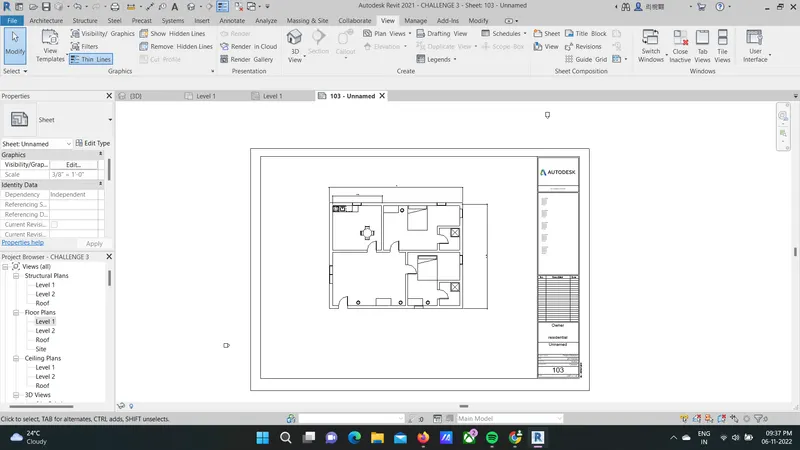

To create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views.
Procedure:
- Initially go to the view tab of the panel.
- Choose sheet option in the sheet composition panel of the view tab.
- Click load option and load more templates.
- Select the template and click ok.
- Now, choose the view that is to be added in the template.
- Add view to the sheet and then adjust the scale so that it fits to the template.
-----------------------------------------------------------------------------------------------------------------------------------------
Aim:
To create the elevation views, look at your buildings from East, North, South, and West.
Procedure:
- Initially go to view tab of the ribbon.
- Choose elevation view.
- Then create the elevation view --> north, south, east and west.
- The elevation views thus obtained are:
------------------------------------------------------------------------------------------------------------------------------------------
Aim:

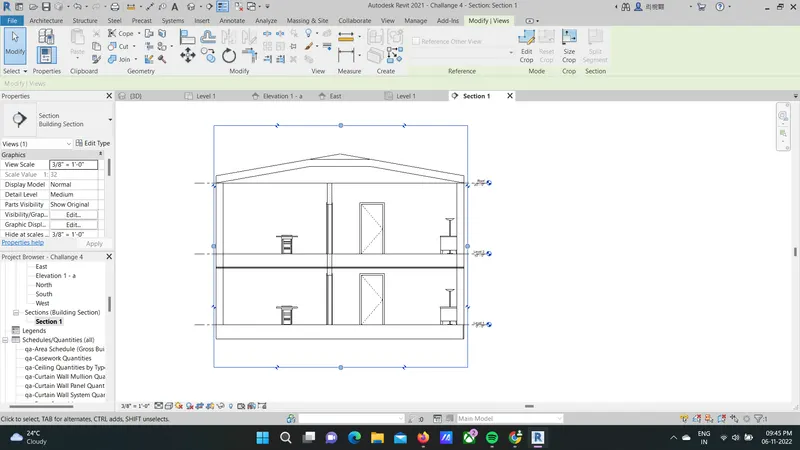

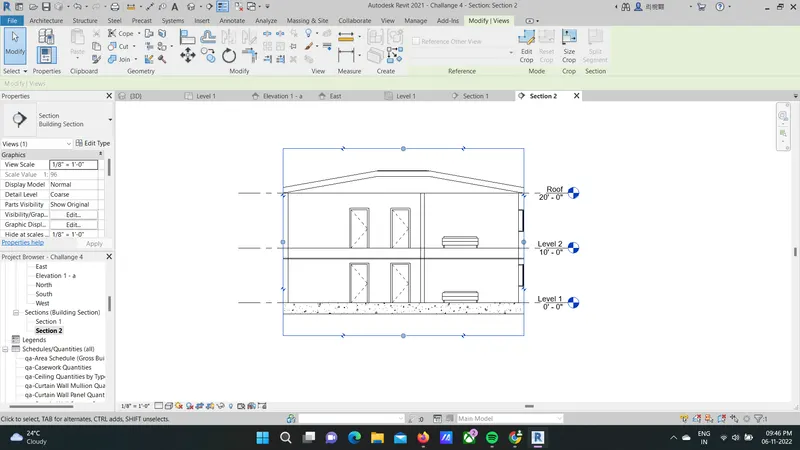

To produce section cut through each room.
Procedure:
- Go to the view tab of the ribbon.
- Select the section view and then section the required room.
-----------------------------------------------------------------------------------------------------------------------------------------
Aim:
To classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using properties browser.
Procedure:
- Go to the view tab of the ribbon.
- Choose property browser.
- The following are the different views created.
-----------------------------------------------------------------------------------------------------------------------------------------
Aim:

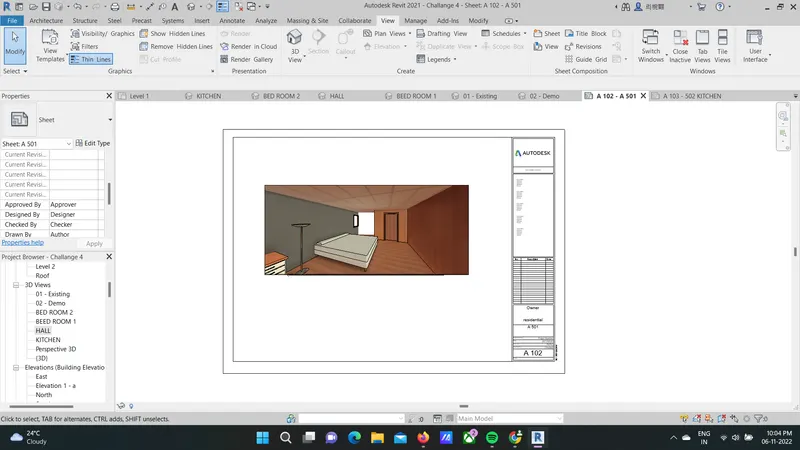

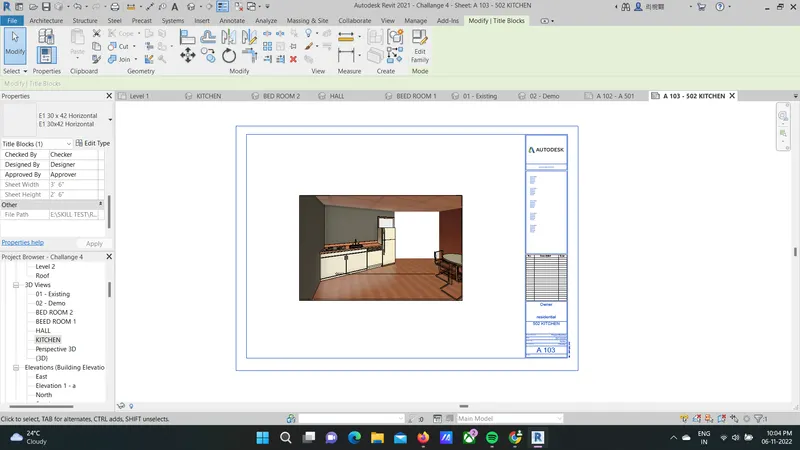

To create a sheet template and add different views in it.
Procedure:
- Go to the view tab of the ribbon panel.
- Choose sheet option and load the template required.
- Then add the views in it.
-----------------------------------------------------------------------------------------------------------------------------------------
Aim:

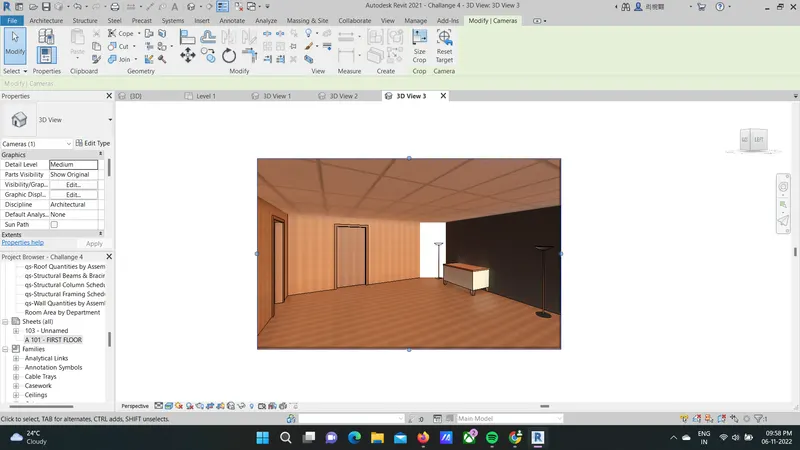

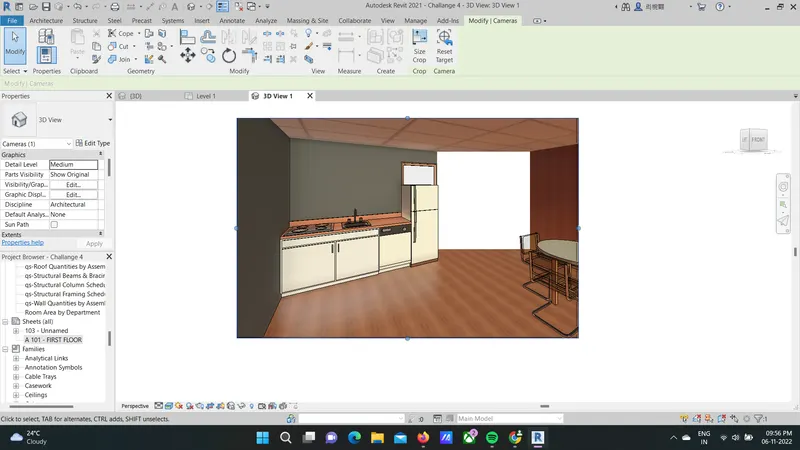

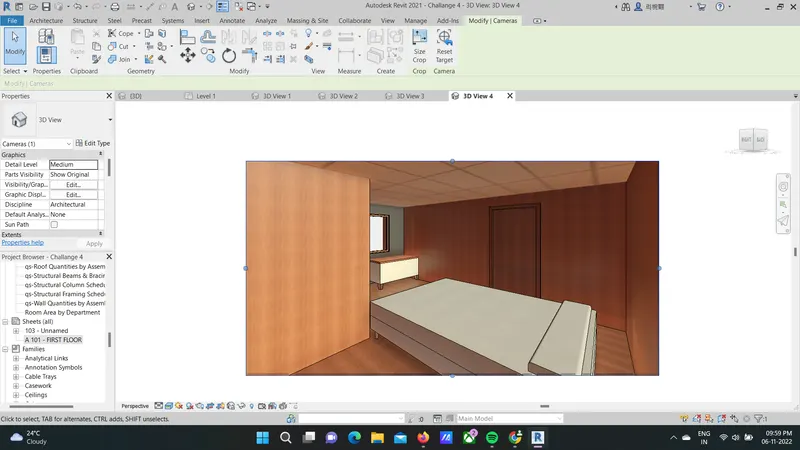

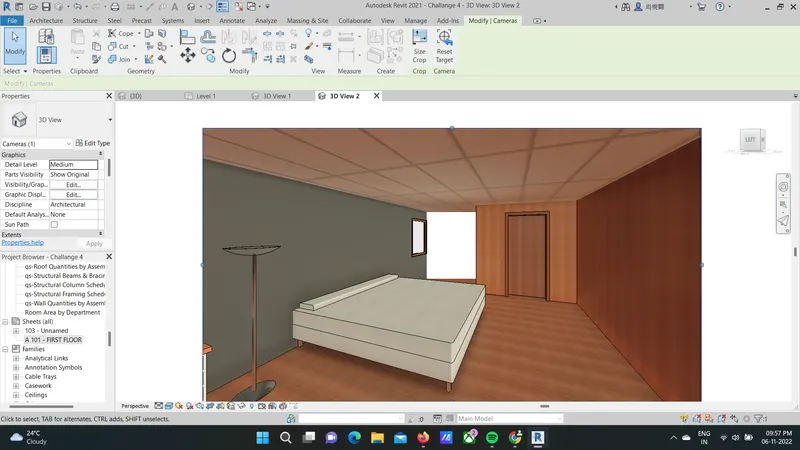

To create a camera-specific view or a 3D view in each room.
Procedure:
- To create a camera specific view, first go to the view tab.
- Then choose 3D drop down and in that choose camera.
- Now place the camera in the plan view at a suitable location to obtain the camera view.
- Different camera views are then produced
