3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT
1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level.
AIM:
Created a ceiling in the first floor level .
INTRODUCTION:
From the architectural tab to model a ceiling at the first floor level on the saved week 3 project of the residential unit.
PROCEDURE:
STEP 1:-
Open the Revit software.
Click on open and select previously created drawing of week 3.
STEP 2:-
Create Ceiling.
Go to Project Browser expand Ceiling Plan, double click on First Floor
Go to Architecture tab select Ceiling
Select sketch ceiling from Modify Place Ceiling

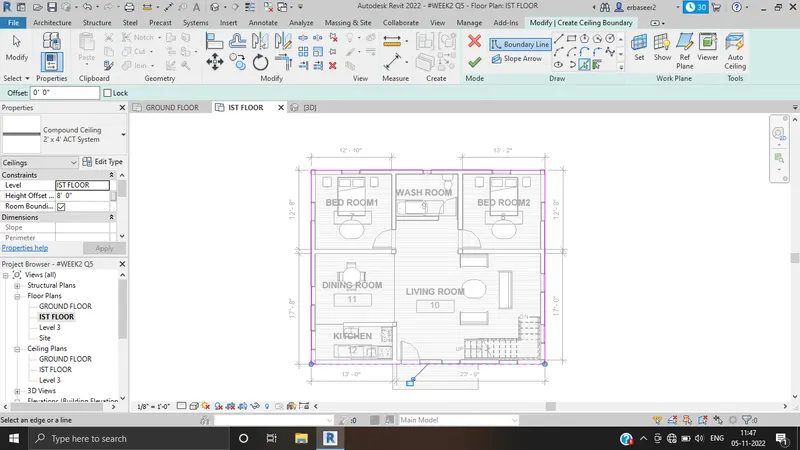

Create Ceiling Boundary tab is open, now select Pick Line tool from draw panel
Select exterior line of the plan then click on green tick from mode to finish

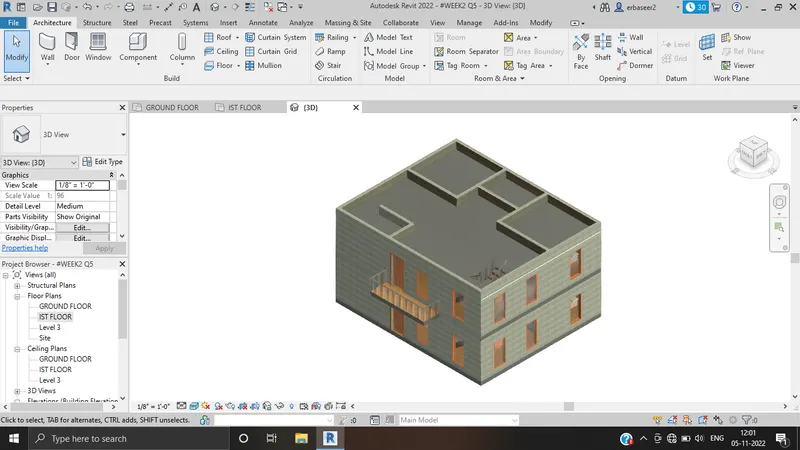

Ceiling is created on the first floor level
RESULT:
Following the above procedure, we have created a ceiling at the first floor level.
2) Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees.
AIM:
Created a roof by footprint above the ceiling.
INTRODUCTION:
From the architectural tab to model a roof by footprint at 10-degree slope by using adjustment toolbar.
PROCEDURE:
STEP 1:-
Open the Revit software
Click on open and select previously created drawing.
STEP 2:-
Create roof
Go to Project Browser in the Floor Plan double click on Roof
Go to Architecture tab drop down the Roof and select Roof by Footprint
Create Roof Footprint tab is open, now select Pick Line tool from draw panel
Select exterior line of the plan then click on green tick from mode to finish
Roof is created on the Roof level
STEP 3:-
Provide slope
Type UN to open project unit
Select unit format slope
Change units as decimal degree from format dialog box
Click OK
Select created roof
Go to property browser
Change slope as 10 from dimensions.
RESULT:

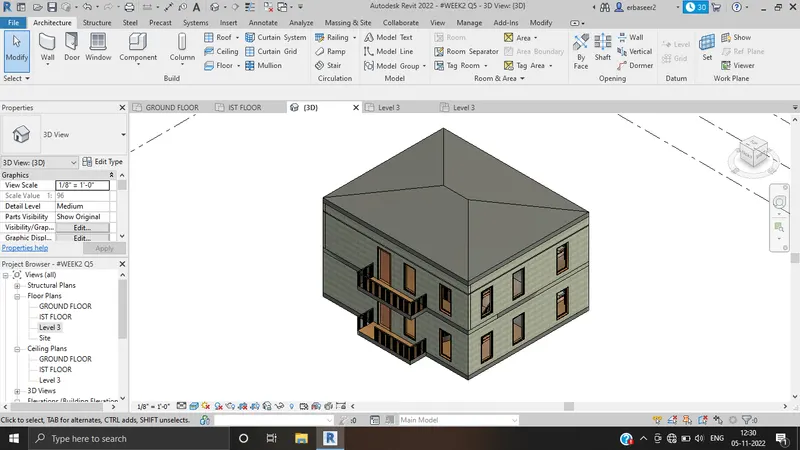

Following the above procedure, we have created roof by footprint above the ceiling
3) Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to architecture and structural plans.
a. Architecture plan must have walls, floors, and all the components placed within the building
b. Structure plan must have details of only walls, floors, and columns
AIM:
Created architectural and structural plan based on previously saved project.
INTRODUCTION:
Architectural and structural plan shown separately with their component.
PROCEDURE:
STEP 1:-
Open the Revit software
Click on open and select previously created drawing.
STEP 2:-

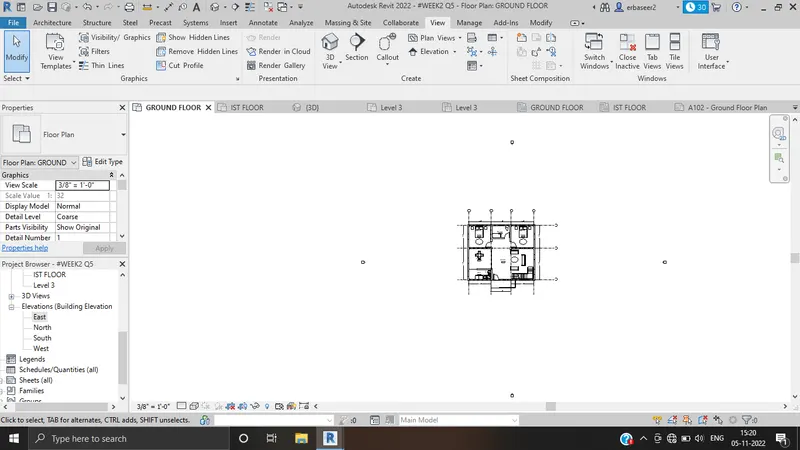

ARCHITECTURAL PLAN
Go to Project Browser in the Floor Plan double click on Ground Floor
Similarly for First Floor Plan

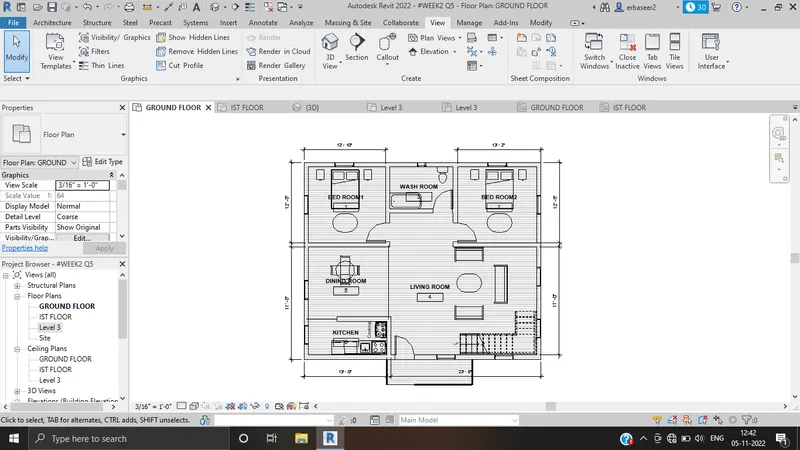

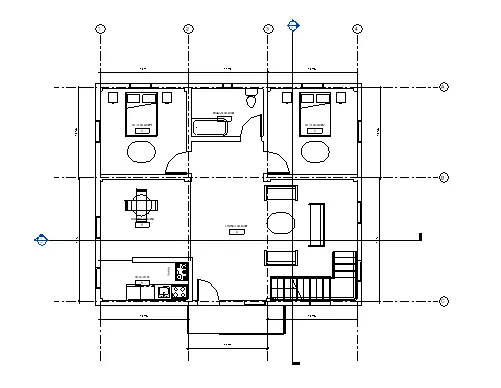

1, GROUND FLOOR ARCHITECTURE PLAN

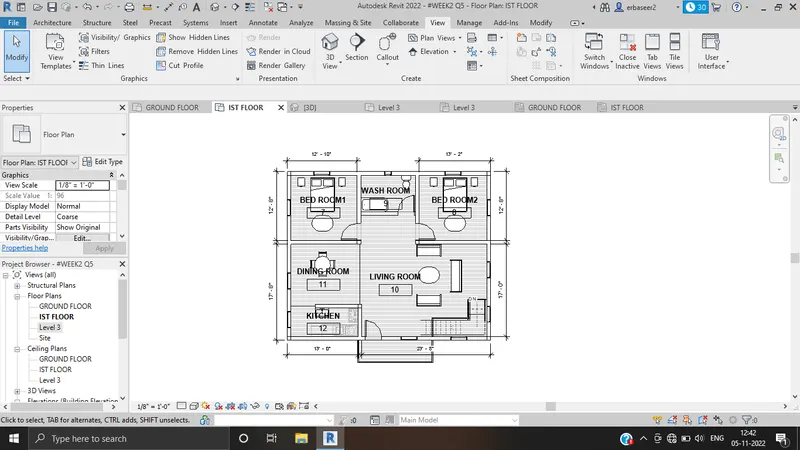

2, FIRST FLOOR ARCHITECTURE PLAN
STEP 3:-
STRUCTURAL PLAN
Go to view tab
Drop down the Plan Views from the create panel
Select Structure Plan
Dialog box will open for selecting levels
Choose ground floor then first floor.,

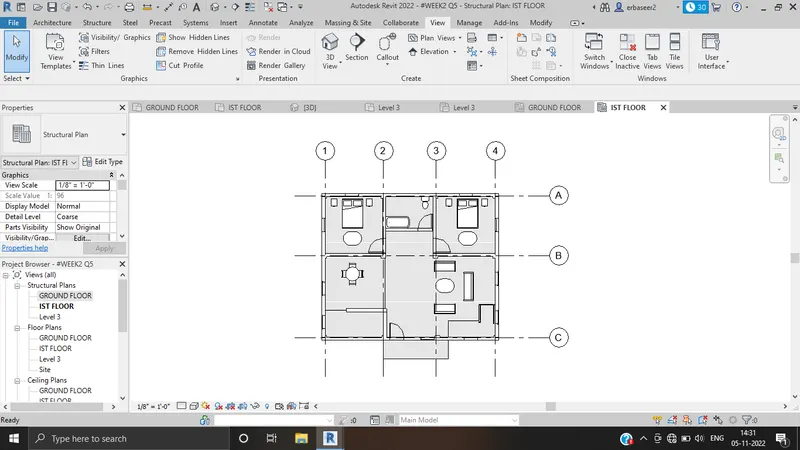

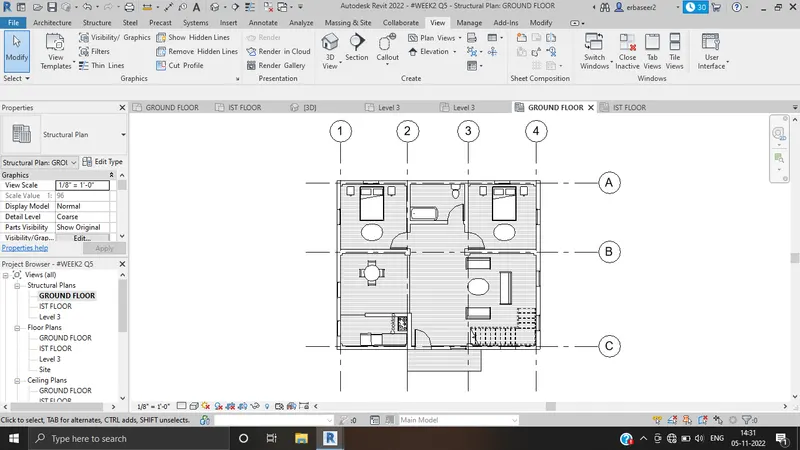

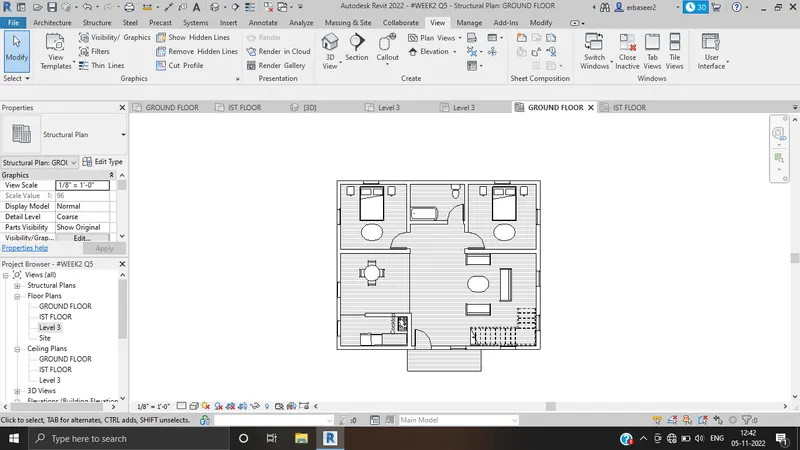

1, GROUND FLOOR STRUCTURAL PLAN
2, FIRST FLOOR STRUCTURAL PLAN
RESULT:
Following the above procedure, we have created separately architectural and structural plan.
4) Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file
a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans
b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans.
AIM:
Added dimension in architectural and structural plan by using annotate toolbar
INTRODUCTION:
In the architectural and structural plan added dimension with respect to grids
PROCEDURE:
STEP 1:-
Open the Revit software
Click on open and select previously created drawing.
STEP 2:-
Add Dimension
Go to Project Browser in the Floor Plan double click on Ground Floor
Open Annotate tab select Aligned tool
Create dimension to the component from grids
Similarly for the structural plan

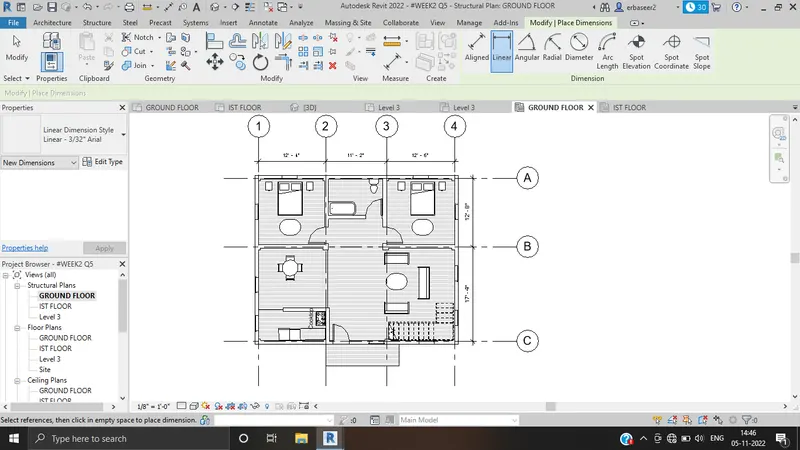

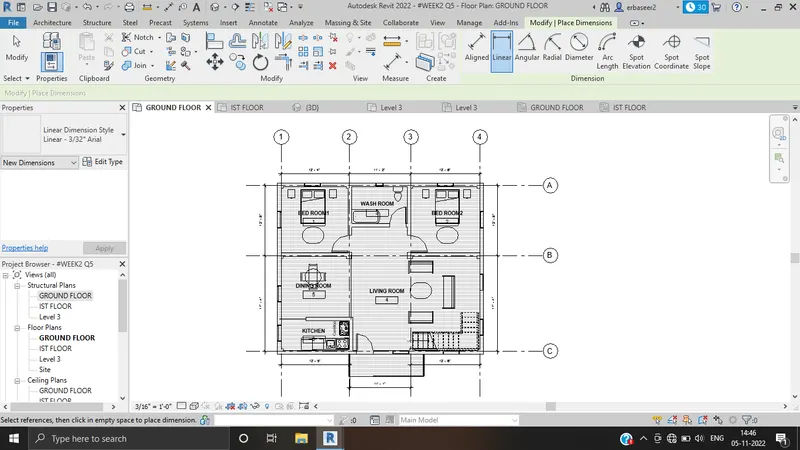

a, Architectural Plan Dimension
b, Structural Plan Dimension
Result:
Following the above procedure, we have added the dimension in the architecture and structure plan
5) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views.
AIM:
Sheet template created from view tab and adjust the parameter
INTRODUCTION:
From the view tab to create a sheet template and adjust the parameter on the sheet to add the appropriate view
PROCEDURE:
STEP 1:-
Open the Revit software
Click on open and select previously created drawing
STEP 2:-
Create sheet template
Go to View tab
Select Sheet from Sheet Composition panel
Open a new sheet dialog box click on Load
Open TITLEBLOCKS from library
Select appropriate sheet
Edit sheet title block as per view
Drag to insert the plan from project browser in sheet
STEP 3:-
Add view sheet
From project browser select any view then drag to the sheet
After that from property browser change view scale to adjust the view
Edit the parameter on the title block
RESULT:
Following the above procedure, create a sheet template from the view tab and adjust the parameter.
6) Using the elevation tab create the elevation views, looking at your building from East, North, South, and West.
AIM:
Created the elevation view of the building.
INTRODUCTION:
From the view tab to create elevation views, looking at my building from East, North, South and West
PROCEDURE:
STEP 1:-
Open the Revit software
Click on open and select previously created drawing
STEP 2:-

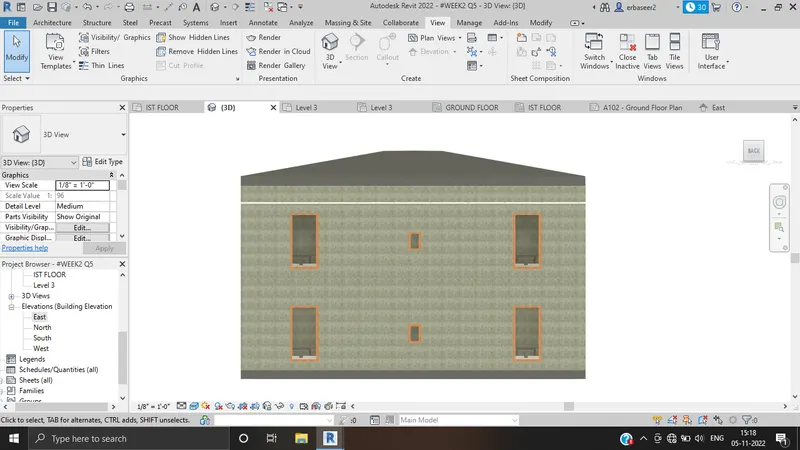

Create elevation view
Open Ground Floor Plan
Go to View tab
Drop down the Elevation from the create panel
Select Elevation
Create view from East North South West
After set the views go to project browser

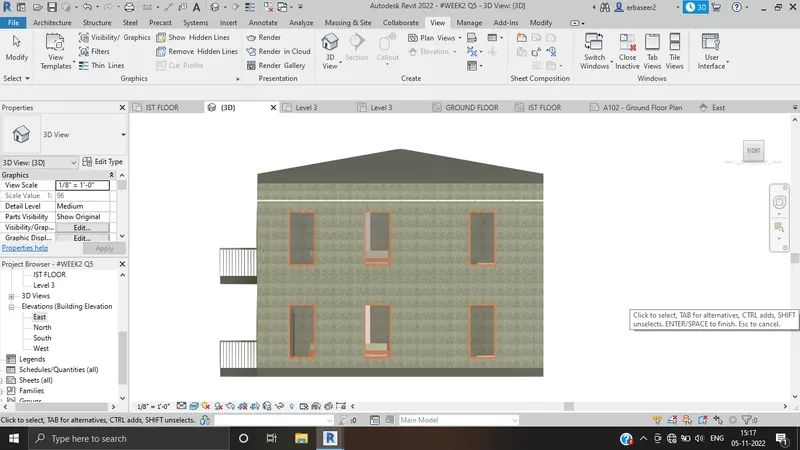

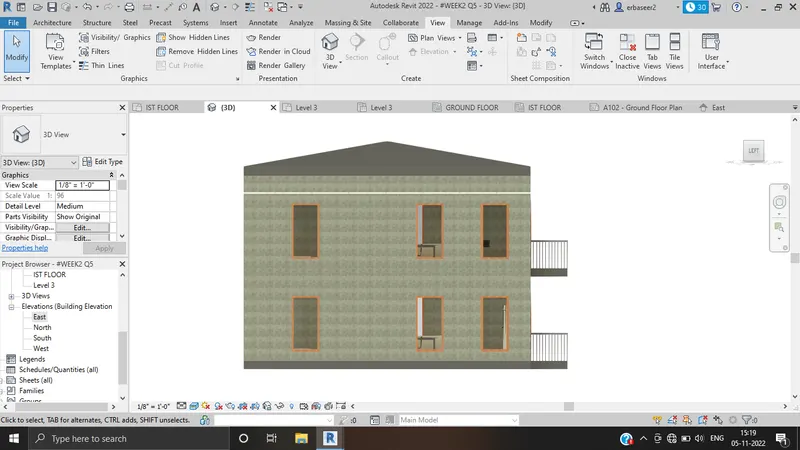

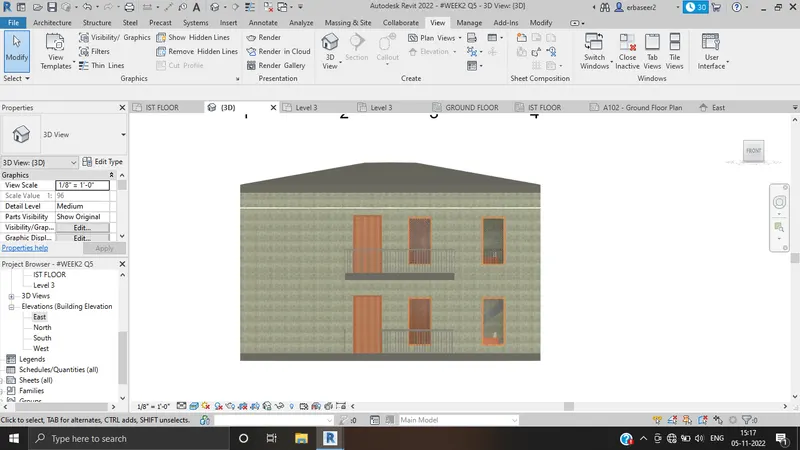

Expand elevation open East view
Similarly select one by one to open other views
RESULT:
Following the above procedure, created elevation views such as East North South West
7) Produce section cut through each room either cutting across longitudinally or in a transverse direction.
AIM:
Created the section view of the building.
INTRODUCTION:
From the view tab to create sections cut through each room, cutting across longitudinally and transverse direction.
PROCEDURE:
STEP 1:-
Open the Revit software
Click on open and select previously created drawing as Arch_Drawing_chanllenge2
STEP 2:-
Create section view
Open Ground Floor Plan
Go to View tab
Select Section

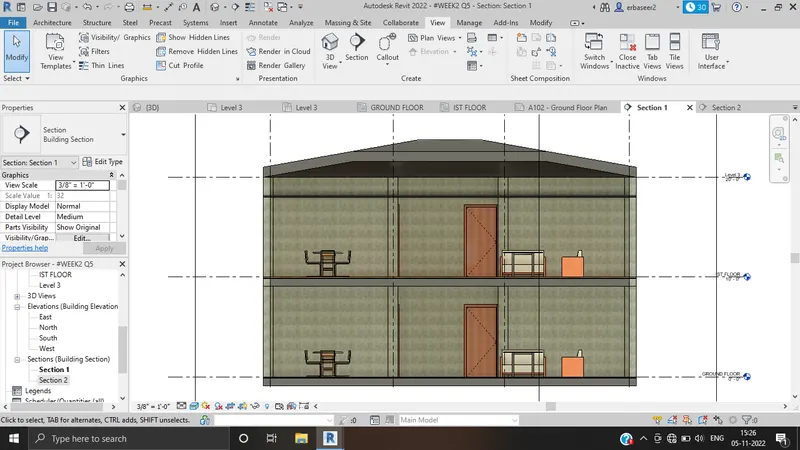

Cut longitudinal drawing across the plan
Similarly cut the plan across the transverse direction
RESULT:
Following the above procedure, we have created section accros longitudinal and transverse direction
8) Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser.
AIM:- Classified the view of the building.
INTRODUCTION:
From the project browser to classified the view in documentation category
PROCEDURE:
STEP 1:-
Open the Revit software
Click on open and select previously created drawing
STEP 2:-
Create section view
Go to project browser

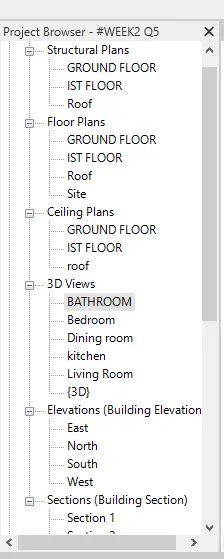

Expand all the view
RESULT:
Following the above procedure to classify the view
9) Using the sheet template produced create multiple sheets as follows
a. A 101- Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan
c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan
f. S 103- Roof Framing Plan
g. A-201- North-South Elevations
h. A-202- East-West Elevations
Add additional sheets based on the sections created in your Revit file.
AIM:- Created multiple sheet template
INTRODUCTION:
Sheet template produce for architecture, structural, elevations and section’s view
PROCEDURE:
STEP 1:-
Open the Revit software
Click on open and select previously created drawing
STEP 2:-
Create sheet template
Go to View tab
Select Sheet from Sheet Composition panel
Open a new sheet dialog box click on Load
Open TITLEBLOCKS from library
Select appropriate sheet for each plan
Edit sheet title block as per view
Drag to insert the plan from project browser in sheet
Similarly drag all the plan and view in the sheet
RESULT:
Following the above procedure, we have created multiple sheets for each plan and view and result are shown in below

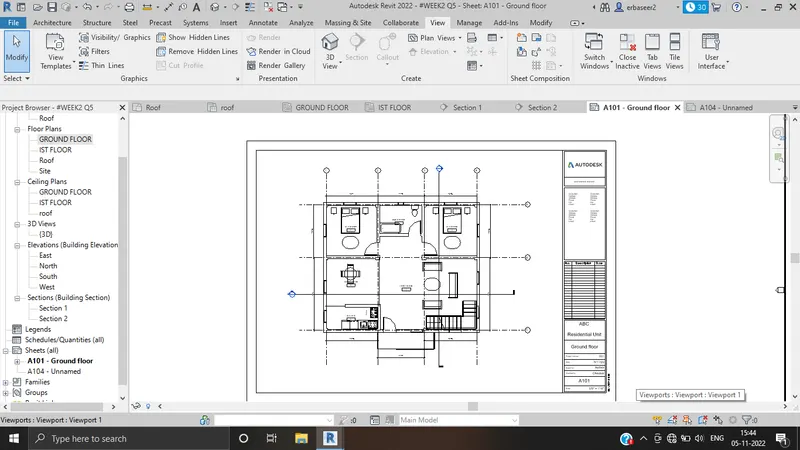

1. A101- GROUND FLOOR ARCHITECTURE PLAN

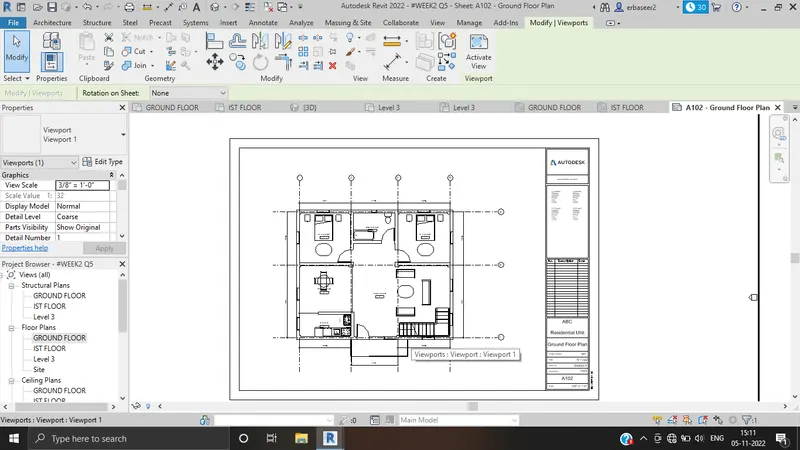

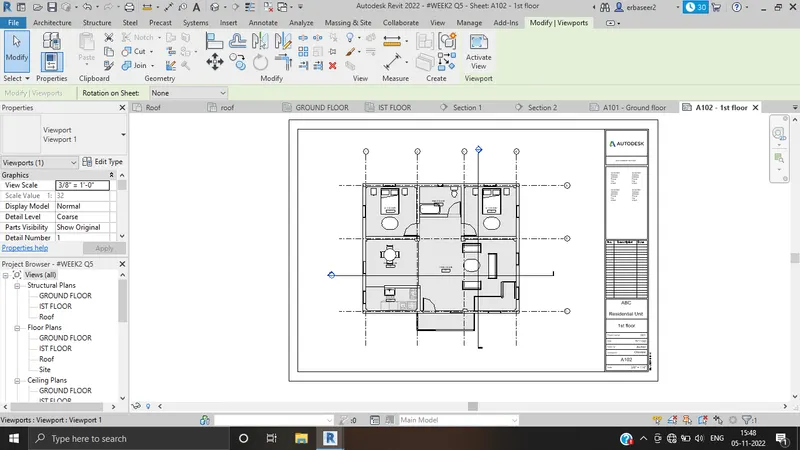

2. A102- FIRST FLOOR ARCHITECTURE PLAN

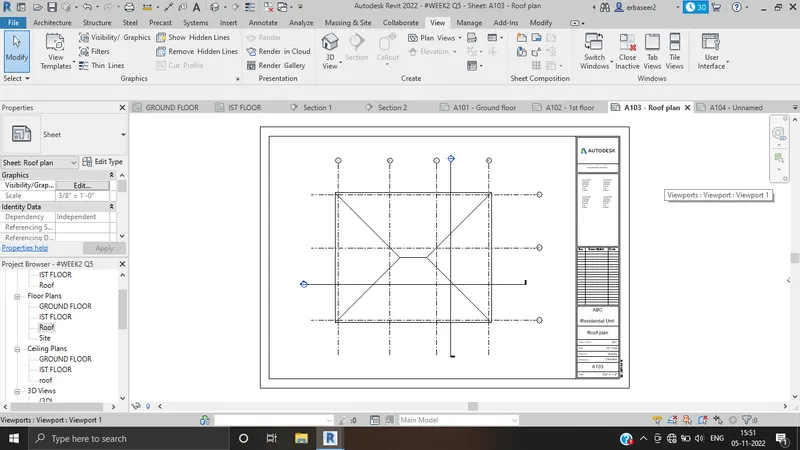

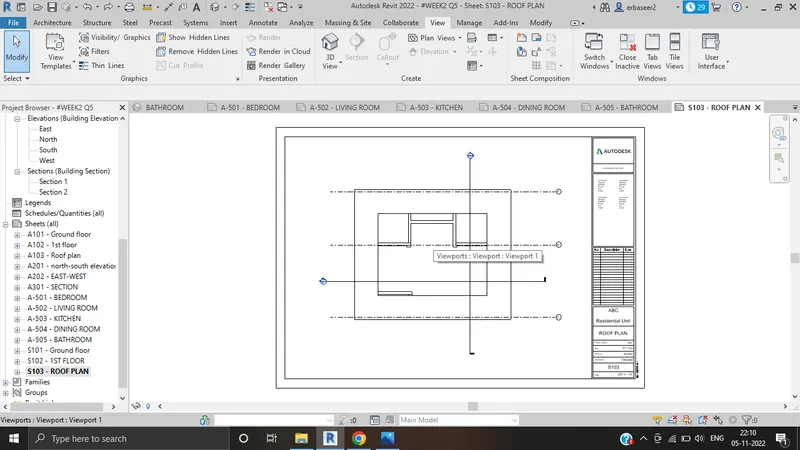

3. A103- ROOF PLAN

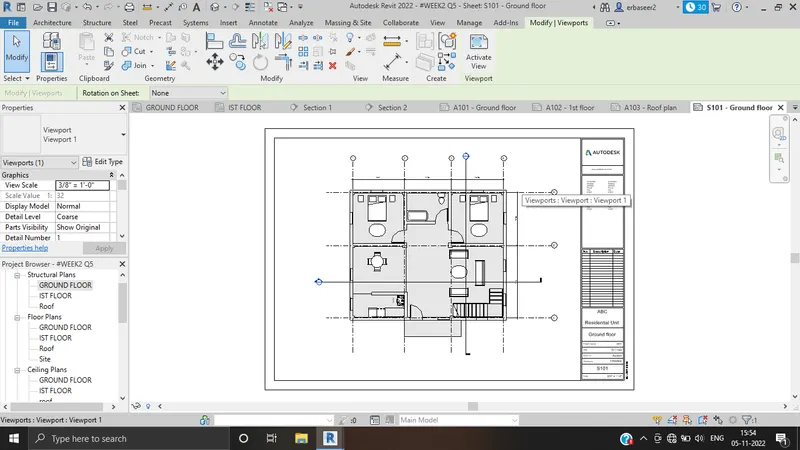

4. S101- GROUND FLOOR STRUCTURAL PLAN

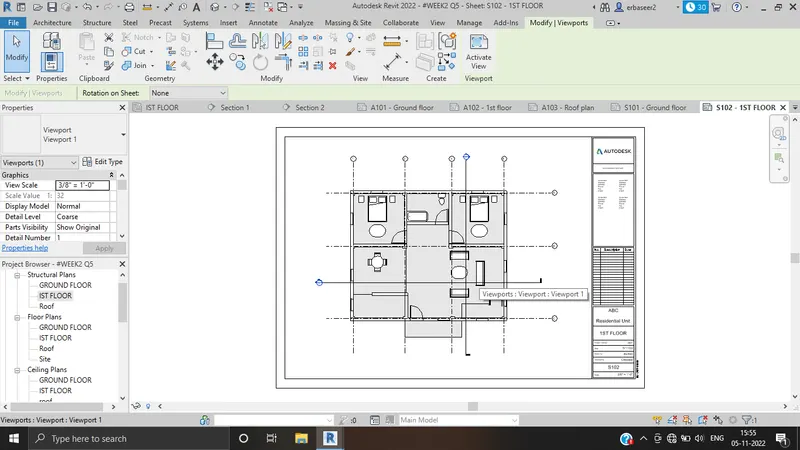

5. S102- FIRST FLOOR STRUCTURAL PLAN
6. S103- ROOF FARMING PLAN

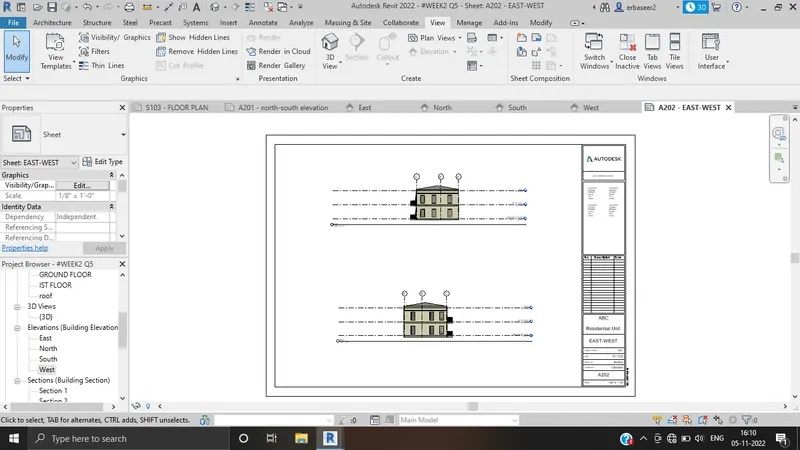

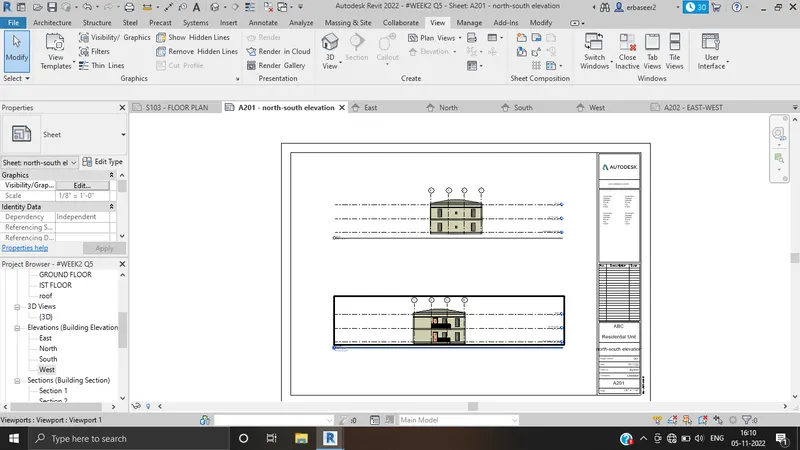

7. A201- NORTH- SOUTH ELEVATION
8. A202- EAST- WEST ELEVATION

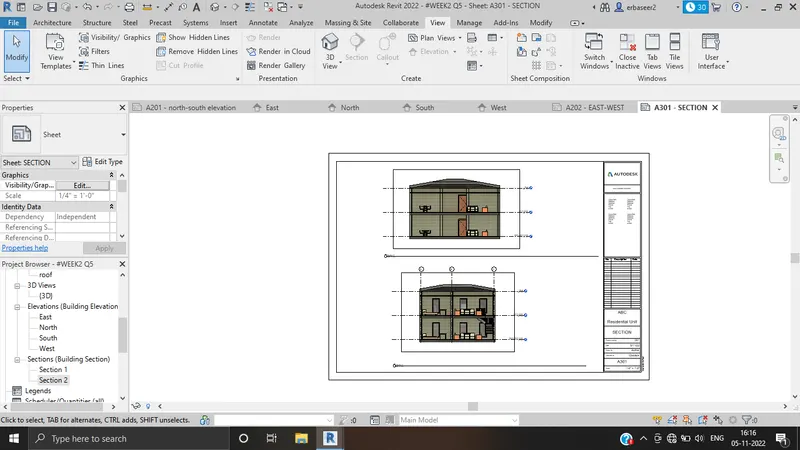

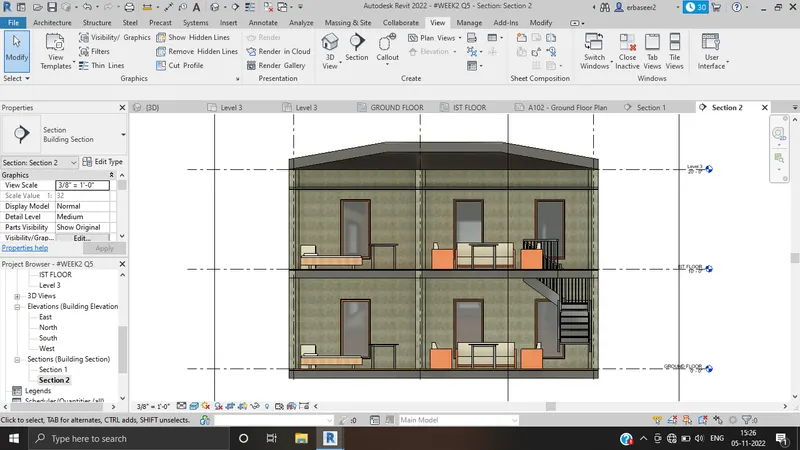

9. A301- SECTION
10) Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.
AIM:- Created a 3D view in each room
INTRODUCTION:
Sheet template produce for 3D view for each room such as living, dining, bedroom
PROCEDURE:
STEP 1:-
Open the Revit software
Click on open and select previously created drawing
STEP 2:-
Create sheet template
Go to View tab
Select Sheet from Sheet Composition panel
Open a new sheet dialog box click on Load
Open TITLEBLOCKS from library
Select appropriate sheet for each plan
Edit sheet title block as per view
Drag to insert the plan from project browser in sheet
Similarly drag all the plan and view in the sheet
RESULT:
Following the above procedure, we have created multiple sheets for each plan and view and result are shown in below

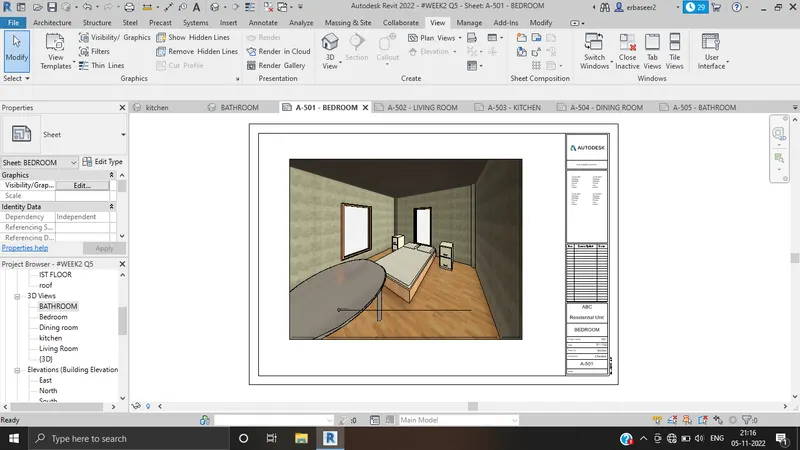

1. Bed Room View

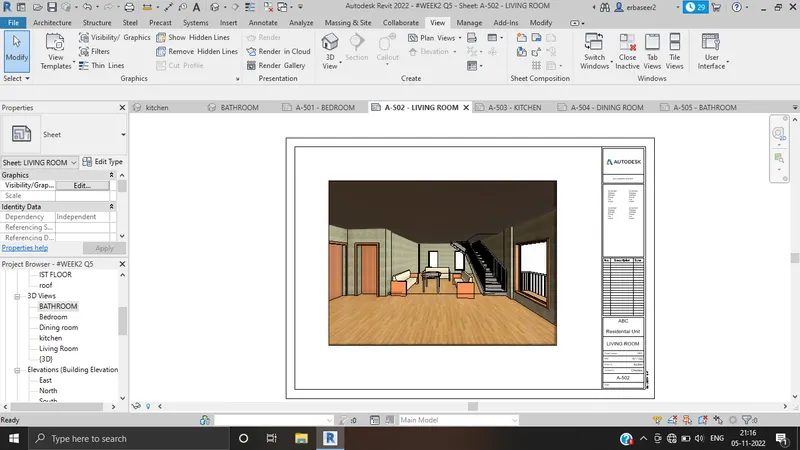

2. Living Room View

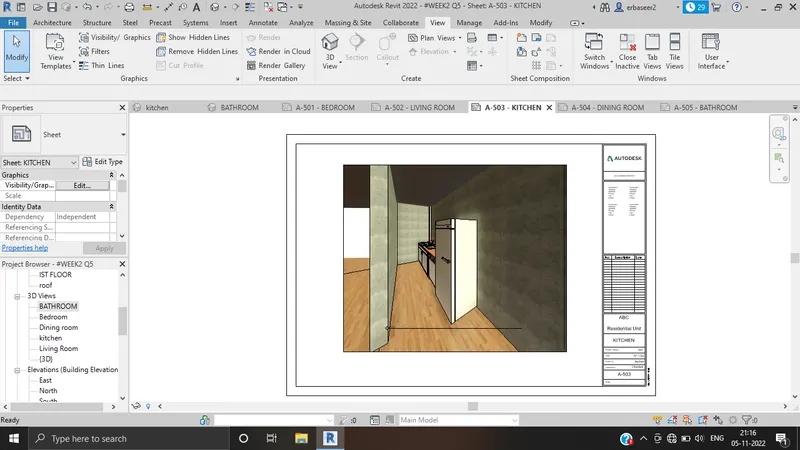

3. Kitchen View

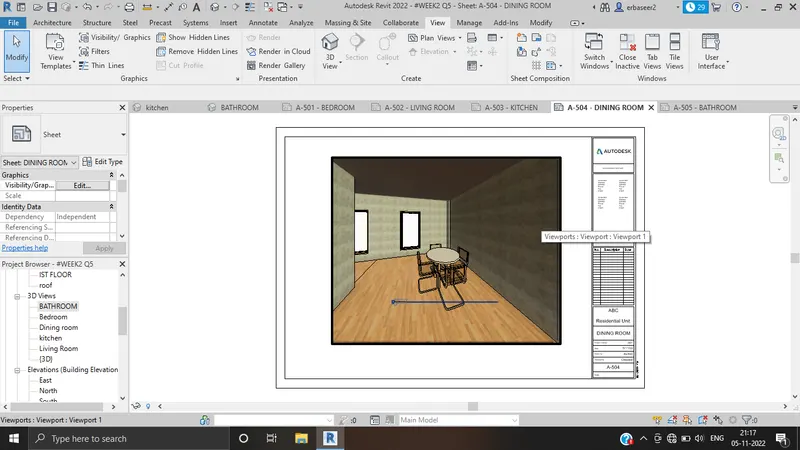

4. Dining room View

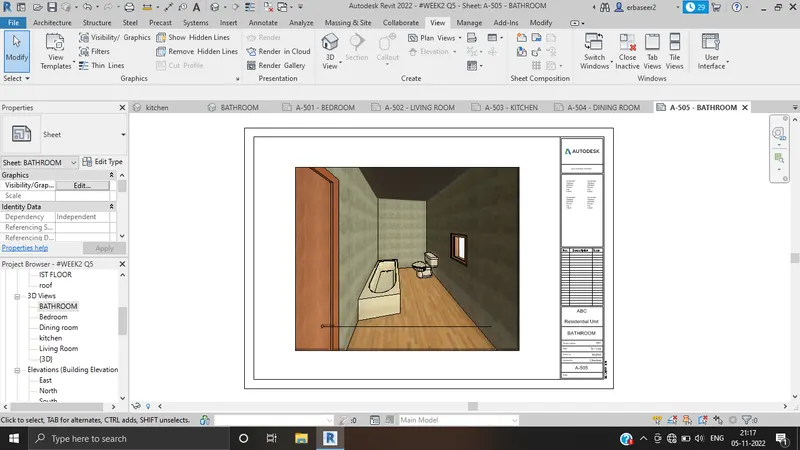

5.Bathroom View
