3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

AIM : DEVELOP THE STRUCTURE BY PREVIOUS WEEKS DONE ACCORDING THE ABOVE INFORMATION

PROCEDURE

1)CLICK ON ARCHITECTURE SELECT THE CEILING AND AND CLICK ON AREA AT REQUIRED AREA

2) SELECT THE ROOF AND SELECT ROOF BT FOOTPRINT AND SELECT THE OPTION BY PICK AND SELECT THE BOUNDARIES OF ALL ENDEDING WALLS AND GO TO PROERTIES , KEEP SLOPE AS 10 DEGREES

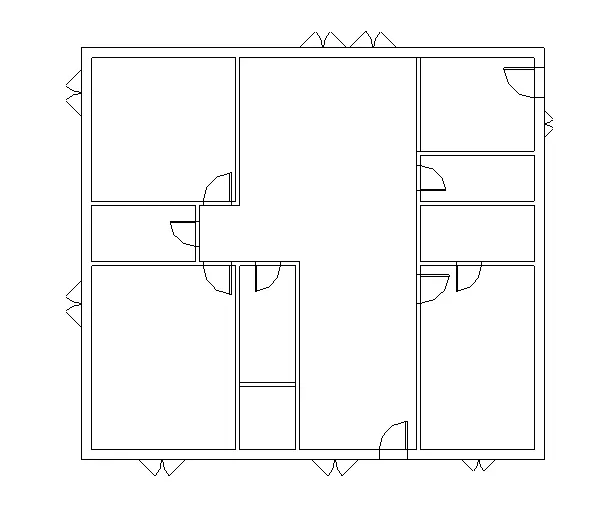

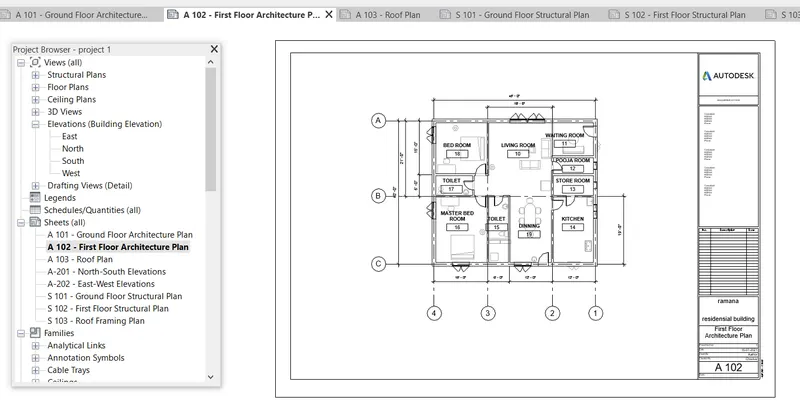

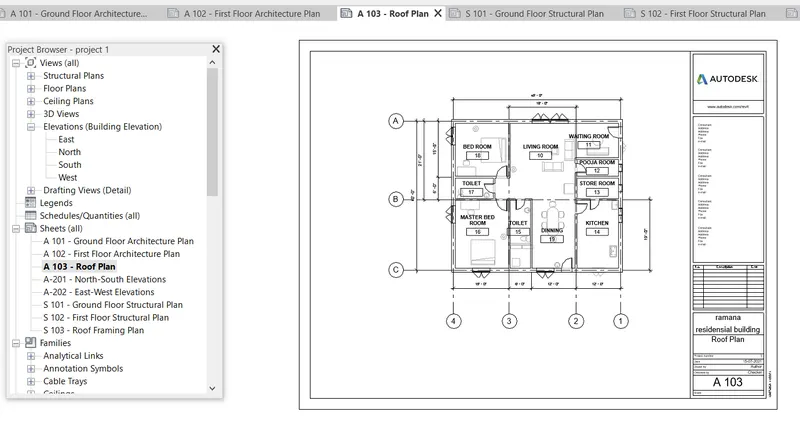

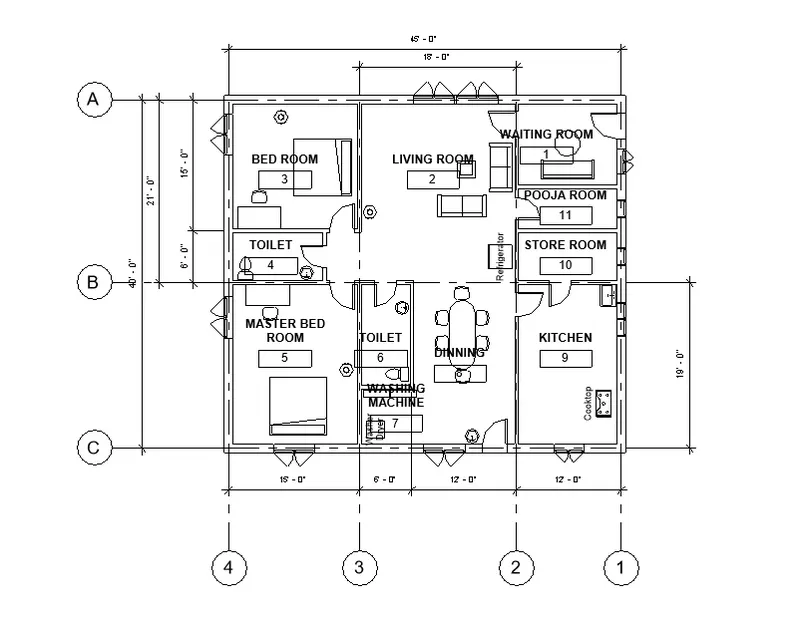

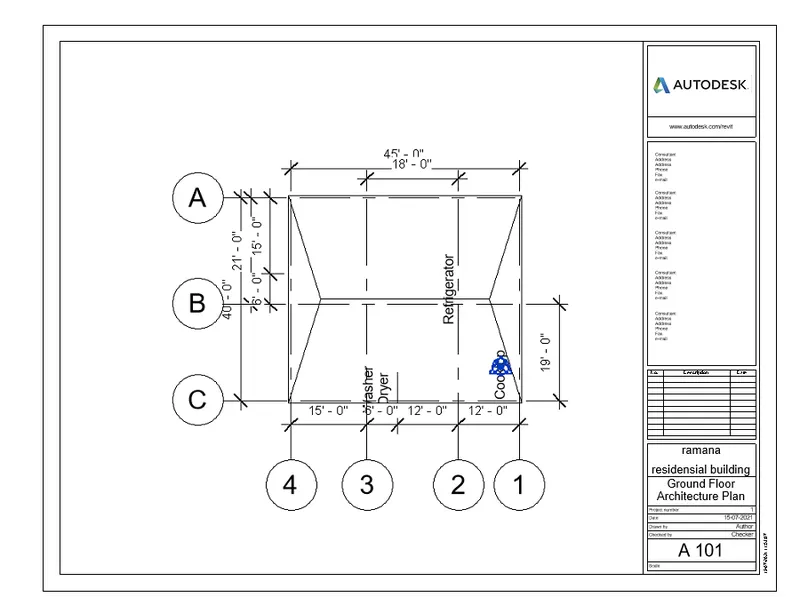

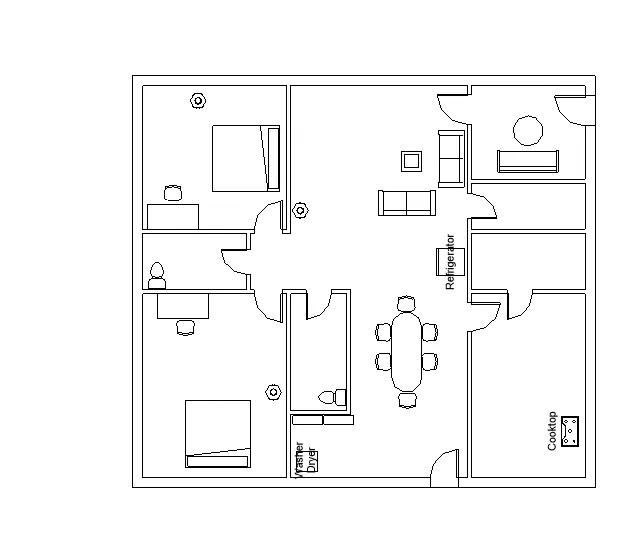

3) ARCHITECTURE PLAN

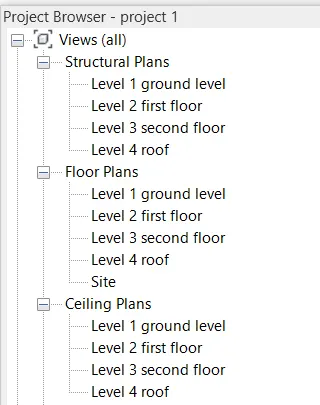

IN PROJECT BROWSER SELECT GROUND FLOOR

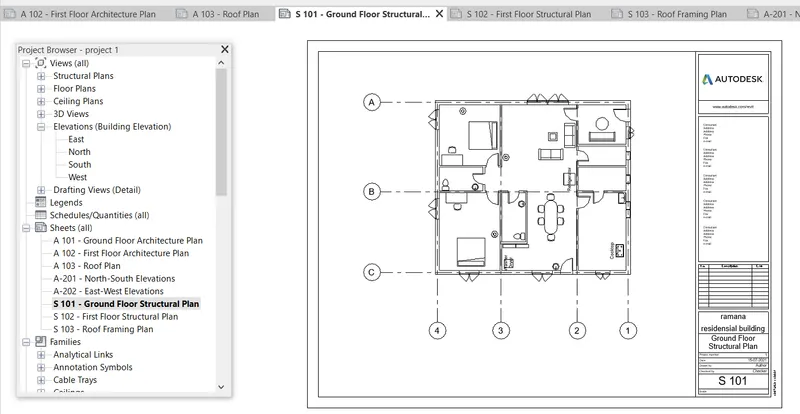

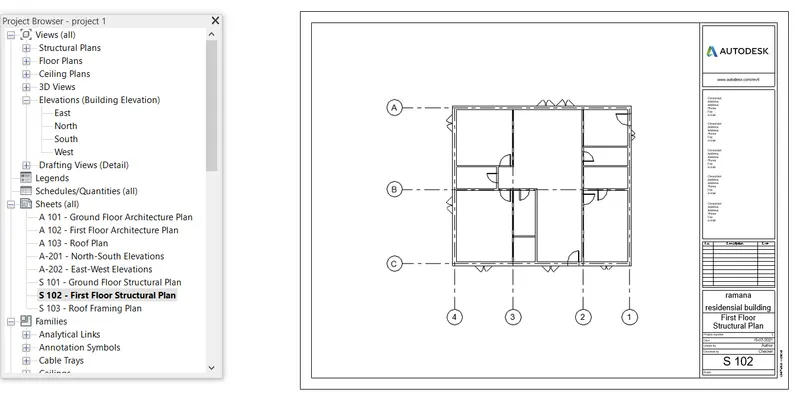

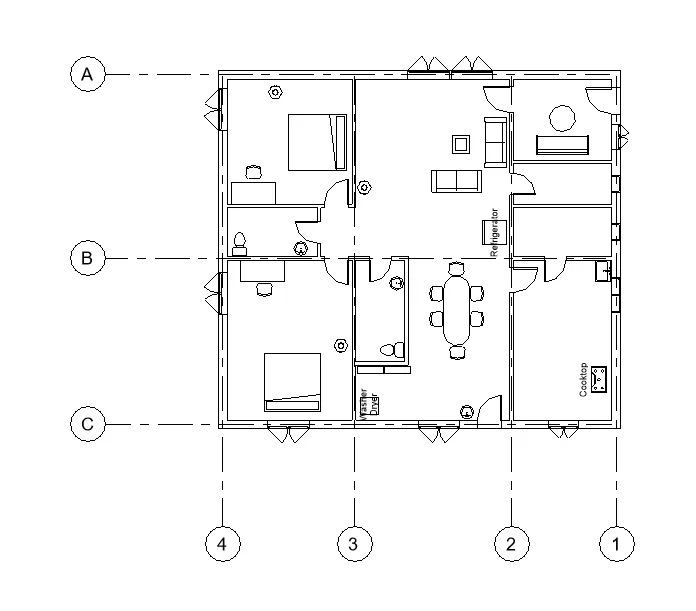

STRUCTURE PLAN

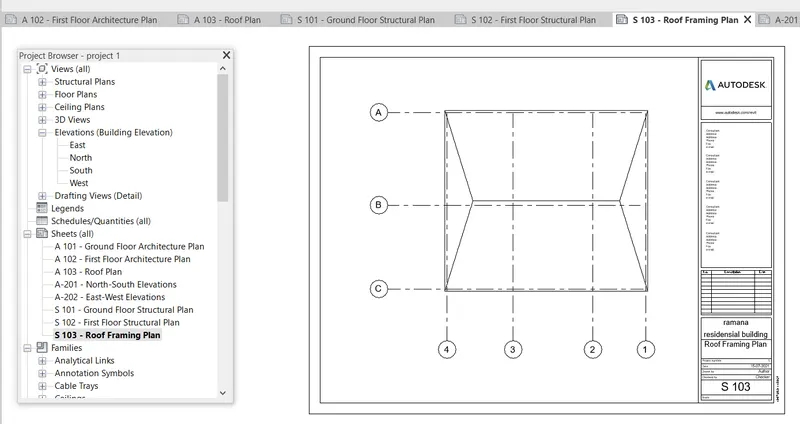

CLICK ON VIEW CLICK ON PLAN VIEW AND SELECT STRUCTURE PLAN

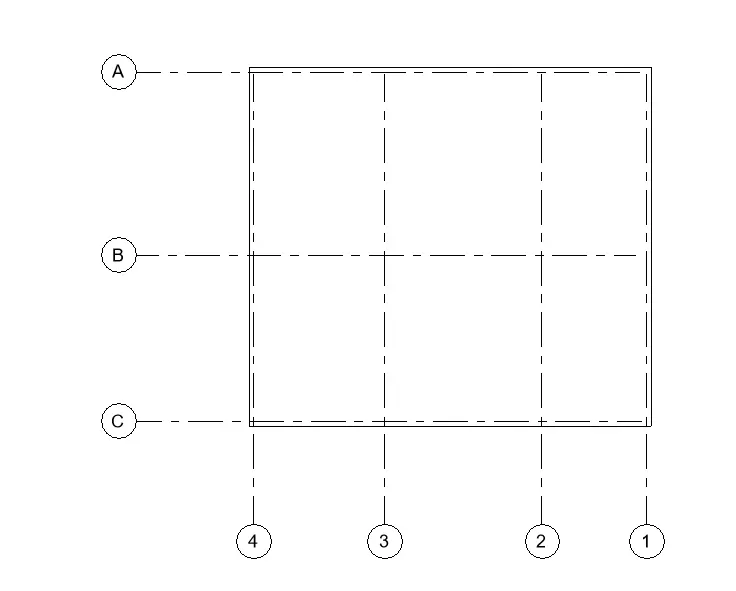

4) CLICK ON ARCHITECTURE AND CLICK ON GRID , IT IS PLACED AT RIGHT END

AND FORM GRIDS RIGHT TO LEFT AS NUMBERS AND TOP TO BOTTAM AS LETTERS

5) SELECT THE VIEW AND CLICK ON VIEW TEMPLATE AND VIEW THE PLANS I IT

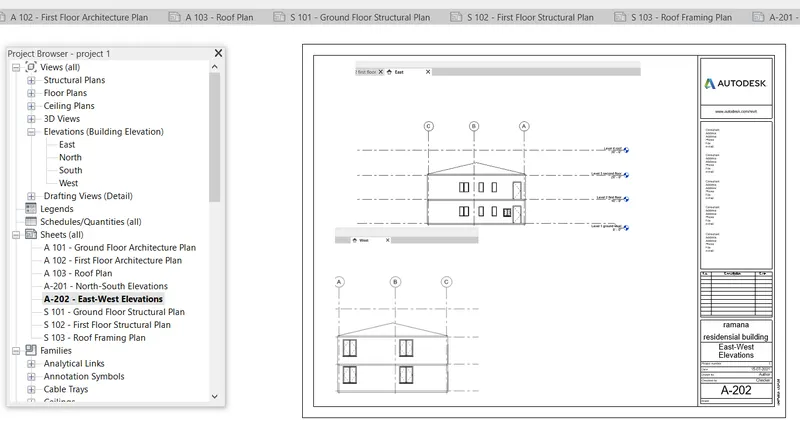

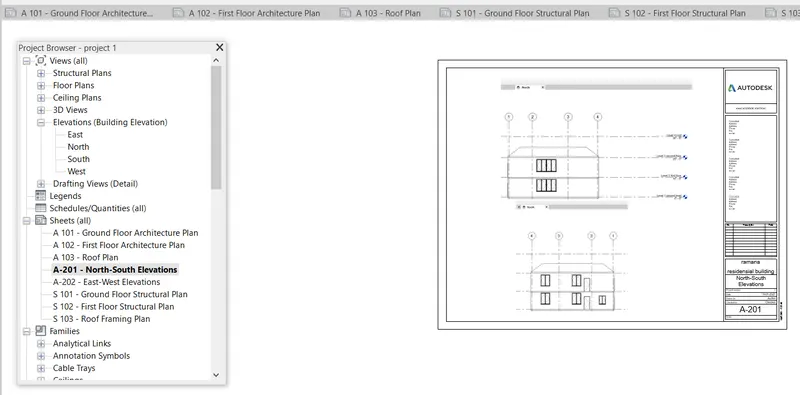

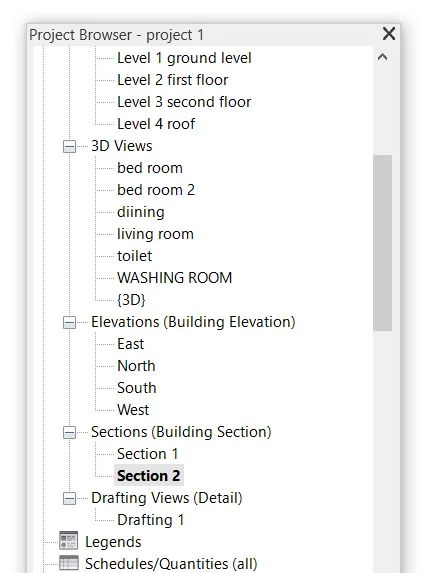

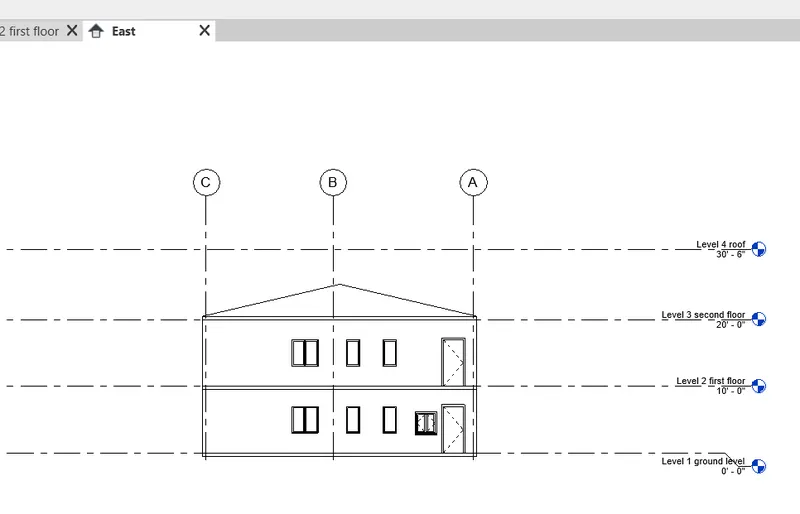

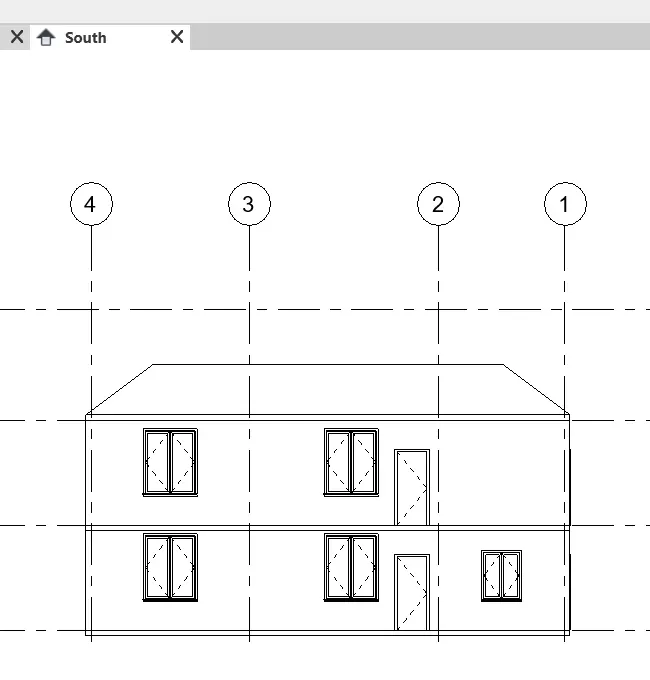

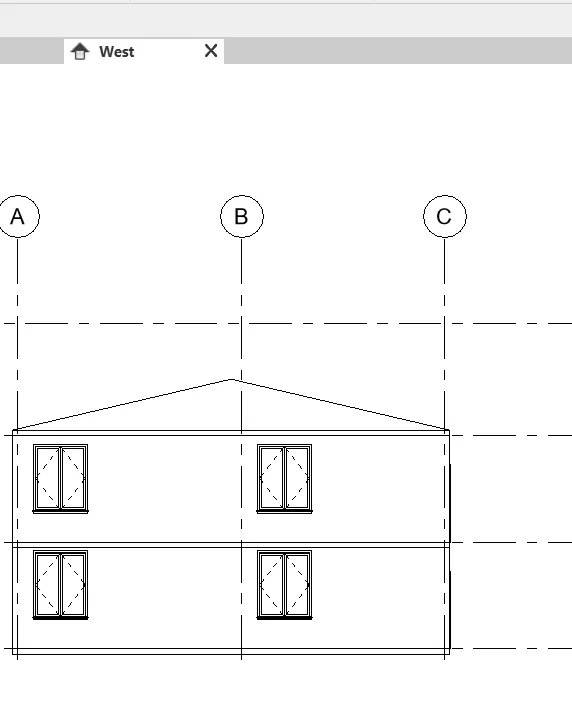

6) GO TO PROJECT BROWSER AND CLICK ON ELEVATION AND SELECT ALL E,W,S,N.

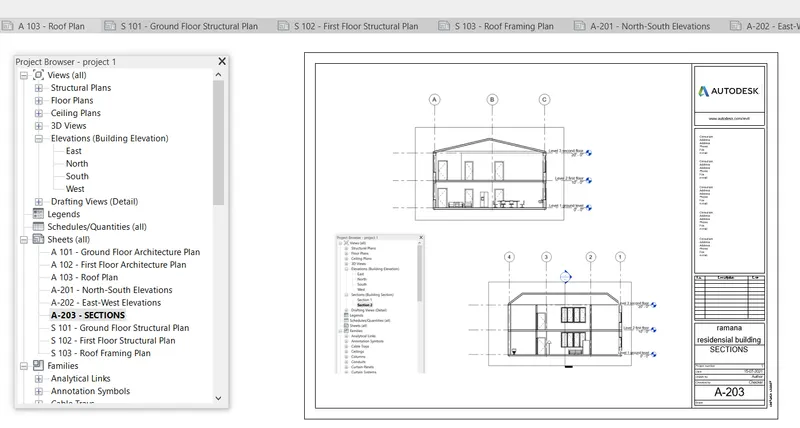

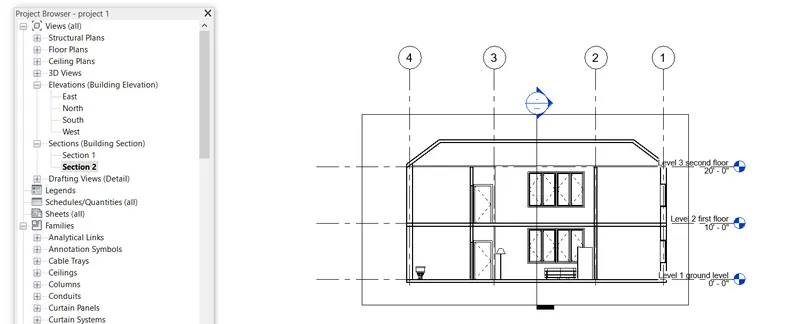

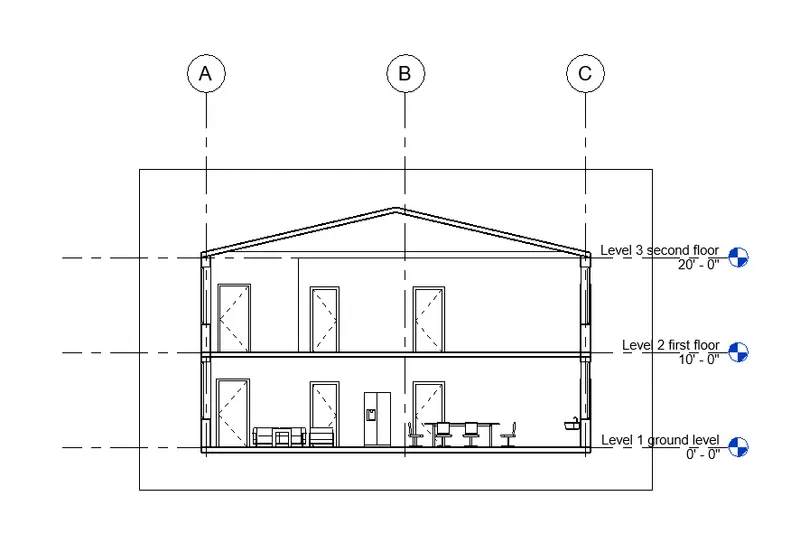

7)CLICK ON VIEW , SELECT SECTION AND DRAW THE LINE ON SECTION AND POINT THE SECTION OF DIRECTION

8)ON PROJECT BROWSER

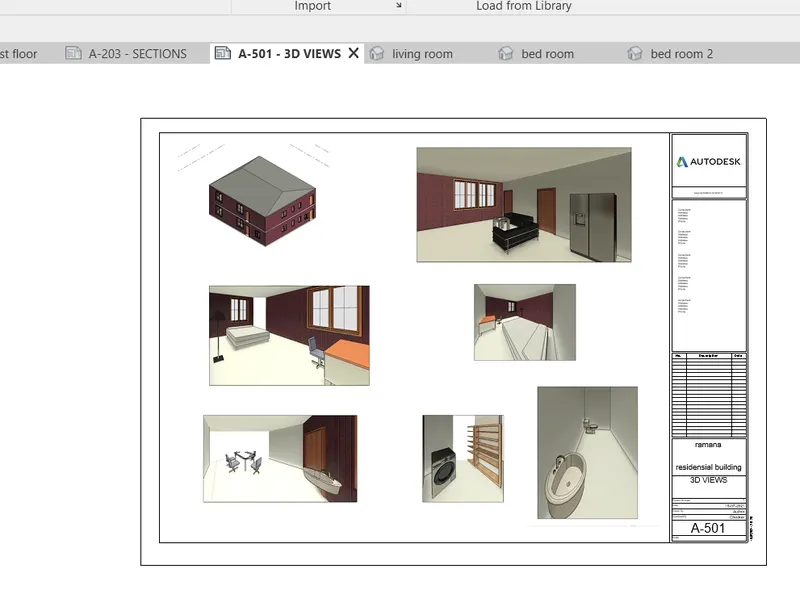

9) CLICK ON VIEW SLECT SHEET AND LOAD THE SHEET REQUIRED AND ENTER THE DETAILS IN SHEET

AND RENAME THE SHEETS AS ABOVE GIVEN AND INSEST IMAGE AS BY NAME

10) DO IT AS SAME AS ABOVE

RESULT : DRAWN IN REVIT AS ABOVE FOLLOWS
