3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

Q.1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level.

ANS:

STEP 01:

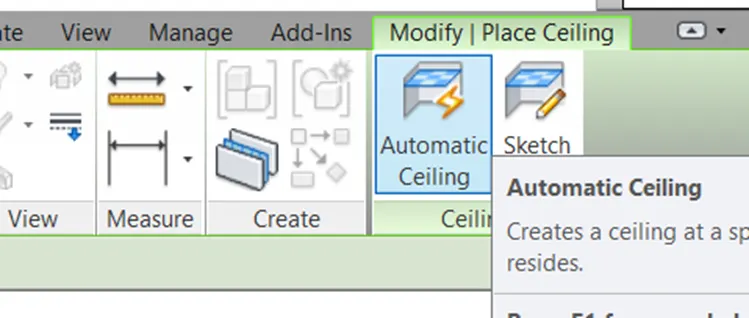

-CLICK ON ARCHITECTURE AND SELECT CEILING

STEP: 02

- U CAN SEE TWO OPTION FOR U.

STEP 03

-SELECT PIC LINE.

STEP 04

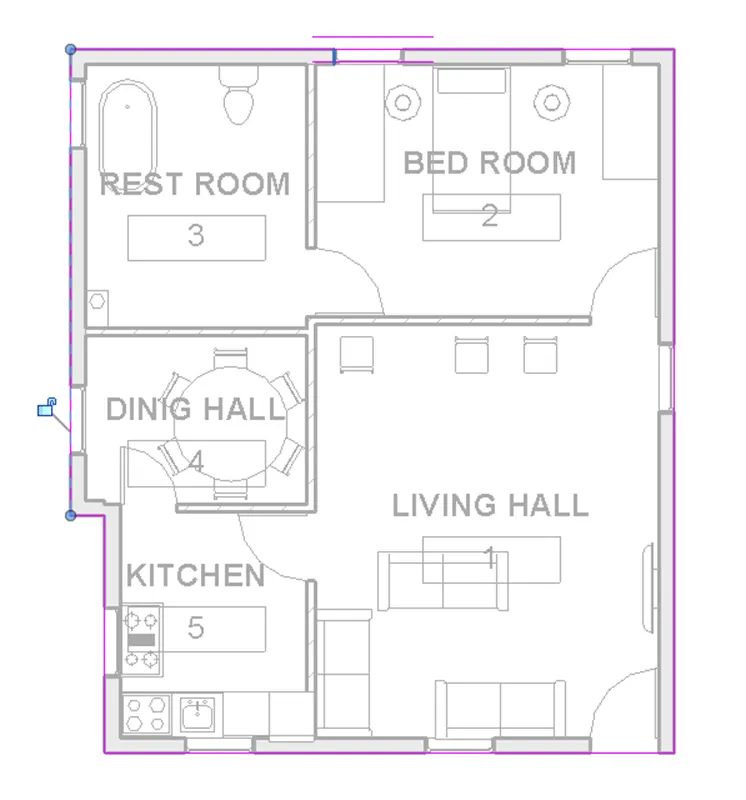

-SELECT ALL ARCHITECTUTE BOUNDARY WALL LINE.

STEP 05

CEILING IN 3D VIEW.

1. 2) Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees.

ANS:

STEP:01

-ARCHITECTURE AND SELECT ROOF BY FOOTPRINT.

STEP 02

-CLICK ON PICK LINE.

STEP:03

-SELECT ALL ARCHITECTURE EXTERIOR WALLS.

STEP:04

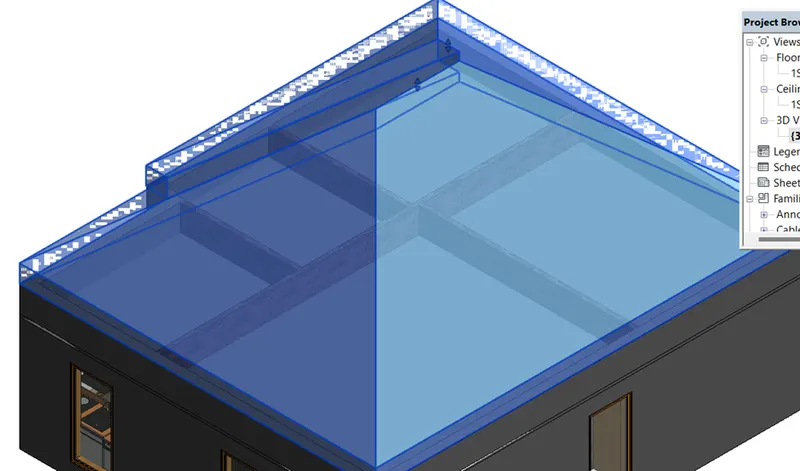

3D VIEW

STEP05

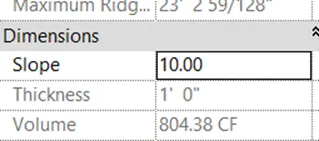

-10 DEGREE SLOPE

1. 3) Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
   architecture and structural plans.

ANS:

STEP01

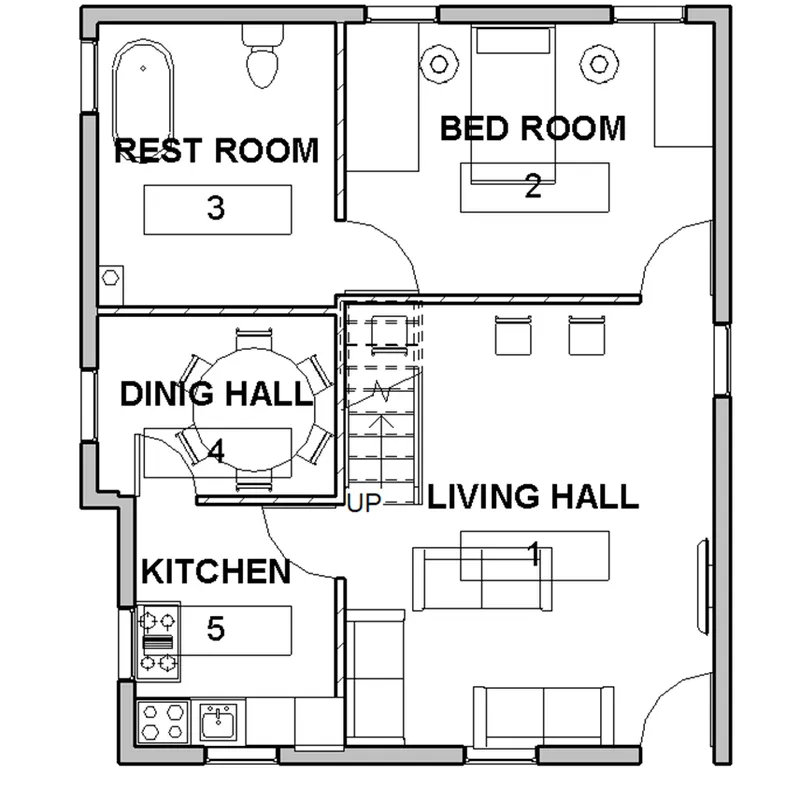

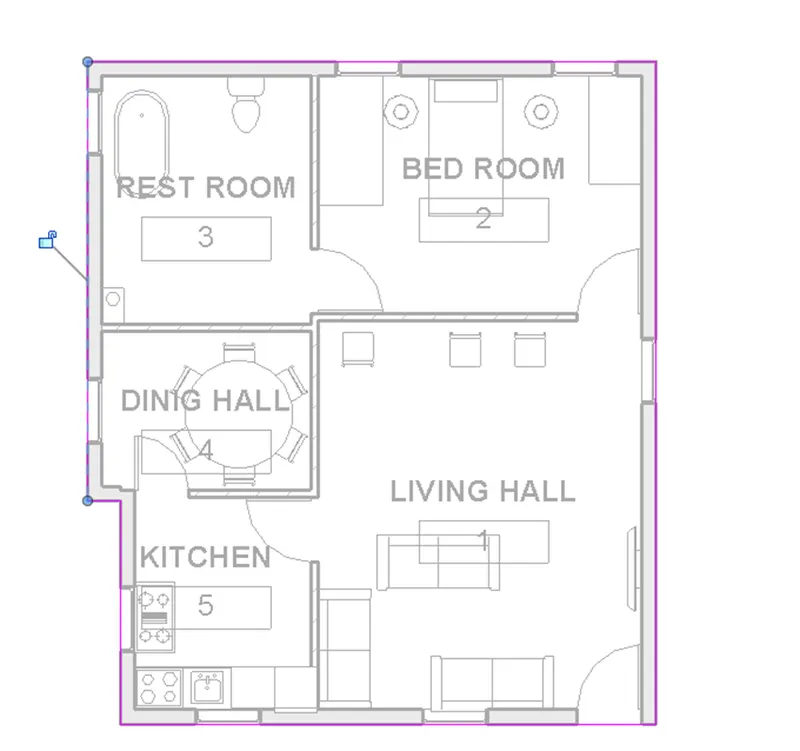

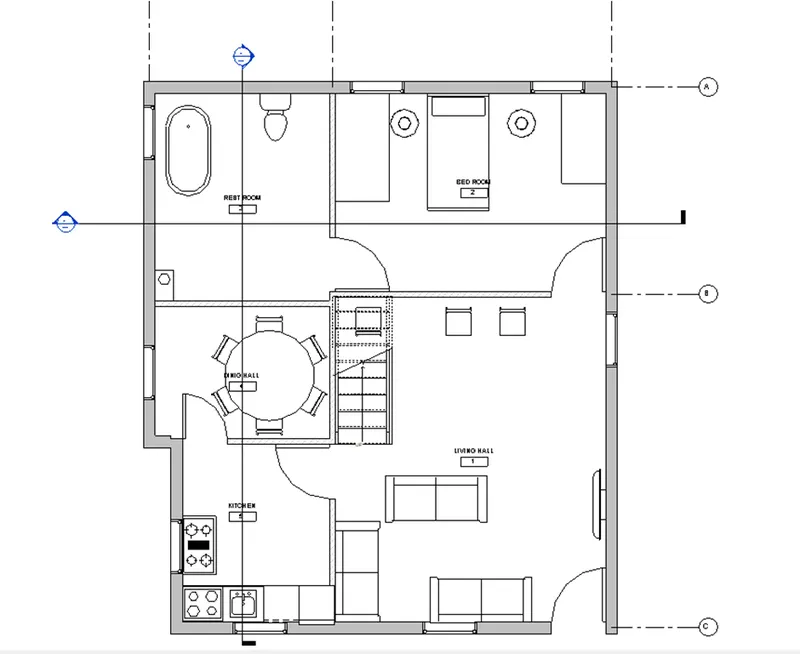

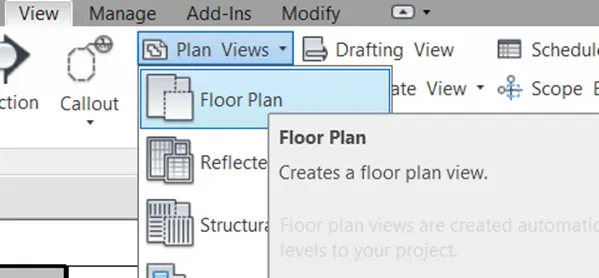

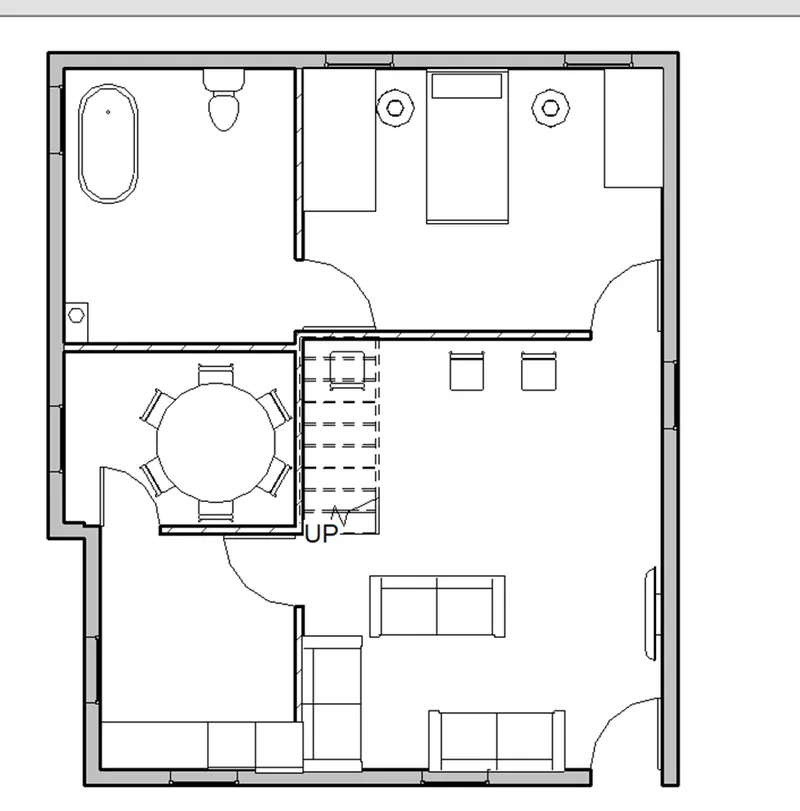

-CREATE ARCHITECTURE FLOOR PLAN

STEP03

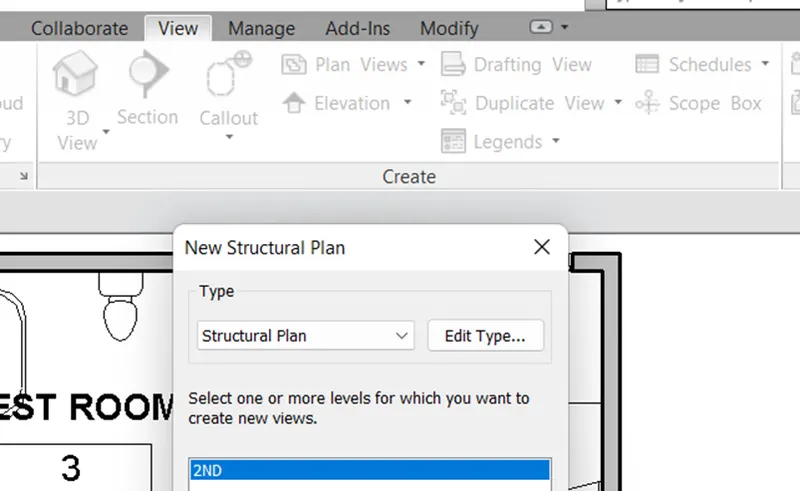

-CREATE STRUCTURE PLAN

STEP:04

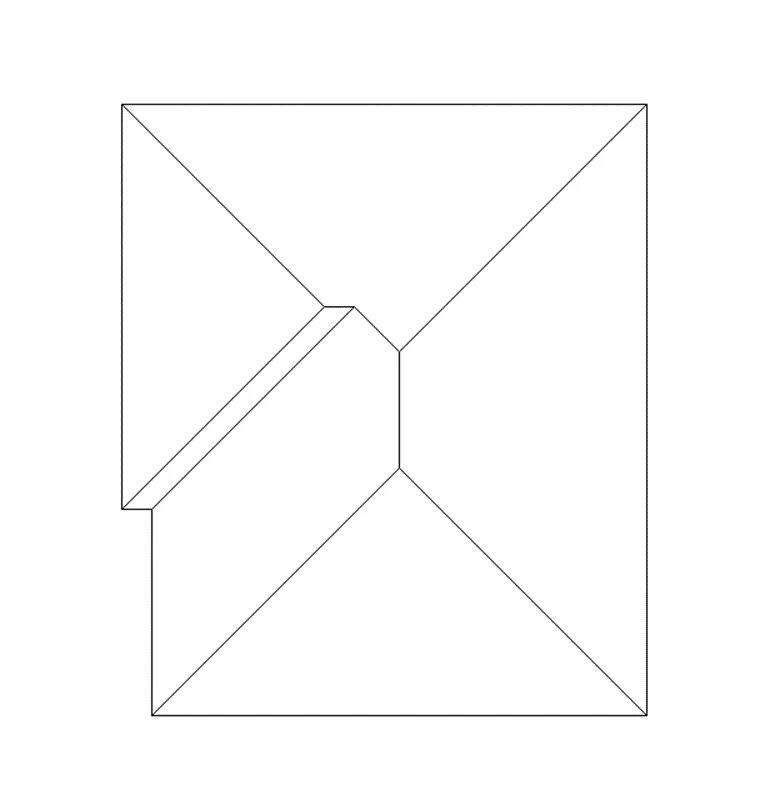

-ROOF PLAN

1. 4) Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file.

ANS:

STEP01

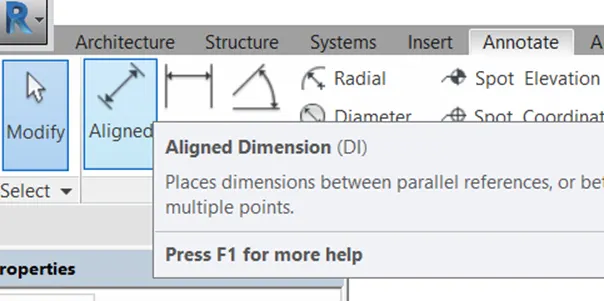

-GO FOR ANNOTATE RIBBON

STEP03

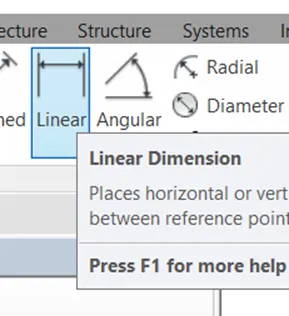

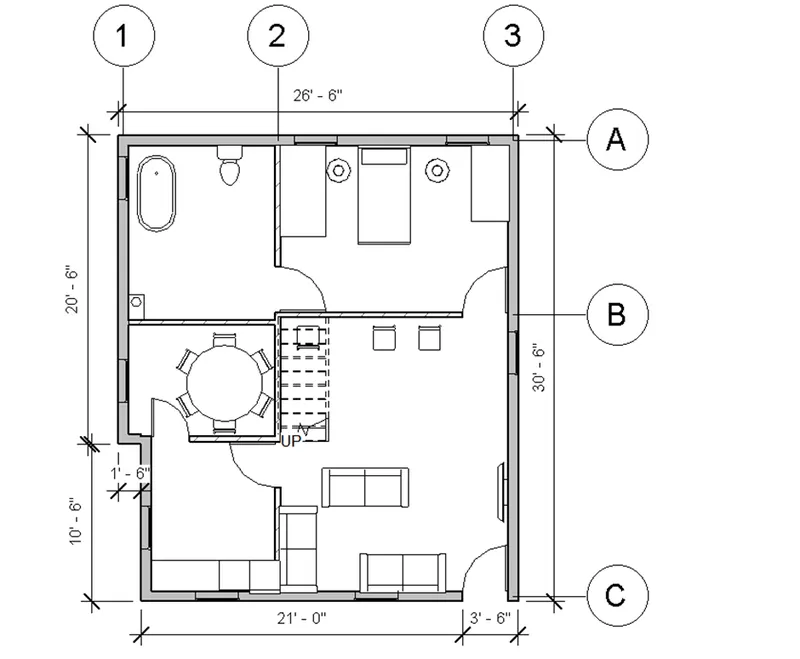

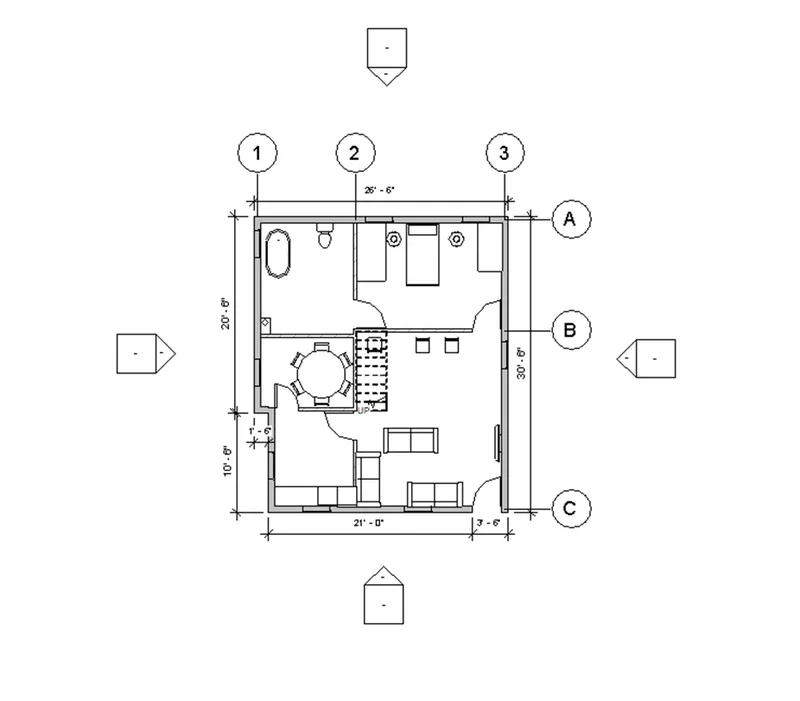

-CLICK ON LINEAR DIMNESION.

STEP04

-ALL ARCHITECTURE WALL WORKING DRAWING.

Q.05) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views.

ANS:

STEP01

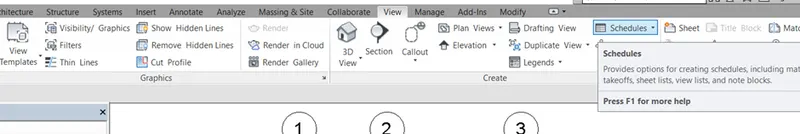

-GO TO RIBON & SELECT VIEW

STEP 02

-LOAD IMPERIAL & METRIC TEMPLATE AS PER YOUR CHOICE

STEP03

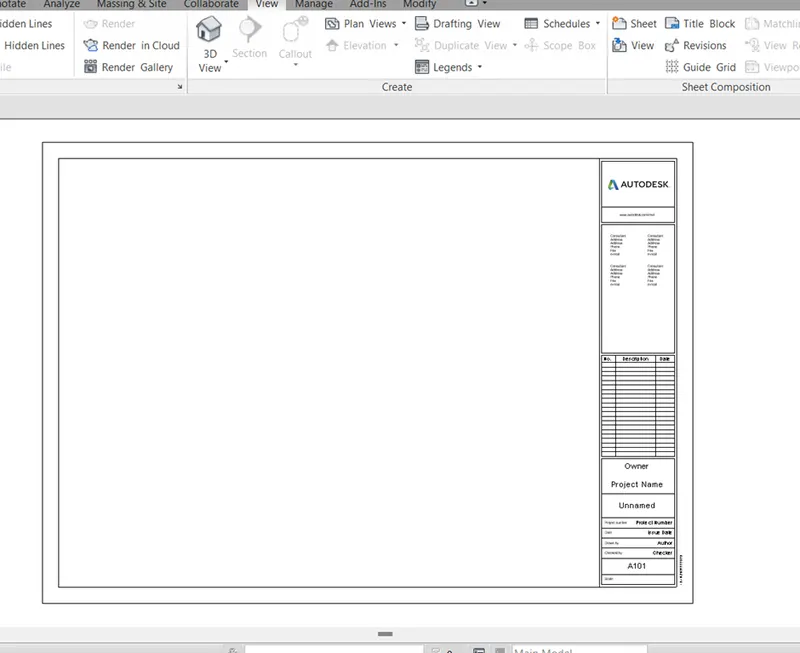

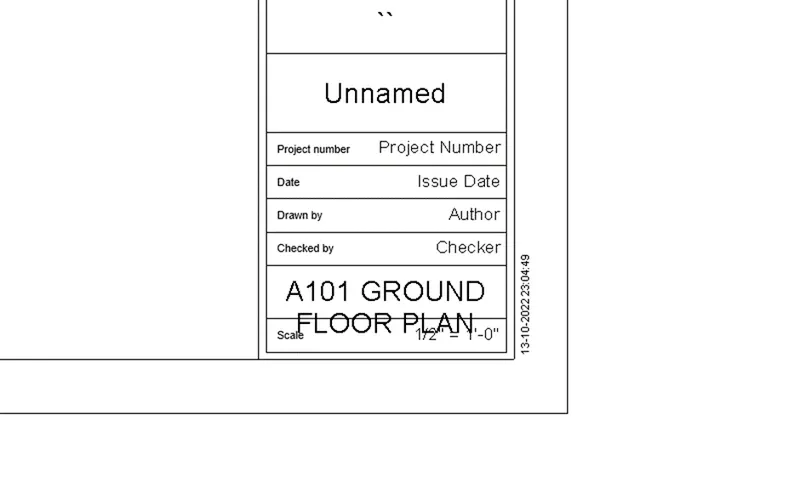

-I AM SELECTING ONE TITLE BLOCK

STEP04

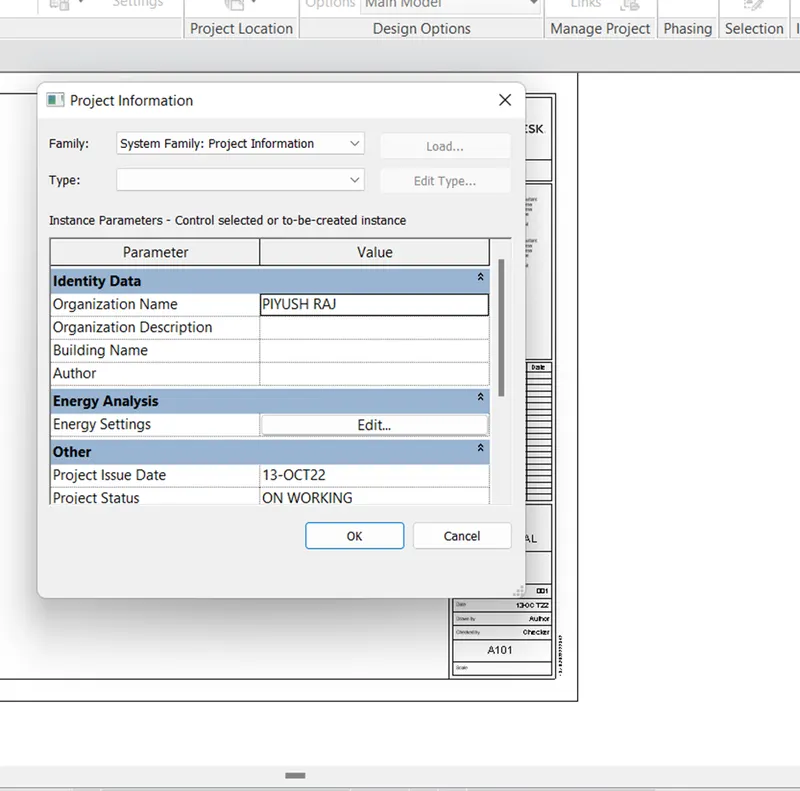

-HOW TO FILL TITLE BLOCK U CAN SEE IT.

STEP05

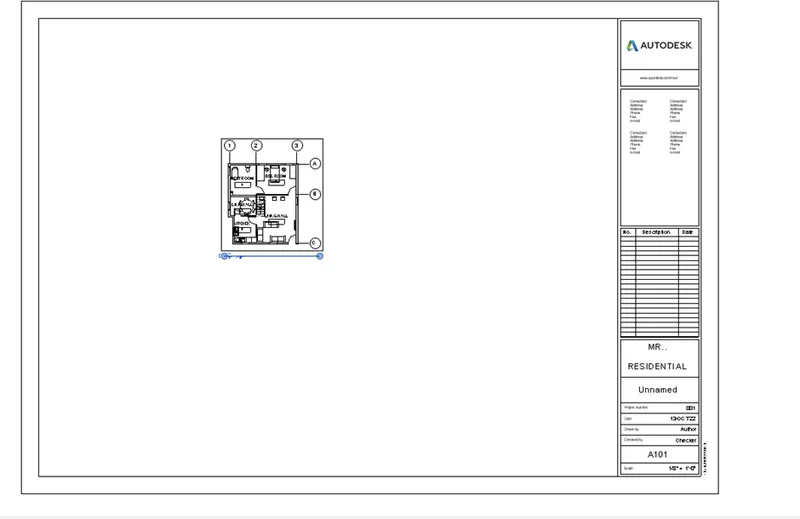

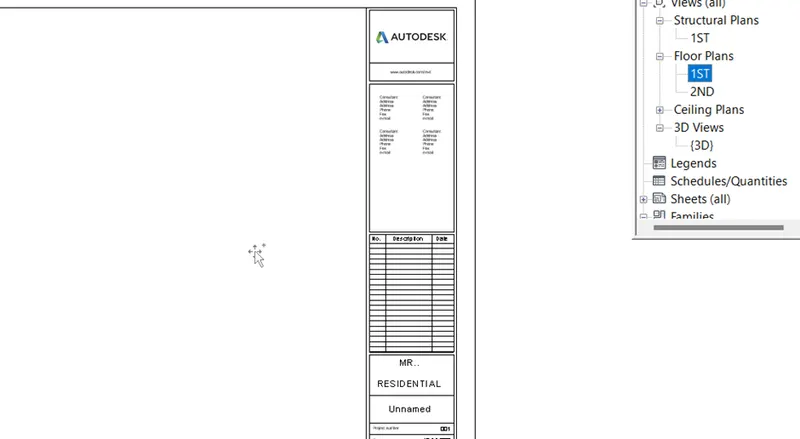

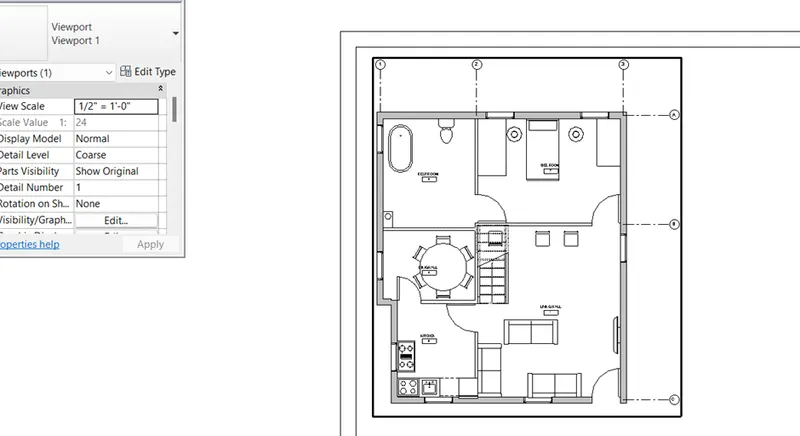

-DRAG FILE IN TITLE BLOCK

- U CAN SHO IN 1^ST PLAN

STEP06

• FILE SIZE IS NOT PERFACT

STEP07

• U NEED TO SCALE

1. 6) Using the elevation tab create the elevation views, looking at your building from East, North, South, and West.

ANS:

STEP01

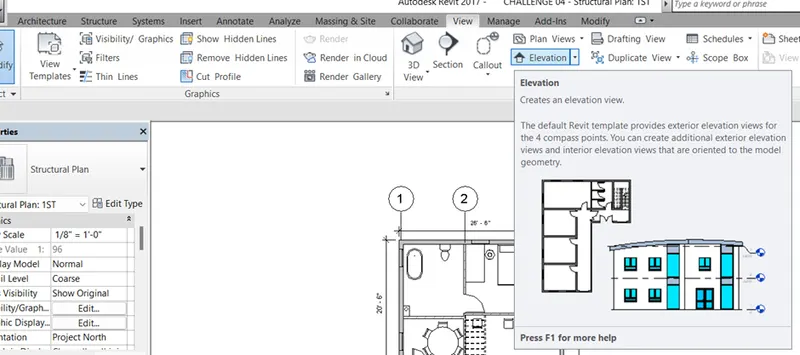

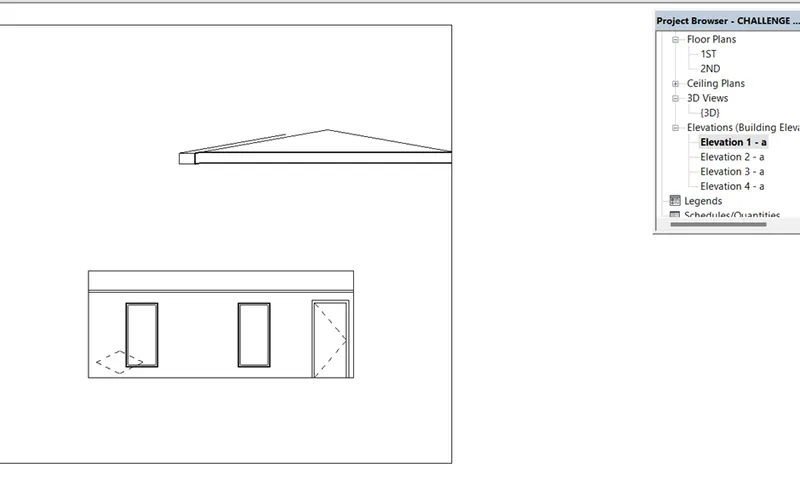

-FIRST SELECT ELEVATION TOOL

STEP02

-LOCATE ALL DIRECTION

-LIKE NORTH-SOUTH-EAST-WEST

STEP03

-NOW U CAN SEE ALL SIDE VIWS ONE BY ONE.

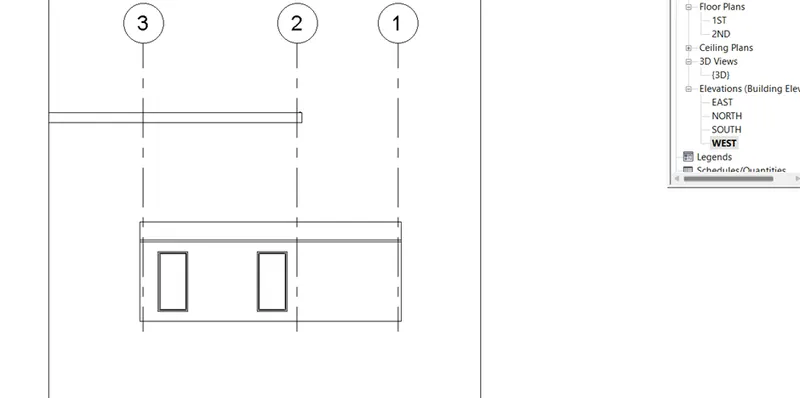

-WEST VIEW

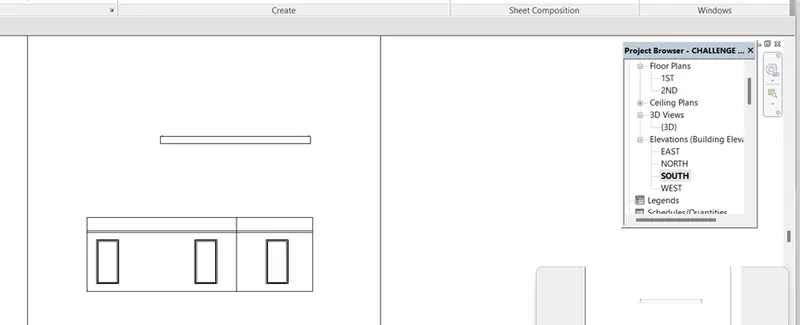

-SOUTH VIEW

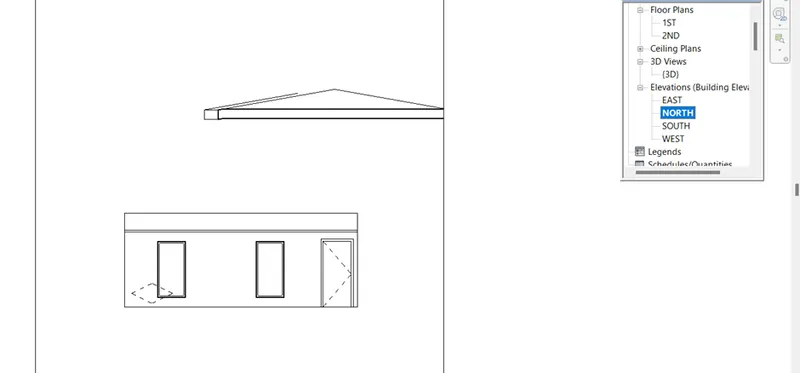

-NORTH VIEW.

1. 7) Produce section cut through each room either cutting across longitudinally or in a transverse direction.

ANS:

STEP01

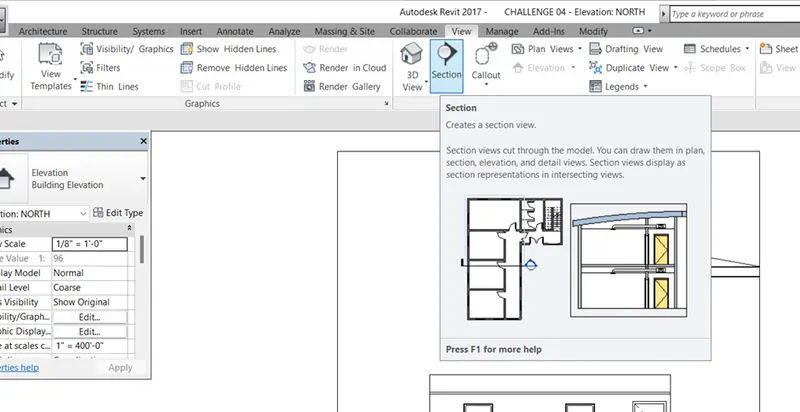

-SELECT SECTION TOOL BAR SHOW IN SCREEN .

STEP02

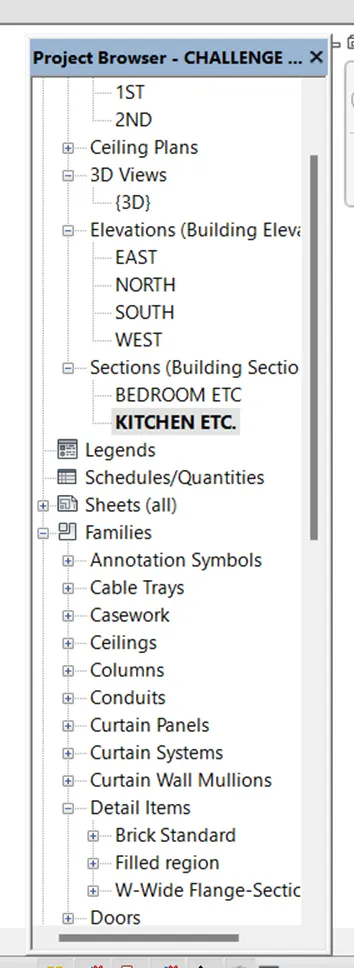

-NOW U CAN SEE I AM ALREADY PUT SECTION IN DRAWING.

STEP03

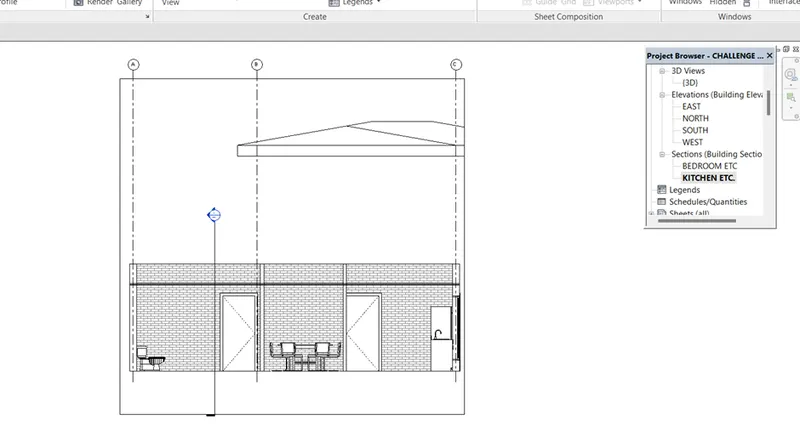

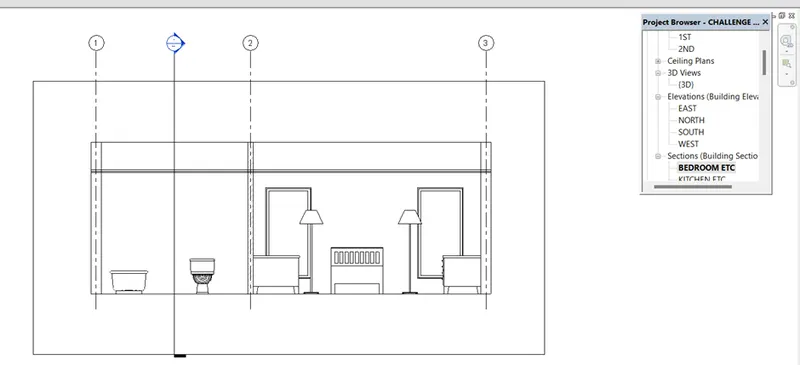

-THIS IS MY BED ROOM SECTION.

STEP04

-THIS IS MY KITCHEN ,WASH,DINING ETC.VIEWS.

Q.8) Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser.

ANS:

-

-THIS IS MY ALL DOCUMENTATION CATEGORY.

1. 9) Using the sheet template produced create multiple sheets as follows
   a. A 101- Ground Floor Architecture Plan
   b. A 102- First Floor Architecture Plan
   c. A 103- Roof Plan
   d. S 101- Ground Floor Structural Plan
   e. S 102- First Floor Structural Plan
   f. S 103- Roof Framing Plan
   g. A-201- North-South Elevations
   h. A-202- East-West Elevations

Add additional sheets based on the sections created in your Revit file

ANS:

• ALL DRAWINGS ARE NOT MAKING IN FILE
• I KNOWN HOW TO WORK WITH SERIAL NUMBER
• BCZ I AM ASLO USED THIS TYPE SYASYEM
• SO I AM SHOW IN DRAWINGS WITH DETAILS

1. 10) Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting ANS:

A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.

ANS:

STEP01

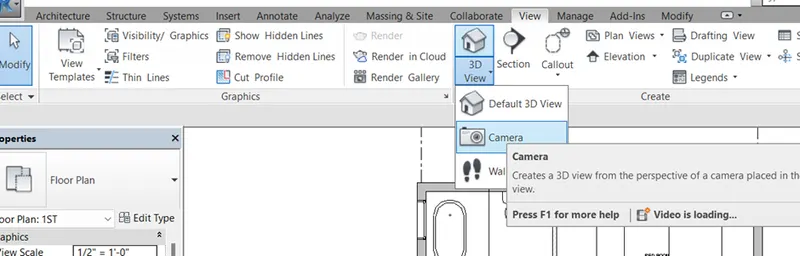

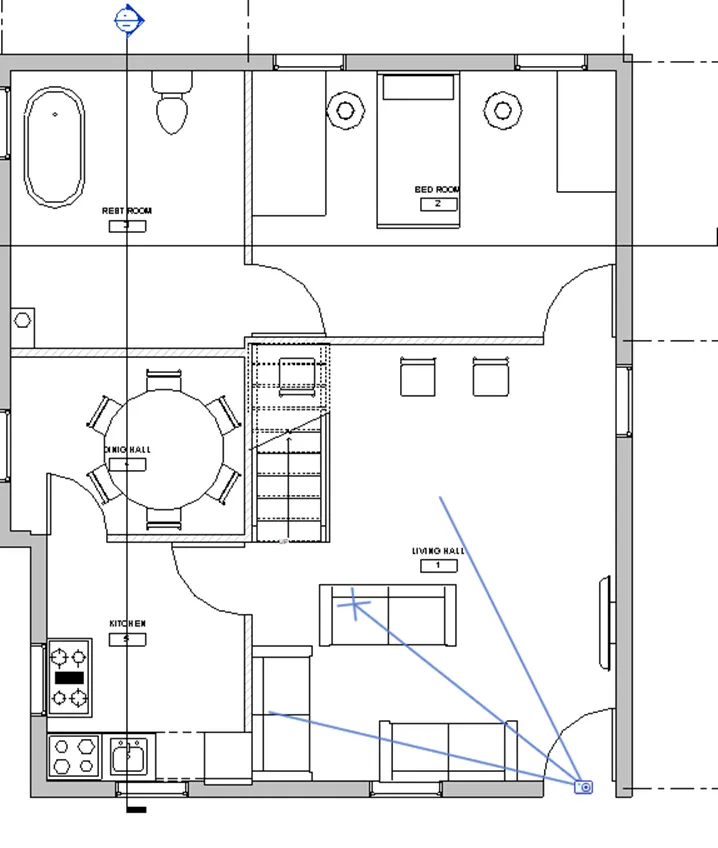

-SELECT CAMERA

STEP02

-NOW U CAN SELCT CAMERA TOOL BAR AND PUT ANY ROOM LIKE THAT.

STEP03

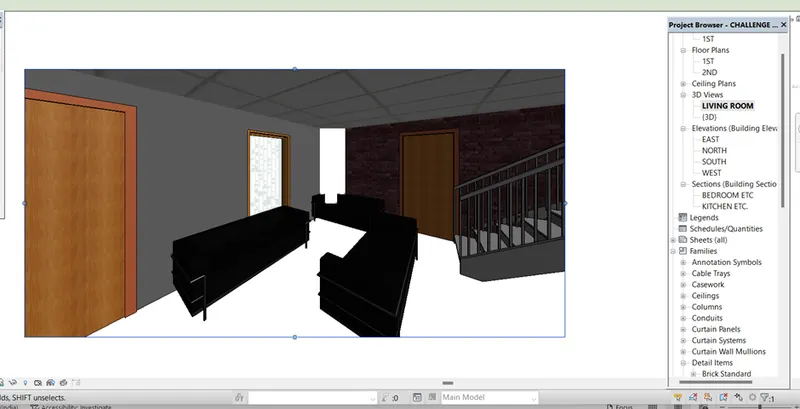

-NOW U CAN SEE IN 3D VIEW.

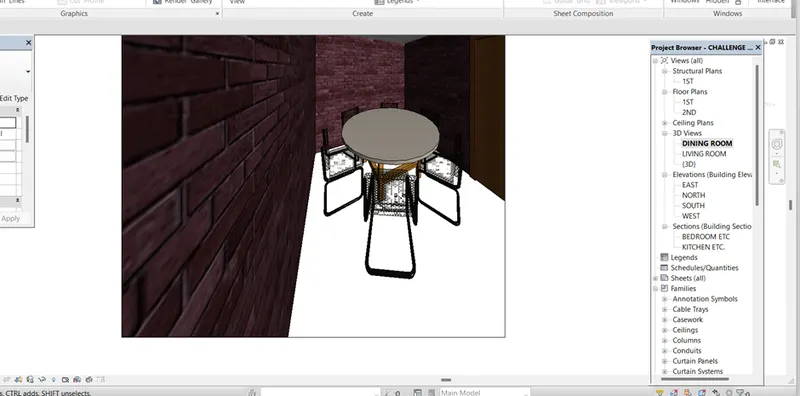

-DINING ROOM

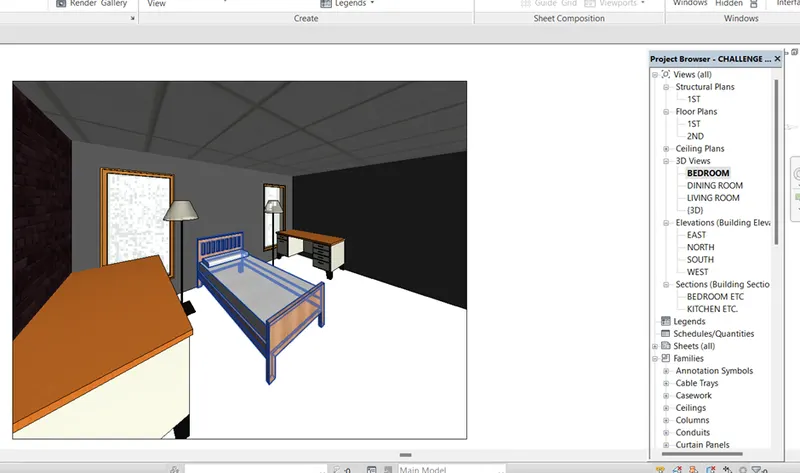

-BEDROOM

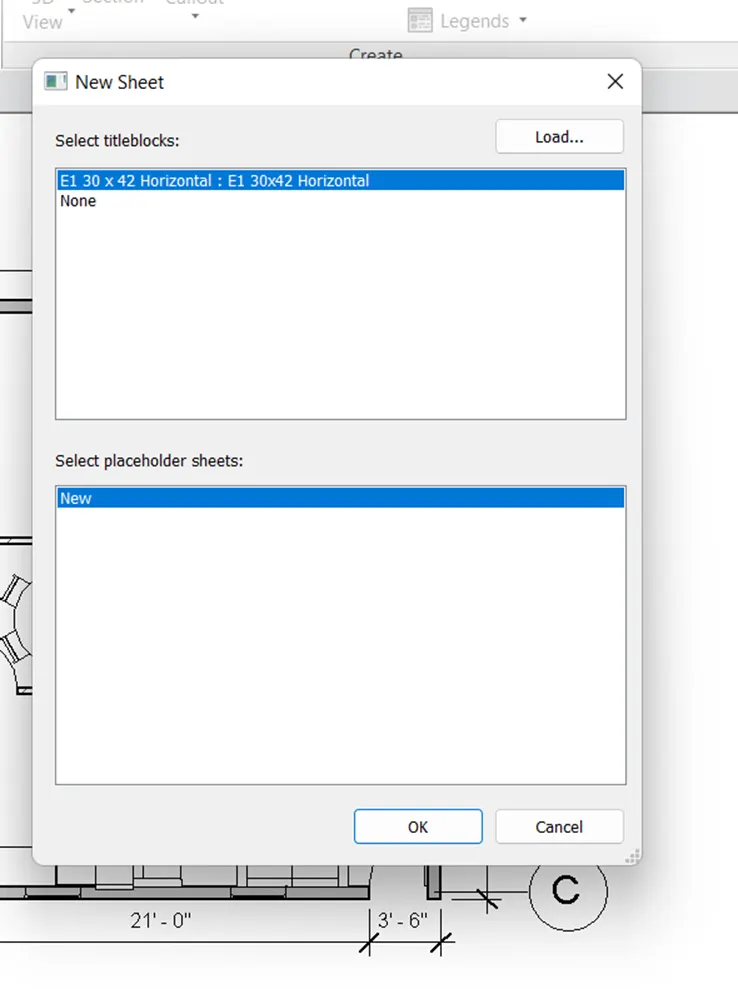

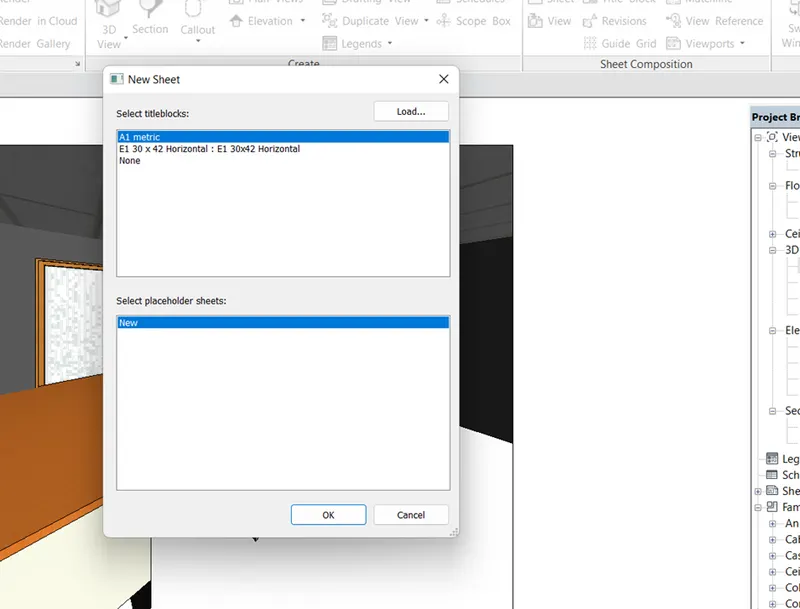

-AGAI SELECT NEW SHEET FOR TITLE BLOCK

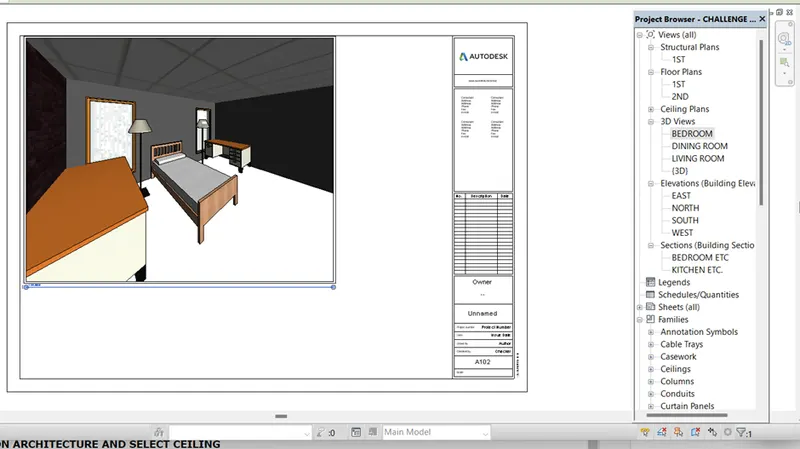

-DRAG BEDROOM IN TITLE BLOCK

- U DOUBLE CLICK IN VIEW SO U R IN VIEW

-THEN U SIGLE CLICK OUTSIDE BLOCK SO UR OUTSIDE OF BLOCK.
