3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

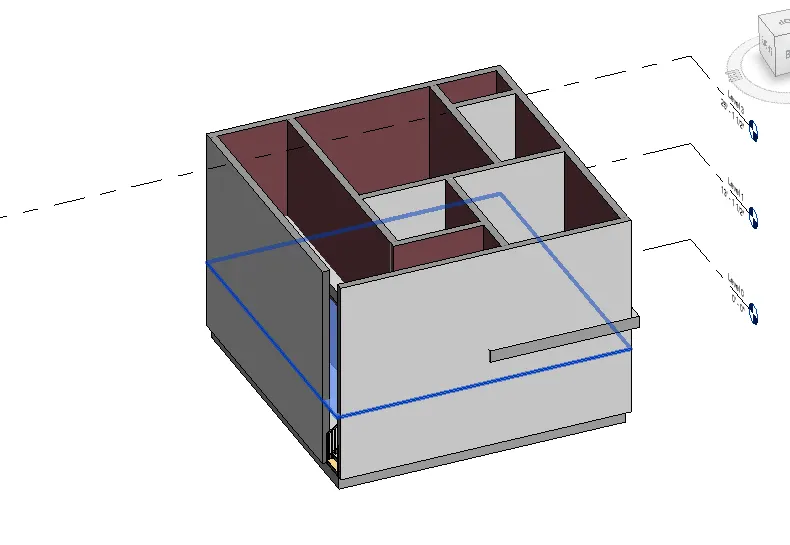

AIM: TO DRAW THE CEILING TO TE FIRST FLOOR USING SKETCH CEILING
PROCEDURE: TAKE CEILING OPTION AND PROVIDE
CEILING TO FIRST FLOOR
RESULT : PROVIDED THE CEILING TO FIRST FLOOR
2)

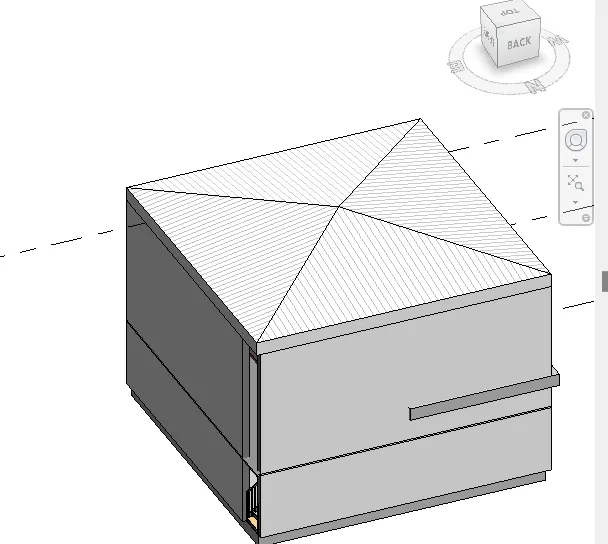

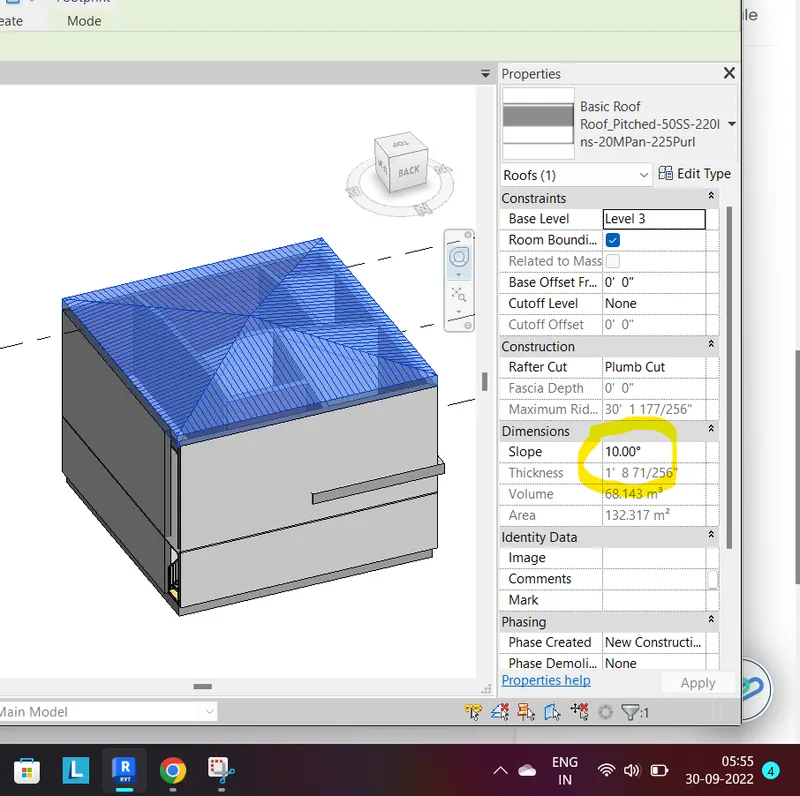

AIM:CREAT ROOF FLOOR ARCHETECTURAL TAB USINGWITH SLOPE OF 10.DEGREE SLOPE
PROCEDURE: CREAT ROOF AT 10 DEGREE SLOPE
RESULT:CREATED ROOG AT 30 DEGREE SLOPE
3)

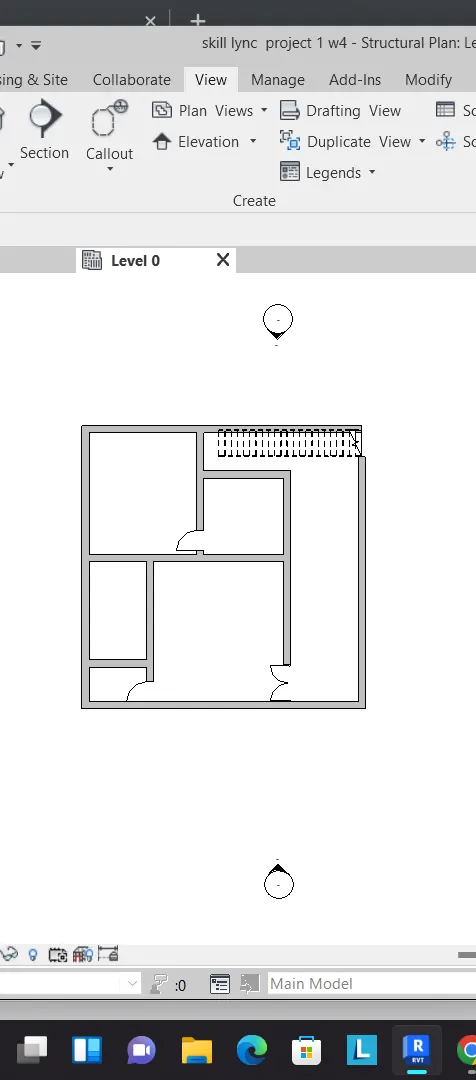

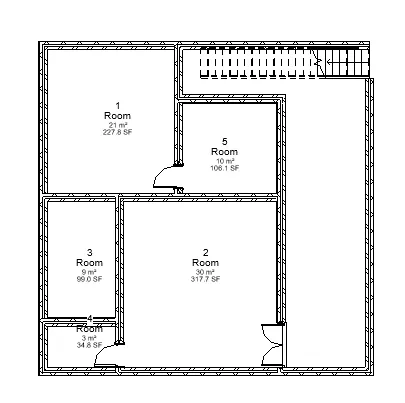

AIM:TOO SEE THE DIFF STRUCTURAL PLAN AND ARCHETECTURAL PLAN USING PLAN VIEW
PROCEDURE : USING PLAN VIEW SEE STRUCTURAL PLAN &ARCETECTURAL PLAN IN ARCHETECTURAL PLAN ALL THE COMPONENTS ARE VISIBLE
WERE AS IN STRUCTUAL PLAN ONLY WALL FLOOR DOOR ARE VISIBLE
RESULT : STUCTURAL & ARCHETECTURAL PLAN ARE DRAWEM
4)

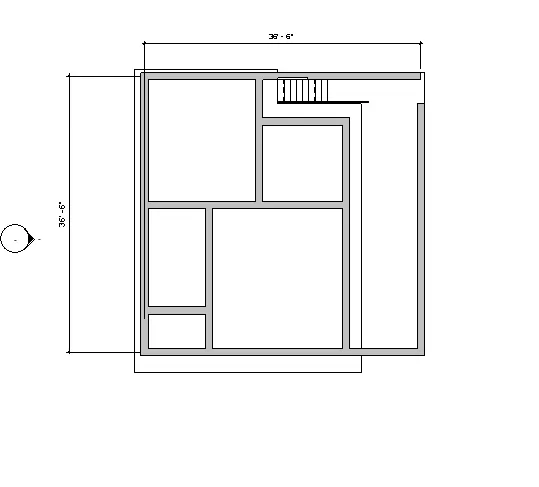

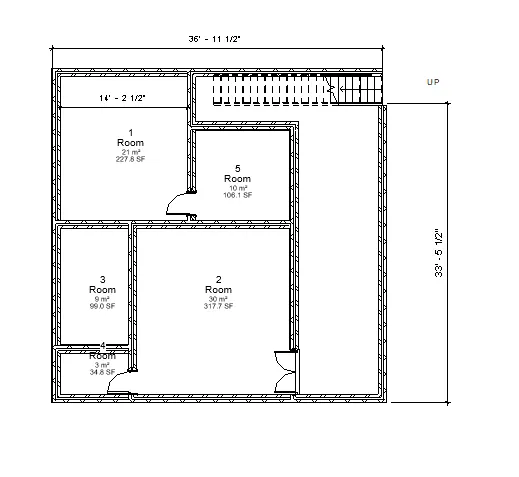

AIM:TO PROVIDE THE DIMENTIONS FOR ARCHETECTURAL PLAN & STRUCTURAL PLAN
PROCEDURE:TAKE THE DIMENTION OF STRUCTURAL PLAN
ARCHETECTUIRAL PLAN USING ALIGNED DIMENTION OR LINEAR DIMENTION
RESULT : TAKEN THE DIMENTION OF ARCHETECHRURAL PLAN AND STRUCTURAL PLAN
5)

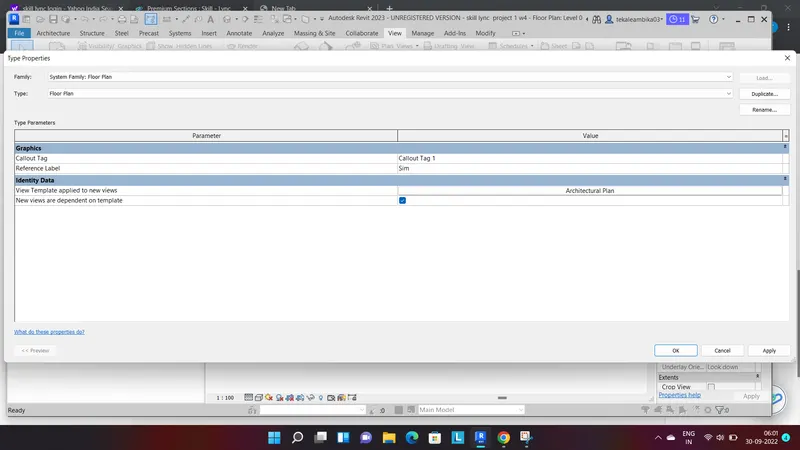

AIM:CREAT A SEET TEMPLET FROM TJHE VIEW TAB AND ADJUST THE PARAMETERON TE SHEET
PROCEDURE : ADJUST VIEW IN SHEET
RESULT: ADJUTED THE VIEW IN SHEET
6)

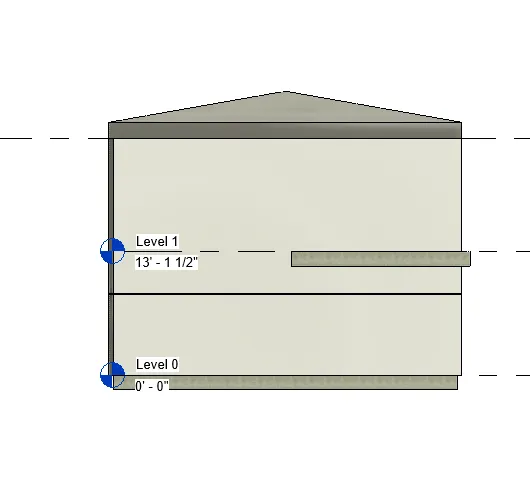

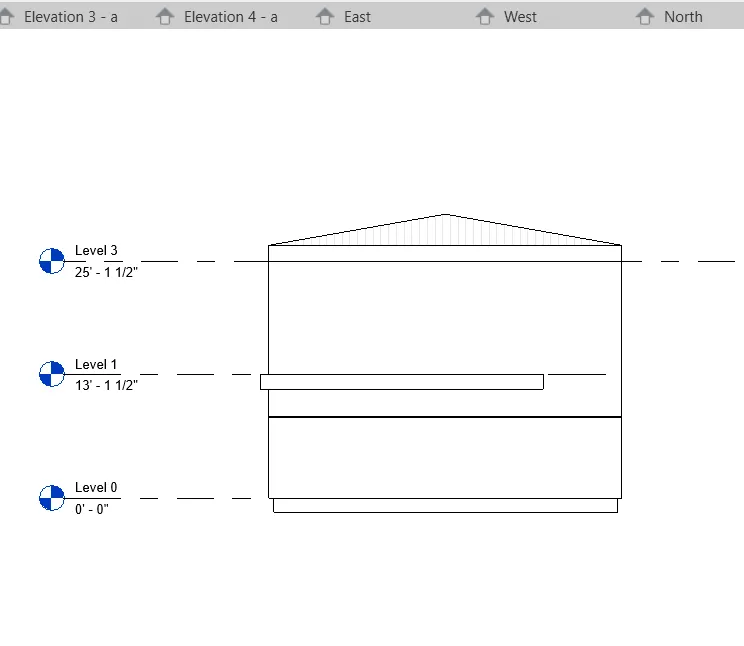

AIM:CREAT ELEVATION OF EAST WEST NORTH SOUTH
PROCEDURE : USING ELEVATION TAB CREAT VIEW OF EAST WEST NORTH SOUT OF THE PLAN

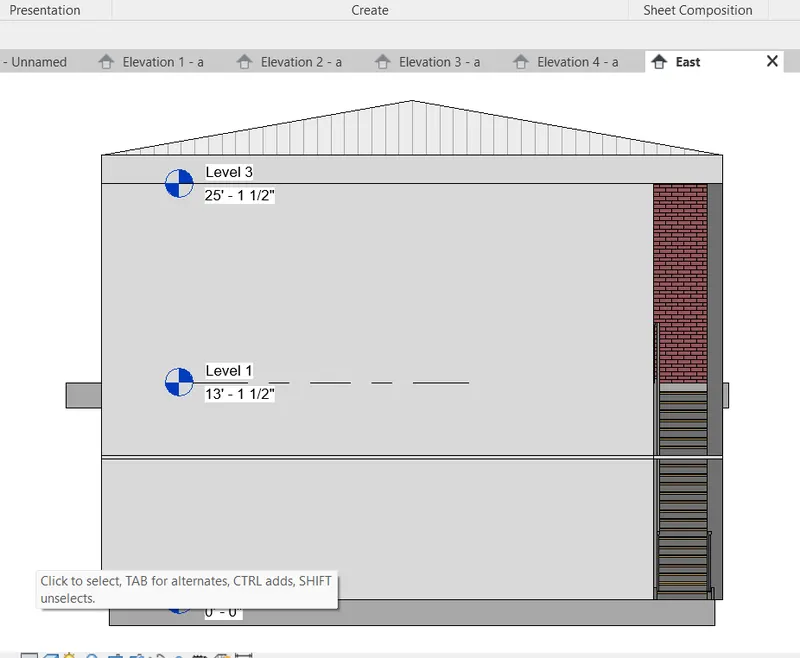

EAST ELEVATION

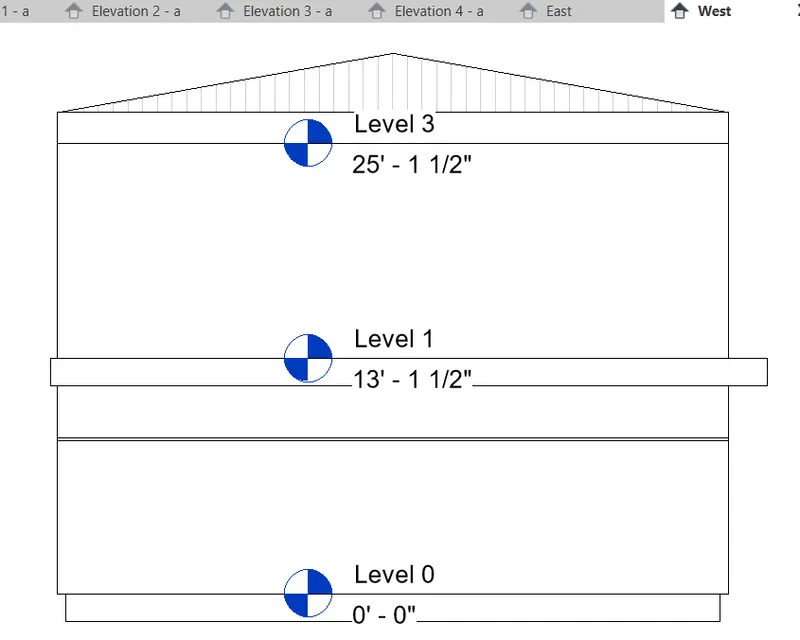

WEST ELEVATION
NORTH ELEVATION
SOUTH ELEVATION
RESULT : CREATED ALL ELEVATION
7)

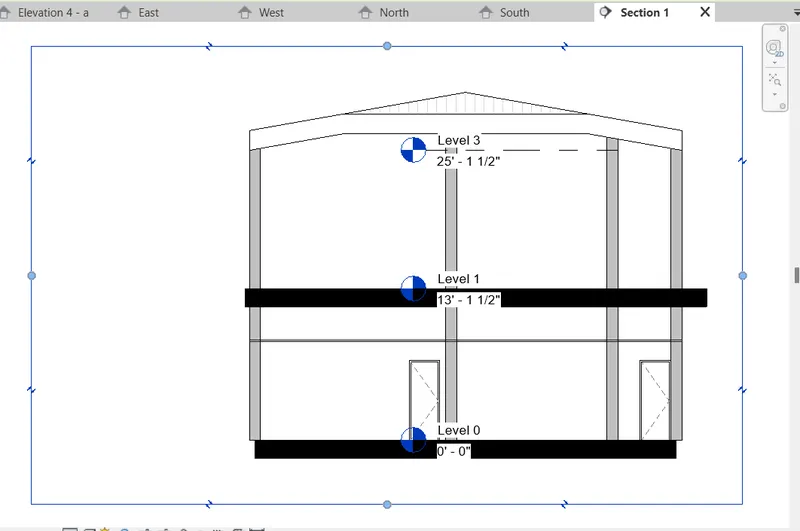

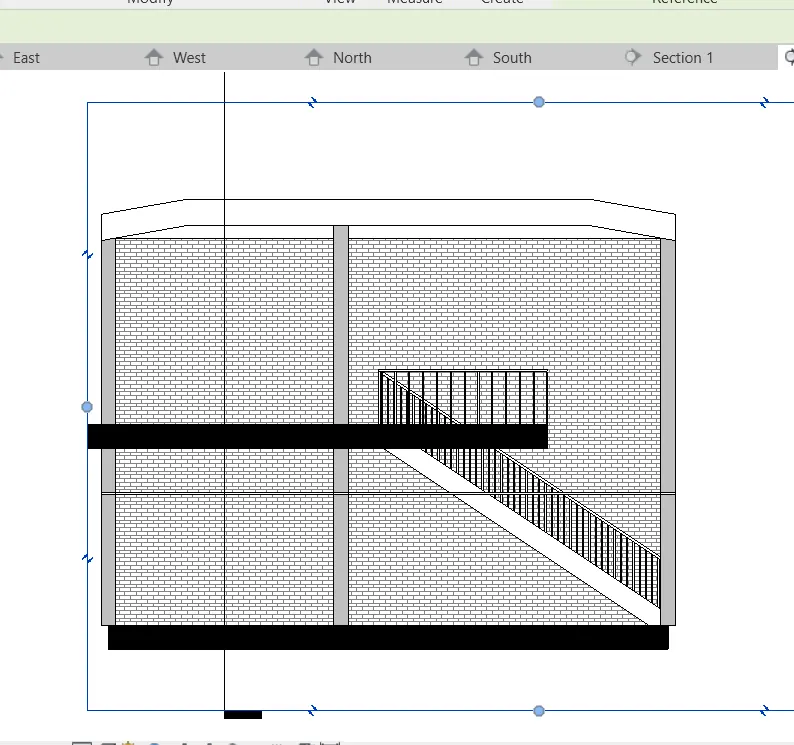

AIM:TO CUT THE SECTION LONGITUDINAL AND TRANSEVERCE DIRECTION
PROCERURE: CREAT A SECTION ALONG LOGITUDENAL & TRANCEVERCE DIRECTION
RESULT : CREATED SECTION
8)
AIM:CLASSIFY AL THE VIEWS FROM PROPERTY BROWESER
PROCEDURE: TAKE SCREEN SOT OF PLAN VIEW , SECTION VIEW, ELEVATION ,SECTION
3D VIEW
W
ELEVATION
SECTION
STRUCTURAL PLAN
RESULT : CLASSIFIED ALL VIEW USING PROPERTY BROWESER
9)

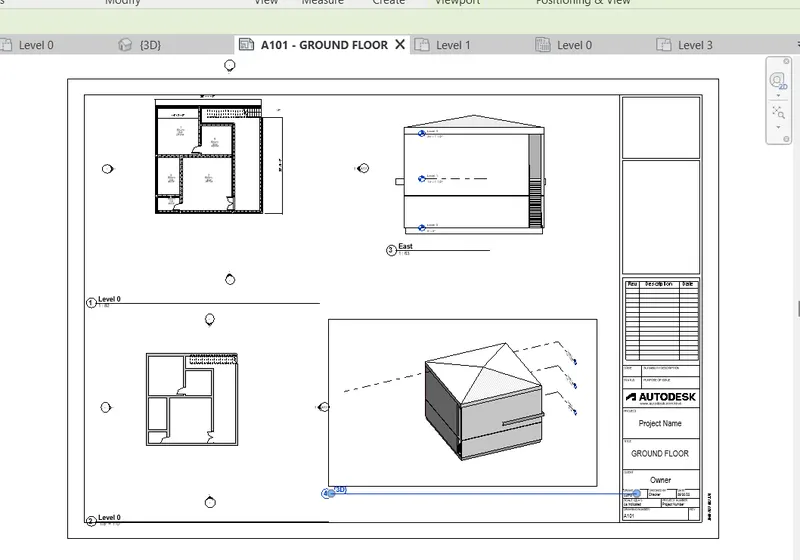

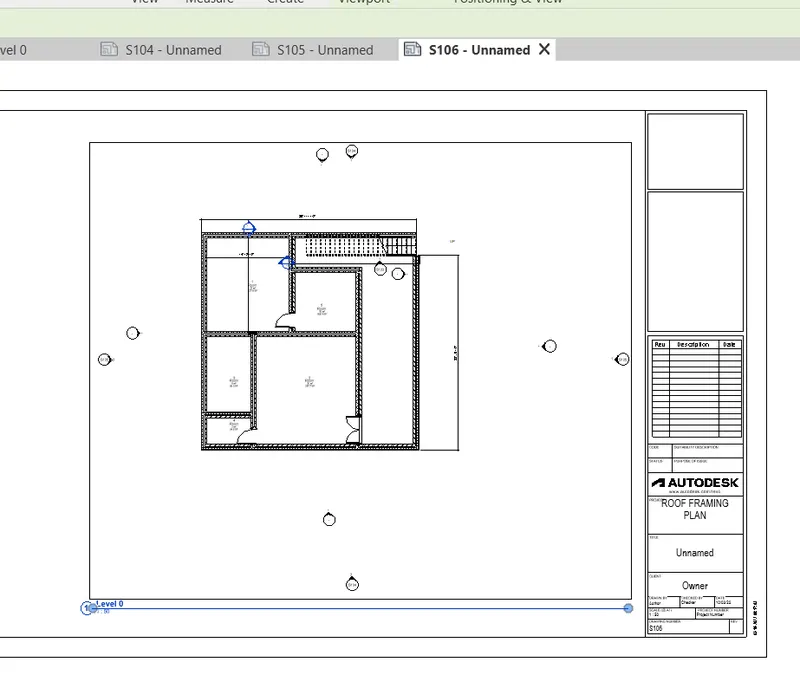

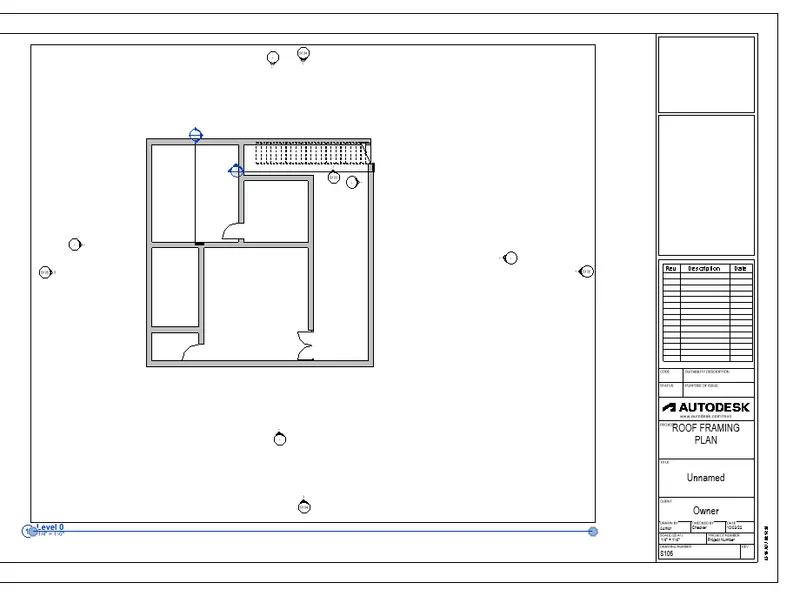

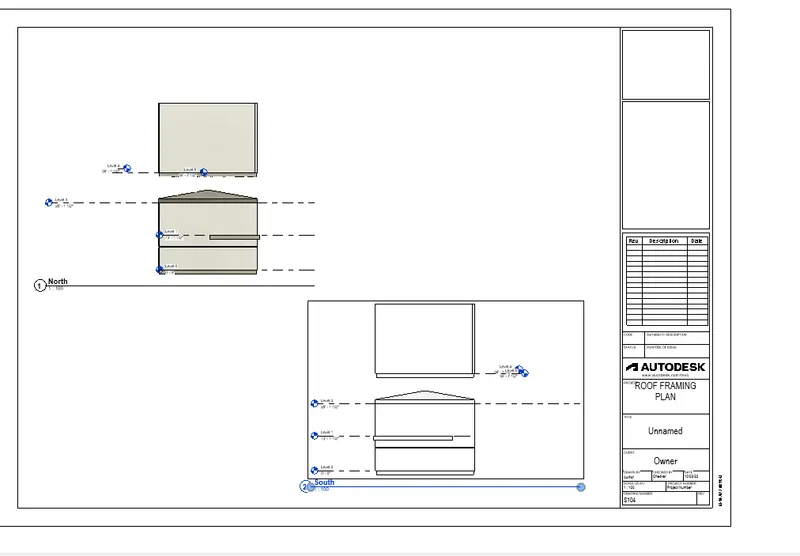

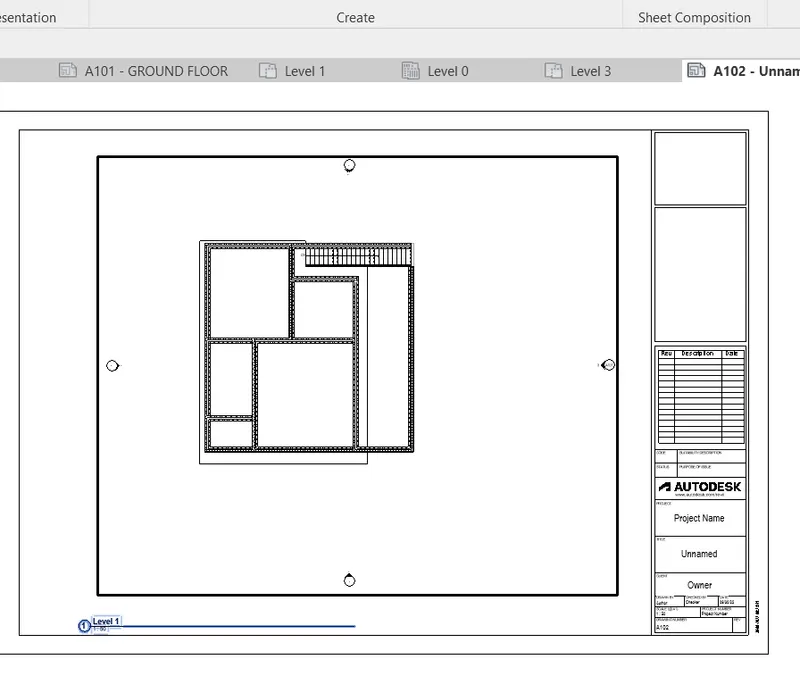

AIM: ALL THE GIVEN VIEW PASTE IN SHEET NAME AS PER GIVEN
PROCEDURE : PASTE IN SHEET ALL VIEWA\S

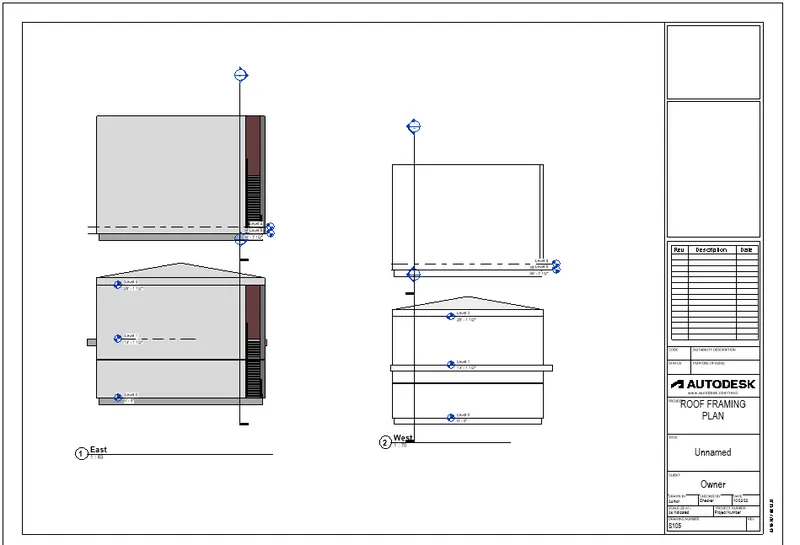

NORTH SOUTH
EAST WEST
GROUND FLLOR STUCTURAL PLAN
FIRST FLOOR STRUCTURAL PLAN
GROUND FLOOR ARCHETECTURAL PLAN

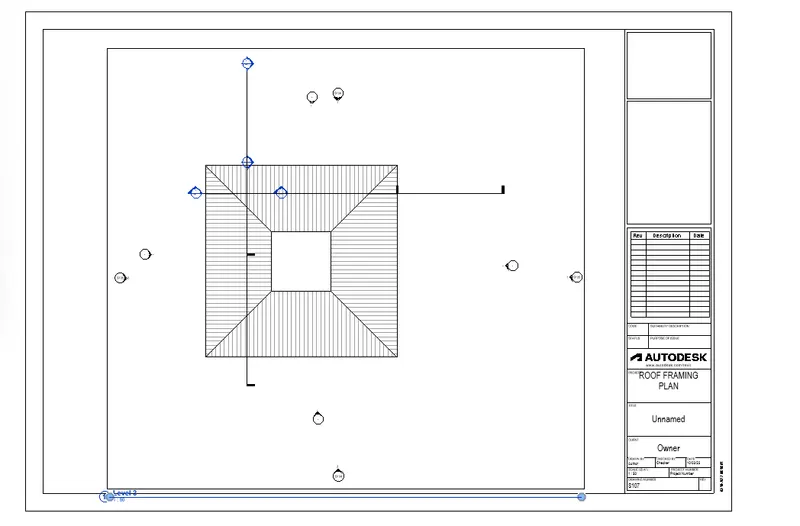

ROOF FRAMING
FIRST FLOOR ARCHETECTURAL PAN
RESULT : GIVEN SHEETS ARE PASTED
10)

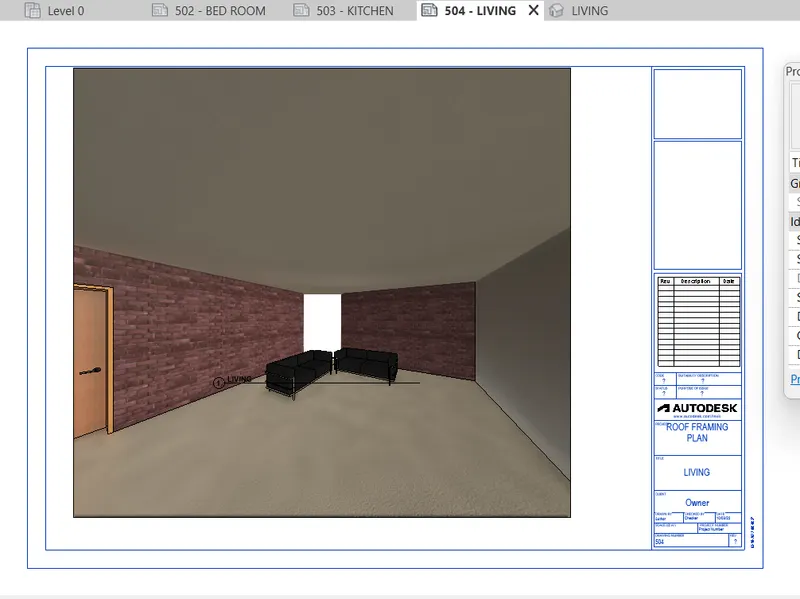

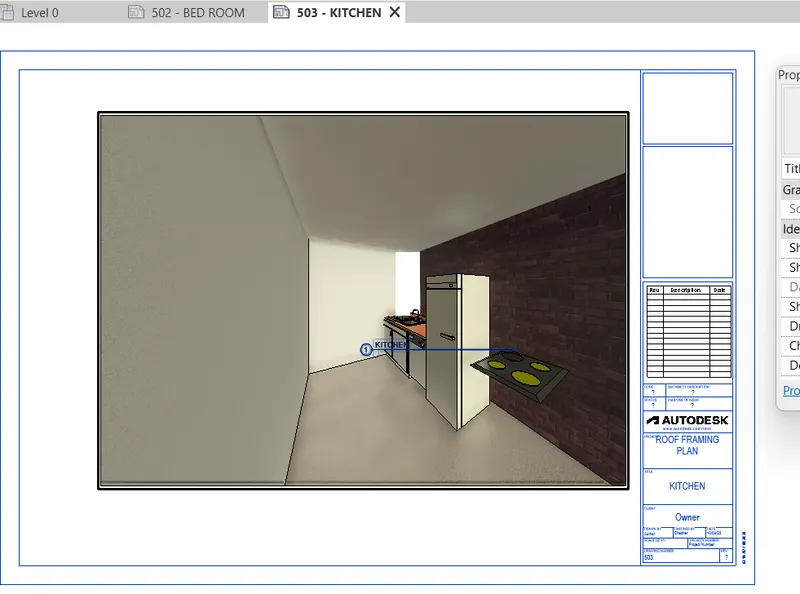

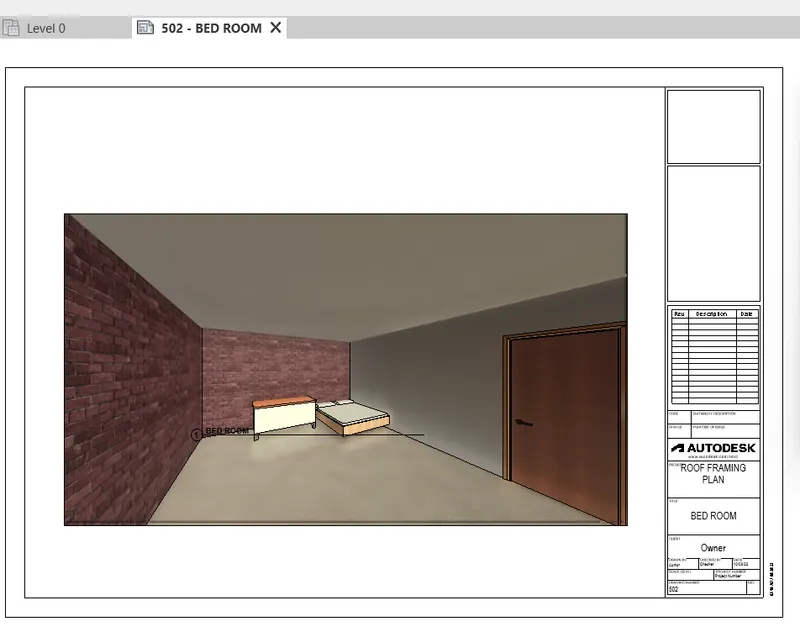

AIM:3D VIEW OF ROOM S ARE PLACE IN SHEET
PROCEDURE:
PLACE THE 3D VIEW IN SHEET AND NAME AS 501 ,502...
RESULT : ALL THE 3D VIEW ARE IN SHEET
