3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

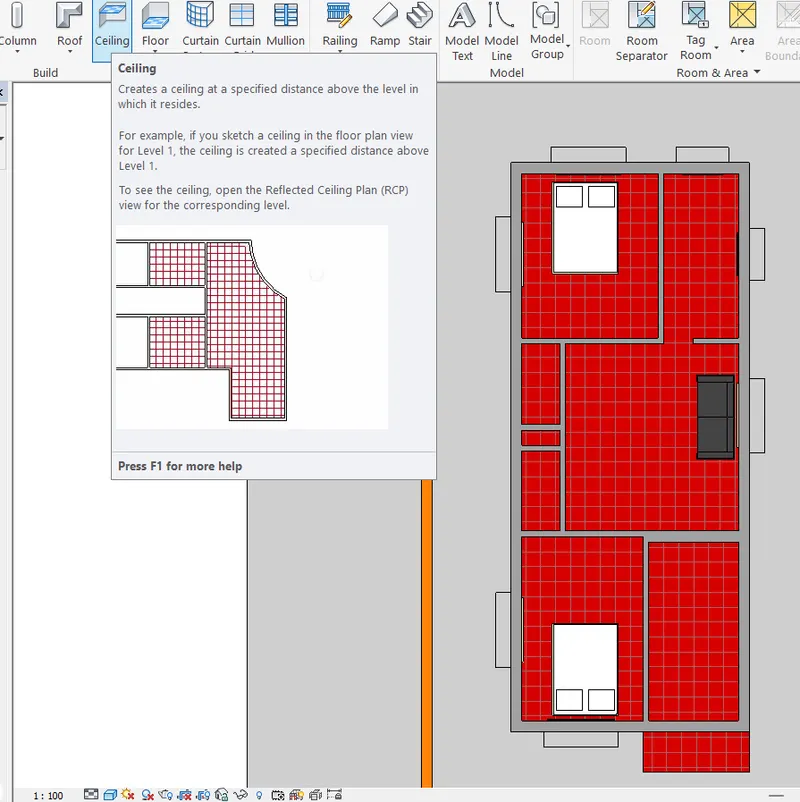

1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level
AIM: To create a ceiling from a groundfloor roof to apply the member in specific level.
PROCEDURE:

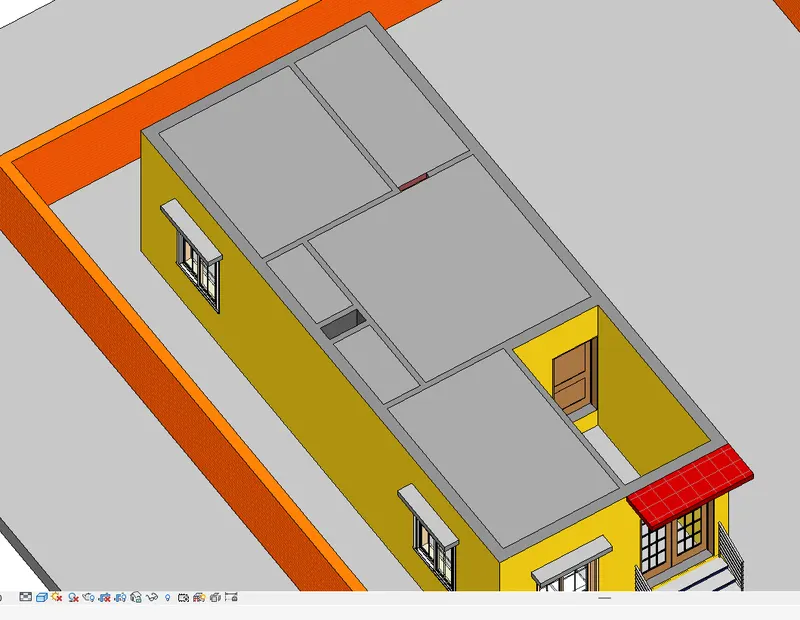

STEP-1: Select the ceiling and to apply the floor level from below
STEP-2: Select the ceiling and to apply the floor level from below
RESULT: Therefore, the ceiling has created within the tool and to gets a perfect dimensional member to applied.

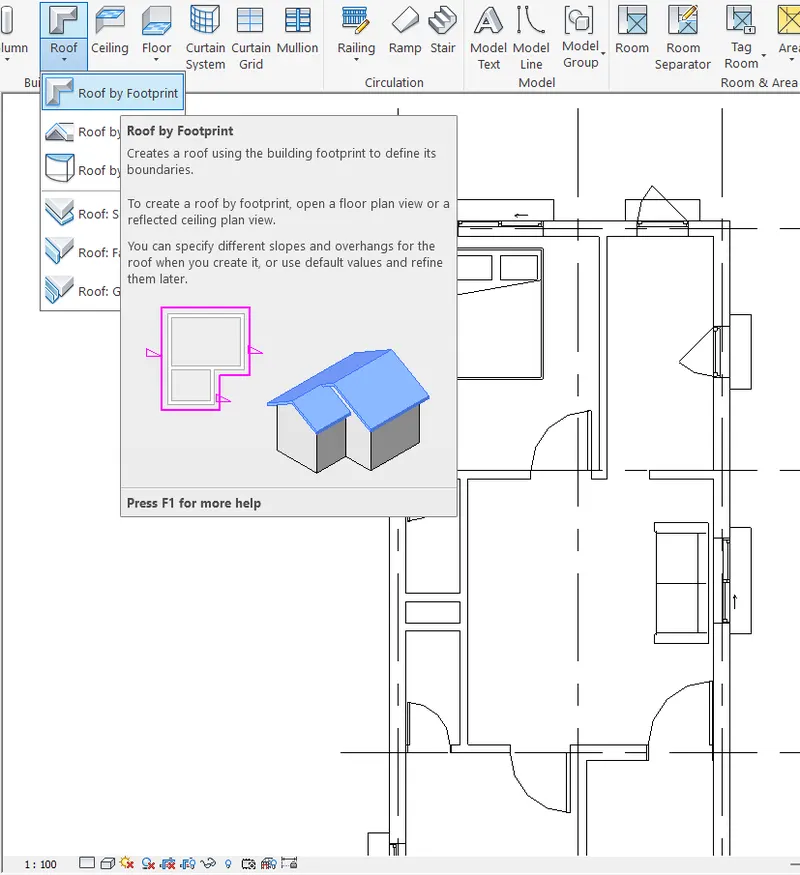

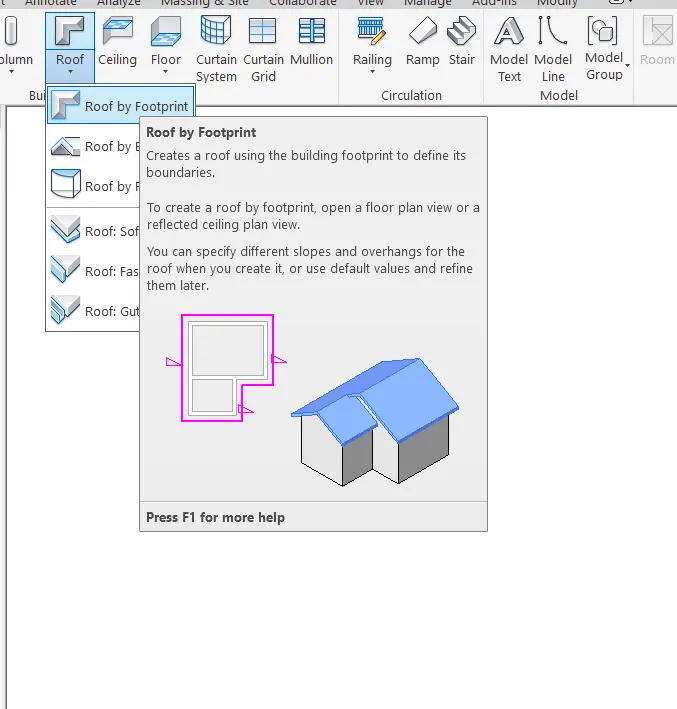

2) Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees
AIM: To create a Slope roof ceiling from a first floor roof to apply.
PROCEDURE:

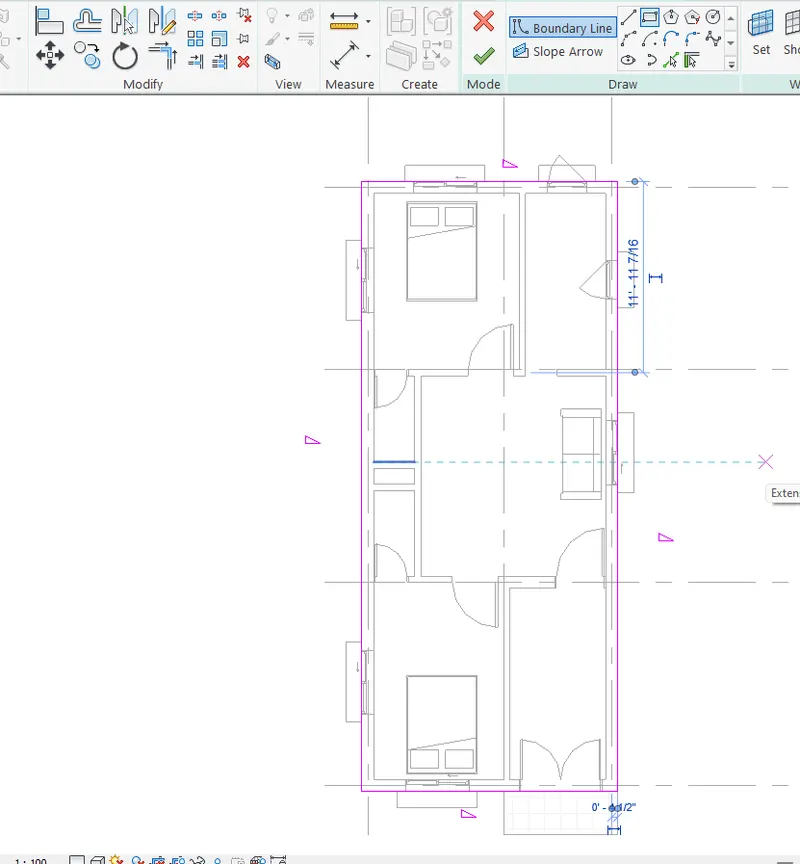

STEP-1: Select the Slope roof ceiling and to apply the floor level from below

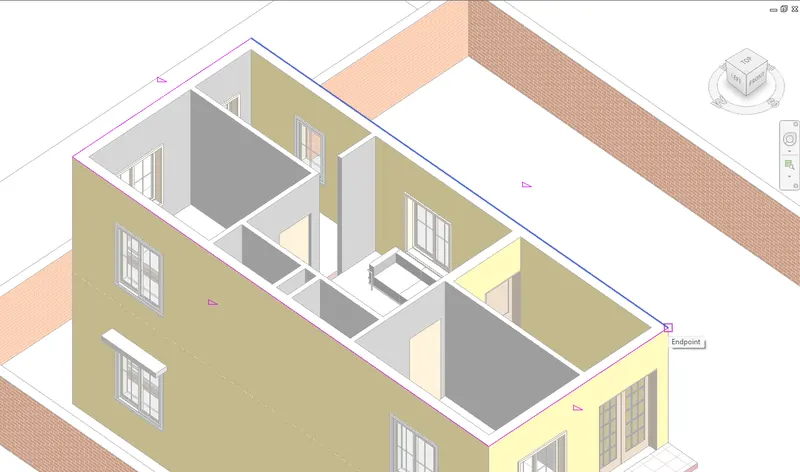

STEP-2: Select the Outer wall or projection to apply the slope from the roof lvl

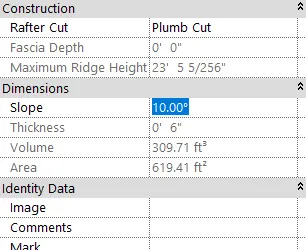

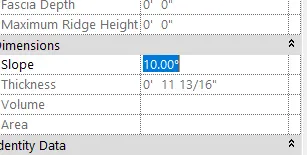

STEP-3: Adjust the slope degree to 10 degree choose to apply

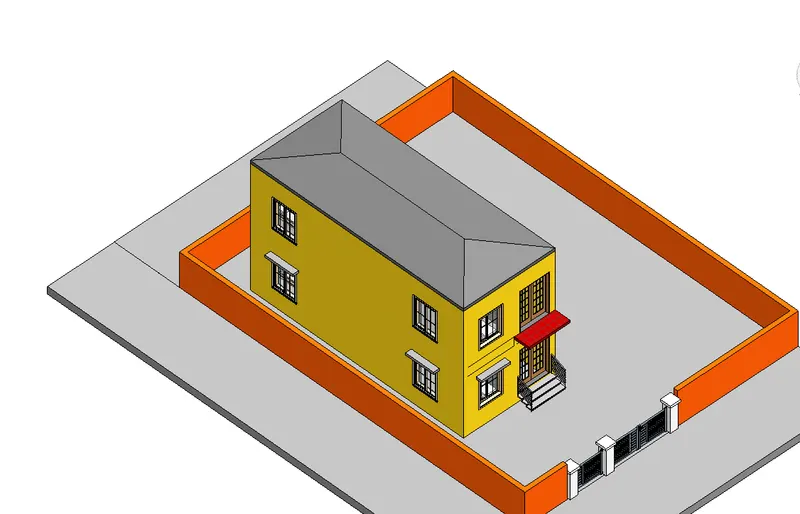

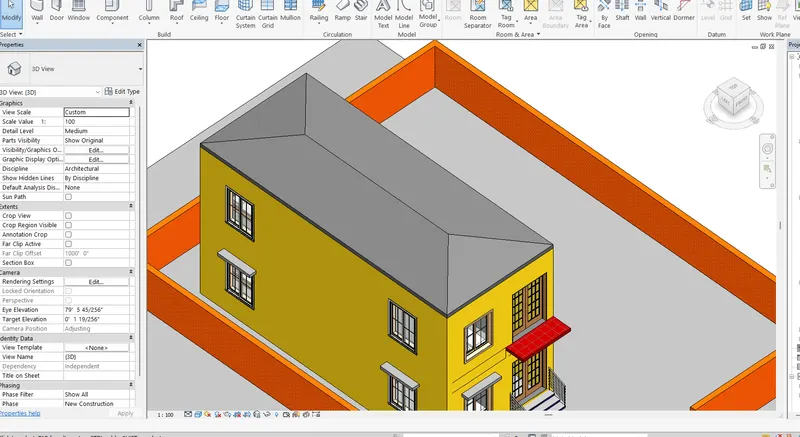

STEP-4: Created slope roof view
RESULT: Therefore, the Slope roof ceiling has created 10 degrees within the tool and to gets a perfect dimensional member to applied.
2) Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees
AIM: To create a Slope roof ceiling from a first floor roof to apply.
PROCEDURE:
STEP-1: Select the Slope roof ceiling and to apply the floor level from below
STEP-2: Select the Outer wall or projection to apply the slope from the roof lvl
STEP-3: Adjust the slope degree to 10 degree choose to apply
STEP-4: Created slope roof view
RESULT: Therefore, the Slope roof ceiling has created 10 degrees within the tool and to gets a perfect dimensional member to applied.

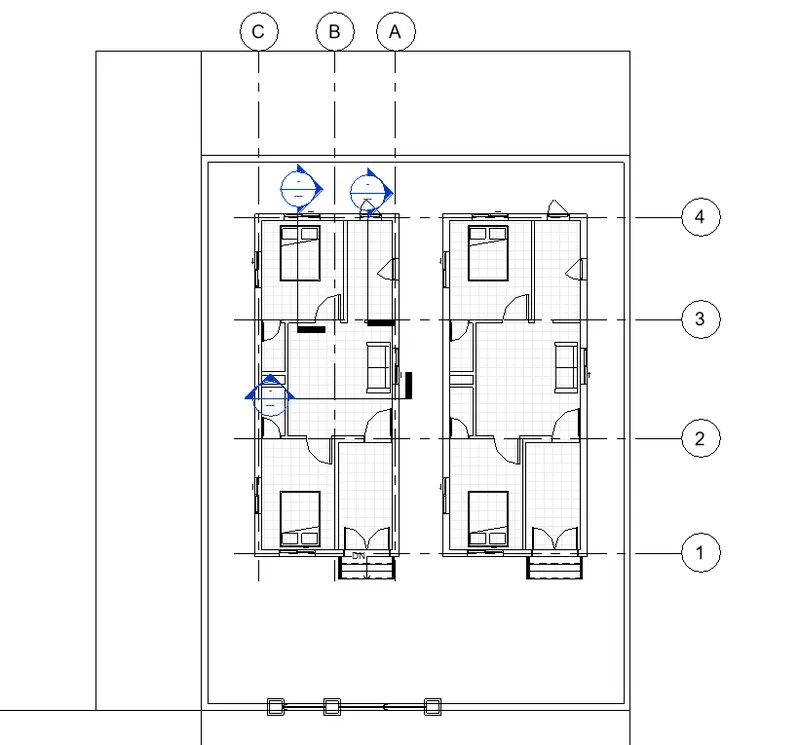

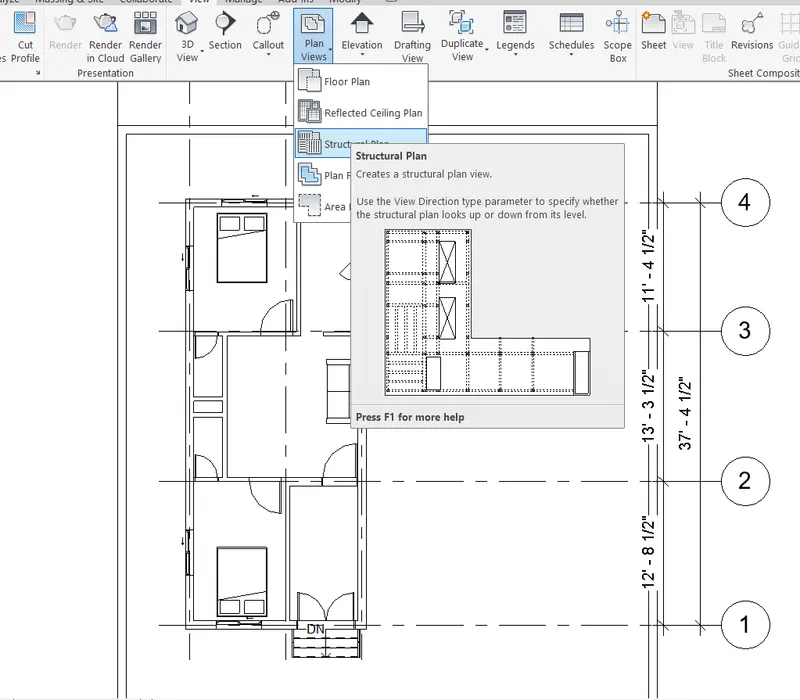

3) Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans
a. Architecture plan must have walls, floors, and all the components placed within the building
b. Structure plan must have details of only walls, floors, and columns

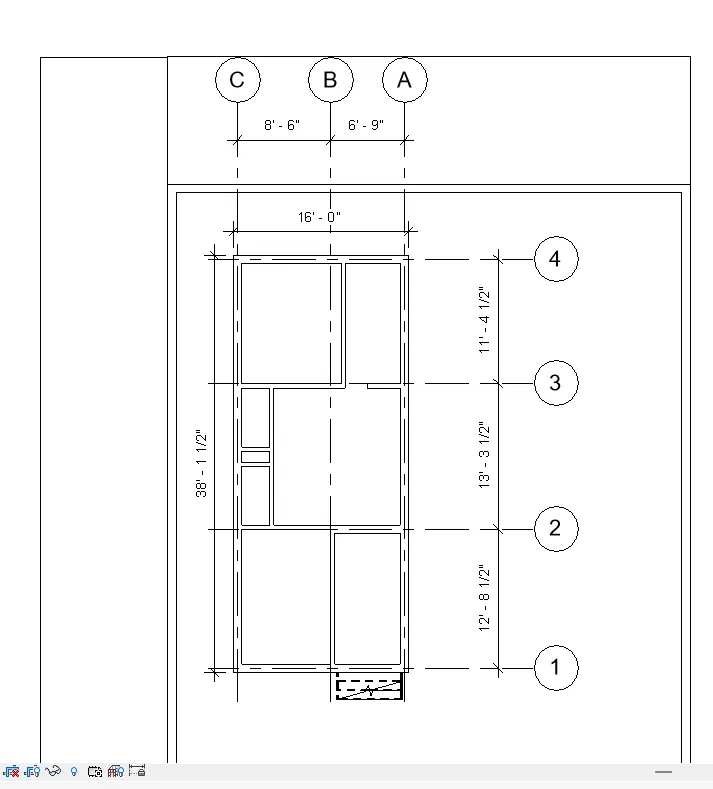

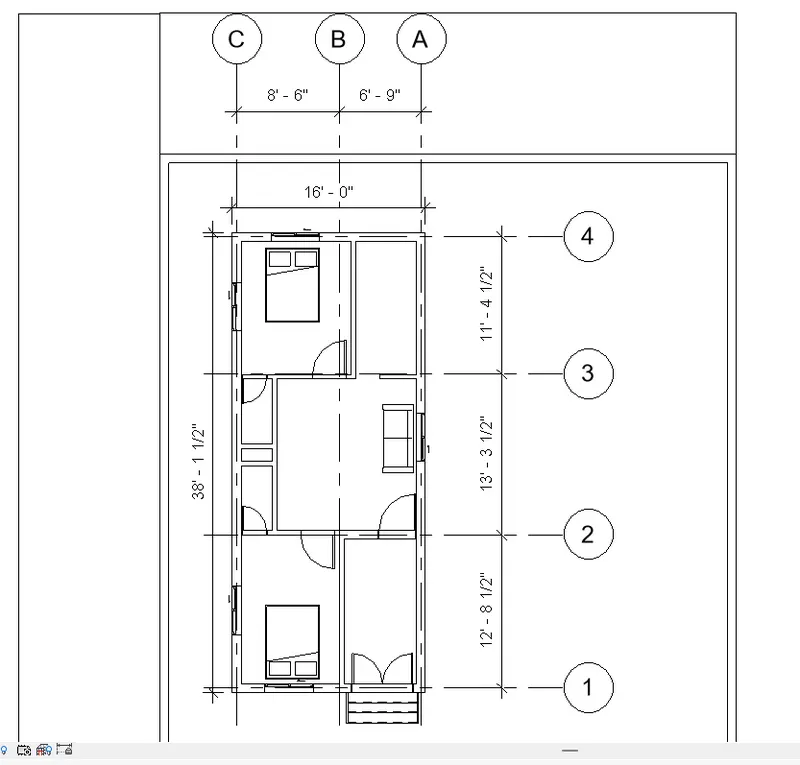

4) Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file
STEP-1: The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans
STEP-2: The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans.
RESULT: Therefore, the Architecture and structural plans has mentioned within dimensions
5) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views

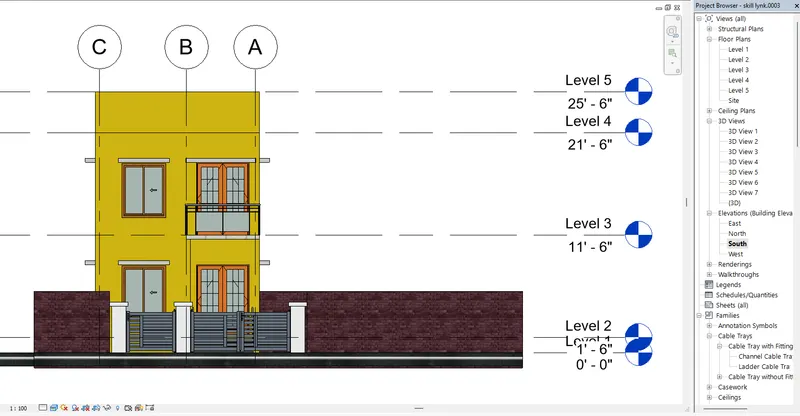

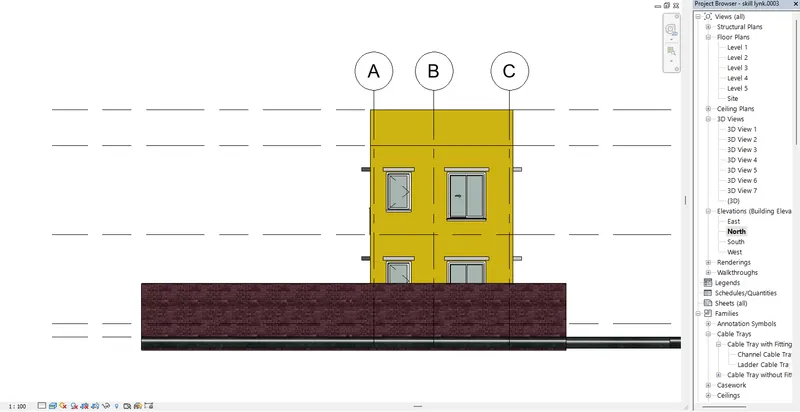

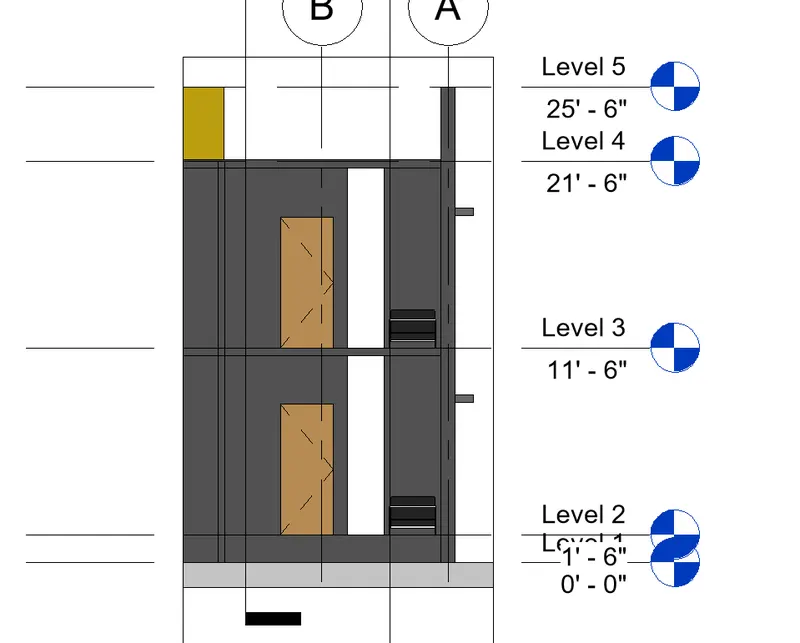

6) Using the elevation tab create the elevation views, looking at your building from East, North, South, and West
AIM: To create a Elevation view from the plan.
PROCEDURE:

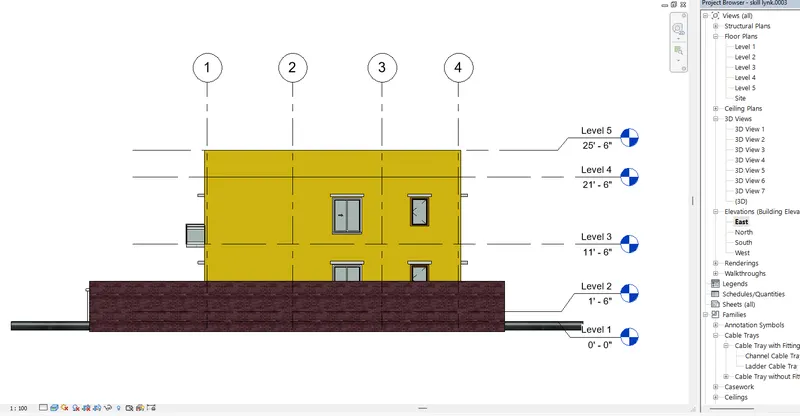

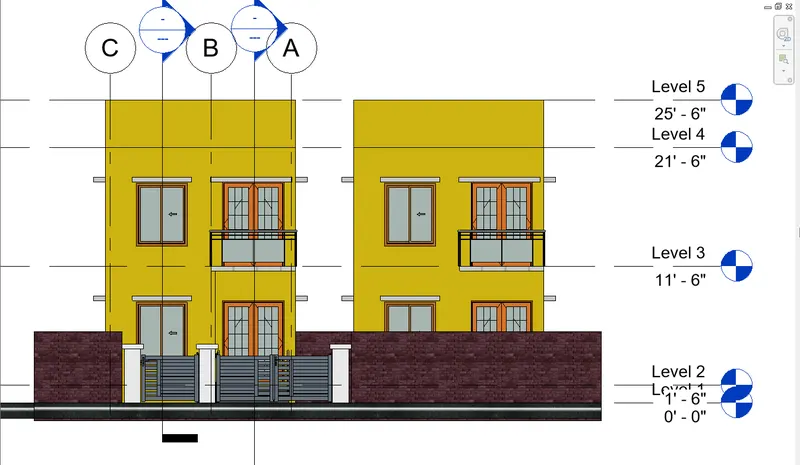

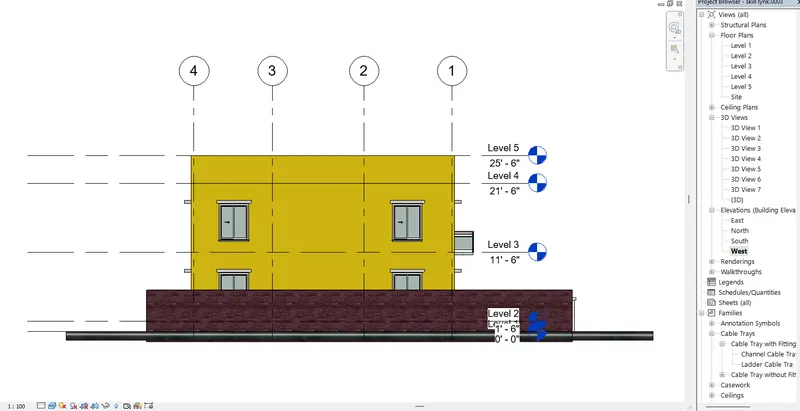

STEP-1: East side elevation view
STEP-2: West side elevation view
STEP-3: North side elevation view
STEP-4: South side elevation view
RESULT: Therefore, the Architecture realistic view from east, west, north & south directions has completed.

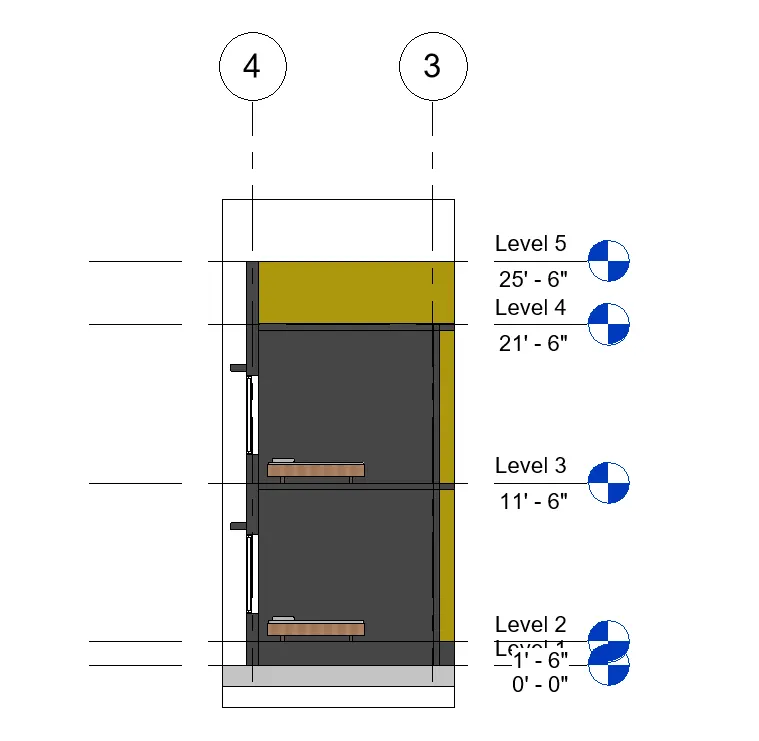

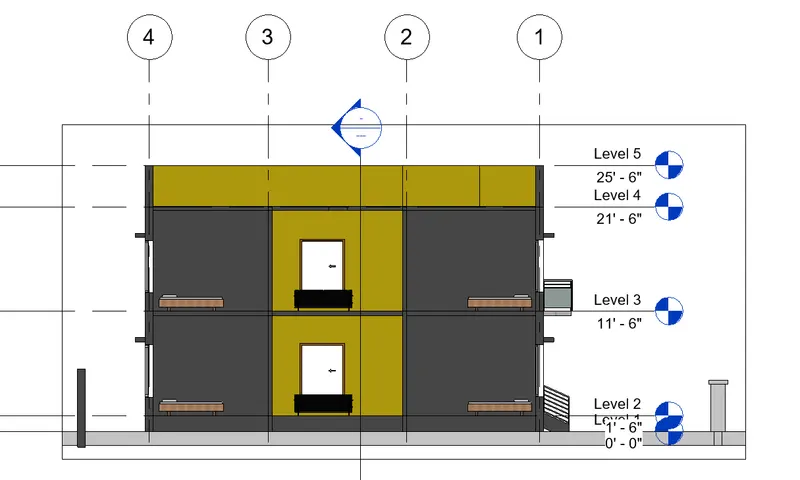

7) Produce section cut through each room either cutting across longitudinally or in a transverse direction
AIM: To create a Sectional view from the plan.
PROCEDURE:

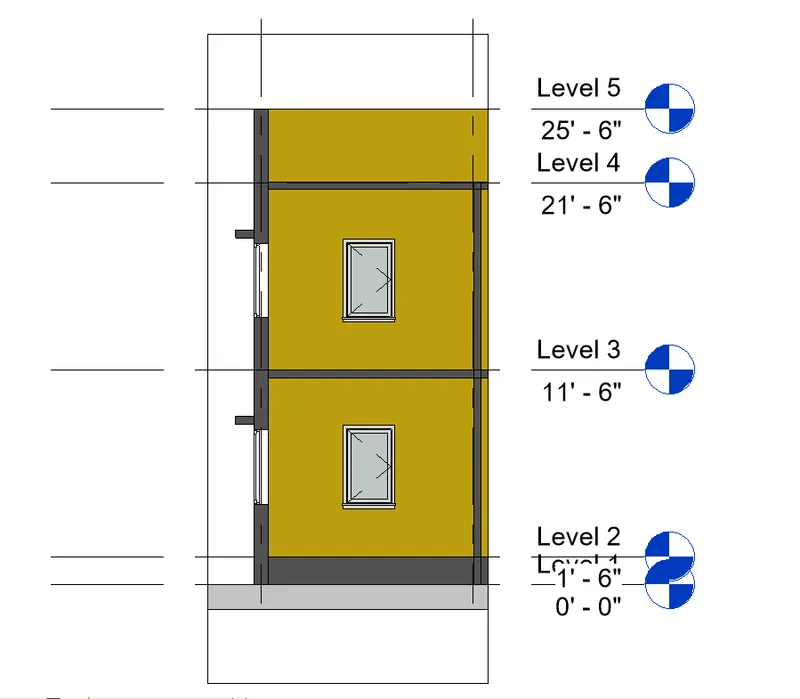

STEP-1: View-1 Bedroom
STEP-2: View-2 Living room
STEP-3: View-3 kitchen
RESULT: Therefore, the Sectional view from living room, bedroom & kitchen has completed.
8) Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser
AIM: To create a Plan, Elevation & Sectional view
PROCEDURE:
STEP-1: Plan View
STEP-2: Elevation View
STEP-3: Section View
STEP-4: Render View
RESULT: Therefore, the Plan, Elevation, Section & Render view has the work completed.

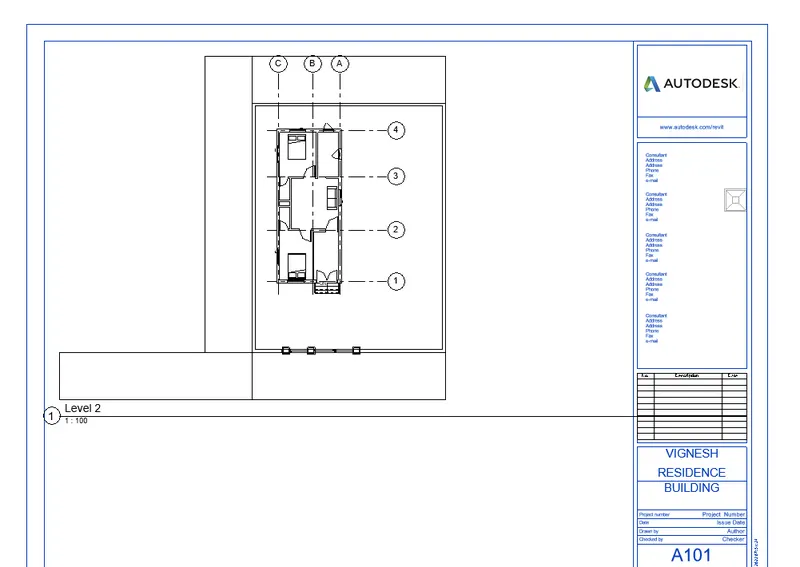

9) Using the sheet template produced create multiple sheets as follows

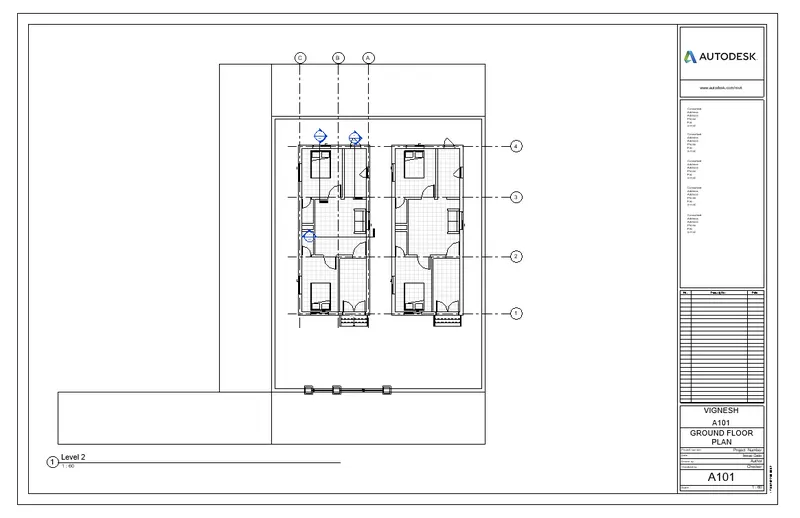

a. A 101- Ground Floor Architecture Plan

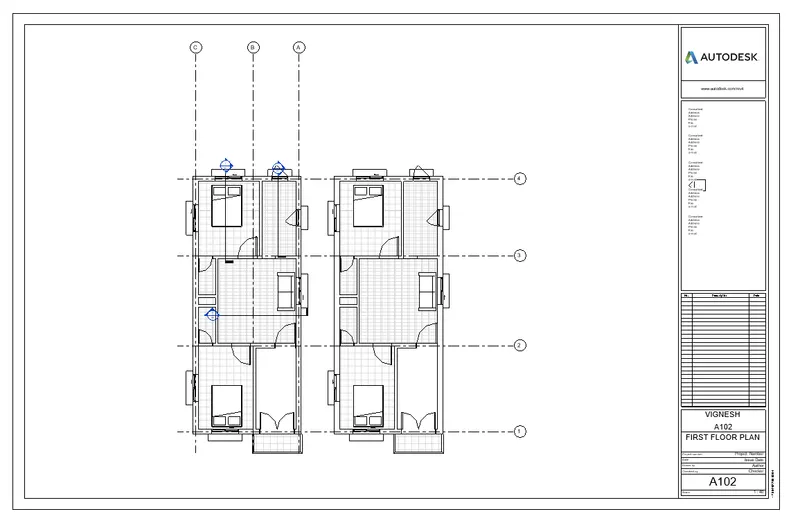

b. A 102- First Floor Architecture Plan

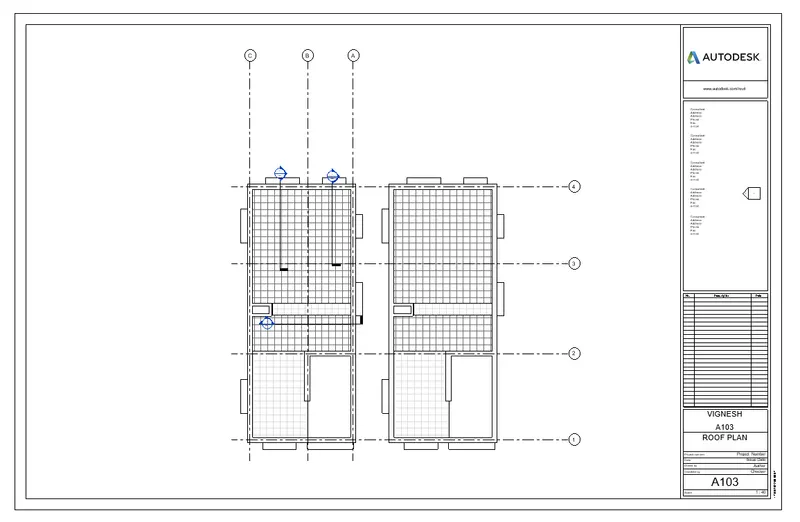

c. A 103- Roof Plan

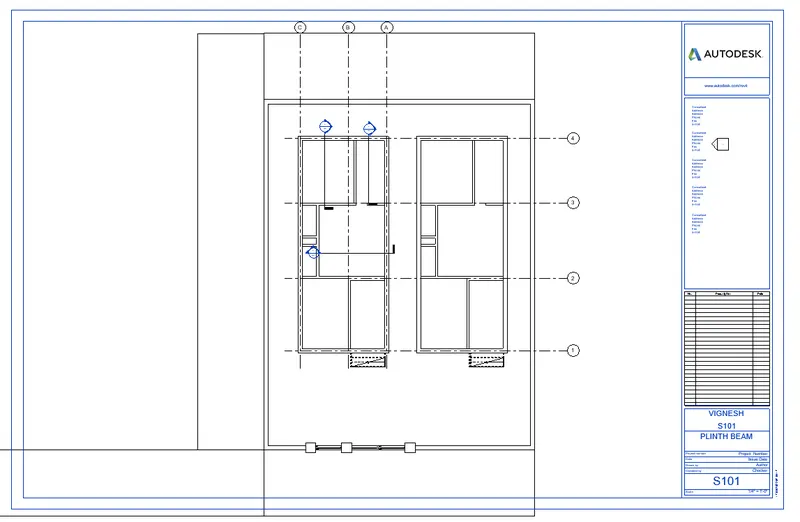

d. S 101- Ground Floor Structural Plan

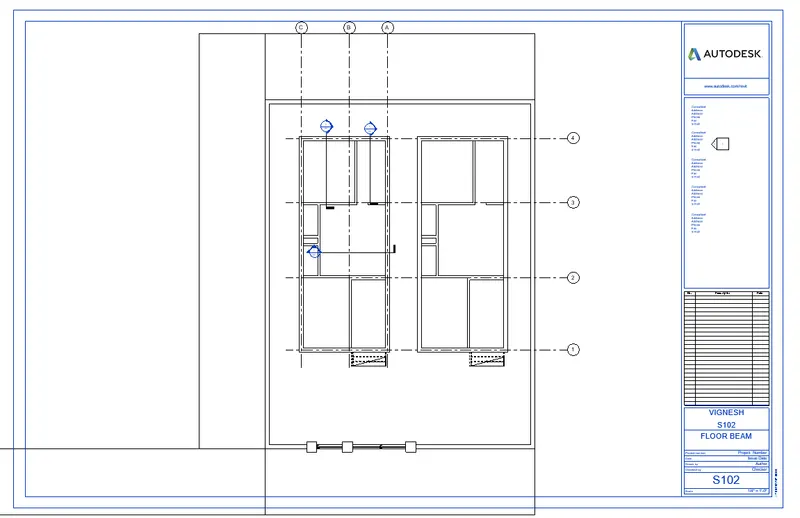

e. S 102- First Floor Structural Plan

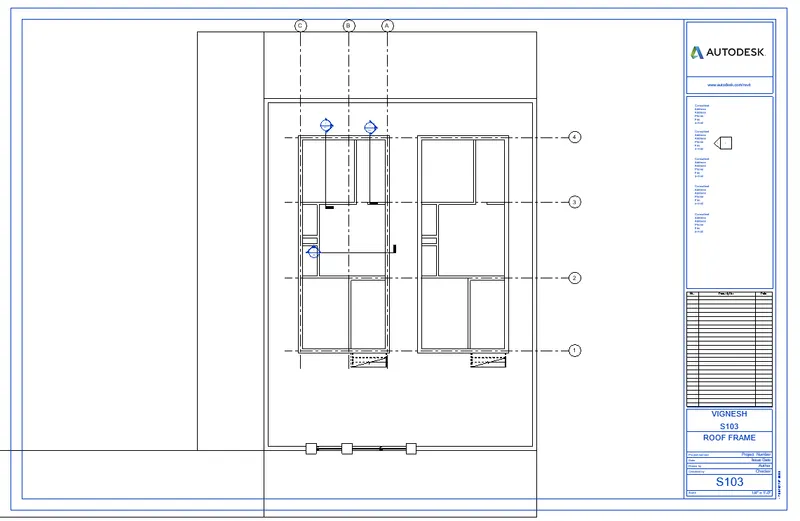

f. S 103- Roof Framing Plan

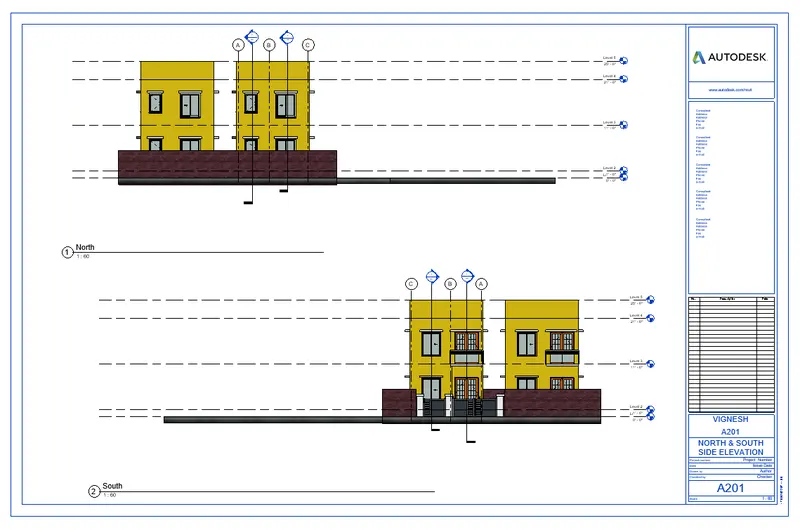

g. A-201- North-South Elevations

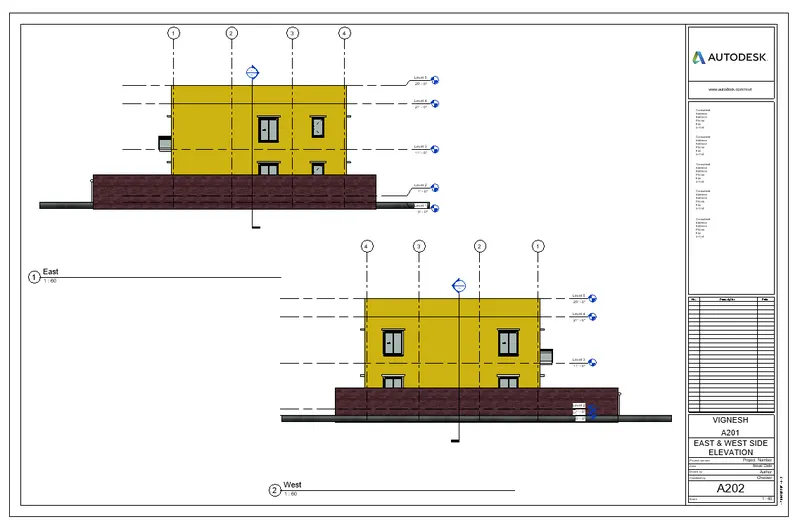

h. A-202- East-West Elevations
RESULT: Therefore, the ARCH plan, Structural plan, elevations are setted in Title Block Sheets the work completed.

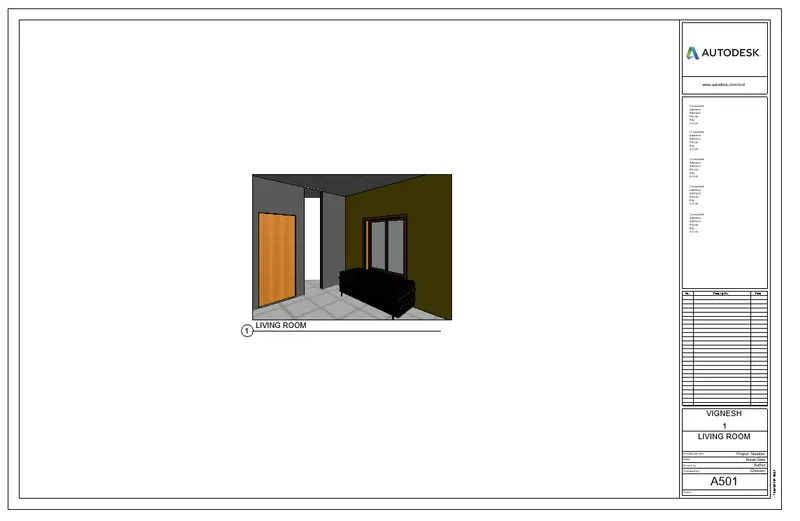

10) Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.
AIM: To create a title block sheets by to attach a 3D view of living, bedroom & kitchen
STEP-1: Living room 3D View

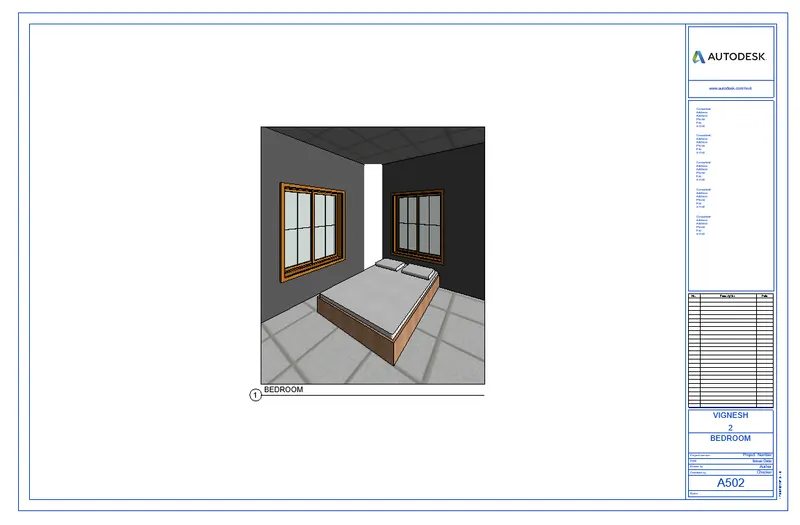

STEP-2: Bedroom 3D View

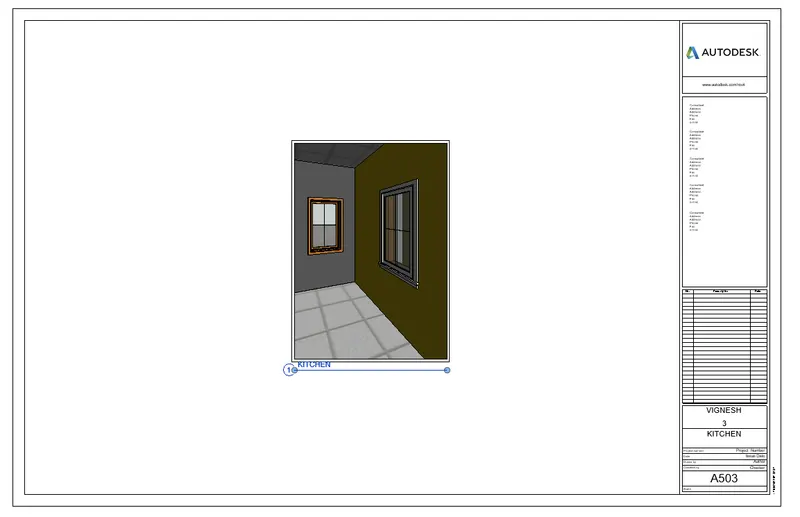

STEP-3: Kitchen 3D View
RESULT: Therefore, the 3D view of Living, Bedroom & Kitchen are setted in Title Block Sheets the work completed.
