3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

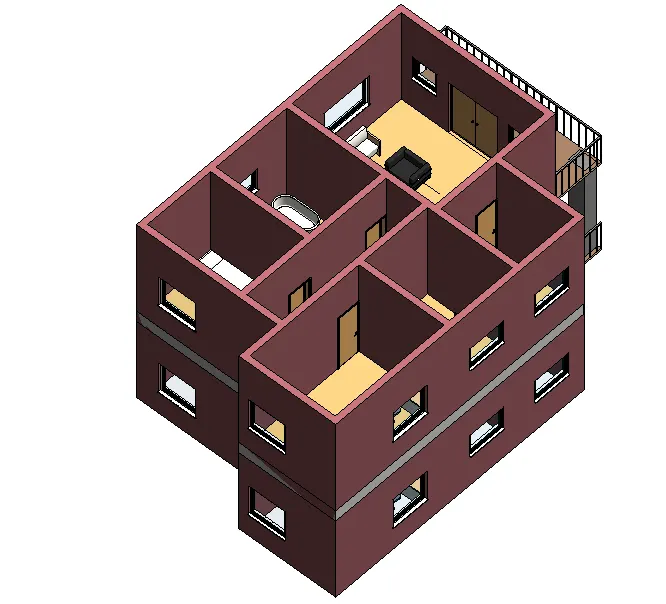

Aim : 1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level
Procedure : Go to Revit Software
2. Open the Floor Plan from the Project Browser
3. Select the First Floor.
4. From The Architecture tab, go to celing and select Sketche ceiling.
5. After selecting sketch ceiling select Line and draw the line from the inner border of the plan
6. And then select Yes. The ceiling is been drafted.

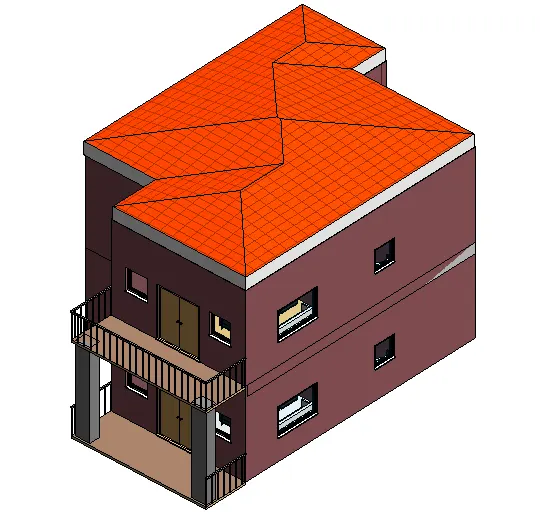

Aim : 2) Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees
Procedure :
1. Go to Architecture tab.

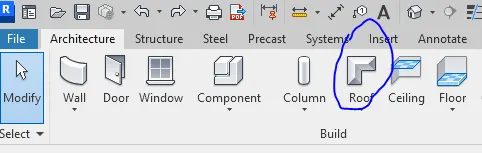

2. From Architecture tab select Roof.
3. Go to Roof by foorprint.
4. Select the line same like we select for the Ceiling.
5. Draw the line for the roof from the outer border of the first floor plan
6. And then select yes. The roof will be created.
7. Type UN and then change the angle unit to degree.

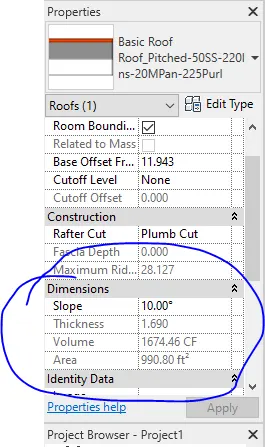

8. Afteer creating the roof. Select Slope from properties and Select the angle 10 degree
Aim :
3) Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans

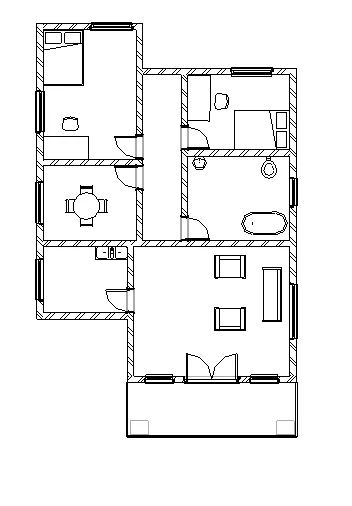

a. Architecture plan must have walls, floors, and all the components placed within the building
b. Structure plan must have details of only walls, floors, and columns
Ground Floor

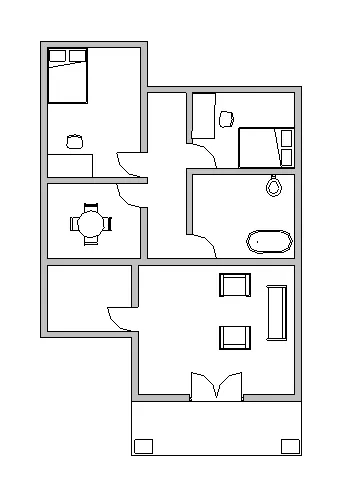

1. Architecture Plan

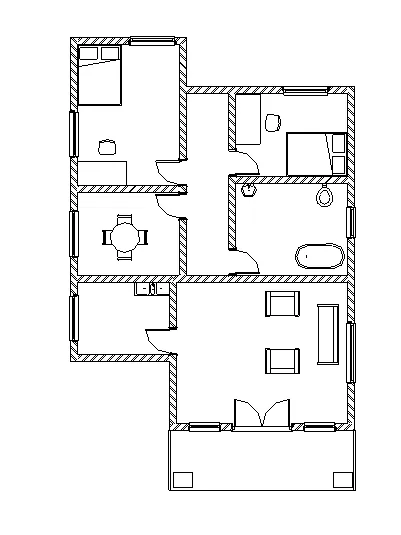

2. Structure Plan
First Floor

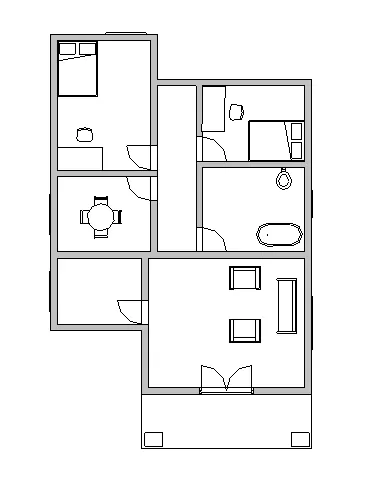

1. Architecture Plan
2. Structure Plan
Procedure:

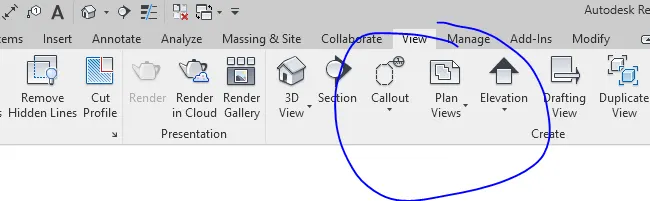

1. Select the View Tab from the Ribbon.
2. Select the Plan Tab.
3. First Select the Architecture view of the Ground Floor and then selct the structure view of the ground floor
4. After that select the Architecture view of First floor and then Structure View of the First Floor

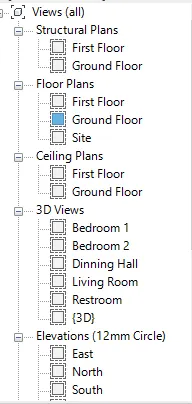

5. After creating the view. Structure and Architecture view are formed in the Project Browser.

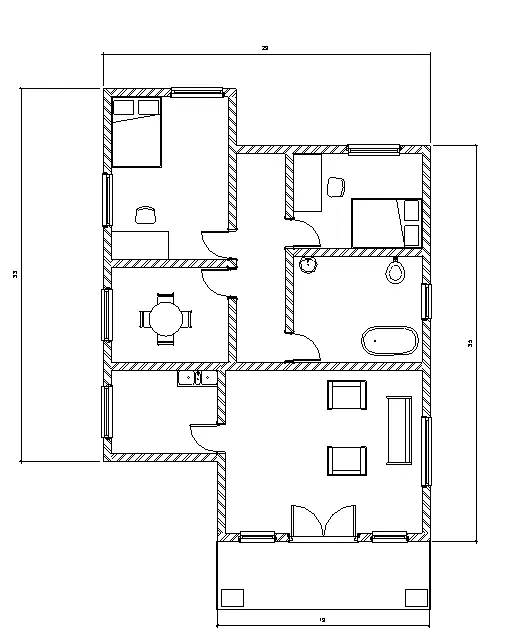

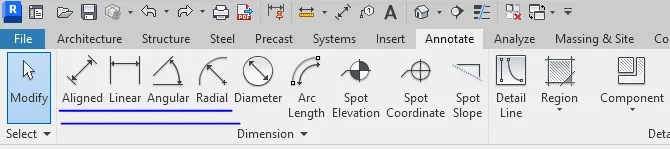

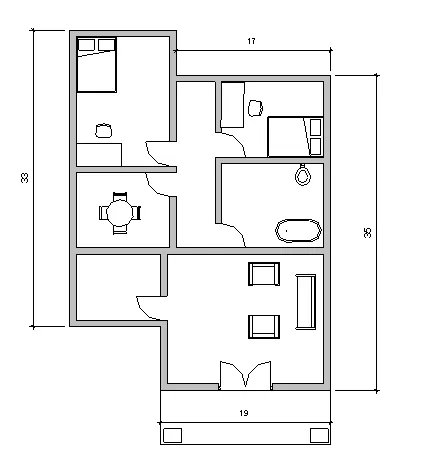

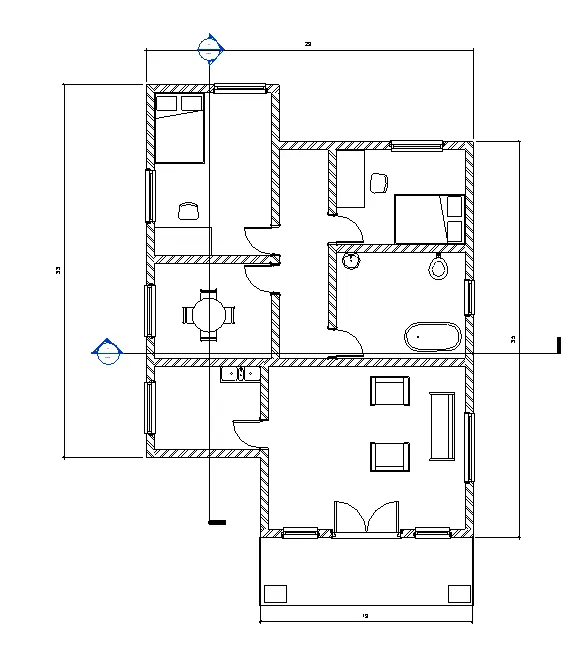

Aim : 4) Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file
a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans
b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans
Procedure :
Aim : 5) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views

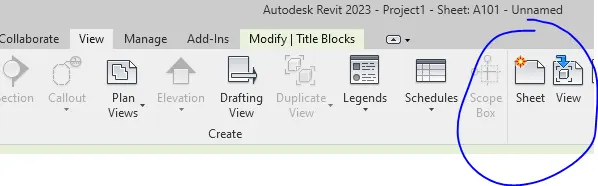

Procedure : Go to the view Tab and select the sheet.
2. After Selecting the Sheet the size of A1 sheet will appear.
3. Go to the Project Browser and Drag the floor you want to the sheet and then Create a Sheet

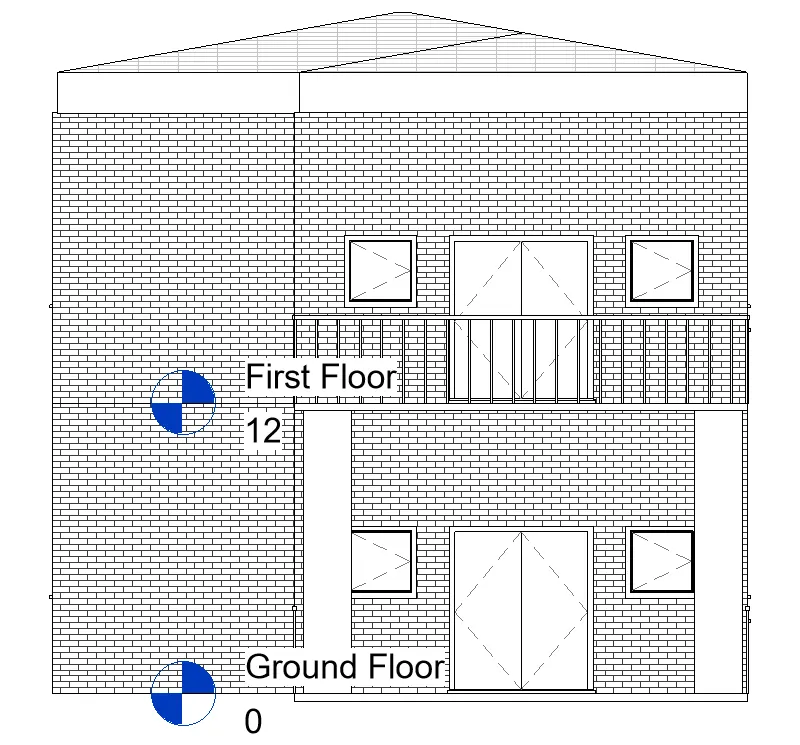

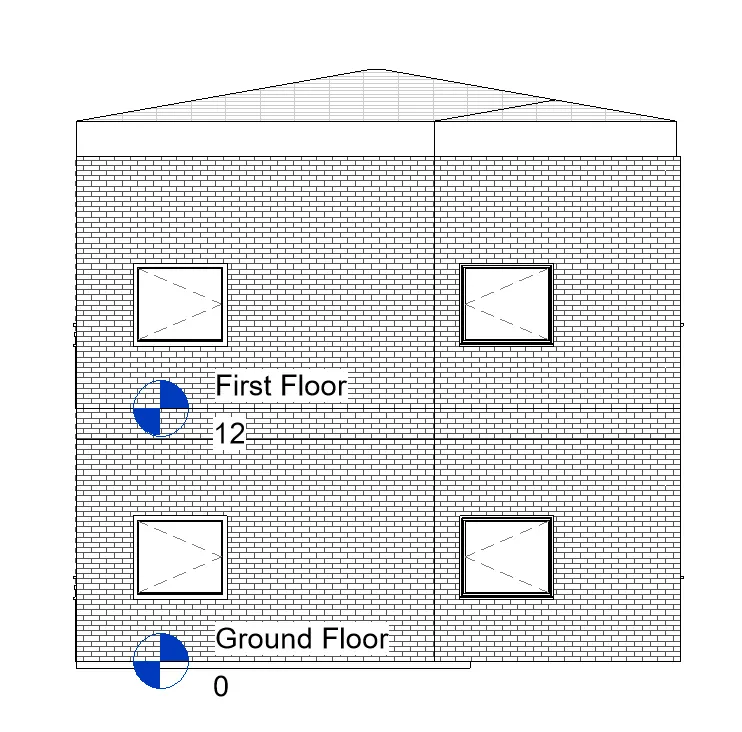

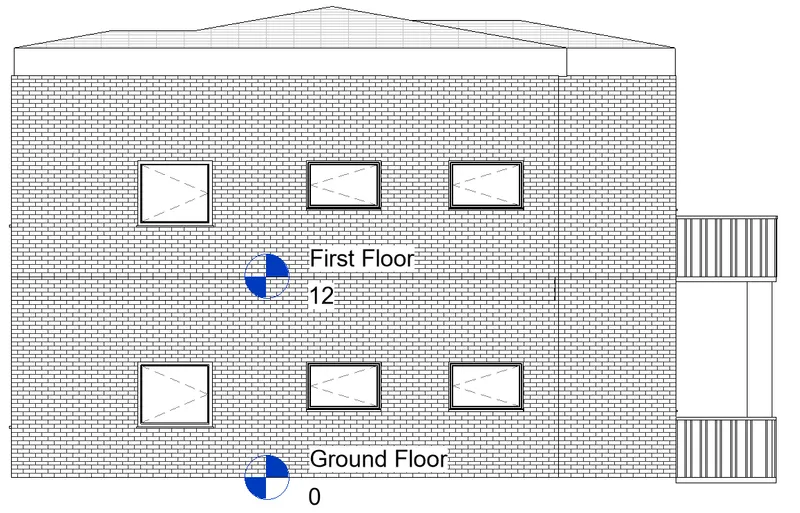

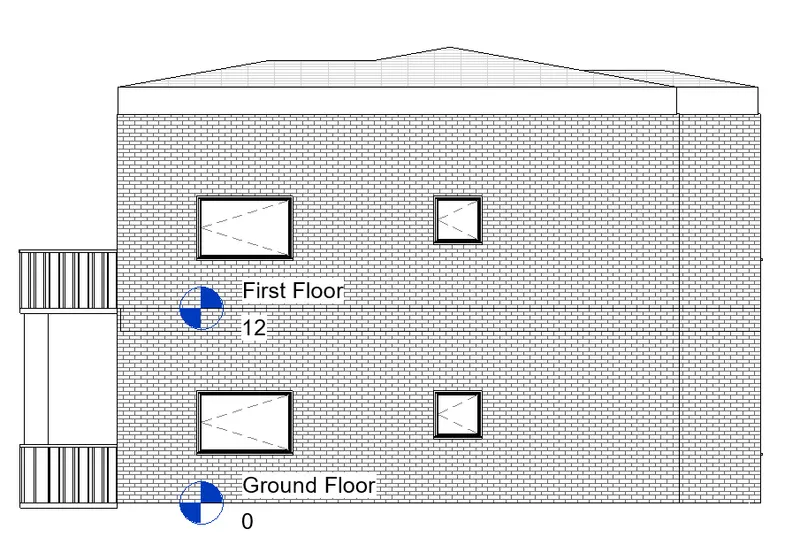

Aim : 6) Using the elevation tab create the elevation views, looking at your building from East, North, South, and West
East :
West :
North :
South :
Procedure :
1. Go to the Project Browser and select the Elevation View.
2. After selecting the Elevation view there are four sides East, West, North, South.
3. Select each side for the specific view.

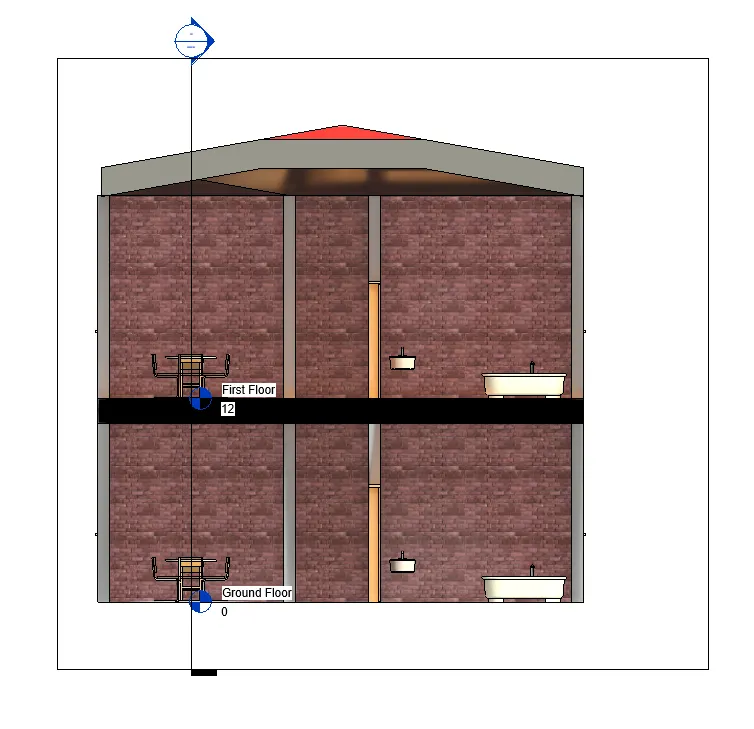

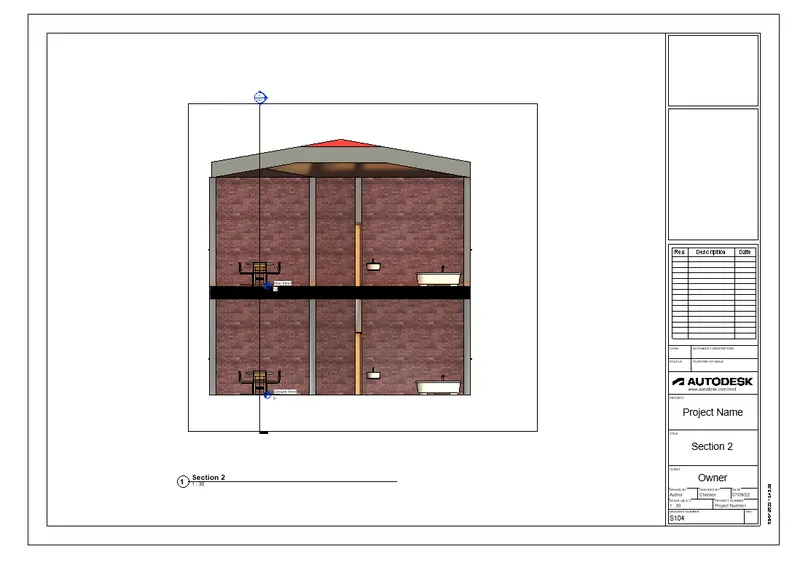

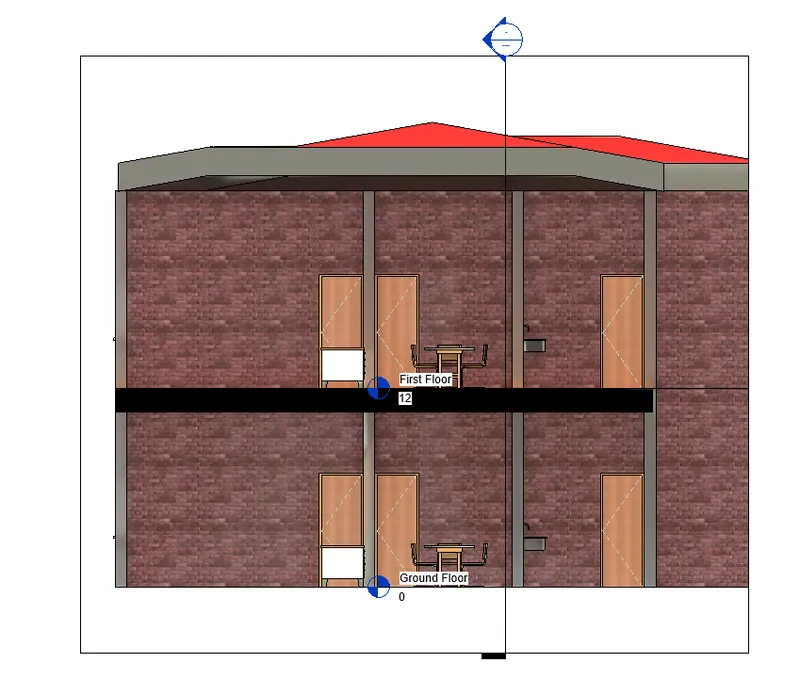

Aim : 7) Produce section cut through each room either cutting across longitudinally or in a transverse direction
Longitudinal
Transverse :
Procedure :
1. For the section View go to the view tab.
2. Select the section Tab
3. Open the Floor plan from the Project Browser.
4. Select the section tab and then draw a longitudinal Line and Transverse Line from the the view you want.
5. The section view is ready.
Aim : 8) Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser
Procedure :
Aim : 9) Using the sheet template produced create multiple sheets as follows

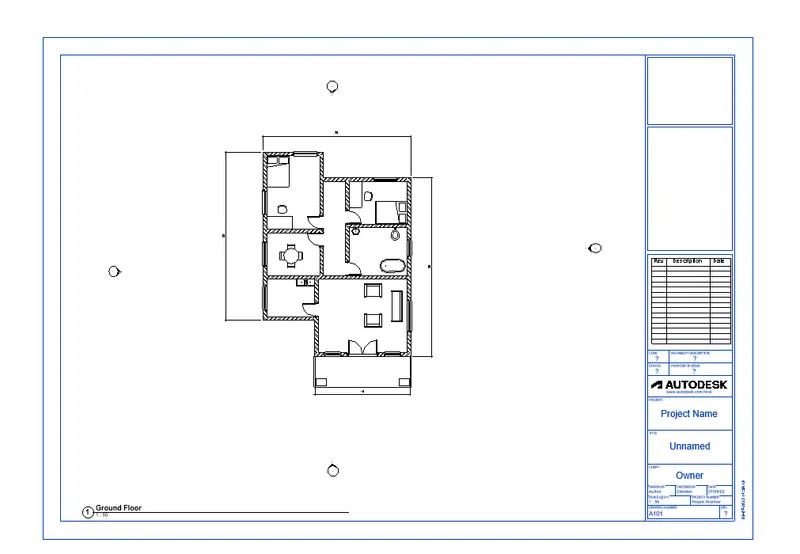

a. A 101- Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan

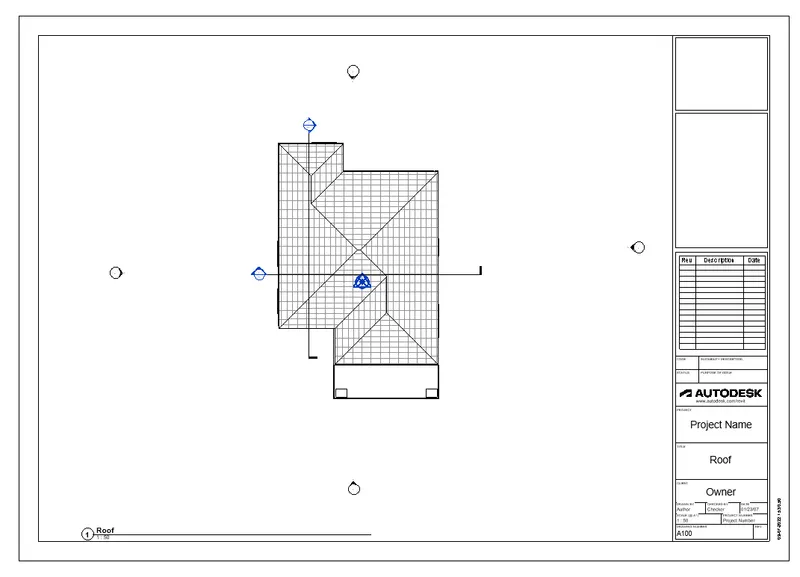

c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan

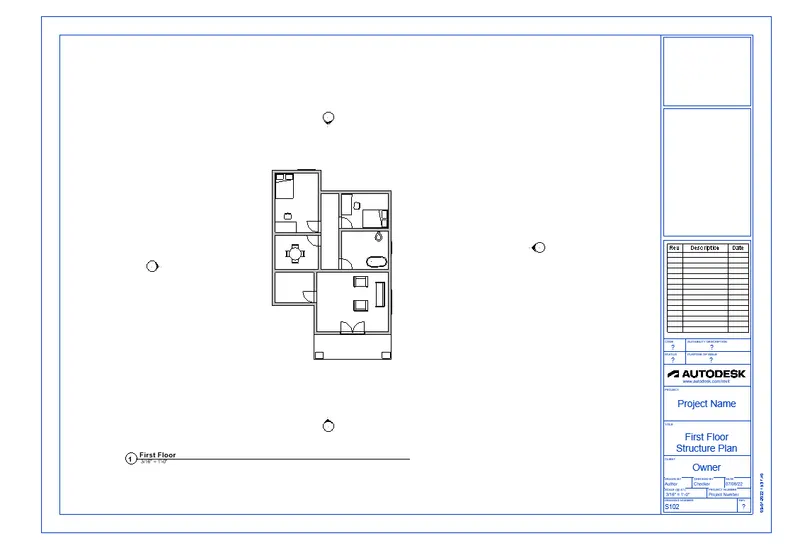

e. S 102- First Floor Structural Plan
f. S 103- Roof Framing Plan
g. A-201- North-South Elevations
h. A-202- East-West Elevations

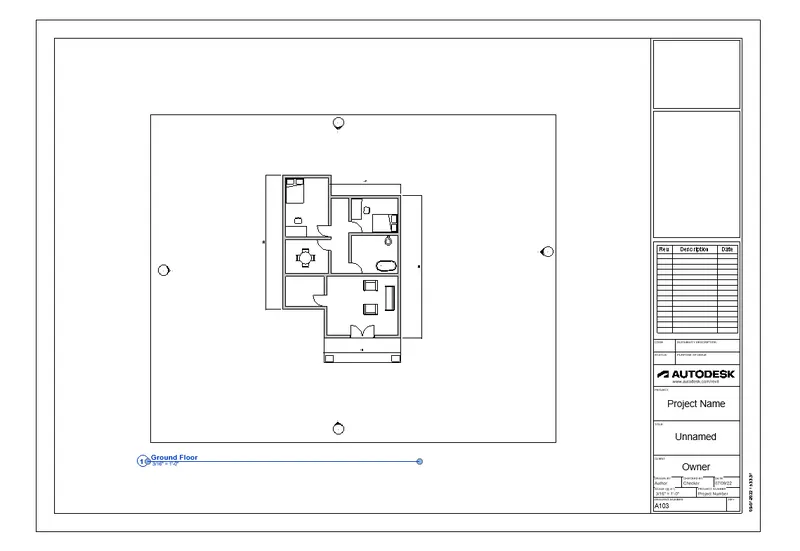

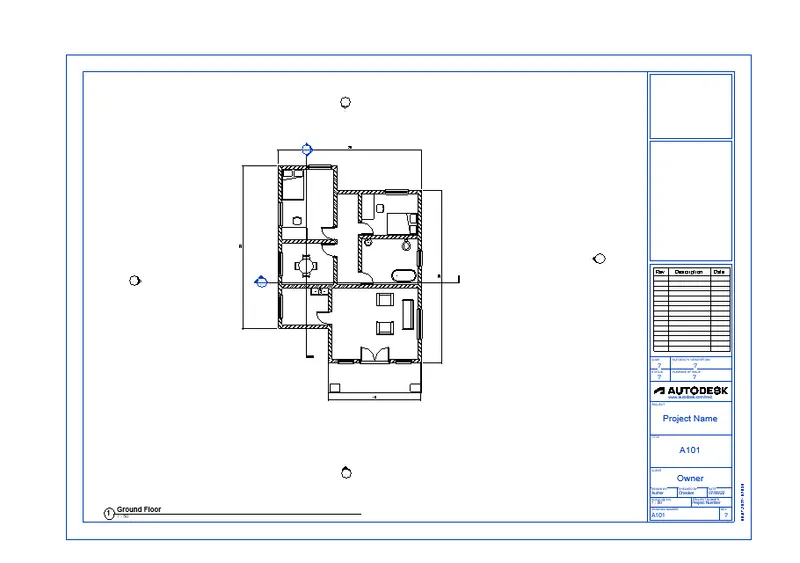

A101

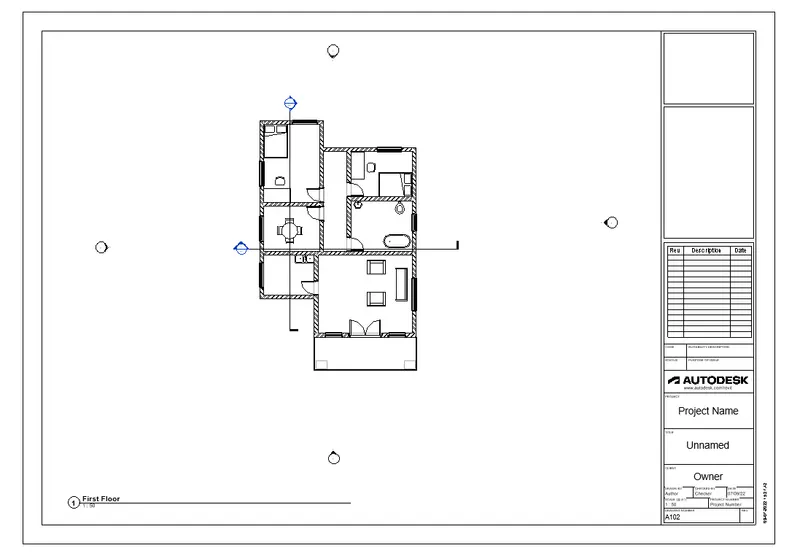

A102
A103
S101
S102

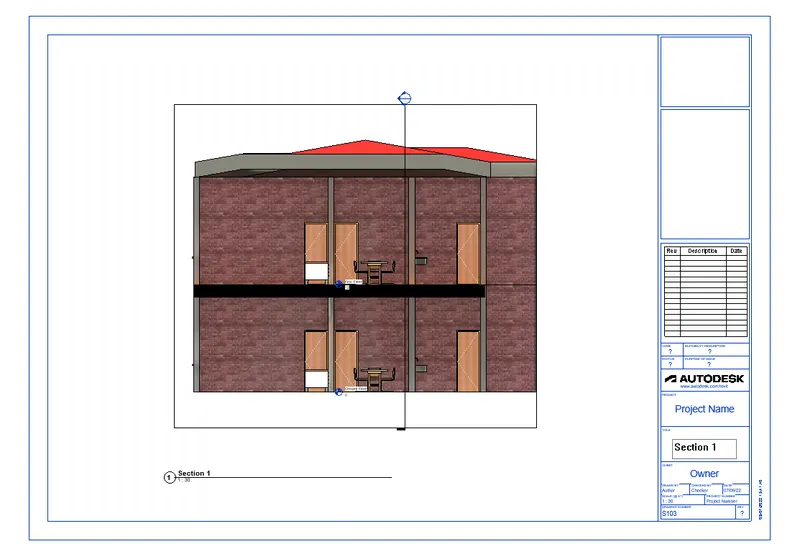

Section 1
Section 2
Procedure
1. Select the Sheet from the view tab
2. Open the Project Browsr and Select the floor plan first
3. Then Drag ground floor and then first floor plan in the sheet.
4. Rename the sheet as Ground floor and the First floor.
5. Open the structure view from project browser and then Drag Ground floor and then first floor in the sheet and rename it.
6. Same procedure for the roof level.
7. Open Elevation tab from project browser
8. Drag the view of each side in the Sheet.
9. Save it.
Aim : 10) Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting
Procedure:

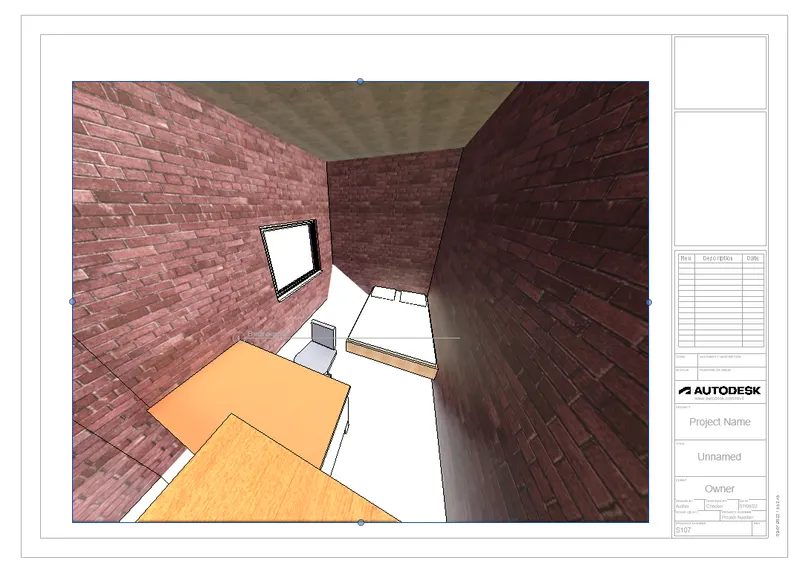

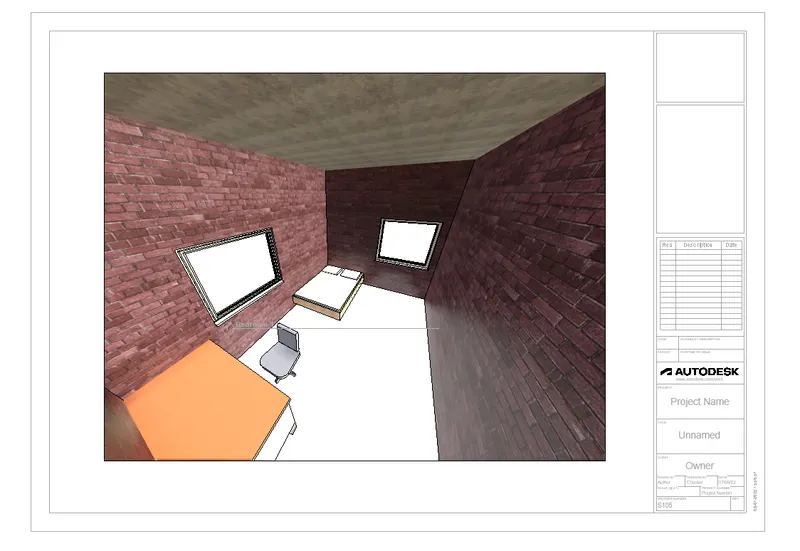

Bedroom 1 (A501)

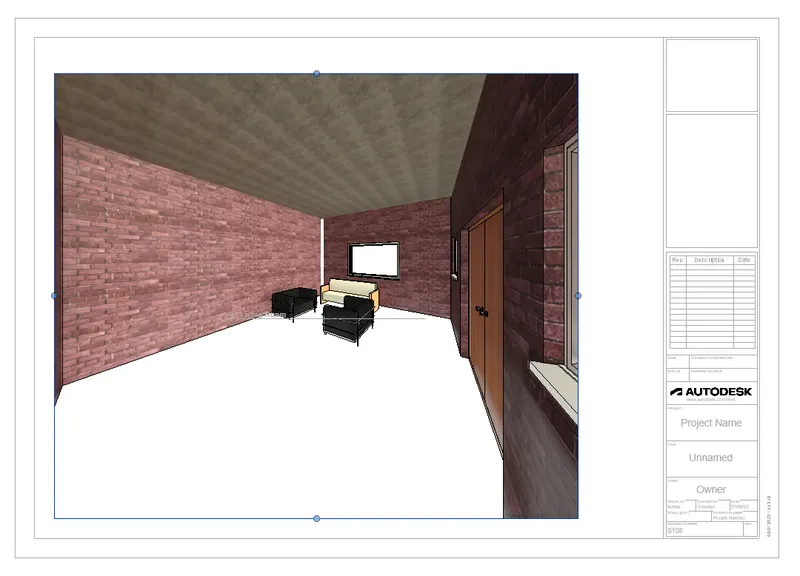

Living Room :
Conclusion : According to the given process the challenge is been completed
