3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

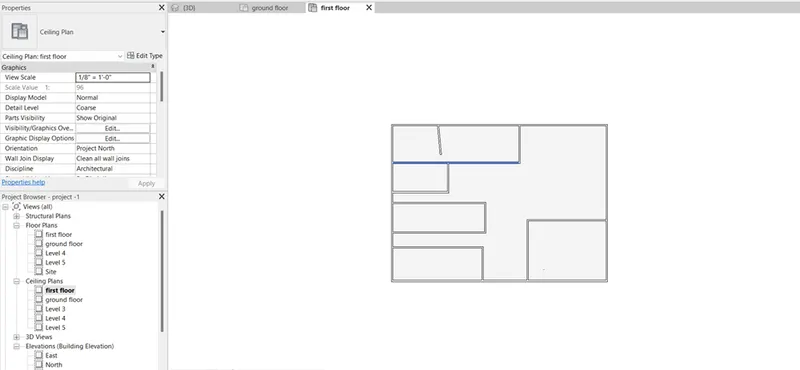

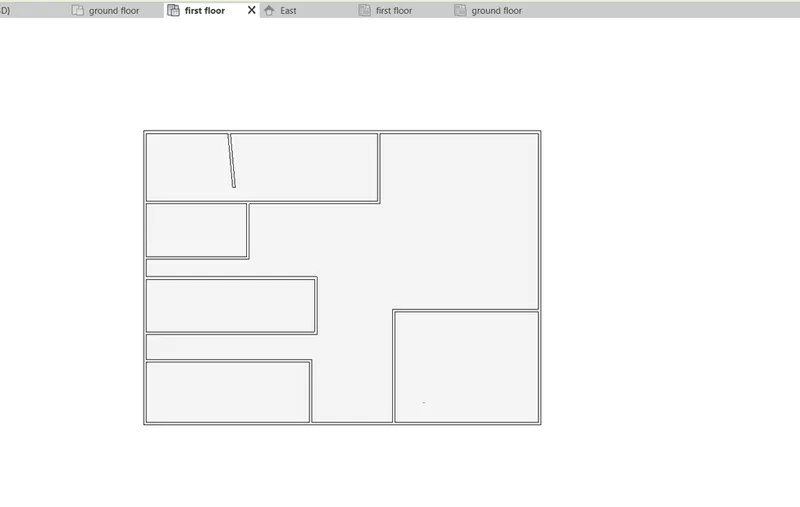

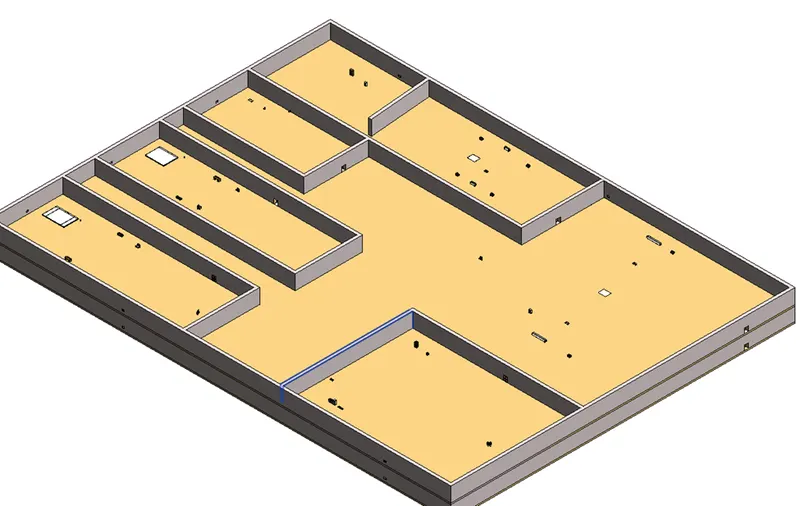

1. Go to architecture tab enter ceiling dialogue box and in modify panel choose pick line option pick exterior /interior lines and tick ok . choose ground floor to first floor.

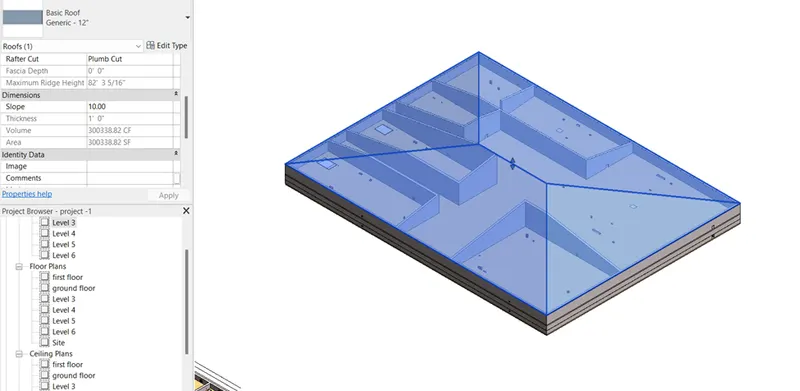

2.Go to architecture tab enter roof dialogue box and in modify panel choose pick line option pick exterior lines and tick ok .

Adjust slope as 10 degree from property browser.

3. go to view tab drop in plan views check for floor and structural plan options.

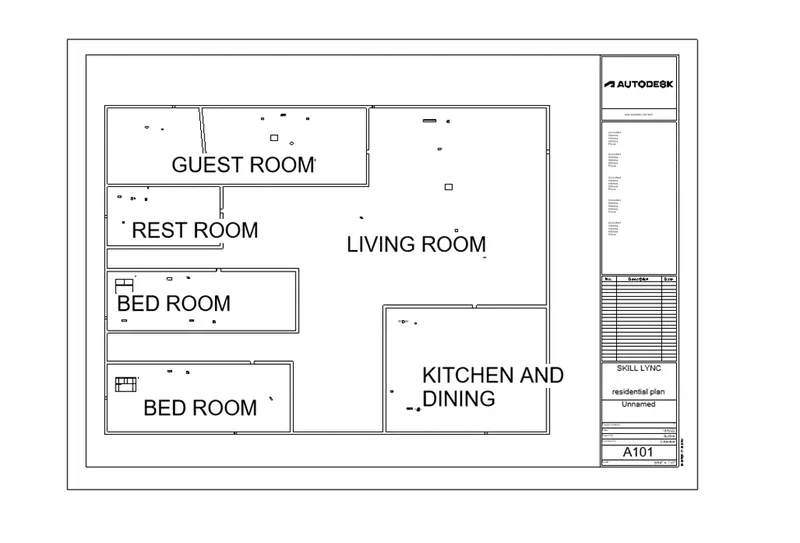

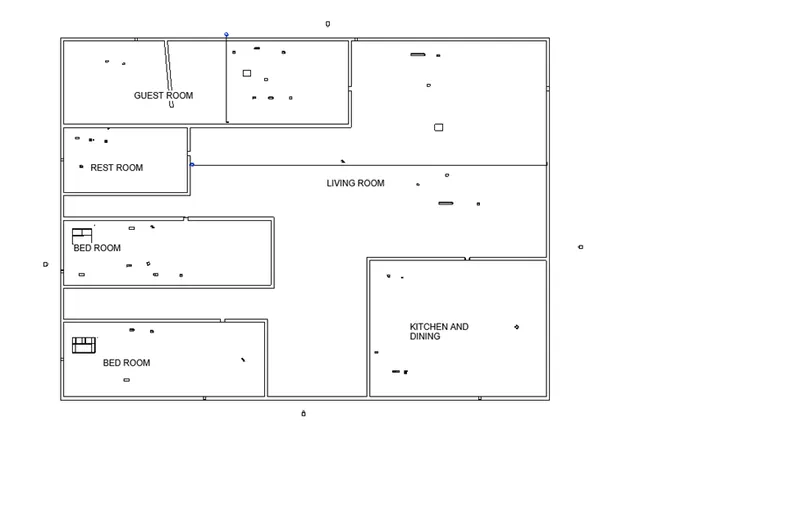

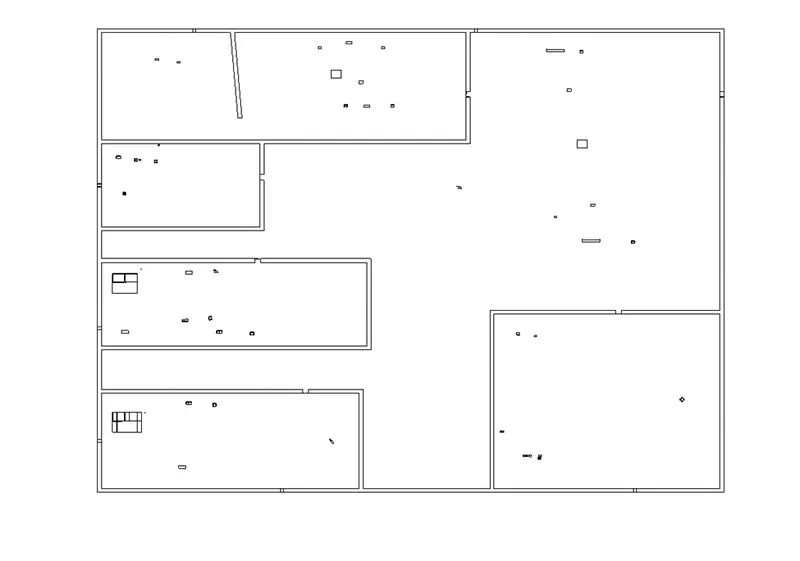

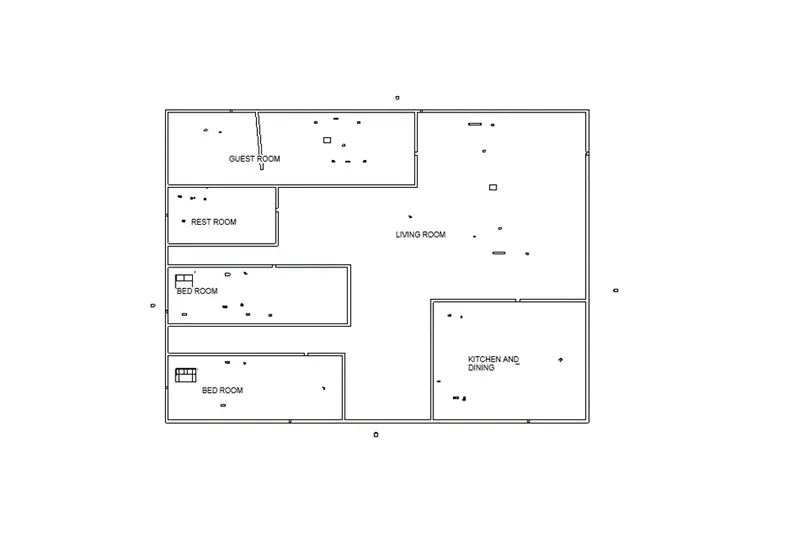

architectural plan

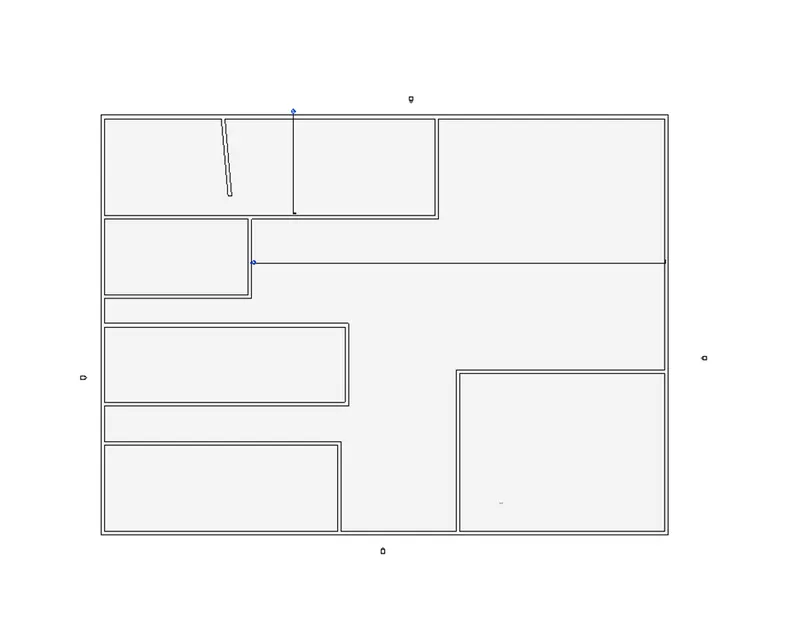

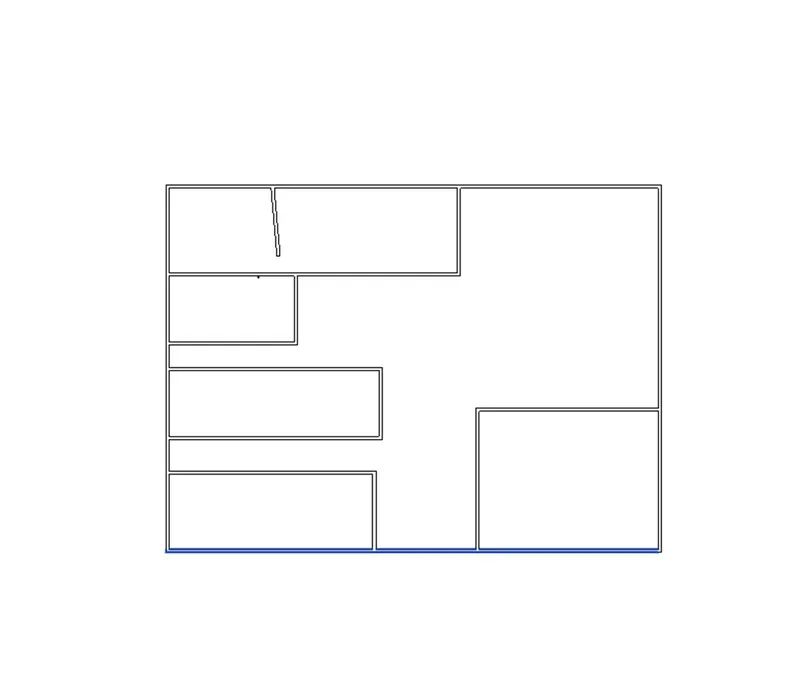

Structural plan

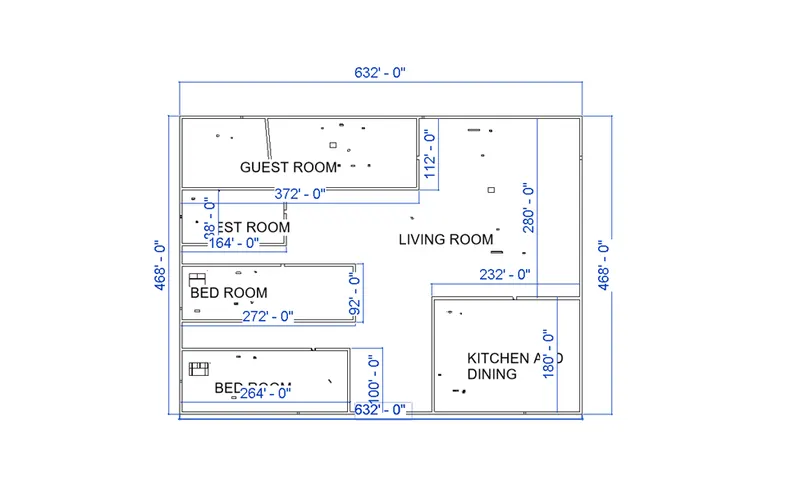

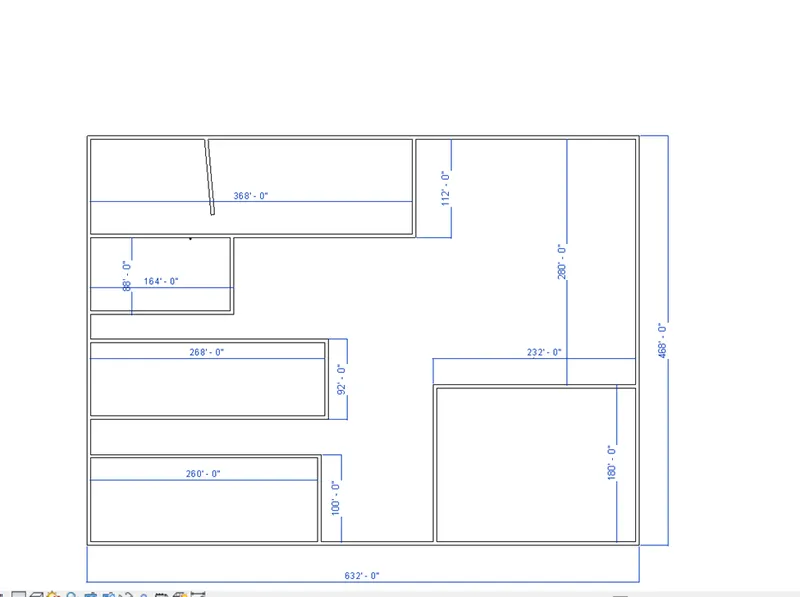

4.go to annotate toolbar and select aligned or linear dimensions and click one end of line to another to measure dimensions for both architectural and structural.

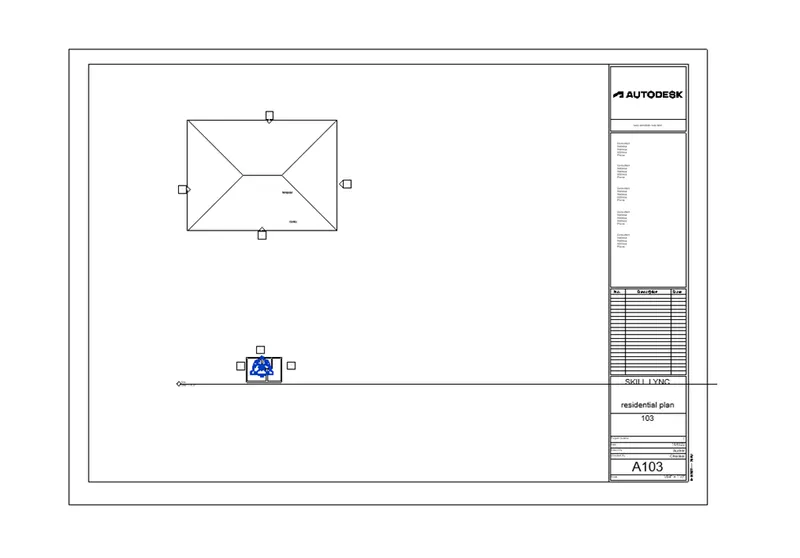

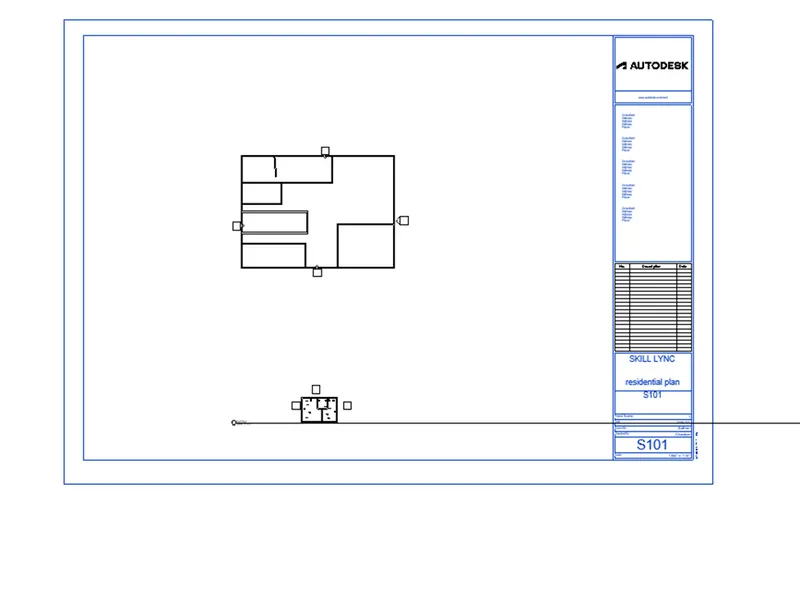

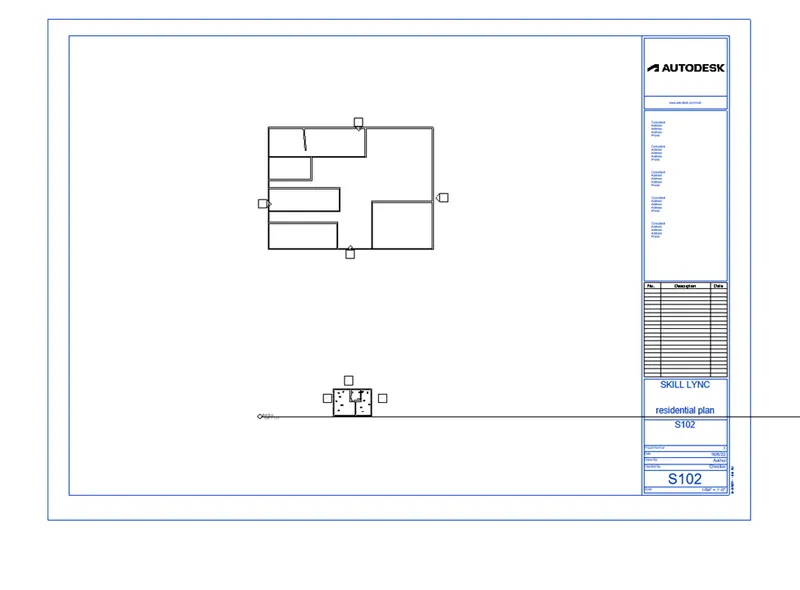

5. go to view tab, select sheet option and adjust settings press ok. Drag the plan of any instance needed place them in sheet . Adjust sheet details list by double click on it .

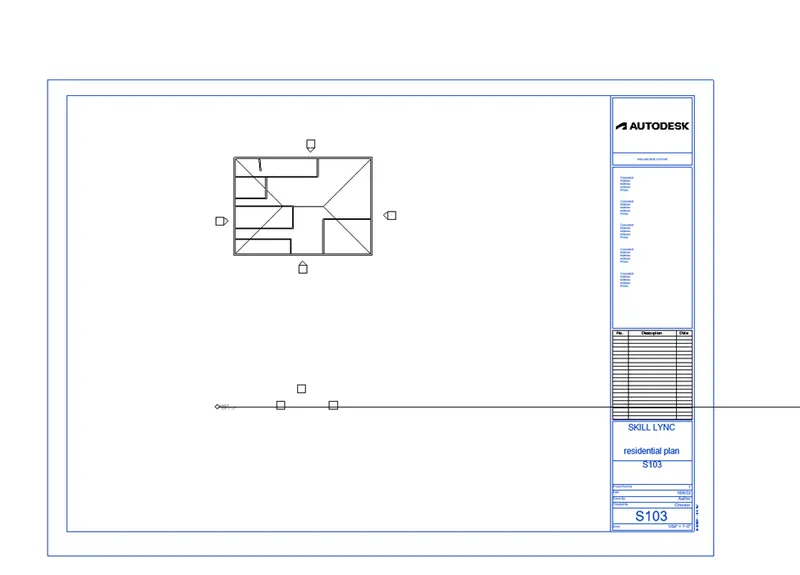

6. go to view tab, select elevation and create them as north, south east , west by placing the cursor in direction of the plan

7. go to view tab, select section dialogue box and cut the plan as needed , create sections and rename it accordingly in property browser.

8.Go to property browser and check plan views, elevation view, section view.

Plan view-

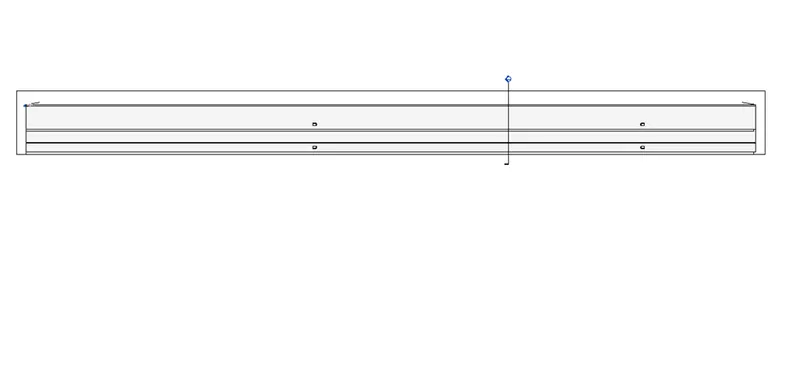

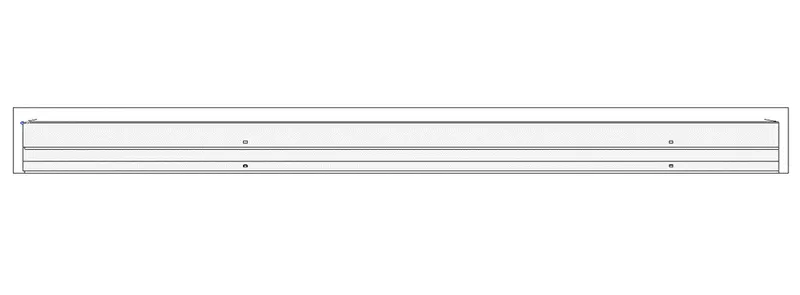

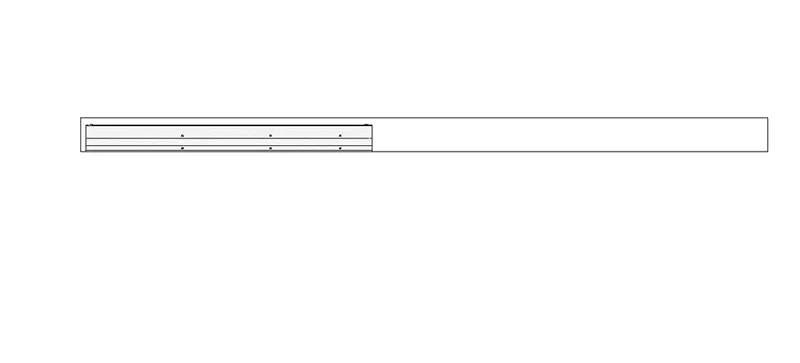

Elevation view

East

North

South

West

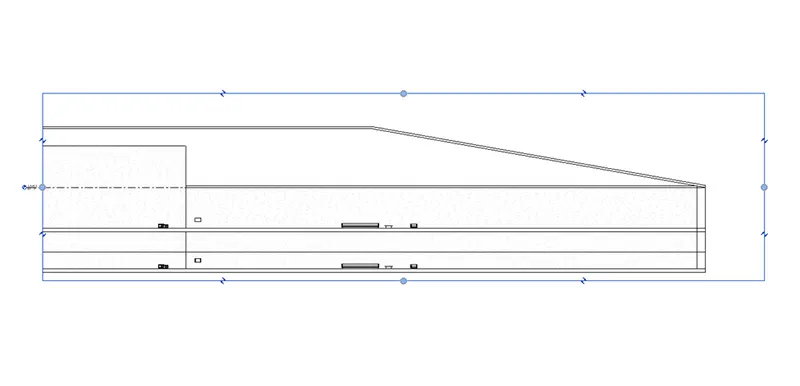

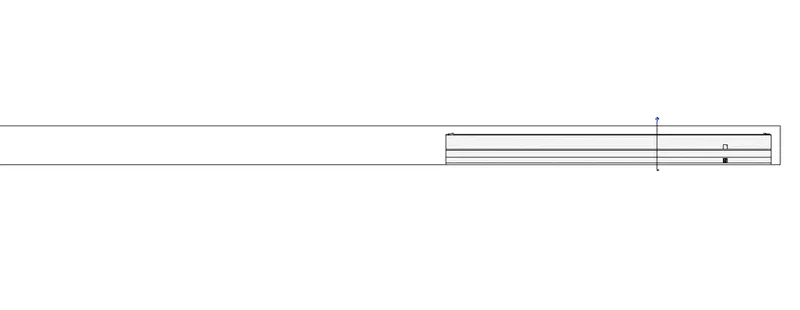

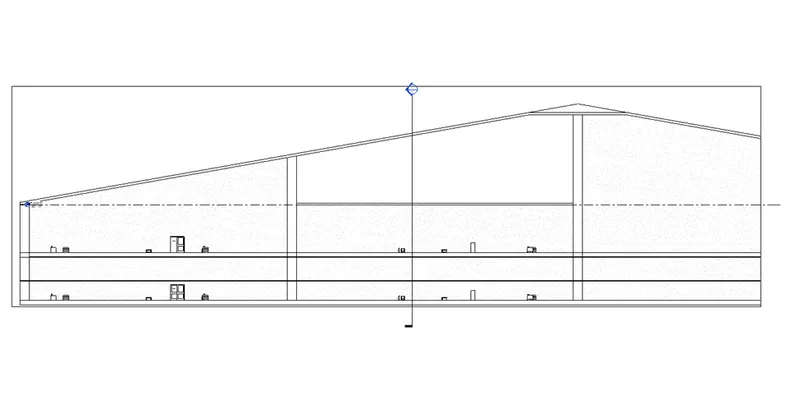

Section view

Section view of guest room

Section view of living room

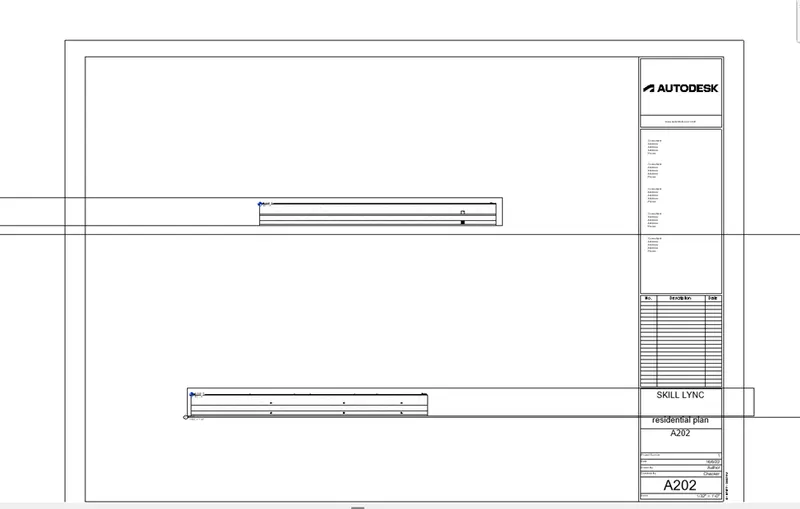

9. Go to view tab and select sheet and drag the views as needed from property browser as plan , section , elevation views.

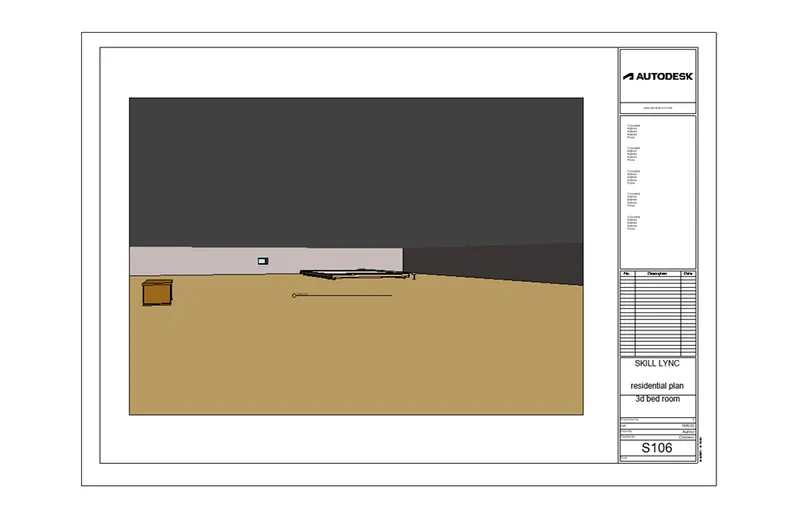

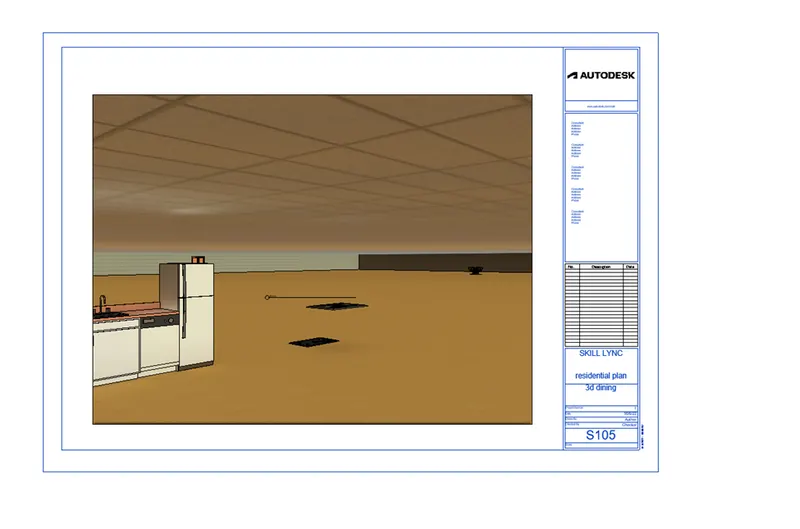

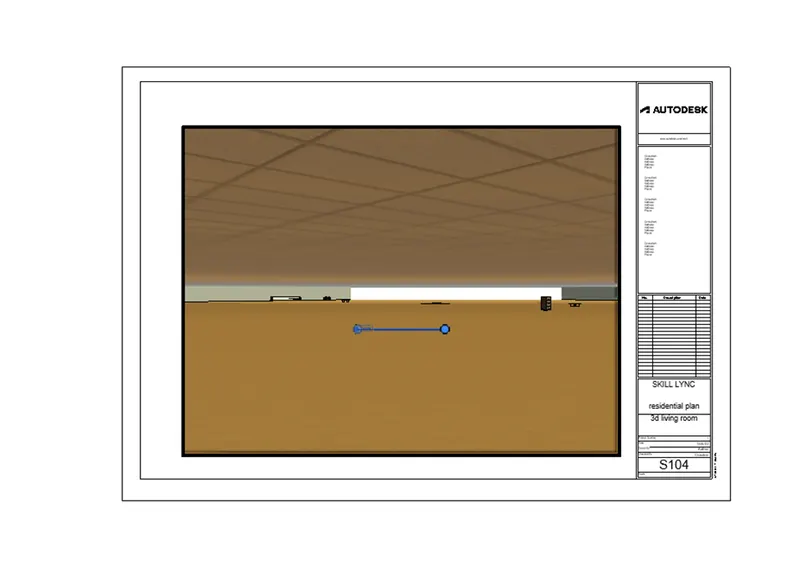

10. go to default 3d view tab , select camera and place it in different views as needed like living room, dining etc .Enter the 3d view and check the realistic view .

Go to view tab and select sheet , drag the different views as needed and place in and adjust the settings.
