3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

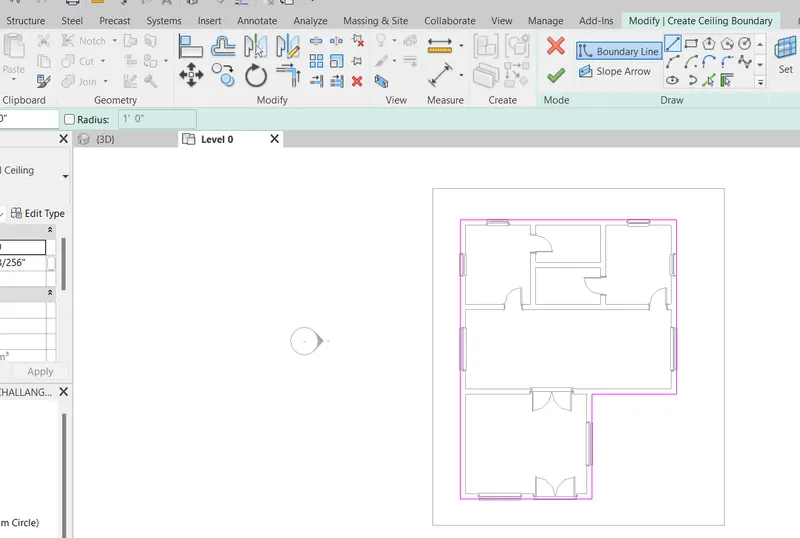

1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level
AIM- TO DRAW THE CEILLNG
PROCEDURE-
CLICK ON PROJECT BROWSER
CLICK ON ARTITECTURAL TAB
CLICK ON CELLING
THEN CLICK WHERE CELING IS REQUIRED
IT CSN BE USED EITHER BY PIVK LINES OR PICK POINTS

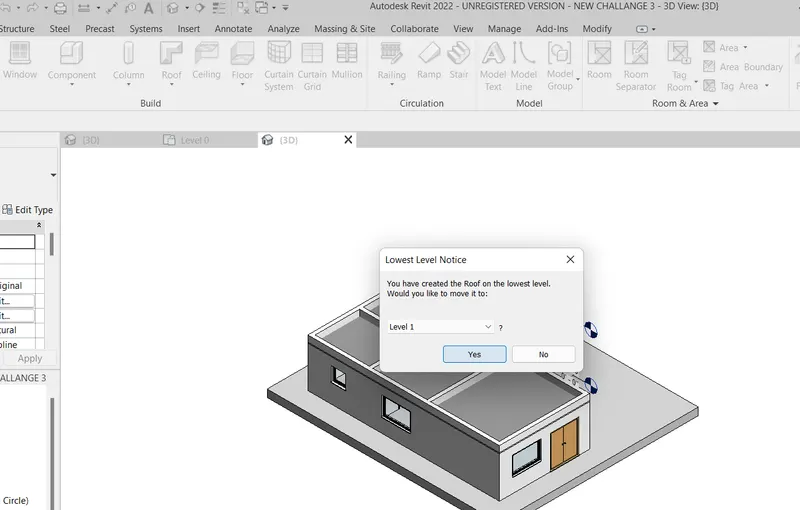

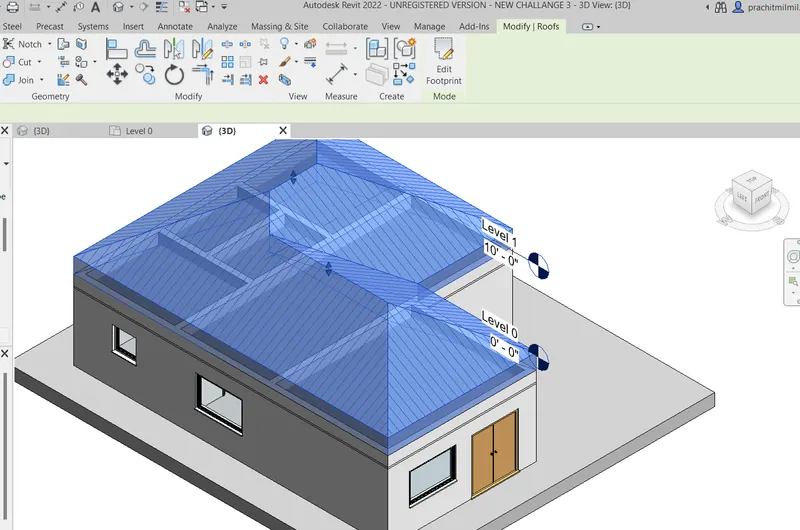

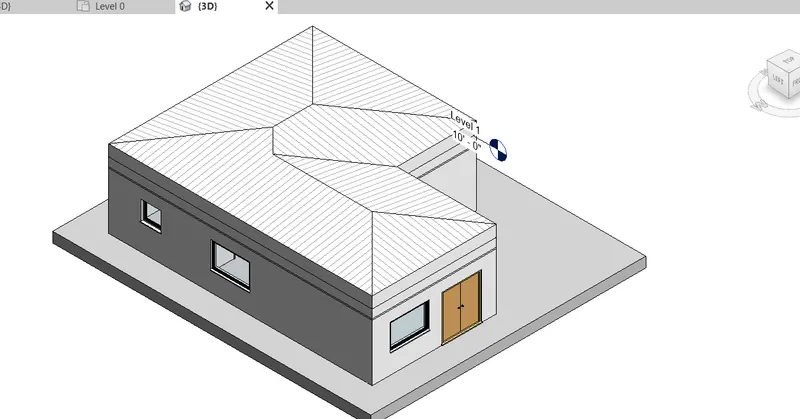

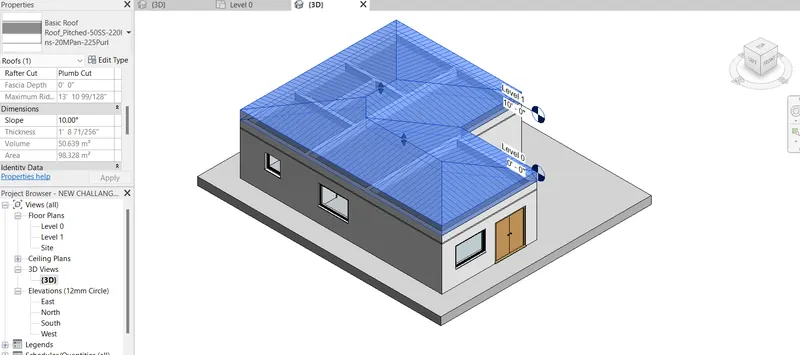

2) Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees
AIM- TO CREATE ROOF ABOVE THE CELLING
PROCEDURE-
CLICK ON PROJECT BROWSER
CLICK ON ARTITECTURAL TAB
CLICK ON ROOF
SELECT TYPE OF ROOF AS FOOTPRINT
GIVE THE SLOPING ANGLE AS 10 DEGREE

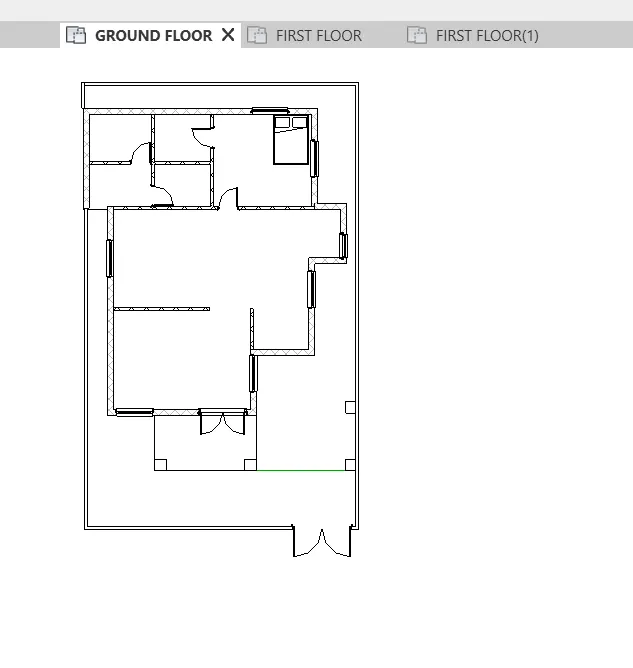

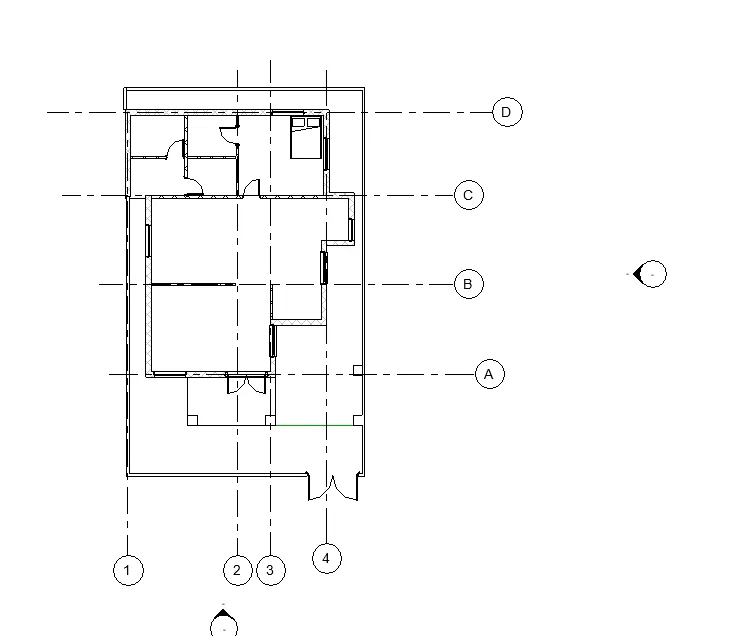

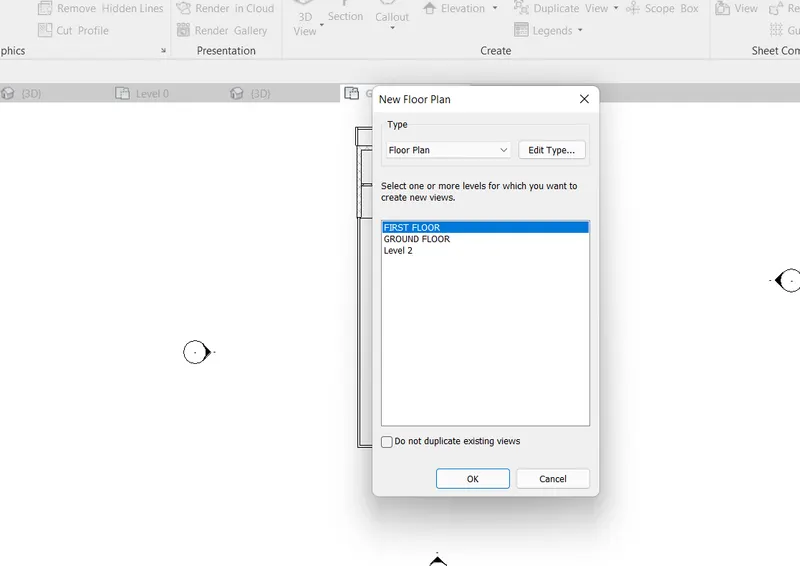

3) Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans
FIRST FLOOR

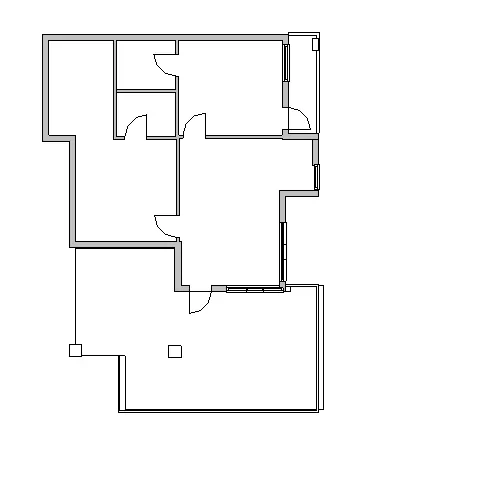

b. Structure plan must have details of only walls, floors, and columns
CLICK ON ARTICTECTURAL TAB THEN CLICK ON COLUMNS
COLUMNS SIZE CSN BE CHANGED BY CLICKING ON EDIT TYPE

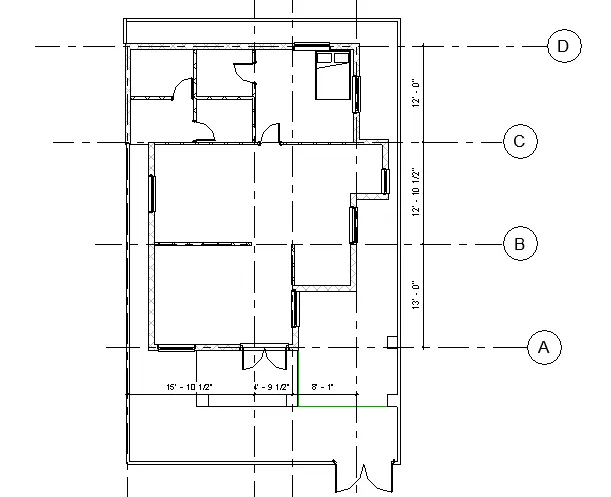

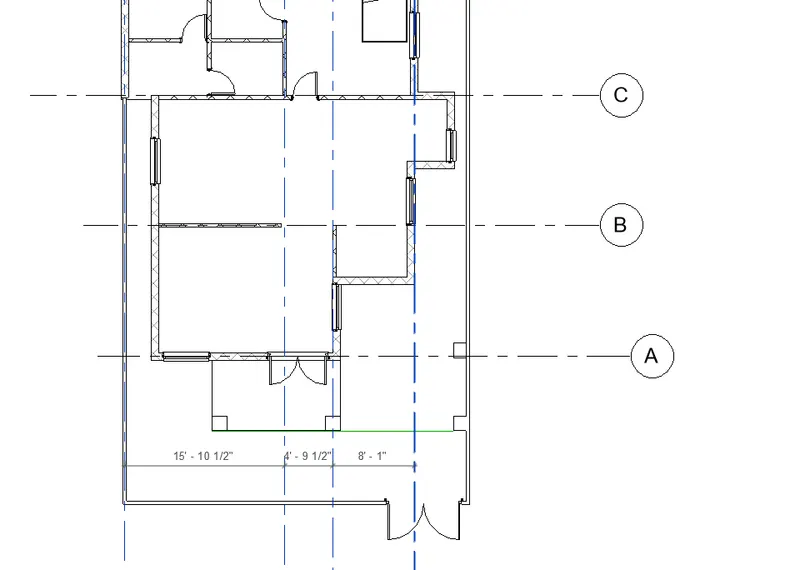

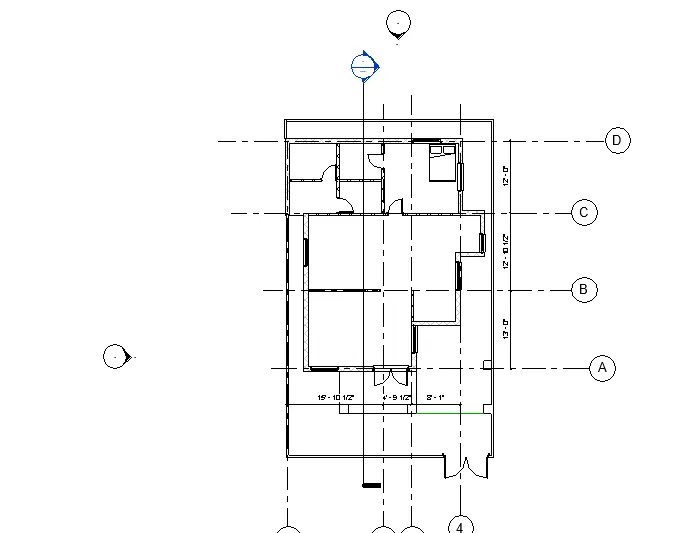

4) Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file
a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans
AIM- TO ANNOTATE TTHE DIMENSIONS OF WALLS WITH REALTION TO GRIDS
PROCEDURE-
CLICK ON ARCHITECTURAL TAB
THEN CLICK ON GRID
DRAW GRID LINE AS YOU REQUIRED
HORIZONTAL LINES ARE NAMED AS A,B,C,D
LONGITUDNAL LINES ARE NAMED AS 1,2, AND 3
b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans
\
5) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views

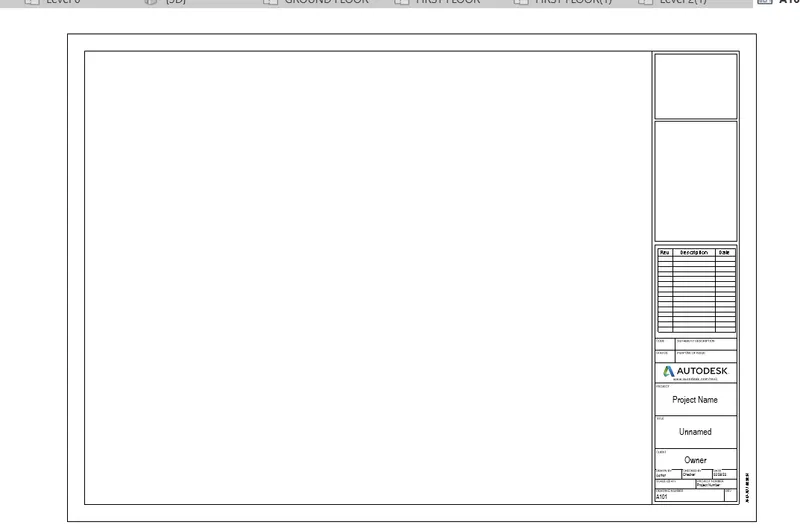

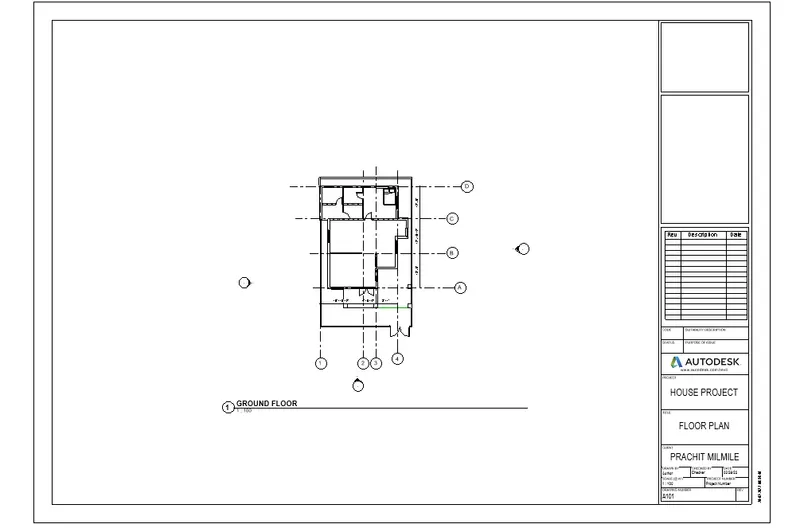

AIM- TO CREATE SHEET TEMPLATE
PROCEDURE

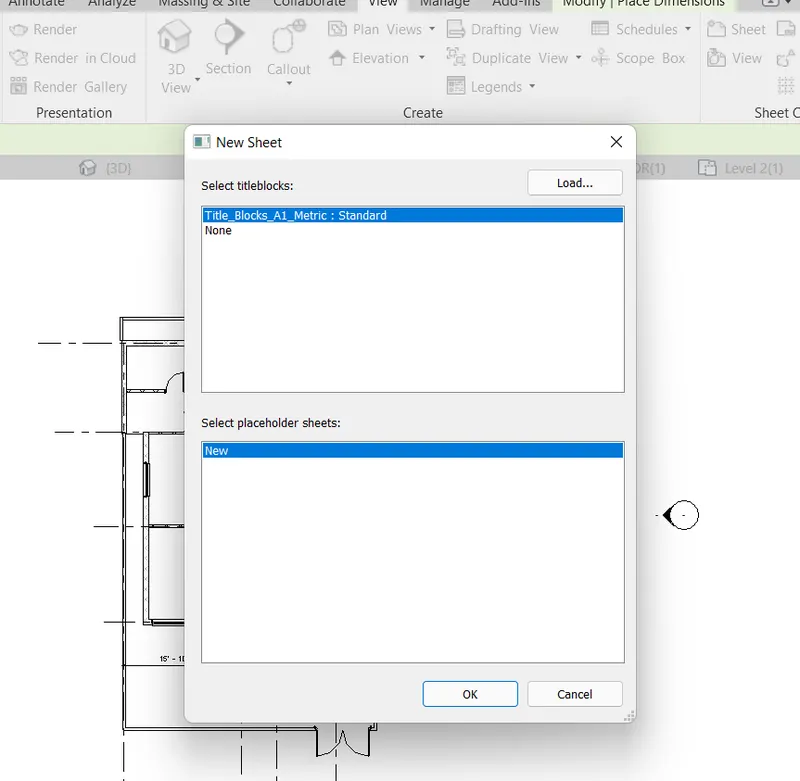

CLICK ON VIEW TAB
THEN CLICK ON SHEET

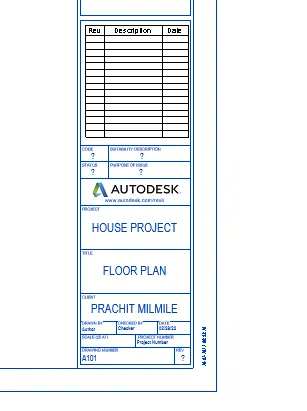

THEN CHANGE THE NAME OF SHEET TO FLOOR PLAN
ADD REUIRED DEATILS
THEN CLICK ON ADD VIEWS
ADD THE GROUND FLOOR VIEW

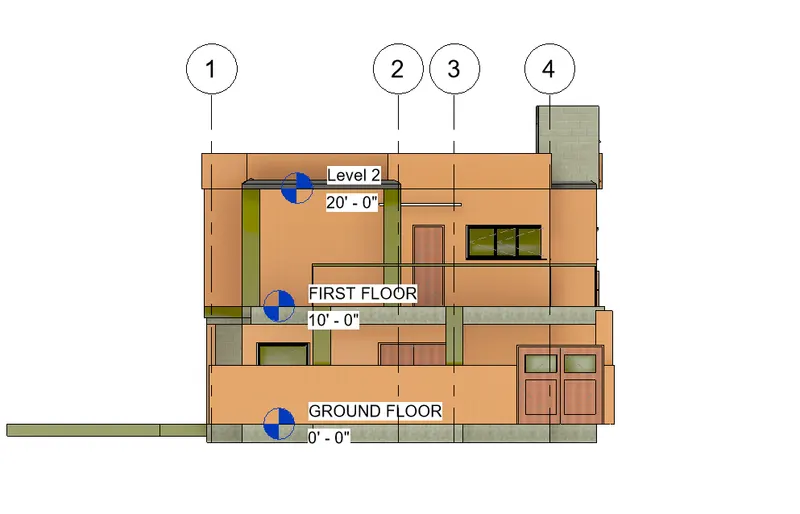

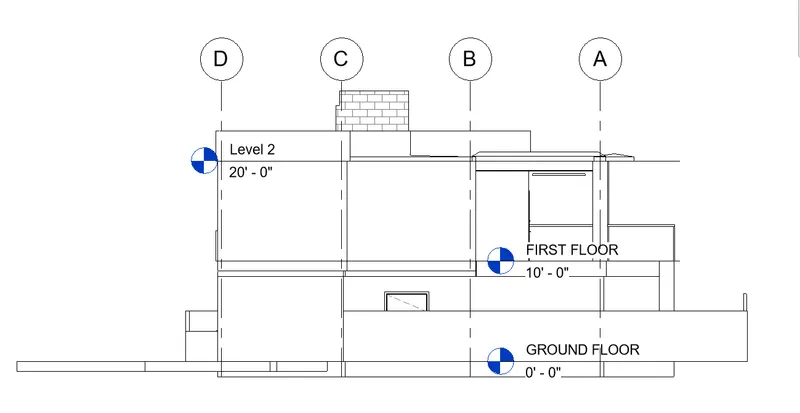

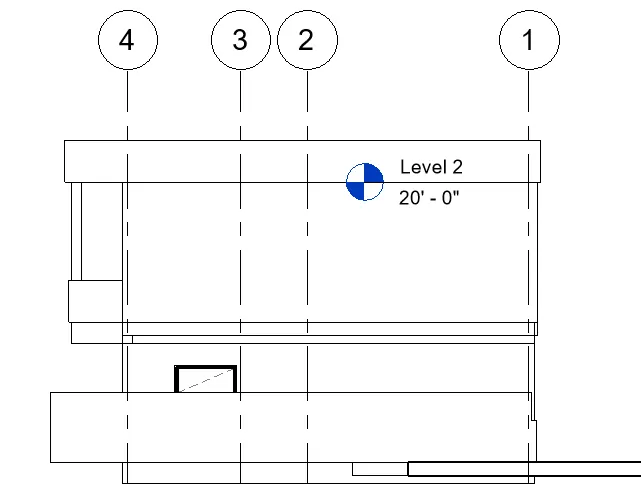

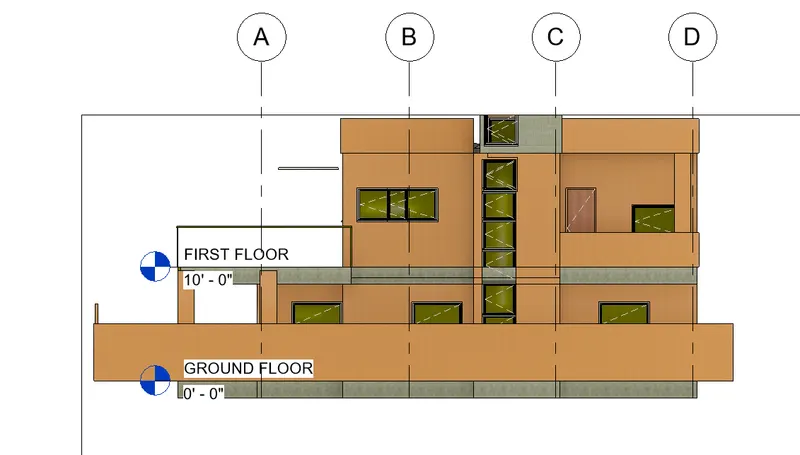

6) Using the elevation tab create the elevation views, looking at your building from East, North, South, and West
AIM- TO CREATE DIFFRENT ELEVATION VIEW
PTOCRDURE-
GO TO VIEW TAB
THEN TAKE THE ELEVATION OPTION
THEN PALCE IT ON EAST AND NAMEIT EAST
SIMILLRLY FOR ALL OTHER DIRECTIONS
WEST VIEW
SOUTH VIEW
7) Produce section cut through each room either cutting across longitudinally or in a transverse direction
AIM- TO PROCUDCE SECTION CUT
PROCEDURE-
CLICK ON VIEW TAB
THEN CLICK ON SECTION
SELECT WHERE SECTION MUST BE DRAWN

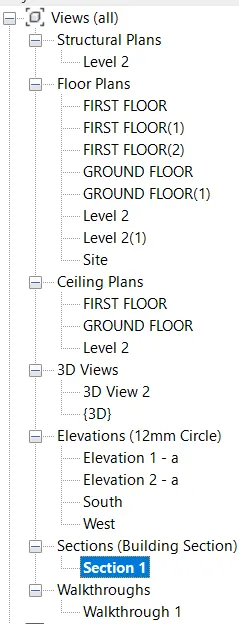

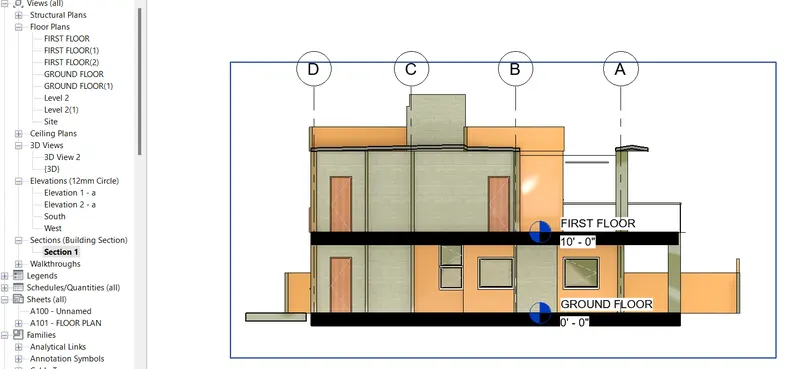

THEN CLICK ON PROJECT BROWSER SECTIONS
8) Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser
IT CAN BE CLASISFIED AS BELOW IN PROPERTIES BROWSER
9) Using the sheet template produced create multiple sheets as follows
a. A 101- Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan
c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan
f. S 103- Roof Framing Plan
g. A-201- North-South Elevations
h. A-202- East-West Elevations
THE SHEETS CAN BE ADDED FROM THEVIEW TAB
SLECT ON SHEETS AND CREATE THE SHEET
REANME THE SHEET TO REQUIRED NAME AS GROUND FLOOR,ETC
10) Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.
AIM- TO CREATE CAMERA SOEC IFIC VIEW OF EACH ROOM AND PLACE THEM IN SHEETS
PROCEDURE-

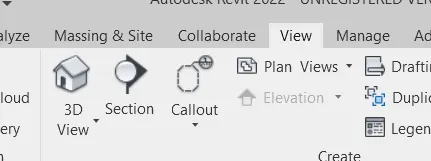

TO TO VIEW TAB
SELECT THE 3D ELEVATION CLICK ON CAMERA
PLACE CAMERA ON REQUIRED POSTION
THEN GO TO VIEW TAB AND SELECT SHEETS

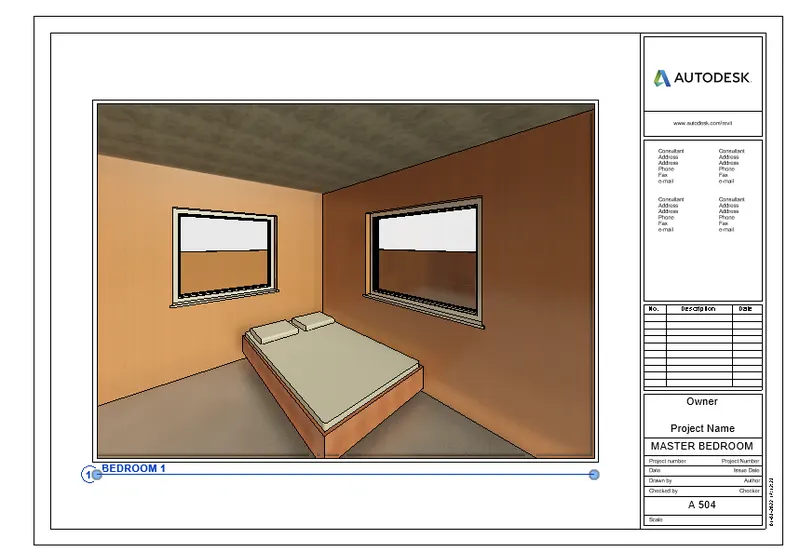

NAME THE SHEETS AS A-501 AND LOAD THE HALL VIEW IN IT

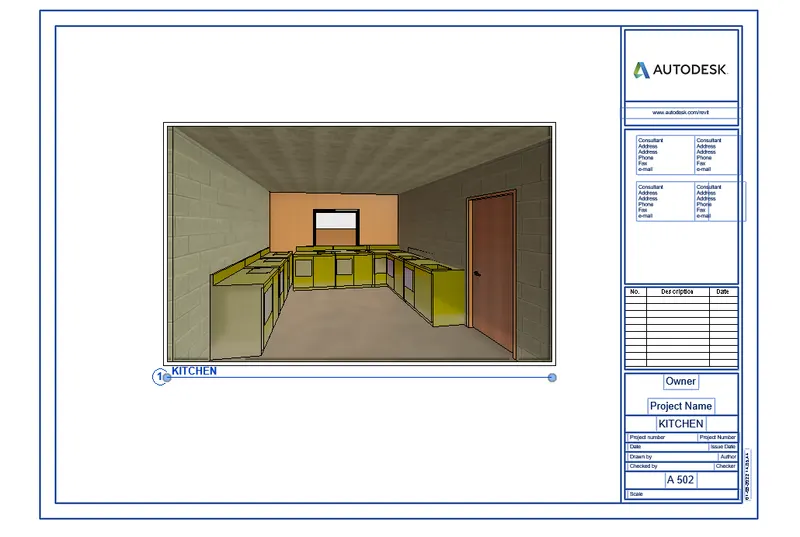

CREATE NEW SHEET A 502 AND NAME IT AS KITCHEN

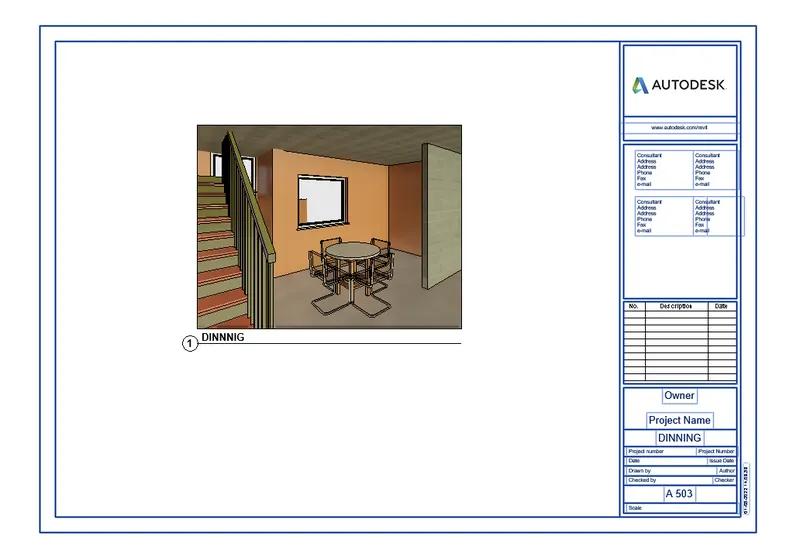

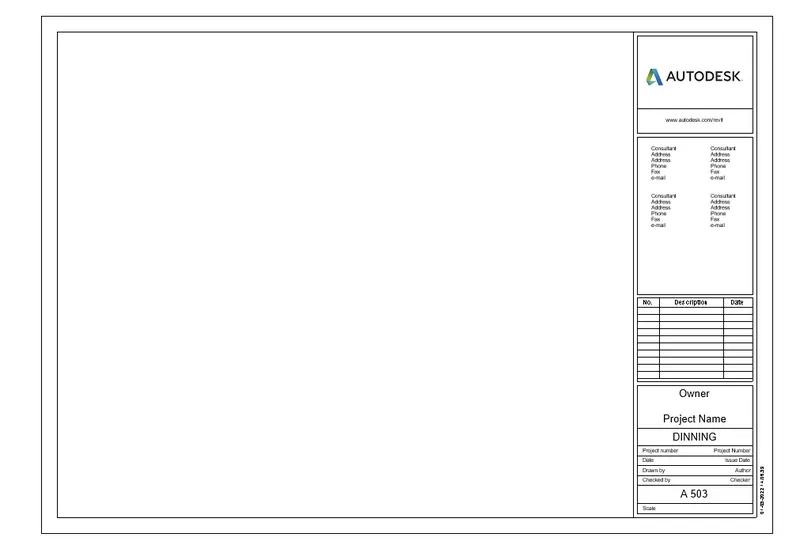

CREATE NEW SHEET A 503 AND NAME IS AS DINNING

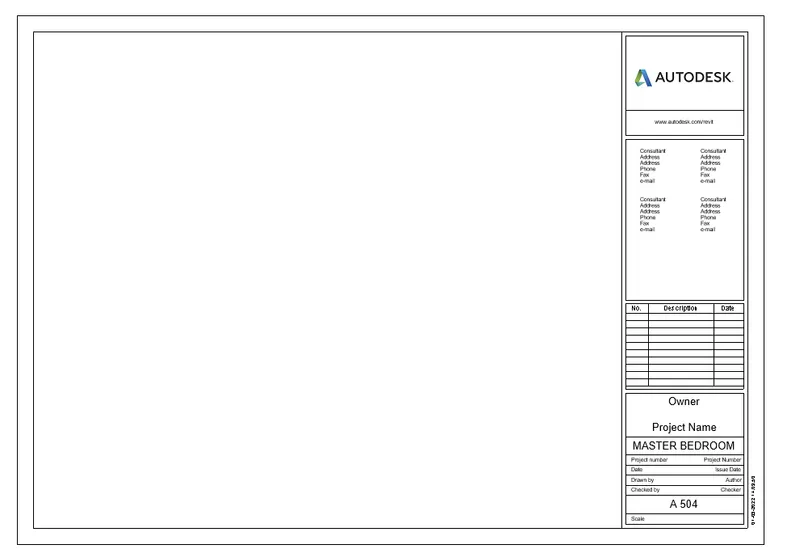

CREATE NEW SHEET A 504 AND NAME IS AS MASTER BEDROOM
