3D Creation of Ceiling, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT
1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level
Aim: To model a Ceiling from the architecture tab above the walls at the first-floor level
Procedure:

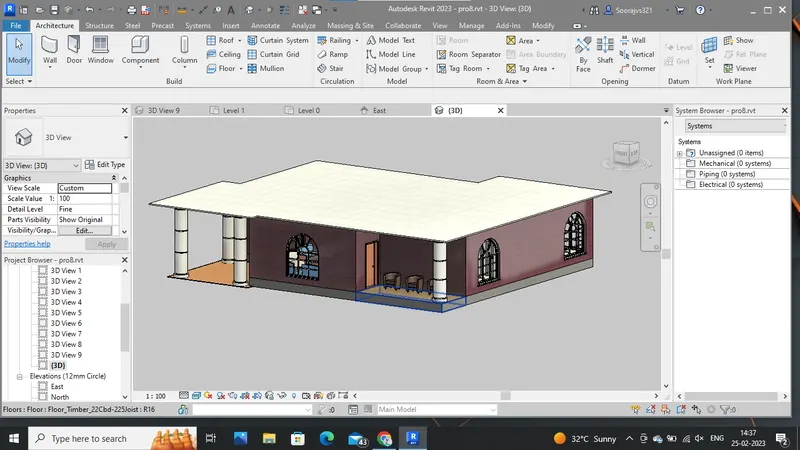

Step 1: From the architectural tab, ceiling tab is used to create the ceiling at the top floor as shown below.
2) Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees
Aim: To model a roof above the ceiling by selecting the footprints of the ceiling
Procedure:
Step 1: In the architectural tab, create roof tab is selected to create the roof

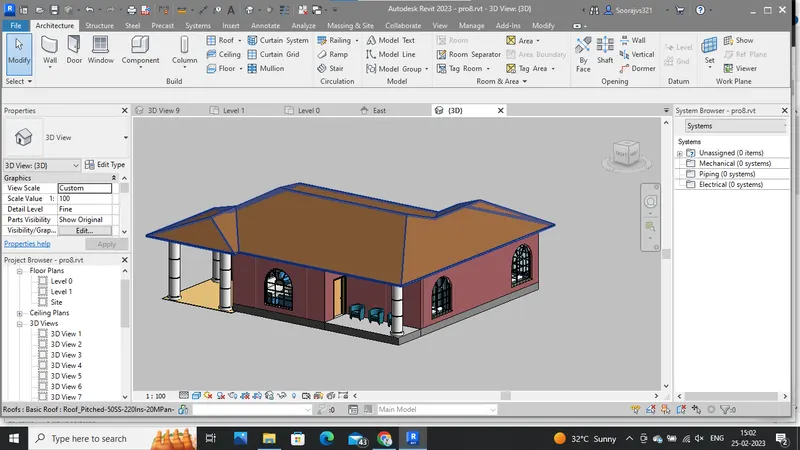

Step 2: The boundary is selected to create the roof and the slope is changed to 10 degrees in the properties as shown below.
3) Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans
Aim: To create architectural and structural plan views.
Procedure:

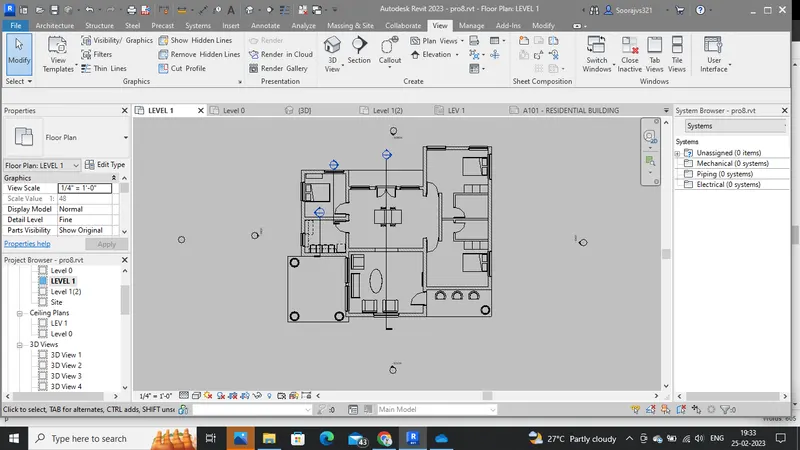

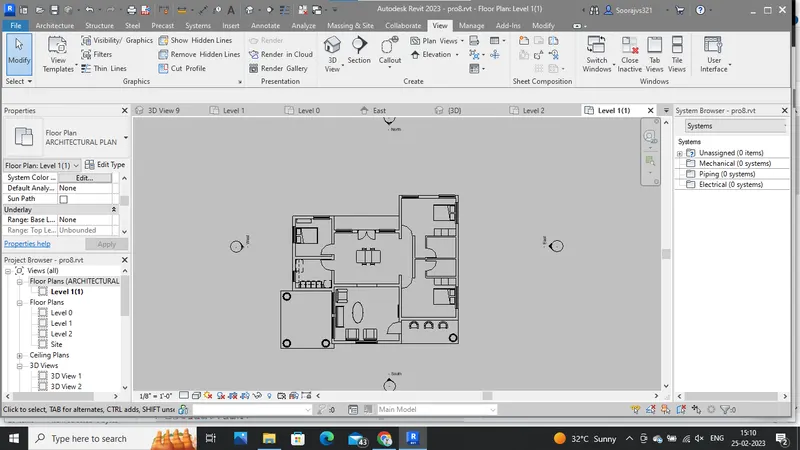

Step 1: The created model, plan view shows the architctural plan view as shwon below.

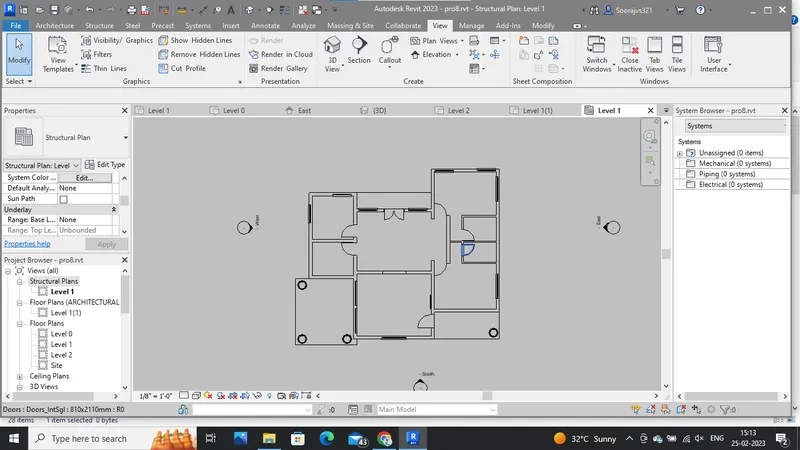

Step 2: From the view tab, the structural plan view can be created from plan drop down as shown below.
4) Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file
Aim: To create grids for architectural and structural plan views
Procedure:

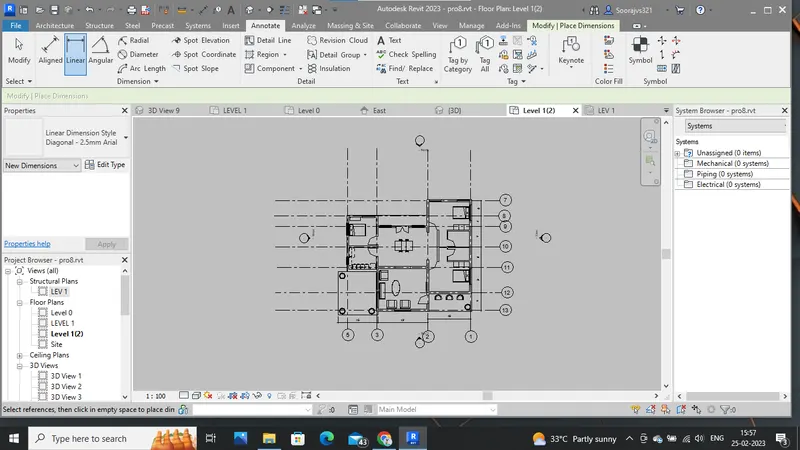

Step 1: From the architectural tab, the grids are created in horizontal and vertical directions and the distances are annotated as shown below.
5) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views
Aim: To create sheet templates.
Procedure:

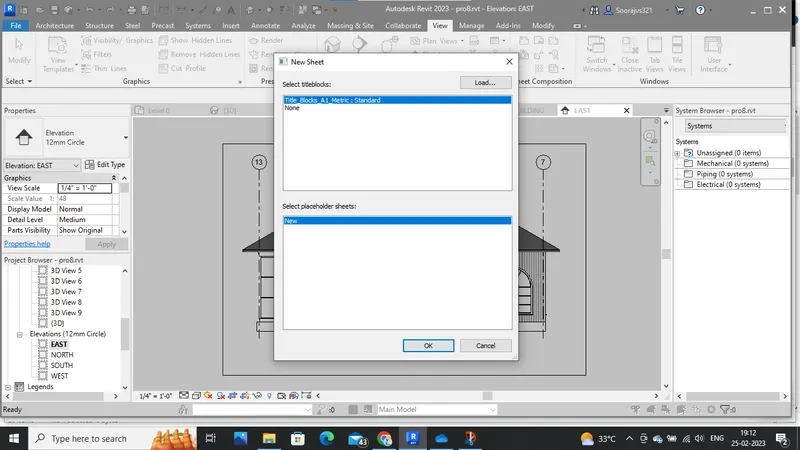

Step 1: Fron the view tab, click on sheets to create the sheets.

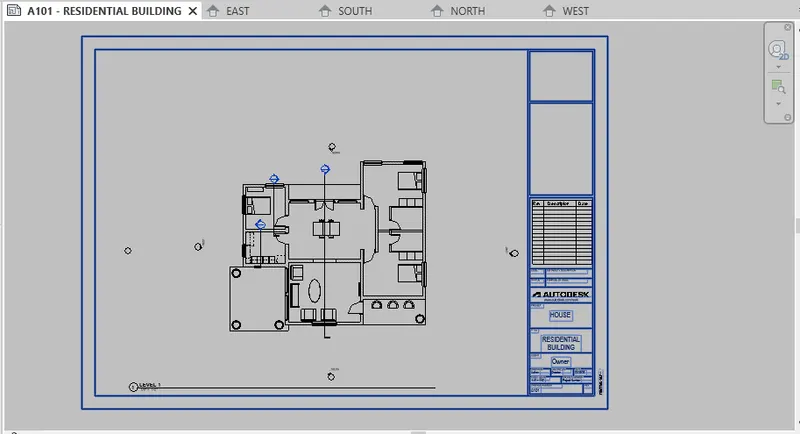

Step 2: The changes are made to the sheet as shwon below.
6) Using the elevation tab create the elevation views, looking at your building from East, North, South, and West
Aim: To create elevation views
Procedure:

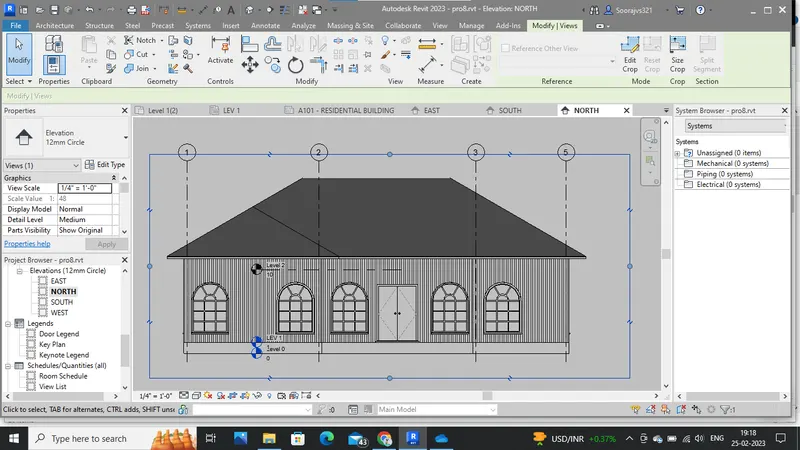

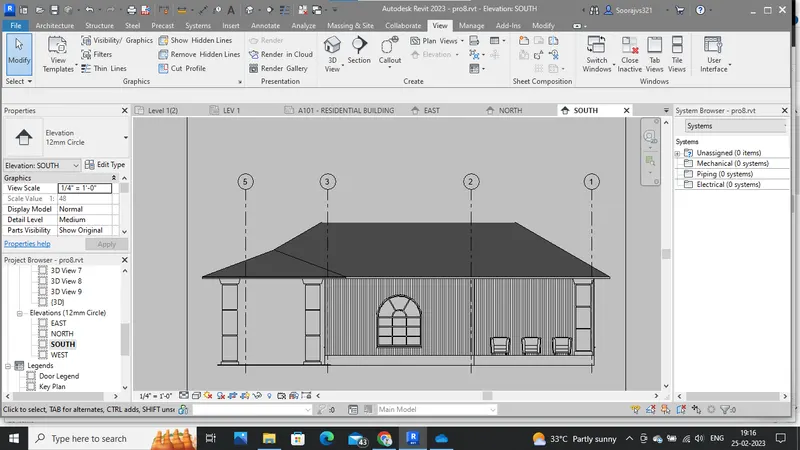

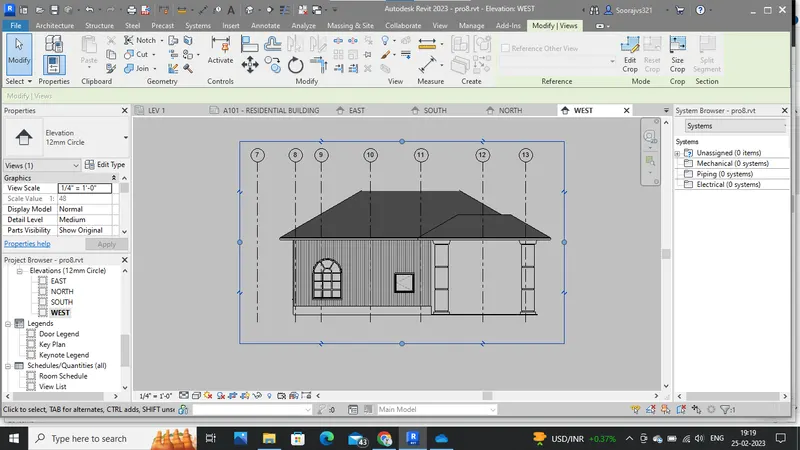

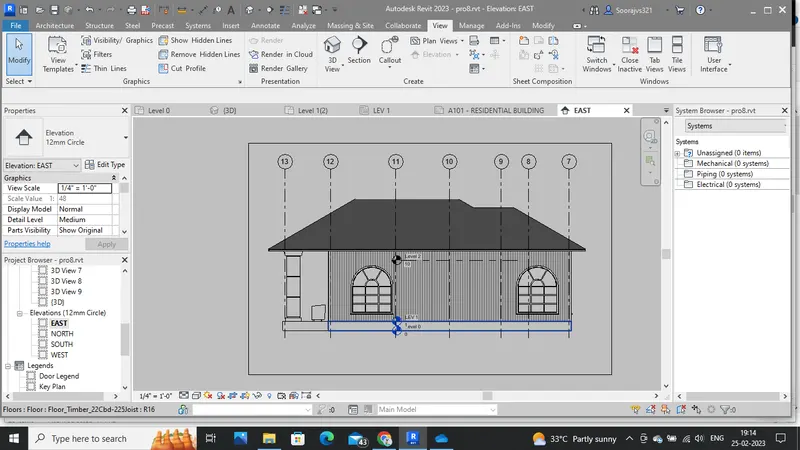

Step 1: From the view tab, North, South, East and West elevations are created as shown below.
7) Produce section cut through each room either cutting across longitudinally or in a transverse direction
Aim: To create section cut through each room.
Procedure:

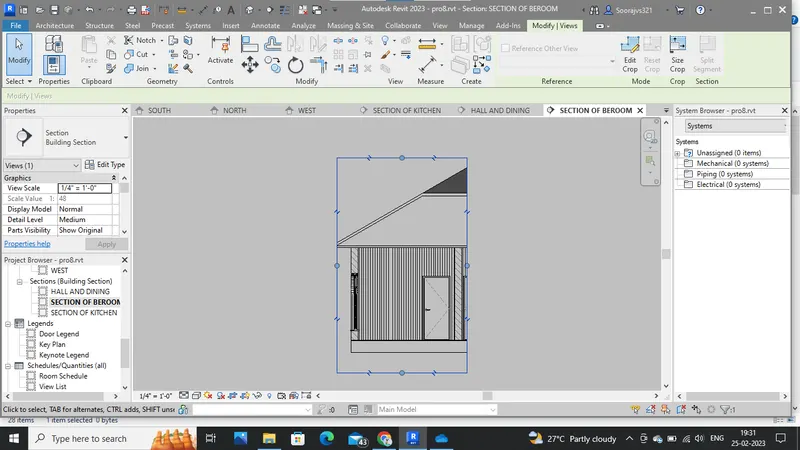

Step 1: From view tab, sections are created such that all the rooms in that section are visible.

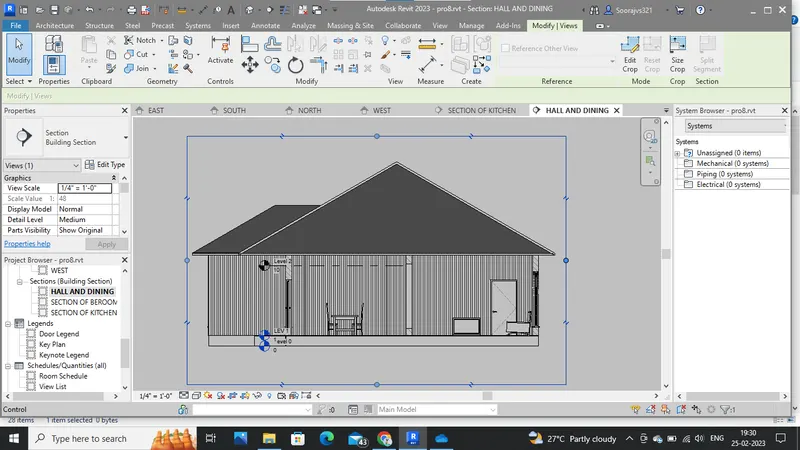

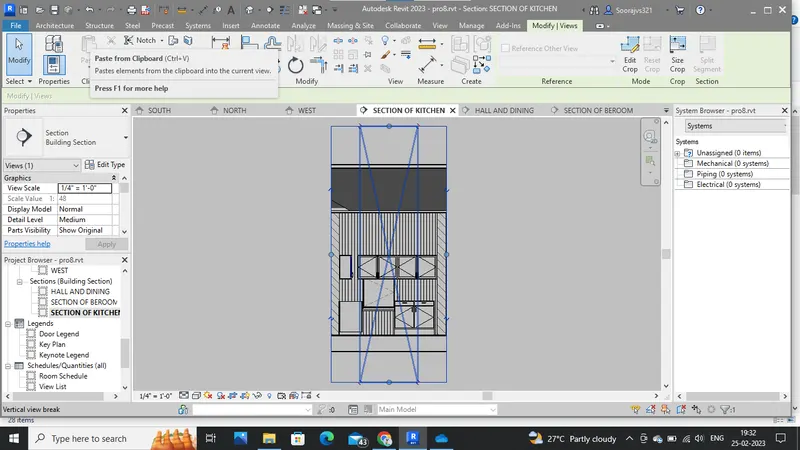

Step 2: Three different sections are created trying to cover all the rooms of the building as shwon below.
9) Using the sheet template produced create multiple sheets as follows

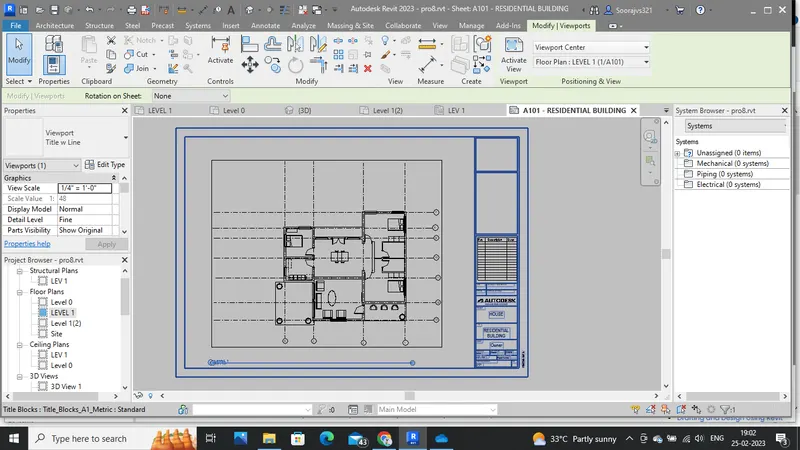

a. A 101- Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan

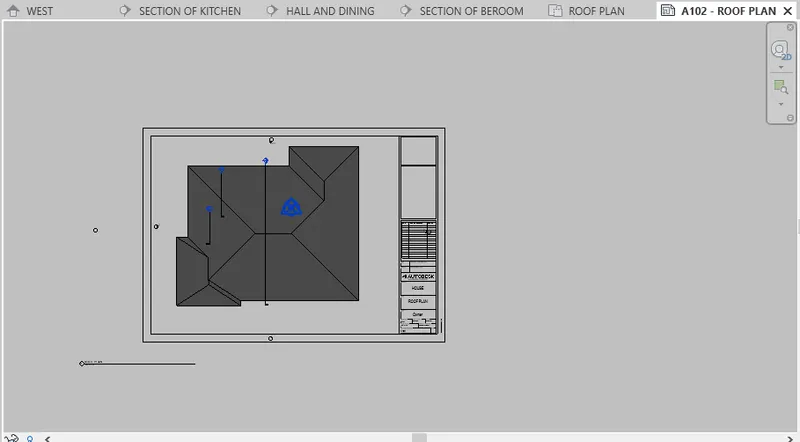

c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan
f. S 103- Roof Framing Plan
g. A-201- North-South Elevations
h. A-202- East-West Elevations
Add additional sheets based on the sections created in your Revit file
Aim: To create sheet templates
Procedure:

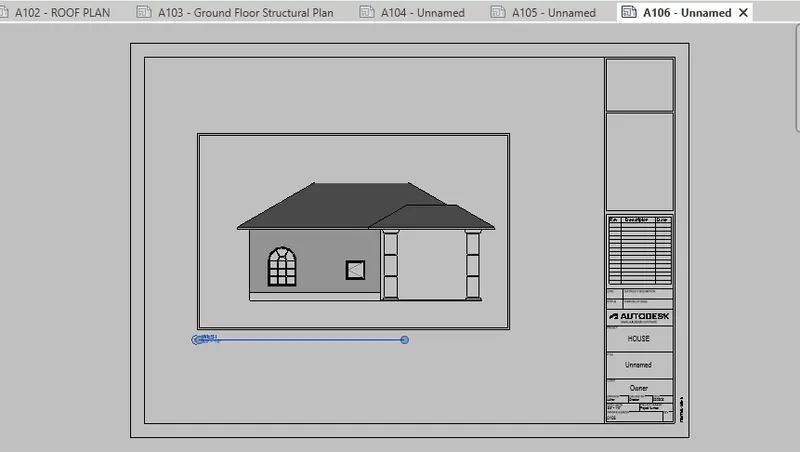

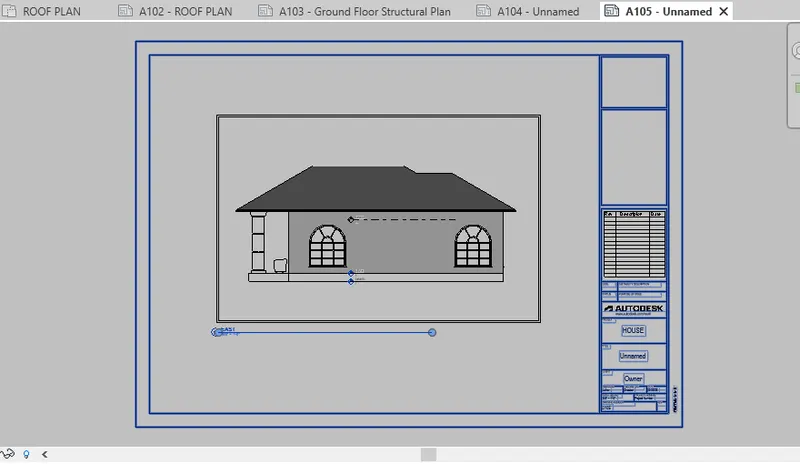

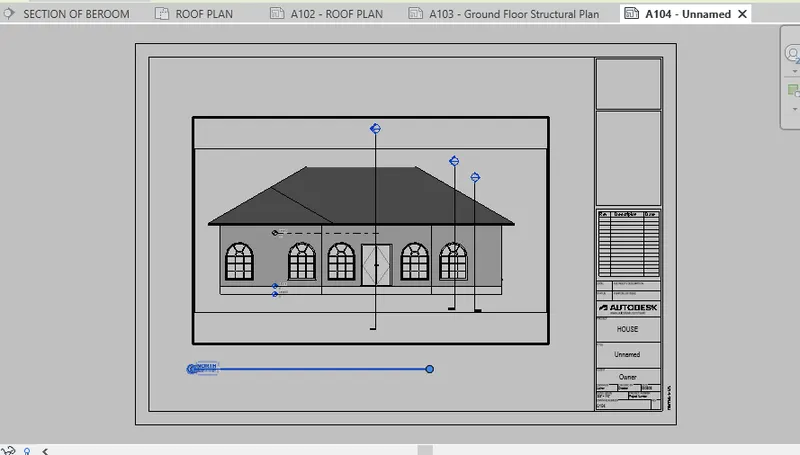

Various sheets having various elements of the building as shown below.
10) Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.
Aim: To create camera specific views
Procedure:

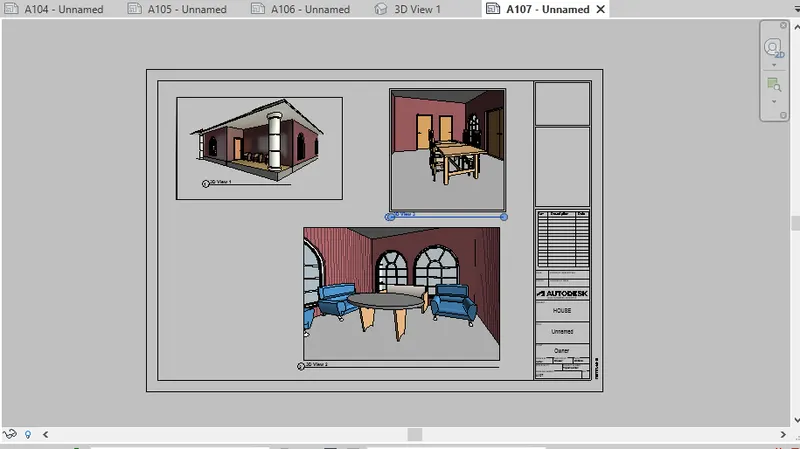

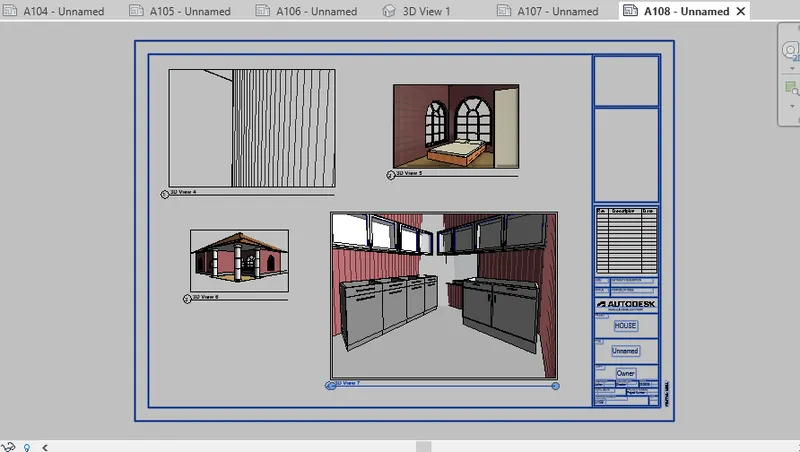

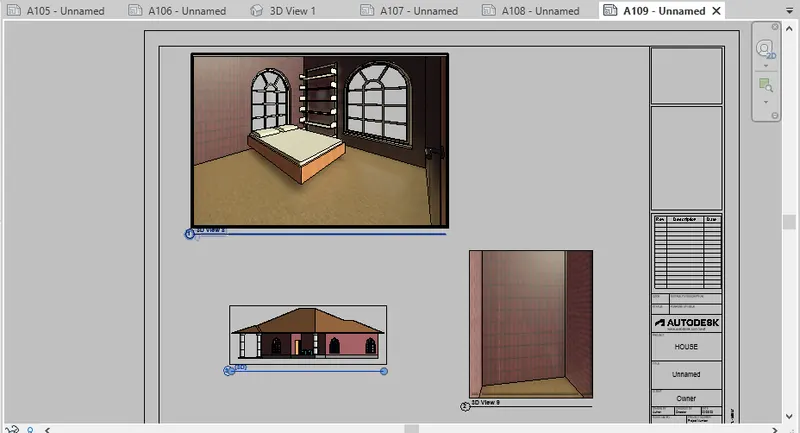

Various sheets containing camera views of all the rooms are created as shwon below.
