3D Creation of Ceiling, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

1.AIM

To create a ceiling in the first floor level.

INTRODUCTION:

From the architectural tab to model a ceiling at the first floor level on the saved week 3 project of the residential unit.

PROCEDURE:

STEP 1) OPEN MODEL

Launch the Revit software.

STEP 2) CREATE CEILING

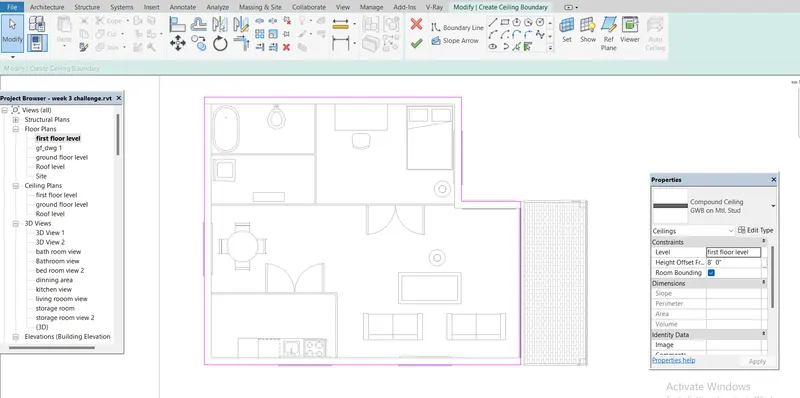

• Go to Project Browser expand Ceiling Plan, double click on First Floor.
• Go to Architecture tab select Ceiling.
• Select sketch ceiling from Modify |Place Ceiling.
• Modify| Create Ceiling Boundary tab is open, now select Pick Line tool from draw panel.
• Select exterior line of the plan then click on green tick from mode to finish.
• Ceiling is created on the first floor level.

RESULT:

Following the above procedure, we have created a ceiling at the first floor level.

2.AIM

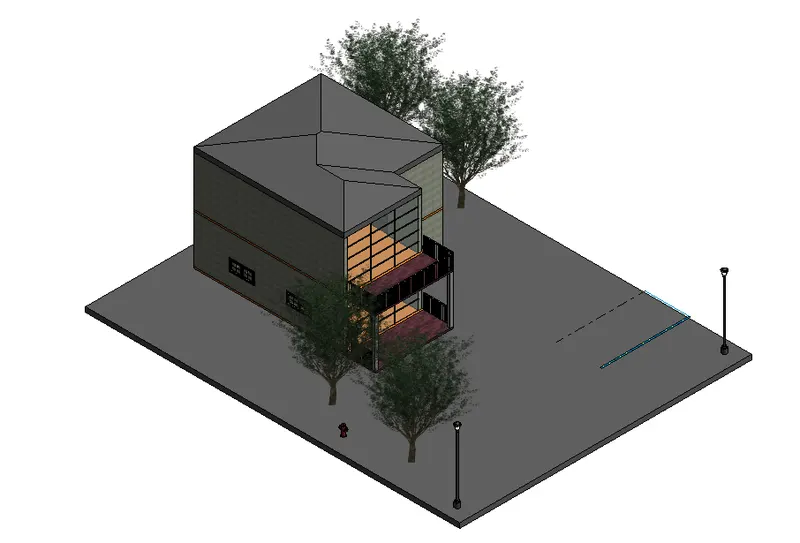

To create a roof by footprint above the ceiling.

INTRODUCTION:

From the architectural tab to model a roof by footprint at 10-degree slope by using adjustment toolbar.

PROCEDURE:

STEP 1) OPEN MODEL

Launch the Revit software.

STEP 2) CREATE ROOF

• Go to Project Browser in the Floor Plan double click on Roof.
• Go to Architecture tab drop down the Roof and select Roof by Footprint.
• Modify| Create Roof Footprint tab is open, now select Pick Line tool from draw panel.
• Select exterior line of the plan then click on green tick from mode to finish.
• Roof is created on the Roof level.

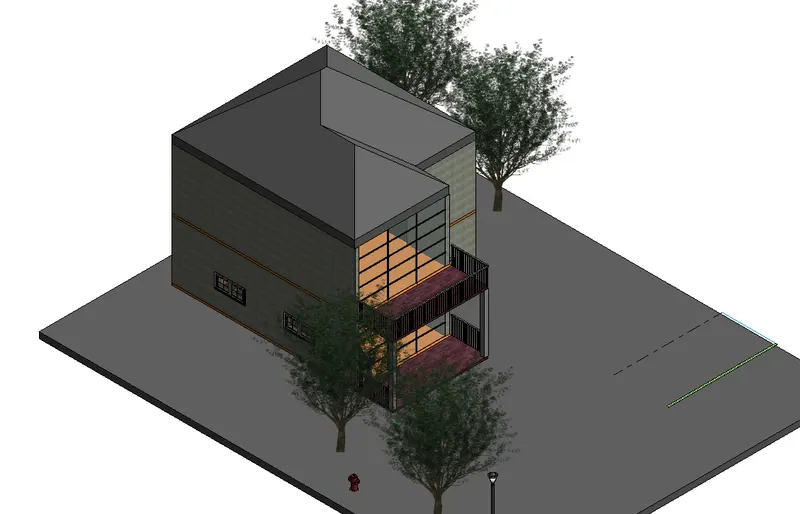

STEP 3) PROVIDE SLOPE

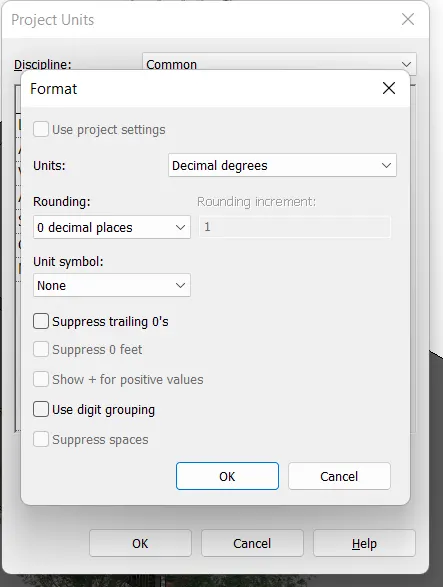

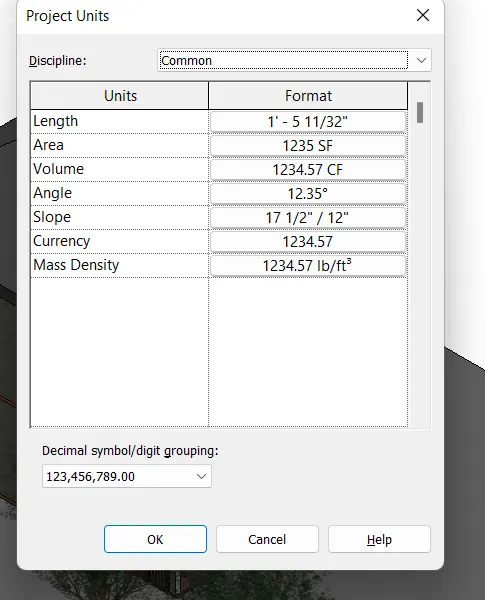

• Type UN to open project unit.
• Select unit format slope.
• Change units as decimal degree from format dialog box.
• Click OK.
• Select created roof.
• Go to property browser.

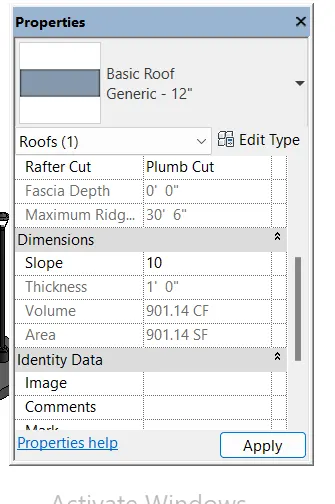

• Change slope as 10 from dimensions.

RESULT:

Following the above procedure, we have created roof by footprint above the ceiling.

3.AIM

To Create architectural and structural plan based on previously saved project.

INTRODUCTION:

Architectural and structural plan shown separately with their component.

PROCEDURE:

STEP 1) OPEN MODEL

Launch the Revit software

STEP 2) ARCHITECTURAL PLAN

• Go to Project Browser in the Floor Plan double click on Ground Floor
• Similarly for First Floor Plan

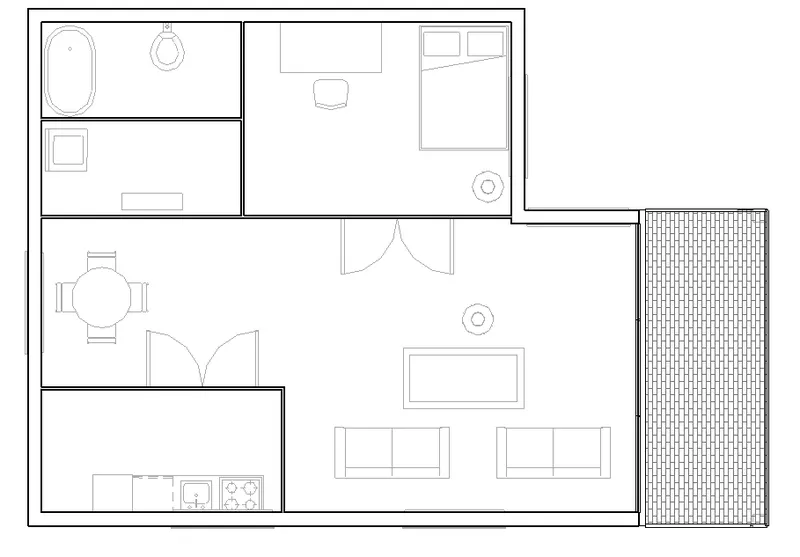

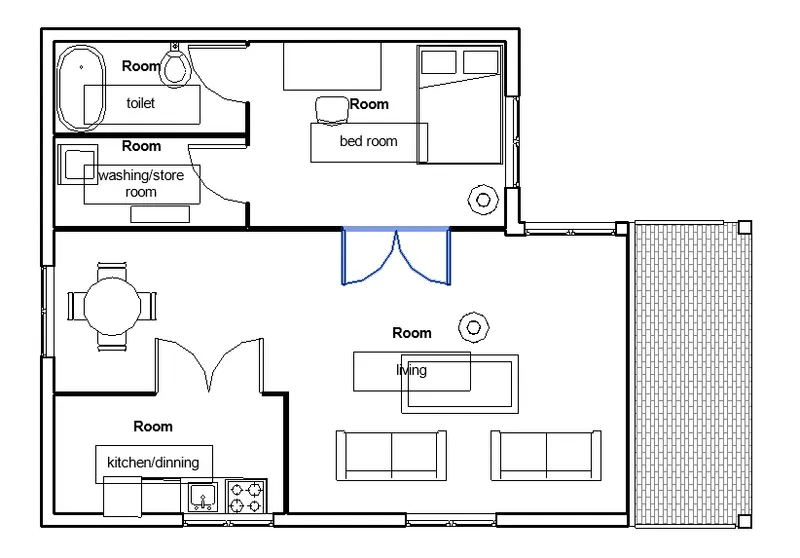

1-GROUND FLOOR ARCHITECTURE PLAN

2-FIRST FLOOR ARCHITECTURE PLAN

STEP 3) STRUCTURAL PLAN

• Go to view tab.

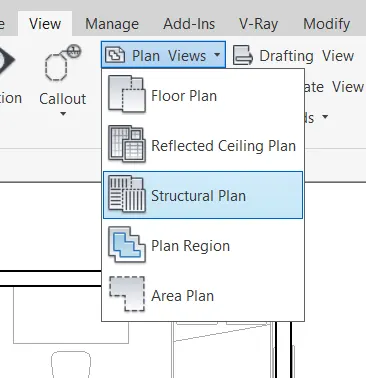

• Drop down the Plan Views from the create panel.
• Select Structure Plan.
• Dialog box will open for selecting levels.
• Choose ground floor then first floor.

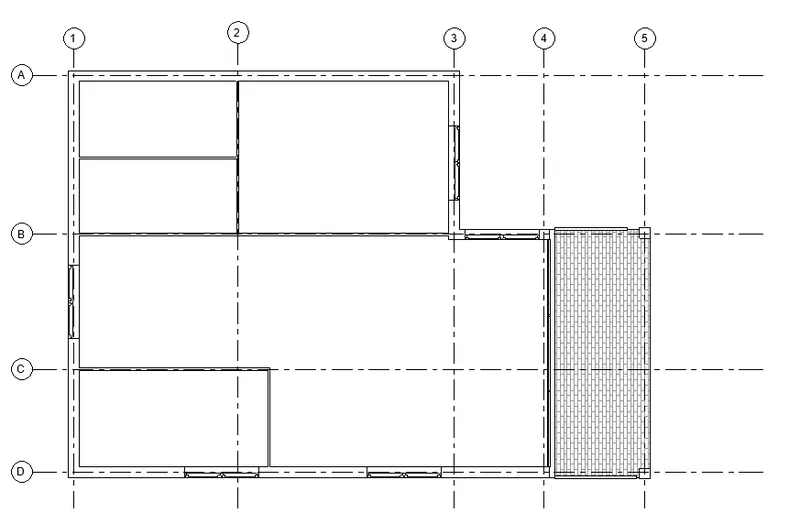

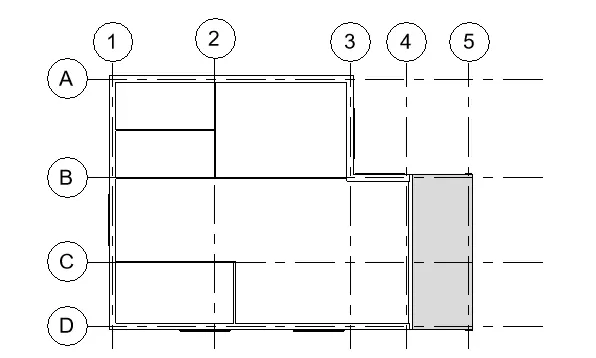

1-GROUND FLOOR STRUCTURAL PLAN

2-FIRST FLOOR STRUCTURAL PLAN

RESULT:

Following the above procedure, we have created separately architectural and structural plan.

4.AIM

To add dimension in architectural and structural plan by using annotate toolbar.

INTRODUCTION:

In the architectural and structural plan added dimension with respect to grids.

PROCEDURE:

STEP 1) OPEN MODEL

Launch the Revit software.

STEP 2) ADD DIMENSION

• Go to Project Browser in the Floor Plan double click on Ground Floor.
• Open Annotate tab select Aligned tool.
• Create dimension to the component from grids.
• Similarly for the structural plan.

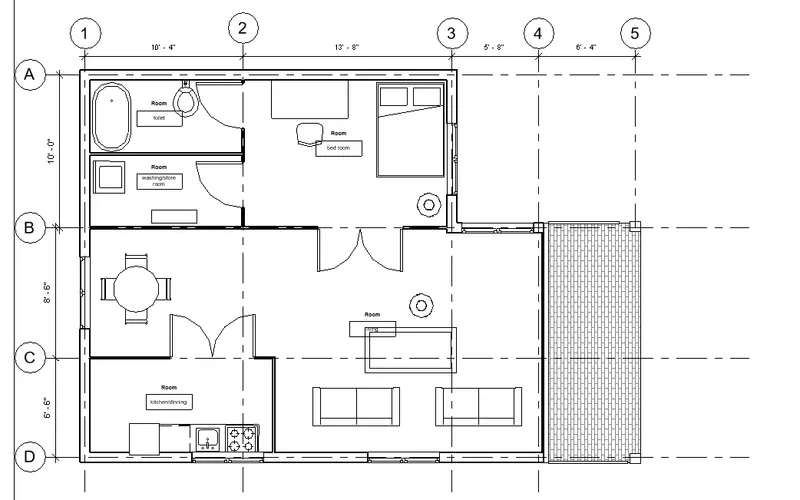

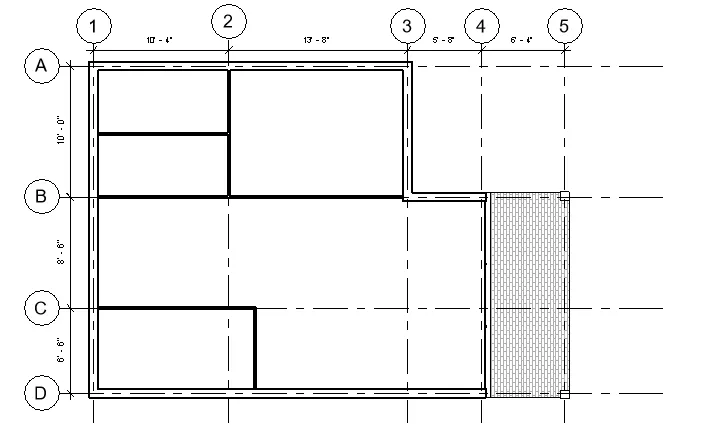

1-DIMENSION WITH COMPONENT

2-DIMENSION WITH STRUCTURAL MEMBER

RESULT:

Following the above procedure, we have added the dimension in the architecture and structure plan.

5.AIM

To create sheet from view tab and adjust the parameter.

INTRODUCTION:

From the view tab to create a sheet template and adjust the parameter on the sheet to add the appropriate view.

PROCEDURE:

STEP 1) OPEN MODEL

Launch the Revit software

STEP 2) CREATE SHEET TEMPLATE

• Go to View tab.
• Select Sheet from Sheet Composition panel.

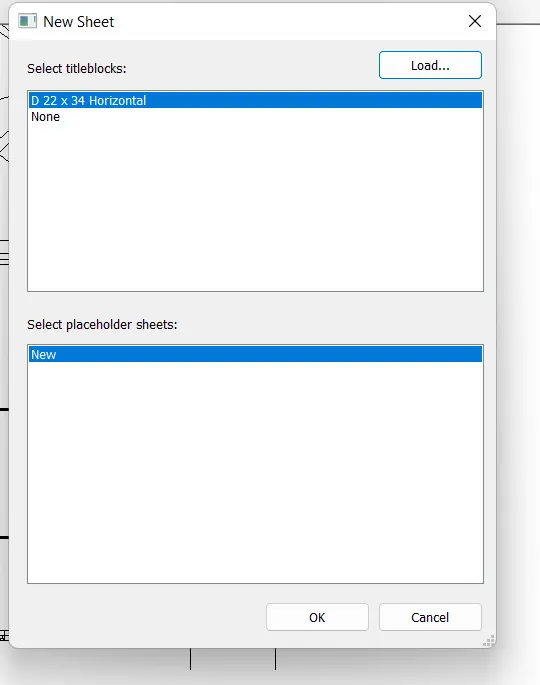

• Open a new sheet dialog box click on Load.
• Open TITLEBLOCKS from library.
• Select appropriate sheet.
• Edit sheet title block as per view.
• Drag to insert the plan from project browser in sheet.

STEP 3) ADD VIEW IN SHEET

• From project browser select any view then drag to the sheet.
• after that from property browser change view scale to adjust the view.
• edit the parameter on the title block.

RESULT:

Following the above procedure, create a sheet template from the view tab and adjust the parameter.

6.AIM

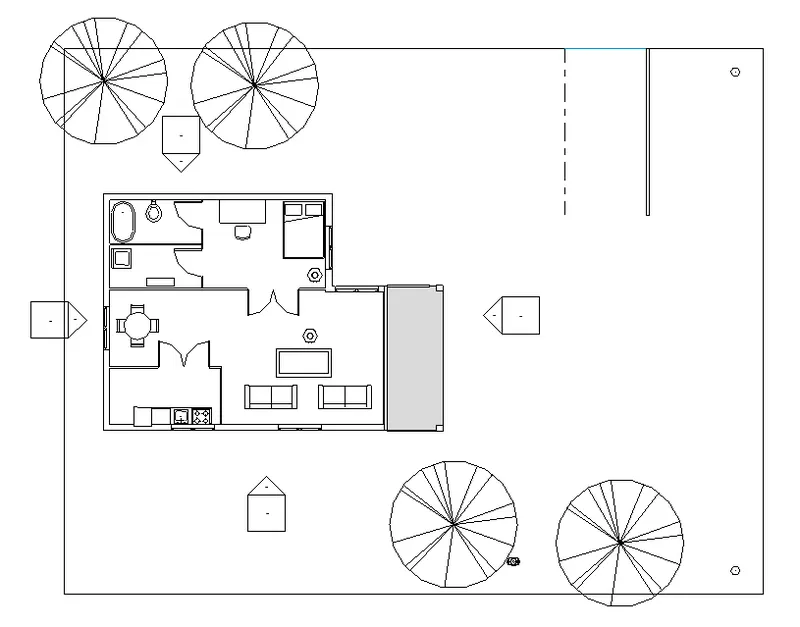

To create the elevation view of the building.

INTRODUCTION:

From the view tab to create elevation views, looking at my building from East, North, South and West.

PROCEDURE:

STEP 1) OPEN MODEL

Launch the Revit software.

STEP 2) CREATE ELEVATION VIEW

• Open Ground Floor Plan.
• Go to View tab.
• Drop down the Elevation from the create panel.
• Select Elevation.
• Create view from East North South West.
• After set the views go to project browser.

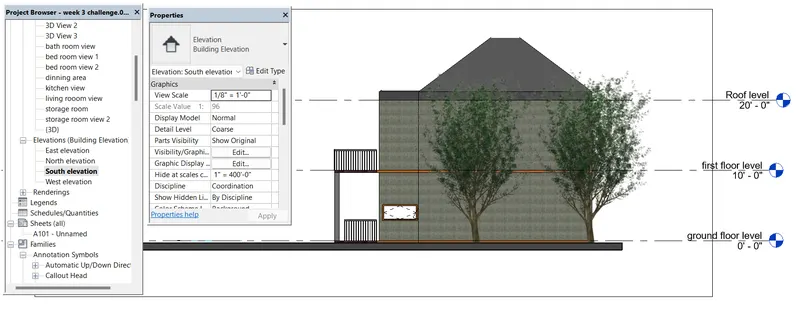

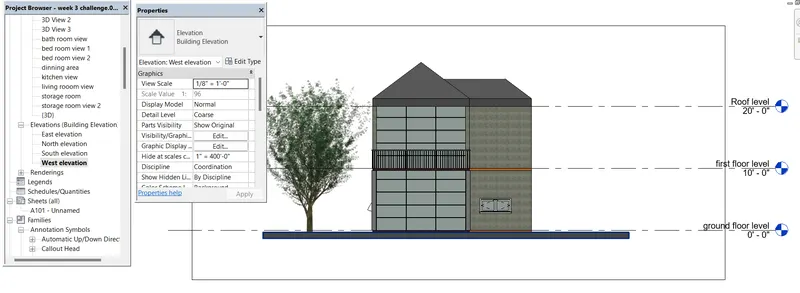

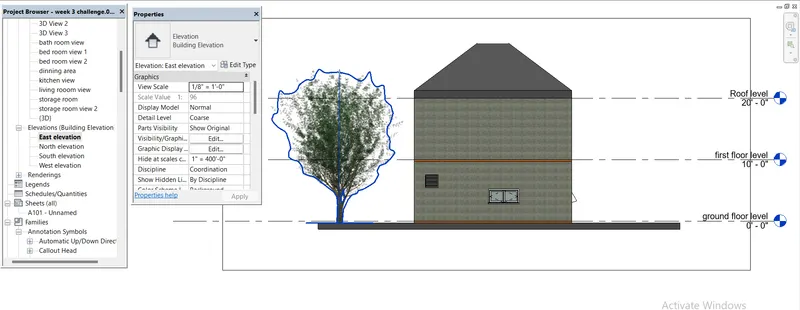

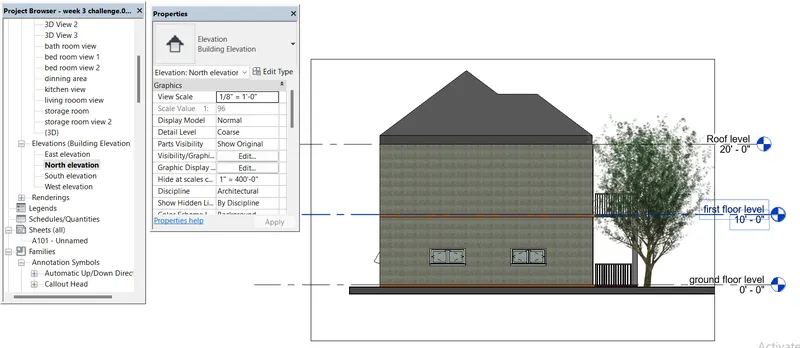

• Expand elevation open East view.
• Similarly select one by one to open other views.

RESULT:

Following the above procedure, created elevation views such as East North South West.

7.AIM

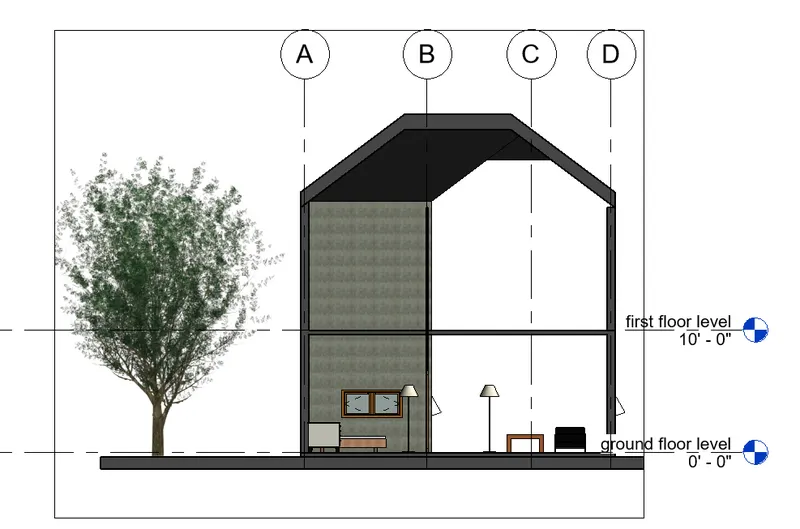

To create the section view of the building.

INTRODUCTION:

From the view tab to create sections cut through each room, cutting across longitudinally and transverse direction.

PROCEDURE:

STEP 1) OPEN MODEL

Launch the Revit software.

STEP 2) CREATE SECTION VIEW

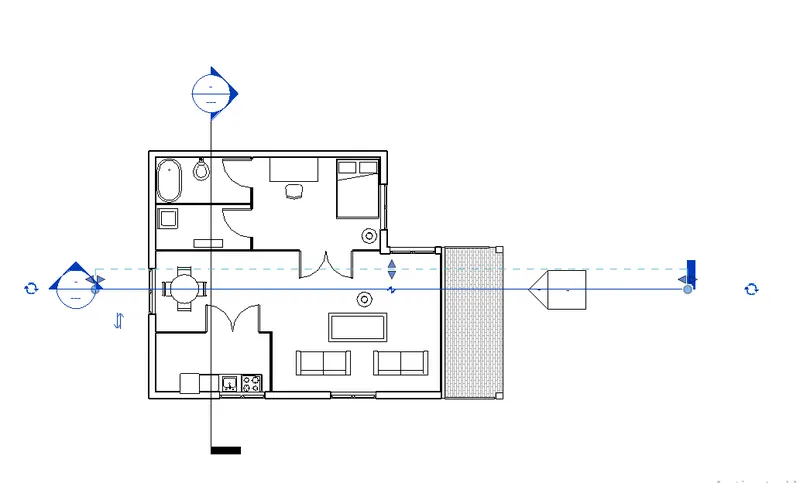

• Open Ground Floor Plan.
• Go to View tab.
• Select Section.

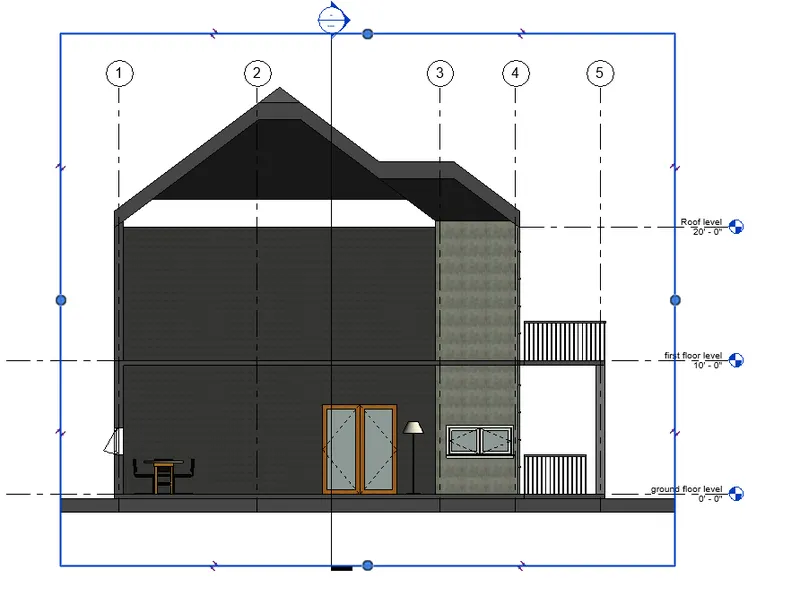

• Cut longitudinal drawing across the plan.
• Similarly cut the plan across the transverse direction.

RESULT:

Following the above procedure, we have created section accros longitudinal and transverse direction.

8.AIM

To classify the views of the building.

INTRODUCTION:

From the project browser to classified the view in documentation category.

PROCEDURE:

STEP 1) OPEN MODEL

Launch the Revit software

STEP 2) CREATE SECTION VIEW

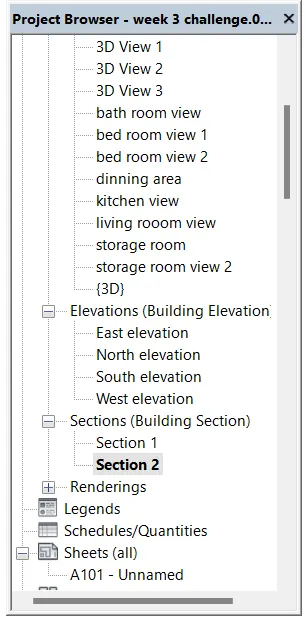

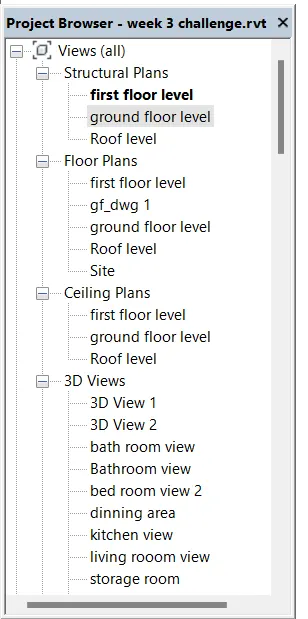

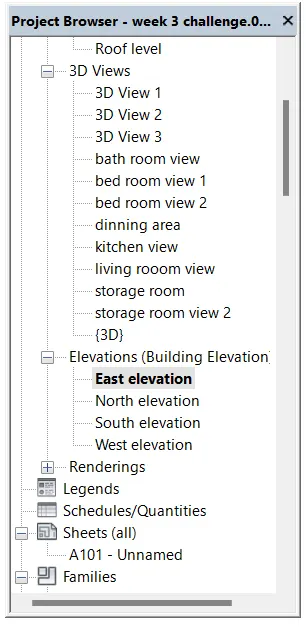

• Go to project browser.
• Expand all the view.

RESULT:

Following the above procedure we classified the view.

9.AIM

To create multiple sheet template.

INRODUCTION:

Sheet template produced for architecture, structural, elevations and section’s view.

PROCEDURE:

STEP 1) OPEN MODEL

Launch the Revit software.

STEP 2) CREATE SHEET TEMPLATE

• Go to View tab.
• Select Sheet from Sheet Composition panel.
• Open a new sheet dialog box click on Load.
• Open TITLEBLOCKS from library.
• Select appropriate sheet for each plan.
• Edit sheet title block as per view.
• Drag to insert the plan from project browser in sheet.
• Similarly drag all the plan and view in the sheet.

RESULT:

Following the above procedure, we have created multiple sheets for each plan and view and result are shown in below.

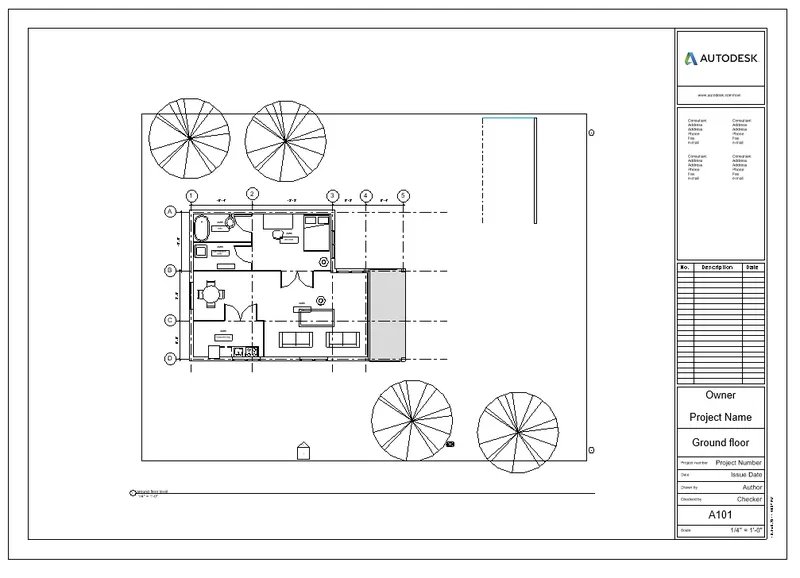

1. A101- GROUND FLOOR ARCHITECTURE PLAN

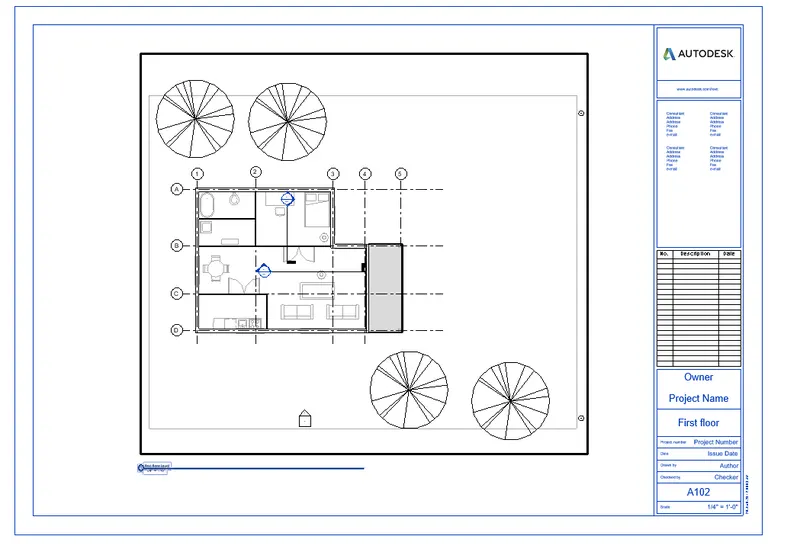

2. A102- FIRST FLOOR ARCHITECTURE PLAN

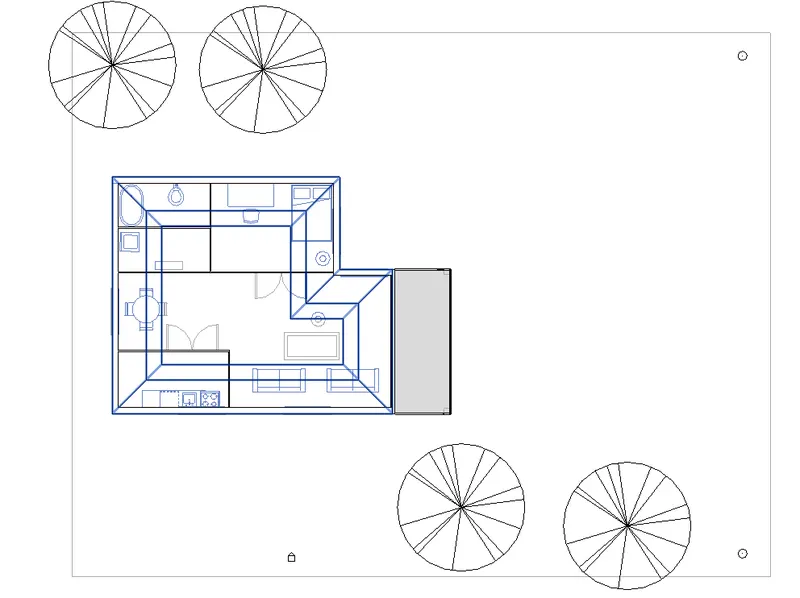

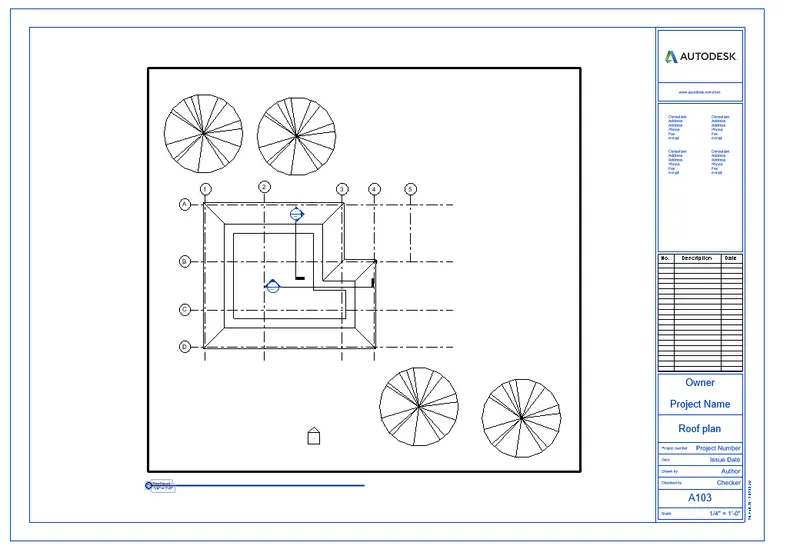

3. A103- ROOF PLAN

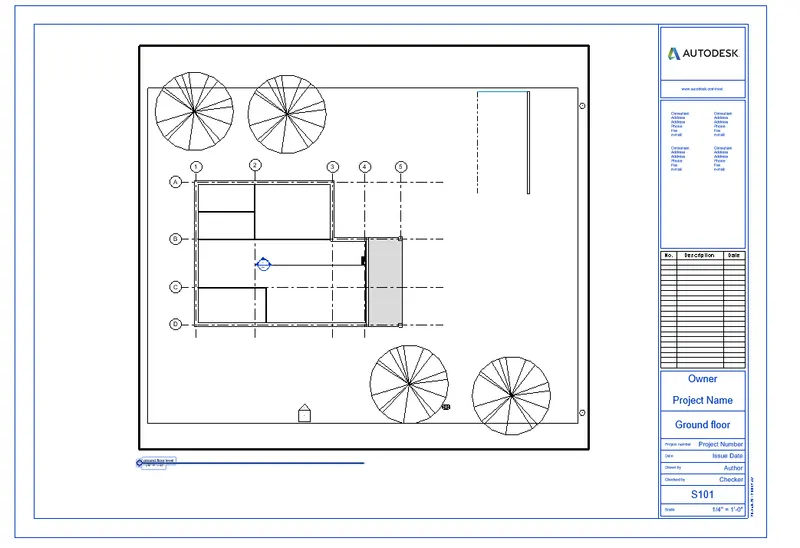

4. S101- GROUND FLOOR STRUCTURAL PLAN

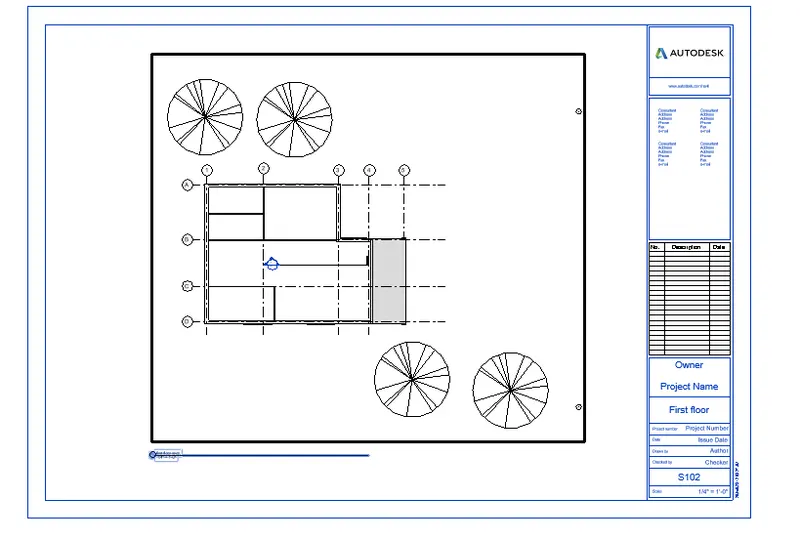

5. S102- FIRST FLOOR STRUCTURAL PLAN

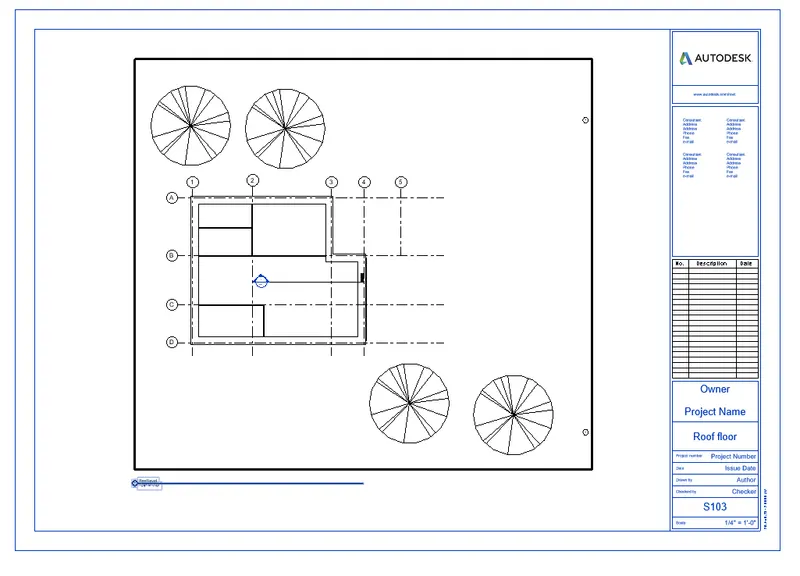

6. S103- ROOF FARMING PLAN

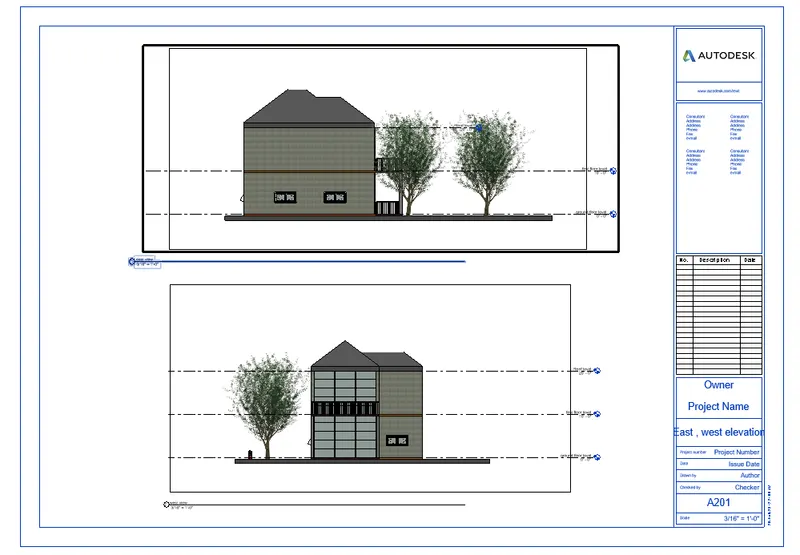

7. A201- EAST - WEST ELEVATION

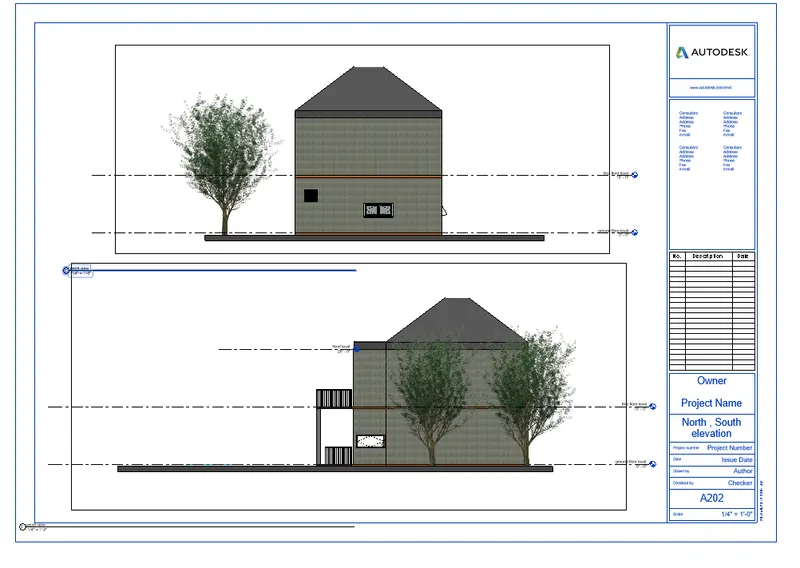

8. A202- NORTH - SOUTH ELEVATION

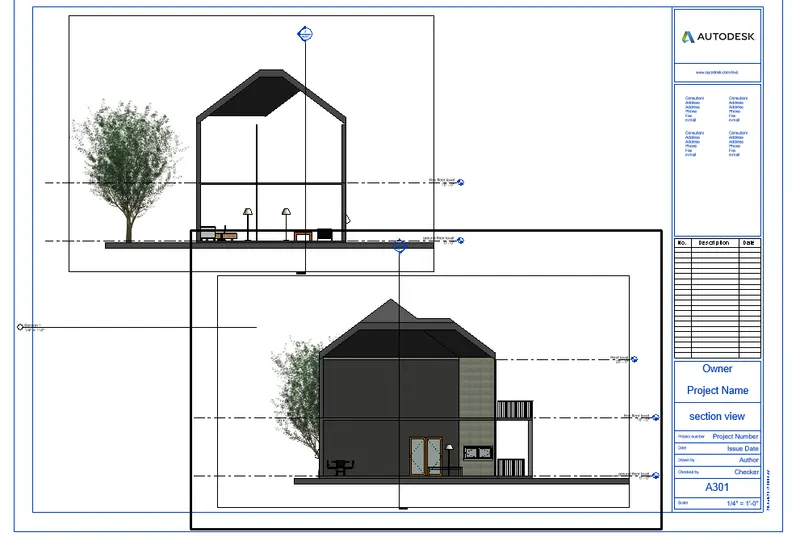

9. A301- SECTION

10.AIM:

To created a 3D view in each room.

INTRODUCTION:

Sheet template produce for 3D view for each room such as living, dining, bedroom.

PROCEDURE:

STEP 1) OPEN MODEL

Launch the Revit software.

STEP 2) CREATE SHEET TEMPLATE

• Go to View tab.
• Select Sheet from Sheet Composition panel.
• Open a new sheet dialog box click on Load.
• Open TITLEBLOCKS from library.
• Select appropriate sheet for each plan.
• Edit sheet title block as per view.
• Drag to insert the plan from project browser in sheet.
• Similarly drag all the plan and view in the sheet.

RESULT:

Following the above procedure, we have created multiple sheets for each plan and view and result are shown in below.

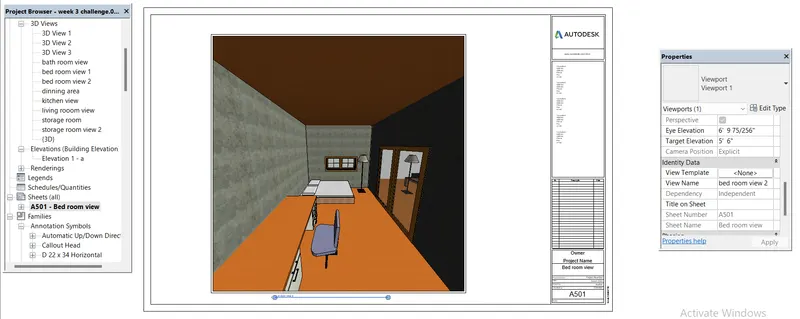

1. Bed Room View

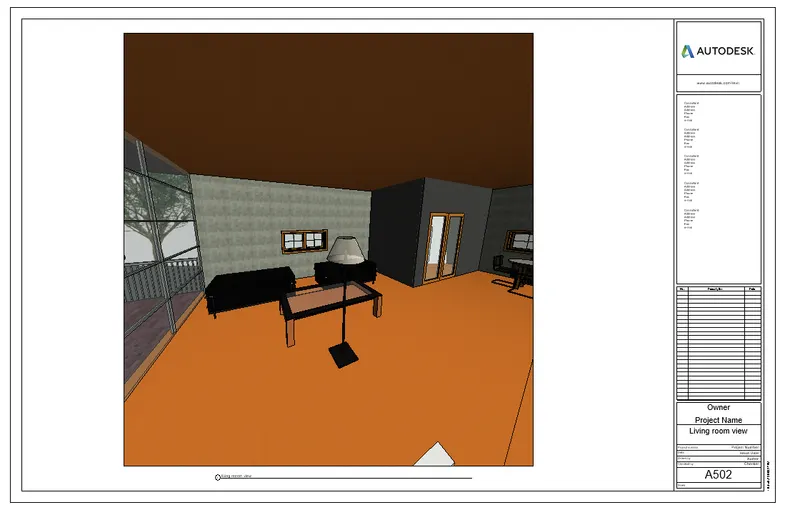

2. Living Room View

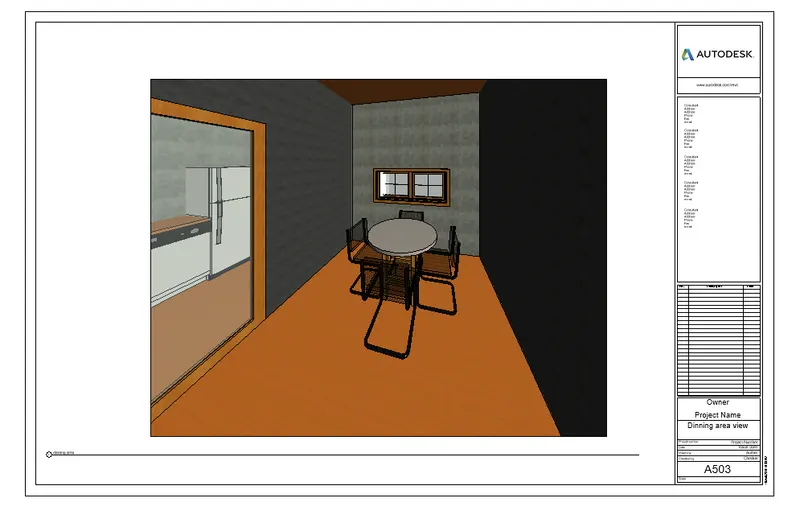

3. Dining Room

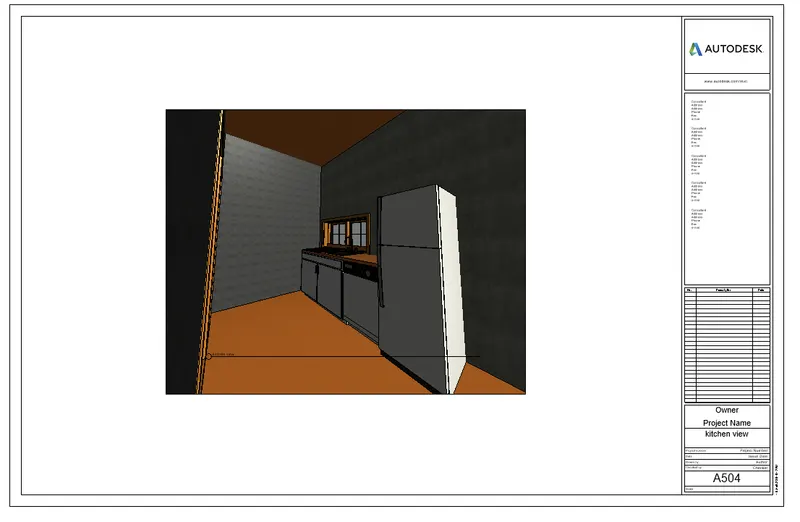

4. Kitchen View

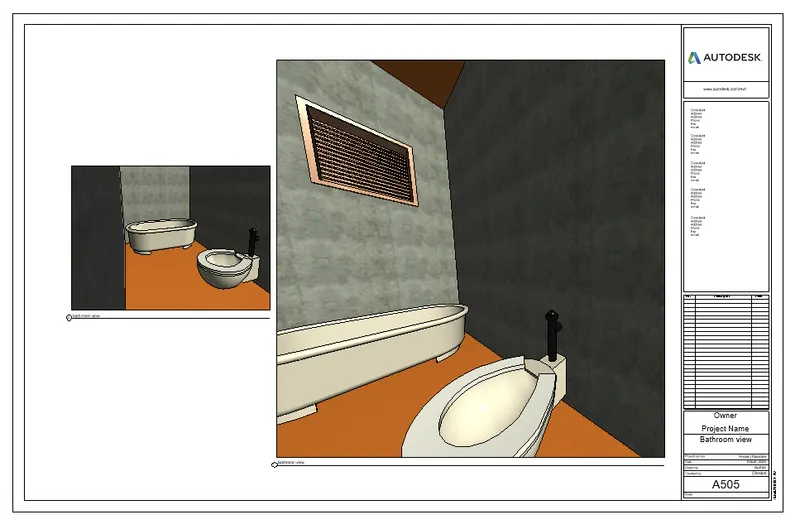

5. Rest Room View
