3D Creation of Ceiling, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level.

AIM:- To model a Ceiling from the architecture tab above the walls at the first-floor level.

PROCEDURE:-

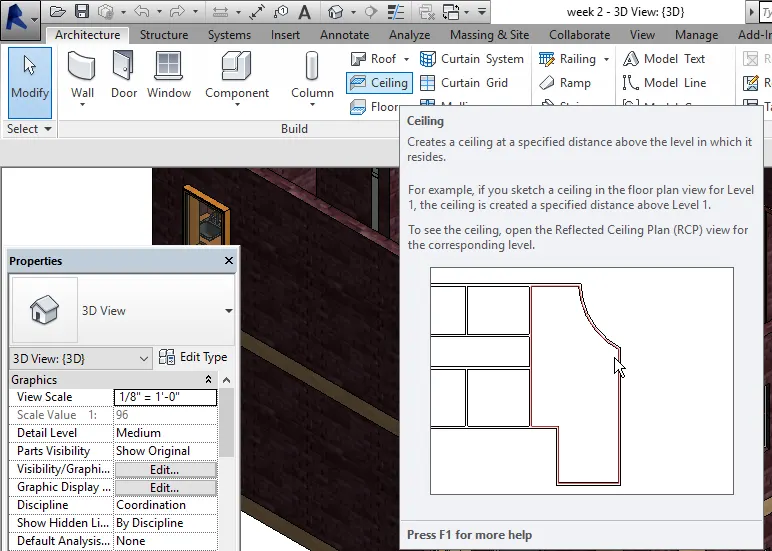

• First we open the revit sofware, and select the ceiling option from the architecture toolbar.

• After selecting the ceiling option, then select the each room one by one.
• Then the ceiling will be created.

RESULT:-

2) Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees

AIM:- To model a roof above the ceiling by selecting the footprints of the ceiling.

PROCEDURE:-

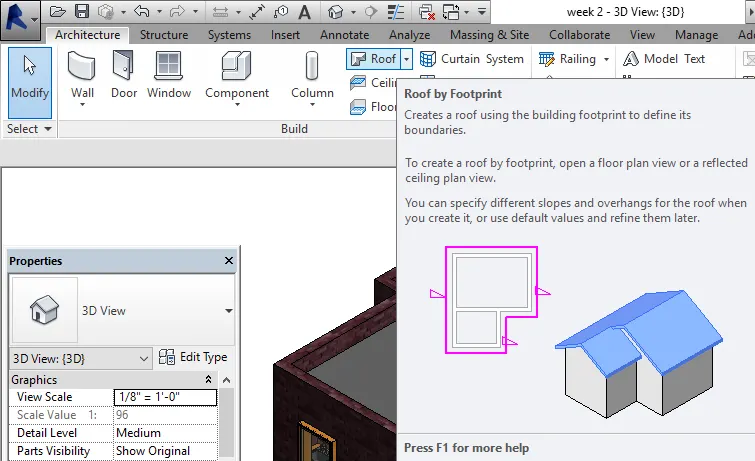

• Open the architecture toolbar, and select the Roof by Footprint option .

• Next select the roof and adjust the roof to 10 degrees by selecting.

• The roof has been created

RESULT:-

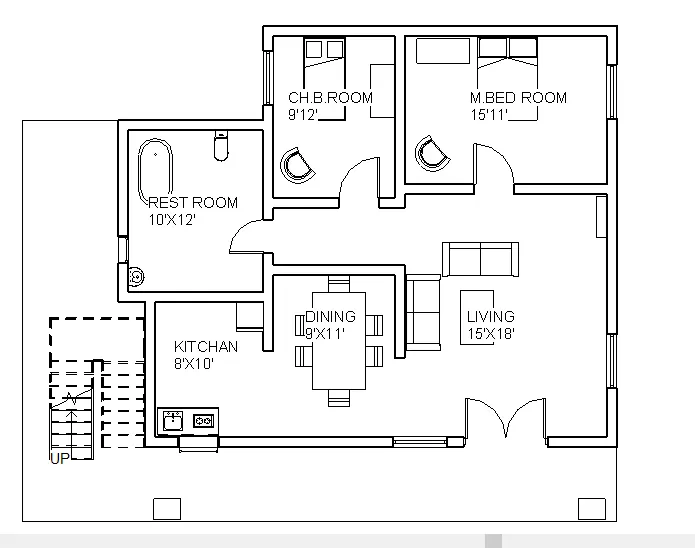

3) Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans

a. Architecture plan must have walls, floors, and all the components placed within the building
b. Structure plan must have details of only walls, floors, and columns

AIM:- To create plan views for ground floor level and first-floor level including all the walls, floors, and components.

And to Separate them to architecture and structural plans.

PROCEDURE:-

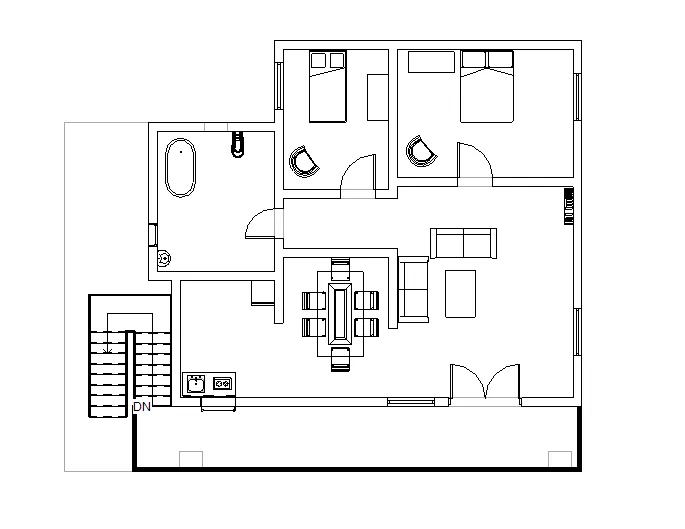

• First draw the architectural palns of first floor and second floor .

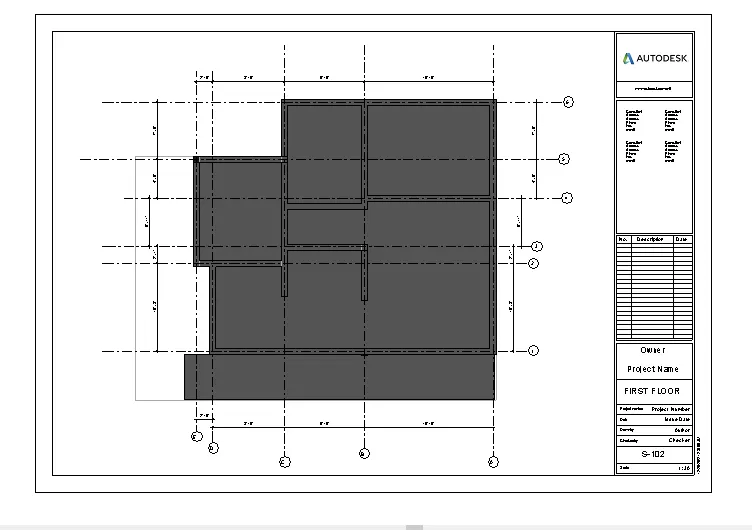

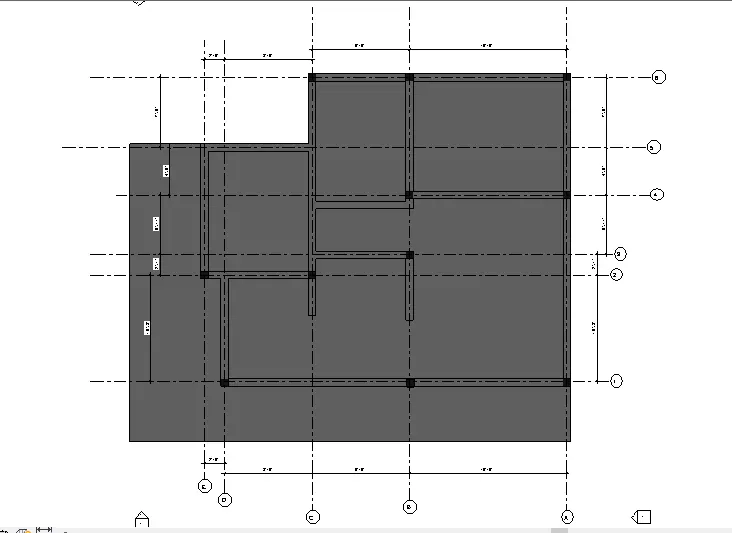

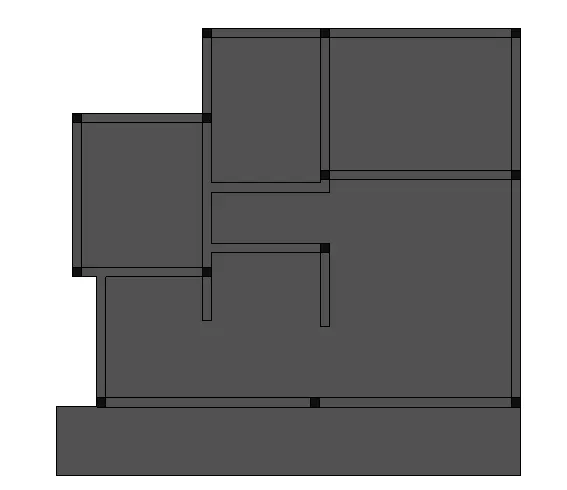

structural plan:

• The structural plan view is the default view when you start a new project using a structural template.
• Go to the insert tab and click link revit file then attach the file.
• New structural plan views are created automatically as you add new levels to your project. You can create multiple structural plan view types.

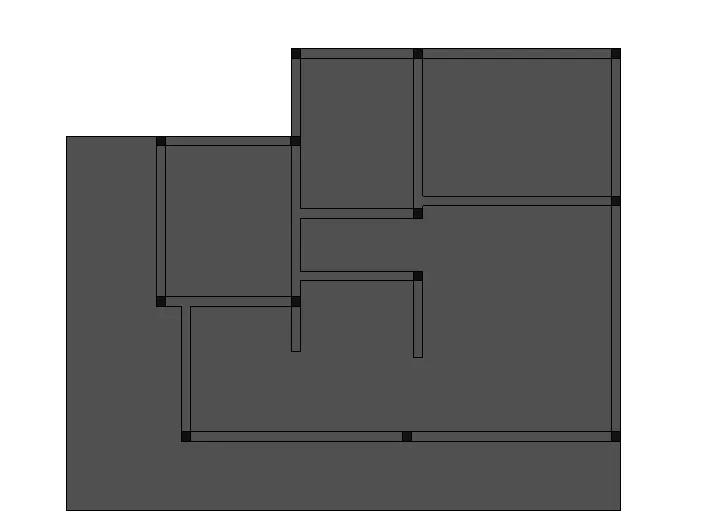

• Next draw the structural palns of the first floor and second floor.

RESULT:-

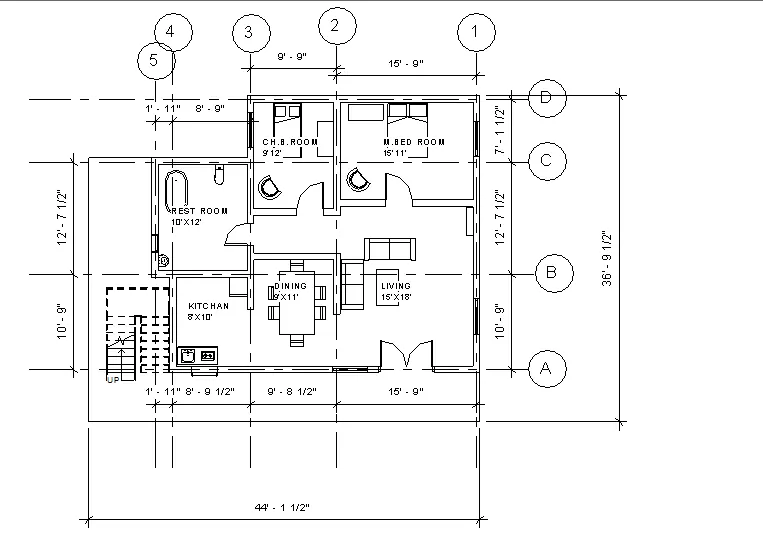

4) Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans

b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans.

AIM:- To add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file.

PROCEDURE:-

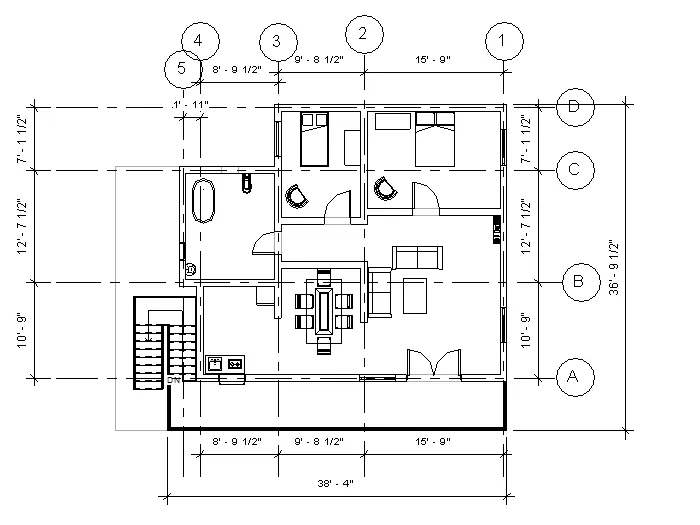

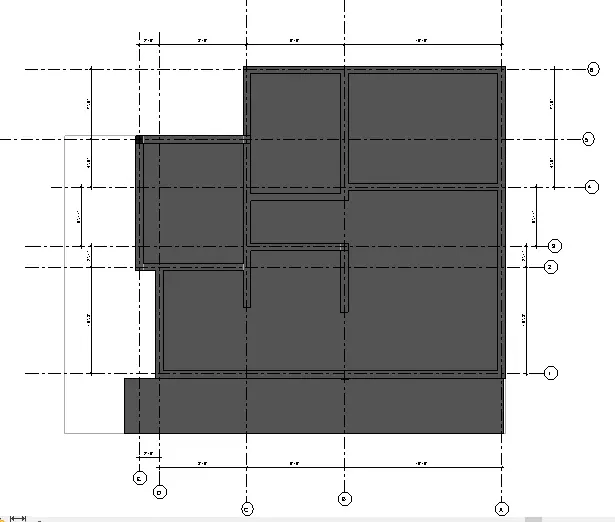

• draw the longitudinal and transverse grids to the architectural floor plans
• And add the dimensions to the architectural plans

• draw the longitudinal and transverse grids to the Structural floor plans .
• and add the dimensions to the Structural plans.
• column size 9"x9' and floor thickness 1'.

RESULT:-

5) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views

AIM:- To create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views.

PROCEDURE:-

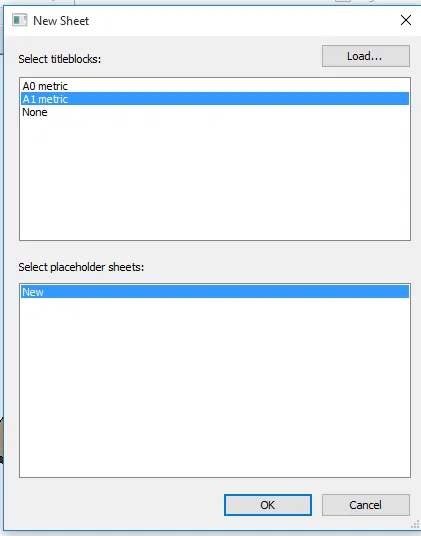

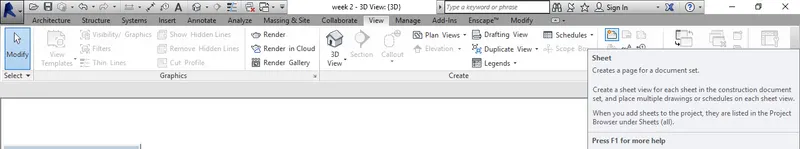

• First we click on the sheet option from the view toolbar.
• After clicking the sheet, The new tab will be visible on the screen.
• In that new tab we select the A1 metric, then the sheet template.

• In the sheet template we insert the first floor plan and second floor plan separately.

RESULT:-

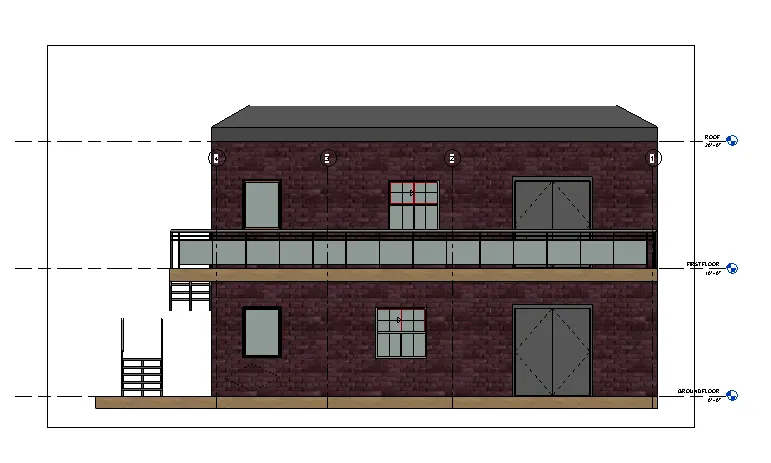

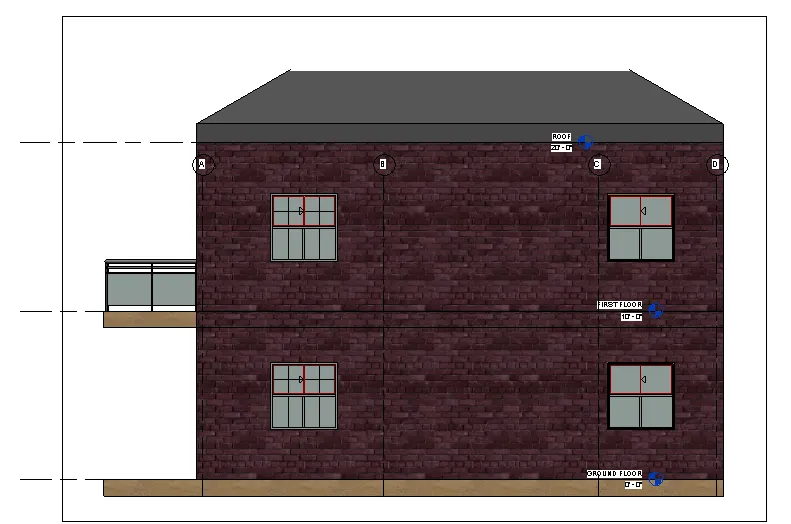

6.Using the elevation tab create the elevation views, looking at your building from East, North, South, and West.

AIM:- To create the elevation views, looking at your building from East, North, South, and West using the elevation tab.

PROCEDURE:-

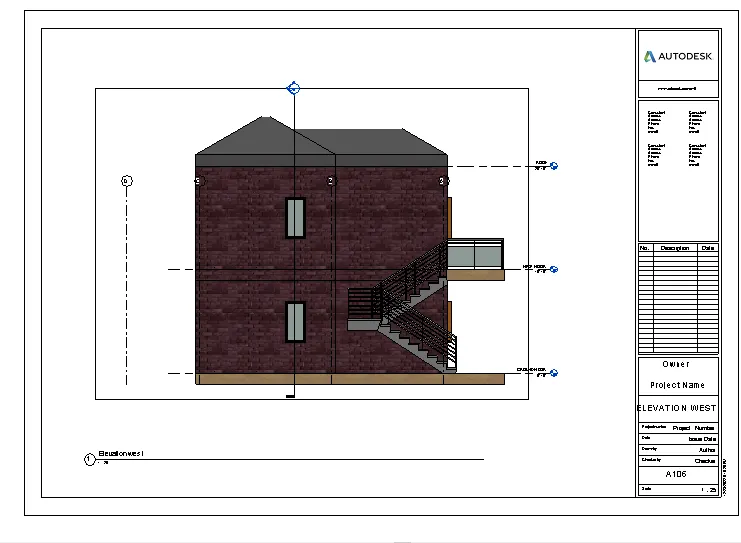

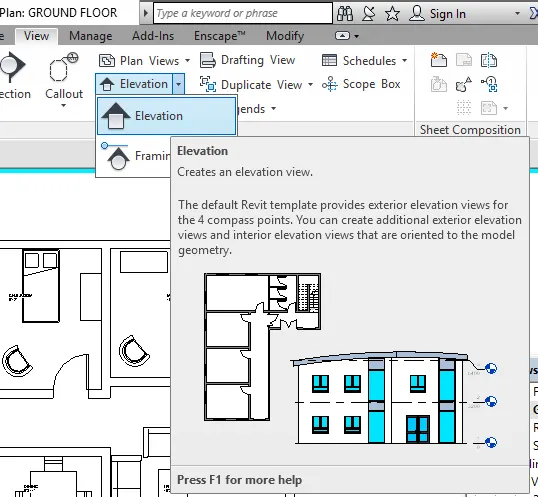

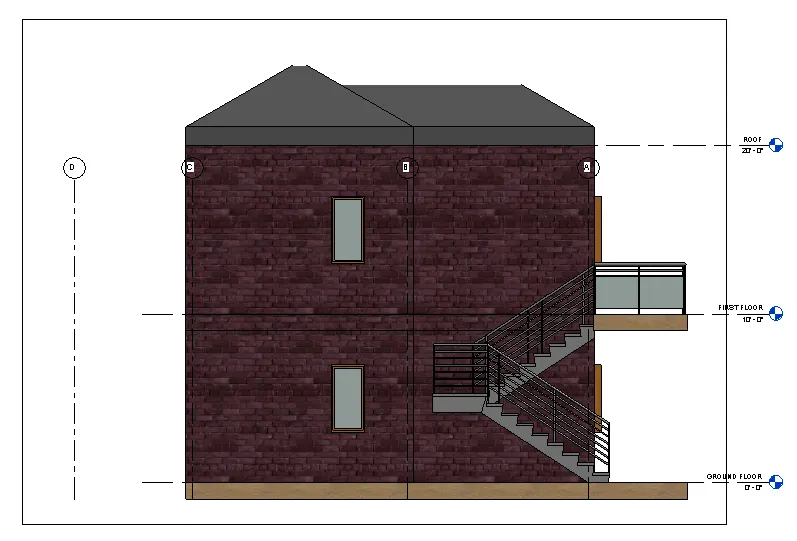

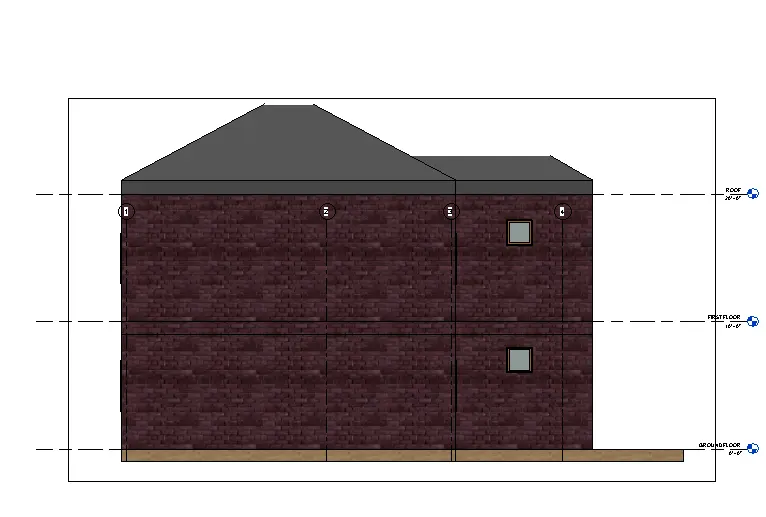

• First click on the elevation option from the view toolbar,

• Next the elevation from the east will be visible,

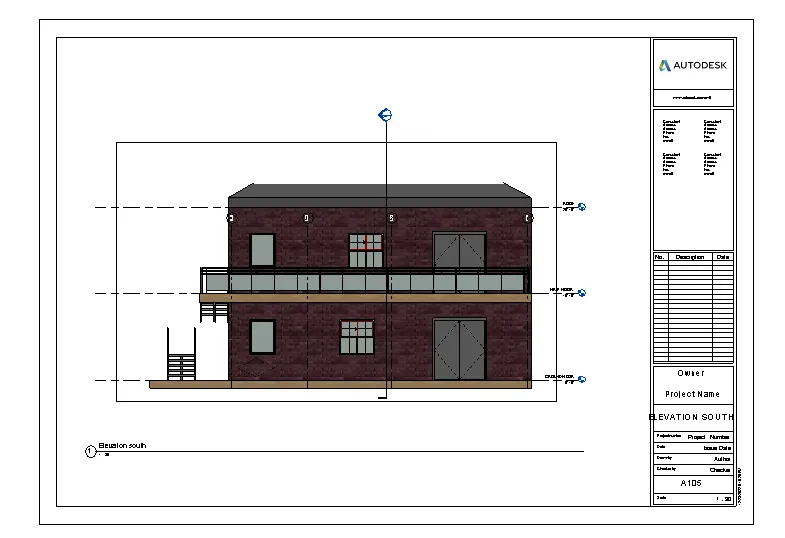

• Next the elevation from the south will be visible on the screen

• Next the elevation from the North will be visible on the screen.

• Next the elevation from the North will be visible on the screen

RESULT:-

7) Produce section cut through each room either cutting across longitudinally or in a transverse direction.

AIM:- To produce section cut through each room either cutting across longitudinally or in a transverse direction.

PROCEDURE:-

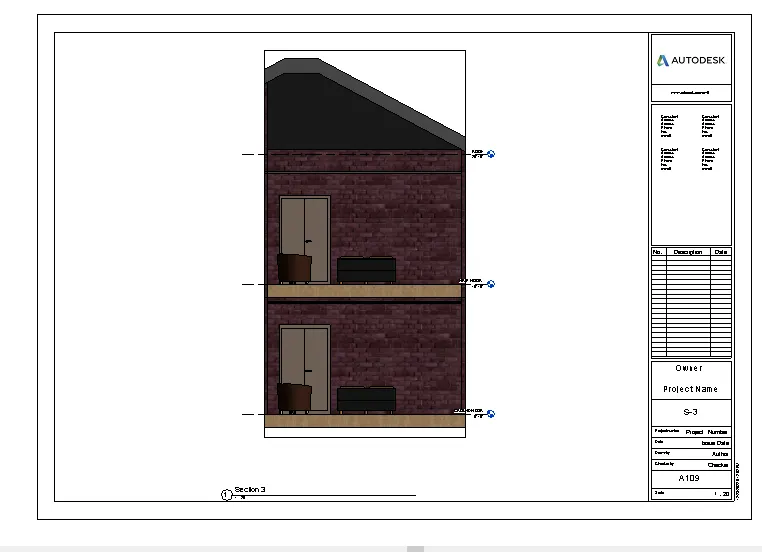

• First click on the section option from the view toolbar.
• Next we produce the section view of the bath room.

• Next we produce the section view of the bed room.

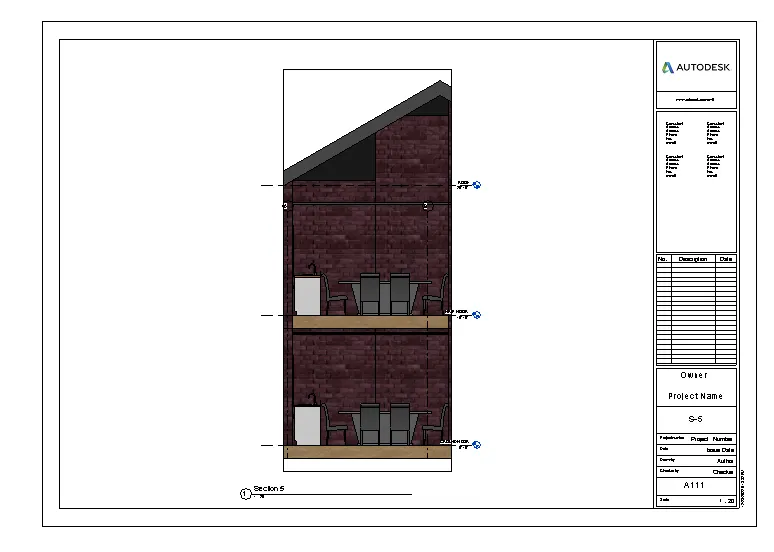

• Next we produce the section view of the living room.

• Next we produce the section view of the dining and kitchan room.

RESULT:-

8) Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser.

AIM:- To classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser.

PROCEDURE:-

• First we open the project browser, the views, Plan Views, Section Views, and Elevation views are visible in that project browser as shown below.
• Next we insert these plans one by one in the sheets separately.

• First we insert the front elevation in the sheet template,

• Next we insert the left side elevation in the sheet template,

• Next we insert the left side elevation in the sheet template,

• Next we insert the back side elevation in the sheet template,

• Next insert the ground floor plan in the sheet template,

• Next insert the first floor plan in the sheet template,

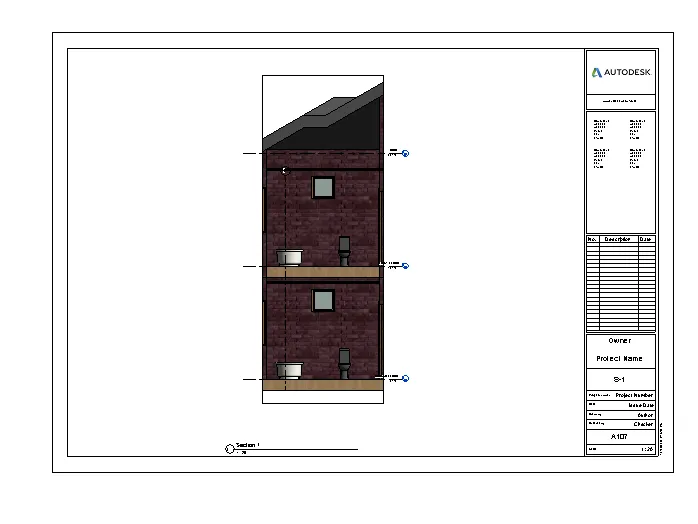

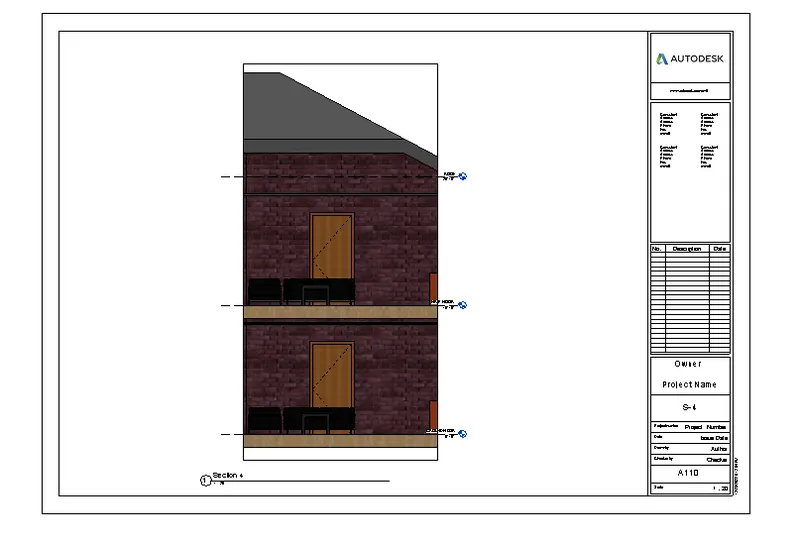

• Next insert the section-1 in the sheet template,

• Next insert the section-2 in the sheet template,

• Next we insert the section-3 in the sheet template,

• Next we insert the section-4 in the sheet template,

RESULT:-

9) Using the sheet template produced create multiple sheets as follows
a. A 101- Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan
c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan
f. S 103- Roof Framing Plan
g. A-201- North-South Elevations
h. A-202- East-West Elevations

Add additional sheets based on the sections created in your Revit file

AIM:- To create the multiple sheets and produce the drawings in the sheets, from the given drawing list.

PROCEDURE:-

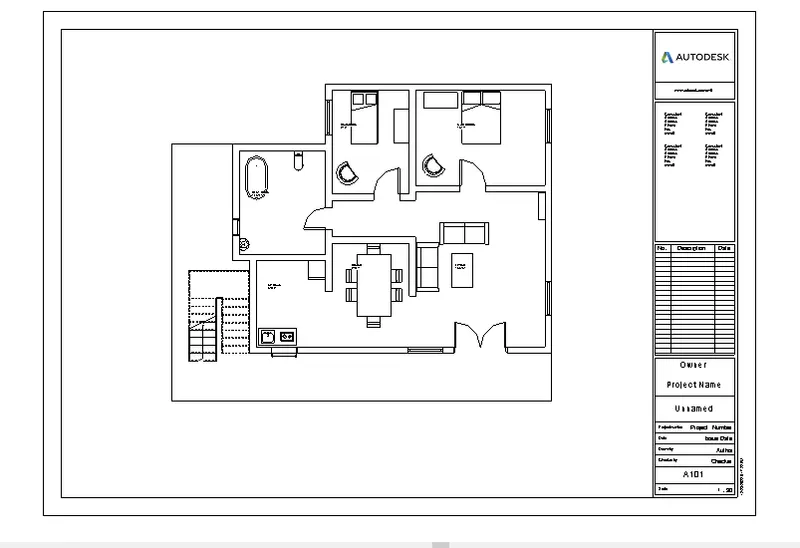

a. A 101- Ground Floor Architecture Plan

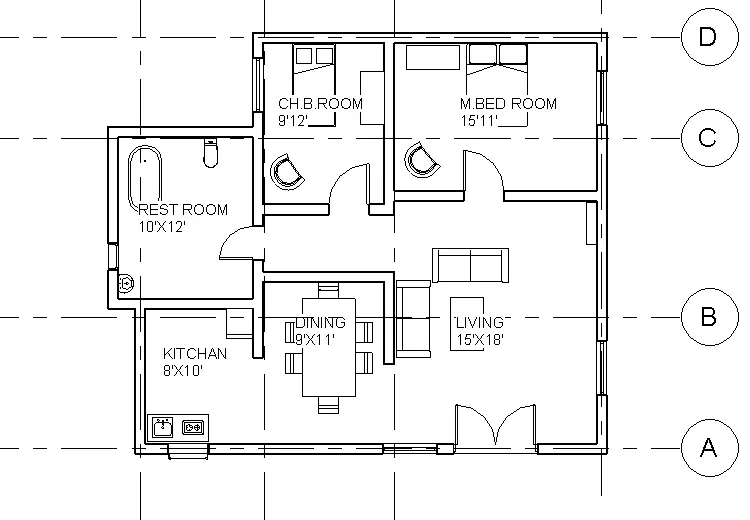

the ground floor architectural plan in the sheet template A-101,

b. A 102- First Floor Architecture Plan

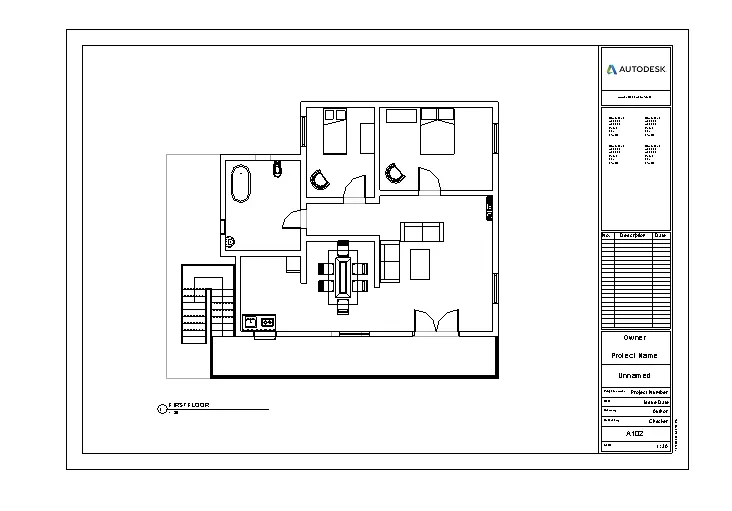

the first floor architectural plan in the sheet template A-102,

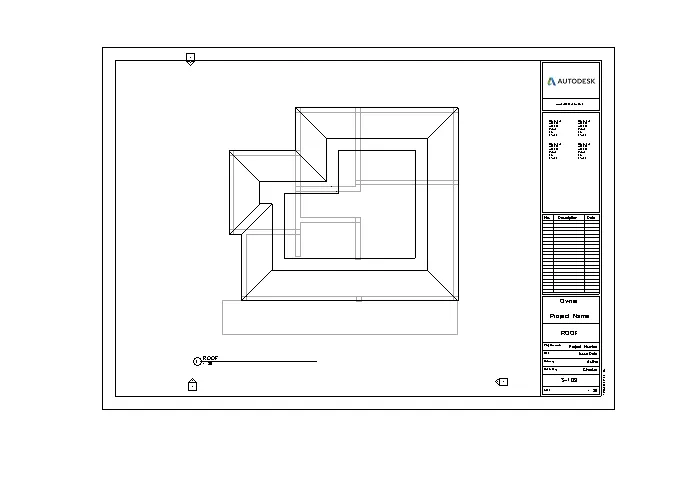

c. A 103- Roof Plan

the Roof plan in the sheet template A-103,

d. S 101- Ground Floor Structural Plan

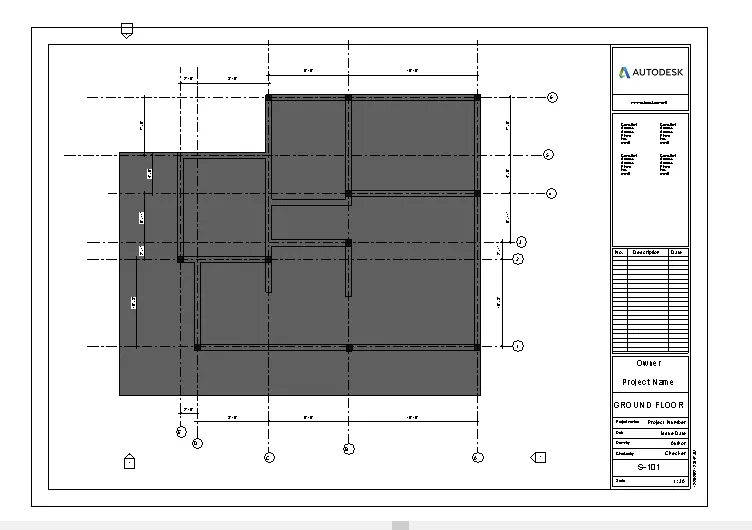

the Ground floor structural plan in the sheet template S-101,

e. S 102- First Floor Structural Plan

the first floor structural plan in the sheet template S-102,

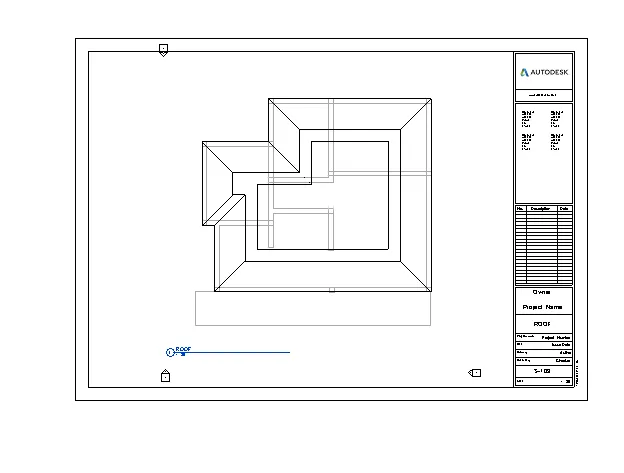

f. S 103- Roof Framing Plan

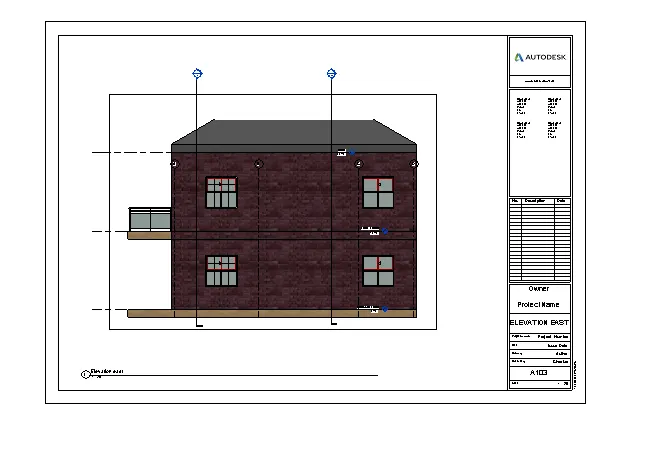

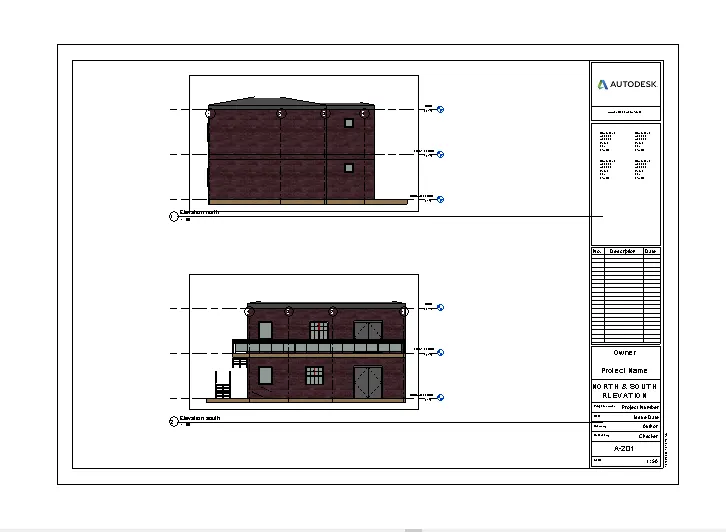

g. A-201- North-South Elevations

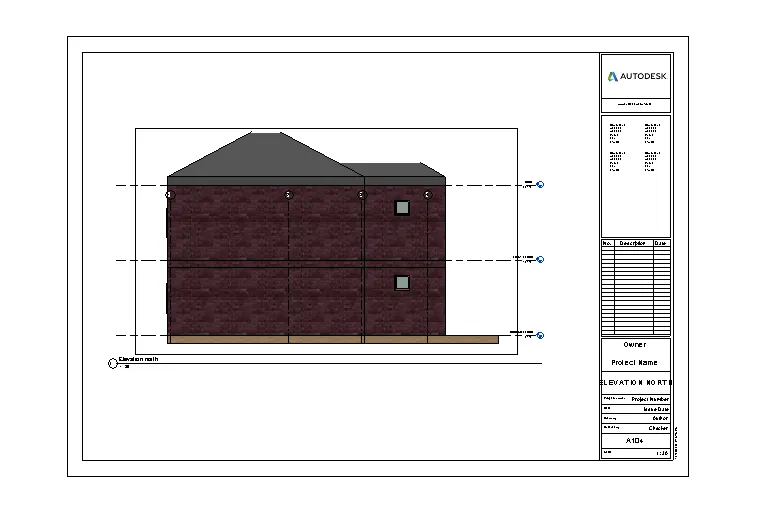

the North and south elevation views in the sheet template A-201,

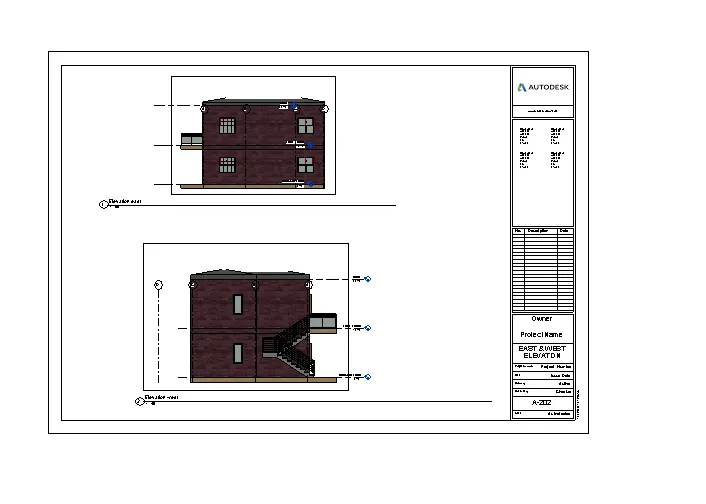

h. A-202- East-West Elevations

the East and West elevation views in the sheet template A-202

RESULT:-

10) Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.

AIM:- To create a camera-specific view or a 3D view in living room, dining room and bedroom in the sheets separately.

PROCEDURE:-

• First take the sheet and name it as A-501.
• Next go to the floor plan and place the camara in the bed room, and the camera view of bed room.

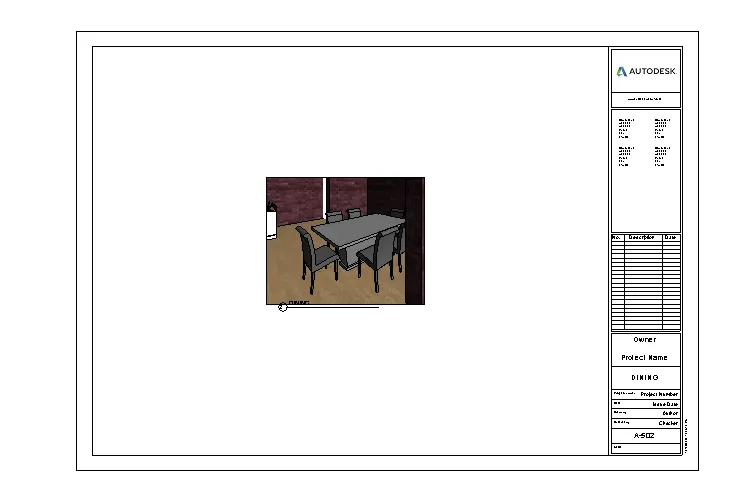

• Next take the sheet and name it as A-502.
• Next go to the floor plan and place the camara in the Kitchen room.

• Next take the sheet and name it as A-503.

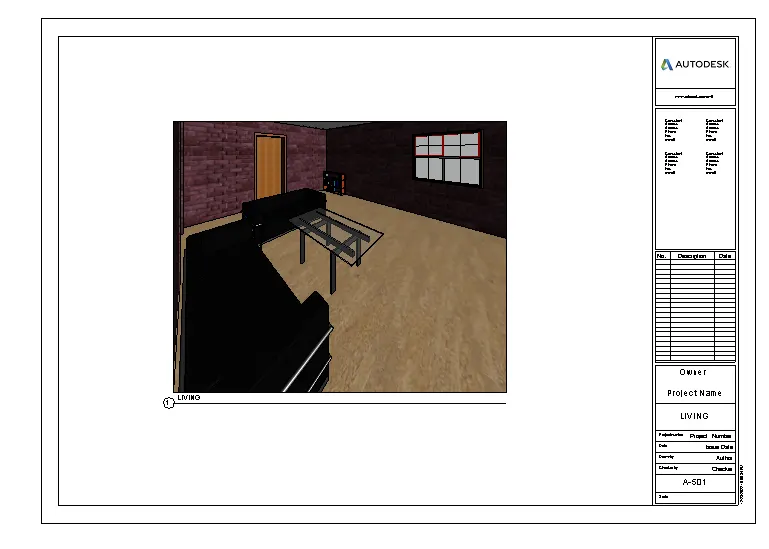

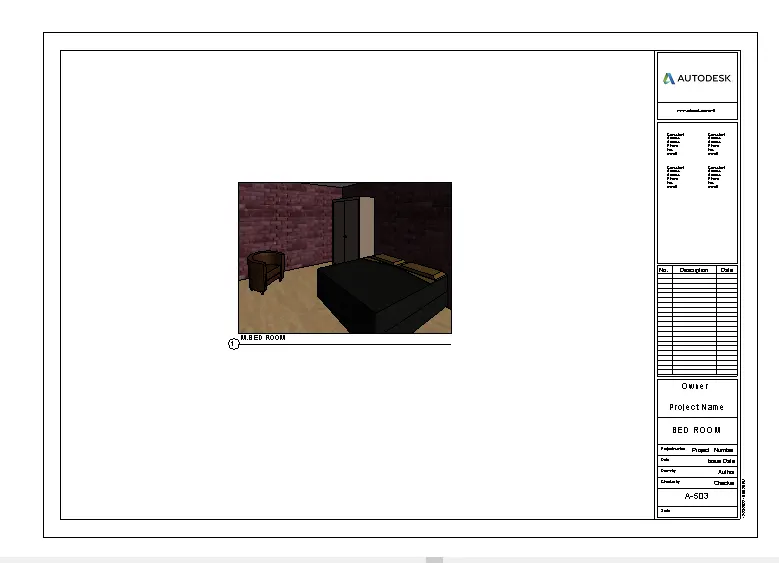

• Next go to the floor plan and place the camara in the Living room, and the camera view of Living room

RESULT:-
