18. Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

Aim : To define connectors & connector clip data as Electrical Connector using Electrical Part design workbench & define all necessary properties to connectors & clip.

Procedure :

a) Creating Connectors connections

1) Open the connector in part design

2) Define Harness bundle point at the entry point of wire bundles of connectors.

3) Define Connectivity axis system on the mating face where the male & female connectors contact.

4 )The axis system must be defined such that the

• Y axis should point towards front face of the connector
• X axis should be pointing in the direction towards locking mechanism of the clip.
• Z axis should be pointing across the connectors from left to right.

5) Define proper clip axis system on the mating point of the mounting clip for connector.

6) Now open the part in electrical part design to define necessary electrical properties. It requires 4 properties to be defined for connectors.

7) To define part as Connector use connector command & define the part, its type & no. of terminations.

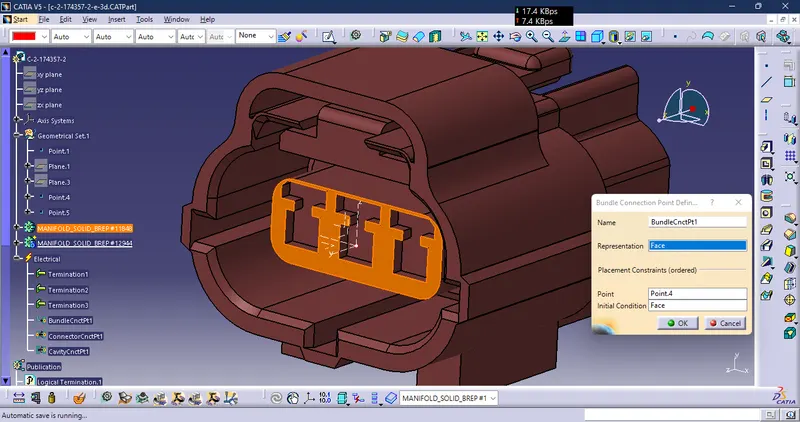

8) To define bundle connection point use bundle connection point command &

1. define the part,
2. representation (which is the entry face of the connector),
3. point (which is the bundle entry point defined in part design),
4. Initial condition (which is the same face as selected in representation).

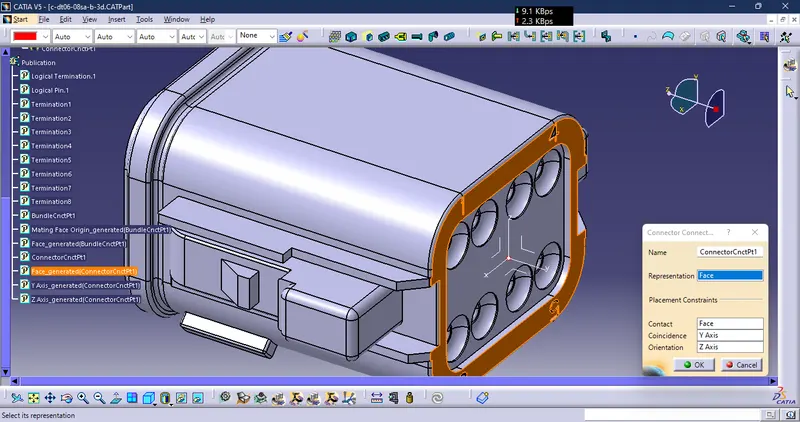

9) To define connector connection point use connector connection point command &

1. define the part,
2. representation (which is the connector connection point),
3. contact (which is the mating face with another connector),
4. coincidence (which is the Y axis),
5. orientation (which is the X axis).

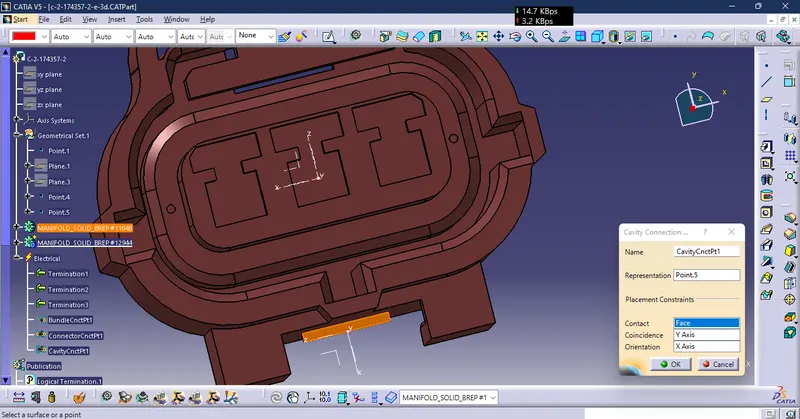

10) To define cavity connection point use cavity connection point command &

1. define the part,
2. representation (which is the cavity connection point),
3. contact (which is the mating face with connector clip),
4. coincidence (which is the Y axis),
5. orientation (which is the X axis).

11) Hence both the connectors are defined as electrical parts as in the images below.

1.Deutsch DT06 – 08SA

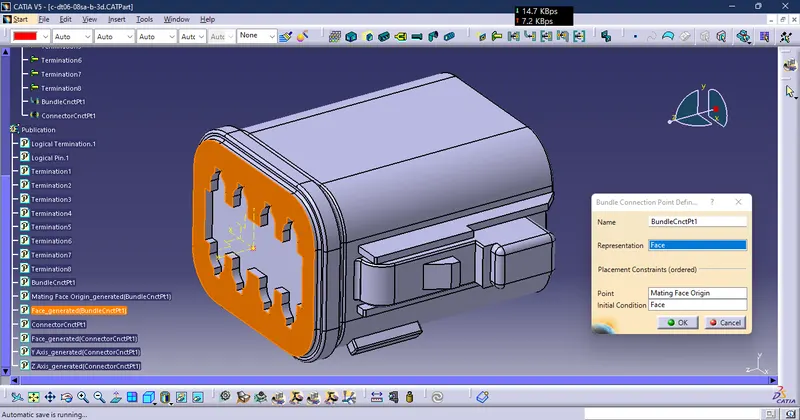

BUNDLE CONNECTION POINT DEFINATION

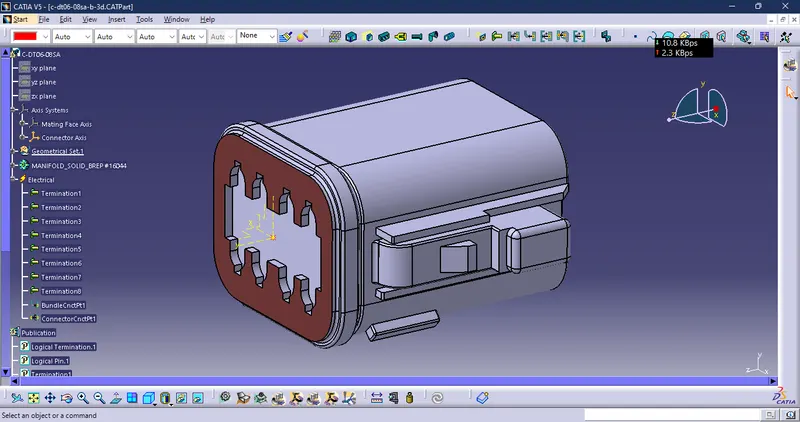

CONNECTOR CONNECTION POINT DEFINATION

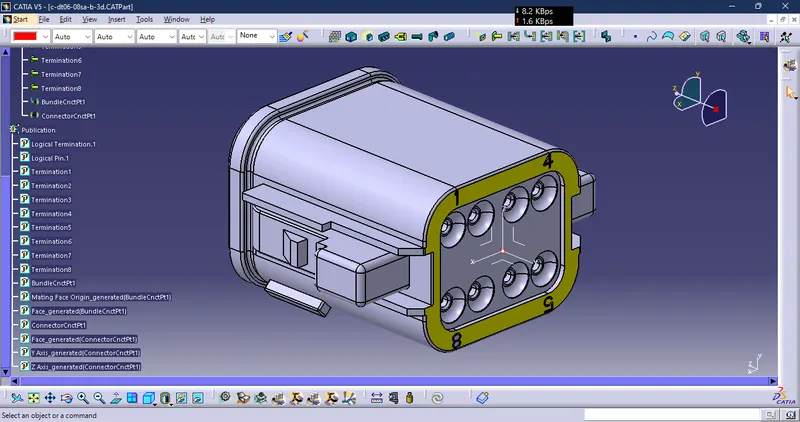

FINAL REPRESENTATION BEFORE ADDING TO CATLOG

b) Creating Mounting or connector clips connections

1) Open the mounting clip in the part design

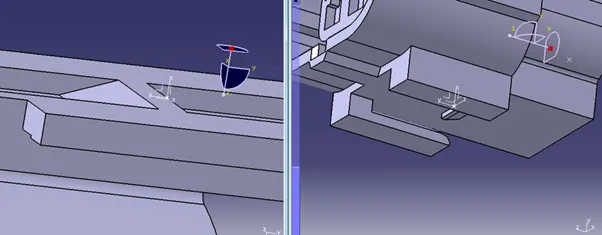

2) Define proper clip axis system at the mating point of the connector connection on the mounting clip. Ensure same axis system directions as provided in the mating part (connector).

3) Go to Electrical part design

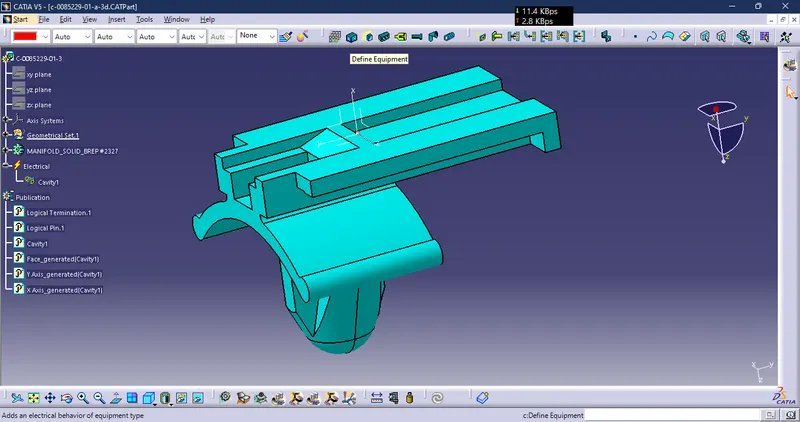

4) To define clip as mounting equipment use mounting equipment command & define the part.

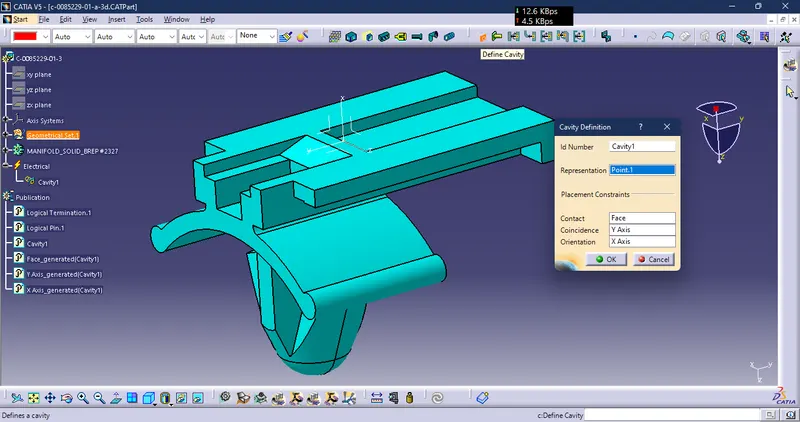

5) To define clip as cavity use cavity command &

1. define the part,
2. representation (which is the cavity connection point upon the clip),
3. contact (which is the mating face with connector),
4. coincidence (which is the Y axis),
5. orientation (which is the X axis)

6) Hence the clips are defined as electrical parts as in the image below

Tyco 174357-2

BUNDLE CONNECTION POINT DEFINATION

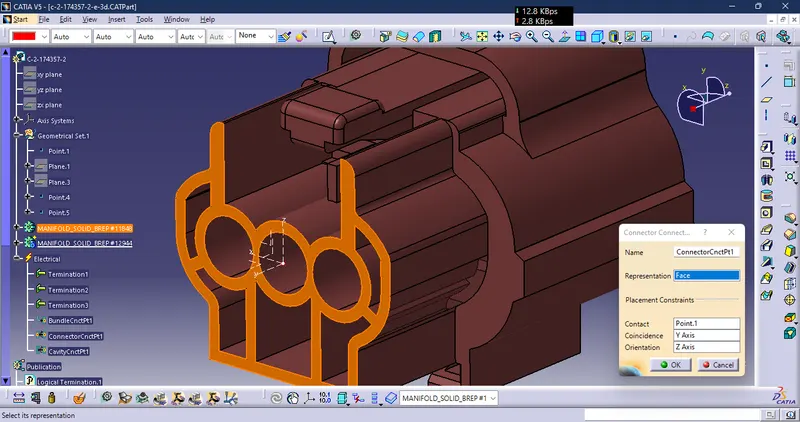

CONNECTOR CONNECTION POINT

CAVITY CONNECTION POINT

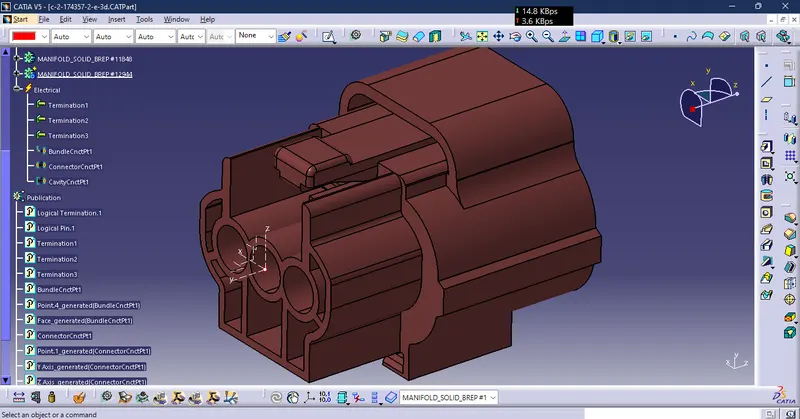

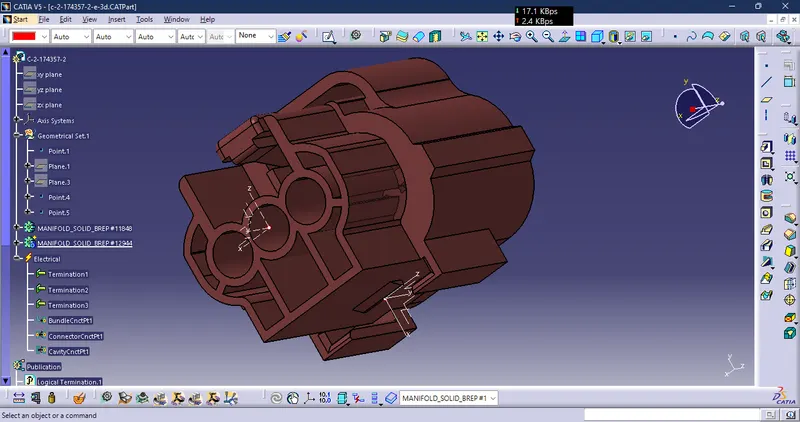

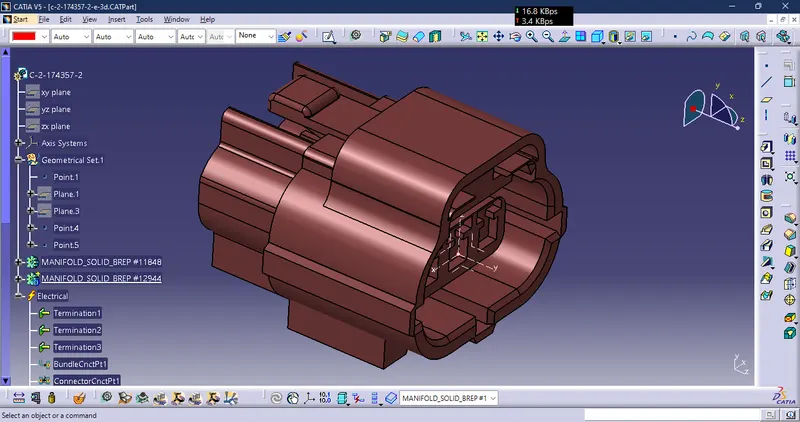

FINAL REPRESENTATION OF CONNECTOR Tyco 174357-2

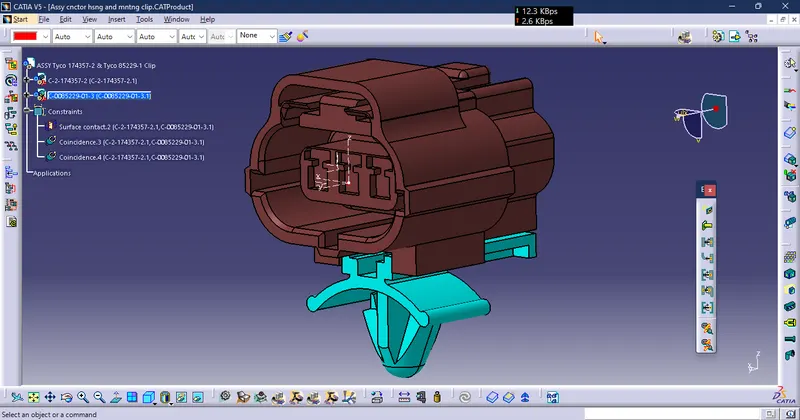

ASSY Tyco 174357-2 & Tyco 85229-1 Clip

1. First define both Tyco 174357-2 & Tyco 85229-1 in their own Part Workbenches Electrically and Mechanically respectivally.

2. Copy them one by one and paste them in "Mechanical assembly workbench" or "Electrical Assembly design"

3. COMPAIR BOTH THE PART AND MAKE SURE THE DIRECTION OF X AND Y SHOULD BE SAME .

4. Define tyco 85229-1 as equipment in electrical part workbench.

5. ADD CAVITY BECAUSE THIS IS GOING INSIDE THE CAVITY.

6. While in electrical assembly workbench try to manupulate parts using compass after getting them in proper parallel face

7. At last try to align them with the help of "connect electrical devices" option final assembly will look like this

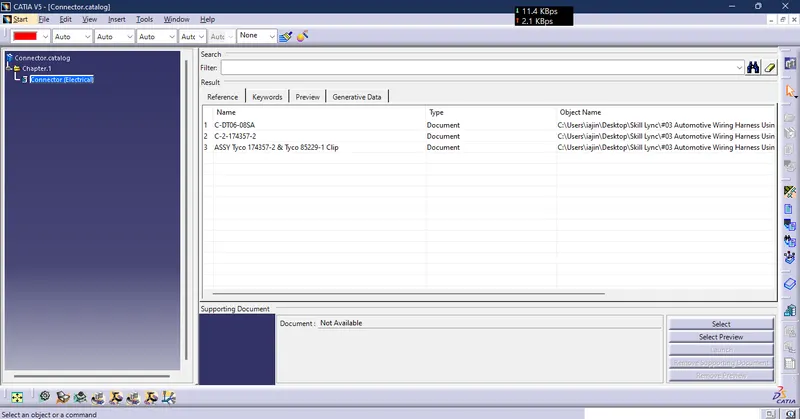

8. After everything gets done try to add each Connector Individually In Catlog using "Store Device" Option.

FINAL CATLOG BROWSER

ALL FILES ARE ATTACHED BELOW
