Wiring harness routing & packaging Rules Week 3 Challenge

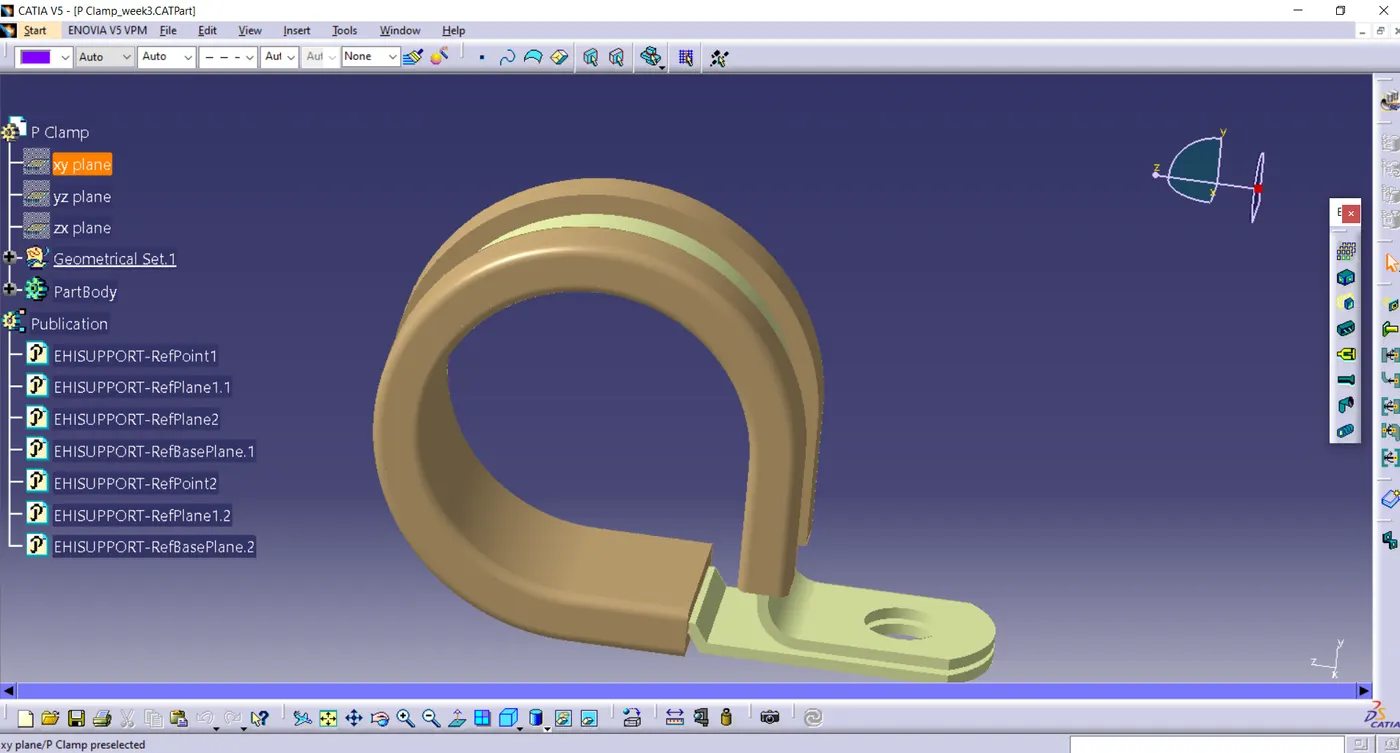

Q1. Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.

Sol.

Design Procedure:

• -Using the Part design model, create points and plane.
• -After determining the points and planes open the file in Electrical Part design
• -Now define the part as a Support using the Define support Part.
• -And use the support definition again to give an entry point on the opposite side by selecting the point opposite of the first support definition while keeping the base plane the same.

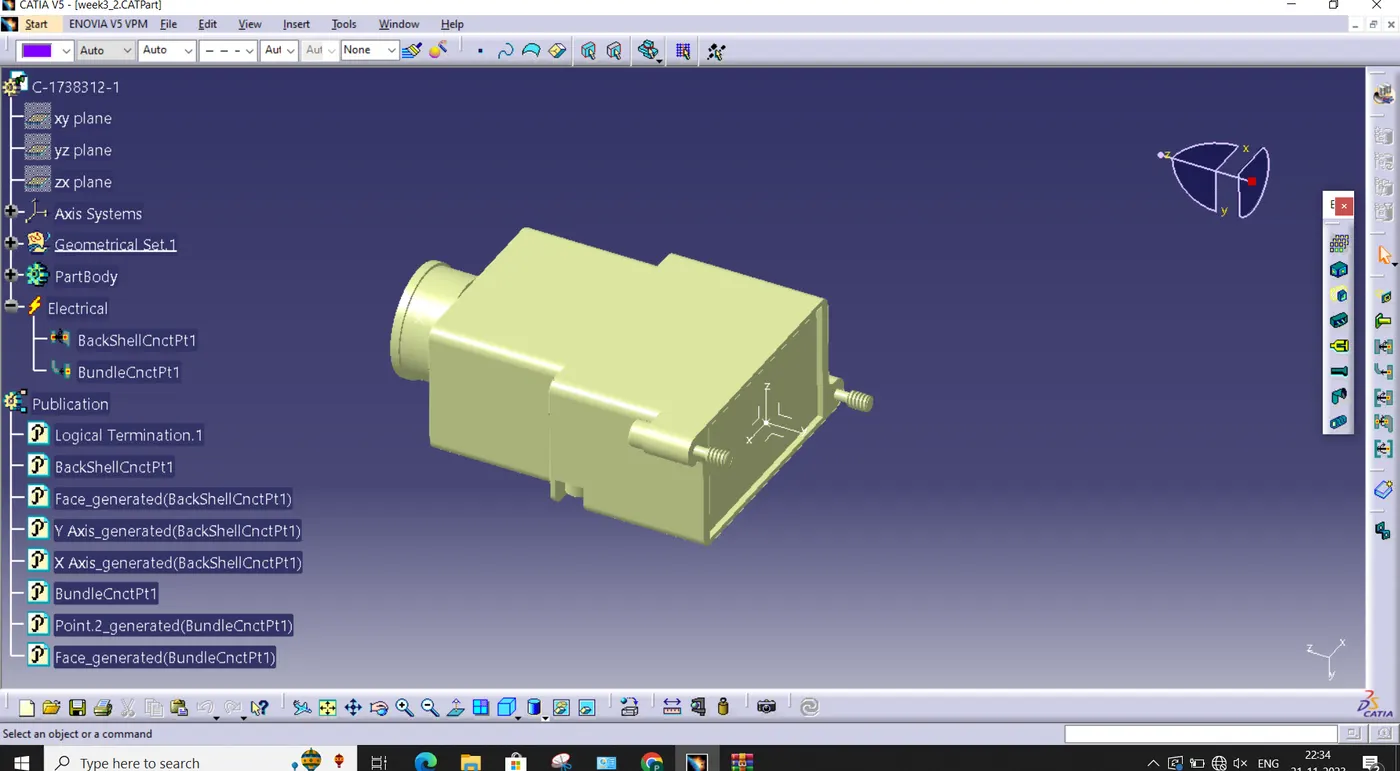

Q2. Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.

Sol.

Design Procedure:

• -Using the Part design model, define 2 points as the Bundle entry and Connector connection point with Axis
• -After determining the points and planes open the file in Electrical Part design
• -Now define the part as a Backshell using Define Back shell Feature
• -then define the connection points.
• -End, where the Back shell is connected with the connector, is defined using Define Back Shell Connection Point Feature
• -End where the bundle is connected to the back shell defined using Define Bundle Connection Point Feature

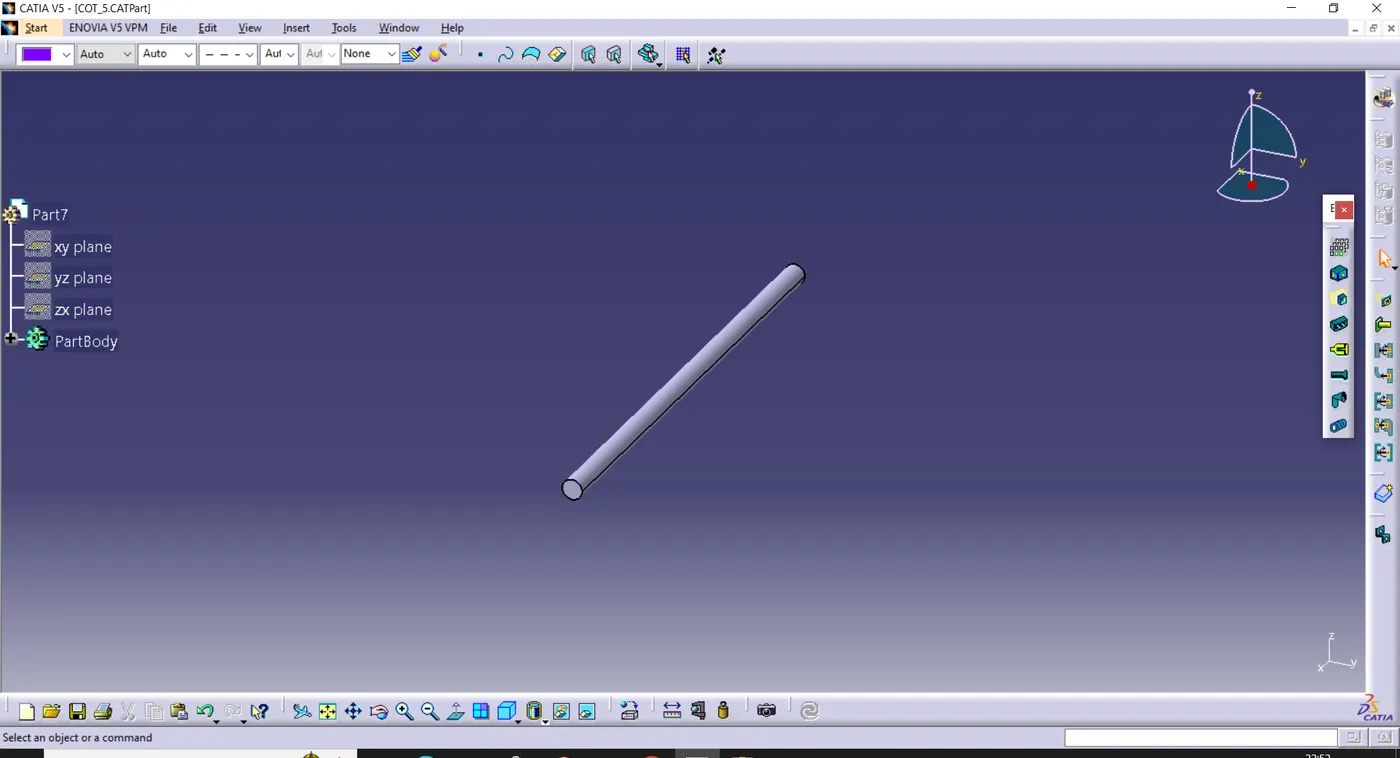

Q3. Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.

Sol.

Steps:

• -Using Define Protection Part
• -Select the type as Corrugated Tube
• -Give the Required Parameters (Inner dia, Thickness, Bend Radii)
• *Bend Radius can be appro. 1.5times the daimeter of tubes
• -After giving the necessary properties Save the file in spli_cot catalouge folder.
• -repeat steps for different daimeters.
