Wiring harness routing & packaging Rules Week 3 Challenge

P CLAMP WIYH ELECTRICAL SUPPORT PROPERTY :

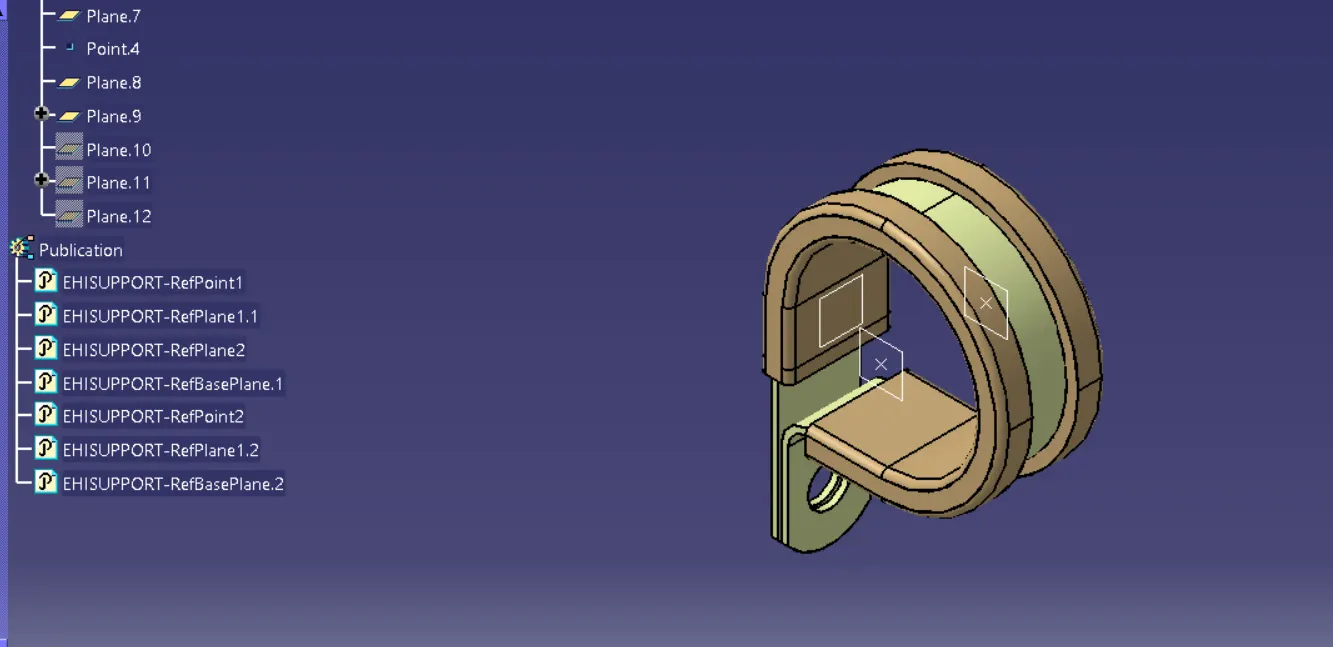

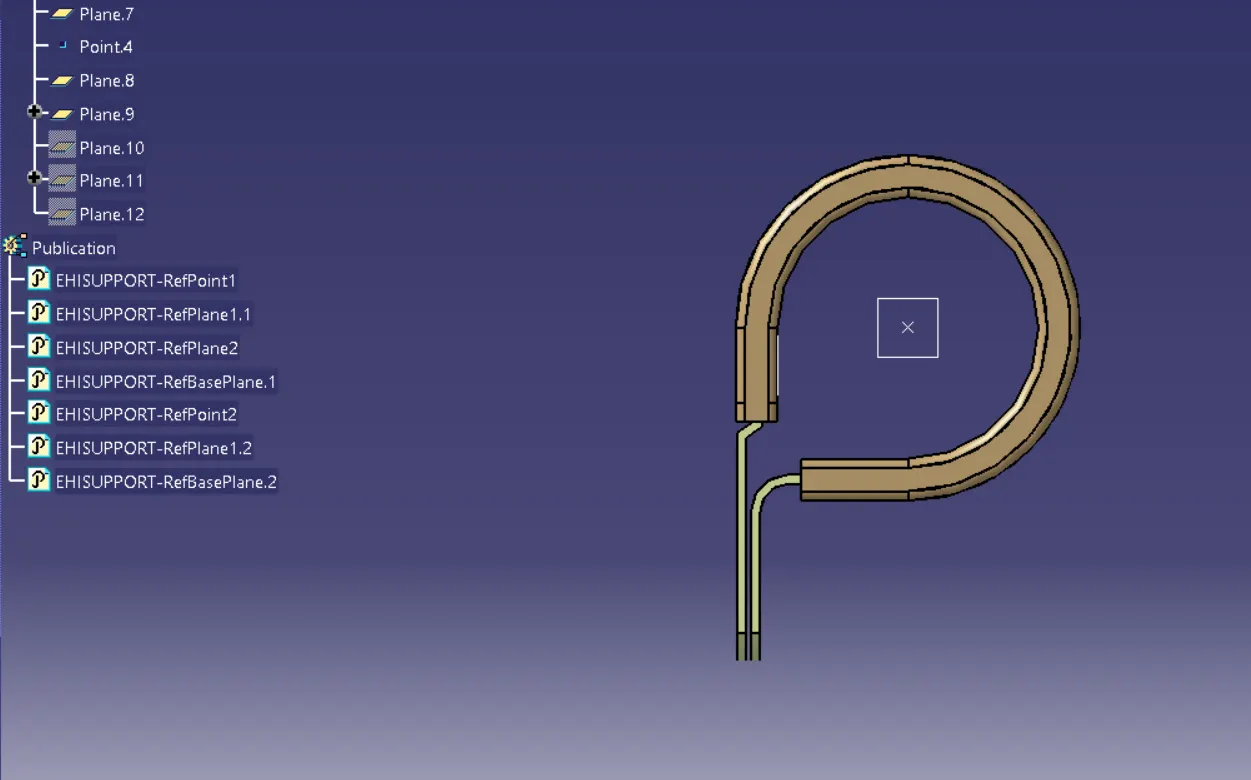

FRONT VIEW:

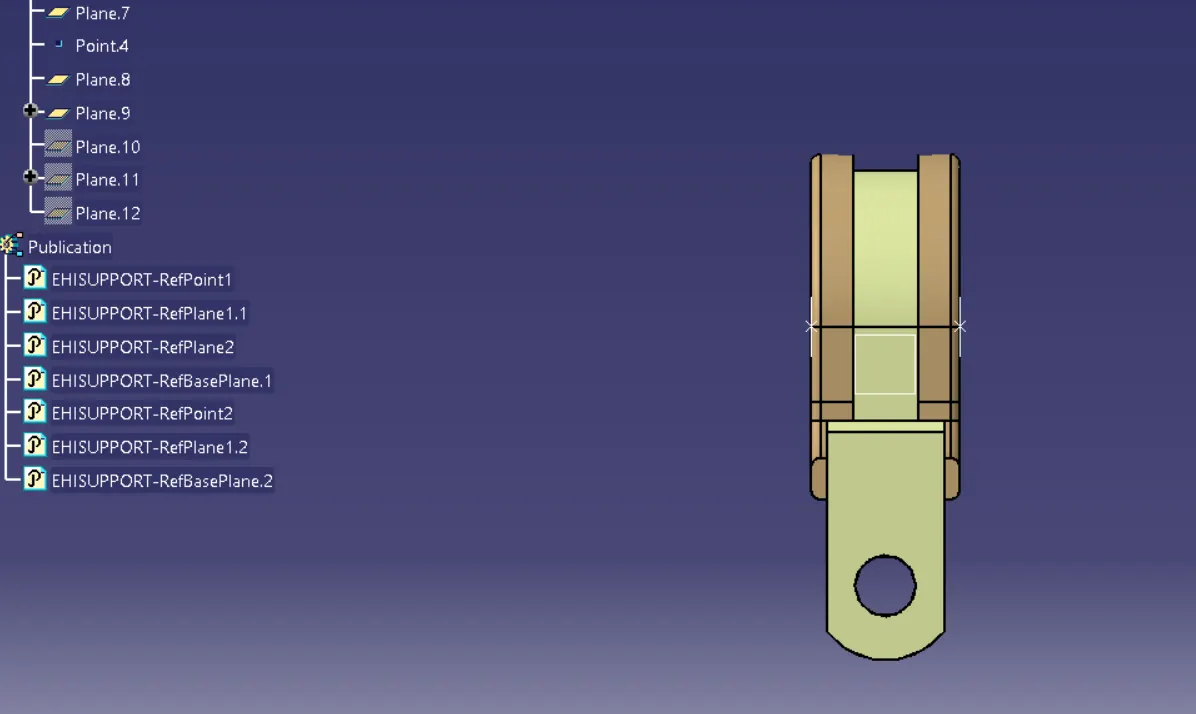

SIDE VIEW:

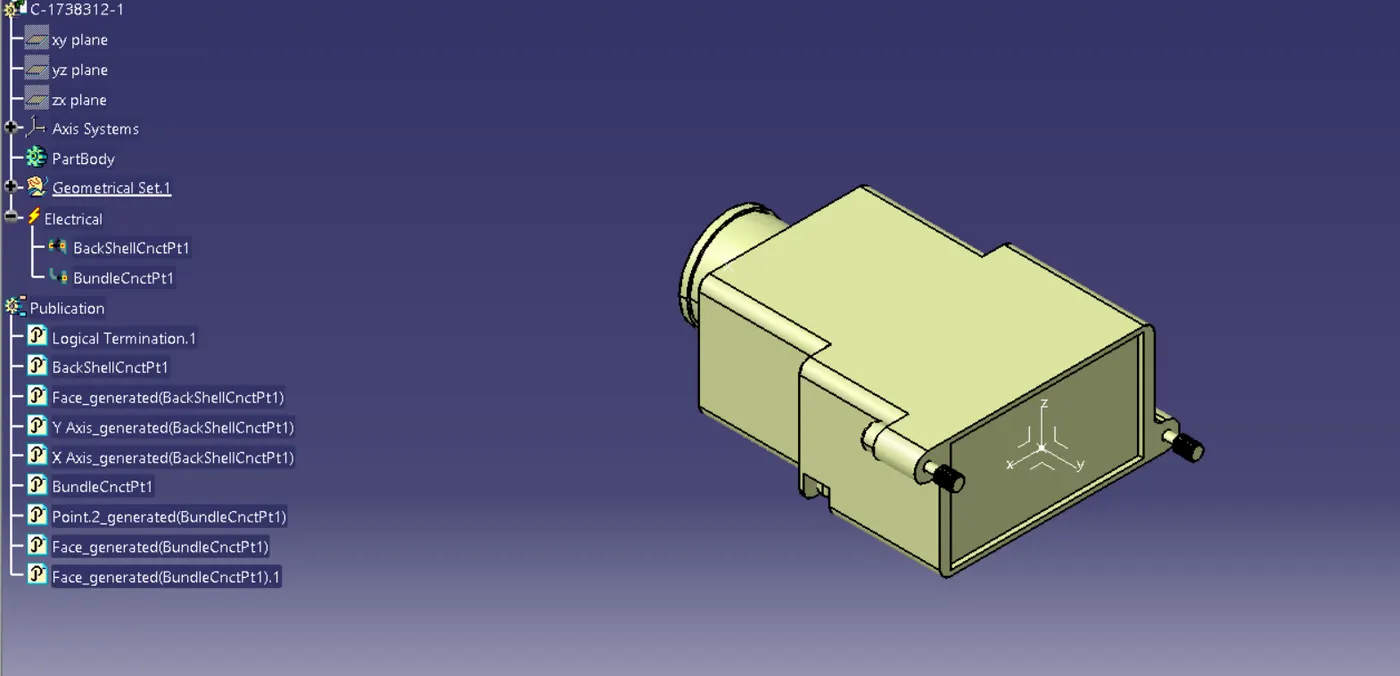

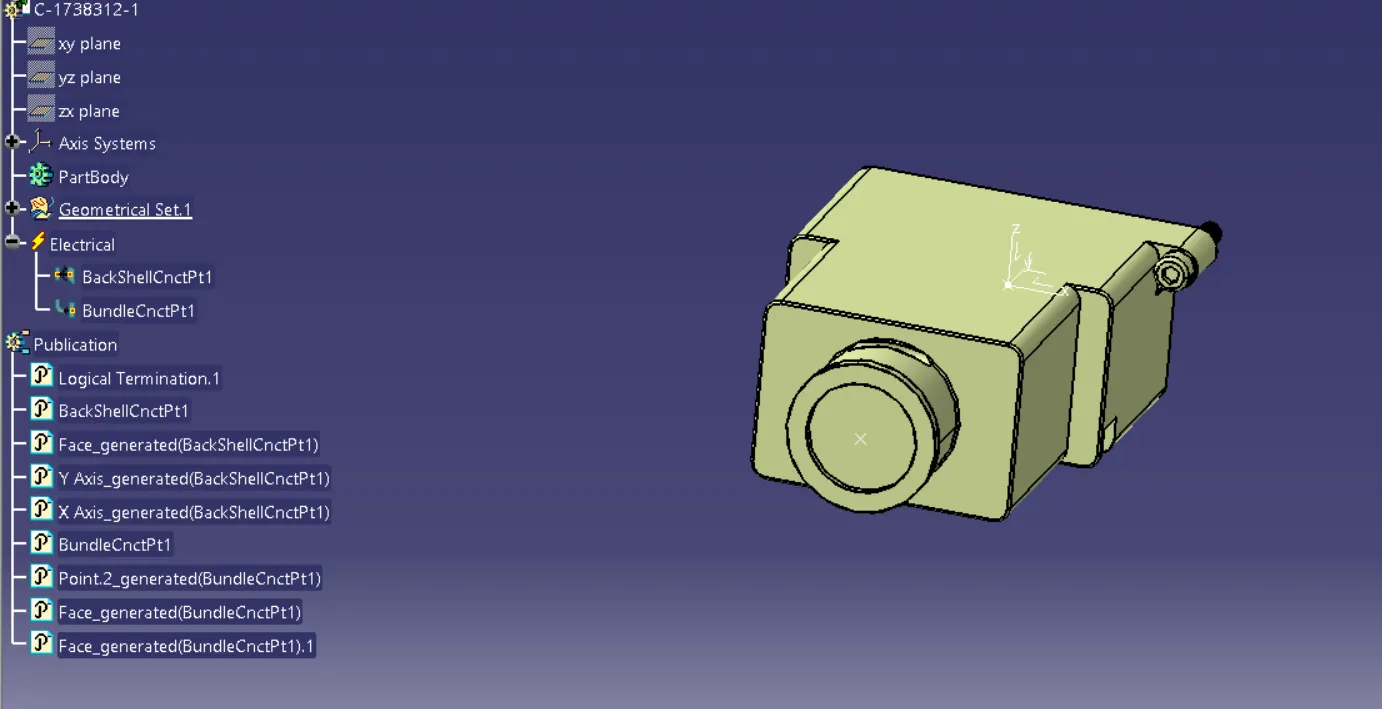

ELECTRICAL BACK SHELL WITH BACK SHELL CONNECTION POINT AND BUNDLE CONNNECTION POINT:

CORRUGATED TUBES:

The corrugated tubes  bending radius is more than inner diameter.

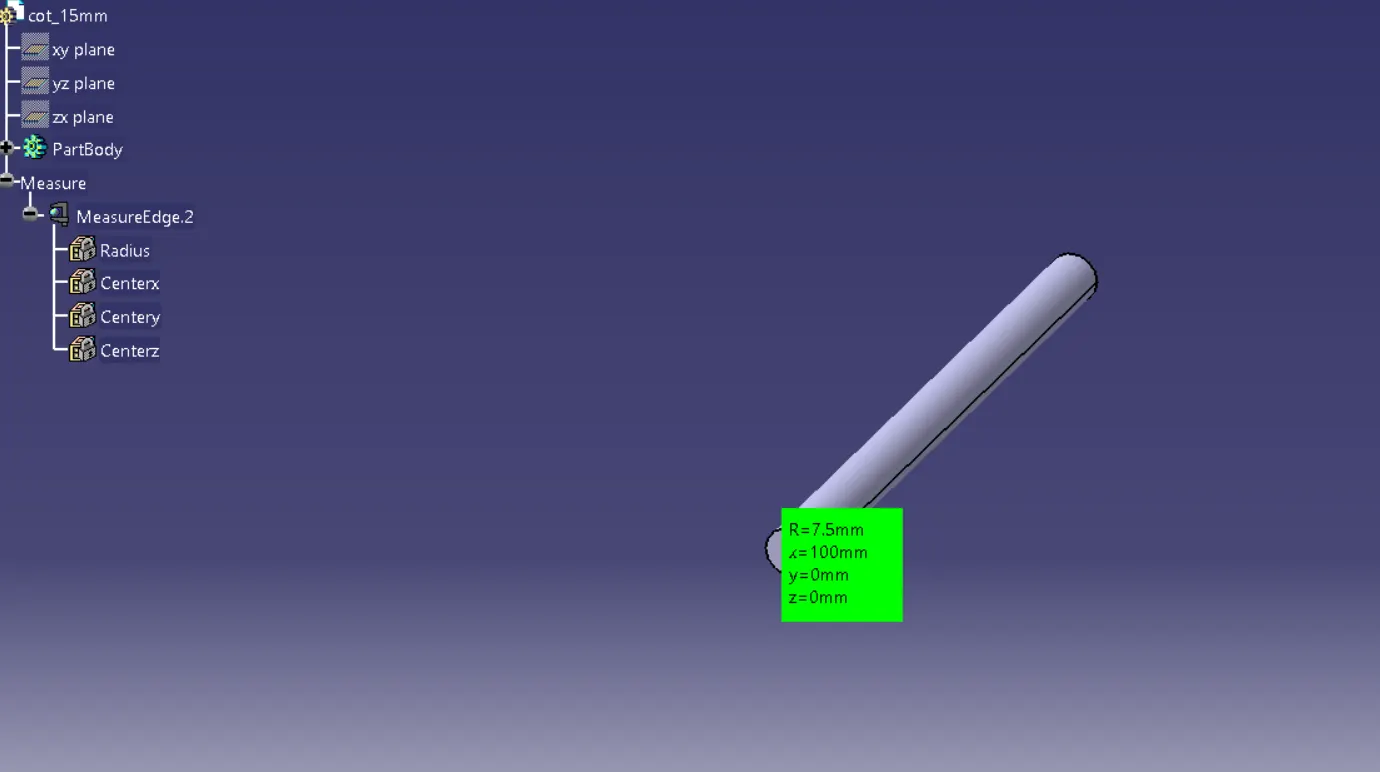

COT_15mm:

BENDING RADIUS=18mm

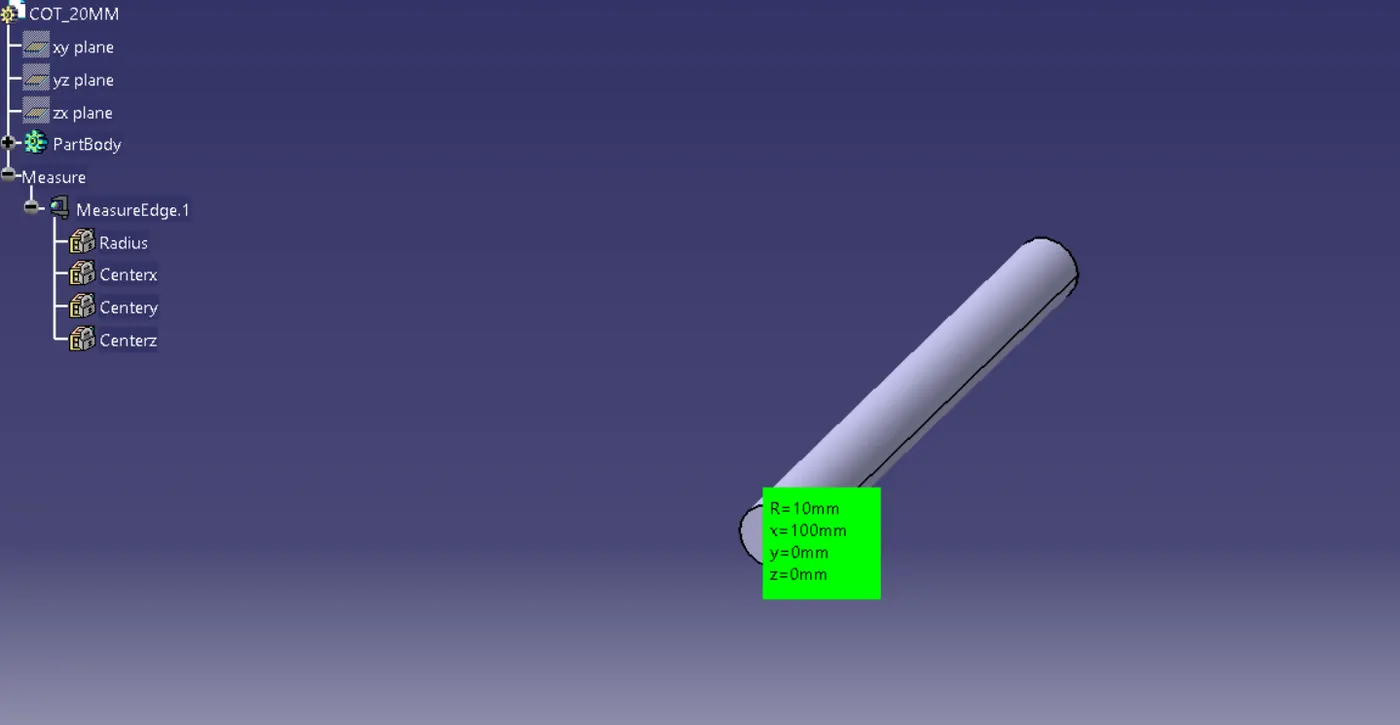

COT_20mm:

BENDIN RADIUS=25.5mm

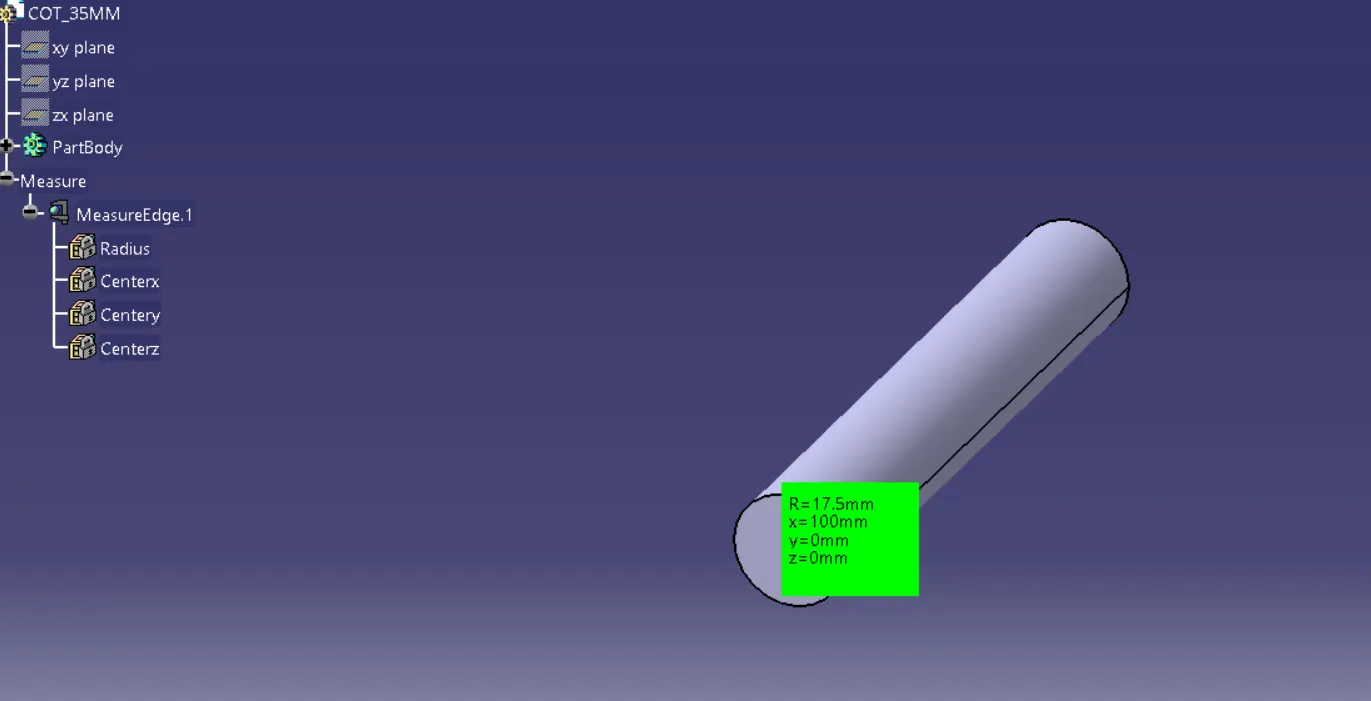

COT_35mm:

BENDING RADIUS=48mm

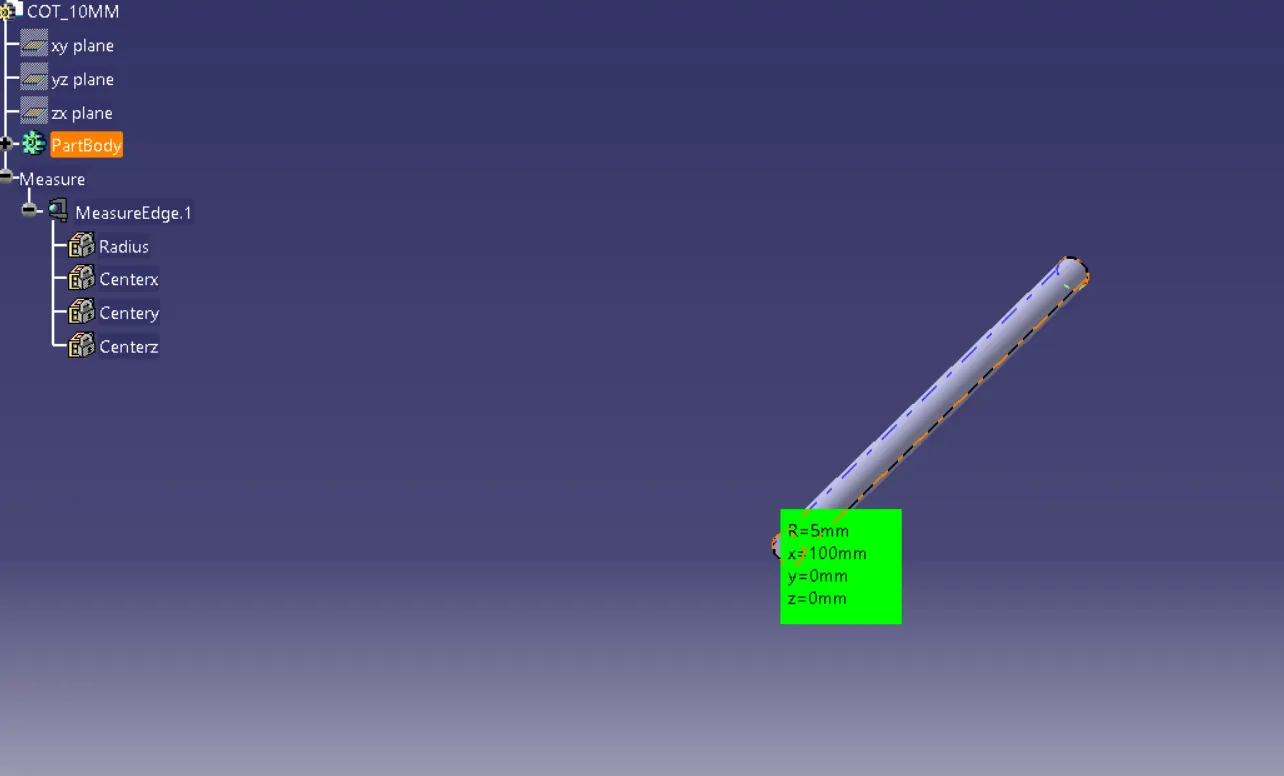

COT_10mm:

BENDING RADIUS=10.5mm

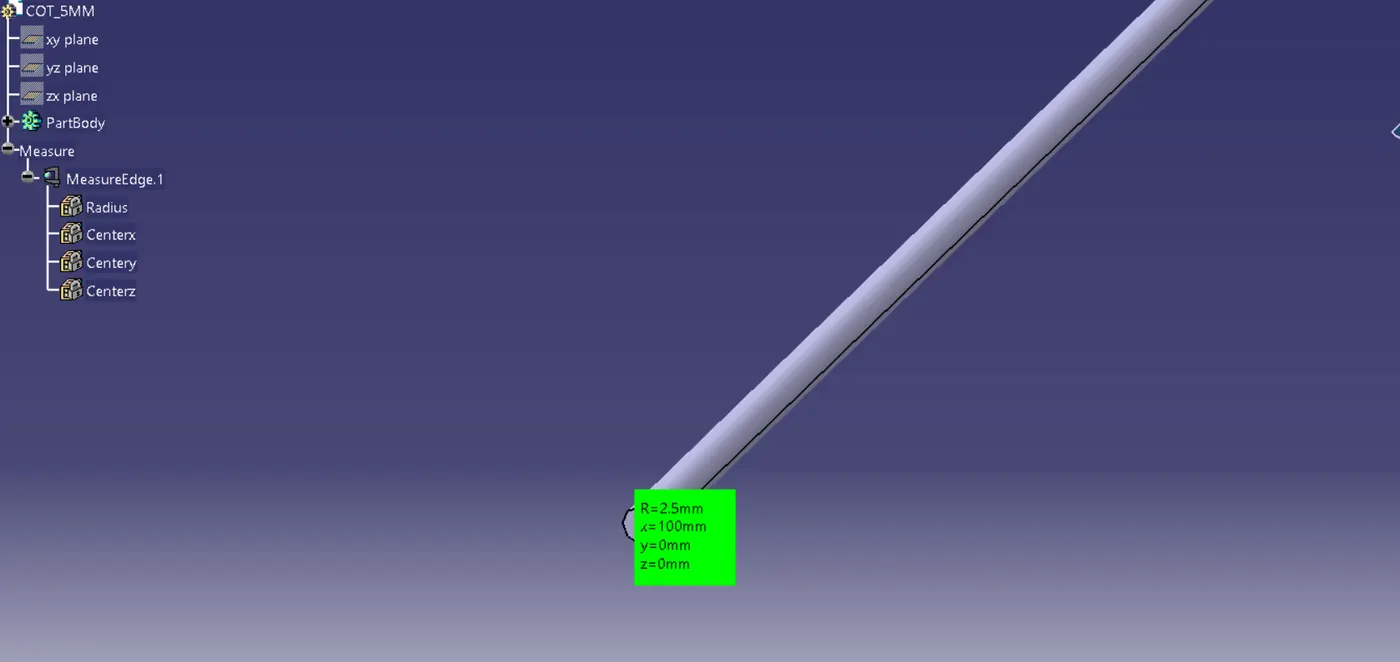

COT_5mm:

BENDING RADIUS=7.5mm

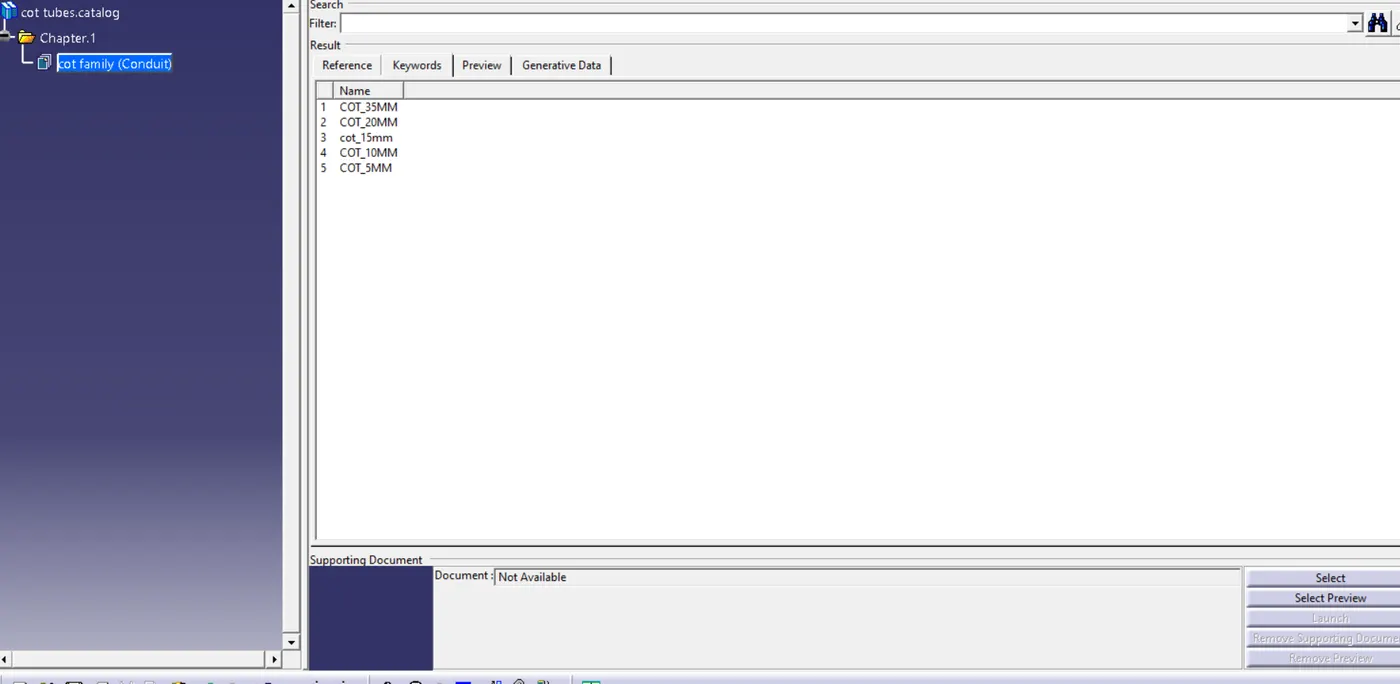

CATALOGUE FOR CORRUGATED TUBES:
