Wiring harness routing & packaging Rules Week 3 Challenge

P- CLAMP

p-clamps are one-piece clips made from metal or plastic that mechanically fasten electrical cables,

hydraulic hoses or pipes along their route.

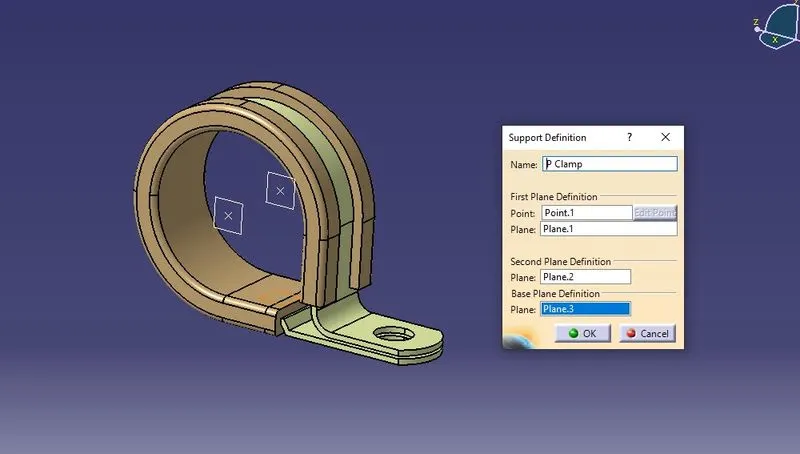

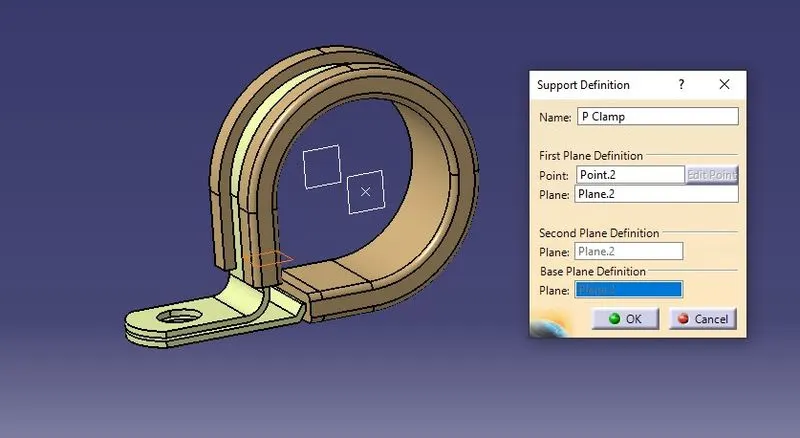

SUPPORT DEFENITION

ENTRY 1

ENTRY 2

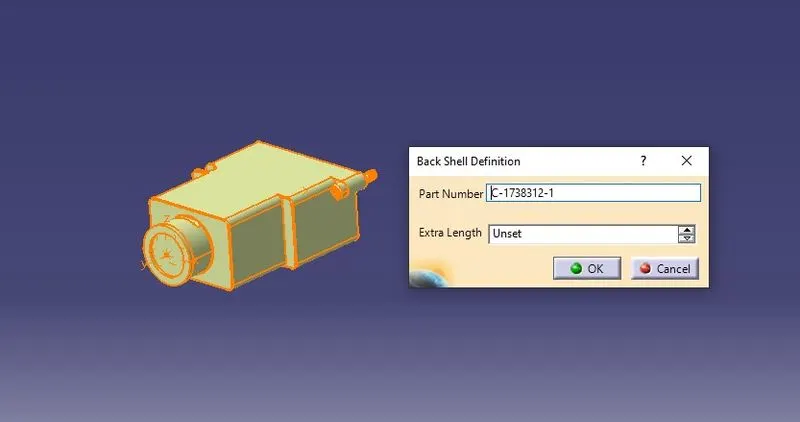

BACKSHELL 1738312-1

A backshell is a mechanical device threaded into the rear of an electrical connector.

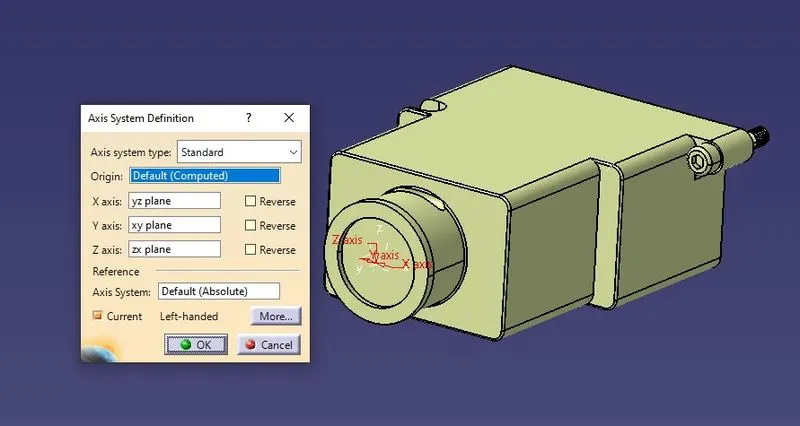

AXIS CREATION FOR CONNECTOR CONNECTION POINT

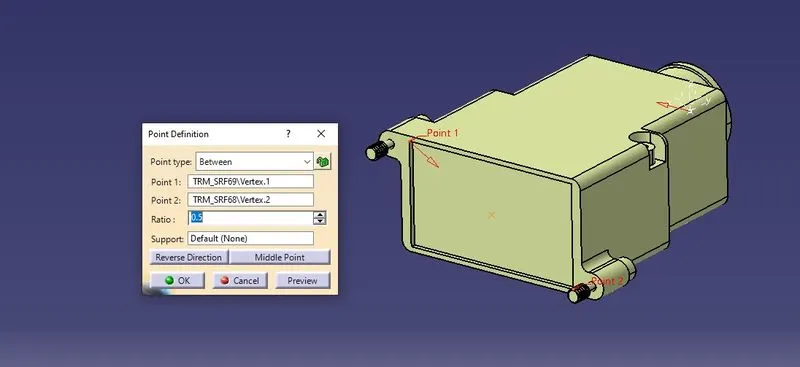

POINT CREATION FOR BACKSHELL BUNDLE

DEFENITION OF BACKSHELL

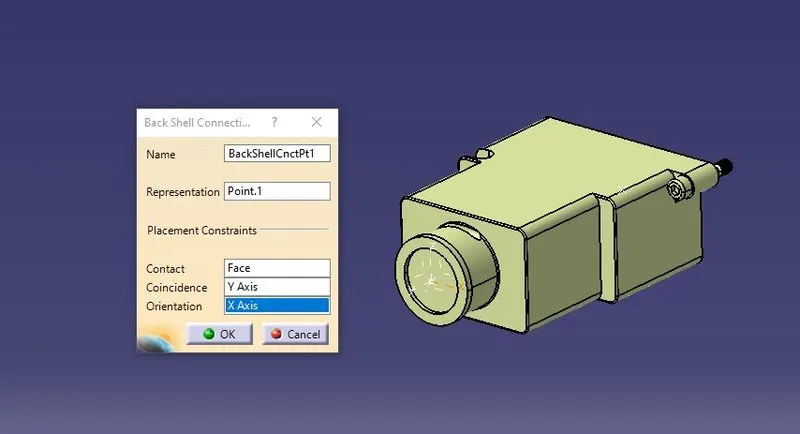

BACKSHELL CONNECTOR CONNECTION POINT

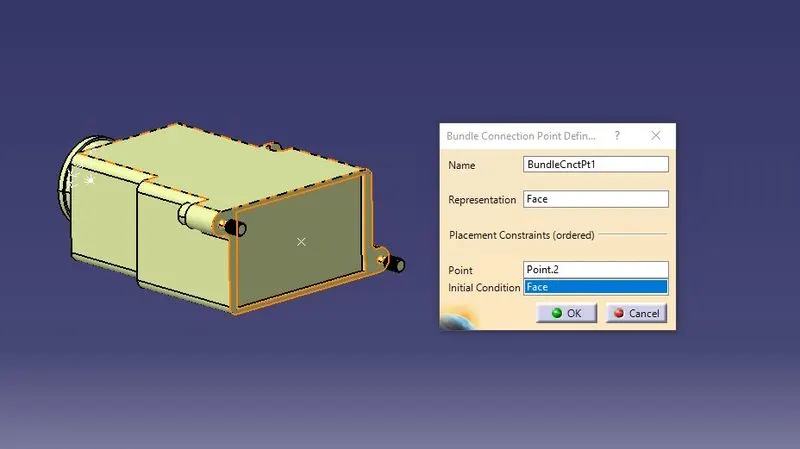

BACKSHELL BUNDLE CONNECTION POINT

CORRUGATIVE TUBE

A corrugated tube is a pipe with a helical groove obtained from a plain tube by cold forming. The number of starts of the helix can be changed as well as the angle to optimize the

heat transfer and performance.

Here i maintained the bend radius is 1.5 times of tube thickness

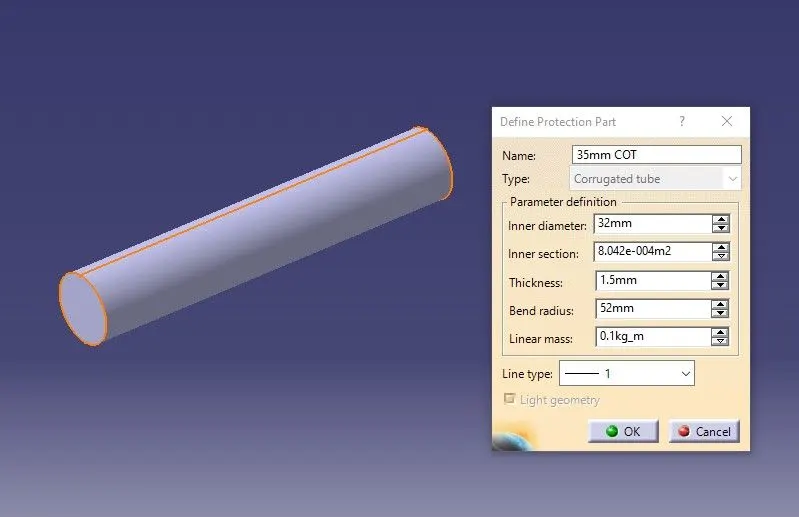

35mm COT

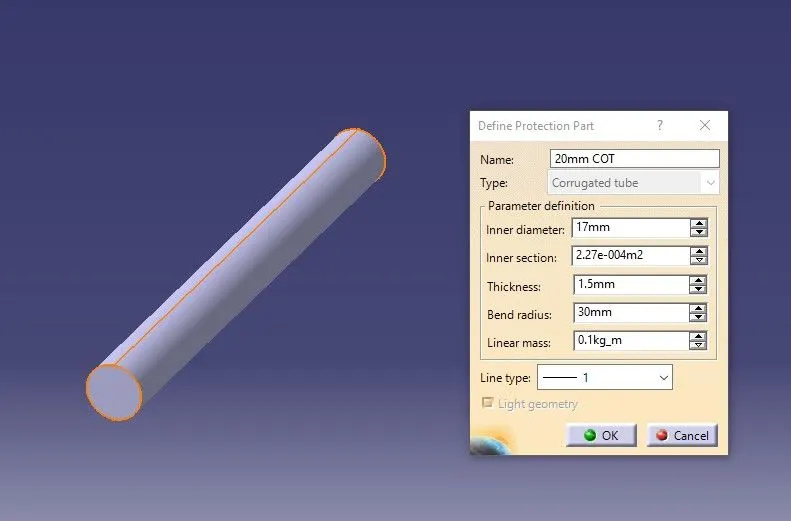

20mm COT

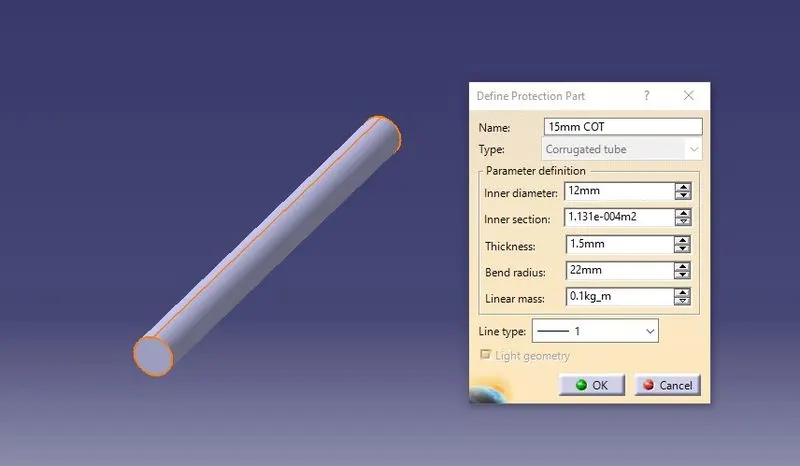

15mm COT

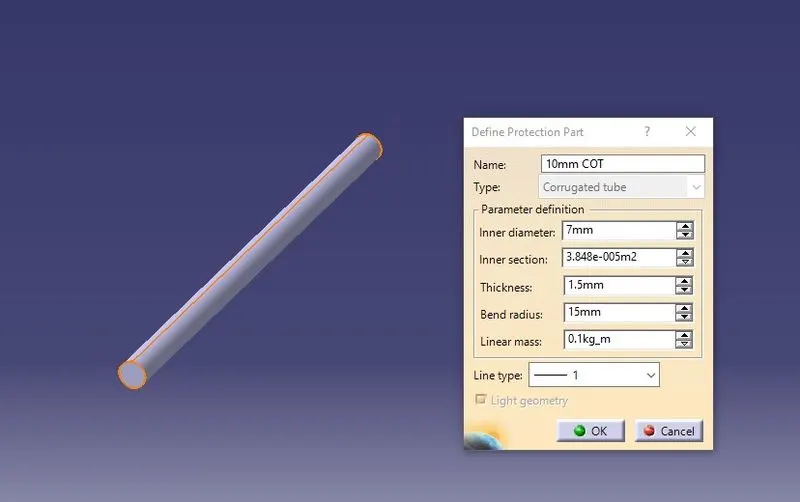

10mm COT

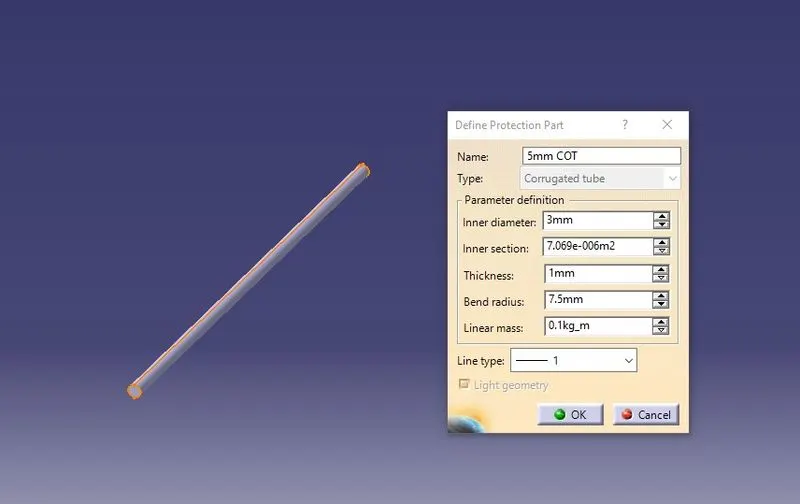

5mm COT
