Wiring harness routing & packaging Rules Week 3 Challenge
Q1. Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.

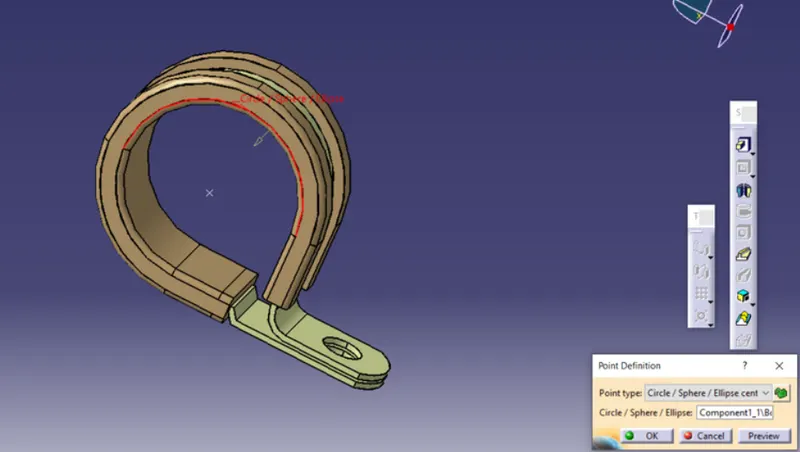

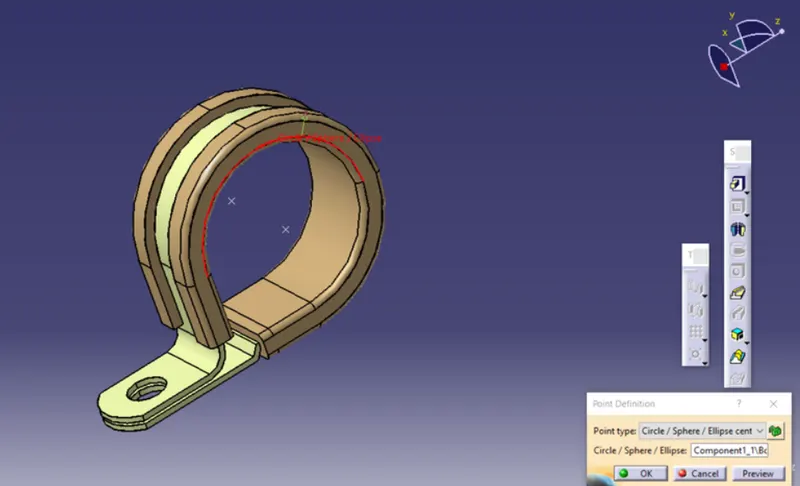

Create a point for entry plane
Create a point for exit plane

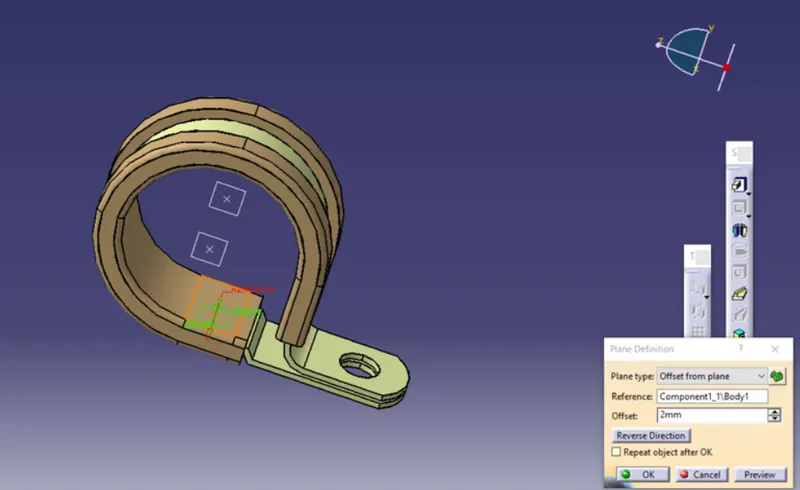

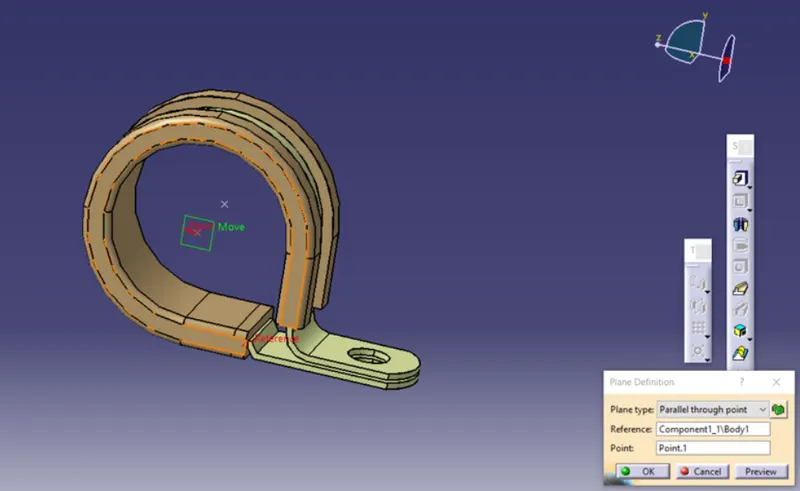

Creating plane

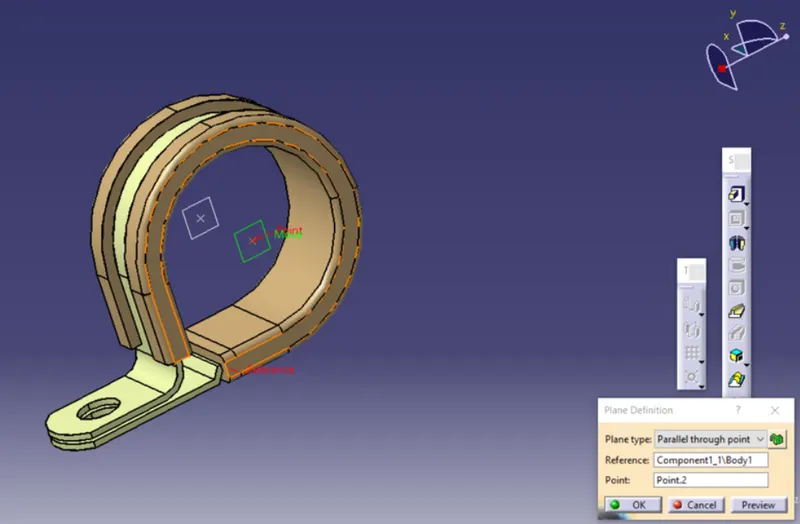

Create base plane
Define as electrical support
Switch in to electrical part design

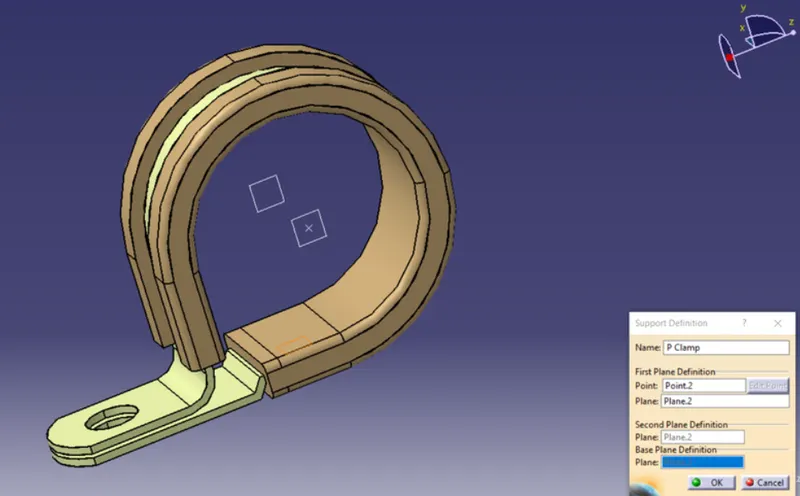

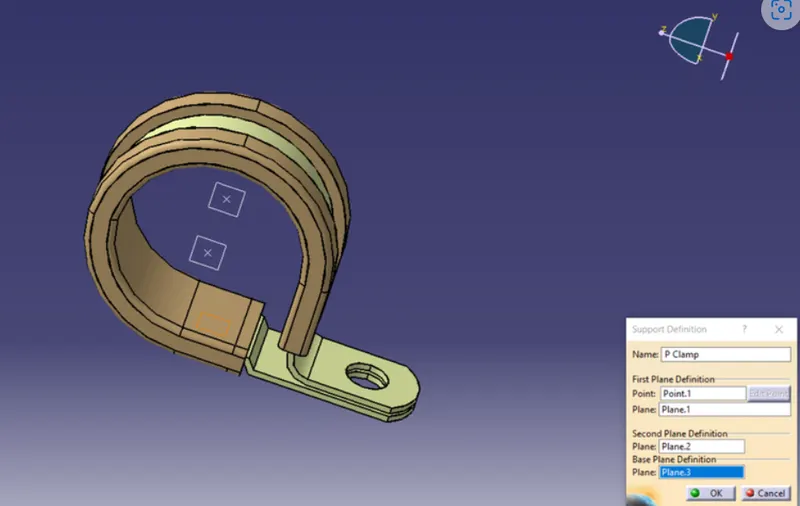

Click define support and click the clip
Entry, exit and base of the clip are defined
There are two entries and two exists are available
Defining the second
Hide all the planes

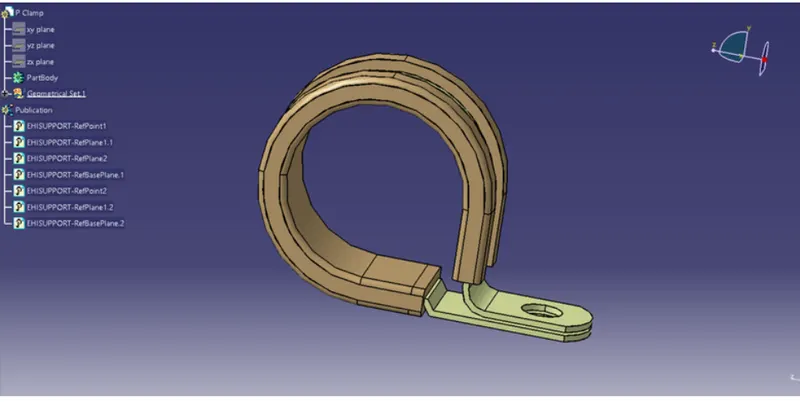

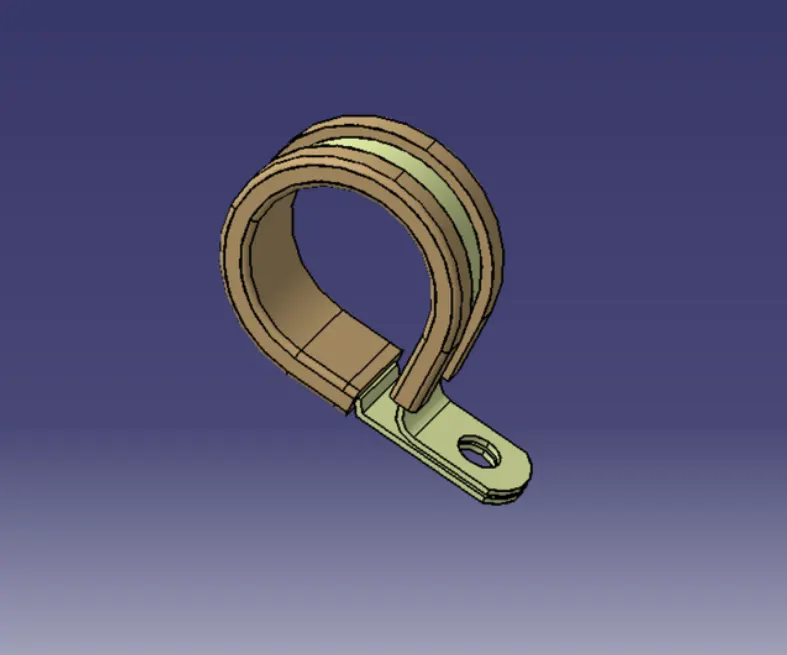

Above figure shows that the properties are stored and the clip is ready to use.
Q2. Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.
Tyco 1738312-1 https://www.te.com/usa-en/product-1738312-1.html

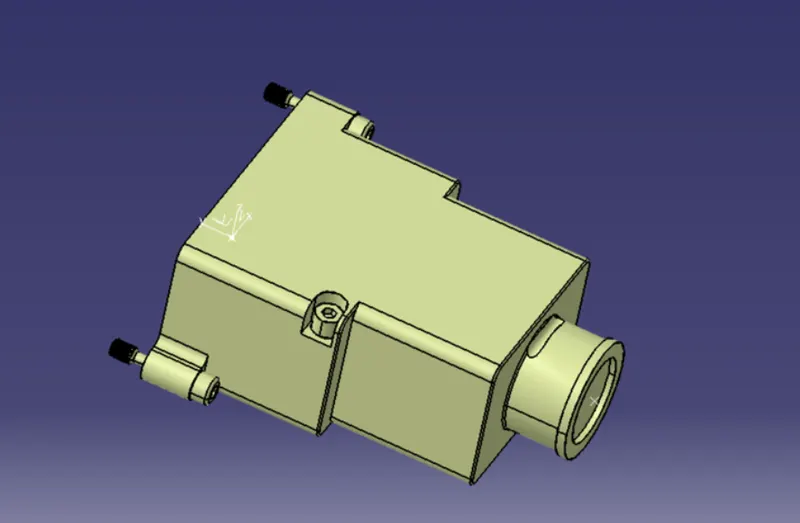

As shown in below figure backshell connection point and bundle connection point is created.
Switch in to electrical part design.

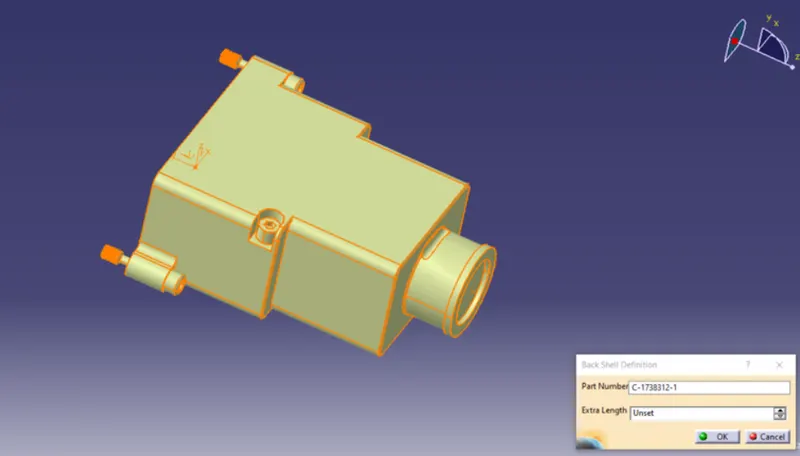

Define backshell

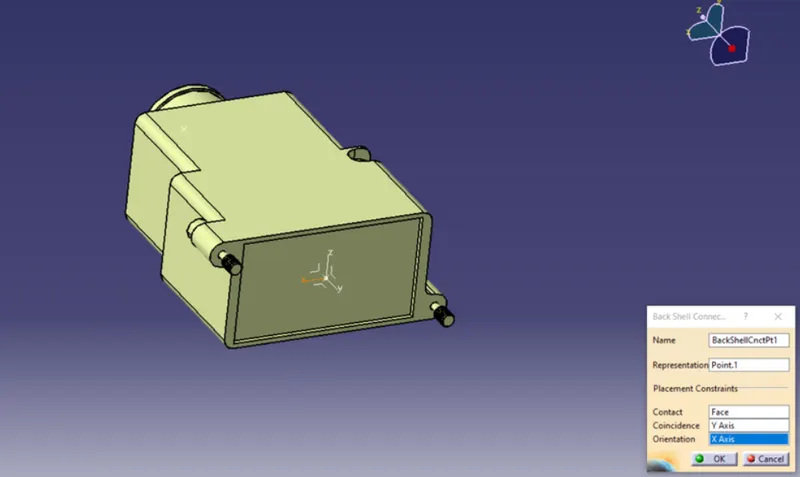

Define backshell connection point.

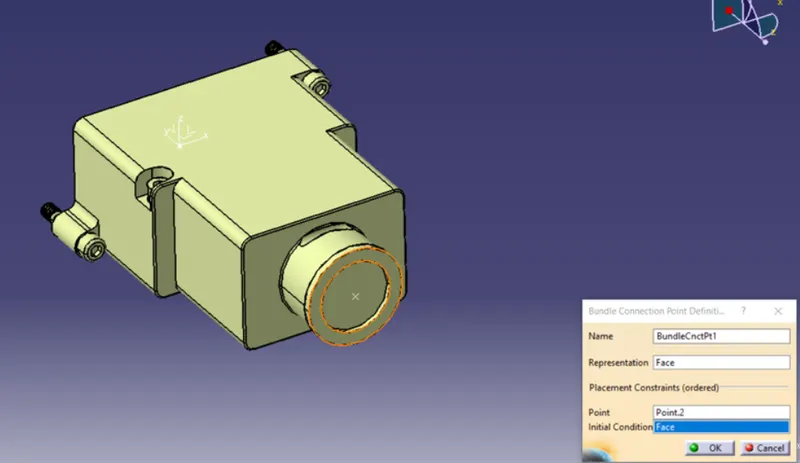

Define bundle conection point.

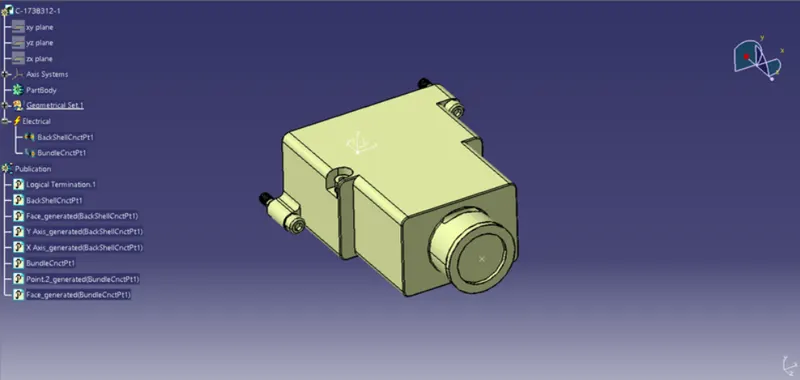

Below figure shows that the properties are stored and the part is ready to use.
Q3. Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|
15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|
35mm COT |
32 |
35 |
1.5 |
|
10mm COT |
7 |
10 |
1.5 |
|
5mm COT |
3 |
5 |
1 |
To create corrugated tubes

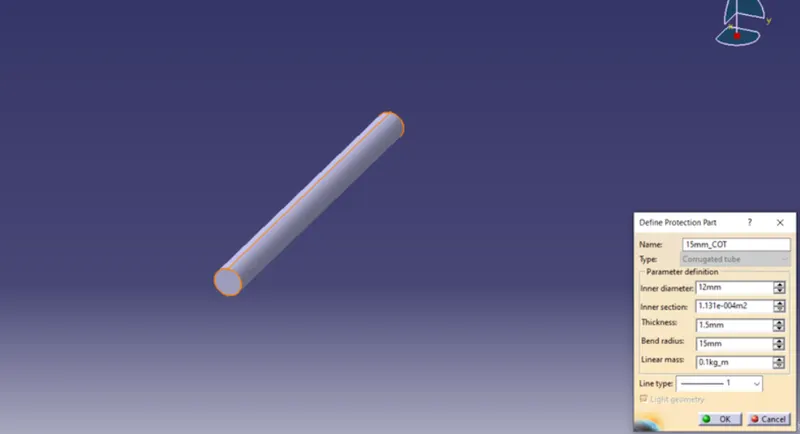

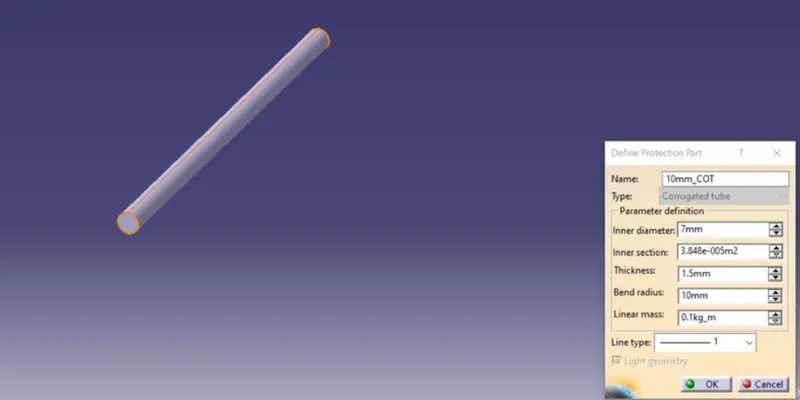

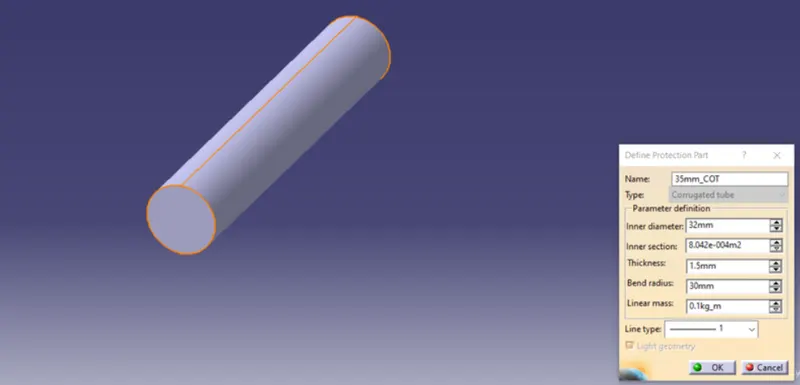

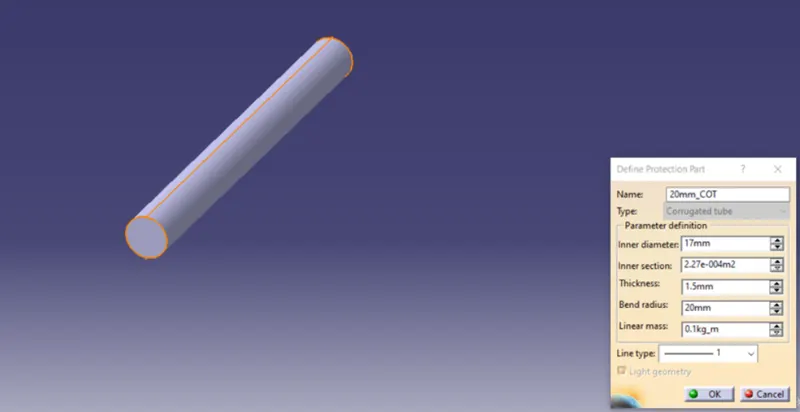

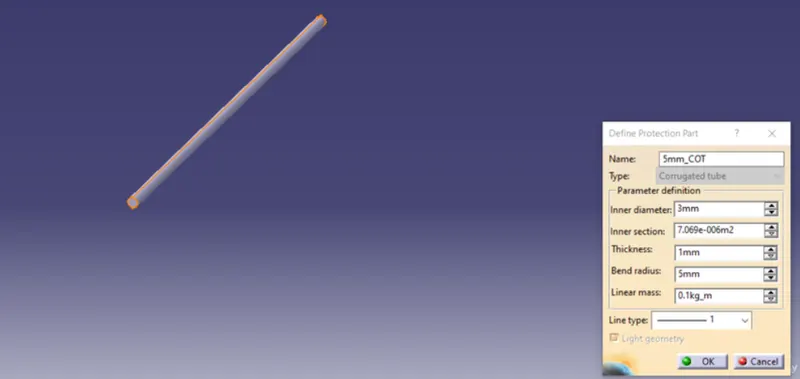

Create new part → Switch to electrical part design → Select Define protection part

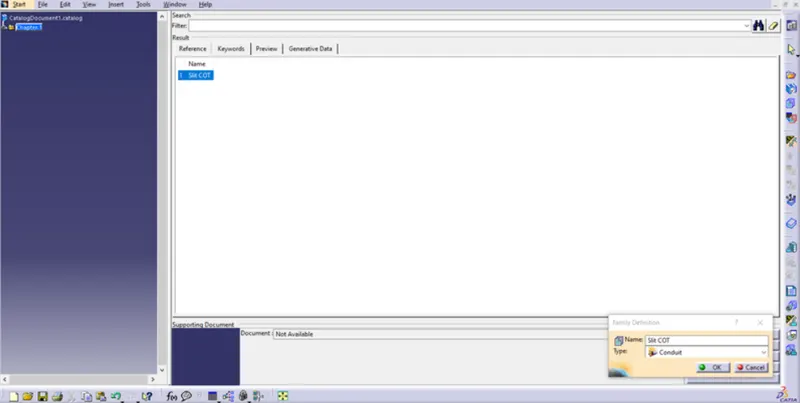

Create catalogue document and add the corrugated tubes into the Catalogue under “Slit COT” family.
Add all the corrugated tubes in to the above created catalogue.
