Wiring harness routing & packaging Rules Week 3 Challenge

1)Clip Creation

Create two points one as entry and another as exit point and create planes for it and base plane
Switch to Electric part design

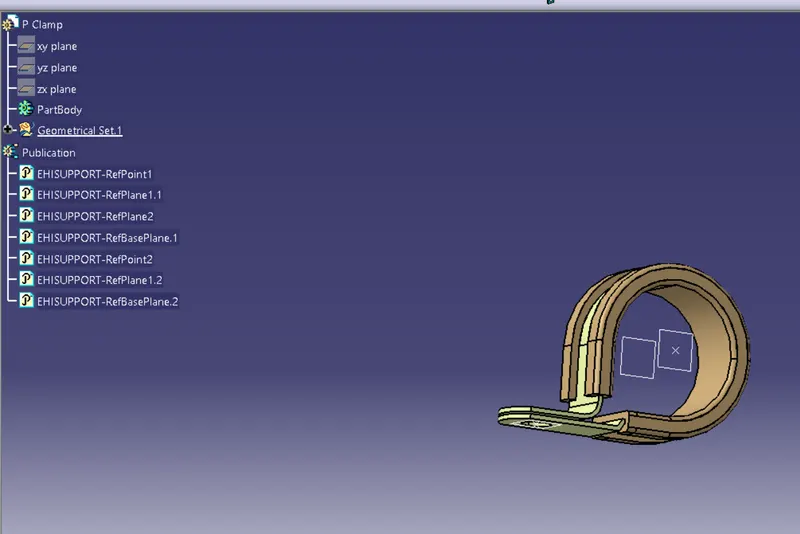

Click on support definition - select part - select entry point - select entry plane, exit, and base plane.
Again Click on support definition - select part - select exit point - select exit plane and base plane as the secondary plane is automatically taken.

2)create a Backshell entry point. and create an axis system for back shell entry.
create bundle connection point. and switch to Electrical part design.

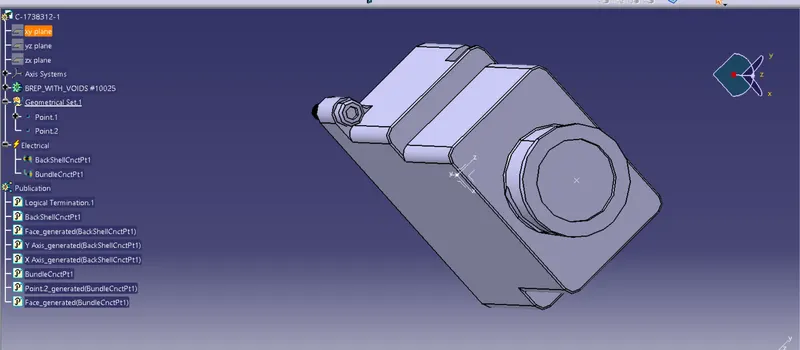

Define part electrically as a back shell.need to the Backshell connection point.
and a bundle connection point.

3)COT Tube

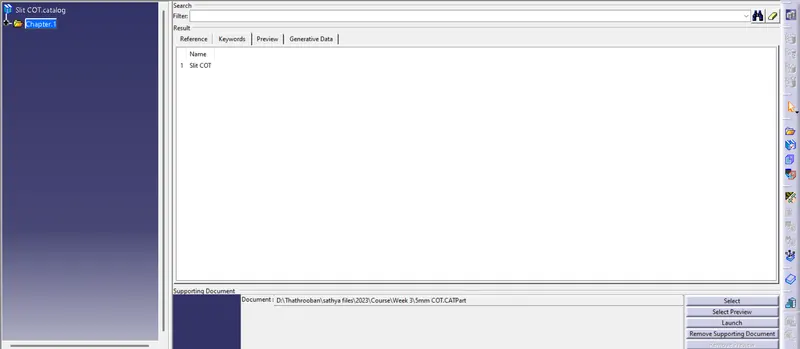

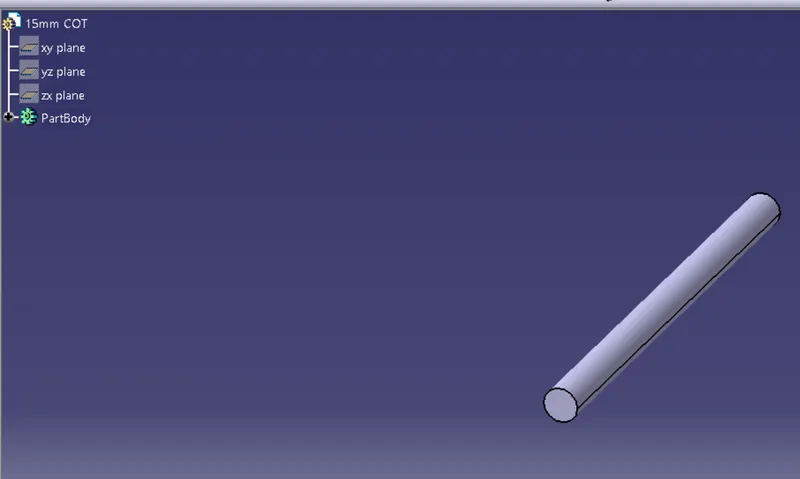

Need to create individual COT Tube in Electrical part design under Protective covering and Added it to catolog under SLIT COT
