Wiring harness routing & packaging Rules Week 3 Challenge

Q .1

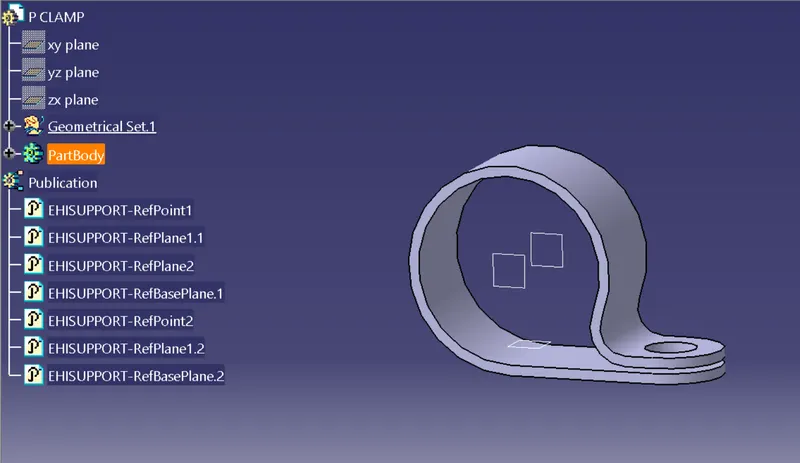

The given clip was downloaded and opened as a part file.

I have to define two points that will be used as entry and exit points.

Then a plane has to be defined at the points.

A base plane has to be defined at a distance of 2 to 3 mm from the clip.

Again we define the exit point at the first definition as the entry point.

Hence I have two entry and two exit points.

Q2

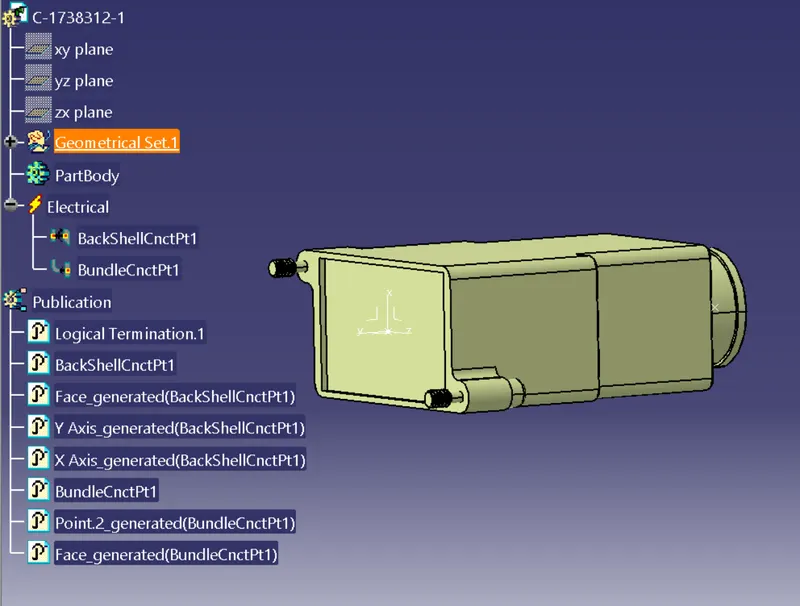

• The backshell data was downloaded from the website.
• We define the points in the part workbench.
• An Axis system with the correct axis orientation is placed at the backshell connection point.
• The points have to be defined as the backshell connection and bundle connection points.

Q3

we define the cot tubes in the electrical part workbench.

The inner dia & thickness are given as the inputs.

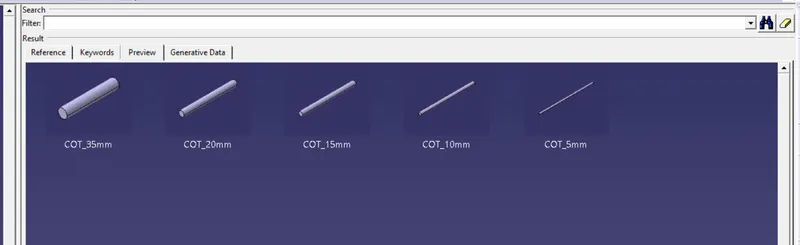

A catalog was created for the cot tubes.

All the cot tubes were saved in the catalog.
