Wiring harness routing & packaging Rules Week 3 Challenge

P Clamp

Part Design

Geometry Prepared

Point & Axis System

Electrical Part Design

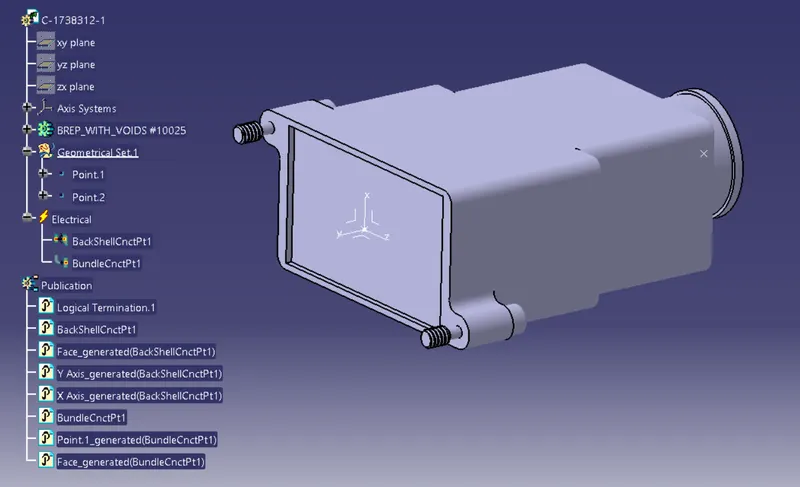

• Electrically defined using Define Back Shell Tool
• Define Back Shell Connection point
• Define Bundle Connection Point

TYCO 1738312-1

Part Deisgn

Geometry created

3 Planes & 2 point

Electrical Part Design

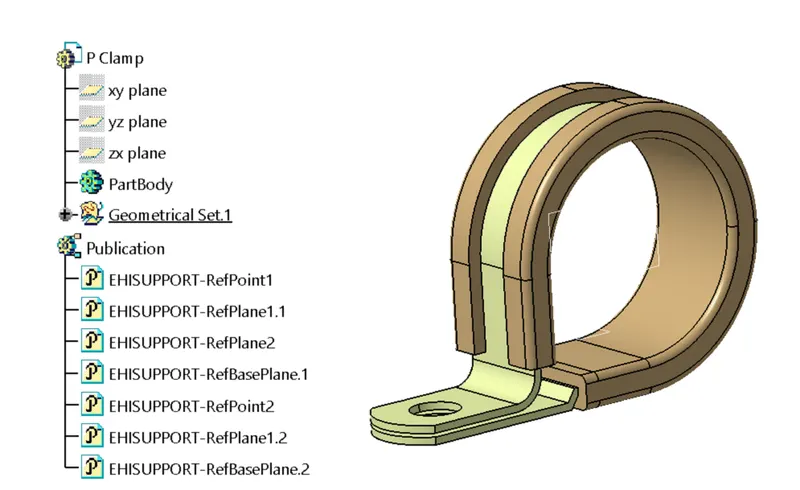

• Define Support Part Tool

Cot Tubes 5mm,10 mm,15 mm,20mm & 35 mm

Electrical Part Dedign

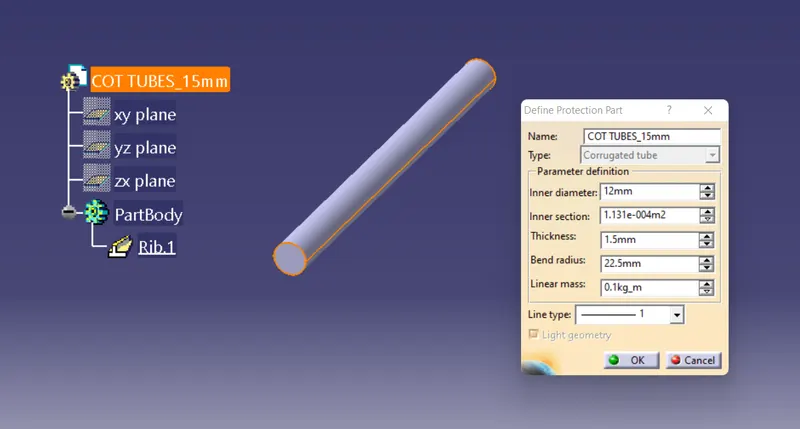

• Define Protective Equipment Tool
