Week 8 - Challenge 2 - Switch Bezel Design

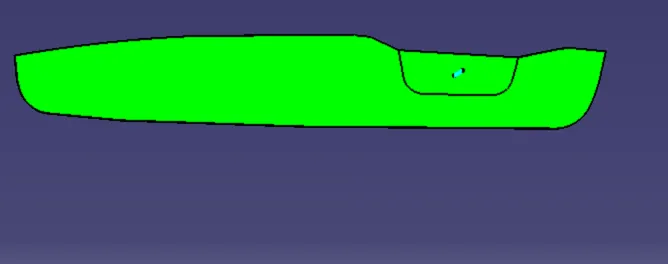

Draft Analysis Report of Class A Surface

Tooling Axis

Its is called die pull direction.

Movement axis of core and cavity.

Designer need to know design based on tool axis .

Wrong tooling axis increase the number of sild core. It leads cost and reduce the mold durabilty.

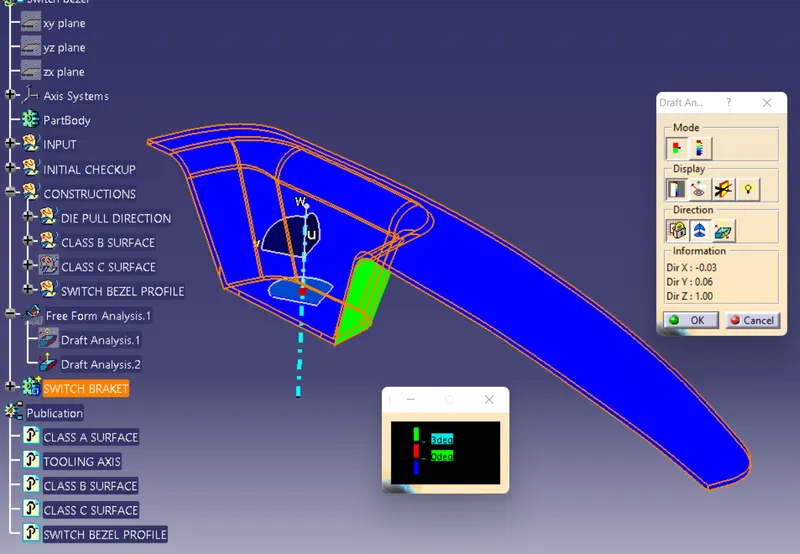

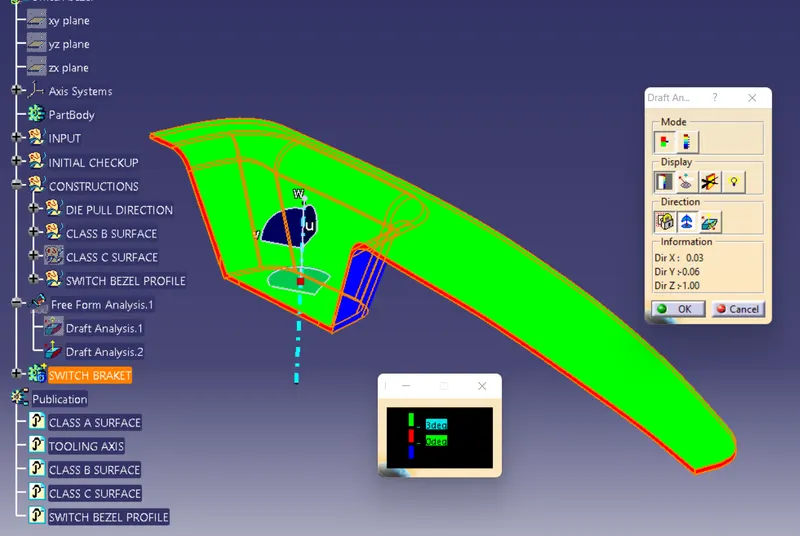

Draft Analysis.

Best Draft angle ease to release the part from core side otherwis mold life time reduced.

Plastic Injection Molding part designer need to give miniumum draft angle 3.

It is increase the Part and mold life time.

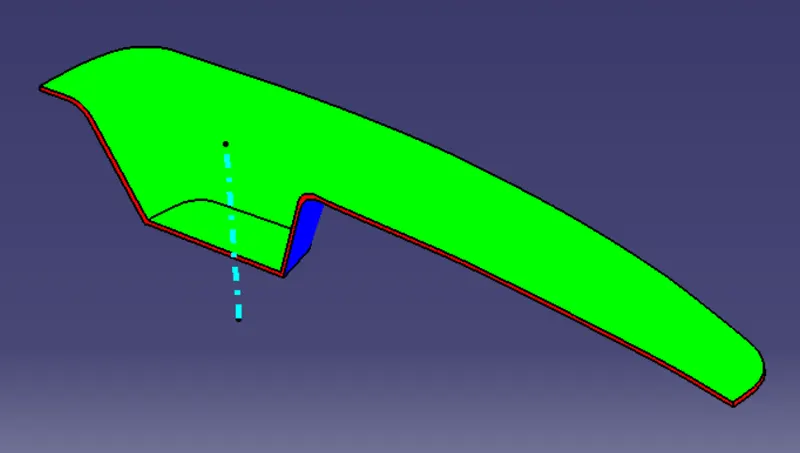

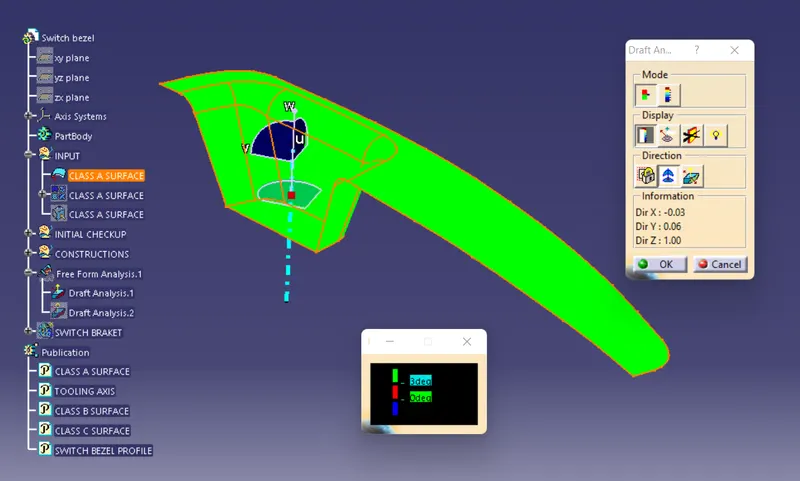

Draft Analysis Report of Part Body

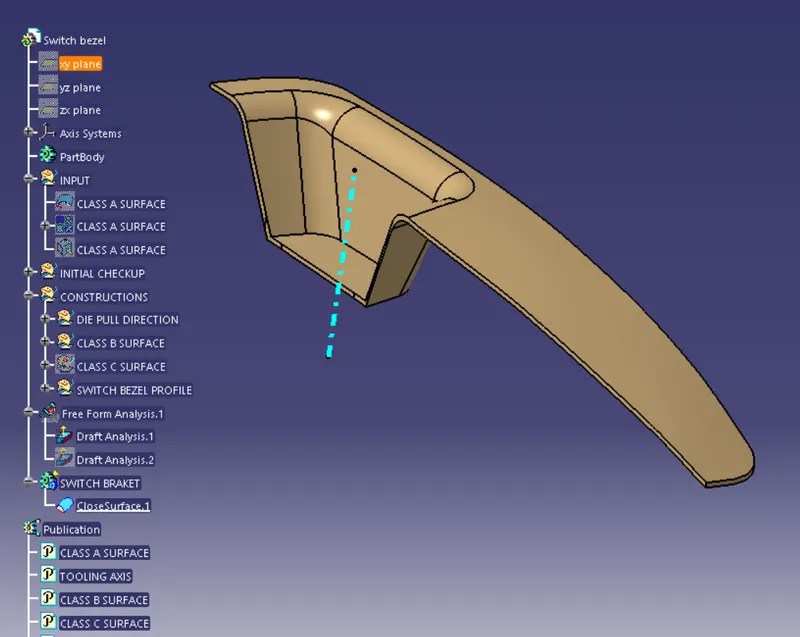

Tree Structure with Plastic Component

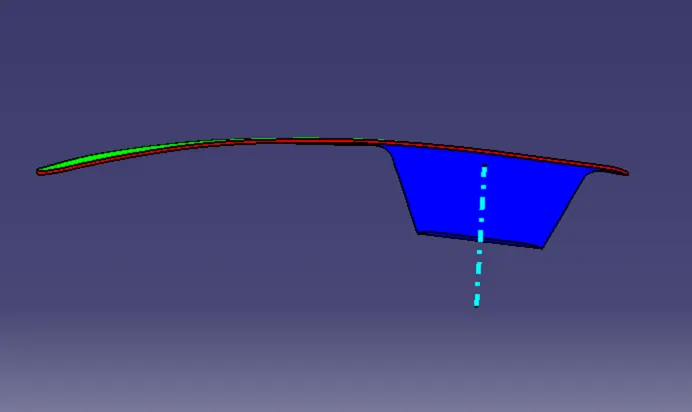

Solid Model Draft Color Orientation Views
