Wiring harness design in CATIA V5 - 3D modeling Week 7 Challenge

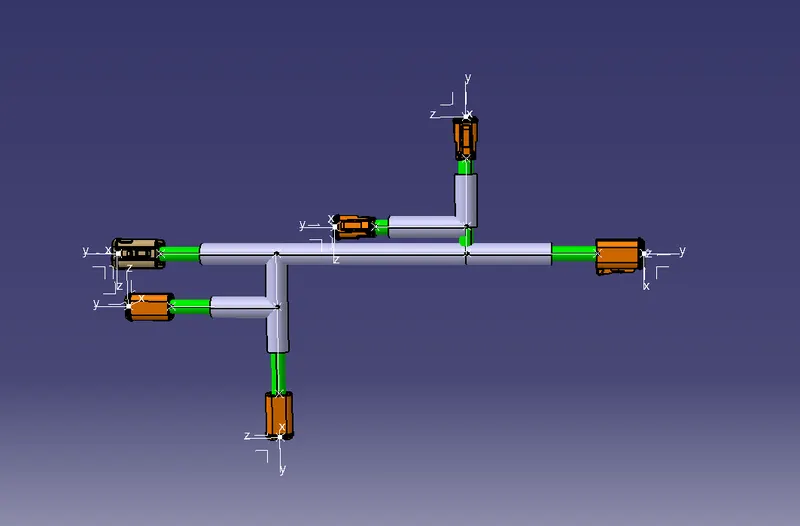

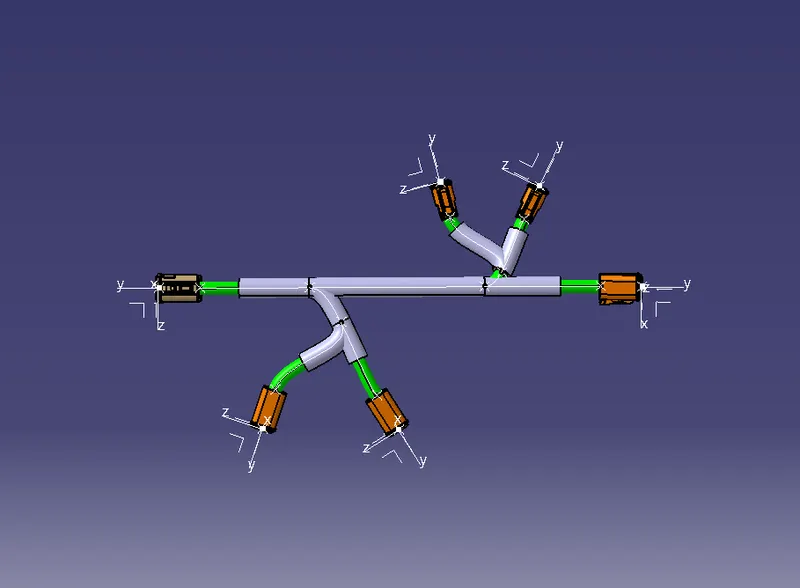

1.Wiring harness parameters are defined and the given layout is designed and imported into wiring harness flattening

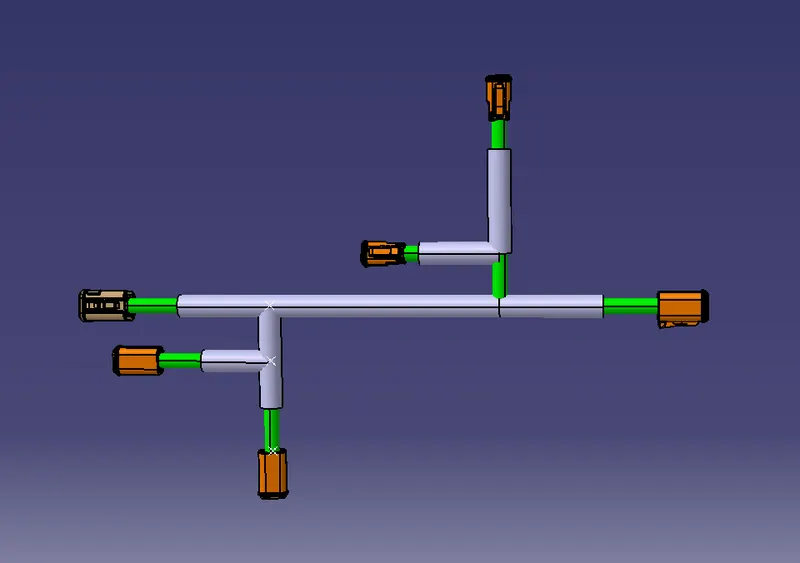

2.Using the flatten command the bundle arrangement is flattened

3.By using scale command the bundle distances are adjusted

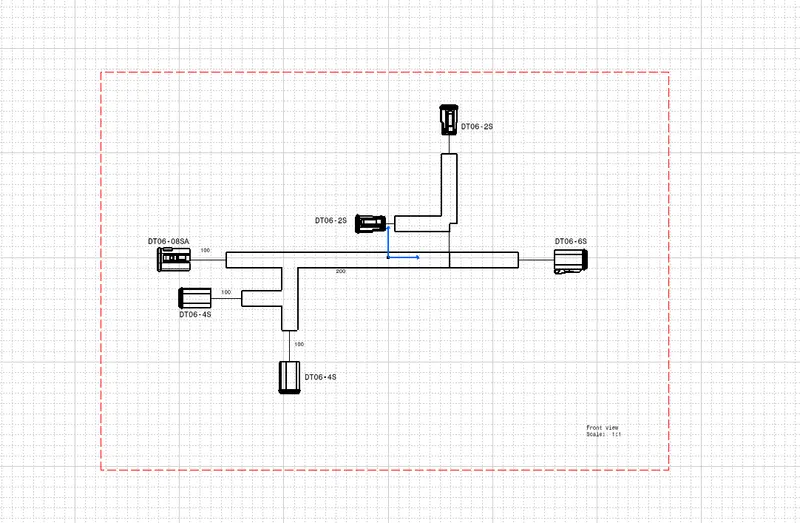

4.The flattened arrangement is imported into the drawing and the drafting is done
