Wiring harness design in CATIA V5 - 3D modeling Week 7 Challenge

WEEK 7 CHALLENGE

FLATTEN SURFACE OF THE WEEK 4 CHALLENGE AND CONVERSTION OF DRAWING

AIM:

TO CREATE A FLATTEN SURFACE OF WEEK 4 CHALLENGE AND SETTING CORRECT PARAMETERS. DRAWING OF THE FLATTEN WIRE HARNESS WEEK 4 CHALLENGE WITH BILL OF MATERIALS

STEP 1:

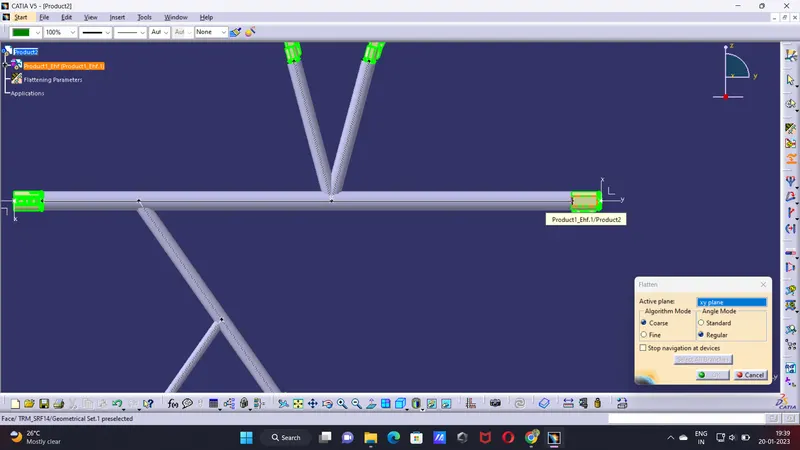

CREATION OF NEW PRODUCT FILE AND SETTING FLATTEN PARAMETERS

STEP 2:

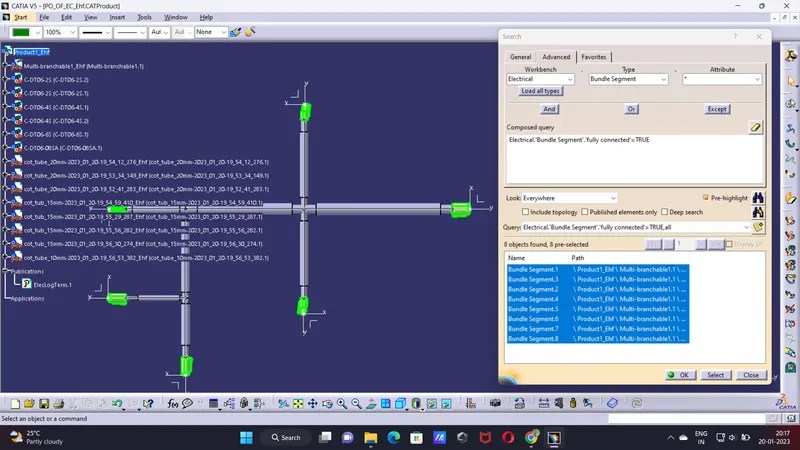

EXTORTION OF WIRE HARNESS INTO PRODUCT FILE

STEP 3:

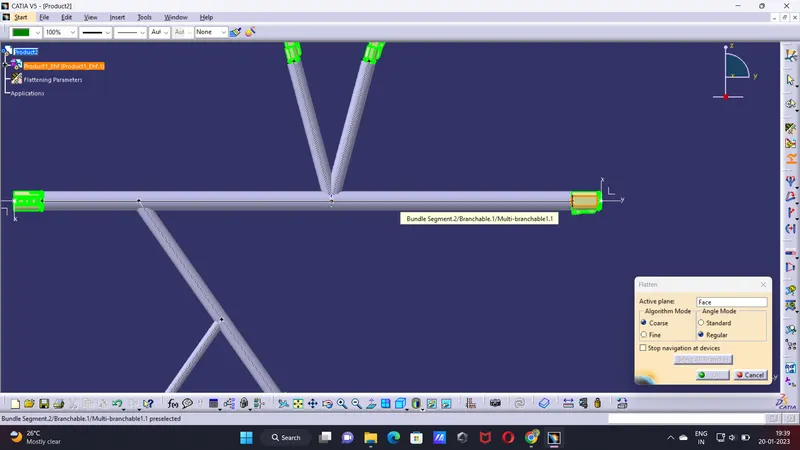

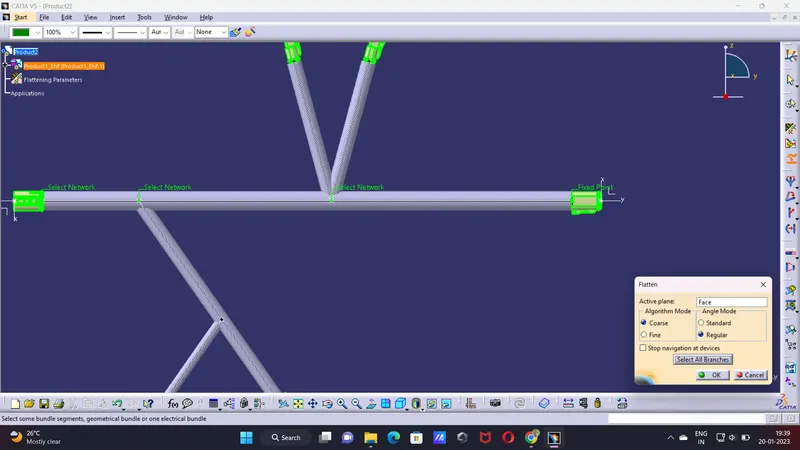

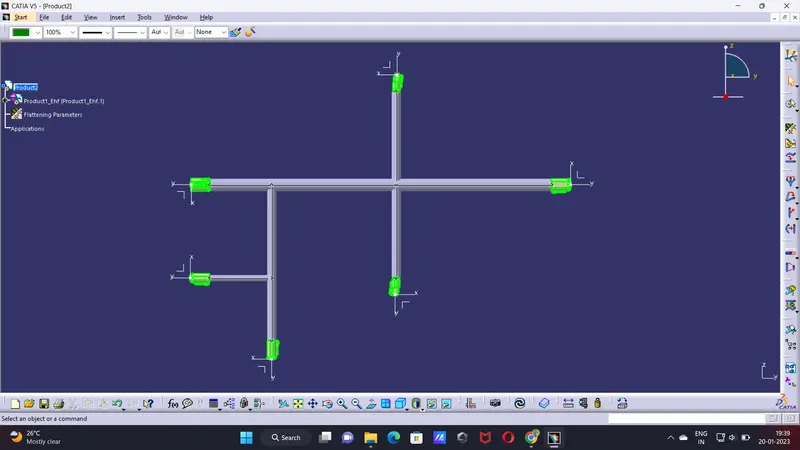

FLATTENING OF THE SURACE

STEP 4:

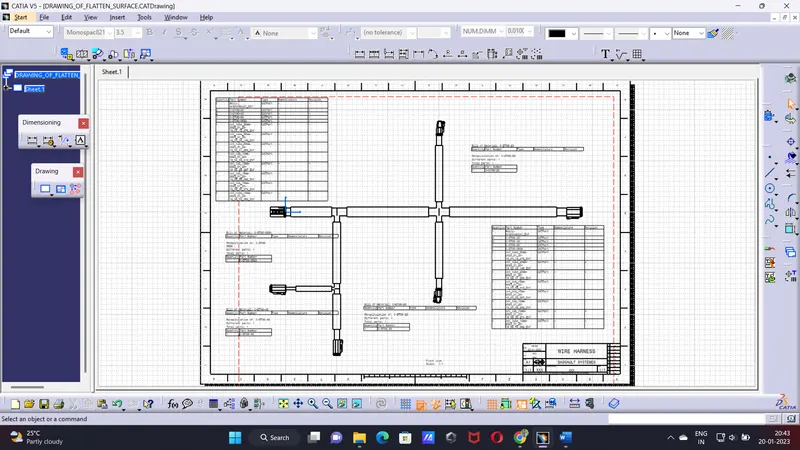

CREATE A NEW DRAWING SHEET AND ADDING FRAME AND TITTLE

STEP 4:

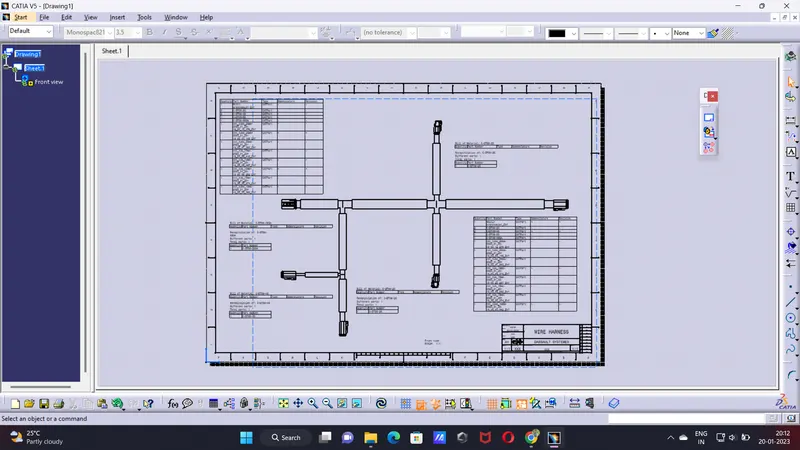

IMPORTING THE FLATTEN SURFACE WITH THE HELP OF VIEW TOOL BAR

STEP 5:

INCLUDING THE BILL OF MATERIAL OF EACH ELECTICAL PARTS

STEP 6:

SAVING THE DRAWING IN CADPART

STEP 7:

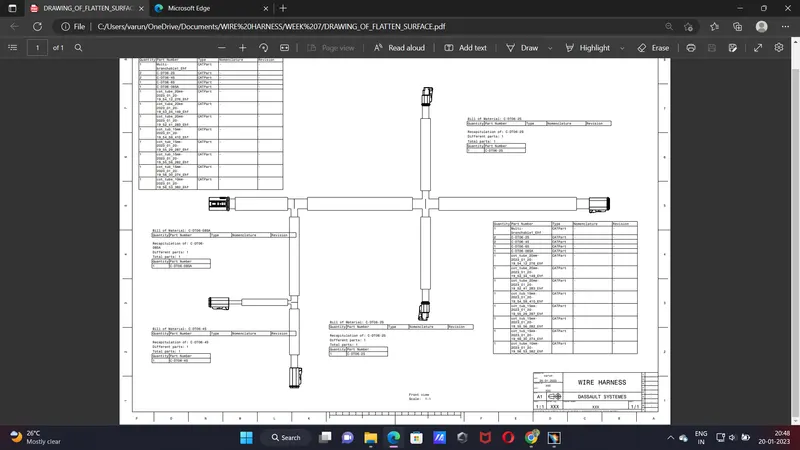

CONVERSION OF DRAWING INTO PDF FORMAT

END:

DEFINING THE BILL OF MATERIALS AND FLATTENING IS DONE IN THIS CHALLENGE FOR A FULLY CONNECTED WIRE HARNESS MODULE
