Wiring harness design in CATIA V5 - 3D modeling Week 7 Challenge

REPORT:

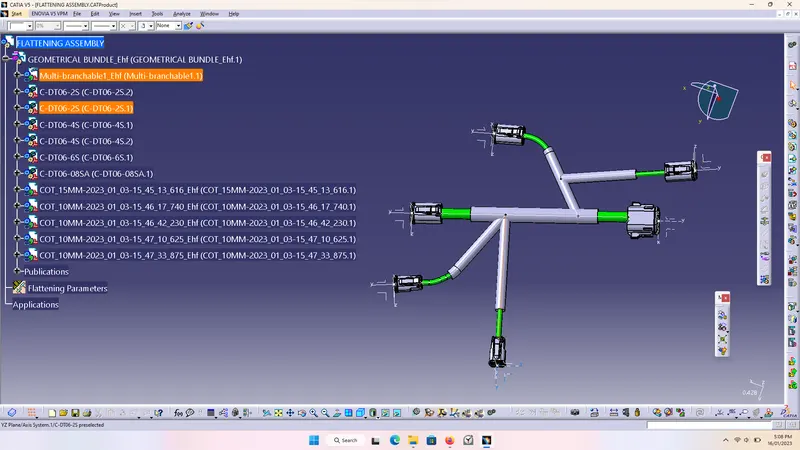

Create a new product for the flattening workbench and provide flattening parameters to flatten the assembly in the product.And export the product into the flattening workbench. Then adjust branches to their desired positions using commands from the workbench.

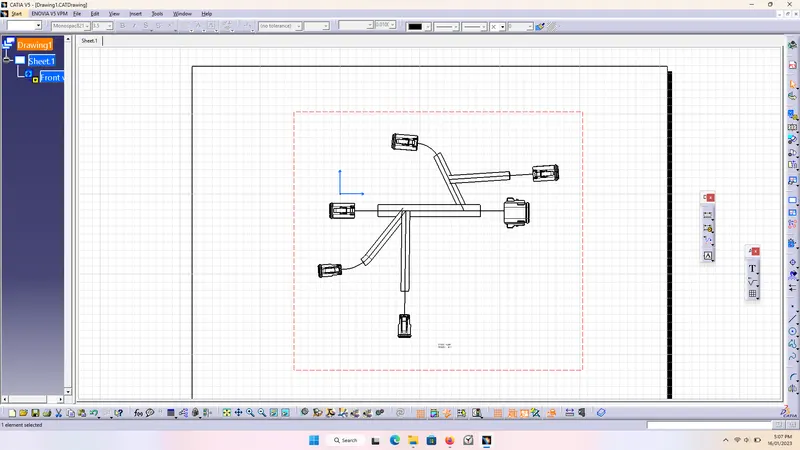

To create a 2D drawing using front view command to pick the front view of the flatten product into the drawing and adjust the properties to get a clear 2D drawing of the product.
