Wiring harness design in CATIA V5 - 3D modeling Week 7 Challenge

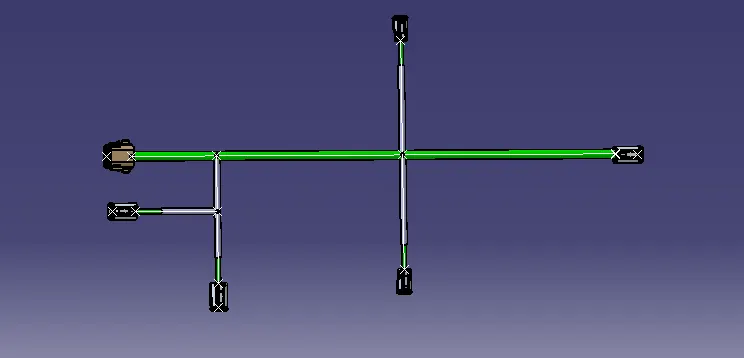

Wiring Harness Assembly has been created in accordance with the given Wiring diagram.

5mm Conduits have been provided to the bundles connecting DT06-4S and DT06-6S Connectors.

Sub branch bundle diameter - 5mm

Main branch ( DT06-08SA - DT06-6S ) bundle diameter - 10mm

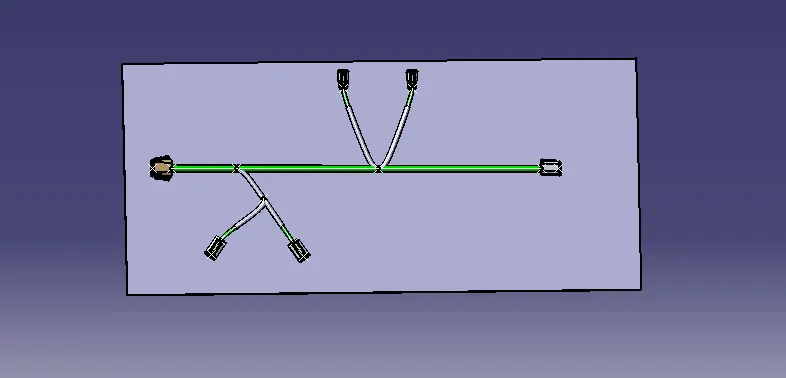

Wiring Harness Assembly has been flattened in the Flattening work bench and is inturn converted to .ehf format.

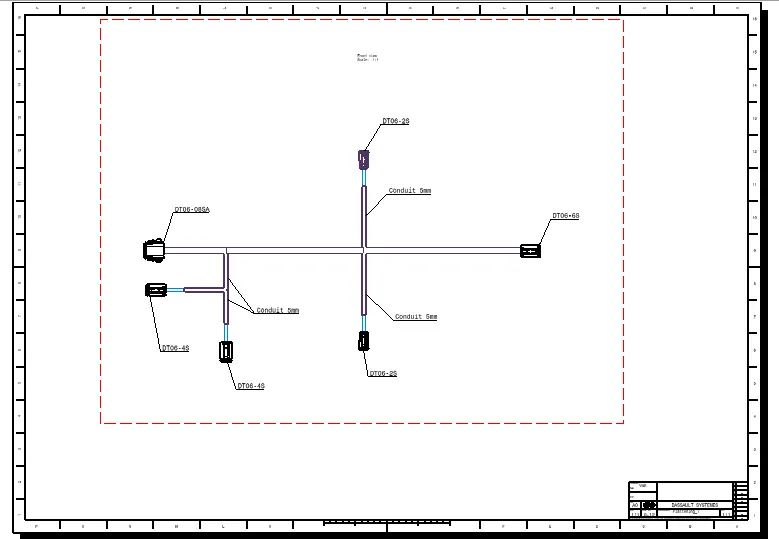

2D Drawing has been created. Connector and conduits have been specified.

Conduits have been shown in thick lines and the respective bundles have been shown in blue.

Sheet - A0 Landscape.
