Wiring harness design in CATIA V5 - 3D modeling Week 5 & 6 Challenge

Aim :

Route the Given harness layout in the Electrical workbench and apply the Conditions.

Objectives :

Check the bundle Continuity. Add snap of result in submission

Add annotation to all connectors. Make assumptions for annotations like connect 1, 2 etc

Check for the bundle warning. Add snap.

Generate CAT.part of harness assembly and convert is in. igs format.

Procedure :

1st Connector of Harness B :

In the Above figure, We Have Merged from the given source into Catia V5.

1. Go To the Part design workbench & take a middle Point From The Connector Connecting Side and the Bundle Connecting Side.

2. Taking the axis Origin of Connector connecting Point.

3. Adjusting the y-axis is normal to the face of the connector connecting the Point & the X-axis would be the locking side & Z-axis would be the Up or downside.

4. Then go to the electrical part design workbench after that define it as a connector & Add the terminals it has & define the connector connection point As well as the bundle connection point with respect to their faces & Respresentations.

2nd Connector of Harness B :

In the Above figure, We Have Merged from the given source into Catia V5.

1. Go To the Part design workbench & take a middle Point From The Connector Connecting Side and the Bundle Connecting Side.

2. Taking the axis Origin of Connector connecting Point.

3. Adjusting the y-axis is normal to the face of the connector connecting the Point & the X-axis would be the locking side & Z-axis would be the Up or downside.

4. Then go to the electrical part design workbench after that define it as a connector and add the number of terminals it has & define the connector connection point As well as bundle connection point with respect to their faces & Respresentations.

3rd Connector of Harness B :

In the Above figure, We Have Merged from the given source into Catia V5.

1. Go To the Part design workbench & take a middle Point From The Connector Connecting Side and the Bundle Connecting Side.

2. Taking the axis Origin of Connector connecting Point.

3. Adjusting the y-axis is normal to the face of the connector connecting the Point & the X-axis would be the locking side & Z-axis would be the Up or downside.

4. Then go to the electrical part design workbench after that define it as a connector & Add no terminals it has & define the connector connection point As well as a bundle connection point with respect to their faces & representatives.

4th Connector of Harness B :

In the Above figure, We Have Merged from the given source into Catia V5.

1. Go To the Part design workbench & take a middle Point From The Connector Connecting Side and the Bundle Connecting Side.

2. Taking the axis Origin of Connector connecting Point.

3. Adjusting the y-axis is normal to the face of the connector connecting the Point & the X-axis would be the locking side & Z-axis would be the Up or downside.

4. Then go to the electrical part design workbench after that define it as a connector & Add no terminals it has & define the connector connection point As well as a bundle connection point with respect to their faces & representatives.

5th Connector of Harness B :

In the Above figure, We Have Merged from the given source into Catia V5.

1. Go To the Part design workbench & take a middle Point From The Connector Connecting Side and the Bundle Connecting Side.

2. Taking the axis Origin of Connector connecting Point.

3. Adjusting the y-axis is normal to the face of the connector connecting the Point & the X-axis would be the locking side & Z-axis would be the Up or downside.

4. Then go to the electrical part design workbench after that define it as a connector & Add no terminals it has & define the connector connection point As well as a bundle connection point with respect to their faces & representatives.

6th Connector of Harness A :

In the Above figure, We Have Merged from the given source into Catia V5.

1. Go To the Part design workbench & take a middle Point From The Connector Connecting Side and the Bundle Connecting Side.

2. Taking the axis Origin of Connector connecting Point.

3. Adjusting the y-axis is normal to the face of the connector connecting the Point & the X-axis would be the locking side & Z-axis would be the Up or downside.

4. Then go to the electrical part design workbench after that define it as a connector & Add no terminals it has & define the connector connection point As well as a bundle connection point with respect to their faces & representatives.

7th Connector of Harness A :

In the Above figure, We Have Merged from the given source into Catia V5.

1. Go To the Part design workbench & take a middle Point From The Connector Connecting Side and the Bundle Connecting Side.

2. Taking the axis Origin of Connector connecting Point.

3. Adjusting the y-axis is normal to the face of the connector connecting the Point & the X-axis would be the locking side & Z-axis would be the Up or downside.

4. Then go to the electrical part design workbench after that define it as a connector & Add no terminals it has & define the connector connection point As well as a bundle connection point with respect to their faces & representatives.

8th Connector of Harness A :

In the Above figure, We Have Merged from the given source into Catia V5.

1. Go To the Part design workbench & take a middle Point From The Connector Connecting Side and the Bundle Connecting Side.

2. Taking the axis Origin of Connector connecting Point.

3. Adjusting the y-axis is normal to the face of the connector connecting the Point & the X-axis would be the locking side & Z-axis would be the Up or downside.

4. Then go to the electrical part design workbench after that define it as a connector & Add no terminals it has & define the connector connection point As well as a bundle connection point with respect to their faces & representatives..

9th Connector of Harness A :

In the Above figure, We Have Merged from the given source into Catia V5.

1. Go To the Part design workbench & take a middle Point From The Connector Connecting Side and the Bundle Connecting Side.

2. Taking the axis Origin of Connector connecting Point.

3. Adjusting the y-axis is normal to the face of the connector connecting the Point & the X-axis would be the locking side & Z-axis would be the Up or downside.

4. Then go to the electrical part design workbench after that define it as a connector & Add no terminals it has & define the connector connection point As well as a bundle connection point with respect to their faces & representatives.

10th Connector of Harness A :

In the Above figure, We Have Merged from the given source into Catia V5.

1. Go To the Part design workbench & take a middle Point From The Connector Connecting Side and the Bundle Connecting Side.

2. Taking the axis Origin of Connector connecting Point.

3. Adjusting the y-axis is normal to the face of the connector connecting the Point & the X-axis would be the locking side & Z-axis would be the Up or downside.

4. Then go to the electrical part design workbench after that define it as a connector & Add no terminals it has & define the connector connection point As well as a bundle connection point with respect to their faces & representatives.

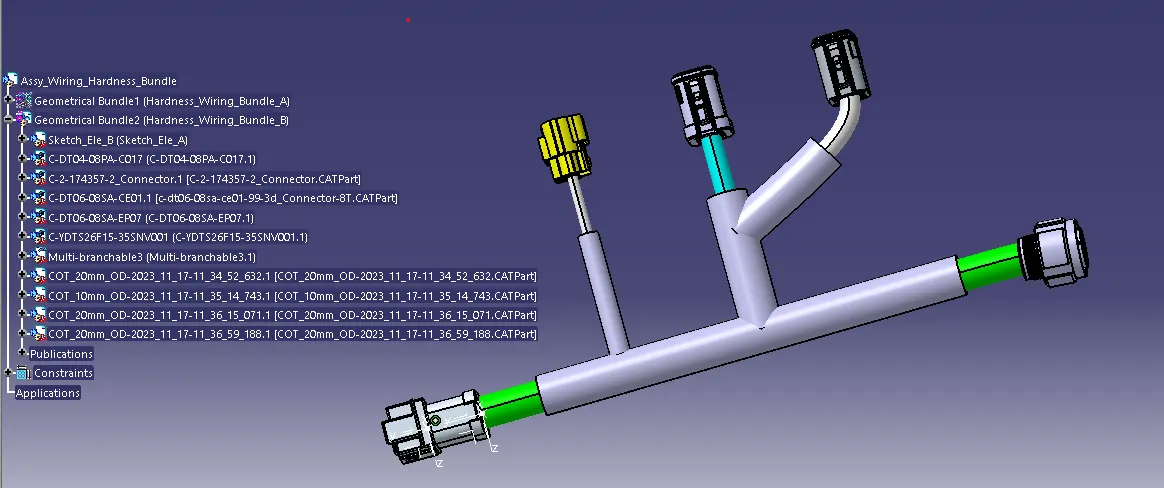

Electrical harness Assembly A :

Then Go to the electrical harness Assembly Define the product as a geometric bundle.

Then go to the multi-branchable point Route the bundles And suitable breakpoints with respect to the given Diagram.

Electrical harness Assembly B:
