Wiring harness design in CATIA V5 - 3D modeling Week 5 & 6 Challenge

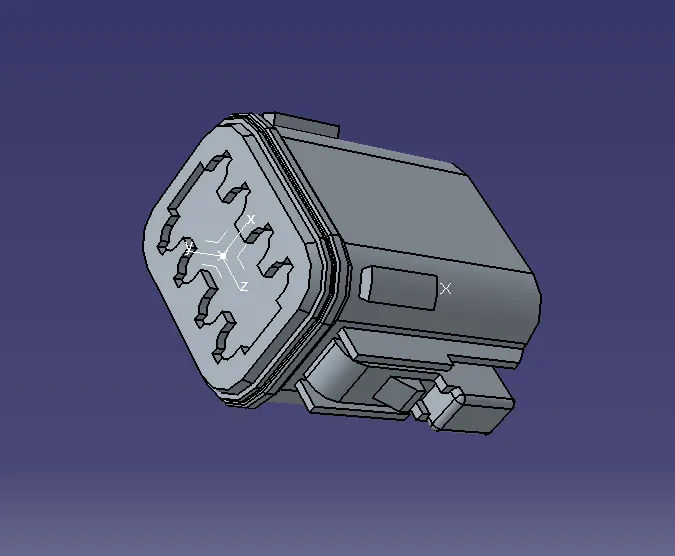

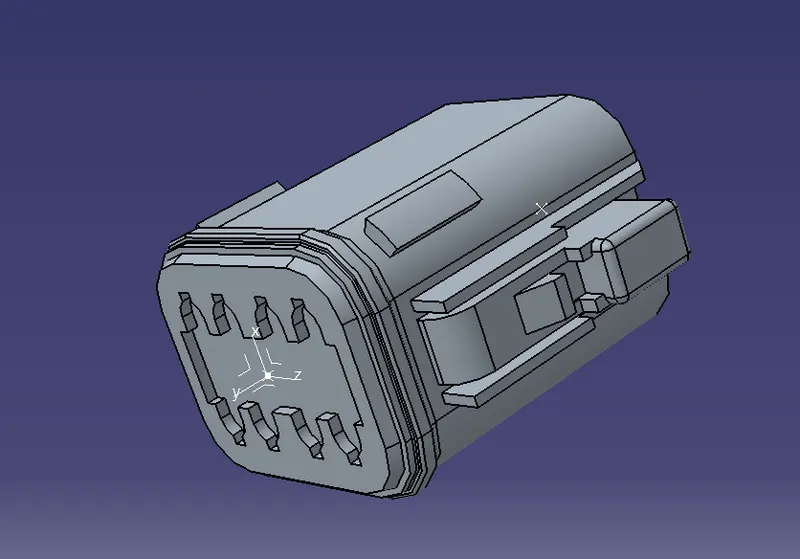

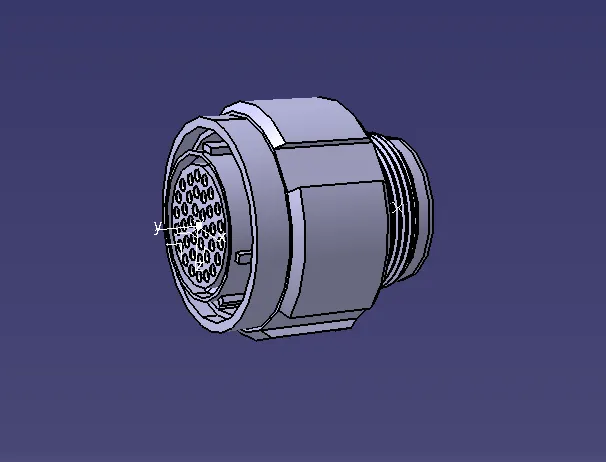

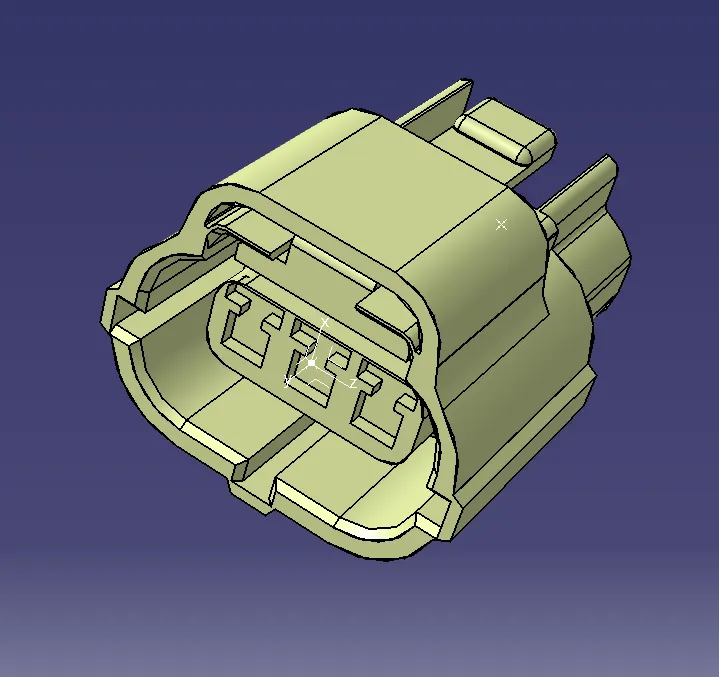

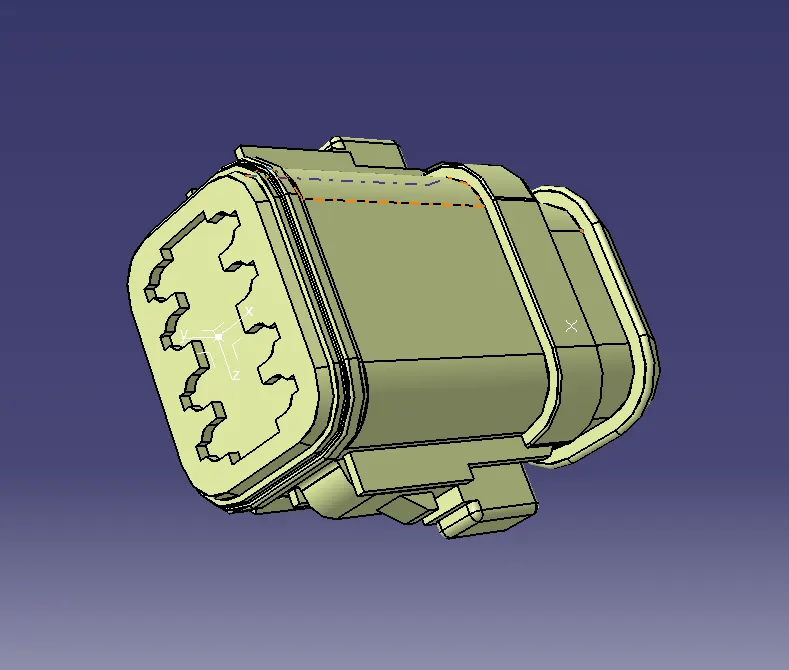

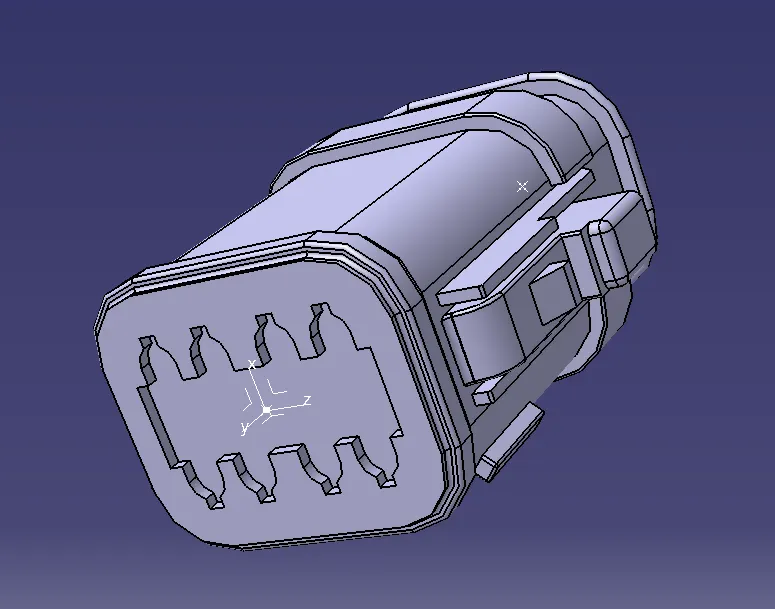

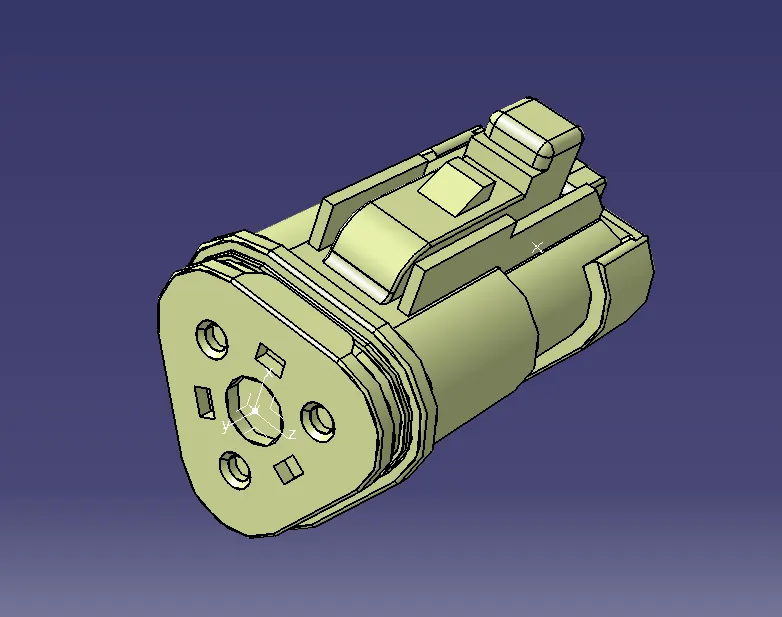

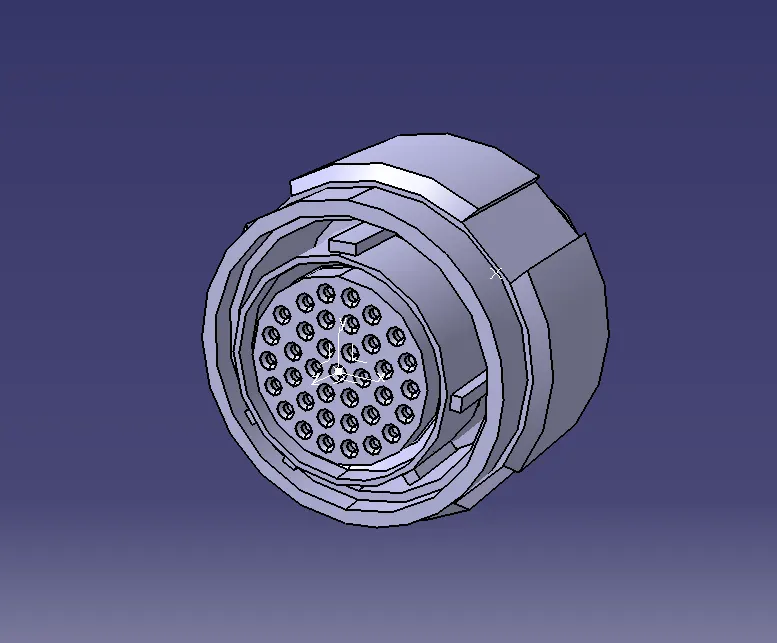

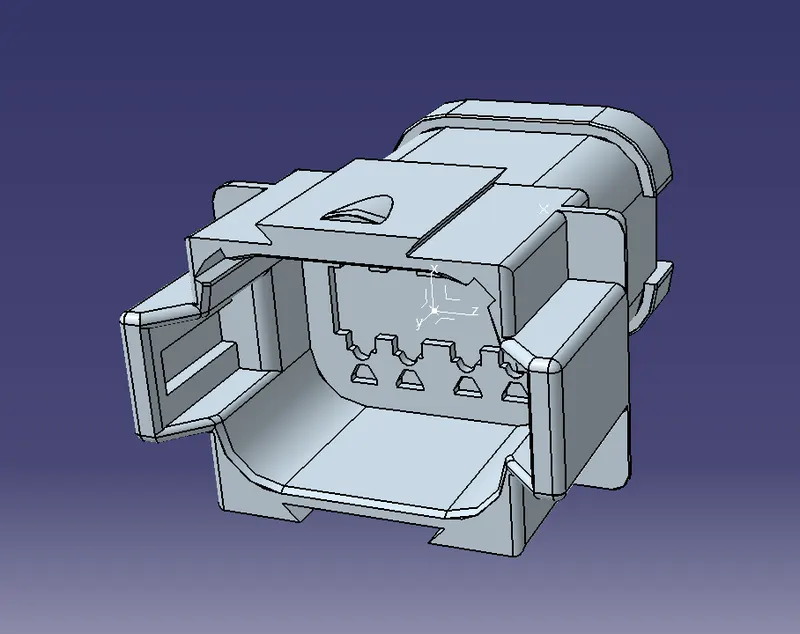

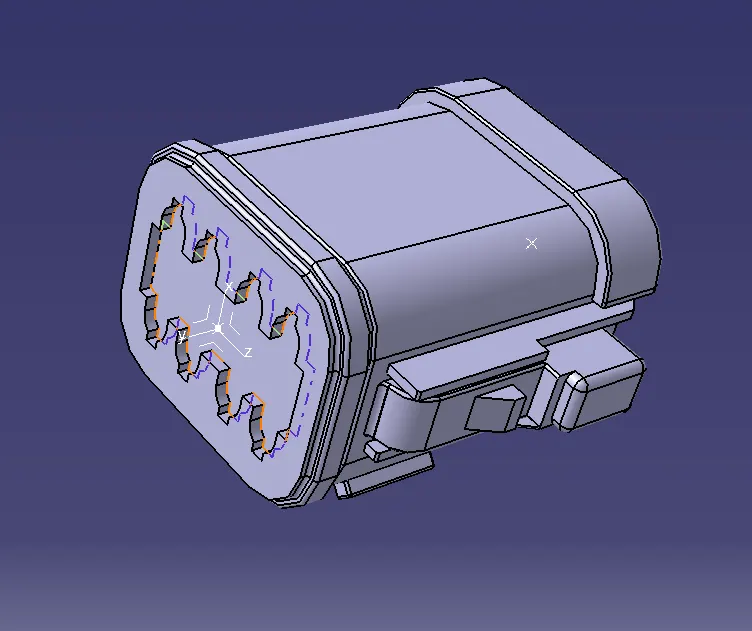

First Step is to define all connectors geometrically and electrically

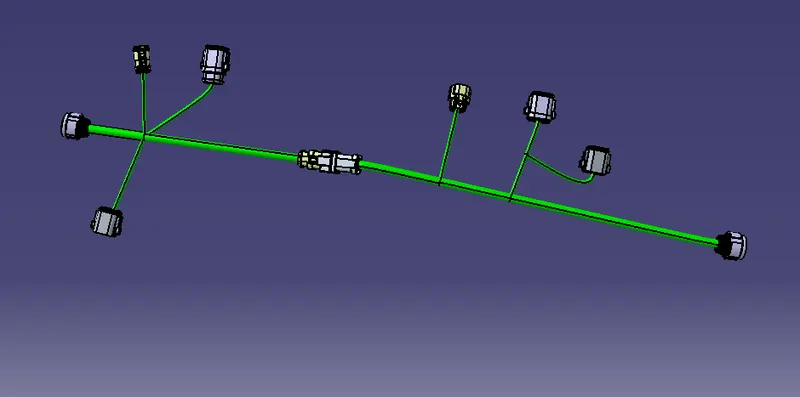

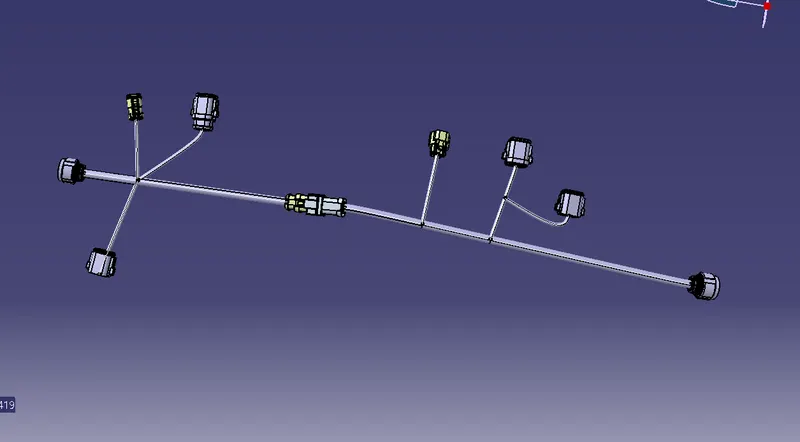

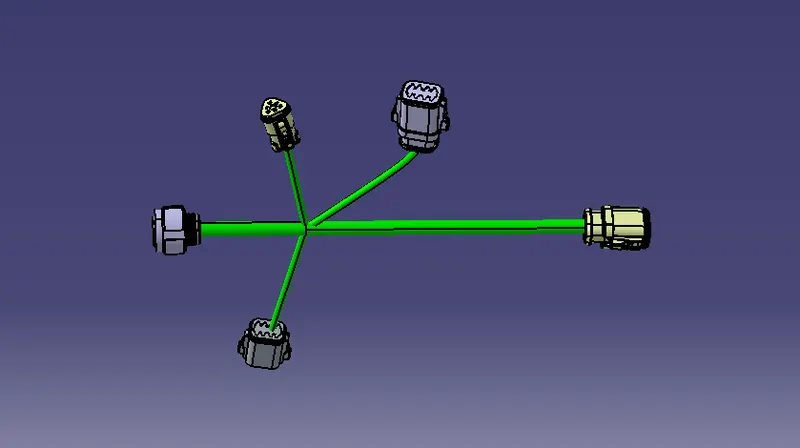

Second step is to create the harness refering to the layouts given and joining them

In the last step we have to convert the file into iges or step file for this convert the assemblt to mechanical then go to the tools option and click on generate catpartfromproduct
