Wiring harness design in CATIA V5 - 3D modeling Week 5 & 6 Challenge

REPORT:

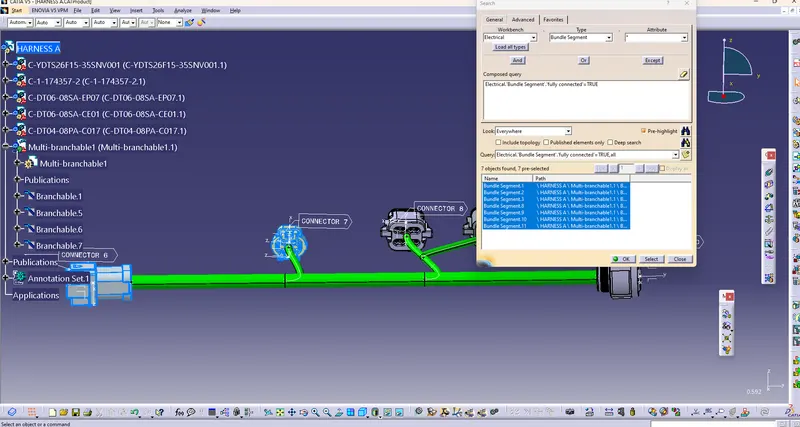

Firstly make all the components electrically defined before arranging them into the assembly and arrange all the components into the respective order in the assembly to simplify the bundle segment creation. To check the bundle segment connecton use search option from the mechanical assembly workbench.

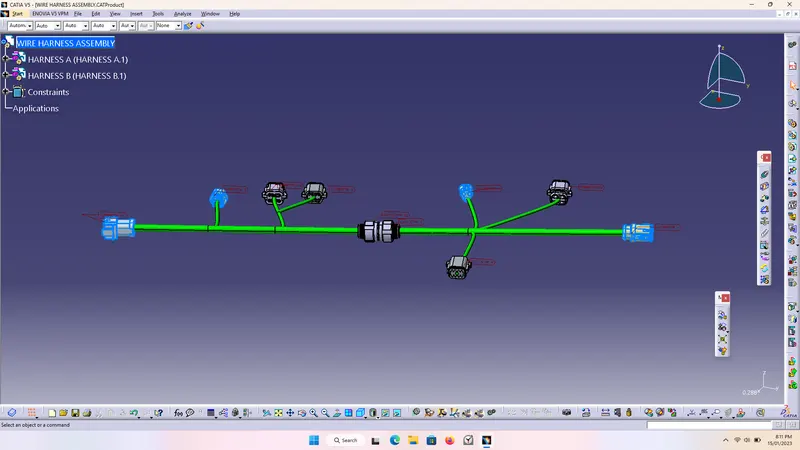

After the connectivity copy and paste the product into the main assembly and make the interconnection between the harness.
