Wiring harness design in CATIA V5 - 3D modeling Week 5 & 6 Challenge

Aim:

To create bunndle connection with given diagram.

Procedure:

Initially create the connection point on the connectors.

Then assemble the connectors

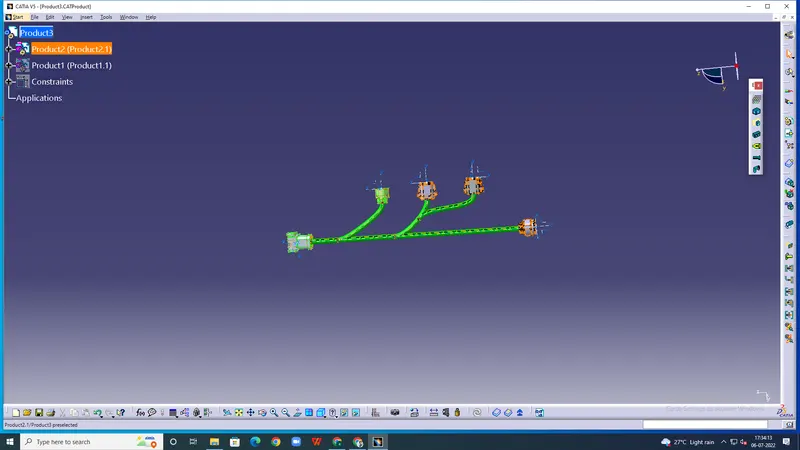

Apply bundle connection

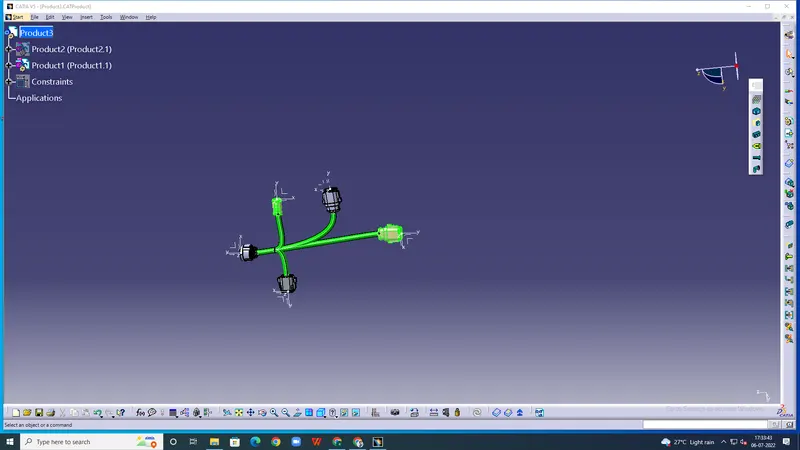

Create the another bundle segment

then

Ship work like this
