Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

CHALLENGE 3

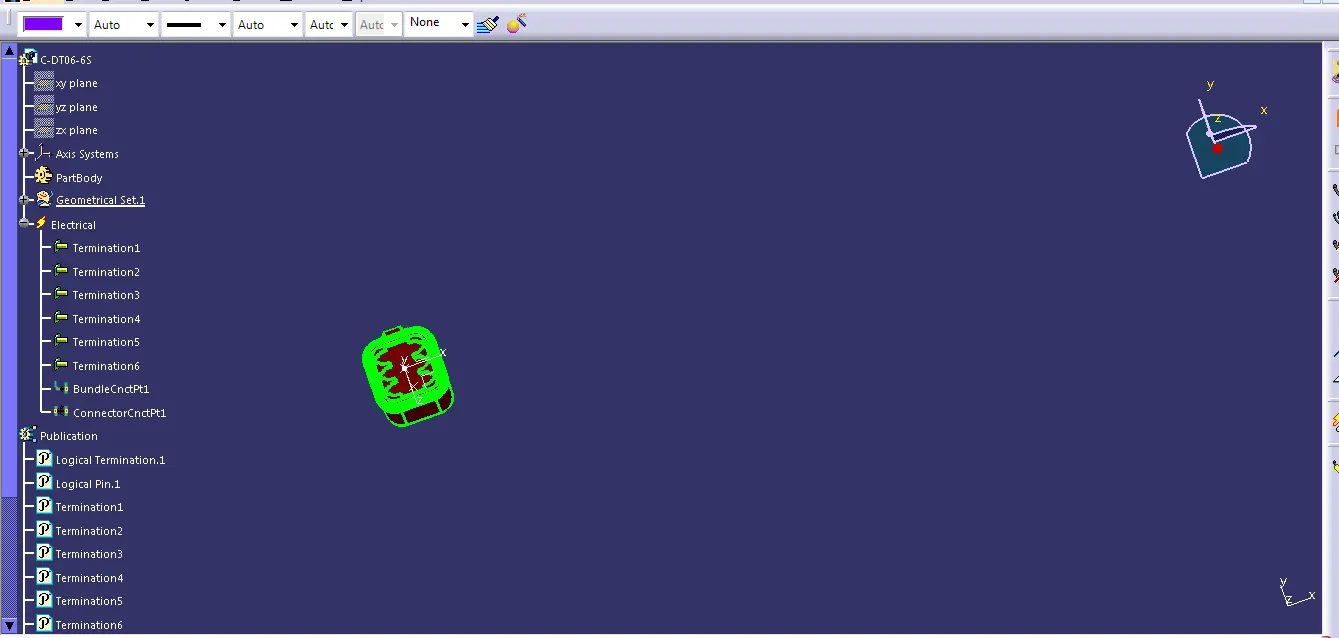

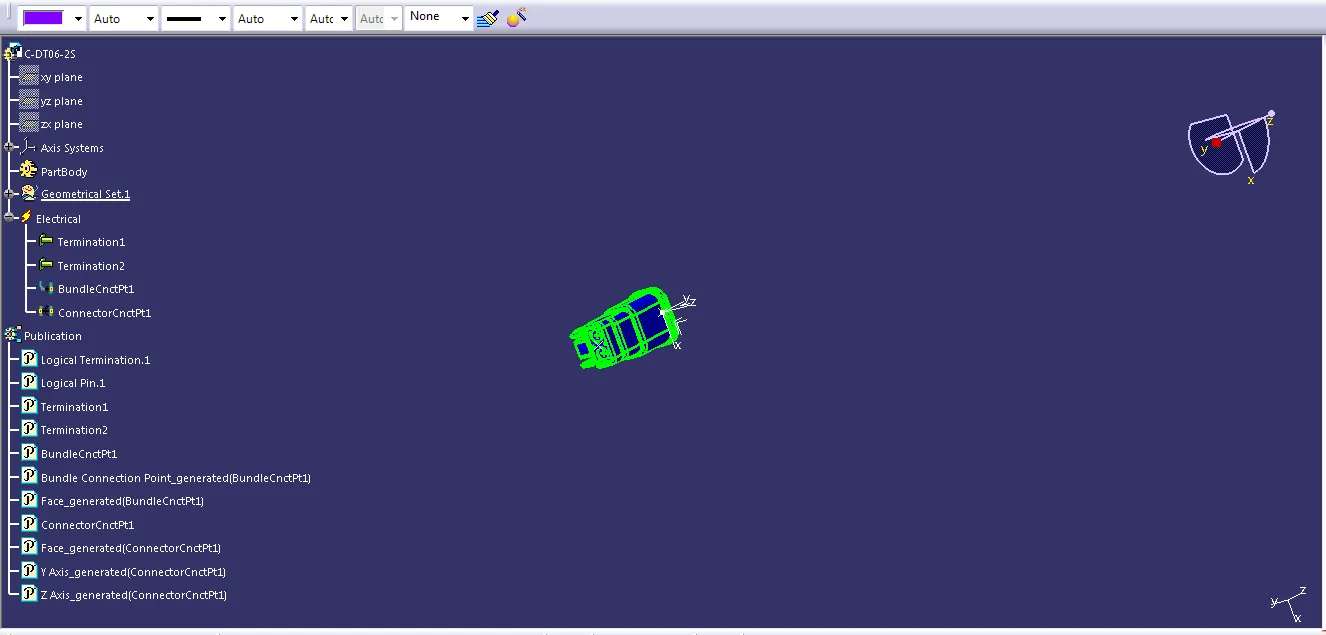

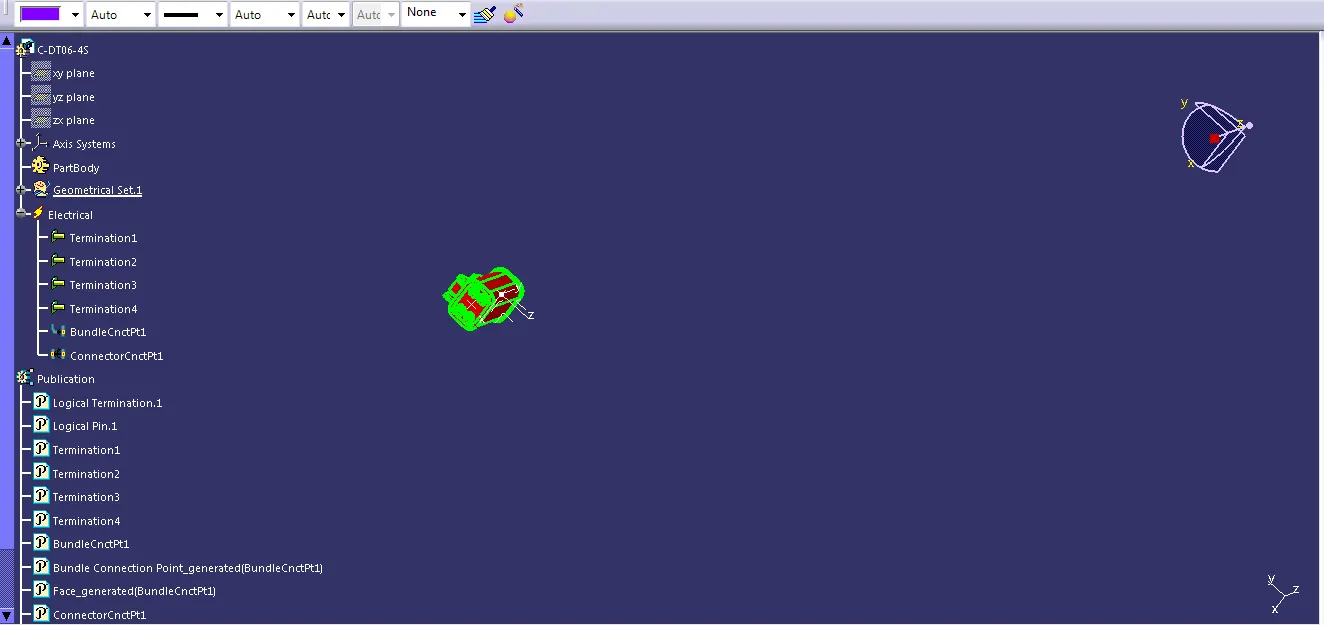

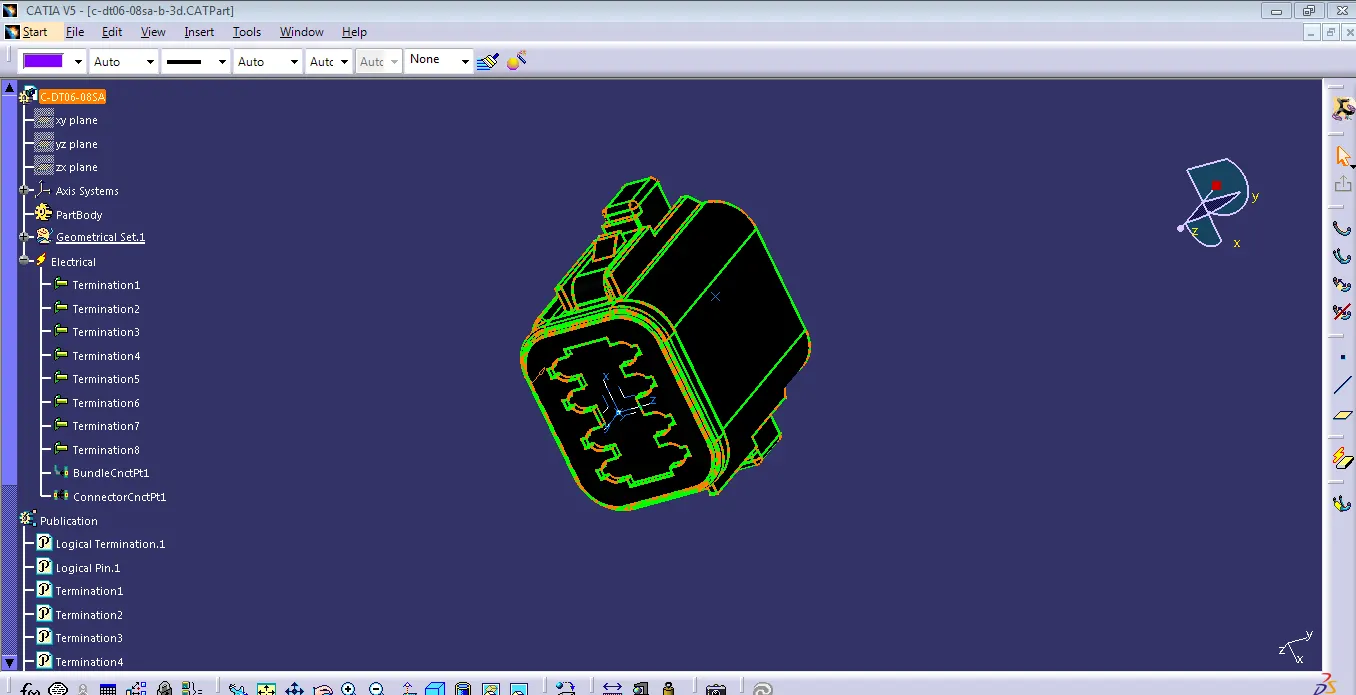

The following was defined for all the connectors:

Connector connection point

bundle connection point

axis system at the connector connection point

define all the connectors as electrical components

The connectors were assembled as the given diagram.

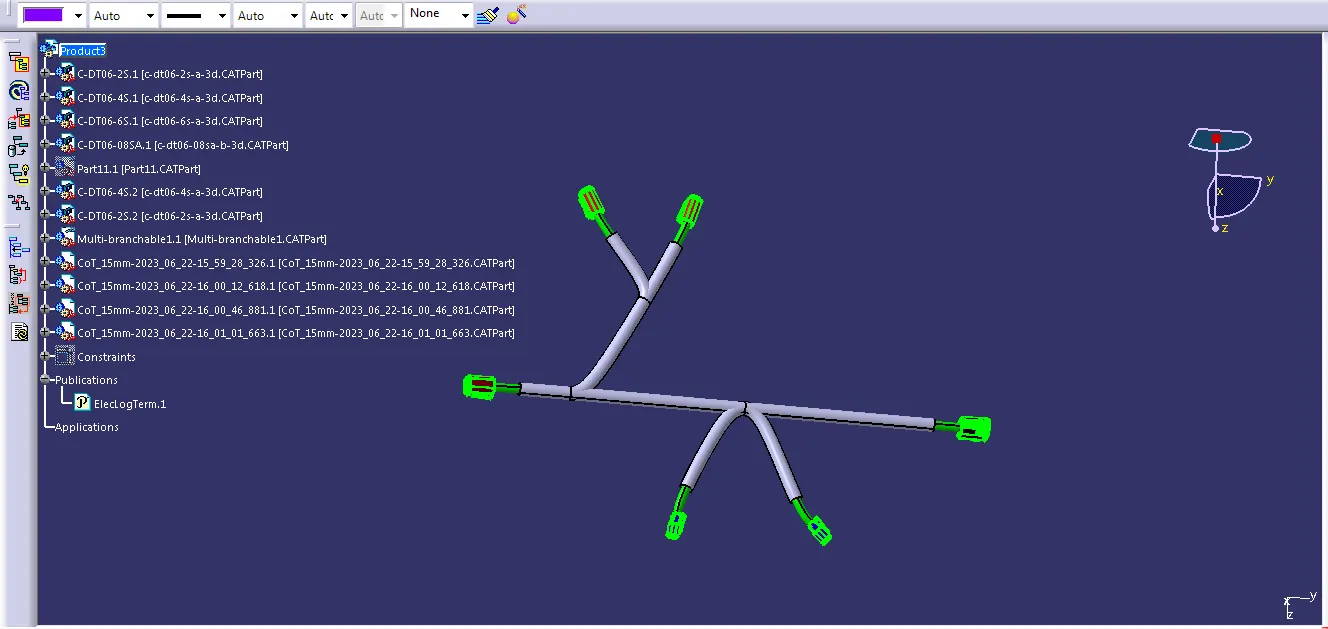

We use the multi branchable to add all the necessary brances , branch points in the wiring and harness assembly.

Protective coverings were added to the harness assembly.
