Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge
OBJECTIVE
Route the following harness layout in Electrical workbench. Make assumption for harness bundle diameters. Use Following connectors as shown in layout diagram. Add protective covering on all branches connected to DT06-2S & DT06-4S connectors. Keep end extremity at 30mm (from connectors end).
GIVEN DATA
CONNECTORS :
- DT06-4S
- DT06-6S
- DT06-2S
- DT06-08SA
CIRCUIT DIAGRAM :
PROCEDURE
DEFENING MACHANICAL PARTS INTO ELECTRICAL
CONNECTOR DT06-4S

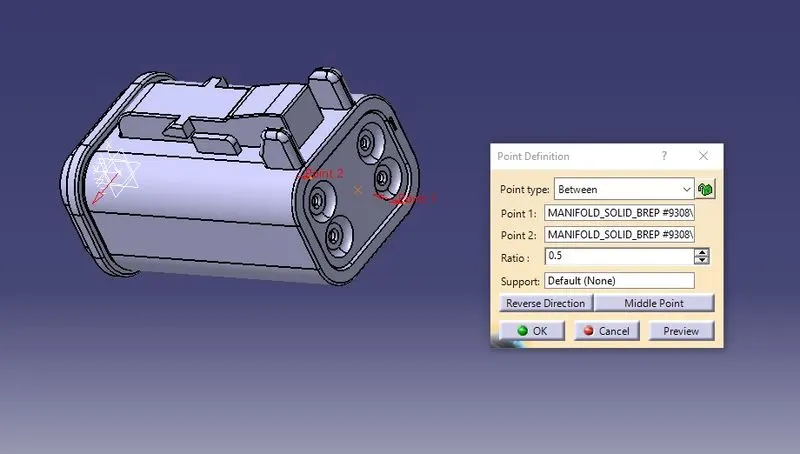

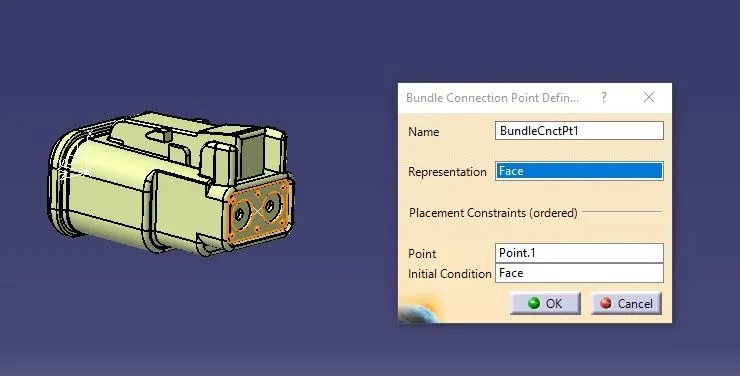

DT 06 - 4S Bundle connection point creation

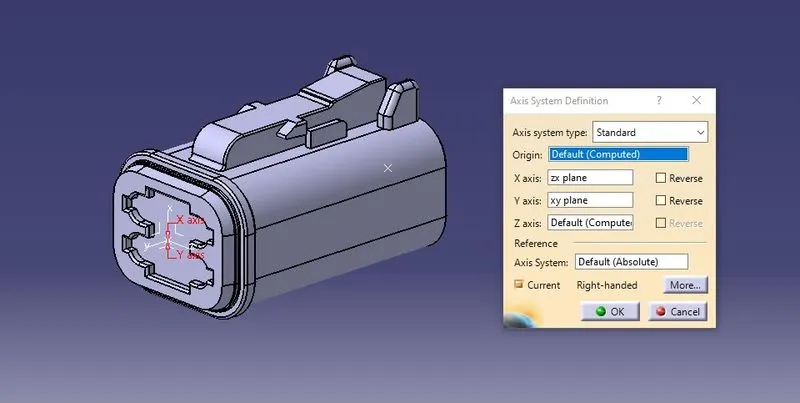

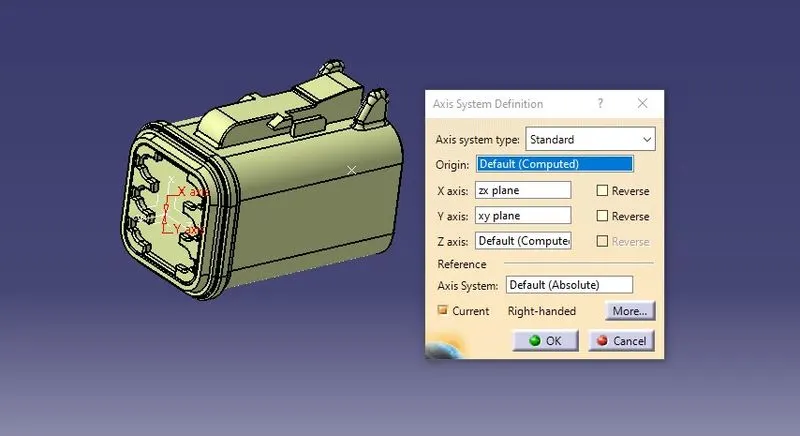

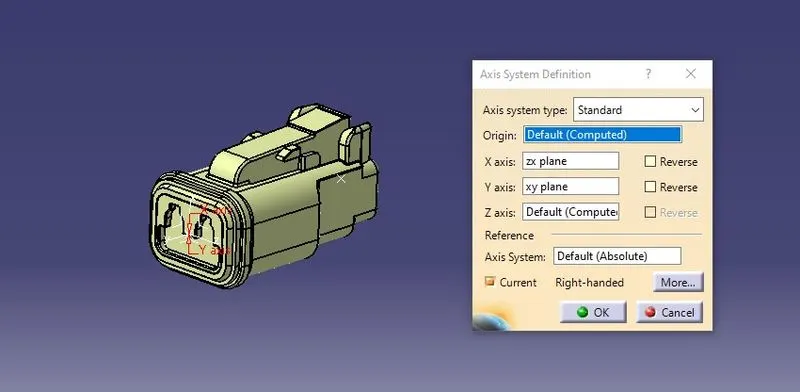

DT 06 - 4S Connector axis creation

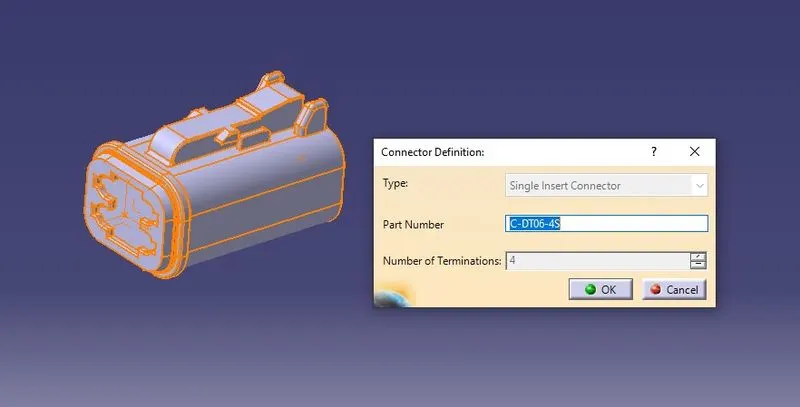

DT 06 - 4S Connector defenition
This connector has 4 terminals

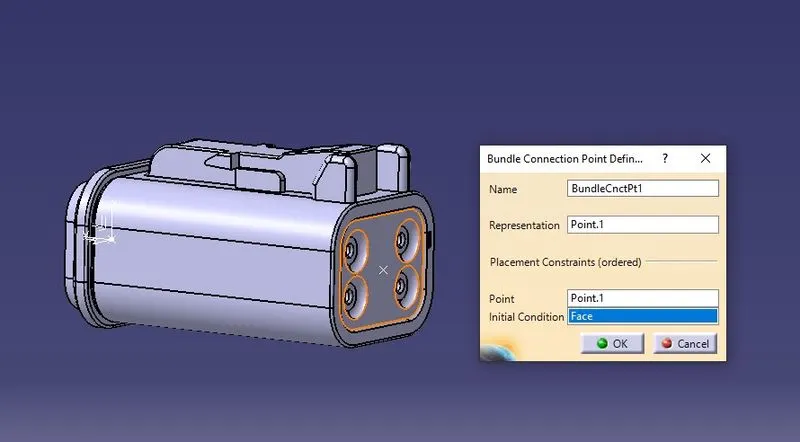

DT 06 - 4S Bundle connection point defenition

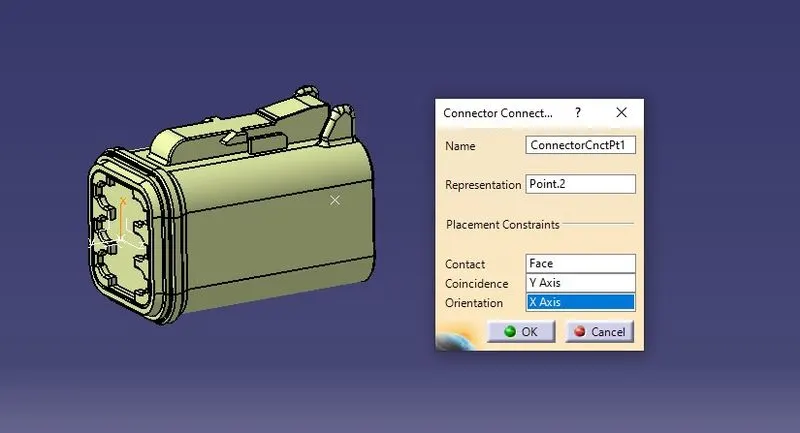

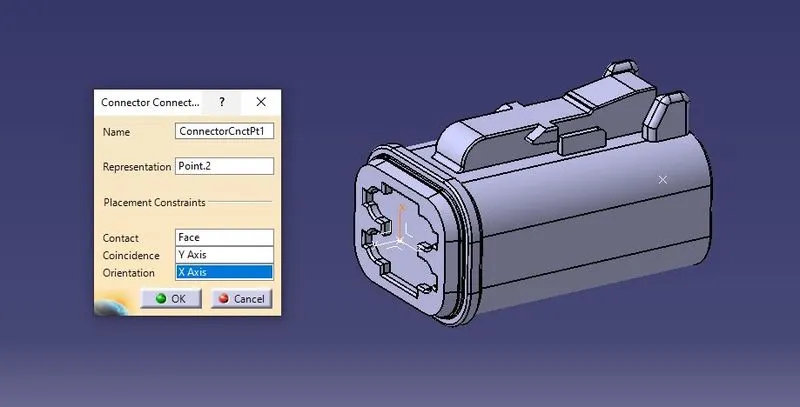

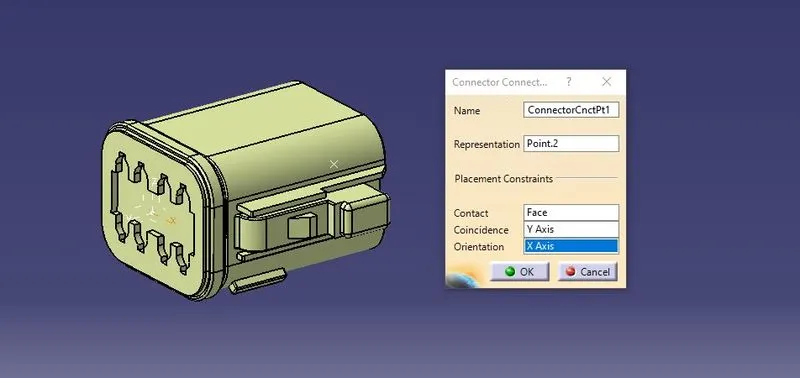

DT 06 - 4S Connector connection point
CONNECTOR DT06-6S

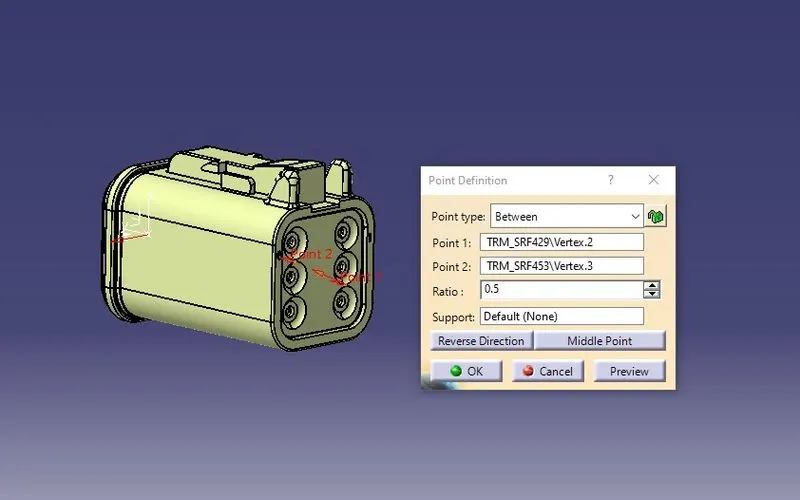

DT 06 - 6S Bundle connection point creation
DT 06 - 6S Connector axis creation

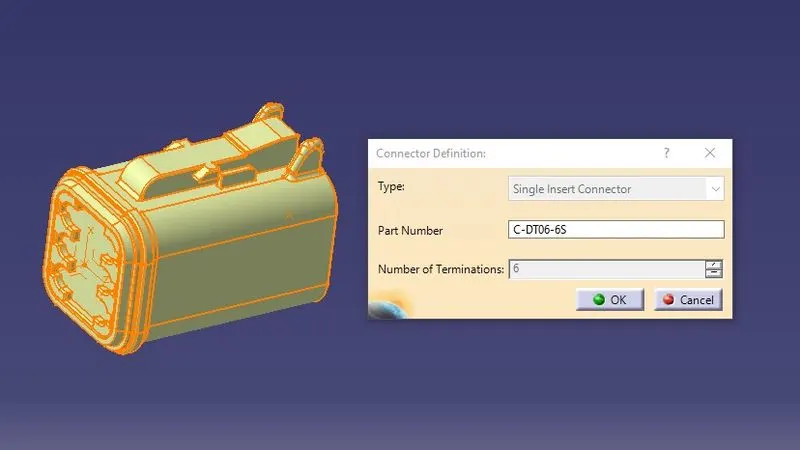

DT 06 - 6S Connector defenition
This connector has 6 terminals

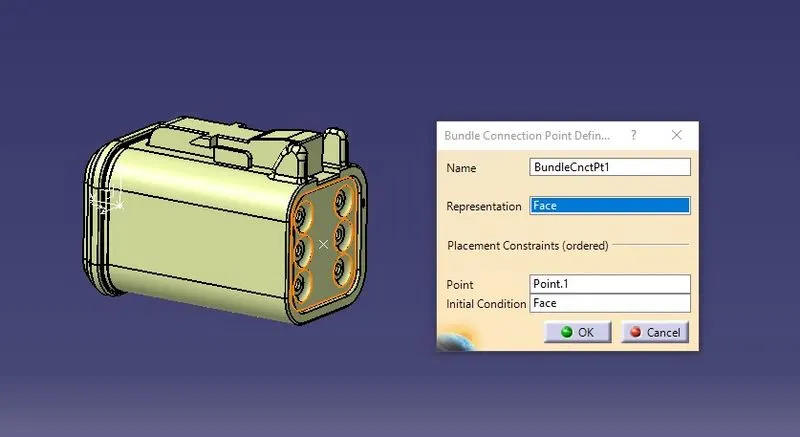

DT 06 - 6S Bundle connection point defenition
DT 06 - 6S Connector connection point
CONNECTOR DT06-2S

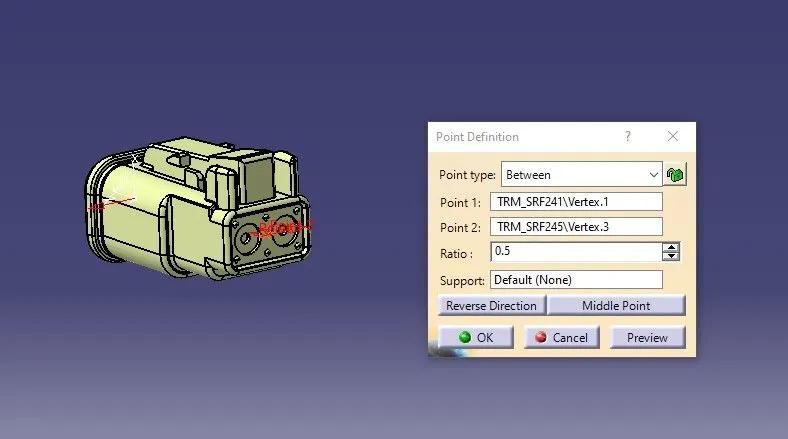

DT 06 - 2S Bundle connection point creation
DT 06 - 2S Connector axis creation

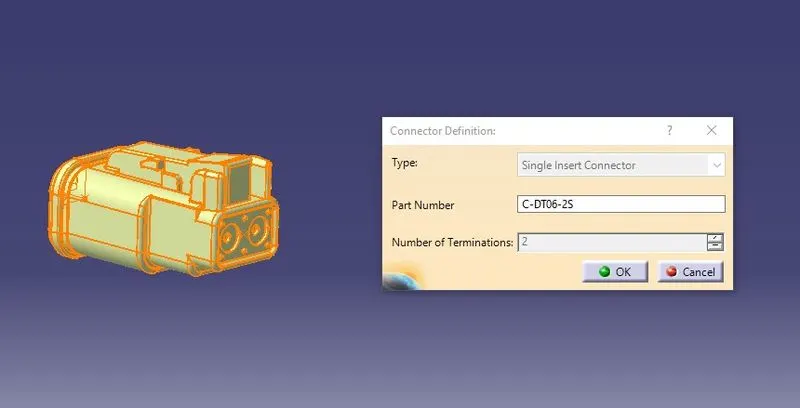

DT 06 - 2S Connector defenition
This connector has 2 terminals
DT 06 - 2S bundle connection point defenition

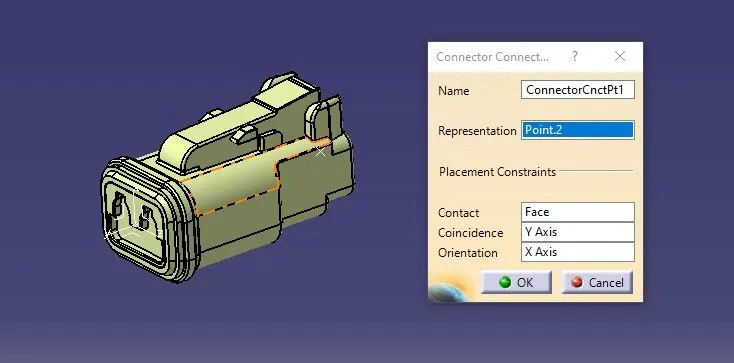

DT 06 - 2S Connector connection point
CONNECTOR DT06-08SA

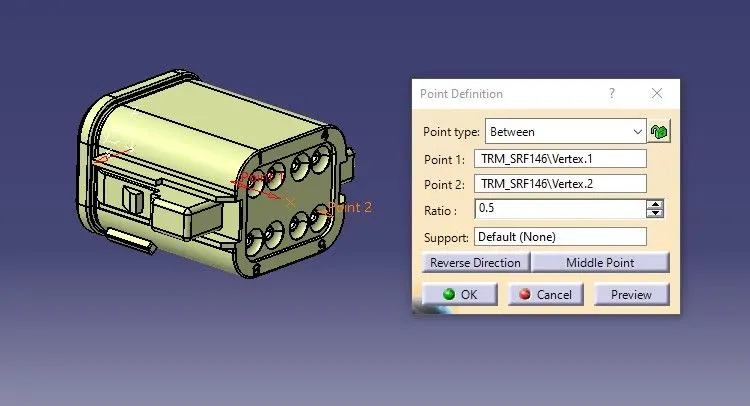

DT 06 - 08SA Bundle connection point creation

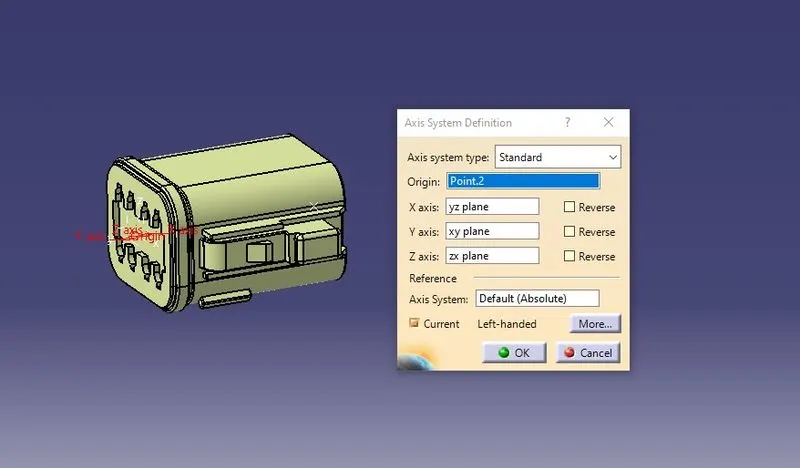

DT 06 - 08SA Connector axis creation

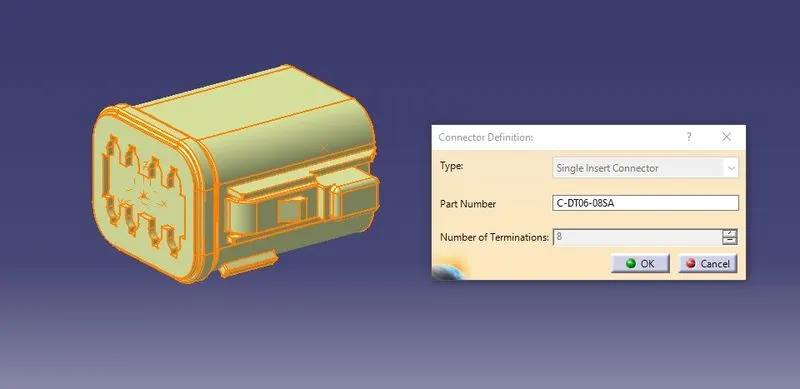

DT 06 - 08SA Connector defenition
This connector has 8 terminals

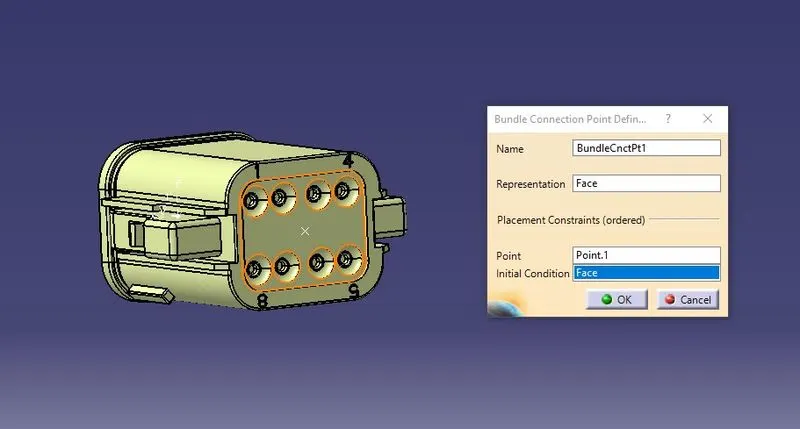

DT 06 - 08SA Bundle connection point defenition
DT 06 - 08SA Connector connection point

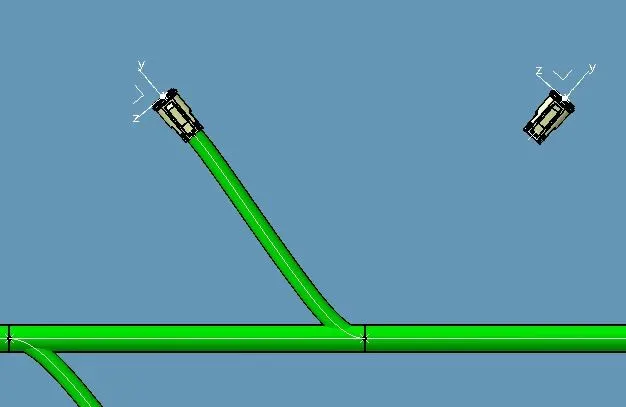

MULTI BRANCH CREATION

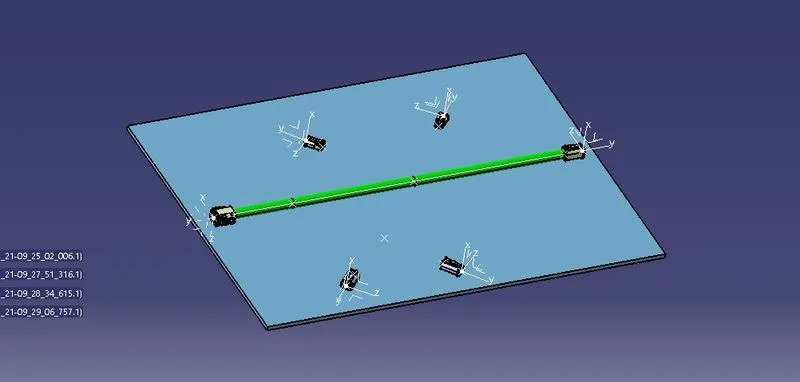

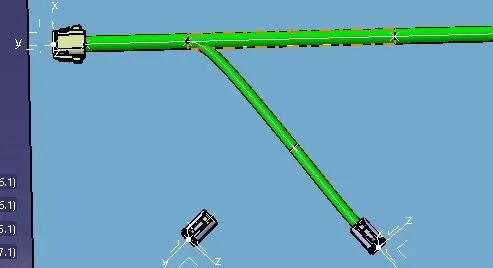

15mm multi branch between DT06 - 08SA and DT06 - 6S

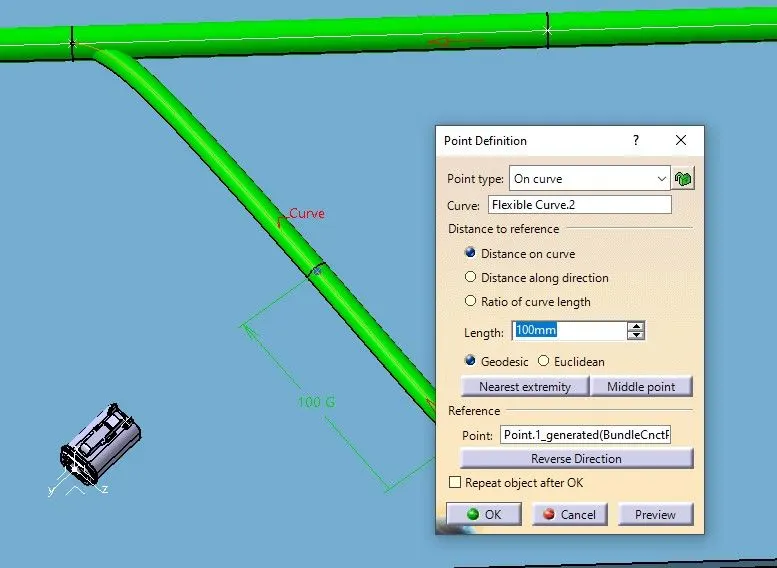

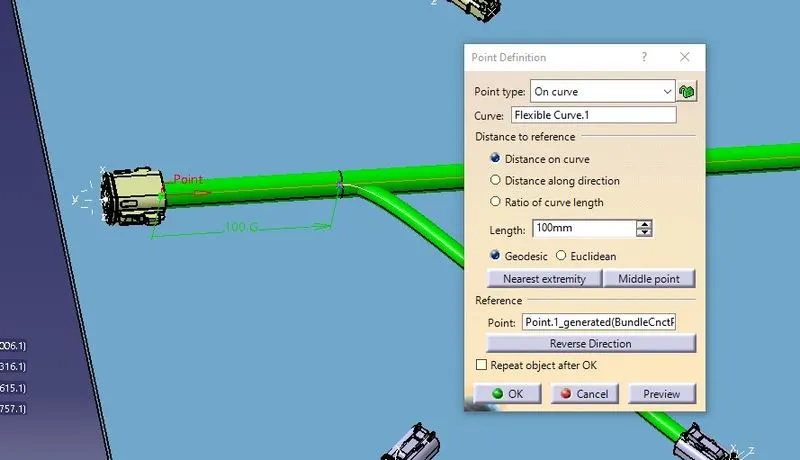

Branch point -1 creation @ 100mm from DT06 - 08SA

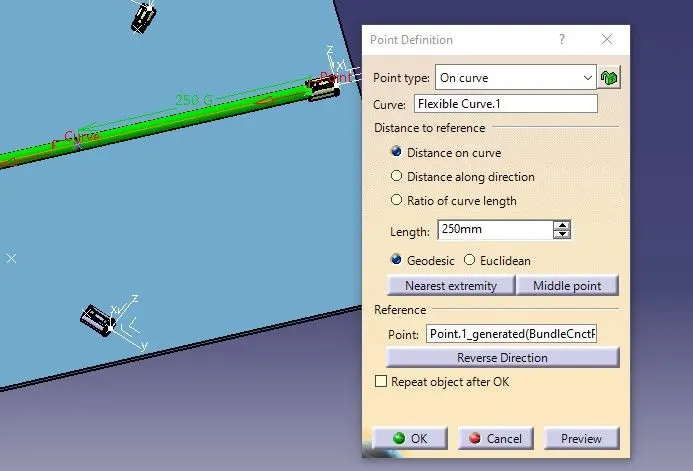

Branch point -2 creation @ 250mm from DT06 - 6S

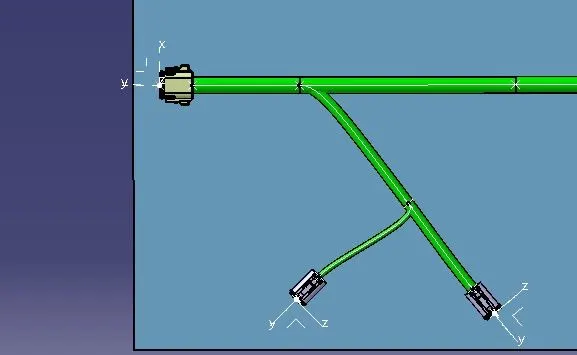

10mm multi branch between Branch point -1 and DT06 - 4S connector 1
Branch point -3 creation @ 100mm from DT06 - 4S connector 1
5mm multi branch between Branch point -1 and DT06 - 4S connector 2

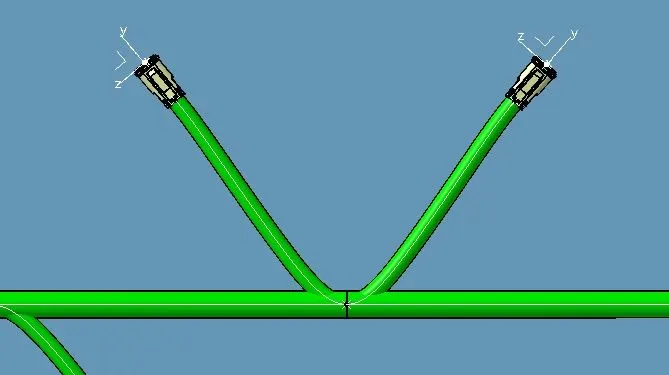

10mm multi branch between Branch point -2 and DT06 - 2S connector 1
10mm multi branch between Branch point -2 and DT06 - 2S connector 2

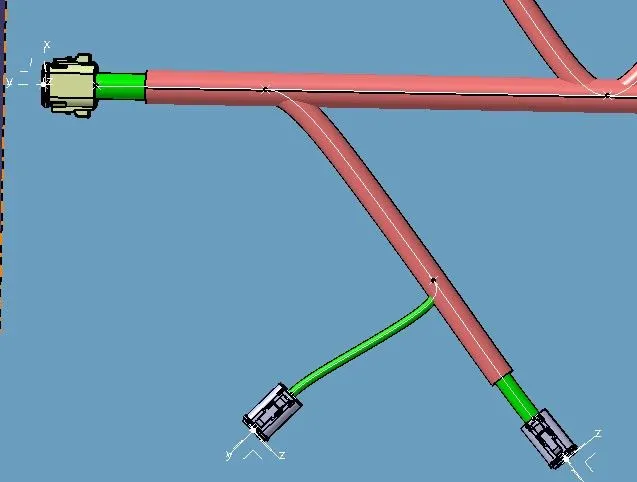

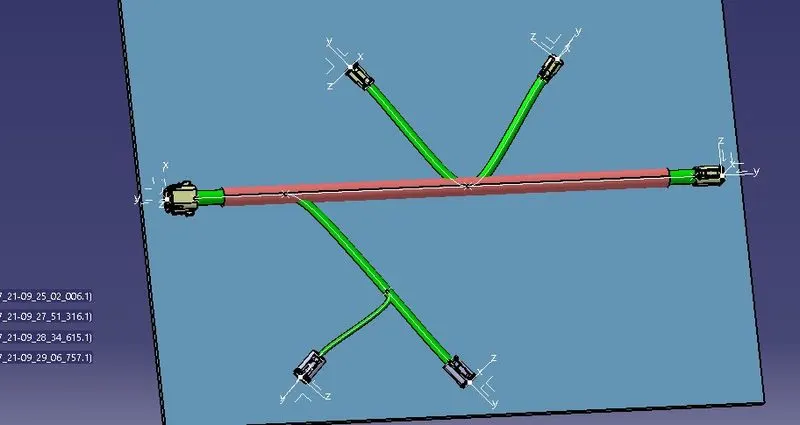

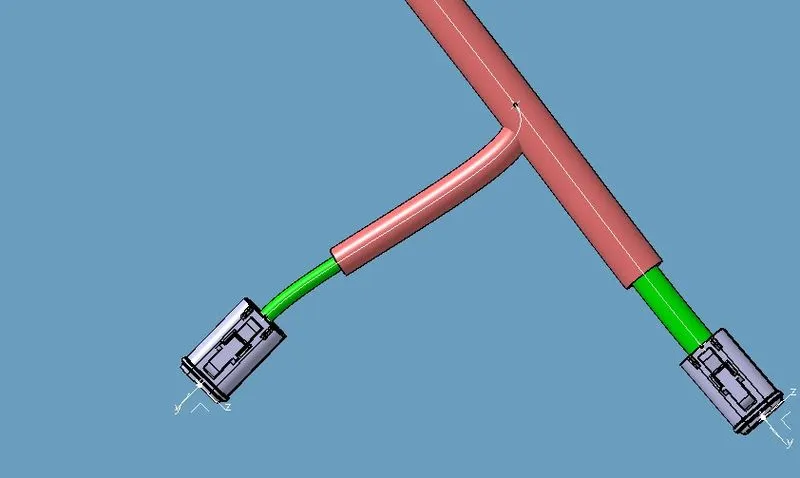

PROTECTIVE COVER CREATION
20mm Corrugative tube between DT06 - 08SA and DT06 - 6S

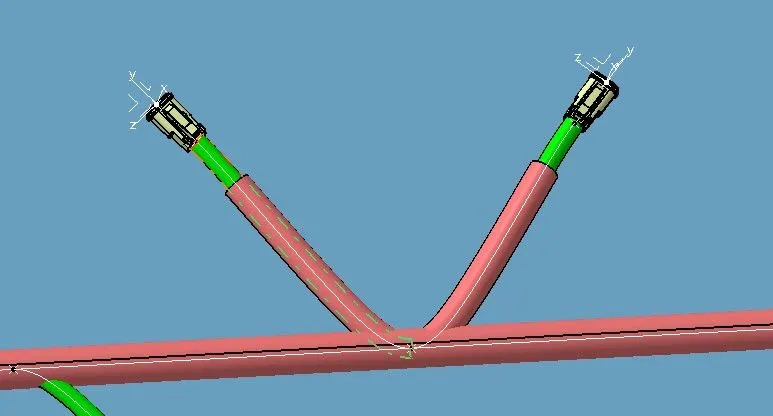

15mm Corrugative tube between DT06 - 2Sconnector 1, Branch point-2 and DT06 - 2S connector 2
15mm Corrugative tube between Branch point-2 and DT06 - 4S connector 1
10mm Corrugative tube between DT06 - 4S connector 2 and branch point 3

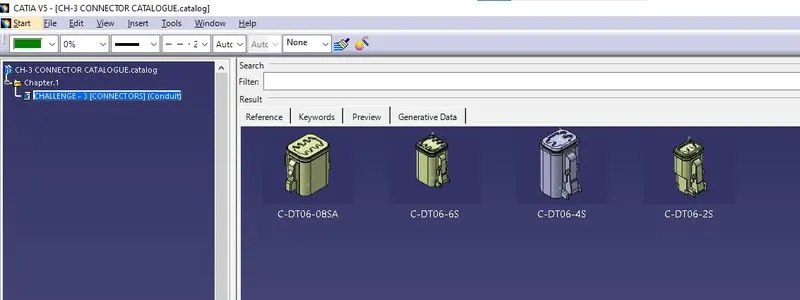

CH - 3 CONNECTOR CATALOGUE

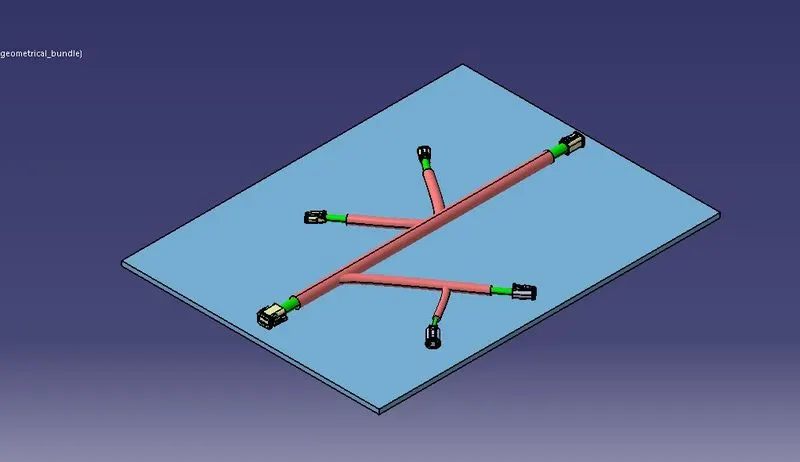

ISOMETRIC VIEW
