Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

As per the challenge question, i have made the wiring harness. The required connectors has downloded from the te.com.

For proper placing of the connector i have used positioned sketch and a base plate to keep the all connectors in a same plane.

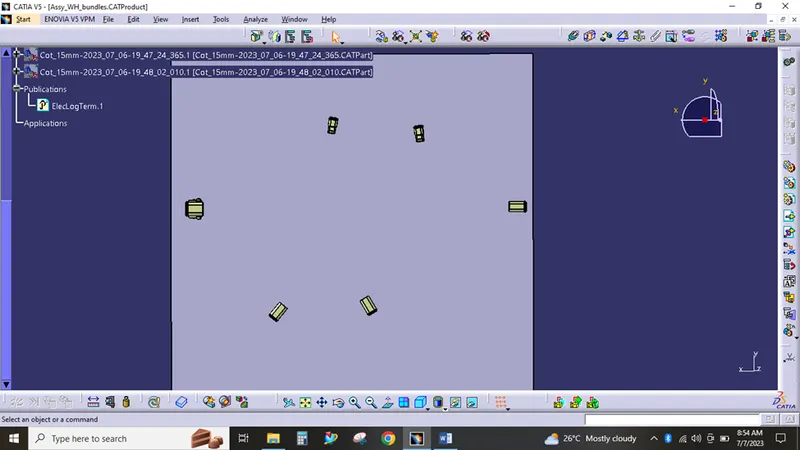

Connector placement,

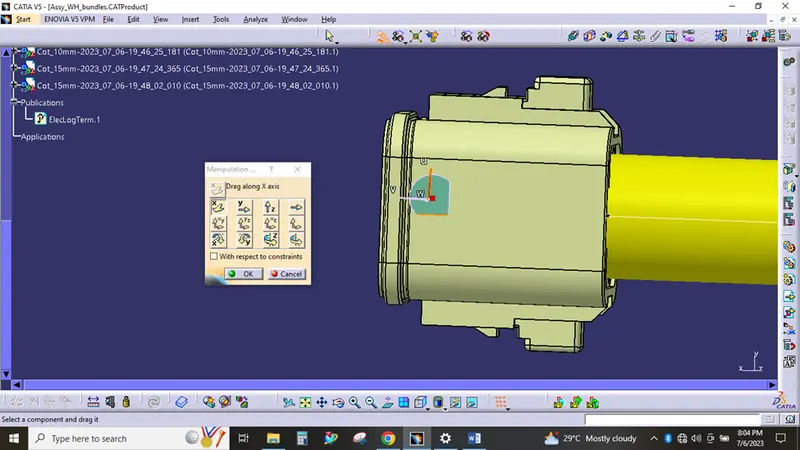

For placing - manipulation and smart move, compass used,

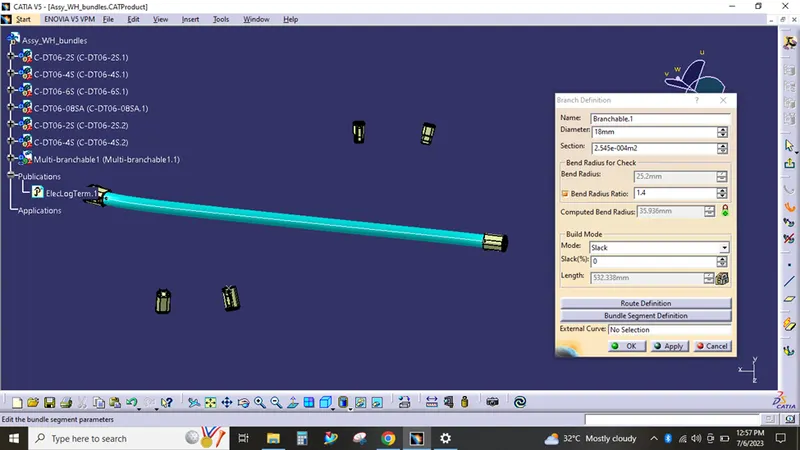

WH bundle creation using multi-branchable command,

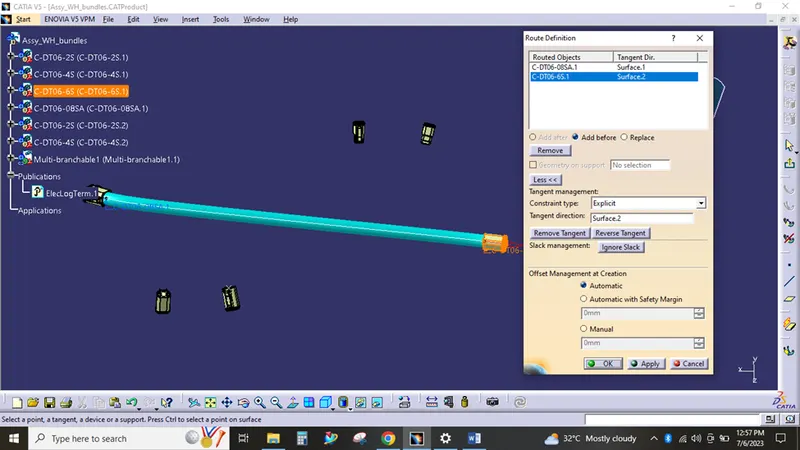

Route definition,

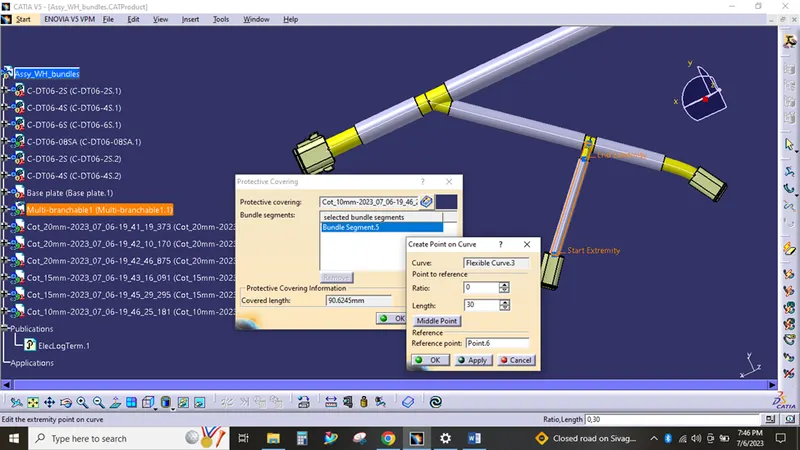

Protection covering,

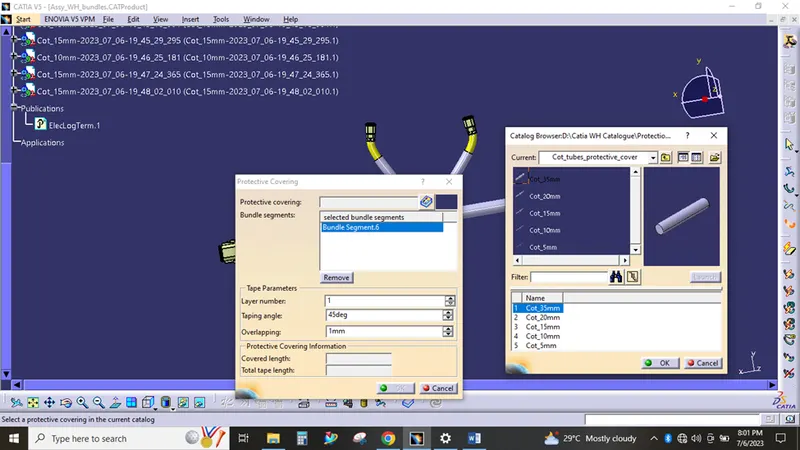

As per the assumed diameter of bundle, the desired protective cover (COT TUBES) has provided from the catalogue,

From connector point - 30 mm gap provided for covering

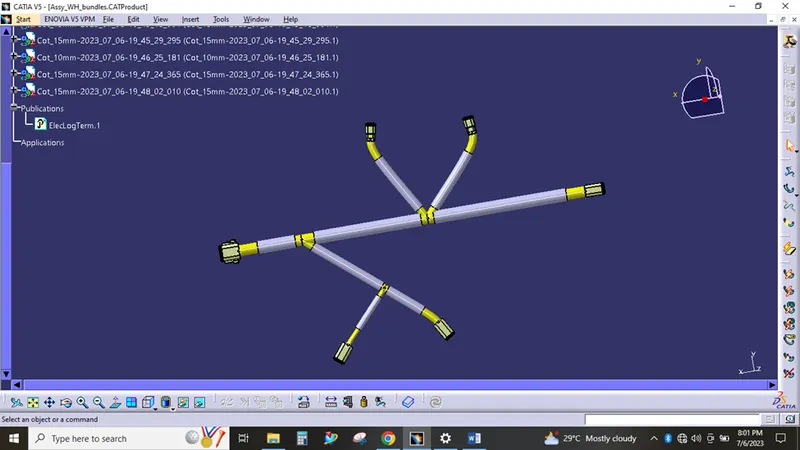

Result,

Yelllow color - Wire bundle

Grey color - Protective cover
