Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

1.

Report:

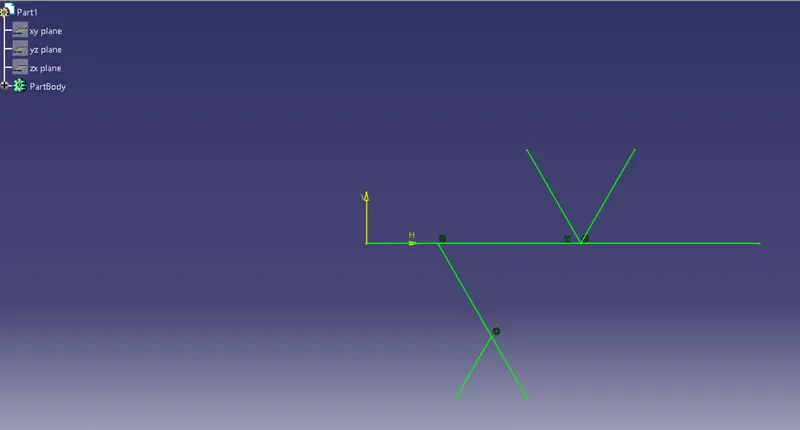

Initial draw a part design of given dimenssion wiring routing

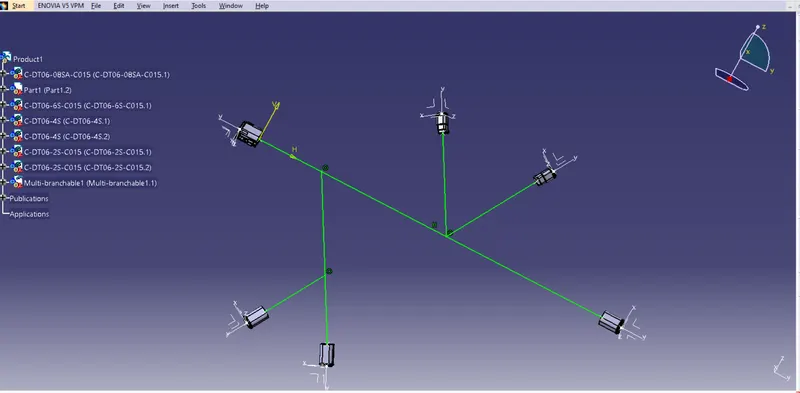

Connect the connector between two points with main branch from DT06-6s and DT06-8as.

Making the brach point on the route bundell and add the braching point

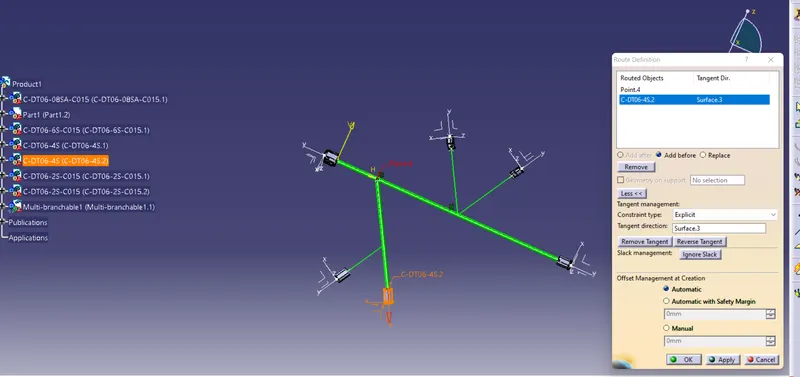

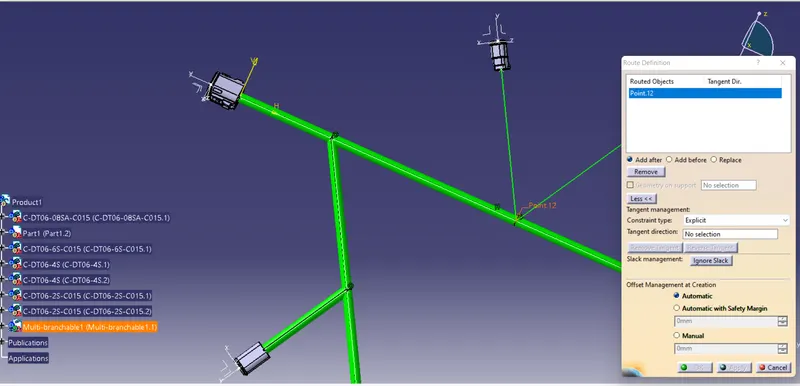

Connect the bunddle or Geometric Bundel And route definitation with the selected point and the connector.

Connect all the branched bunddels as mentioned above.

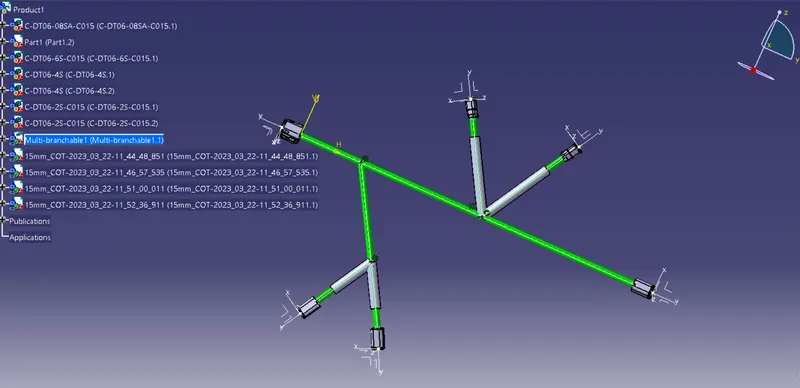

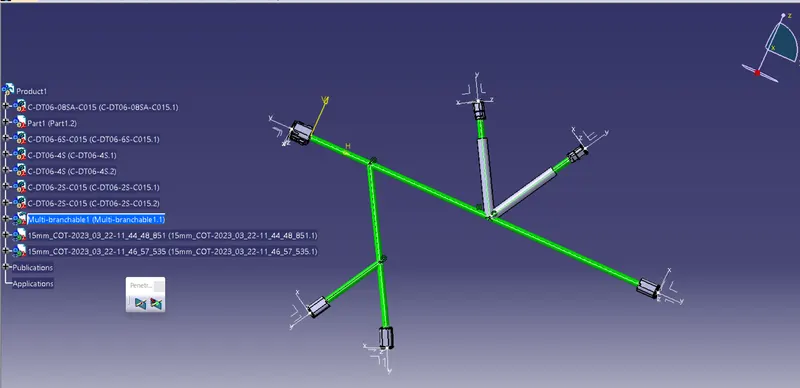

Add the Protective cover in the electrical design.

Mention the end etremity point at 30mm from end. And Save the file.
