Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

REPORT ON WIRE HARNESING USING GIVEN CONNECTOR PARTS:

FOLLOW THE STEPS BELOW:

1.DOWNLOAD THE CAT PARTS

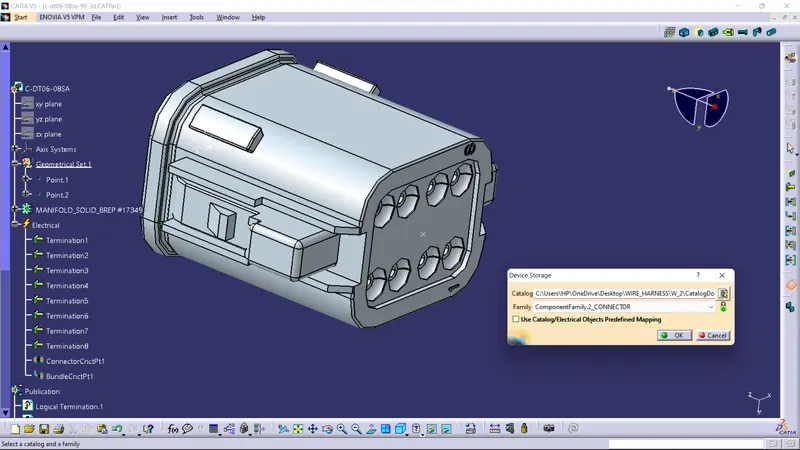

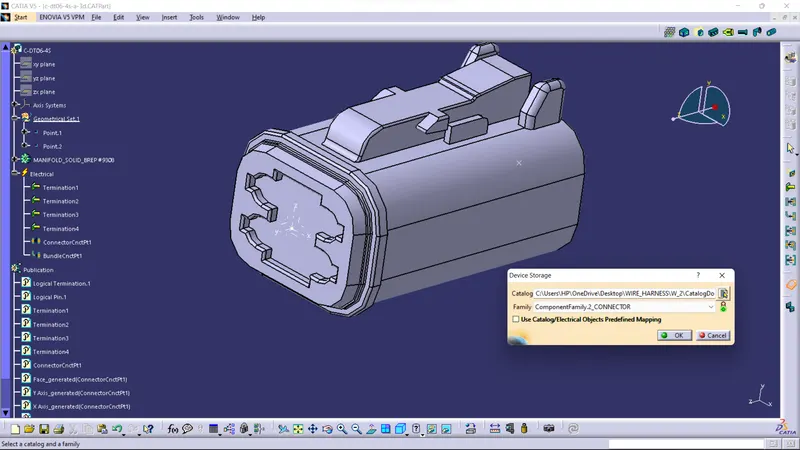

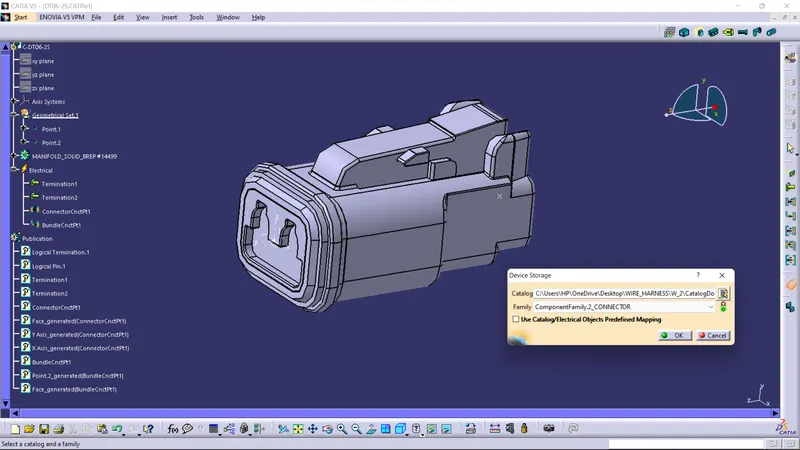

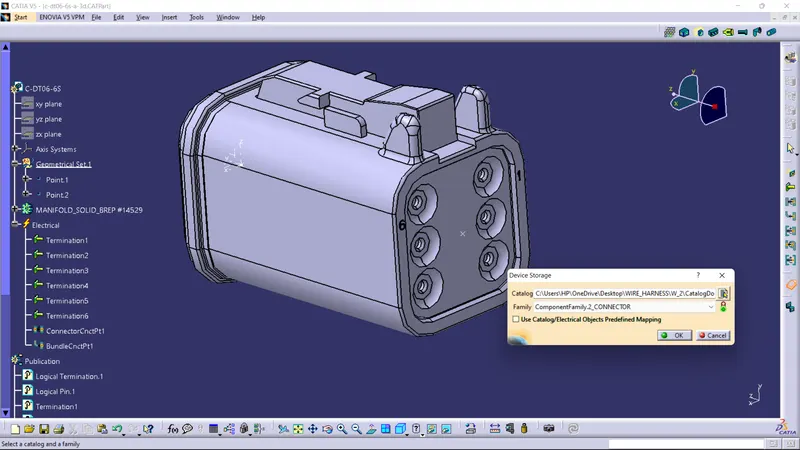

2.DEFINE THE PARTS AS ELECTRICAL

3.DEFINE THE GEOMETRICAL PARAMETERS

4.DEFINE THE CONNECTOR CONNECTION POINTS AND BUNDLE CONNECTION POINTS FOR THE CONNECTORS

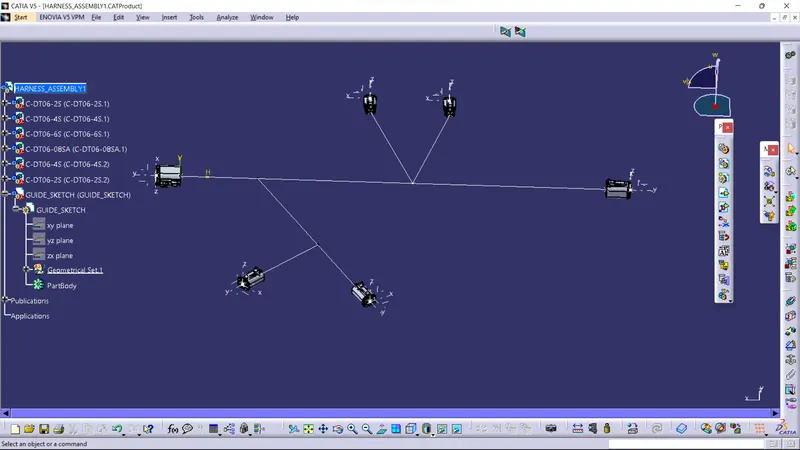

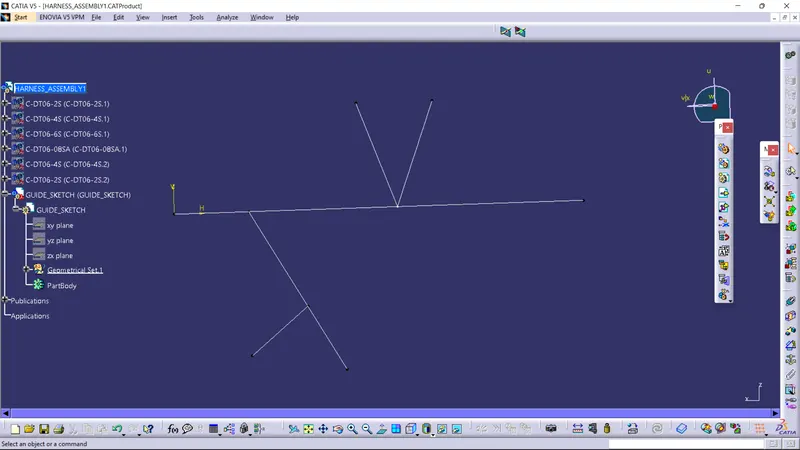

5 .IMPORT THE PARTS TO PART DESIGN ASSEMBLY AND ALIGN THEM ACCORDING TO THE POSITIONS GIVEN IN THE INPUTS BY CREATING A REFERNCE SKETCH

6. SWITCH TO THE ELECTRICAL HARNESS ASSEMBLY WORKBENCH AND SELECT DEFINE THE GEOMETRICAL BUNDLE TO COVERT THE MECHANICAL ASSEMBLY TO ELECTRICAL ASSEMBLY

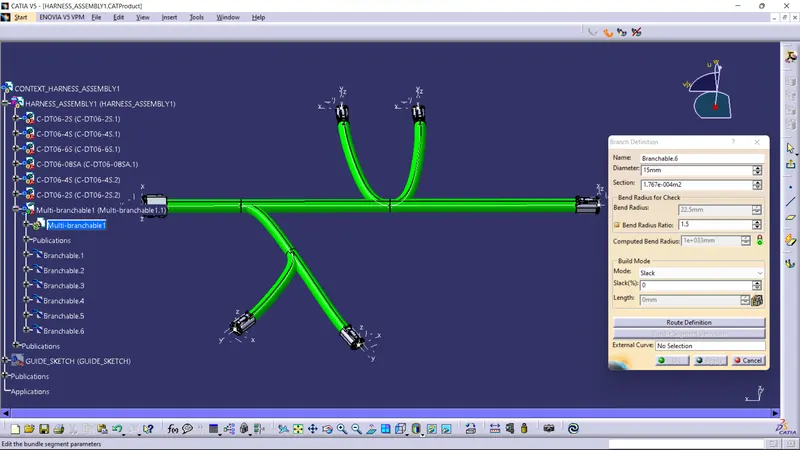

7. SELECT THE MULTI BRACHABLE OPTION AND BRACH DEFINATION DIALOG BOX OPENS,SELCT THE APPROPRIATE OPTIONS

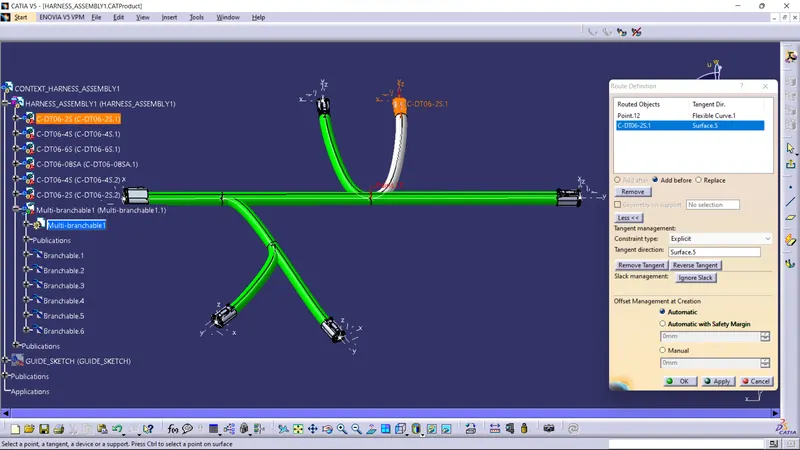

8. NEXT THE SELECT ROUTE DEFINATION OPTION AND SELCT THE CONNECTORS/SUPPORTS WHICH ARE REFERENCES FOR THE HARNESS ROUTING

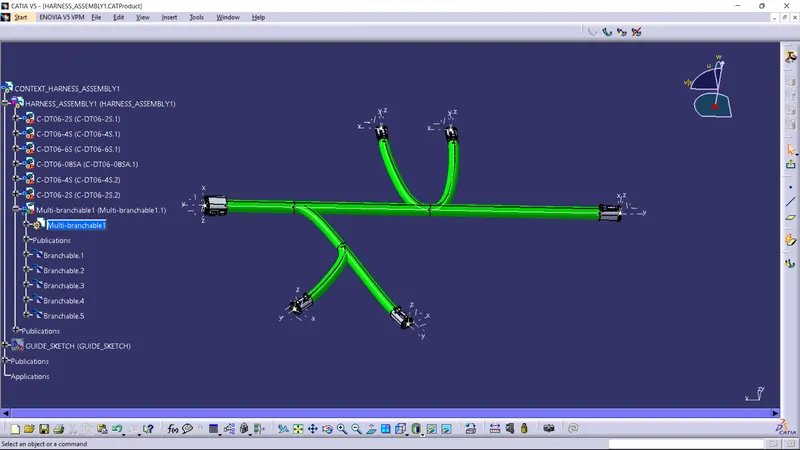

ROUTED WIRING:

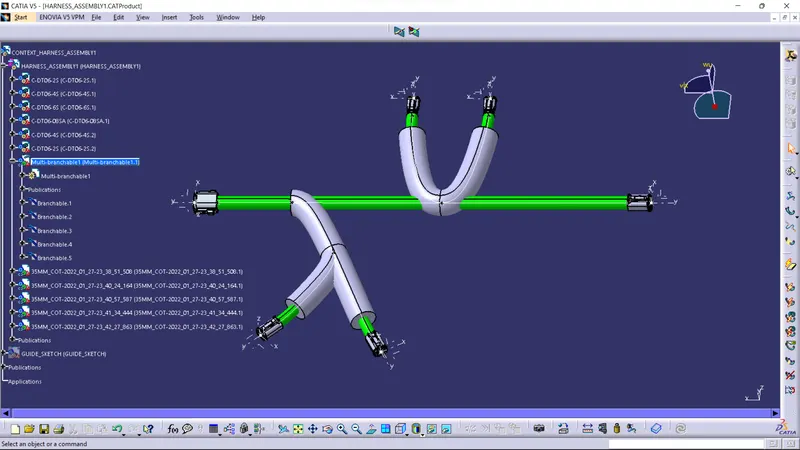

ADDING COT TUBES WITH END EXTRIMITY OF 30MM FROM CONNECTORS:
