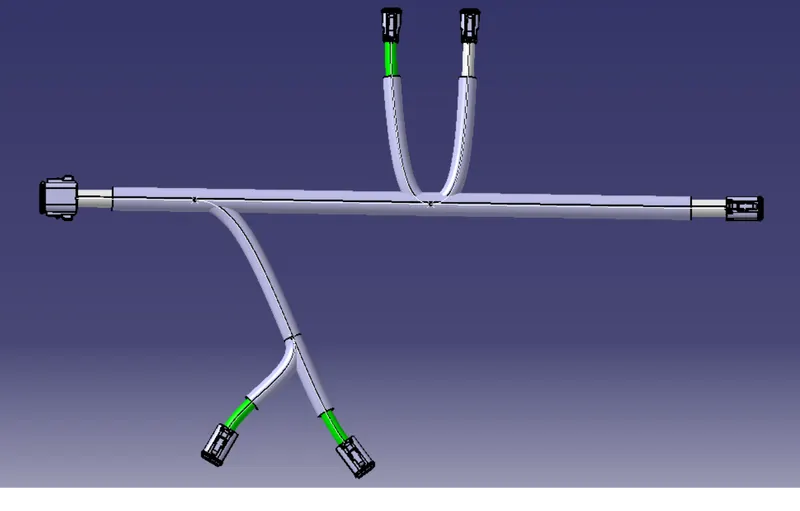

Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

The given connector numbers are downloaded from Tyco Electronics website.

Downloaded connectoers are electrically defined using Electrical Part design workbench.

Connector are position the above picture diemension using Compass & manipulation tools in Part assembly workbench.

Part aseembly Work bench to --> Eleclrtical harness Assembly

Geometrical Bundle tool used to covert Electrical assembly

Note;

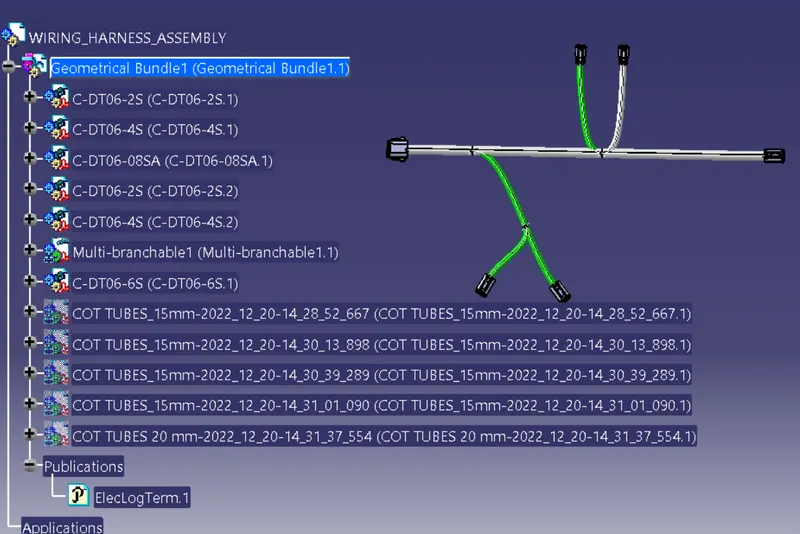

First 2 Brancable color is white afterwards i changed the branch segmant color in Green.

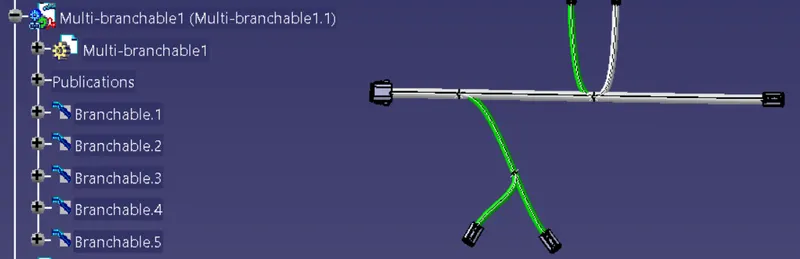

Multi brachable tool use to create Harness Routing in Electrical Harness Installation workbench.

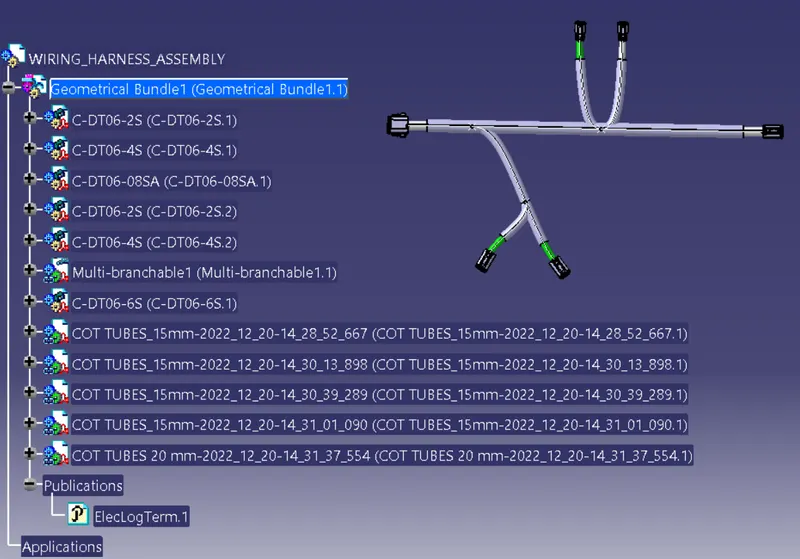

Finally Apply Cot Tubes.
