Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

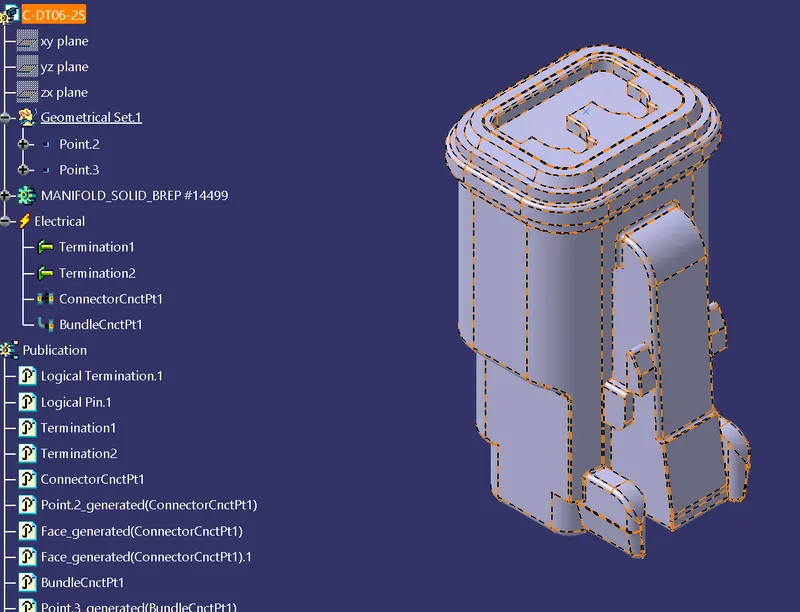

DT06-2S Connector 3D is Downloaded in TE and Electrically defined,

. DT06-4S Connector 3D is Downloaded in TE and Electrically defined,

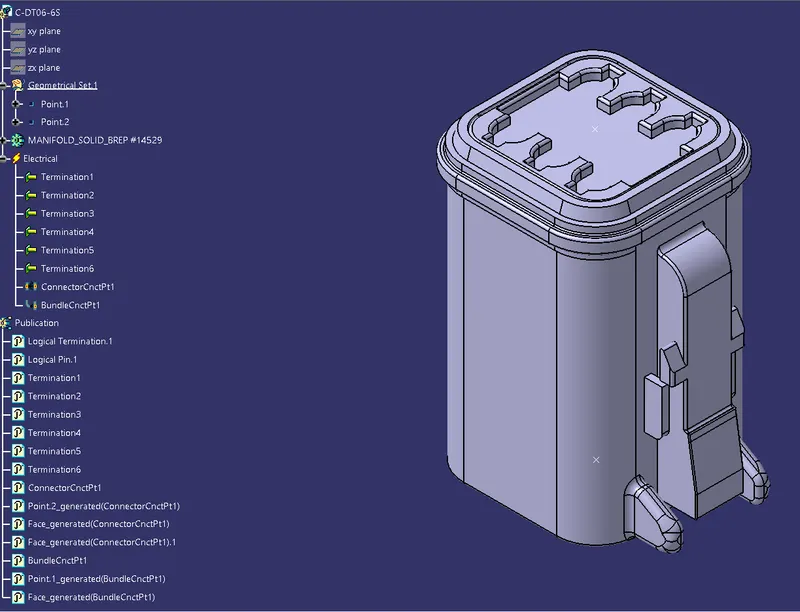

. DT06-6S Connector 3D is Downloaded in TE and Electrically defined,

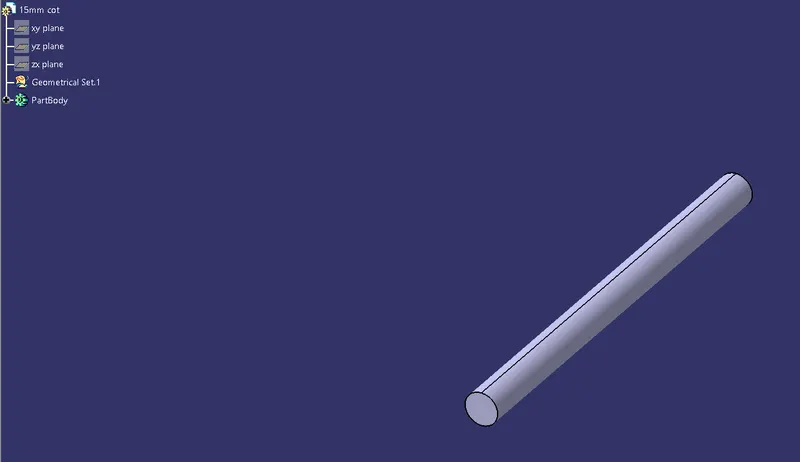

COT TUBES are created in Electrically created in Electrical Part Design For 05mm, 10mm, 20mm

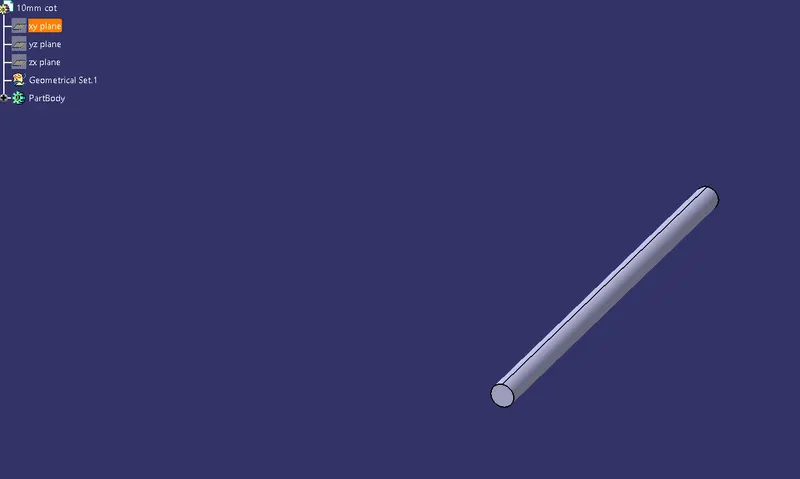

COT TUBES are created in Electrically created in Electrical Part Design For 05mm, 10mm, 20mm

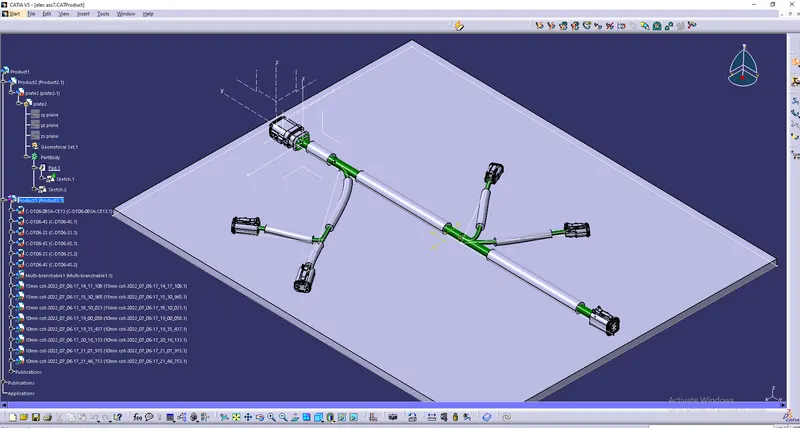

Connectors are connected using Geometrical bundle in Electrical harness assembly And Protective coverings are Applied and Full Harness layout in electrical workbench is done.
