Wiring harness design in CATIA V5 - 3D modeling Week 2 Challlenge

AIM:

To make electrical component in electrical work bench.

procedure:

To download the cat file in the website

Then define body inn electrical component

Then create connector point

create bundle point

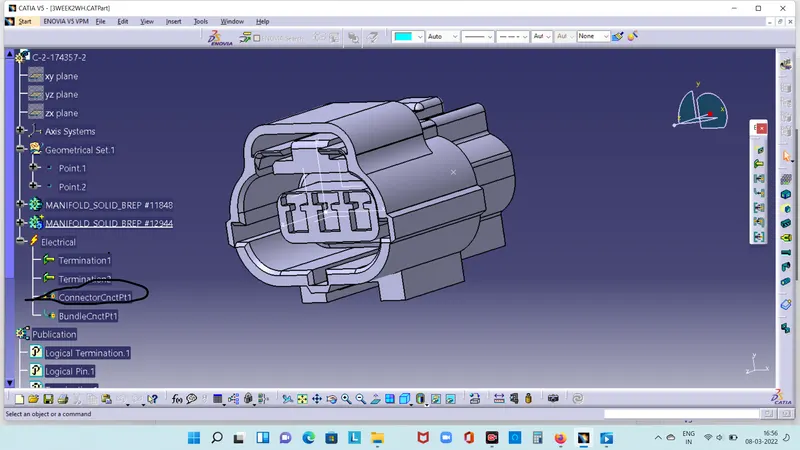

create cavity connection point and axis system in lower side

create The another component

download the component from the TE website

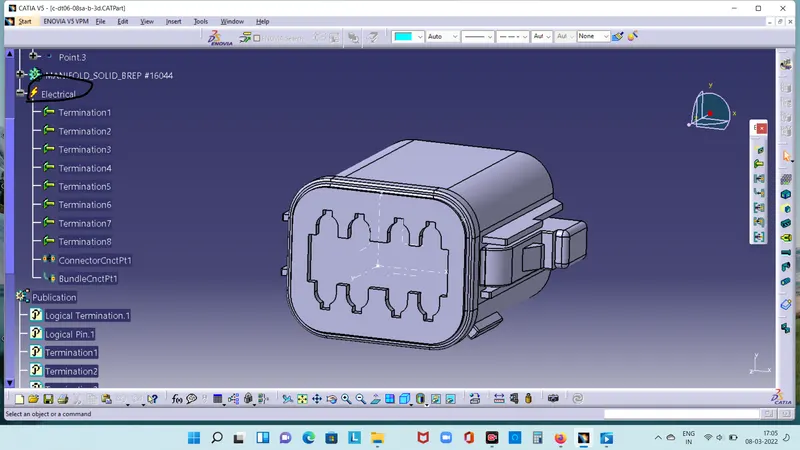

create the middle point in the connection side

then create the axis system

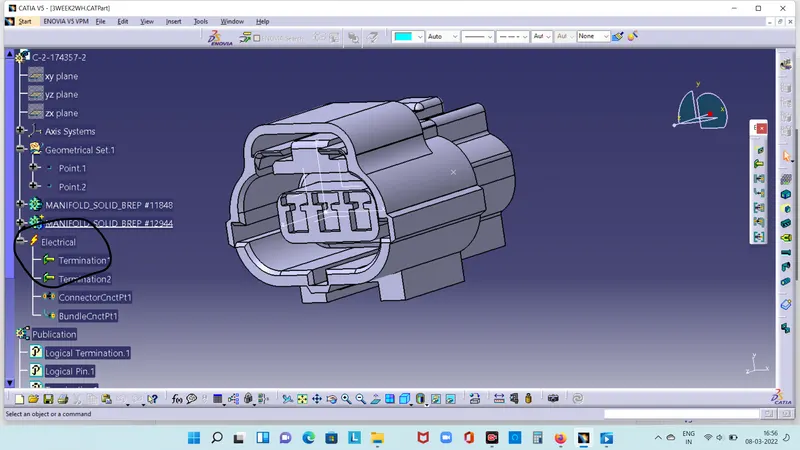

convert electrical component

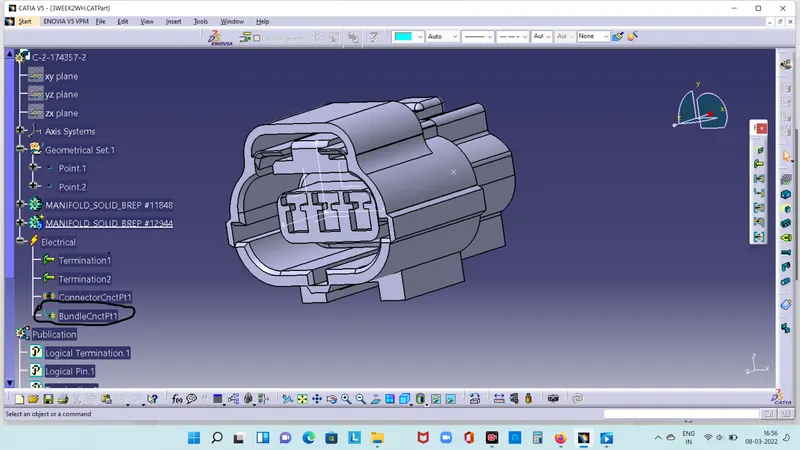

create the bundle point

CAVITY CLIP:

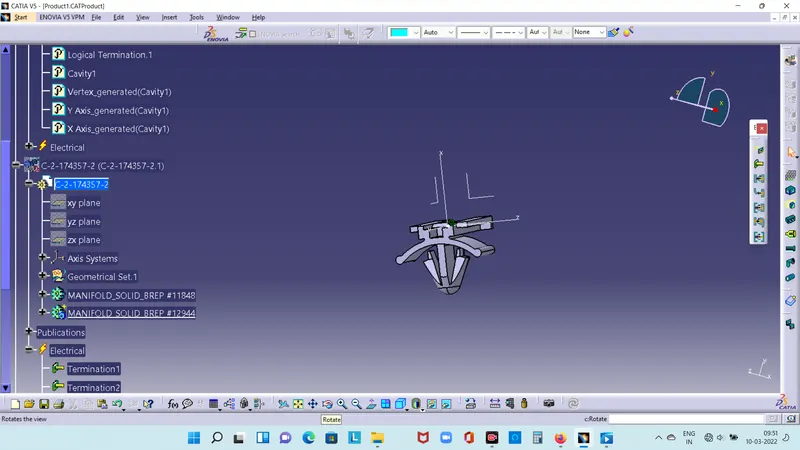

create the connection point and axis system

make the electrical component

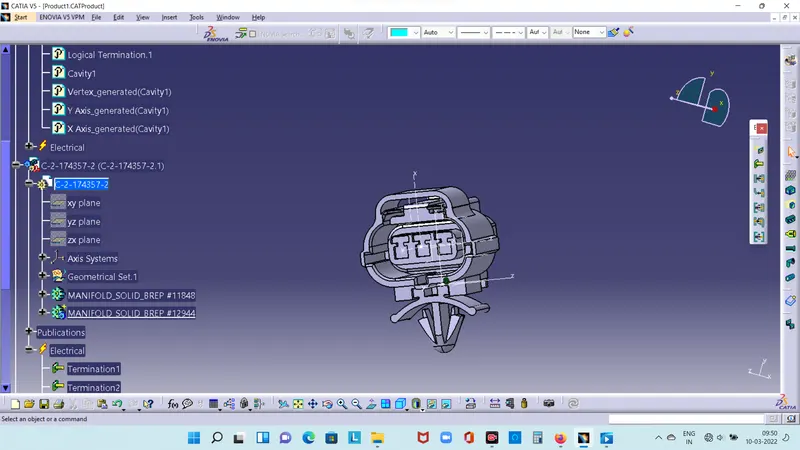

connect the connector and cavity clip

use connect device command option

RESULT:

The given product is make th electrical component.
