Wiring harness design in CATIA V5 - 3D modeling Week 2 Challlenge

Electrical Part design workbench -

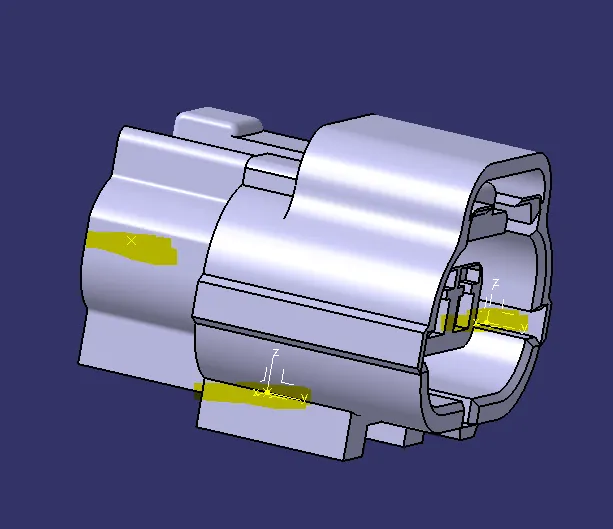

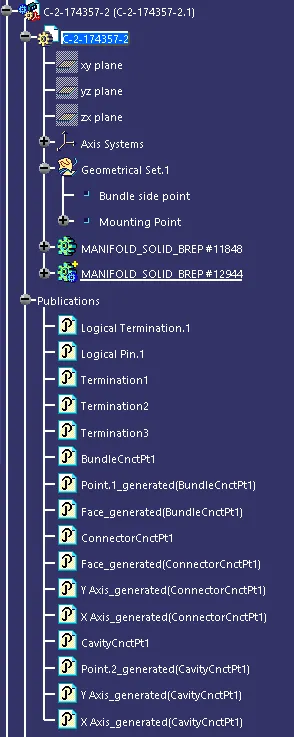

Connector Side :

Added(Converting the Mechanical properties as Electrical)

- Bundle Connecting point

- Connector Connecting Point

- Mounting or Cavity Connection Point

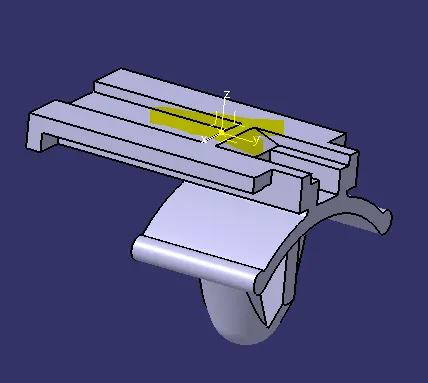

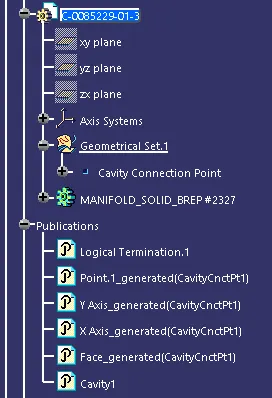

Mounting or Clip Side:

Added -

- Defined the mounting as the cavity.

Electrical Assembly Design Workbench:

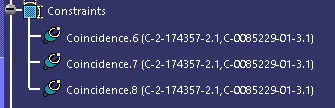

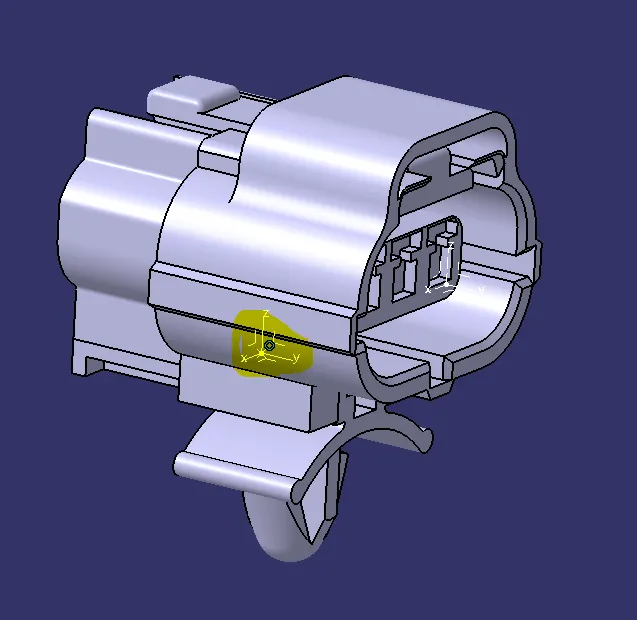

Connected the Electrical Devices
