Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

1. Deutsch DT06 – 08SA :

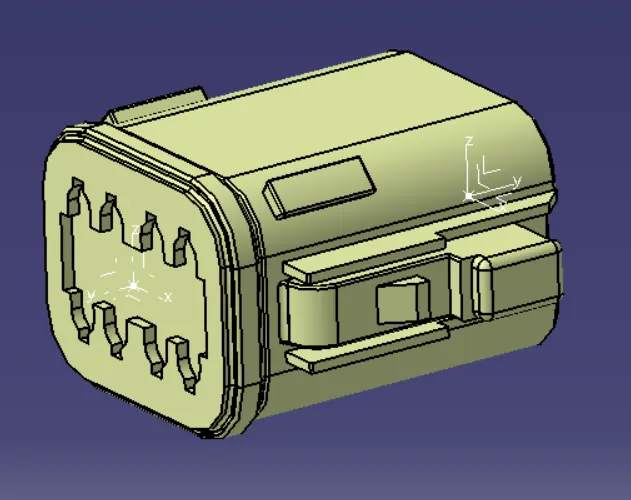

This is a connector which is using in Electrical Wirind Harness design. Bundle connection point, Connector Connection Point are required to define Connector.

2. Tyco 174357-2 :

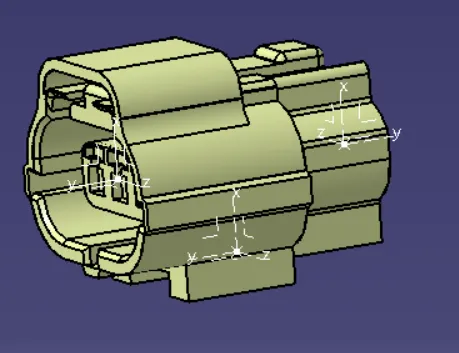

This is also 3 terminal connector used in Electrical system. As this connector having mounting clip cavity, Cavity connection point additionally need to define.

3. Tyco 85229-1

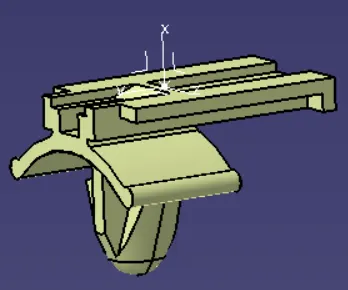

This is mounting clip used to mount connector.
