Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

All three components have been downloaded from TE connectivity

1. DT06-8SA

2. TYCO 174357-2

3. TYCO 84229-1

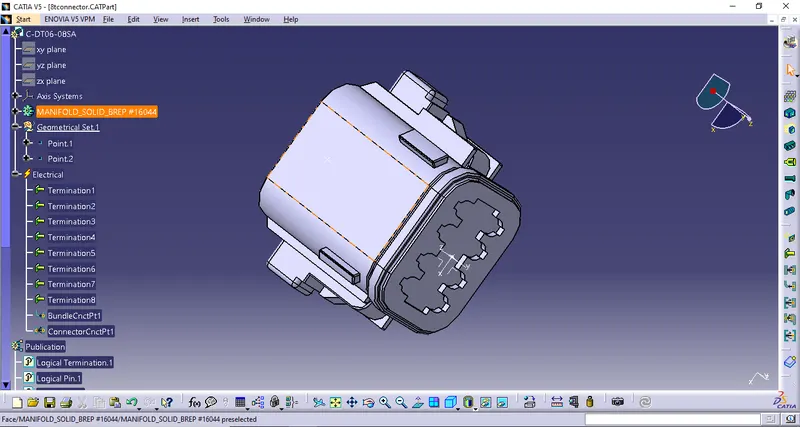

DT06-8SA

• Point has been defined in two entry points
• axis system is defined for the matting part
• it has been defined elerctrical as single inserted connector with terminal 8
• Bundle entry point has be defined
• connector connection point has been defined
• saved the part and stored the dervice in the standard catalogue.

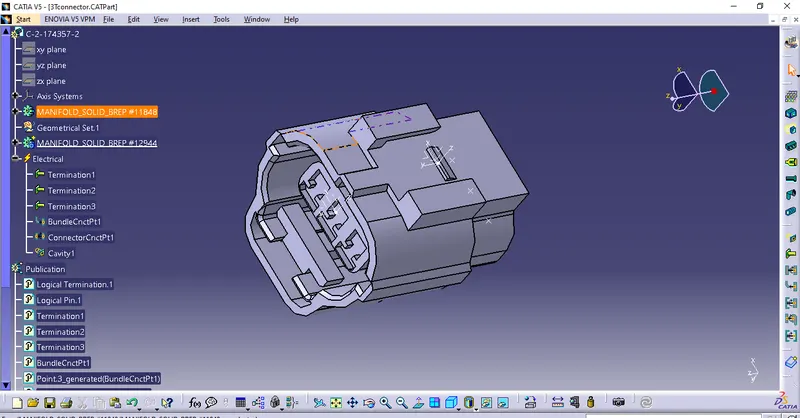

TYCO 174357-2

• Point has been defined in two entry points and one cavity point
• axis system is defined for the matting part for connector and cavity
• it has been defined electrical as single inserted connector with terminal 3
• Bundle entry point has be defined
• connector connection point has been defined
• cavity connection point is defined.
• saved the part and stored the dervice in the standard catalogue.

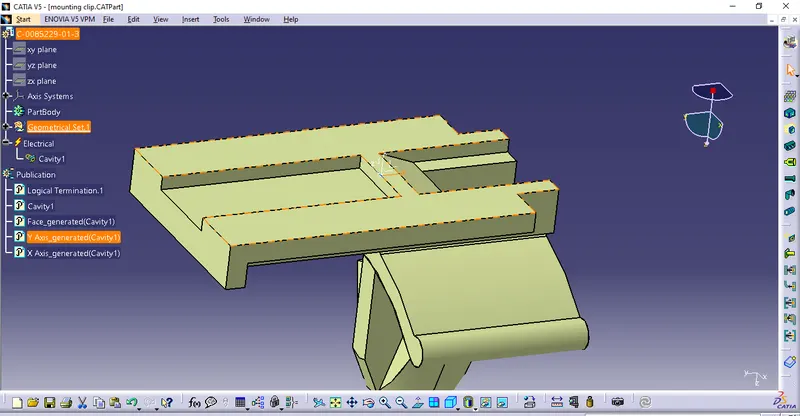

TYCO 84229-1

• Point has been defined on curve moidpoint
• axis system is defined for the cavity
• it has been defined elerctrical as mounting clip
• connector cavity point has been defined
• saved the part and stored the dervice in the standard catalogue.
