Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge
OBJECTIVE
Download following connectors & Connector clip cad data from given link & define it as Electrical Connector using Electrical Part design Workbench. Define all the necessary properties to Connectors & Clip.
GIVEN DATA
- Deutsch DT06 – 08SA ( https://www.te.com/usa-en/product-DT06-08SA.html)
- Tyco 174357-2 (https://www.te.com/usa-en/product-2-174357-2.html?source=header-match)
- Tyco 85229-1 – (https://www.te.com/usa-en/product-85229-1.html?q=85229&source=header)
INTRODUCTION
Electrical Harness Design
Defining an electrical harness requires two steps. You must first define the required
connectors and connection points. Once you have these connections, you are ready to begin
defining the geometric bundle that links the various connection points. These geometric
bundles will behave as a space reservation for the wiring they will contain. In this section
of the course, you will not be defining the actual wires within the geometric bundle, but
rather just the overall size and shape of the geometric bundle that will contain the wiring.
There are two workbenches involved in electrical harness design. They are the Electrical
Harness Assembly and the Electrical Harness Installation workbenches. The Electrical
Harness Assembly workbench will allow you to work with the geometric bundle as a whole.
The Electrical Harness Installation workbench will allow you to define the specific bundle
segment and route the bundle. The two workbenches are used simultaneously to define the
geometric bundle. Although the Electrical Harness Installation workbench is a separate
workbench, it is generally only accessed through the Electrical Harness Assembly
workbench when defining a specific bundle segment. This is a similar behavior to the
Sketcher and Part Design workbenches. You generally do not access the sketcher
workbench directly, but instead you access sketcher through the Part Design workbench. In
our case, the Electrical Harness Assembly workbench works in the product environment,
whereas the Electrical Harness Installation workbench works with a specific branchable
part in the product.

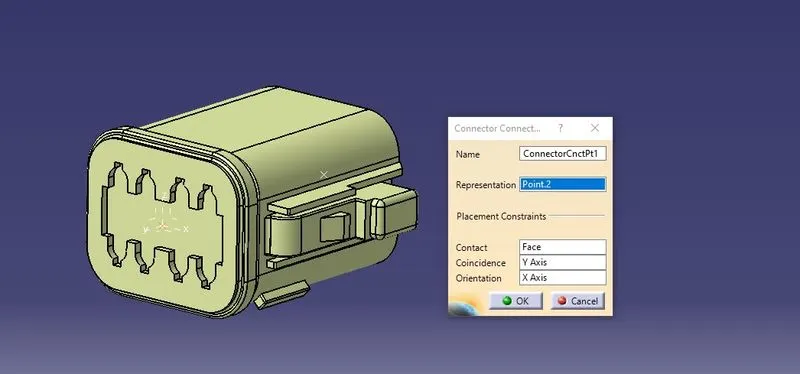

Deutsch DT06 – 08SA

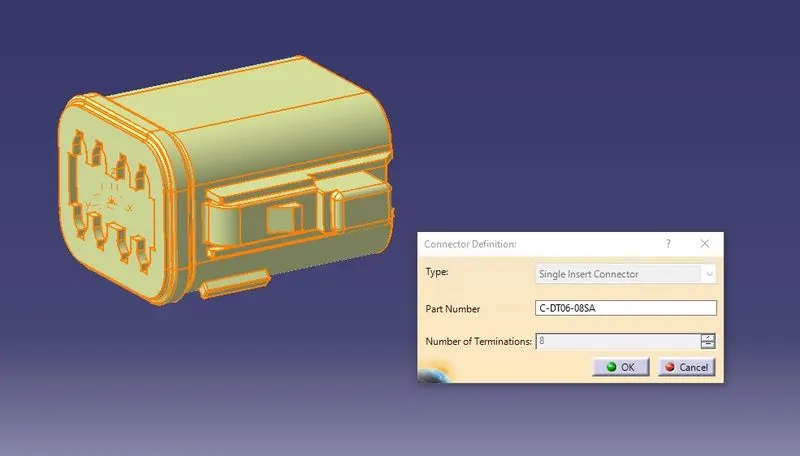

CONNECTOR DEFENITION
This connector has 8 terminals

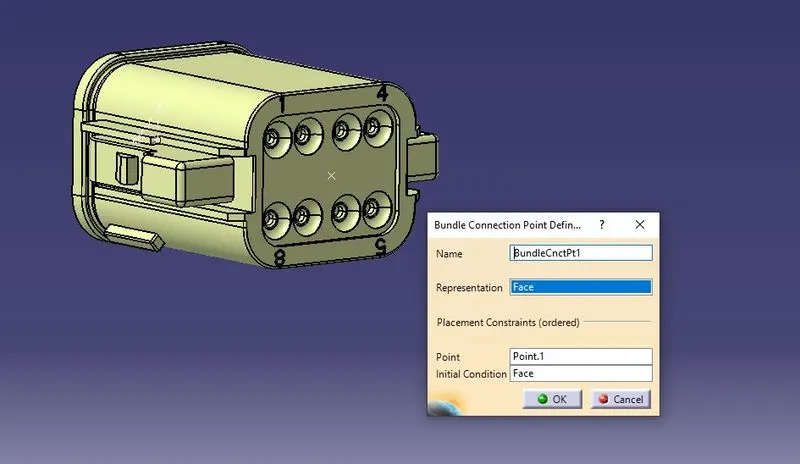

BUNDLE CONNECTION POINT DEFENITION
CONECTOR CONECTING POINT
Tyco 174357-2

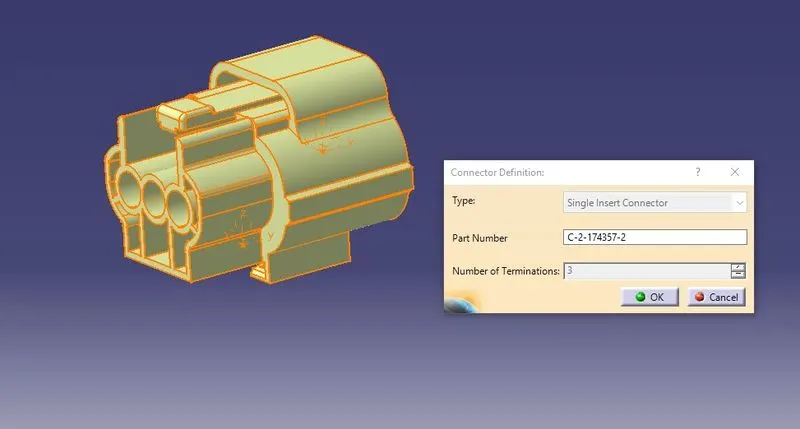

CONNECTOR DEFENITION
This has 3 teriminals

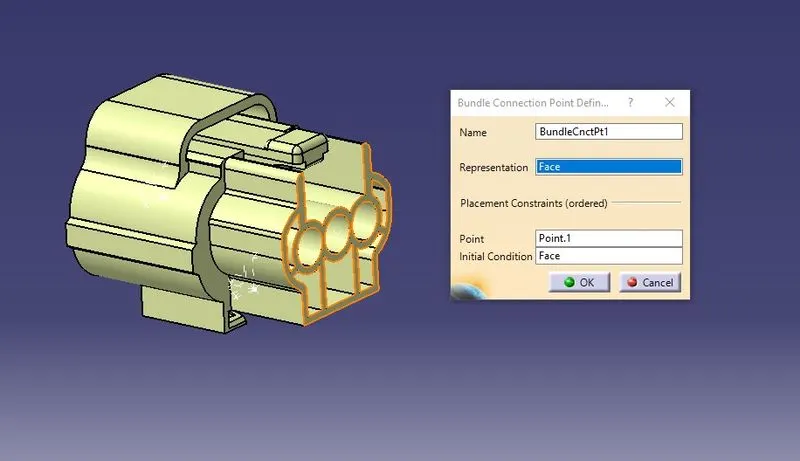

BUNDLE CONNECTION POINT DEFENITION

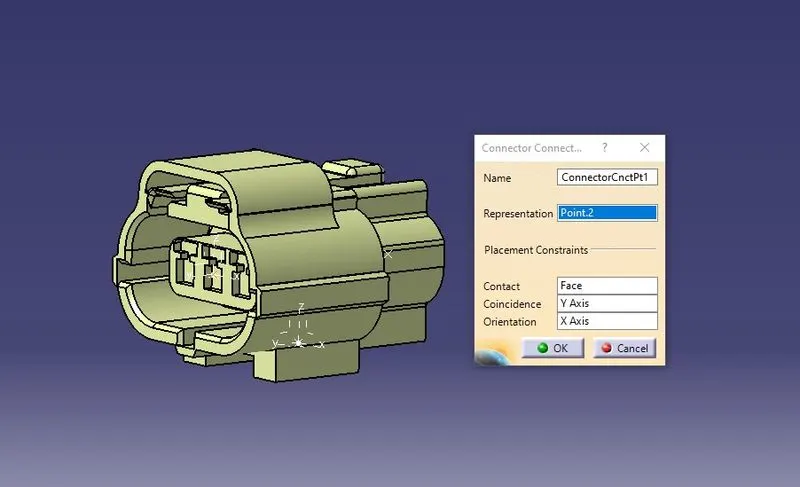

CONECTOR CONECTING POINT

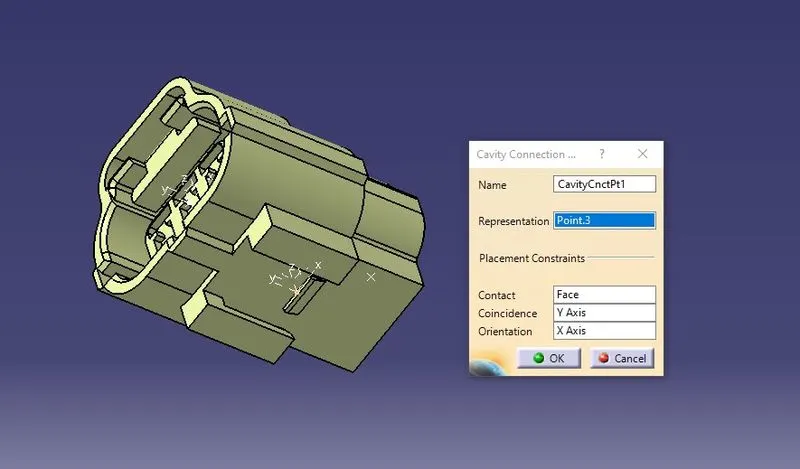

CAVITY CONNECTION POINT
Tyco 85229-1

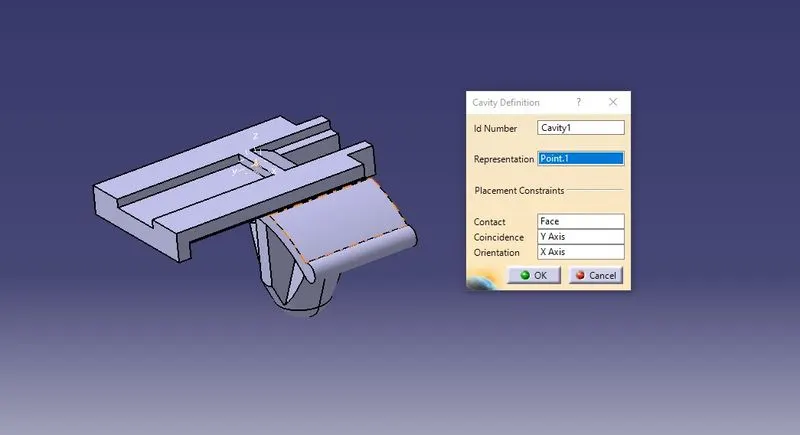

CAVITY CONNECTION

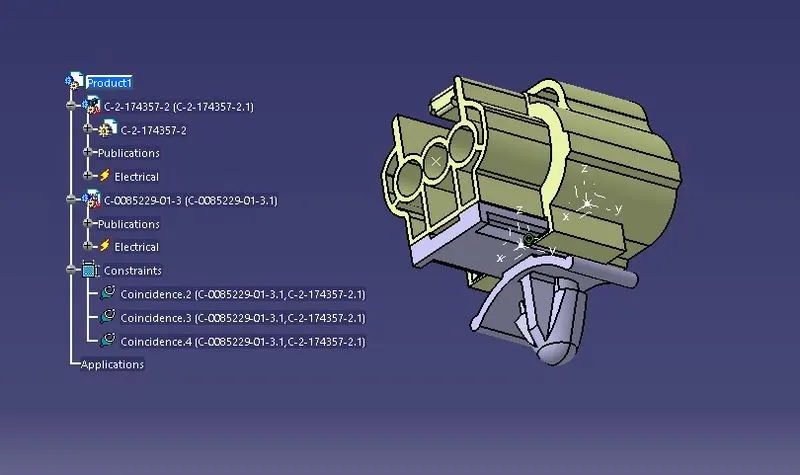

ASSEMBLY OF FEMALE CONNECTOR AND CAVITY CLIP
Here i hvae connected the frmale connector and cavity clip using CONNECT ELECTRICAL DEVICES
