Wiring harness design in CATIA V5 - 3D modeling Week 2 Challenge

Report:

In the first step .stp file is downloaded from the given link and extraced and stored o a cad file.

Later on Costumize the required software like Part Design, Electrical Part Design and Electrical Assembly.

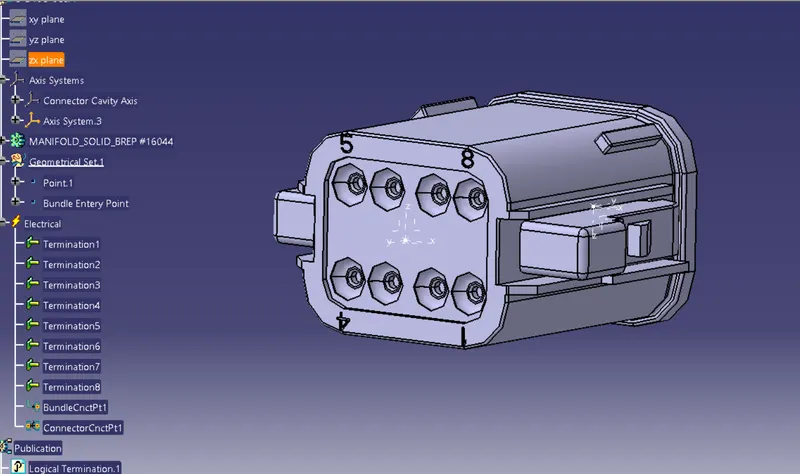

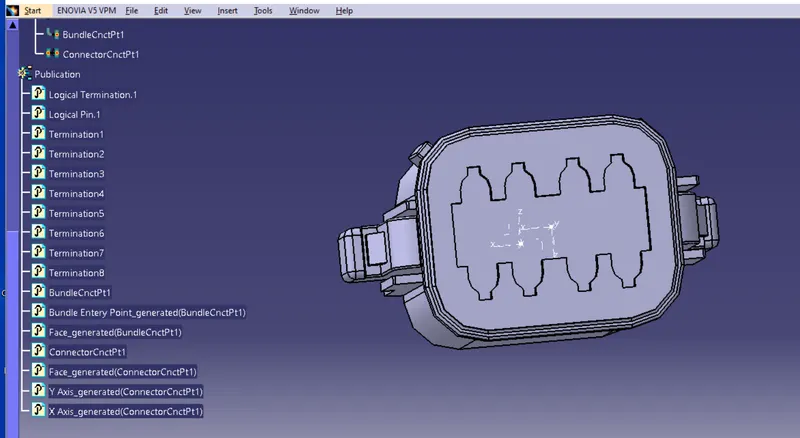

At first define a point at the center of Bunddle Entry point and mention the cordinate axis as such Y -axis towards the cavity and x axis to wards locking , similarly make point and axis on both sides of the connector.

Now need to define the electrical paramaters of the connector. Switch to Electrical Part design, go define connetors selecct the connector and mentions the number of terminals in the above case it was 8. Then save at the root disk.

Mention the bunddle entry point and connection cavity point. define the repersentative as respective point and face in the bunddle and conCavty pt and the Store to the device.

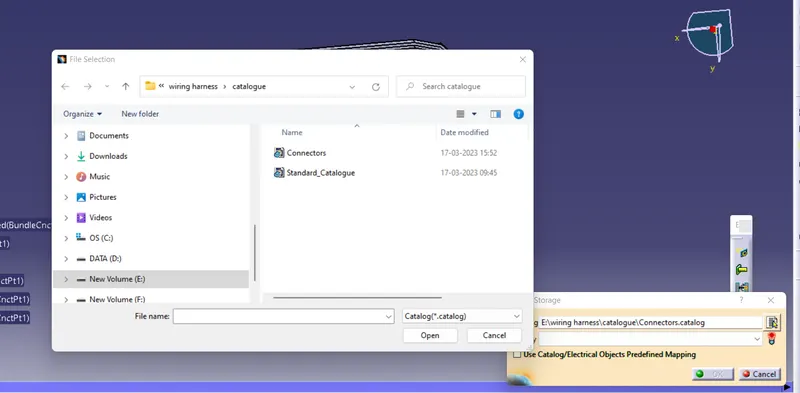

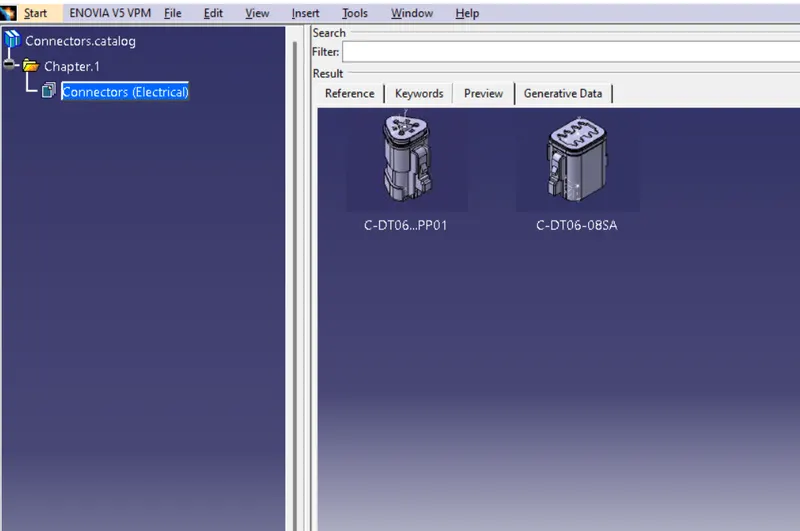

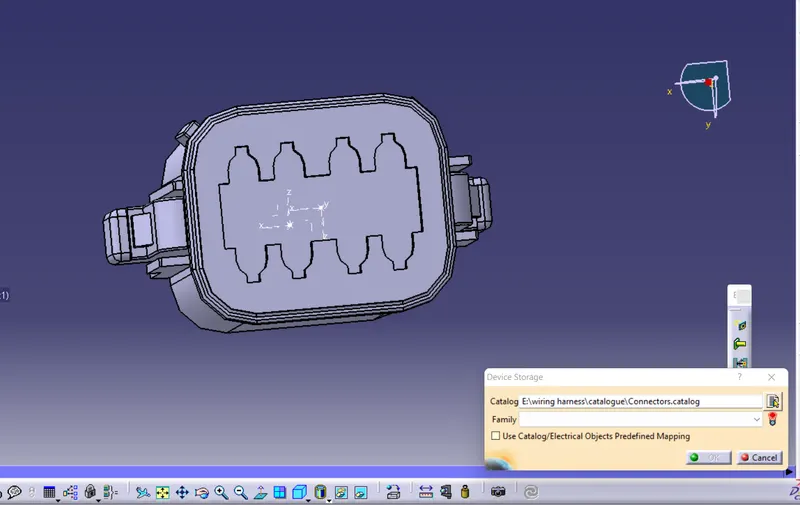

Select the Catalogue and store for other uses and cross verify it.

2. And 3.

Report:

Follow the same above process in order to define the electric properties of the above mentioned connectores.

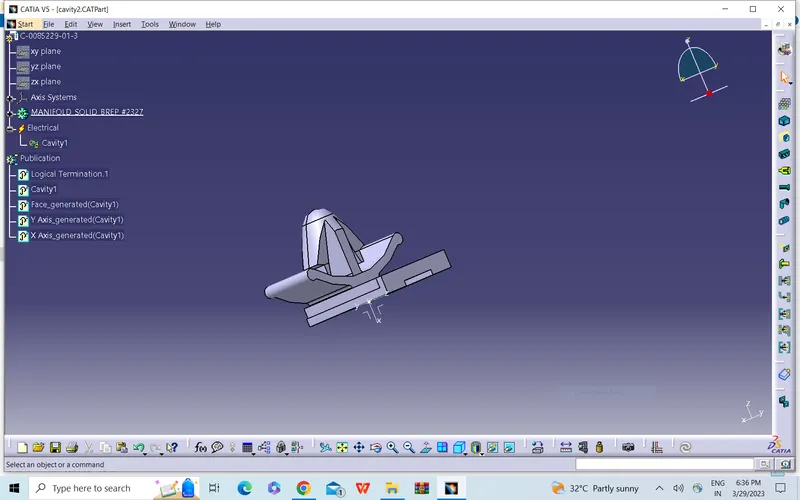

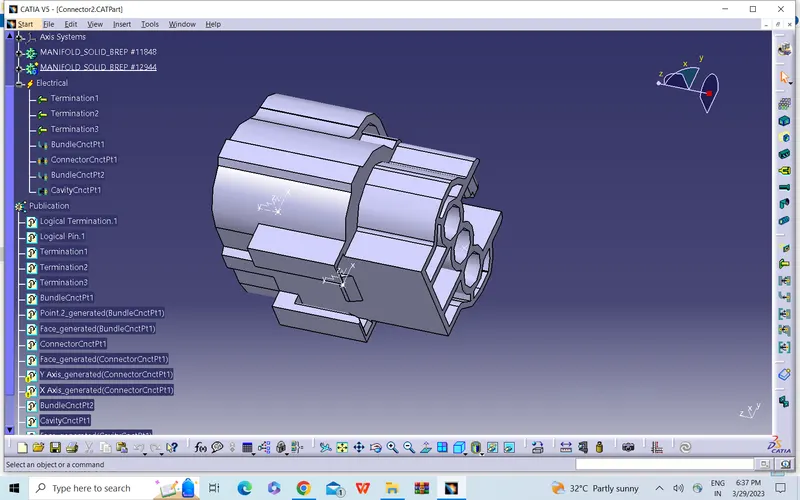

Make ConCvt pt and other cavity point. Define the axis the same orentation for both the connectore and the mounting part.

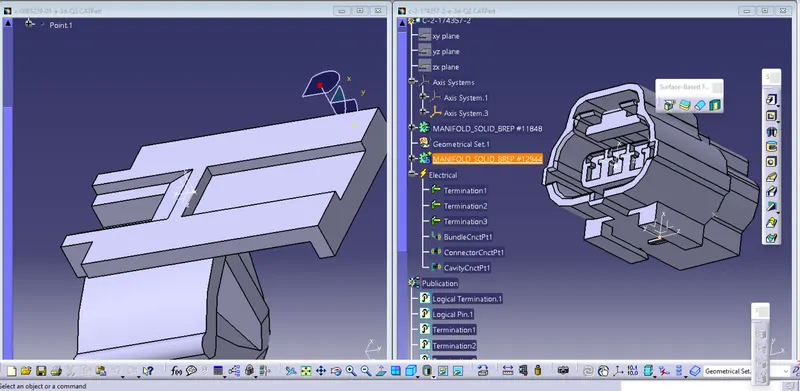

Here after copy and past both parts in new electric assembly.

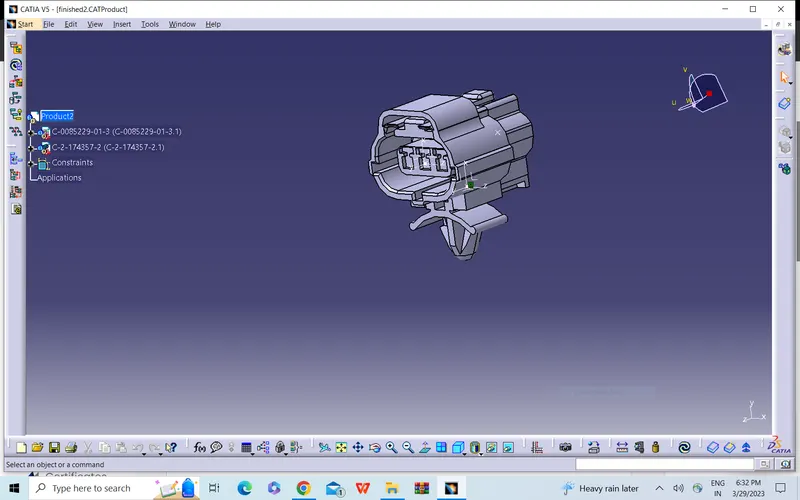

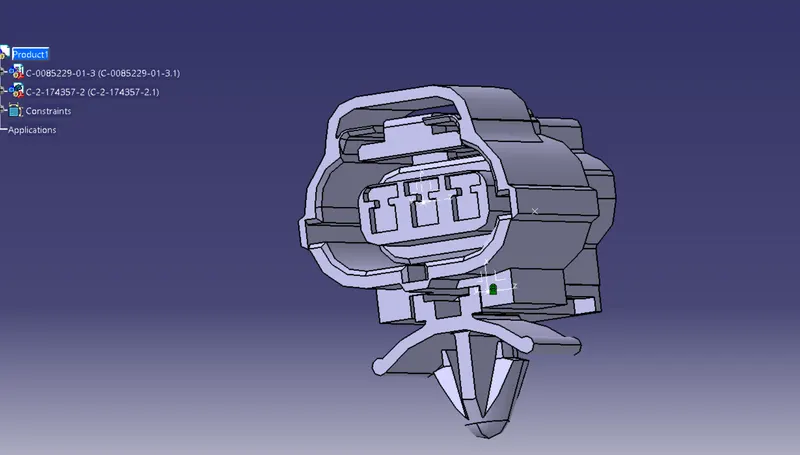

select the electric connector and slect the clip and move the curser on the other connector .It automatically shows the desired part to me oriented. The select the point we find both connector and clip are assembled.

Save the above product.

Properties of Connectors:

• TE Internal #: DT06-08SA
• TE Internal Description: PLG, 8P, GRY, N,
• Connector & Housing Type : Housing for Female Terminals
• Mating Pin Diameter : 1.59 mm [ .063 in ]
• Connector System : Wire-to-Wire
• Number of Positions : 8
• Centerline (Pitch) : 9.12 mm [ .359 in ]
